LG 78346 Parts List | Part Advantage

103C

3550JJ0006D LG Refrigerator Toe Kickplate Gri Backorder LGE 3550JJ0006D $13.43

View on Model

103E

5218JJ3001A LG Refrigerator Slide Rail Backorder LGE 5218JJ3001A $6.62

View on Model

104E

HOLDER ASSEMBLY,GASKET LGE 4931JJ3002A Contact Us For Availability

View on Model

105A

5251JA3003D LG Drain Tube Assembly In Stock LGE 5251JA3003D $10.52

View on Model

106B

4J00382C LG Washer Common Backorder LGE 4J00382C $6.62

View on Model

128A

4975JJ2002A LG Refrigerator Right Side Drawer Backorder LGE 4975JJ2002A $24.91

View on Model

128B

4975JJ2002B LG Refrigerator Left Side Drawer Backorder LGE 4975JJ2002B $24.91

View on Model

131A

5074JJ1055A LG Refrigerator Freezer Ice Bucke Backorder LGE 5074JJ1055A $103.57

View on Model

136A

Tray Assembly,Drawer LGE AJP73194902 Contact Us For Availability

View on Model

136B

Tray,Drawer LGE 3390JJ1090B Contact Us For Availability

View on Model

145C

GUIDE ASSEMBLY,RAIL--RIGHT LGE 4975JJ2028C Contact Us For Availability

View on Model

145F

GUIDE ASSEMBLY,RAIL---LEFT SIDE LGE 4975JJ2028D Contact Us For Availability

View on Model

158A

3550JJ1104A LG Refrigerator Lamp Cover Backorder LGE 3550JJ1104A $31.90

View on Model

158E

MCK30060901 LG Refrigerator Lamp Cover Backorder LGE MCK30060901 $31.90

View on Model

167B

Shelf,Glass LGE 4890JL1002N Contact Us For Availability

View on Model

212K

AEY74212501 LG Kit Assembly Backorder LGE AEY74212501 $19.31

View on Model

233C

ACQ67902601 LG Cover Assembly Front Backorder LGE ACQ67902601 $60.38

View on Model

233D

ACQ67902602 LG Front Cover Assembly Backorder LGE ACQ67902602 $24.91

View on Model

233E

Holder,Gasket (LEFT) LGE 4930JJ2028B Contact Us For Availability

View on Model

233F

Holder,Gasket (RIGHT) LGE 4930JJ2028A Contact Us For Availability

View on Model

233G

4430JJ2005B LG Refrigerator Left Side Door Cl Backorder LGE 4430JJ2005B $15.77

View on Model

233H

4430JJ2005A LG Refrigerator Left Side Door Cl Backorder LGE 4430JJ2005A $15.77

View on Model

243A

STOPPER,DOOR LGE 4620JJ3006D Contact Us For Availability

View on Model

243B

4620JJ2009A LG Refrigerator Door Stopper In Stock LGE 4620JJ2009A $6.62

View on Model

243B

MJB63029901 LG Refrigerator Door Hinge Stoppe In Stock LGE MJB63029901 $6.62

View on Model

249C

Connector Assembly LGE ACJ32471702 Contact Us For Availability

View on Model

249E

5218JA1010E LG Refrigerator Right Side Drawer In Stock LGE 5218JA1010E $133.22

View on Model

249F

5218JA1010F LG Refrigerator Left Side Drawer In Stock LGE 5218JA1010F $152.39

View on Model

249K

Connector Assembly LGE ACJ32308803 Contact Us For Availability

View on Model

249L

Cover,Connector LGE MCK30136701 Contact Us For Availability

View on Model

249M

Cover,Connector LGE MCK30136702 Contact Us For Availability

View on Model

250A

4270JJ3001A LG Refrigerator Bar Backorder LGE 4270JJ3001A $24.91

View on Model

250B

4403JJ3001A LG Refrigerator Drawer Glide Gear Backorder LGE 4403JJ3001A $19.31

View on Model

262A

4930JA3093A LG Bracket Holder Backorder LGE 4930JA3093A $6.62

View on Model

262D

4004JA3002A LG Refrigerator Ice Maker Water S Backorder LGE 4004JA3002A $15.77

View on Model

262E

4350JA3005B LG Refrigerator Snap Retaining Ri In Stock LGE 4350JA3005B $6.62

View on Model

280A

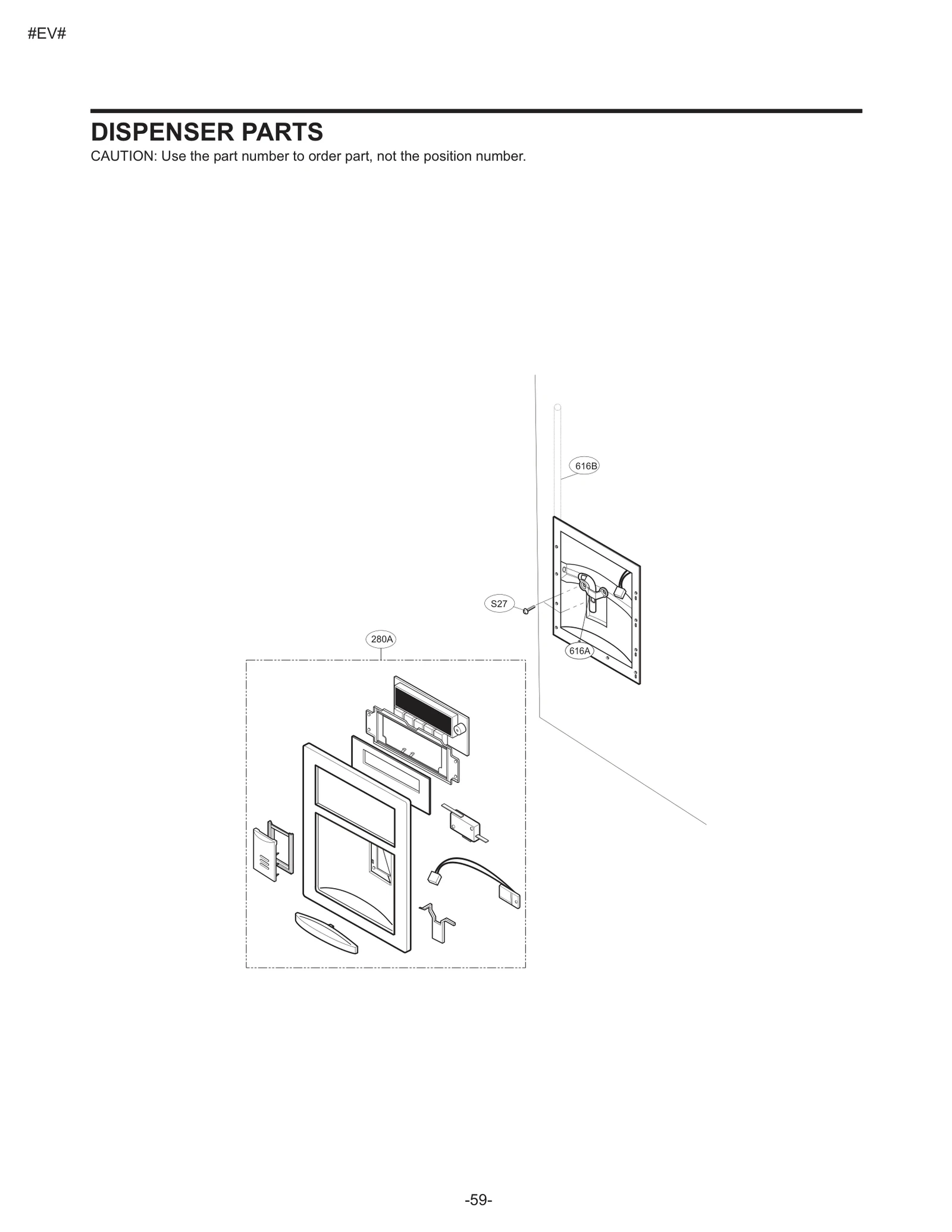

Cover Assembly,Dispenser LGE ACQ54093306 Contact Us For Availability

View on Model

281D

COVER,HINGE LGE 3550JJ2043A Contact Us For Availability

View on Model

281G

COVER,HINGE LGE 3550JJ2044A Contact Us For Availability

View on Model

281H

Hinge Assembly,Lower LGE 4775JJ2011B Contact Us For Availability

View on Model

282E

ACQ36833807 LG Hinge Cover Assembly Backorder LGE ACQ36833807 $86.64

View on Model

286A

4984JJ3003A LG Refrigerator Door Hinge Bushin In Stock LGE 4984JJ3003A $6.62

View on Model

301A

5421JJ1001B LG Refrigerator Evaporator Assemb Backorder LGE 5421JJ1001B $375.67

View on Model

304A

3551JJ2008B LG Refrigerator Cover Assembly Backorder LGE 3551JJ2008B $133.22

View on Model

305B

4580JJ3001A LG Refrigerator Tray Roller Backorder LGE 4580JJ3001A $19.31

View on Model

305C

4J04238A LG Common Pin Backorder LGE 4J04238A $6.62

View on Model

308A

6749C-0014E LG Refrigerator Compressor Start In Stock LGE 6749C-0014E $24.91

View on Model

309A

6750C-0005P LG Refrigerator Compressor Overlo In Stock LGE 6750C-0005P $24.91

View on Model

310A

3550JA2042C LG Refrigerator PTC Cover Backorder LGE 3550JA2042C $10.52

View on Model

313A

RUBBER,SEAT LGE 5040JJ3007A Contact Us For Availability

View on Model

317A

ADH73150210 LG Dryer Assembly In Stock LGE ADH73150210 $72.46

View on Model

319A

3390JJ0004A LG Drip Tray Backorder LGE 3390JJ0004A $69.11

View on Model

319C

MEA41997401 LG Fan Guide Backorder LGE MEA41997401 $24.91

View on Model

319D

AEC72997401 LG Fan Assembly Guide Backorder LGE AEC72997401 $86.64

View on Model

327A

5006JA3049A LG Drain Tube Cap Backorder LGE 5006JA3049A $6.62

View on Model

329A

5901JJ1005A LG Fan Assembly Backorder LGE 5901JJ1005A $19.31

View on Model

329C

ADP36665702 LG Fan Assembly Backorder LGE ADP36665702 $24.91

View on Model

401A

6615JB2005C LG Refrigerator Defrost Control A Backorder LGE 6615JB2005C $39.18

View on Model

402A

6600JB3007B LG Refrigerator Door Switch Push Backorder LGE 6600JB3007B $19.31

View on Model

404A

4681JB1029H LG Refrigerator Fan Motor Assembl In Stock LGE 4681JB1029H $85.78

View on Model

405C

5040JA2009B LG Refrigerator Damper Support Mo Backorder LGE 5040JA2009B $6.62

View on Model

405F

5040JA2004B LG Refrigerator Motor Rubber Grom Backorder LGE 5040JA2004B $6.62

View on Model

405G

BRACKET ASSEMBLY,MOTOR LGE 4811JJ2002H Contact Us For Availability

View on Model

406B

6600JB1010A LG Refrigerator Push Button Door In Stock LGE 6600JB1010A $10.36

View on Model

409D

3034JJ1002B LG Refrigerator Reflector Backorder LGE 3034JJ1002B $60.67

View on Model

410A

HARNESS LGE 6621JK2003B Contact Us For Availability

View on Model

410A

Socket,Lamp LGE EAG62831801 Contact Us For Availability

View on Model

410C

Connector,Tilt LGE 4932JJ2006C Contact Us For Availability

View on Model

418A

5300JB1100J LG Refrigerator Defrost Heater El Backorder LGE 5300JB1100J $103.57

View on Model

420A

EAU61644105 LG Refrigerator DC Motor Backorder LGE EAU61644105 $152.39

View on Model

501A

6871JK1011G LG Refrigerator Main Control PCB Backorder LGE 6871JK1011G $352.16

View on Model

503D

3110JJ1021A LG Refrigerator Case Display Backorder LGE 3110JJ1021A $69.11

View on Model

503F

ABQ33905306 LG Refrigerator Display Case Asse Backorder LGE ABQ33905306 $177.09

View on Model

503J

ABQ73201702 LG Display Assembly Case Backorder LGE ABQ73201702 $352.16

View on Model

503J

Case Assembly,Display LGE ABQ73201708 Contact Us For Availability

View on Model

600A

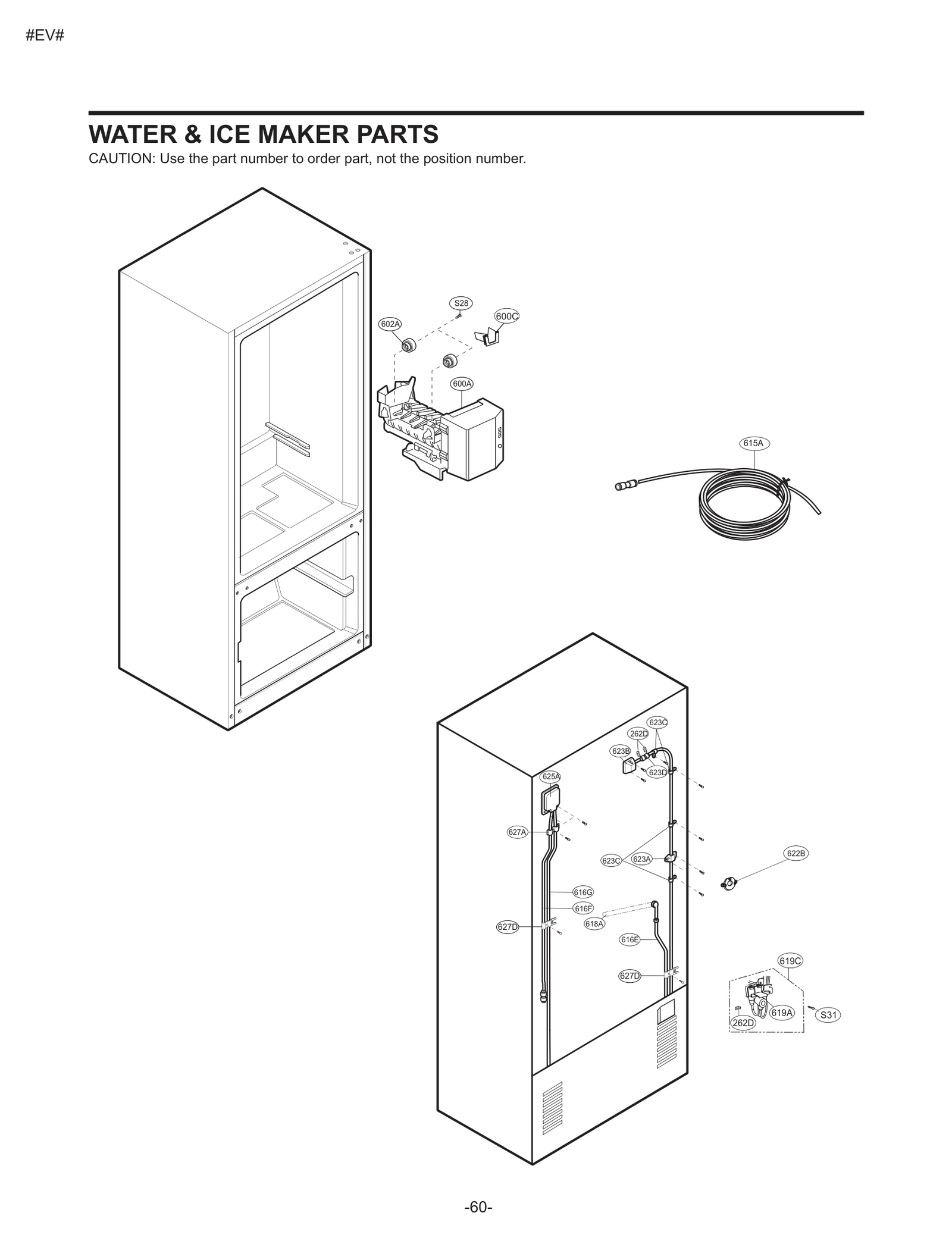

ICE MAKER ASSEMBLY,KIT LGE 5989JA0002Q Contact Us For Availability

View on Model

600C

MEA32865501 LG Tube Guide Backorder LGE MEA32865501 $15.77

View on Model

602A

AEJ73579702 LG Refrigerator Bracket Holder As Backorder LGE AEJ73579702 $6.62

View on Model

610A

COVER,SENSOR LGE 3550JJ2020A Contact Us For Availability

View on Model

611A

FILTER(MECH),HEAD LGE 5230JA2003A Contact Us For Availability

View on Model

611B

Filter Assembly,Water LGE 5231JA2006E Contact Us For Availability

View on Model

611E

Filter Assembly,Head LGE 5231JA2005E Contact Us For Availability

View on Model

615A

Tank Assembly,Water LGE 4839JJ2002B Contact Us For Availability

View on Model

616A

5210JA2012F LG Injector Tube Backorder LGE 5210JA2012F $5.75

View on Model

616B

5210JA3005U LG Plastic Tube Backorder LGE 5210JA3005U $39.18

View on Model

616E

5211JA2003B LG Refrigerator Door Injection Fi Backorder LGE 5211JA2003B $46.70

View on Model

616F

Tube Assembly,Inject LGE AJR72929602 Contact Us For Availability

View on Model

616G

5210JA3005P LG Refrigerator Water Supply Tubi Backorder LGE 5210JA3005P $46.70

View on Model

618A

5210JJ3006B LG Refrigerator Inject Tube Backorder LGE 5210JJ3006B $19.31

View on Model

619A

5220JA2013A LG Water Valve Backorder LGE 5220JA2013A $27.80

View on Model

619C

Valve Assembly,Water LGE AJU55759401 Contact Us For Availability

View on Model

622B

Supporter,Tube Guide LGE MJH36429401 Contact Us For Availability

View on Model

623A

CAP,COVER LGE 5006JJ2004A Contact Us For Availability

View on Model

623B

5006JJ2009A LG Cap Cover Backorder LGE 5006JJ2009A $6.62

View on Model

623B

MBL67039201 LG Cap Cover Backorder LGE MBL67039201 $6.62

View on Model

623C

4770JA3001A LG Refrigerator Band Backorder LGE 4770JA3001A $6.62

View on Model

623D

4932JA3009C LG Connector Tube Backorder LGE 4932JA3009C $15.77

View on Model

625A

COVER,TUBE LGE 3550JJ2034A Contact Us For Availability

View on Model

627A

4930JA3054A LG Pipe Holder Backorder LGE 4930JA3054A $6.62

View on Model

627B

4930JA3091A LG Refrigerator Water Line Connec Backorder LGE 4930JA3091A $6.62

View on Model

627D

MEG42758601 LG Pipe Holder Backorder LGE MEG42758601 $6.62

View on Model

B01

1STZJA3004C LG Refrigerator Customized Screw Backorder LGE 1STZJA3004C $6.62

View on Model

B04

1STZJA3001B LG Customized Screw Backorder LGE 1STZJA3001B $6.62

View on Model

LE

Label,Energy LGE MEZ56815802 Contact Us For Availability

View on Model

S24

1SZZJA3011B LG Refrigerator Customized Drawin In Stock LGE 1SZZJA3011B $6.62

View on Model

S27

4J01424C LG Screw Customized Backorder LGE 4J01424C $6.62

View on Model

S28

1SZZJJ3005E LG Screw Customized Backorder LGE 1SZZJJ3005E $6.62

View on Model

S31

4000W4A003A LG Refrigerator Customized Screw Backorder LGE 4000W4A003A $6.11

View on Model

S38

4J00415D LG Refrigerator Customized Screw Backorder LGE 4J00415D $6.62

View on Model
