Model Electrolux 77-8957-08-05 RANGE – Common Parts & Diagrams
02 - COOKTOP PARTS
03 - LOWER OVEN DOOR PARTS

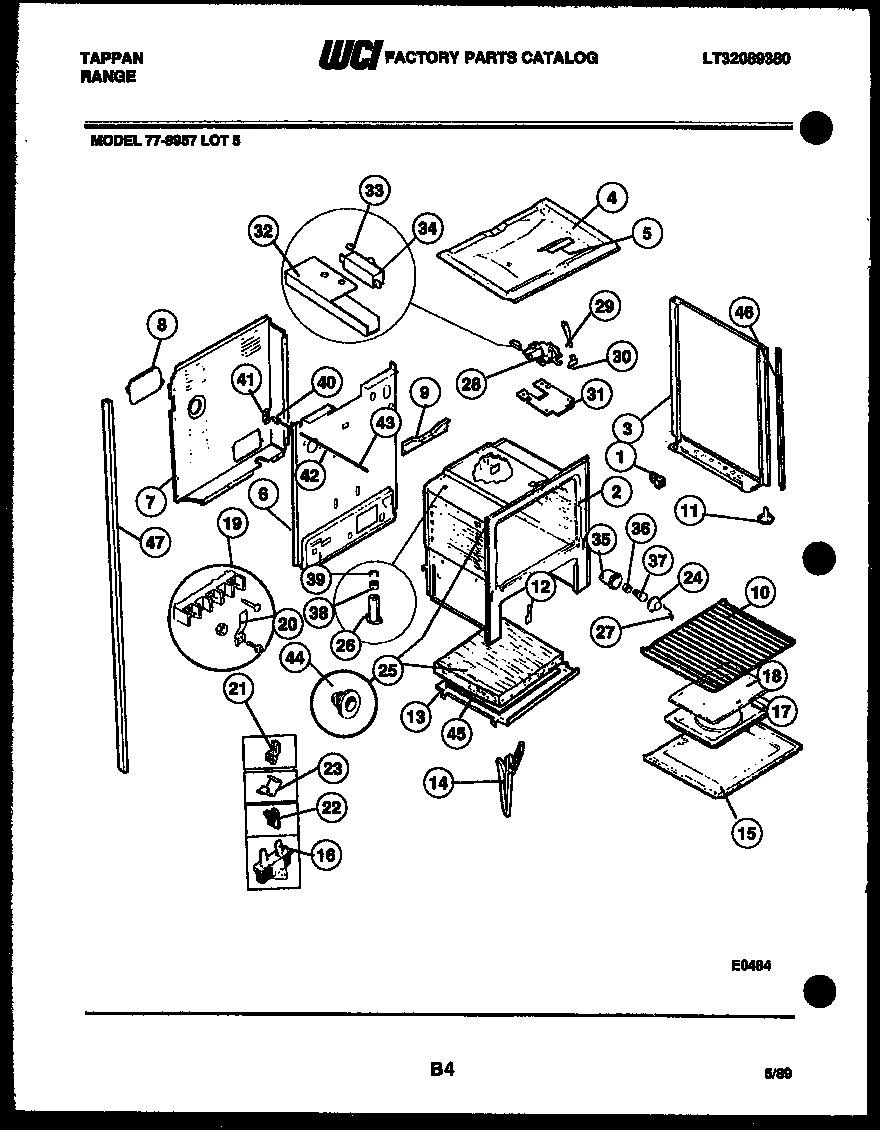

04 - LOWER BODY PARTS

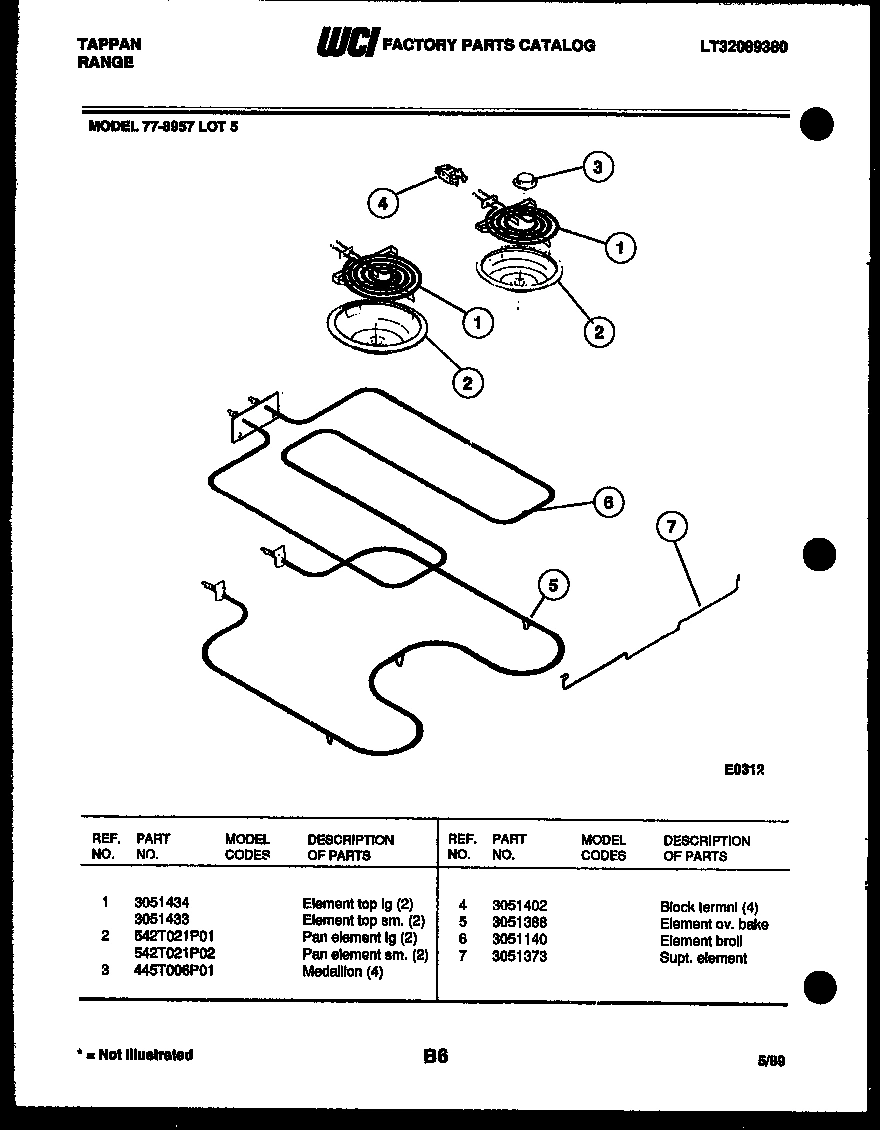

05 - BROILER PARTS

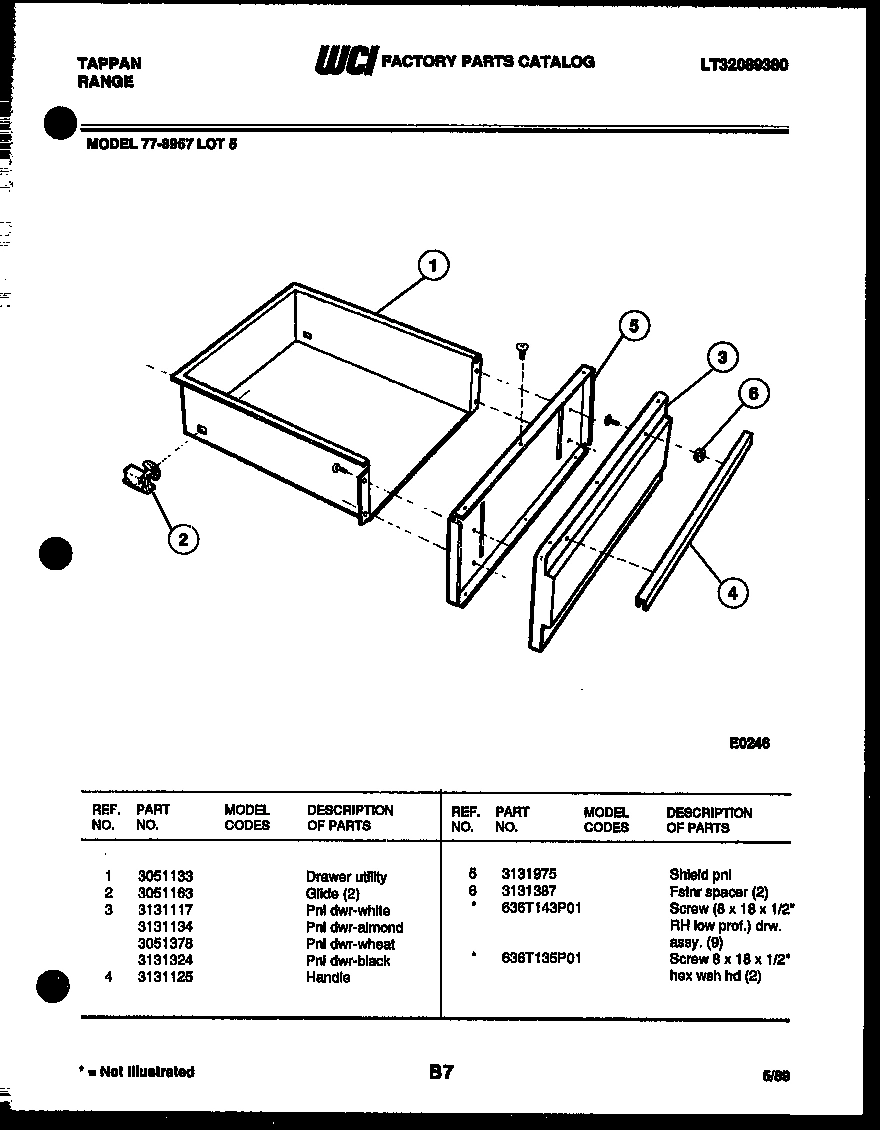

06 - DRAWER PARTS

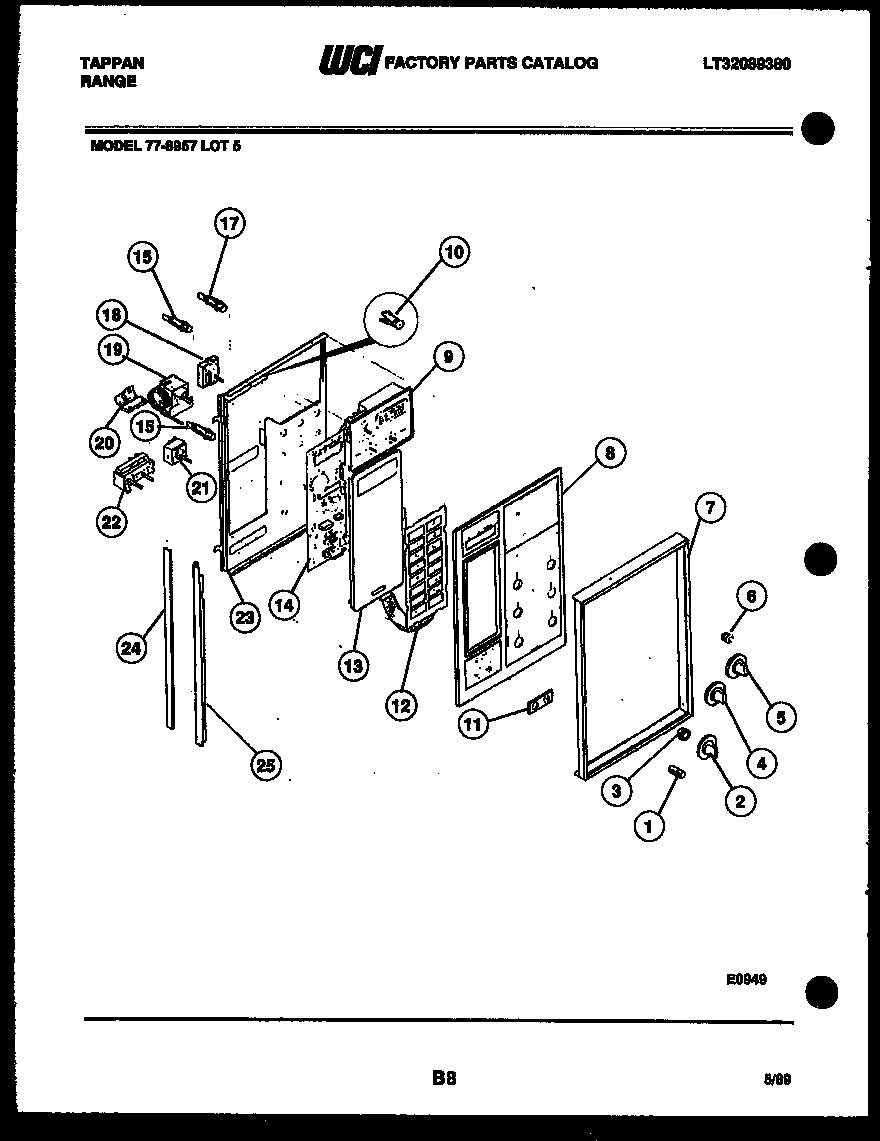

07 - CONTROL PANEL

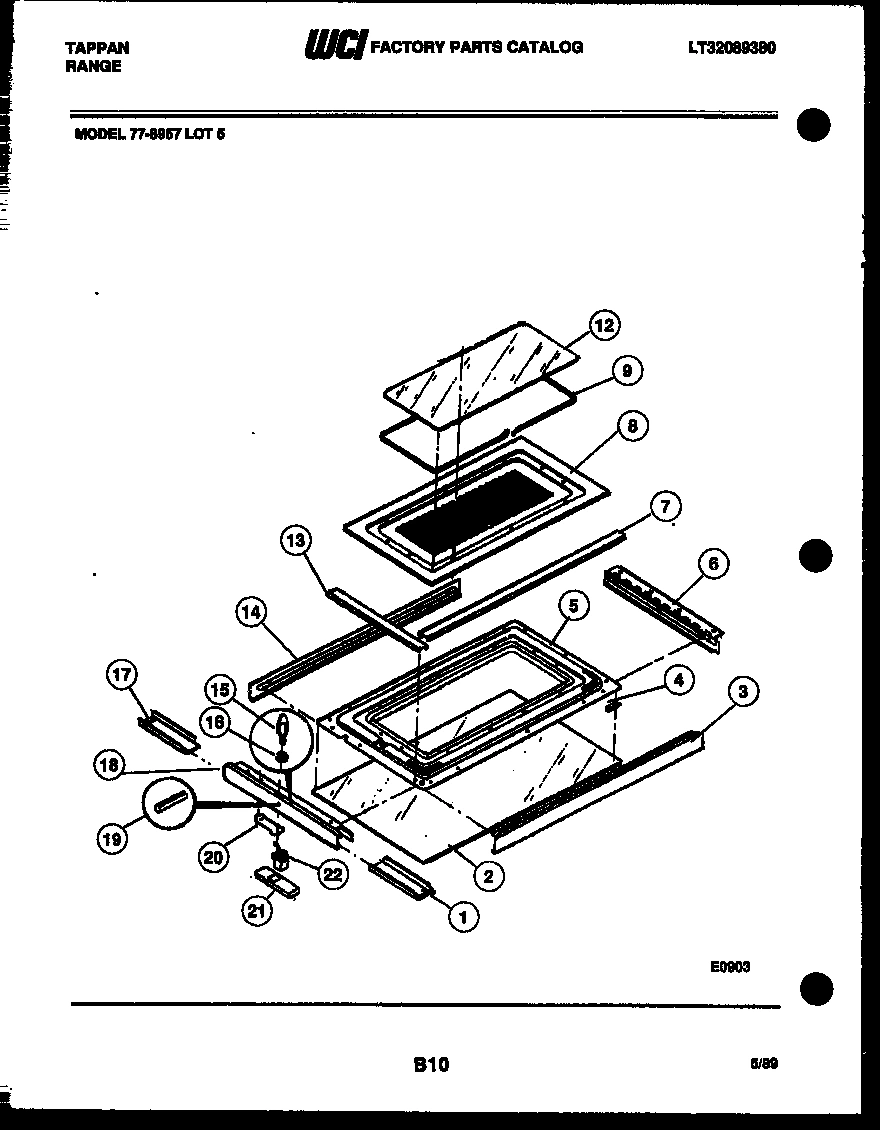

08 - TOP DOOR PARTS

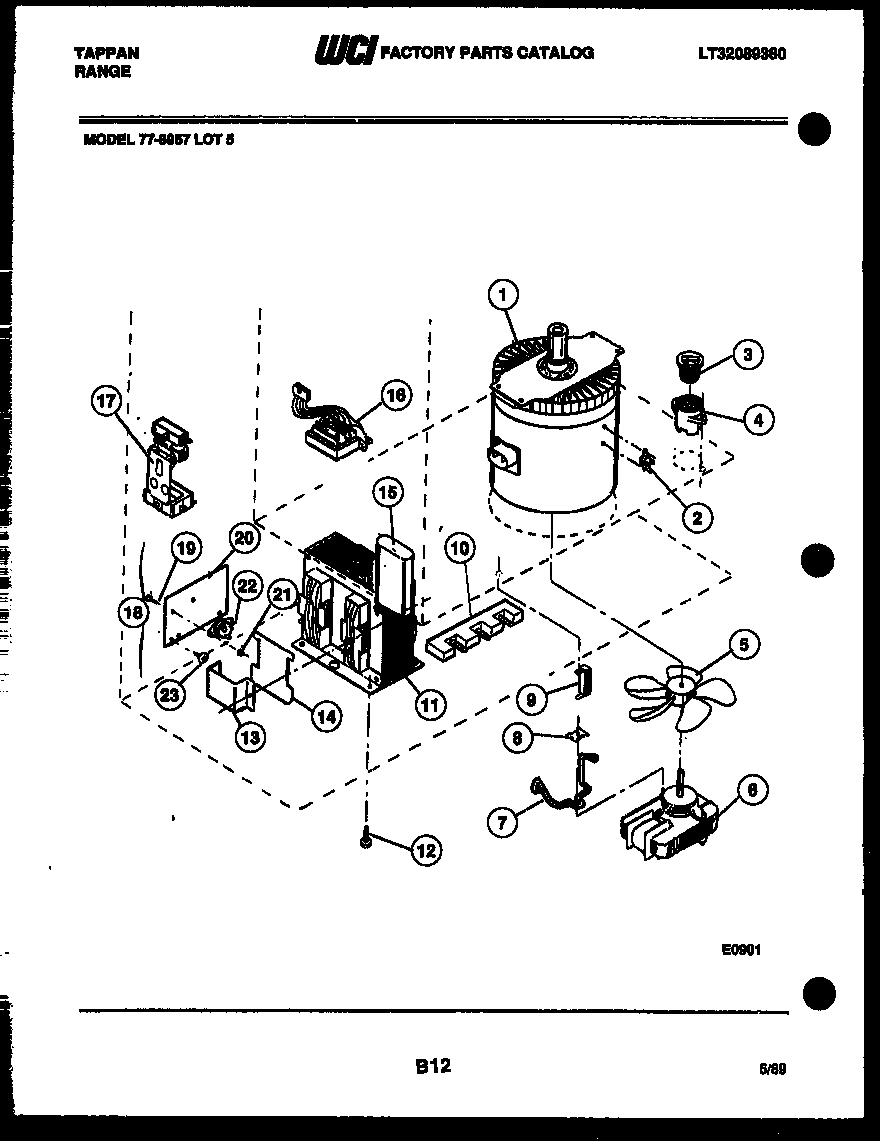

09 - POWER CONTROL

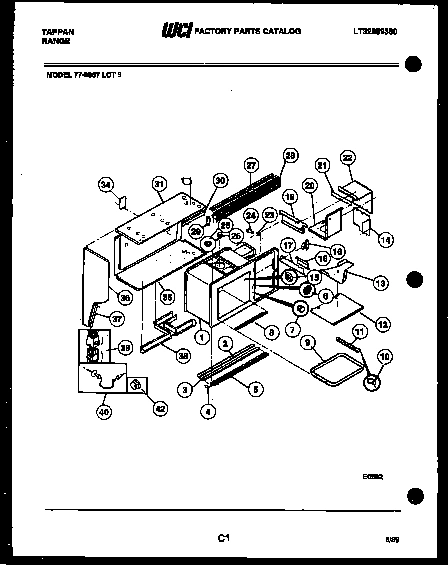

10 - UPPER BODY PARTS
11 - SPLASHER CONTROL
Common parts from model Electrolux 77-8957-08-05 RANGE
*23929
INSULATION, WRAP WCI 3200833 Contact Us For Availability
*23929
SHIELD HEAT LWR WCI 3200834 Contact Us For Availability
*23929
FASTENER-EDGE MT (2) WCI 3200846 Contact Us For Availability
*23929
BRKT-RANGE CABLE MTG WCI 3204525 Contact Us For Availability
*23929
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
*23931
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 636T135P01 Contact Us For Availability
*23935
SPACER CONTROL MTG. PNL (2) WCI 665T175P01 Contact Us For Availability
*23939
SCREW DOOR ASSY (22) WCI 636T046P02 Contact Us For Availability
*23939
HANDLE ASSY, COMPL W/ITEM 21 & 22 WCI 296T095S05 Contact Us For Availability
*23942
HARNESS DIODE ASSY. WCI 299T405S203 Contact Us For Availability
*23942
HARNESS MAIN WCI 3091205 Contact Us For Availability
*23943
WCI 3091206 WCI 3091206 Contact Us For Availability
*23943
SCREW TERM BLK. MT. (2) WCI 636T069P02 Contact Us For Availability
*23949
FASTENER WCI 241T014P01 Contact Us For Availability
*23949
LABEL COOK GUIDE WCI 560T786P01 Contact Us For Availability
*23950
WCI 241T017P136 WCI 241T017P136 Contact Us For Availability
*23950
FASTNR WIRE CLIP WCI 241T017P222 Contact Us For Availability
*23950
PLUG BTTN RACK GLIDES (8) WCI 557T028P01 Contact Us For Availability
*23951
FASTNR PURSELOCK WCI 241T017P154 Contact Us For Availability
*23951
FASTNR PURSELOCK WCI 241T017P195 Contact Us For Availability
*23951
WCI 331T117P01 WCI 331T117P01 Contact Us For Availability
*23951
WCI 636P090P34 WCI 636P090P34 Contact Us For Availability
1
BRKT GLASS (2) WCI 3131366 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 3051736 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
BUTTON PUSH ON-OFF (2) WCI 106T024P06 Contact Us For Availability
1
INSERT DR BOTTOM WCI 322T016P04 Contact Us For Availability
1
WCI 423T016P02 WCI 423T016P02 Contact Us For Availability
1
WCI 3131583 WCI 3131583 Contact Us For Availability
1A
NUT HEX 5 MILLIM (NON-ILLUSTRATED) WCI 479T069P31 Contact Us For Availability
2
WCI 3051148 WCI 3051148 Contact Us For Availability
2
KNOB CONTROL INF. SW. (4) WCI 3091393 Contact Us For Availability
2
GLASS OUTER DOOR WCI 3091382 Contact Us For Availability
2
SWITCH THERMO CUTOUT MAG. WCI 115T695P08 Contact Us For Availability
2
WCI 636T013P03 WCI 636T013P03 Contact Us For Availability
2
REFLECTER WORK LAMP WCI 3131586 Contact Us For Availability
2A
SCREW THERMO CUTOUT SW (NON-ILLUSTRATED) WCI 636T074P10 Contact Us For Availability
3
BULB-FLUOR WCI 3131275 Contact Us For Availability
3
WCI 3131321 WCI 3131321 Contact Us For Availability
3
PNL BODYSIDE LH-BLACK WCI 3201000 Contact Us For Availability
3
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
3
PNL DWR-BLACK WCI 3131324 Contact Us For Availability
3
BUSHING C/P GLASS WCI 102T019P01 Contact Us For Availability
3
EXTRUSION BTM. WCI 233T027P02 Contact Us For Availability
3
WCI 262T010P01 WCI 262T010P01 Contact Us For Availability
3
COVER-MICRO SEAL (2) WCI 3200597 Contact Us For Availability
3A
PNL BODYSIDE RH-BLACK WCI 3201001 Contact Us For Availability
4
PNL MANIFOLD WCI 3051279 Contact Us For Availability
4
WCI 3131132 WCI 3131132 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
KNOB THERMOSTAT WCI 3051442 Contact Us For Availability
4
SPACER 3/4 X 3/4 X 4`` (4) FOAM WCI 665T165P01 Contact Us For Availability
4
WCI 664T003P01 WCI 664T003P01 Contact Us For Availability
4
CAP END LWR TRIM (2) WCI 123T082P01 Contact Us For Availability
4
INSUL FLUOR LITE RECEPT (2) WCI 3051732 Contact Us For Availability
5
WCI 3051354 WCI 3051354 Contact Us For Availability
5
WCI 3131256 WCI 3131256 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
ELEMENT OV. BAKE WCI 3051388 Contact Us For Availability
5
SHIELD-PNL WCI 3131975 Contact Us For Availability
5
KNOB SELECT. SW. WCI 3091392 Contact Us For Availability
5
WCI 260T002P01-18 WCI 260T002P01-18 Contact Us For Availability
5
FAN BLADE TRANSFORMER WCI 115T239P01 Contact Us For Availability
5
TRIM VENT BTM WCI 740T408P03 Contact Us For Availability
5
RECEPT FLUOR LITE (2) WCI 597T047P01 Contact Us For Availability
5A
WCI 3051355 WCI 3051355 Contact Us For Availability
5A
SCREW BTM TRIM MTG (3) (NON-ILLUSTRATED) WCI 636T090P54 Contact Us For Availability
6
LINER WCI 3131393 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
6
KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability
6
EXTRUSION HNG MTG ASSY. WCI 233T026S13 Contact Us For Availability
6
MOTOR FAN WCI 115T463P03 Contact Us For Availability
6
MEDALLION DR STRIKE WCI 445T004P01 Contact Us For Availability
6
WCI 3051465 WCI 3051465 Contact Us For Availability
7
SHIELD-LWR. WALL WCI 3203406 Contact Us For Availability
7
TRIM CNTRL PNL WCI 740T406P04 Contact Us For Availability
7
SEAL DR TOP & BTM WCI 643T014P01 Contact Us For Availability
7
ROD FAN MTR SUPT WCI 618T048P01 Contact Us For Availability
7
GROMMET DR STRIKE WCI 287T003P08 Contact Us For Availability
7
WCI 046T003P03 WCI 046T003P03 Contact Us For Availability
8
WCI 3051230 WCI 3051230 Contact Us For Availability
8
CVR.-LWR. ACCESS WCI 3203405 Contact Us For Availability
8
GLASS CONTRL PNL ASSY. WCI 3091397 Contact Us For Availability
8
PNL-DOOR SEAL WCI 3200605 Contact Us For Availability
8
WCI 136T309F01 WCI 136T309F01 Contact Us For Availability
8
TRIM FRONT FRAME WCI 3200630 Contact Us For Availability
8
GUSSET MWV SUPT LH WCI 3131653 Contact Us For Availability
8A
GUSSET MWV SUPT RH WCI 3131654 Contact Us For Availability
9
SUPT. GLASS (2) WCI 3131323 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
WCI 3091385 WCI 3091385 Contact Us For Availability
9
TAPE SEAL 45`` IF EQUIPPED WCI 707R001P01 Contact Us For Availability
9
DIODE HI VOLTAGE WCI 115T198P02 Contact Us For Availability
9
TRAY OVEN WCI 736T005P01 Contact Us For Availability
9
GLASS SPLASHER O/U WCI 277T164P25 Contact Us For Availability
10
WCI 3131128 WCI 3131128 Contact Us For Availability
10
FASTNR CLOCK MTG TWIST NUT (3) WCI 241T017P228 Contact Us For Availability
10
FASTENER TRAY GLIDE WCI 241T017P219 Contact Us For Availability
10
PANEL SPLASHR UPR WCI 513T073F21 Contact Us For Availability
10A
NUT HEX BRASS 10-32 (4) (NON-ILLUSTRATED) WCI 479T069P34 Contact Us For Availability
11
CLIP-RETAIN. (2) WCI 3131720 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 3203397 Contact Us For Availability
11
BEZEL SELEC SW. WCI 3091347 Contact Us For Availability
11
WCI 737T061P01 WCI 737T061P01 Contact Us For Availability
11
WCI 3200607 WCI 3200607 Contact Us For Availability
11
WCI 3051115 WCI 3051115 Contact Us For Availability
12
CVR. HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
FSTNR. SPACER (6) WCI 3131974 Contact Us For Availability
12
SW MEMBRANE TCH WCI 3091395 Contact Us For Availability
12
WCI 380T022P01 WCI 380T022P01 Contact Us For Availability
12
SCREW TRANSFORMER MTG (4) WCI 636T101P10 Contact Us For Availability
12
SCREW-TRANSFORMER MTG (4) WCI 636T101P14 Contact Us For Availability
12
COVER, STIRRER WCI 3200598 Contact Us For Availability
12
FASTNR CBLE CLAMP WCI 241T003P01 Contact Us For Availability
13
SCREW-HANDLE MTG (2) WCI 3131102 Contact Us For Availability
13
PNL SW MTG WCI 511T048P01 Contact Us For Availability
13
WCI 643T014P02 WCI 643T014P02 Contact Us For Availability
13
WCI 612T104F01 WCI 612T104F01 Contact Us For Availability
13
WCI 239T043S02 WCI 239T043S02 Contact Us For Availability
13
BEZEL-SW. WCI 3051727 Contact Us For Availability
13A
NUT STIR SHAFT TO FAN (NON-ILLUSTRATED) WCI 479T069P01 Contact Us For Availability
14
SCREW DR MTG (3) WCI 636T139P01 Contact Us For Availability
14
CIRCUIT BOARD PRINTED WCI 115T139P01 Contact Us For Availability
14
WCI 233T016P04 WCI 233T016P04 Contact Us For Availability
14
SHIELD CAPAC TERM WCI 655T378P01 Contact Us For Availability
14
COVER DUCT BTM EXTENSION WCI 174T267P01 Contact Us For Availability
14
HARNESS-O/U LITE SW WCI 3131588 Contact Us For Availability
14A
SCREW CIRCUIT BRD MTG (4) (NON-ILLUSTRATED) WCI 636T090P51 Contact Us For Availability
15
EXTRUSION CHNL (2) WCI 3131142 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15
INDICATOR LIGHT WCI 318T023P12 Contact Us For Availability
15
SCREW DR STRIKE HEX WCI 636T111P03 Contact Us For Availability
15
CAPAC HI VOLTAGE NON-PCB WCI 115T157P02 Contact Us For Availability
15
NUT RECEPT MTG WCI 479T084P01 Contact Us For Availability
15
WCI 740T309F01 WCI 740T309F01 Contact Us For Availability
15A
FSTNR-8AU TYPE (3) (NON-ILLUSTRATED) WCI 241T017P185 Contact Us For Availability
15A
WCI 740T309F02 WCI 740T309F02 Contact Us For Availability
15B
WCI 636T143P05 WCI 636T143P05 Contact Us For Availability
16
INSUL WOOL WCI 3131322 Contact Us For Availability
16
FUSE-THERM. CUTOUT WCI 3051385 Contact Us For Availability
16
TRANSFORMER LO VOLT WCI 737T055P02 Contact Us For Availability
16
WCI 597T035P01 WCI 597T035P01 Contact Us For Availability
16
TRIM O/U SPL GL FILLER WCI 3051340 Contact Us For Availability
17
SEAL, FOAM (4) WCI 3131214 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
17
INDICATOR LIGHT (3) WCI 318T023P11 Contact Us For Availability
17
INSERT TOP WCI 322T015P04 Contact Us For Availability
17
KIT INTERLOCK SW WCI 355T448S01 Contact Us For Availability
17
WCI 008T480P01 WCI 008T480P01 Contact Us For Availability
17
WASHER, SPRING (2) WCI 789T053P44 Contact Us For Availability
17A
SCREW INTERLOCK SW. (6) (NON-ILLUSTRATED) WCI 636T095P16 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
18
SWITCH-SELECTOR 6 POS. WCI 3051315 Contact Us For Availability
18
WCI 233T012P06 WCI 233T012P06 Contact Us For Availability
18
WCI 355T515S04 WCI 355T515S04 Contact Us For Availability
18
WCI 008T378P11 WCI 008T378P11 Contact Us For Availability
18
THERMOSTAT-S/C WCI 3051324 Contact Us For Availability
19
THERMOSTAT OVEN WCI 3051320 Contact Us For Availability
19
WCI 550T037P02 WCI 550T037P02 Contact Us For Availability
19
SCREW (2) WCI 636T095P11 Contact Us For Availability
19
SCREW WCI 636T095P47 Contact Us For Availability
19
WCI 136T321F02-86 WCI 136T321F02-86 Contact Us For Availability
19
ANGLE SUPT S/C THERMO WCI 3051348 Contact Us For Availability
20
GRND STRAP WCI 711T048P01 Contact Us For Availability
20
PLUG DISCONN 9 PIN WCI 558T032P01 Contact Us For Availability
20
SPRING, DOOR HANDLE WCI 675T072P02 Contact Us For Availability
20
WCI 554T338F02 WCI 554T338F02 Contact Us For Availability
20
WCI 221T044F04 WCI 221T044F04 Contact Us For Availability
20A
SCREW DUCT (2) (NON-ILLUSTRATED) WCI 636T090P05 Contact Us For Availability
21
CLIP-THERM. BULB (2) WCI 3131295 Contact Us For Availability
21
SWITCH TOP UNIT WCI 699T015P02 Contact Us For Availability
21
NUT HEX 6-32 SPECIAL (2) WCI 479T069P30 Contact Us For Availability
21
KIT HANDLE WCI 355T517S03 Contact Us For Availability
21
WCI 072T731F01 WCI 072T731F01 Contact Us For Availability
22
SWITCH SELECT 2 POS. WCI 697T047P04 Contact Us For Availability
22
WCI 305T008P01 WCI 305T008P01 Contact Us For Availability
22
TRIAC HEAT SINK WCI 742T005P01 Contact Us For Availability
22
COVER DUCT ASSY WCI 174T253S02 Contact Us For Availability
22A
SCREW SELECT. SW. (NON-ILLUSTRATED) WCI 636T096P01 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
23
PNL CONTROL WCI 3091343 Contact Us For Availability
23
WCI 3091197 WCI 3091197 Contact Us For Availability
24
GLASS-OVEN LIGHT LENS WCI 3051298 Contact Us For Availability
24
WCI 643T013P01 WCI 643T013P01 Contact Us For Availability
24
LIGHT BULB 100W WCI 374T024P01 Contact Us For Availability
25
WCI 3051429 WCI 3051429 Contact Us For Availability
25
WCI 174T188P02 WCI 174T188P02 Contact Us For Availability
25
MTR STIRRER WCI 115T463P01 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
26
WASHER MICRO SEAL WCI 789T061P01 Contact Us For Availability
27
WCI 3131104 WCI 3131104 Contact Us For Availability
27
RETAINER VENT TR WCI 612T101F01 Contact Us For Availability
27A
WCI 3131303 WCI 3131303 Contact Us For Availability
27C
SCREW-HNG MTG (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27D
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
28
WCI 3051258 WCI 3051258 Contact Us For Availability
28
TRIM VENT TOP WCI 740T454P02 Contact Us For Availability
29
WCI 3051473 WCI 3051473 Contact Us For Availability
29
CAP END LH UPPER TRIM WCI 123T081P05 Contact Us For Availability
29A
CAP END RH UPPER TRIM WCI 123T081P06 Contact Us For Availability
30
WCI 358T158S02 WCI 358T158S02 Contact Us For Availability
30
WCI 665T307F02 WCI 665T307F02 Contact Us For Availability
30
WCI 665T307F03-18 WCI 665T307F03-18 Contact Us For Availability
30A
SCREW, SET, LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
31
PANEL TOP BLACK WCI 529T079F05-18 Contact Us For Availability
32
SHIELD BL MTG. CATCH WCI 3131593 Contact Us For Availability
33
FASTNER PUSH ON (3) WCI 241T001P01 Contact Us For Availability
34
SW.-LATCHING WCI 3051734 Contact Us For Availability
34
WCI 3091338 WCI 3091338 Contact Us For Availability
35
WCI 3131363 WCI 3131363 Contact Us For Availability
35
WRAPPER-BACK & BTM WCI 805T023F06-18 Contact Us For Availability
36
PANEL BODYSIDE LH-BLACK WCI 3131907 Contact Us For Availability
38
WCI 3051737 WCI 3051737 Contact Us For Availability
38
WCI 211T073S01 WCI 211T073S01 Contact Us For Availability
39
RETAIN, CATALYST WCI 612T079P01 Contact Us For Availability
39A
PLUG DISCONN KIT SURF ELMNT RED WCI 355T442S02 Contact Us For Availability
40
WCI 3014246 WCI 3014246 Contact Us For Availability
40
PROBE ROAST CNTRL WCI 115T563P03 Contact Us For Availability
41
BRKT LGHT SW. WCI 3131289 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
42
WCI 102T028P01 WCI 102T028P01 Contact Us For Availability
43
WCI 3051251 WCI 3051251 Contact Us For Availability
44
BTN REMOTE LT SW WCI 3051731 Contact Us For Availability
45
SHIELD-HEAT LWR WCI 3200848 Contact Us For Availability
45A
INSUL.-TOUCH (NON-ILLUSTRATED) WCI 3131305 Contact Us For Availability
46
TRIM-VERT. BODYSIDE (2) WCI 3051326 Contact Us For Availability
47
WCI 3051723 WCI 3051723 Contact Us For Availability
47A
WCI 3051724 WCI 3051724 Contact Us For Availability
× ![]()
