Model Electrolux 77-4987-00-02 RANGE – Common Parts & Diagrams

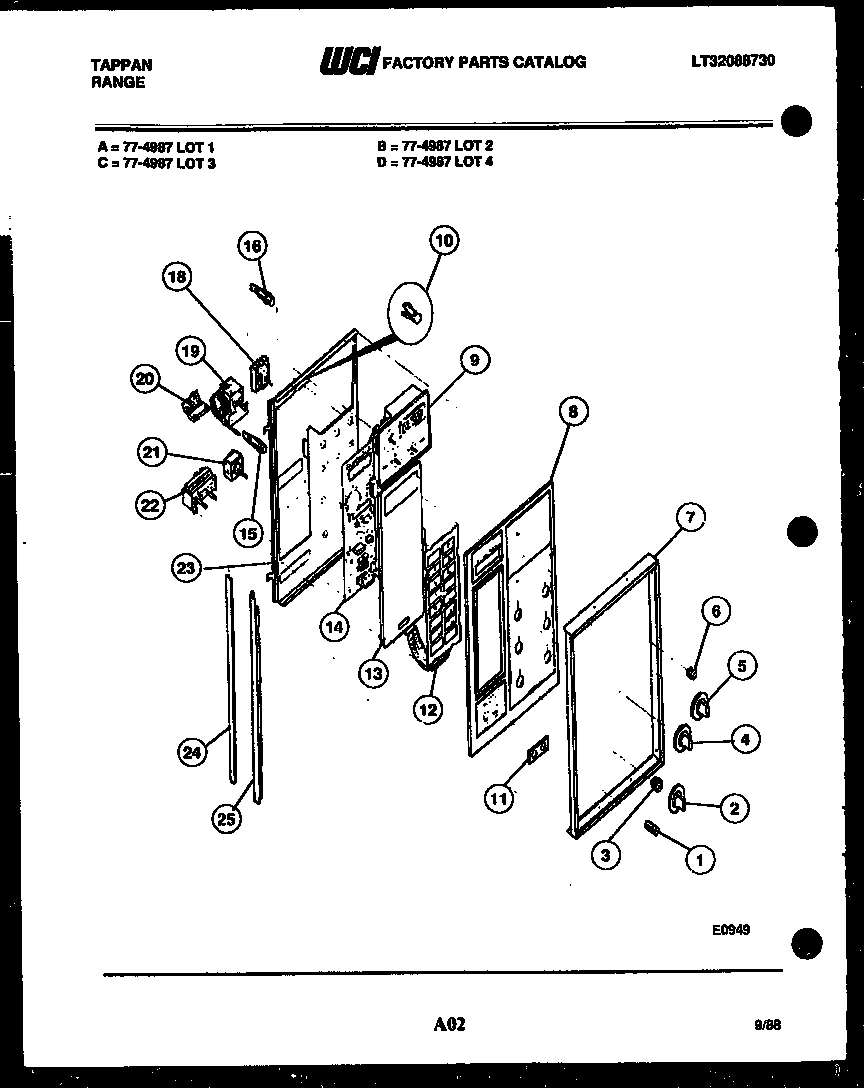

02 - CONTROL PANEL
03 - LOWER OVEN DOOR PARTS
04 - DRAWER PARTS

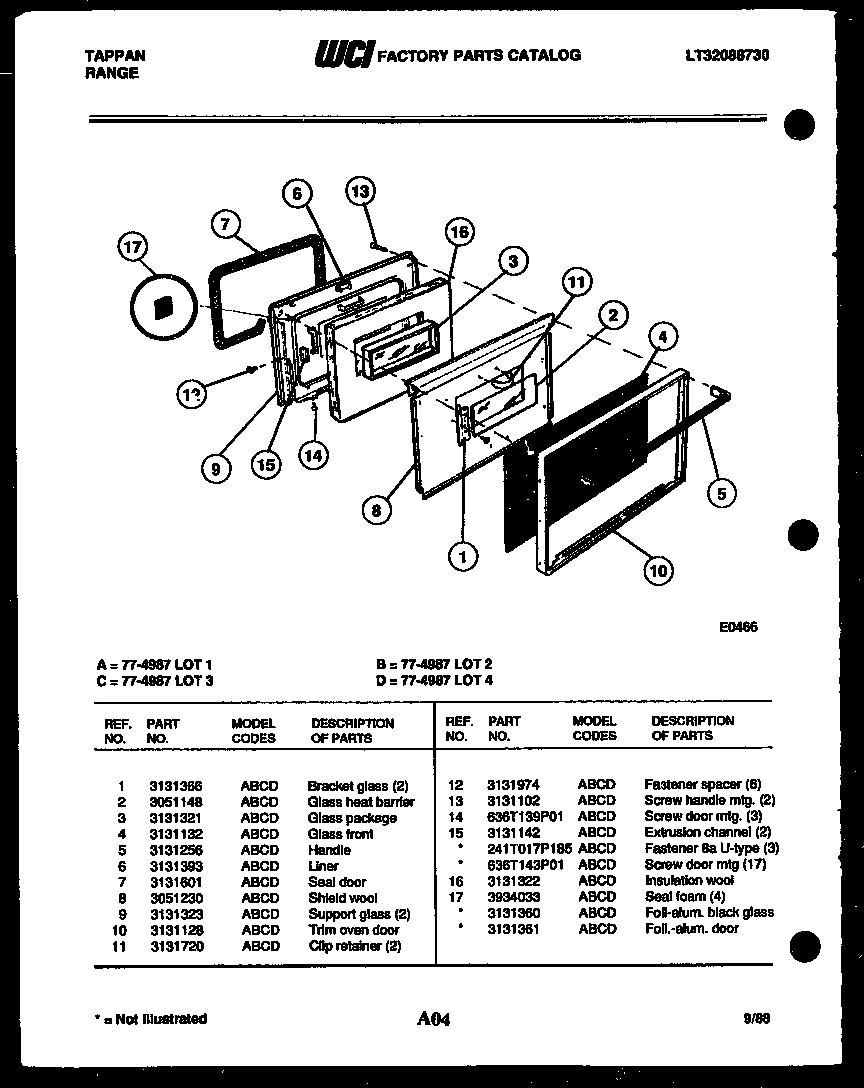

05 - TOP DOOR PARTS
06 - COOKTOP AND BROILER PARTS
07 - SPLASHER CONTROL
08 - POWER CONTROL
09 - UPPER BODY PARTS
10 - LOWER BODY PARTS
Common parts from model Electrolux 77-4987-00-02 RANGE
*18595
FOIL-ALUM. DOOR WCI 3131361 Contact Us For Availability
*18595
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 636T135P01 Contact Us For Availability
*18598
HANDLE ASSY. COMPLETE W/ 21 & 22 WCI 296T095S05 Contact Us For Availability
*18598
SCREW DOOR ASSY (22) WCI 636T046P02 Contact Us For Availability
*18609
FASTENER-8A U-TYPE WCI 241T014P01 Contact Us For Availability
*18609
FASTENER-HINGE MOUNTING (4) WCI 241T017P136 Contact Us For Availability
*18609
WCI 241T017P222 WCI 241T017P222 Contact Us For Availability
*18609
LABEL-COOKING GUIDE WCI 560T786P01 Contact Us For Availability
*18610
FASTENER-PURSELOCK 3/8`` WCI 241T017P154 Contact Us For Availability
*18610
FASTENER-PURSELOCK 15/16`` WCI 241T017P195 Contact Us For Availability
*18610
WCI 241T017P39 WCI 241T017P39 Contact Us For Availability
*18610
WCI 331T117P01 WCI 331T117P01 Contact Us For Availability
*18610
NUT-STIRRER SHAFT WCI 479T069P01 Contact Us For Availability
*18610
WCI 557T027P01 WCI 557T027P01 Contact Us For Availability
*18610
PLUG BUTTON-RACK GLIDES (8) WCI 557T028P01 Contact Us For Availability
*18610
SCREW DUCT MTG. (2) WCI 636T090P05 Contact Us For Availability
*18610
SCREW-END CAP (2) WCI 636T090P34 Contact Us For Availability
1
BUTTON-PUSH ON-OFF (2) WCI 3091544 Contact Us For Availability
1
BRACKET, GLASS (2) WCI 3131366 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
INSERT-DOOR BOTTOM WCI 322T016P04 Contact Us For Availability
1
WCI 3051156 WCI 3051156 Contact Us For Availability
1
WCI 3131583 WCI 3131583 Contact Us For Availability
1
WCI 423T015P02 WCI 423T015P02 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 3051736 Contact Us For Availability
2
KNOB-CONTROL (3) WCI 3091393 Contact Us For Availability
2
WCI 3051148 WCI 3051148 Contact Us For Availability
2
GLASS-DOOR OUTER WCI 3091382 Contact Us For Availability
2
WCI 3018329 WCI 3018329 Contact Us For Availability
2
REFLECTOR, WORK LAMP WCI 3131586 Contact Us For Availability
2
SWITCH-THERMOSTAT CUTOUT WCI 115T695P08 Contact Us For Availability
2
SEAL-MICROWAVE (2) WCI 643T013P03 Contact Us For Availability
3
WCI 3131275 WCI 3131275 Contact Us For Availability
3
BUSHING C/P GLASS WCI 102T019P01 Contact Us For Availability
3
GLASS, PACKAGE WCI 3131321 Contact Us For Availability
3
PANEL-DRAWER (BLACK) WCI 3131324 Contact Us For Availability
3
WCI 233T027P02 WCI 233T027P02 Contact Us For Availability
3
TRIM-RING OUTER SMALL (2) WCI 3051334 Contact Us For Availability
3
WCI 262T010P01 WCI 262T010P01 Contact Us For Availability
3
COVER-MICROWAVE SEAL (2) WCI 174T188P02 Contact Us For Availability
3
PANEL, BODYSIDE, LH (BLACK) WCI 3131221 Contact Us For Availability
3A
TRIM-RING OUTER MED WCI 3051335 Contact Us For Availability
3A
PANEL, BODYSIDE, RH (BLACK) WCI 3131217 Contact Us For Availability
3B
TRIM-RING INNER LARGE WCI 3051336 Contact Us For Availability
4
KNOB THERMOSTAT WCI 3051442 Contact Us For Availability
4
WCI 3131132 WCI 3131132 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
SPACER (4) WCI 665T165P01 Contact Us For Availability
4
TRIM-RING INNER SMALL (2) WCI 3051337 Contact Us For Availability
4
INSULATION FLUOR LIGHT RECEPT. (2) WCI 3051732 Contact Us For Availability
4
WCI 664T003P01 WCI 664T003P01 Contact Us For Availability
4
CAP-END LOWER TRIM (2) WCI 123T082P01 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4A
TRIM-RING INNER MED WCI 3051338 Contact Us For Availability
4B
WCI 3051339 WCI 3051339 Contact Us For Availability
5
WCI 3091406 WCI 3091406 Contact Us For Availability
5
WCI 3131256 WCI 3131256 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 260T002P01-18 WCI 260T002P01-18 Contact Us For Availability
5
CHANNEL-TOP ELEMENT MOUNTING SMALL (2) WCI 3051120 Contact Us For Availability
5
RECEPT. FLUOR LIGHT (2) WCI 597T047P01 Contact Us For Availability
5
WCI 115T239P01 WCI 115T239P01 Contact Us For Availability
5
WCI 740T408P03 WCI 740T408P03 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5A
KNOB-SWITCH 5 POS. WCI 3091392 Contact Us For Availability
5A
CHANNEL-TOP ELEMENT MOUNTING LARGE WCI 3051122 Contact Us For Availability
5A
SCREW-BOTTOM TRIM MOUNTING (3) (NON-ILLUSTRAT WCI 636T090P54 Contact Us For Availability
5B
CHANNEL-TOP ELEMENT MOUNTING MED. WCI 3051121 Contact Us For Availability
6
WCI 358T201P01 WCI 358T201P01 Contact Us For Availability
6
LINER WCI 3131393 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
6
EXTRUSION-HINGE MOUNTING ASSY. WCI 233T026S13 Contact Us For Availability
6
ELEMENT-TOP SMALL (2) WCI 3051142 Contact Us For Availability
6
WCI 3051465 WCI 3051465 Contact Us For Availability
6
MOTOR FAN WCI 115T463P03 Contact Us For Availability
6
WCI 445T004P01 WCI 445T004P01 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6A
WCI 3051143 WCI 3051143 Contact Us For Availability
6B
WCI 3051144 WCI 3051144 Contact Us For Availability
7
WCI 740T406P04 WCI 740T406P04 Contact Us For Availability
7
SEAL, DOOR, TOP AND BOTTOM WCI 643T014P01 Contact Us For Availability
7
WCI 3018330 WCI 3018330 Contact Us For Availability
7
WCI 046T003P03 WCI 046T003P03 Contact Us For Availability
7
ROD-FAN MOTOR SUPT. WCI 618T048P01 Contact Us For Availability
7
WCI 287T003P08 WCI 287T003P08 Contact Us For Availability
7
WCI 3051400 WCI 3051400 Contact Us For Availability
7A
SEAL-TOP ELEMENT MED WCI 3018331 Contact Us For Availability
7B
SEAL-TOP ELEMENT LARGE WCI 3018332 Contact Us For Availability
8
WCI 277T204S15 WCI 277T204S15 Contact Us For Availability
8
WCI 3051230 WCI 3051230 Contact Us For Availability
8
PANEL-DOOR SEAL ALMOND WCI 511T038F06-99 Contact Us For Availability
8
WCI 3051313 WCI 3051313 Contact Us For Availability
8
GUSSET MWV. SUPPORT LH WCI 3131653 Contact Us For Availability
8
CHANNEL-MOUNTING WCI 136T309F01 Contact Us For Availability
8
WCI 740T479P01 WCI 740T479P01 Contact Us For Availability
8
COVER, LOWER ACCESS WCI 3051501 Contact Us For Availability
8A
GUSSET MWV. SUPPORT RH WCI 3131654 Contact Us For Availability
9
WCI 3091385 WCI 3091385 Contact Us For Availability
9
WCI 3131323 WCI 3131323 Contact Us For Availability
9
TAPE-SEAL WCI 707R001P01 Contact Us For Availability
9
WCI 3051388 WCI 3051388 Contact Us For Availability
9
GLASS SPLASHER O/U WCI 277T164P25 Contact Us For Availability
9
DIODE-HIGH VOLTAGE WCI 115T198P02 Contact Us For Availability
9
TRAY OVEN WCI 736T005P01 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
FASTENER-CLOCK MTG. TWIST NUT (3) WCI 241T017P228 Contact Us For Availability
10
WCI 3131128 WCI 3131128 Contact Us For Availability
10
GLASS-DOOR INNER WCI 276T081P02 Contact Us For Availability
10
PANEL SPLASHER UPPER WCI 513T073F21 Contact Us For Availability
10
FASTENER TRAY GLIDE WCI 241T017P219 Contact Us For Availability
11
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
11
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
11
RETAINER-GLASS WCI 612T080F02-08 Contact Us For Availability
11
WCI 3051115 WCI 3051115 Contact Us For Availability
11
WCI 737T061P01 WCI 737T061P01 Contact Us For Availability
11
WCI 280T053P01 WCI 280T053P01 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
12
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
12
SWITCH-MEMBRANE TOUCH WCI 3091395 Contact Us For Availability
12
FASTENER, SPACER (6) WCI 3131974 Contact Us For Availability
12
WCI 380T022P01 WCI 380T022P01 Contact Us For Availability
12
WCI 740T390P01 WCI 740T390P01 Contact Us For Availability
12
FASTENER, CABLE CLAMP WCI 241T003P01 Contact Us For Availability
12
SCREW WCI 636T101P14 Contact Us For Availability
12
COVER STIRRER FAN WCI 174T242P01 Contact Us For Availability
13
WCI 511T048P01 WCI 511T048P01 Contact Us For Availability
13
SCREW-HANDLE MTG (2) WCI 3131102 Contact Us For Availability
13
WCI 643T014P02 WCI 643T014P02 Contact Us For Availability
13
WCI 3051727 WCI 3051727 Contact Us For Availability
13
WCI 612T104F01 WCI 612T104F01 Contact Us For Availability
13
WCI 239T043S02 WCI 239T043S02 Contact Us For Availability
13
WCI 3051398 WCI 3051398 Contact Us For Availability
14
CIRCUIT BOARD PRINTED WCI 115T139P01 Contact Us For Availability
14
SCREW-DOOR MTG. (3) WCI 636T139P01 Contact Us For Availability
14
WCI 233T016P04 WCI 233T016P04 Contact Us For Availability
14
BRACKET, MAIN TOP HINGE (LH) WCI 3131286 Contact Us For Availability
14
HARNESS, O/U LIGHT SWITCH WCI 3131588 Contact Us For Availability
14
SHIELD-CAP TERMINAL WCI 655T378P01 Contact Us For Availability
14
WCI 174T267P01 WCI 174T267P01 Contact Us For Availability
14A
BRACKET, MAIN TOP HINGE (RH) WCI 3131287 Contact Us For Availability
15
INDICATOR LIGHT (3) WCI 318T023P11 Contact Us For Availability
15
WCI 3131142 WCI 3131142 Contact Us For Availability
15
SCREW-DOOR STRIKE HEX WCI 636T111P03 Contact Us For Availability
15
WCI 3051325 WCI 3051325 Contact Us For Availability
15
CAPACITOR-HIGH VOLTAGE WCI 115T157P02 Contact Us For Availability
15
NUT-RECEPTACLE MOUNTING WCI 479T084P01 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15A
FASTENER, 8 AU TYPE (3) (NON-ILLUSTRATED) WCI 241T017P185 Contact Us For Availability
16
INDICATOR LIGHT WCI 318T023P12 Contact Us For Availability
16
INSULATION, WOOL WCI 3131322 Contact Us For Availability
16
CLEANER-ELEMENT WCI 3051627 Contact Us For Availability
16
TRIM-O/U SPLASHER GL FILLER WCI 3051340 Contact Us For Availability
16
WCI 737T055P02 WCI 737T055P02 Contact Us For Availability
16
WCI 597T035P01 WCI 597T035P01 Contact Us For Availability
16
FUSE-THERM. CUTOUT WCI 3051385 Contact Us For Availability
17
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
17
INSERT TOP WCI 322T015P04 Contact Us For Availability
17
SHIELD-ELEMENT AUTO WCI 3018333 Contact Us For Availability
17
WASHER, SPRING (2) WCI 789T053P44 Contact Us For Availability
17
KIT-INTERLOCK SWITCH WCI 355T448S01 Contact Us For Availability
17
WCI 088T480P01 WCI 088T480P01 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
18
WCI 3051315 WCI 3051315 Contact Us For Availability
18
WCI 233T012P06 WCI 233T012P06 Contact Us For Availability
18
THERMOSTAT-S/C WCI 3051324 Contact Us For Availability
18
WCI 355T515S04 WCI 355T515S04 Contact Us For Availability
18
WCI 008T378F11 WCI 008T378F11 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
19
THERMOSTAT OVEN WCI 3051320 Contact Us For Availability
19
WCI 550T037P02 WCI 550T037P02 Contact Us For Availability
19
ANGLE-SUPPORT S/C THERMOSTAT WCI 3051348 Contact Us For Availability
19
SCREW WCI 636T095P47 Contact Us For Availability
19
WCI 136T321F02-18 WCI 136T321F02-18 Contact Us For Availability
20
PLUG-DISCONNECT 9 PIN WCI 558T032P01 Contact Us For Availability
20
SPRING, DOOR HANDLE WCI 675T072P02 Contact Us For Availability
20
WCI 554T338F02 WCI 554T338F02 Contact Us For Availability
20
WCI 211T044F04 WCI 211T044F04 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
21
SWITCH-TOP UNIT WCI 669T015P02 Contact Us For Availability
21
NUT HEX (2) WCI 479T069P30 Contact Us For Availability
21
KIT HANDLE WCI 355T517S03 Contact Us For Availability
21
WCI 072T731F01 WCI 072T731F01 Contact Us For Availability
21
CLIP-THERM. BULB (2) WCI 3131295 Contact Us For Availability
22
SWITCH, SELECTOR (2 POS) WCI 697T047P04 Contact Us For Availability
22
WCI 306T008P01 WCI 306T008P01 Contact Us For Availability
22
TRIAC HEAT SINK WCI 742T005P01 Contact Us For Availability
22
COVER-DUCT ASSEMBLY WCI 174T253S02 Contact Us For Availability
23
PANEL-CONTROL WCI 3091468 Contact Us For Availability
23
SOCKET, LIGHT WCI 662T027P02 Contact Us For Availability
23A
HARNESS-MAIN (NON-ILLUSTRATED) WCI 299T405S203 Contact Us For Availability
23A
WCI 3091202 WCI 3091202 Contact Us For Availability
23B
HARNESS-CONTROL (NON-ILLUSTRATED) WCI 3091206 Contact Us For Availability
23C
SCREW-INTERLOCK SWITCH (6) (NON-ILLUSTRATED) WCI 636T095P16 Contact Us For Availability
23E
NUT HEX BRASS (4) (NON-ILLUSTRATED) WCI 479T069P34 Contact Us For Availability
24
WCI 643T013P01 WCI 643T013P01 Contact Us For Availability
24
LIGHT BULB 100W WCI 374T024P01 Contact Us For Availability
24
GLASS-OVEN LIGHT LENS WCI 3051298 Contact Us For Availability
25
COVER, MICROWAVE SEAL WCI 174T264P03 Contact Us For Availability
25
WCI 115T463P01 WCI 115T463P01 Contact Us For Availability
25
INSULATION, BOTTOM WCI 3051429 Contact Us For Availability
26
WCI 789T061P01 WCI 789T061P01 Contact Us For Availability
26
WCI 3051345 WCI 3051345 Contact Us For Availability
27
RETAINER, VENT TRIM WCI 612T101F01 Contact Us For Availability
27
WCI 3131104 WCI 3131104 Contact Us For Availability
27A
INSULATION WRAP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
27B
INSULATION, BACK (NON-ILLUSTRATED) WCI 3131303 Contact Us For Availability
27D
SCREW-HINGE MTG (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27E
NUT HEX BRASS (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
28
TRIM-VENT TOP WCI 3091402 Contact Us For Availability
28
WCI 3051258 WCI 3051258 Contact Us For Availability
29
CAP END LH UPPER TRIM WCI 123T081P05 Contact Us For Availability
29
WCI 3131357 WCI 3131357 Contact Us For Availability
29A
CAP END RH UPPER TRIM WCI 123T081P06 Contact Us For Availability
30
SCREW THERM. (2) WCI 636T074P10 Contact Us For Availability
30
WCI 655T307F02 WCI 655T307F02 Contact Us For Availability
30
KNOB, LATCH WCI 358T158P02 Contact Us For Availability
30A
WCI 655T307F03-18 WCI 655T307F03-18 Contact Us For Availability
30A
SCREW, SET, LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
31
NUT WCI 479T069P31 Contact Us For Availability
31
PANEL-TOP BLACK WCI 3091373 Contact Us For Availability
31
WCI 3041413 WCI 3041413 Contact Us For Availability
32
WCI 174T204F01 WCI 174T204F01 Contact Us For Availability
32
SHIELD BI MTG CATCH WCI 3131593 Contact Us For Availability
33
WCI 597T028S05 WCI 597T028S05 Contact Us For Availability
33
FASTENER, PUSH ON (3) WCI 3051733 Contact Us For Availability
34
WCI 3091338 WCI 3091338 Contact Us For Availability
34
WCI 3051734 WCI 3051734 Contact Us For Availability
35
WRAPPER-BACK AND BOTTOM WCI 3091346 Contact Us For Availability
35
WCI 3131363 WCI 3131363 Contact Us For Availability
36
PANEL BODYSIDE LH-BLACK WCI 3131907 Contact Us For Availability
36A
PANEL-BODYSIDE RH-BLACK WCI 3131908 Contact Us For Availability
37
TRIM-O/U SPLASHER SIDE LH WCI 740T309F01 Contact Us For Availability
37A
TRIM-O/U SPLASHER SIDE RH WCI 740T309F02 Contact Us For Availability
38
WCI 211T073S01 WCI 211T073S01 Contact Us For Availability
38
WCI 244T041P01 WCI 244T041P01 Contact Us For Availability
39
PLUG-DISCONNECT KIT WCI 355T442S01 Contact Us For Availability
39
PLUG-DISCONNECT KIT WCI 355T442S02 Contact Us For Availability
39
RETAINER, CATALYST WCI 612T079P01 Contact Us For Availability
40
PROBE, ROAST CONTROL WCI 115T563P03 Contact Us For Availability
40
WCI 3014246 WCI 3014246 Contact Us For Availability
41
FASTENER-STANDOFF (4) WCI 241T017P153 Contact Us For Availability
41
BRACKET, LIGHT SWITCH WCI 3131289 Contact Us For Availability
42
WCI 102T028P01 WCI 102T028P01 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
43
WCI 3051251 WCI 3051251 Contact Us For Availability
44
WCI 3051731 WCI 3051731 Contact Us For Availability
45
SHIELD, HEAT LOWER WCI 3051430 Contact Us For Availability
45A
WCI 3131305 WCI 3131305 Contact Us For Availability
46
TRIM VENT BODYSIDE (2) WCI 3051326 Contact Us For Availability
47
WCI 3051723 WCI 3051723 Contact Us For Availability
47A
WCI 3051724 WCI 3051724 Contact Us For Availability
49
WCI 3051254 WCI 3051254 Contact Us For Availability
50
WCI 3051242 WCI 3051242 Contact Us For Availability
50A
WCI 3051243 WCI 3051243 Contact Us For Availability
50B
WCI 3015337 WCI 3015337 Contact Us For Availability
51
WCI 3051870 WCI 3051870 Contact Us For Availability
× ![]()
