Model Electrolux 77-4957-32-09 RANGE – Common Parts & Diagrams
02 - COOKTOP PARTS
03 - DOOR PARTS

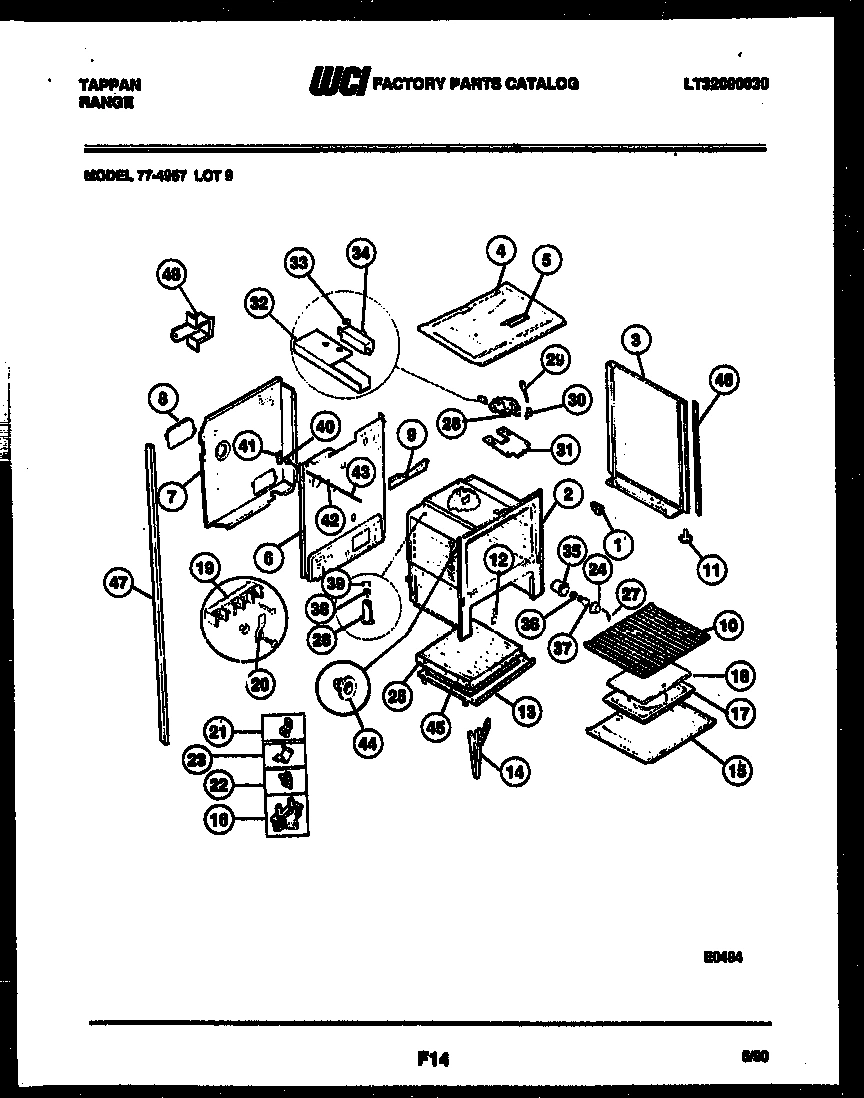

04 - UPPER BODY PARTS
05 - BROILER PARTS

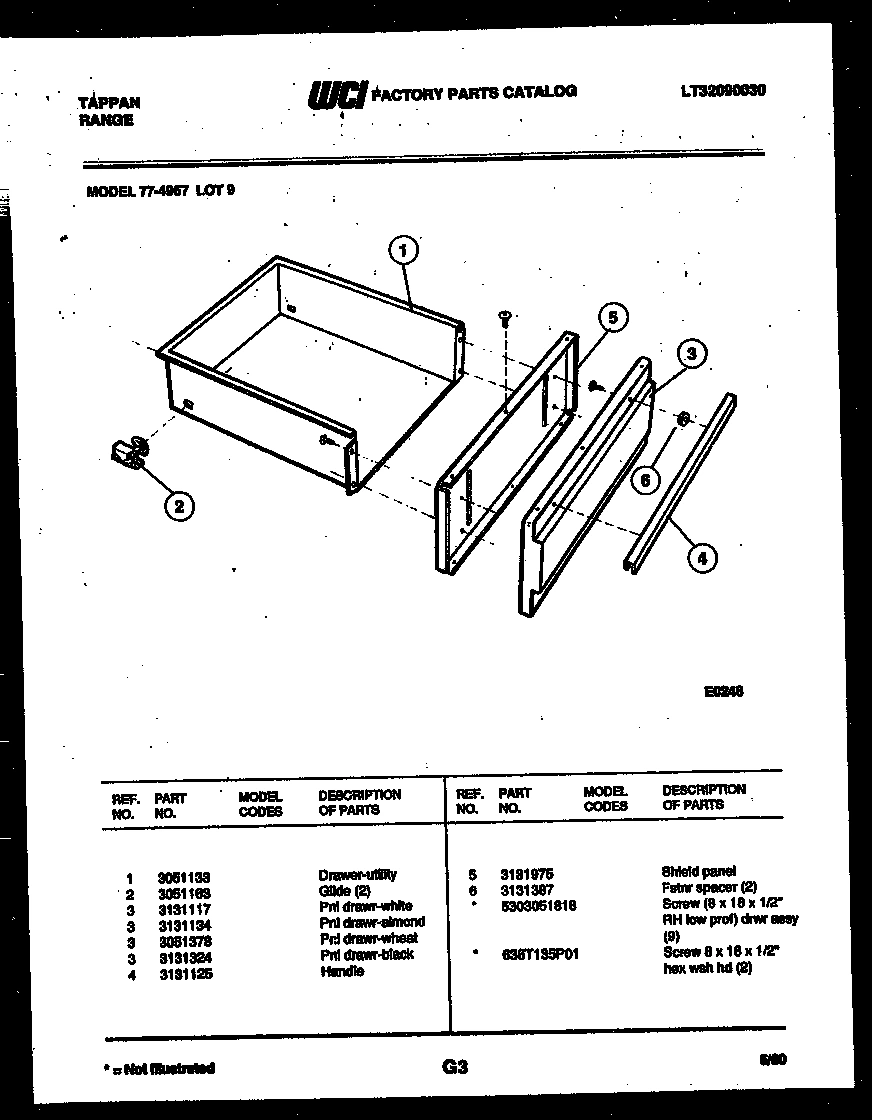

06 - DRAWER PARTS

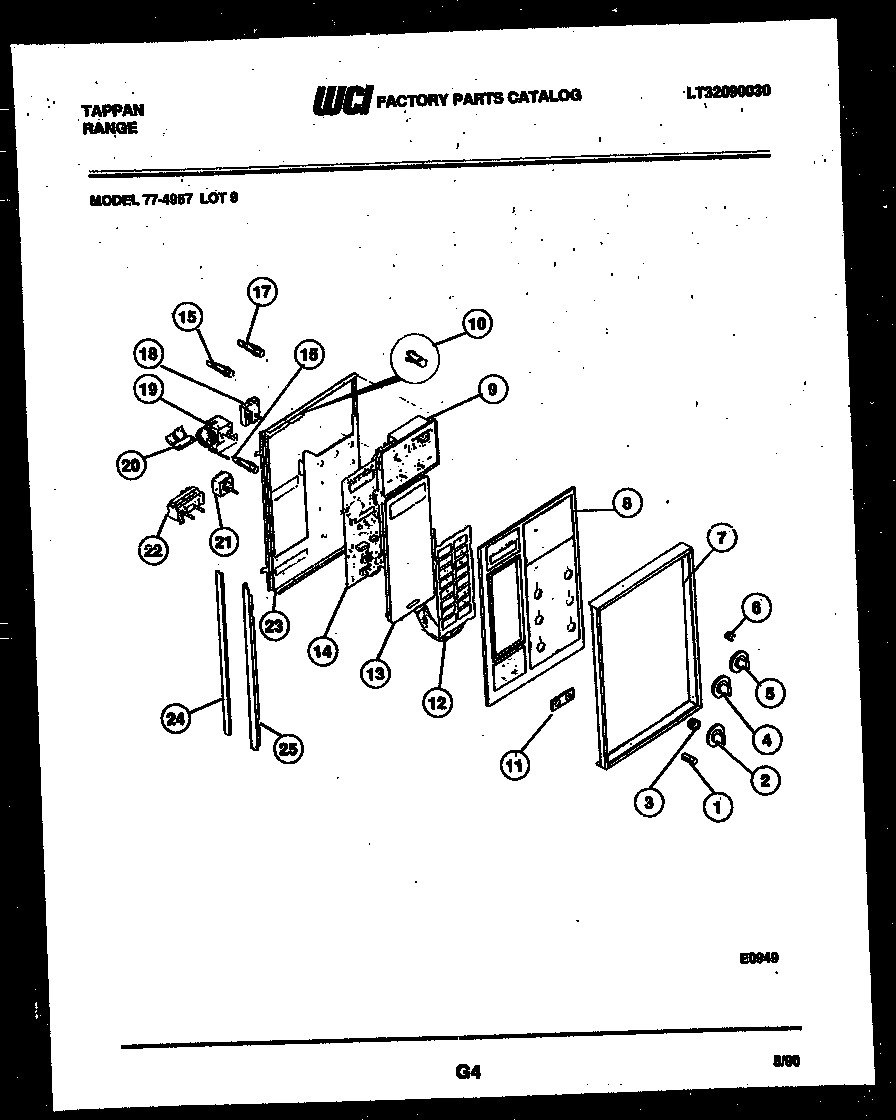

07 - CONTROL PANEL

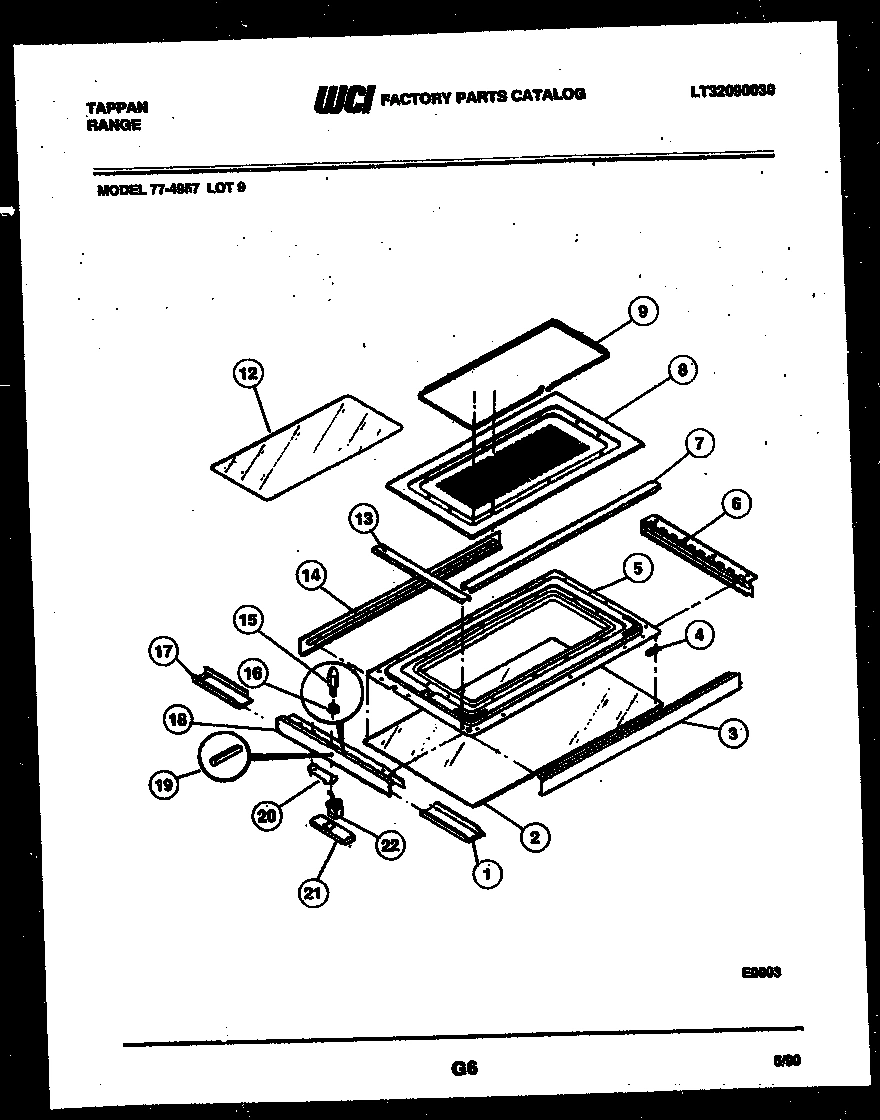

08 - TOP DOOR PARTS

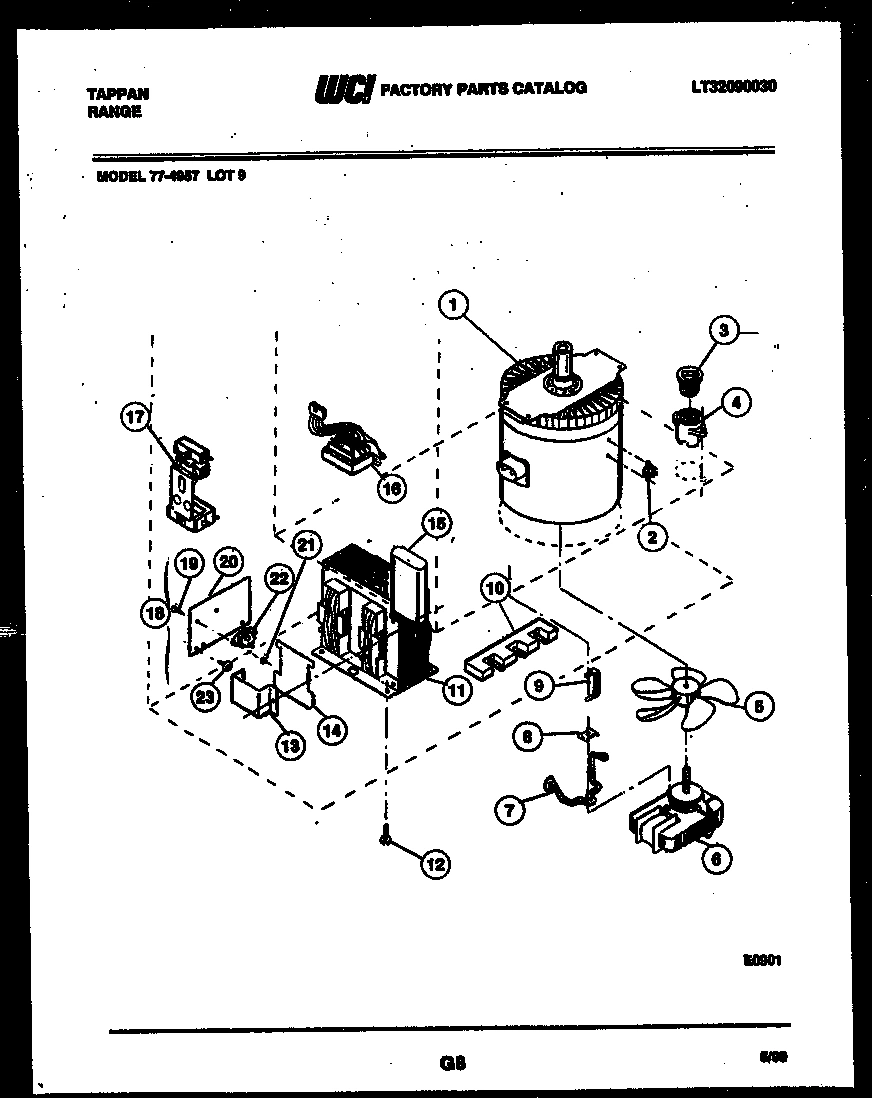

09 - POWER CONTROL

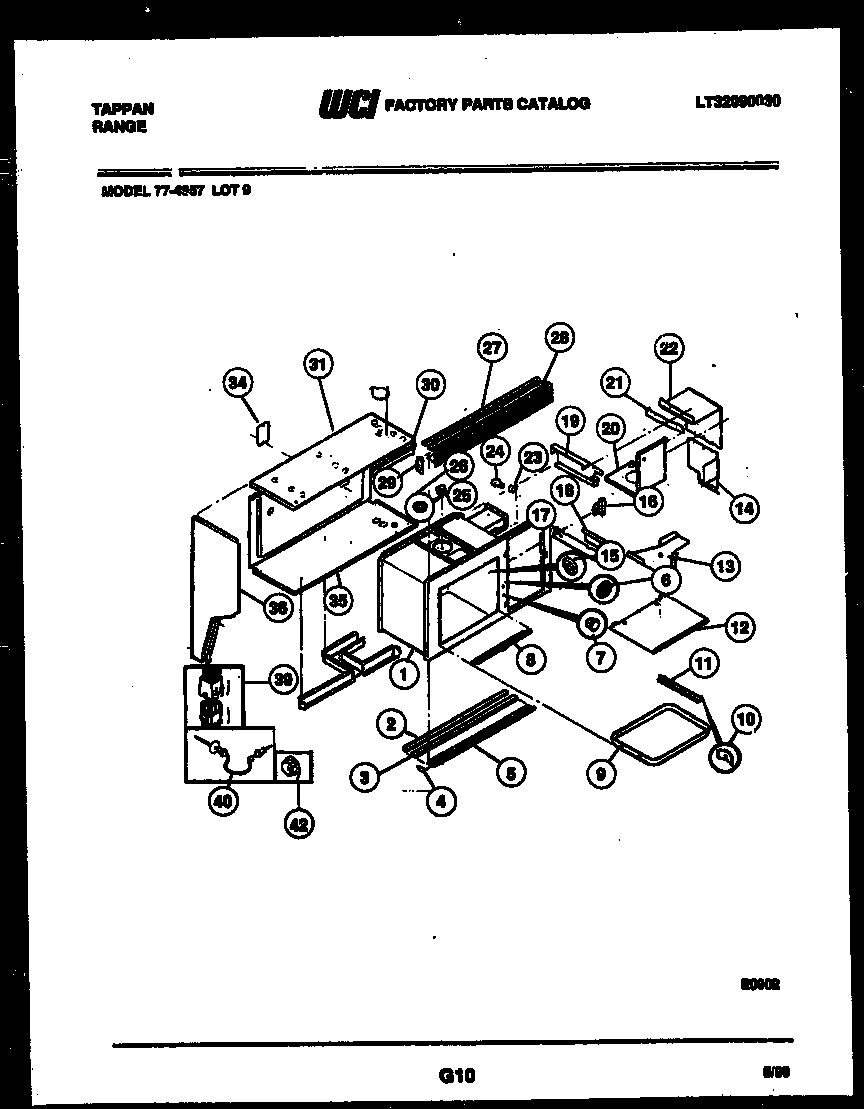

10 - UPPER BODY PARTS

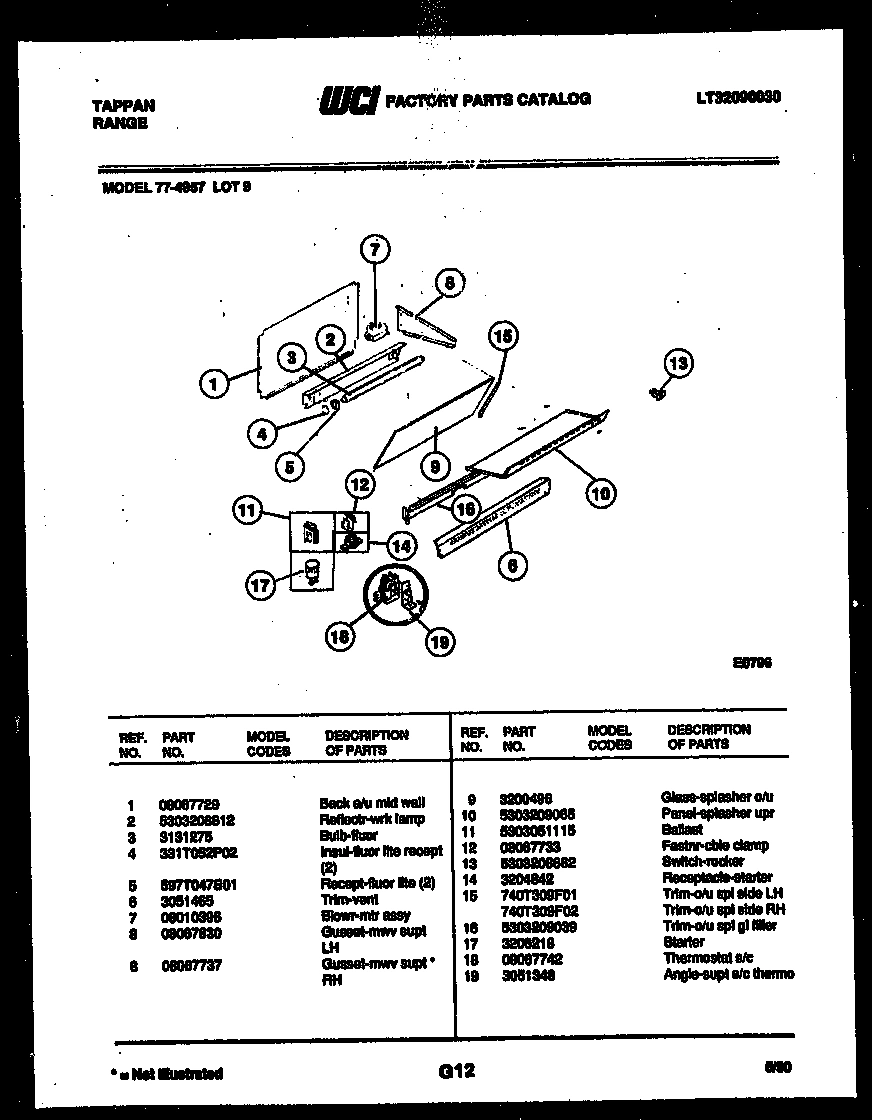

11 - SPLASHER CONTROL
Common parts from model Electrolux 77-4957-32-09 RANGE
*39062
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 636T135P01 Contact Us For Availability
*39064
SPACR-CNTRL MTG PNL (2) WCI 5308014510 Contact Us For Availability
*39066
HANDLE ASSY-COMPL W/ITEM 21 & 22 WCI 5308011737 Contact Us For Availability
*39068
HARNESS-DIODE ASSY WCI 5308010494 Contact Us For Availability
*39068
WCI 5308037894 WCI 5308037894 Contact Us For Availability
*39068
SCREW TERM BLK. MT. (2) WCI 636T069P02 Contact Us For Availability
*39069
WCI 08037895 WCI 08037895 Contact Us For Availability
*39072
LABEL-COOK GUIDE WCI 5303016166 Contact Us For Availability
*39072
WCI 5303207548 WCI 5303207548 Contact Us For Availability
*39073
FASTNR PURSELOCK WCI 241T017P195 Contact Us For Availability
*39073
WCI 5308008961 WCI 5308008961 Contact Us For Availability
*39073
PLUG BTTN-RACK GLIDES (8) WCI 5308037664 Contact Us For Availability
*39073
FASTNR WIRE CLIP WCI 5308037677 Contact Us For Availability
*39074
FASTNR PURSELOCK WCI 5308008992 Contact Us For Availability
*39074
WCI 5303207582 WCI 5303207582 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
WCI 5308037916 WCI 5308037916 Contact Us For Availability
1
WCI 322T016P02 WCI 322T016P02 Contact Us For Availability
1
WCI 5303204035 WCI 5303204035 Contact Us For Availability
1
BACK A/U MID WALL WCI 08067729 Contact Us For Availability
1A
NUT-HEX 5 MILLIM (NON-ILLUSTRATED) WCI 5308008918 Contact Us For Availability
2
KNOB-CONTRL INF SW (4) WCI 5303091393 Contact Us For Availability
2
BRKT HNGE-LH WCI 08067746 Contact Us For Availability
2
GLASS-OUTER DOOR WCI 5303091382 Contact Us For Availability
2
SWITCH-THERMO CUTOUT MAG WCI 5308012862 Contact Us For Availability
2
SEAL-MICRO (2) WCI 5303207965 Contact Us For Availability
2
REFLECTR-WRK LAMP WCI 5303208612 Contact Us For Availability
2A
SCREW-THERMO CUTOUT SW (NON-ILLUSTRATED) WCI 5308008925 Contact Us For Availability
3
BULB-FLUOR WCI 3131275 Contact Us For Availability
3
PNL B/S LH-BLACK WCI 3205622 Contact Us For Availability
3
PNL B/S RH-BLACK WCI 3205625 Contact Us For Availability
3
WCI 5308067828 WCI 5308067828 Contact Us For Availability
3
PNL-DRAWR-BLACK WCI 3131324 Contact Us For Availability
3
BUSHING-C/P GLASS WCI 5308010401 Contact Us For Availability
3
EXTRUSION-BTM WCI 5308010438 Contact Us For Availability
3
WCI 5303200606 WCI 5303200606 Contact Us For Availability
3
COVER-MICRO SEAL (2) WCI 5303200597 Contact Us For Availability
4
WCI 08067749 WCI 08067749 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
KNOB-THERMOSTAT WCI 5303051442 Contact Us For Availability
4
SPACER 3/4 X 3/4 X 4`` (4) FOAM WCI 5308010437 Contact Us For Availability
4
WCI 5308012055 WCI 5308012055 Contact Us For Availability
4
CAP END-LWR TRIM (2) WCI 5308010510 Contact Us For Availability
4
INSUL FLUOR LITE RECEPT (2) WCI 331T052P02 Contact Us For Availability
5
KNOB-SELEC SW WCI 5303091392 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
FRAME-DOOR WCI 5308010436 Contact Us For Availability
5
FAN BLADE-TRANS FORMER WCI 5303011668 Contact Us For Availability
5
TRIM-VENT BTM WCI 5303208200 Contact Us For Availability
5
RECEPT FLUOR LITE (2) WCI 597T047S01 Contact Us For Availability
5A
SCREW-BTM TRIM MTG (3) (NON-ILLUSTRATED) WCI 5303091100 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
6
WCI 5303208334 WCI 5303208334 Contact Us For Availability
6
EXTRUSN HNG MTG ASSY WCI 233T026S13 Contact Us For Availability
6
MOTOR - FAN WCI 5303011677 Contact Us For Availability
6
MEDALLION-DR STRIKE WCI 5308010512 Contact Us For Availability
6
WCI 3051465 WCI 3051465 Contact Us For Availability
7
SHIELD-LWR. WALL WCI 3203549 Contact Us For Availability
7
TRIM-CNTRL PANEL WCI 5308011886 Contact Us For Availability
7
SEAL-DR TOP & BTM WCI 5308010433 Contact Us For Availability
7
ROD FAN MTR SUPT WCI 618T048P01 Contact Us For Availability
7
GROMMET-DR STRIKE WCI 5308010513 Contact Us For Availability
7
BLOWR-MTR ASSY WCI 08010396 Contact Us For Availability
8
CVR.-LWR. ACCESS WCI 3203405 Contact Us For Availability
8
WCI 5303091397 WCI 5303091397 Contact Us For Availability
8
PANEL-DR SEAL ALMOND WCI 5303200605 Contact Us For Availability
8
CHANNL-MTG GUIDE WCI 5303207945 Contact Us For Availability
8
WCI 5303200630 WCI 5303200630 Contact Us For Availability
8
WCI 08067737 WCI 08067737 Contact Us For Availability
8
WCI 08067830 WCI 08067830 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
WCI 5303091385 WCI 5303091385 Contact Us For Availability
9
TAPE SEAL 45`` IF EQUIPPED WCI 707R001P01 Contact Us For Availability
9
DIODE-HI VOLTAGE WCI 5303091303 Contact Us For Availability
9
TRAY-OVEN WCI 5308010514 Contact Us For Availability
9
GLASS-SPLASHER-O/U WCI 3200496 Contact Us For Availability
10
FSTNR-CLOCK MTG TWIST NUT (3) WCI 5308010409 Contact Us For Availability
10
FASTNR-TRAY GLIDE WCI 5308010515 Contact Us For Availability
10
PANEL-SPLASHER UPR WCI 5303209065 Contact Us For Availability
10A
NUT-HEX BRASS 10 X 32 (4) (NON-ILLUSTRATED) WCI 08067783 Contact Us For Availability
11
WCI 5303203397 WCI 5303203397 Contact Us For Availability
11
BEZEL SELEC SW WCI 5308037890 Contact Us For Availability
11
TRANSFORMER-HIGH VOLTAGE WCI 5308014096 Contact Us For Availability
11
WCI 5303200607 WCI 5303200607 Contact Us For Availability
11
WCI 5303051115 WCI 5303051115 Contact Us For Availability
12
CVR. HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
SW-MEMBRANE TCH WCI 5303091395 Contact Us For Availability
12
WCI 5308010431 WCI 5308010431 Contact Us For Availability
12
SCREW-TRANSFORMER MTG (4) WCI 5303013944 Contact Us For Availability
12
WCI 5303200598 WCI 5303200598 Contact Us For Availability
12
FASTNR-CBLE CLAMP WCI 08067733 Contact Us For Availability
13
SHIELD-WOOL LWR WCI 3200825 Contact Us For Availability
13
PANEL-SW MTG WCI 5303207857 Contact Us For Availability
13
SEAL-DOOR SIDE WCI 5308010434 Contact Us For Availability
13
WCI 08010483 WCI 08010483 Contact Us For Availability
13
WCI 5308010520 WCI 5308010520 Contact Us For Availability
13A
NUT-STIR SHAFT TO FAN (NON-ILLUSTRATED) WCI 5303013270 Contact Us For Availability
14
CHANL DR HNG (2) WCI 316007002 No Longer Available
14
CIRCUIT BOARD PRINTED WCI 5308012868 Contact Us For Availability
14
WCI 5308010439 WCI 5308010439 Contact Us For Availability
14
SHIELD-CAPAC TERM WCI 08010484 Contact Us For Availability
14
COVER DUCT BTM EXTENSION WCI 174T267P01 Contact Us For Availability
14
RECEPTACLE, STARTER WCI 3204842 Contact Us For Availability
14A
SCREW-CIRCUIT BOARD MTG (4) (NON-ILLUSTRATED) WCI 5308008904 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
15
INDICATOR LIGHT WCI 5303091462 Contact Us For Availability
15
SCREW-DR STRIKE HEX WCI 5308010447 Contact Us For Availability
15
CAPAC-HI VOLTAGE NON-PCB WCI 5308037624 Contact Us For Availability
15
NUT-RECEPT MTG WCI 5303013283 Contact Us For Availability
15
WCI 740T309F01 WCI 740T309F01 Contact Us For Availability
15
WCI 740T309F02 WCI 740T309F02 Contact Us For Availability
15A
WCI 08010463 WCI 08010463 Contact Us For Availability
15C
SCREW-DR MTG (4) (NON-ILLUSTRATED) WCI 3131236 Contact Us For Availability
16
FUSE-THERM CUTOUT WCI 5303051385 Contact Us For Availability
16
INSUL-WOOL WCI 3200528 Contact Us For Availability
16
TRANSFORMER-LO VOLT WCI 5308010486 Contact Us For Availability
16
RECEPTACLE PROBE WCI 5308008972 Contact Us For Availability
16
TRIM-O/U SPL GL FILLER WCI 5303209039 Contact Us For Availability
17
STARTER WCI 3206218 Contact Us For Availability
17
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
17
WCI 5308037896 WCI 5308037896 Contact Us For Availability
17
INSERT-TOP WCI 5308012077 Contact Us For Availability
17
KIT-INTERLOCK SW WCI 5303912591 Contact Us For Availability
17
WCI 08010521 WCI 08010521 Contact Us For Availability
17A
SCREW INTERLK SW (6) (NON-ILLUSTRATED) WCI 636T095P16 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
18
SWITCH-SELEC 6 POS WCI 5303051315 Contact Us For Availability
18
EXTRUSION-RIGHT WCI 5308010441 Contact Us For Availability
18
WCI 5308010522 WCI 5308010522 Contact Us For Availability
18
WCI 08067742 WCI 08067742 Contact Us For Availability
19
THERMOSTAT-OVEN WCI 5303051320 Contact Us For Availability
19
PIN ROLL WCI 08010446 Contact Us For Availability
19
SCREW WCI 3200767 Contact Us For Availability
19
SCREW (2) WCI 5308008971 Contact Us For Availability
19
CHANNL AIR WCI 08010523 Contact Us For Availability
19
ANGLE SUPT S/C THERMO WCI 3051348 Contact Us For Availability
20
GRND STRAP WCI 08011708 Contact Us For Availability
20
WCI 5308008911 WCI 5308008911 Contact Us For Availability
20
SPRING-DOOR HANDLE WCI 5308010445 Contact Us For Availability
20
WCI 554T338F02 WCI 554T338F02 Contact Us For Availability
20
WCI 08010524 WCI 08010524 Contact Us For Availability
20A
SCREW-DUCT (2) WCI 636T090P05 Contact Us For Availability
21
SWITCH-TOP UNIT WCI 5308010418 Contact Us For Availability
21
CLIP-THERM BULB (2) WCI 08067754 Contact Us For Availability
21
NUT-HEX 6-32 SPECIAL (2) WCI 08009182 Contact Us For Availability
21
WCI 5303934045 WCI 5303934045 Contact Us For Availability
21
BRACKT-MAGNETRON SUPPORT WCI 5308010526 Contact Us For Availability
22
SWITCH-SELEC 2 POS WCI 5308008910 Contact Us For Availability
22
WCI 5303207361 WCI 5303207361 Contact Us For Availability
22
TRIAC WCI 5303912602 Contact Us For Availability
22
COVER-DUCT ASSY WCI 08010527 Contact Us For Availability
22A
SCREW SELEC SW. (NON-ILLUSTRATED) WCI 636T096P01 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
23
PANEL-CONTROL WCI 5303091343 Contact Us For Availability
23
WCI 5303091197 WCI 5303091197 Contact Us For Availability
23A
SCREW-PANEL MTG (NON-ILLUSTRATED) WCI 5303013874 Contact Us For Availability
24
SEAL-MICROWAVE WCI 5308010420 Contact Us For Availability
24
LIGHT BULB 100W WCI 5308037902 Contact Us For Availability
25
WCI 3051429 WCI 3051429 Contact Us For Availability
25
WCI 5308011890 WCI 5308011890 Contact Us For Availability
25
MTR STIRRER WCI 5308008977 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
26
WASHER-MICRO SEAL WCI 5308008976 Contact Us For Availability
27
WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability
27
RETAINER VENT TR WCI 5303091366 Contact Us For Availability
27A
INSUL WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
27B
WCI 3131303 WCI 3131303 Contact Us For Availability
27D
SCREW - HNG MTG (6) (NON-ILLUSTRATED) WCI 3131143 Contact Us For Availability
28
WCI 5303015361 WCI 5303015361 Contact Us For Availability
28
TRIM-VENT TOP WCI 3091402 Contact Us For Availability
29
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
CAP END-LH UPPER TRIM WCI 5303207940 Contact Us For Availability
29
CAP END-RH UPPER TRIM WCI 5303207941 Contact Us For Availability
29A
WCI 5303207949 WCI 5303207949 Contact Us For Availability
30
WCI 5308010597 WCI 5308010597 Contact Us For Availability
30
WCI 5303091212 WCI 5303091212 Contact Us For Availability
30
WCI 5303091344 WCI 5303091344 Contact Us For Availability
30A
WCI 08013188 WCI 08013188 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
31
PANEL-TOP BLACK WCI 5303091373 Contact Us For Availability
32
SHIELD BI MTG CATCH WCI 3131593 Contact Us For Availability
33
FSTNR., PUSH ON (3) WCI 08067776 Contact Us For Availability
34
SW.-LATCHING WCI 3131672 Contact Us For Availability
34
WCI 3091338 WCI 3091338 Contact Us For Availability
35
TUBE OVN LITE WCI 3131363 Contact Us For Availability
35
WCI 805T023F06-18 WCI 805T023F06-18 Contact Us For Availability
36
PANEL BODYSIDE LH-BLACK WCI 3131907 Contact Us For Availability
36
PANEL-BODYSIDE RH-BLACK WCI 3131908 Contact Us For Availability
38
WCI 08067810 WCI 08067810 Contact Us For Availability
39
RETAIN, CATALYST WCI 612T079P01 Contact Us For Availability
39
PLUG-DISCONN KIT OVN ELMNT WHITE WCI 08010551 Contact Us For Availability
40
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
40
PROBE-ROAST CNTRL WCI 5303011684 Contact Us For Availability
41
BRKT-LITE SW WCI 5303131289 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
42
WCI 102T028P01 WCI 102T028P01 Contact Us For Availability
43
WCI 08067758 WCI 08067758 Contact Us For Availability
44
BTN-REMOTE LT SW WCI 08067750 Contact Us For Availability
45
SHIELD-HEAT LWR WCI 3200848 Contact Us For Availability
45A
INSUL.-TOUCH (NON-ILLUSTRATED) WCI 3131305 Contact Us For Availability
46
TRIM - VERT B/S (2) WCI 5303051326 Contact Us For Availability
47
WCI 5303208642 WCI 5303208642 Contact Us For Availability
47
TUBE-POST RH WCI 5303208643 Contact Us For Availability
47A
SHIELD-HEAT B/S (2) (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
47C
FASTENER-EDGE MOUNT (2) (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability
47D
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
48
WCI 3203582 WCI 3203582 Contact Us For Availability
× ![]()
