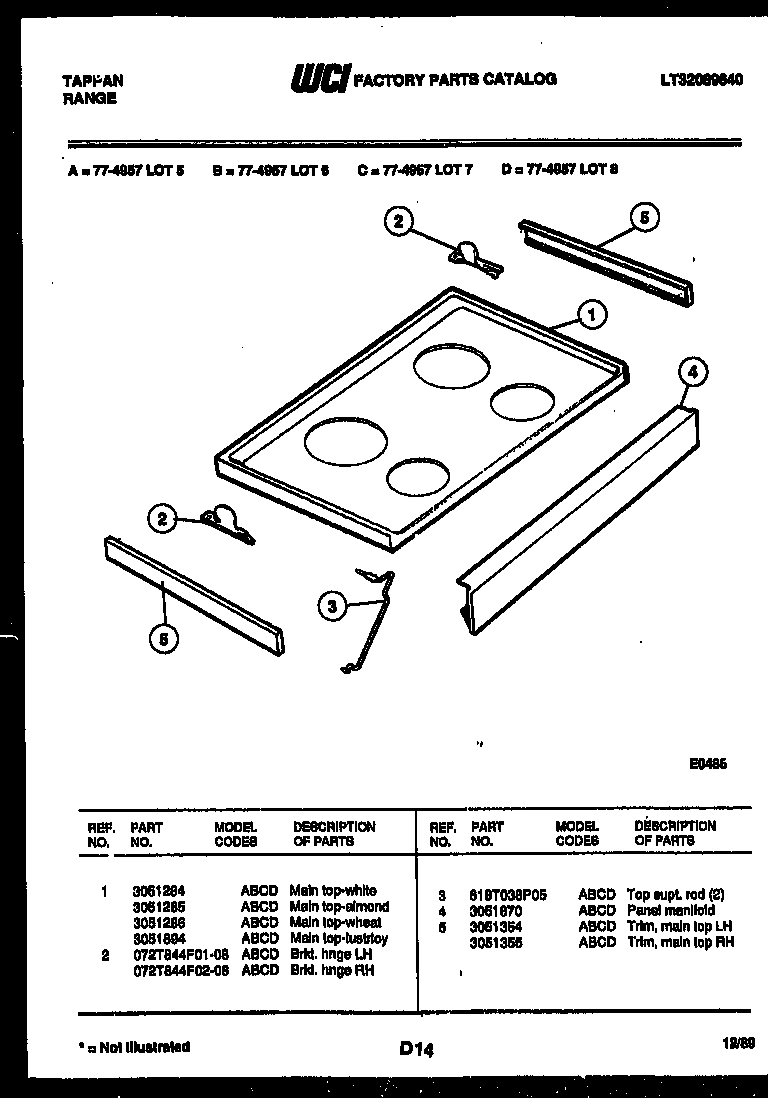

Model Electrolux 77-4957-08-08 RANGE – Common Parts &amp; Diagrams

*18991

SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 636T135P01 Contact Us For Availability

*18992

5303288565 Frigidaire Screw Backorder WCI 5303288565 $1.84

*18992

SPACR CNTRL MTG PNL (2) WCI 665T175P01 Contact Us For Availability

*18994

SCREW DOOR ASSY (22) WCI 636T046P02 Contact Us For Availability

*18994

HANDLE ASSY, COMPL W/ITEM 21 & 22 WCI 296T095S05 Contact Us For Availability

FASTENER WCI 241T014P01 Contact Us For Availability

WCI 241T017P136 WCI 241T017P136 Contact Us For Availability

FASTNR WIRE CLIP WCI 241T017P222 Contact Us For Availability

LABEL COOK GUIDE WCI 560T786P01 Contact Us For Availability

FASTNR PURSELOCK WCI 241T017P154 Contact Us For Availability

FASTNR PURSELOCK WCI 241T017P195 Contact Us For Availability

WCI 331T117P01 WCI 331T117P01 Contact Us For Availability

PLUG BTTN RACK GLIDES (8) WCI 557T028P01 Contact Us For Availability

1

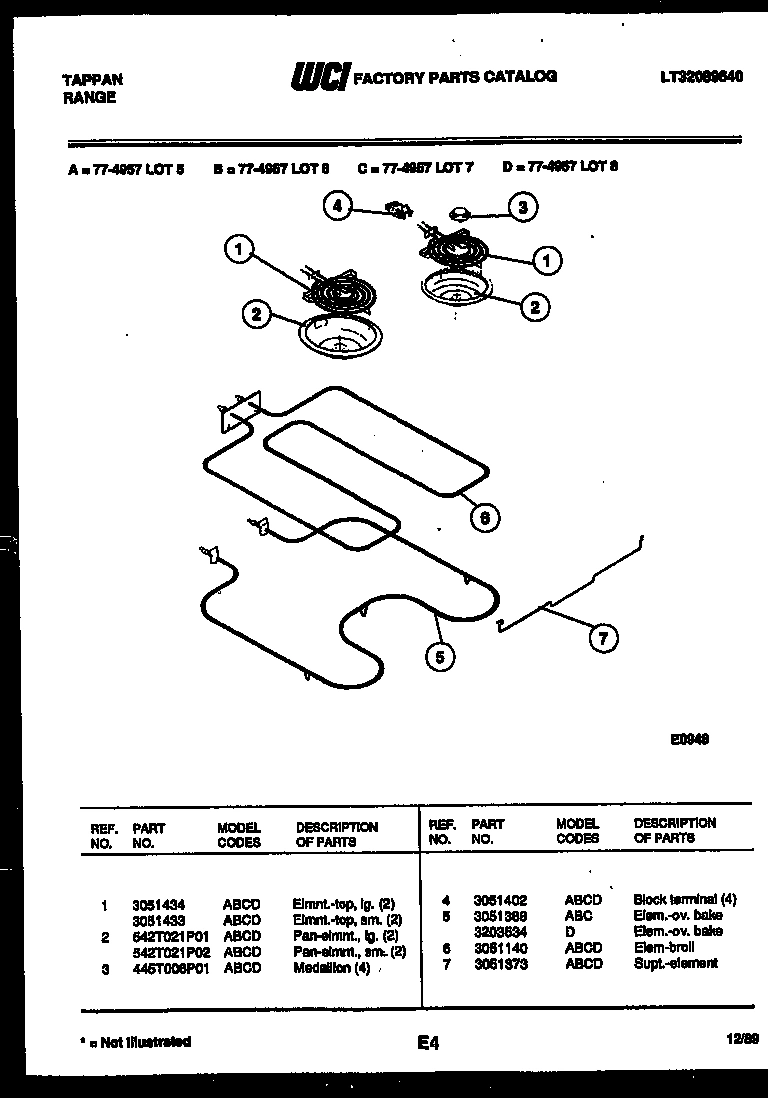

316442301 Frigidaire Oven 8 Coil Element 2600 In Stock WCI 316442301 $15.95

1

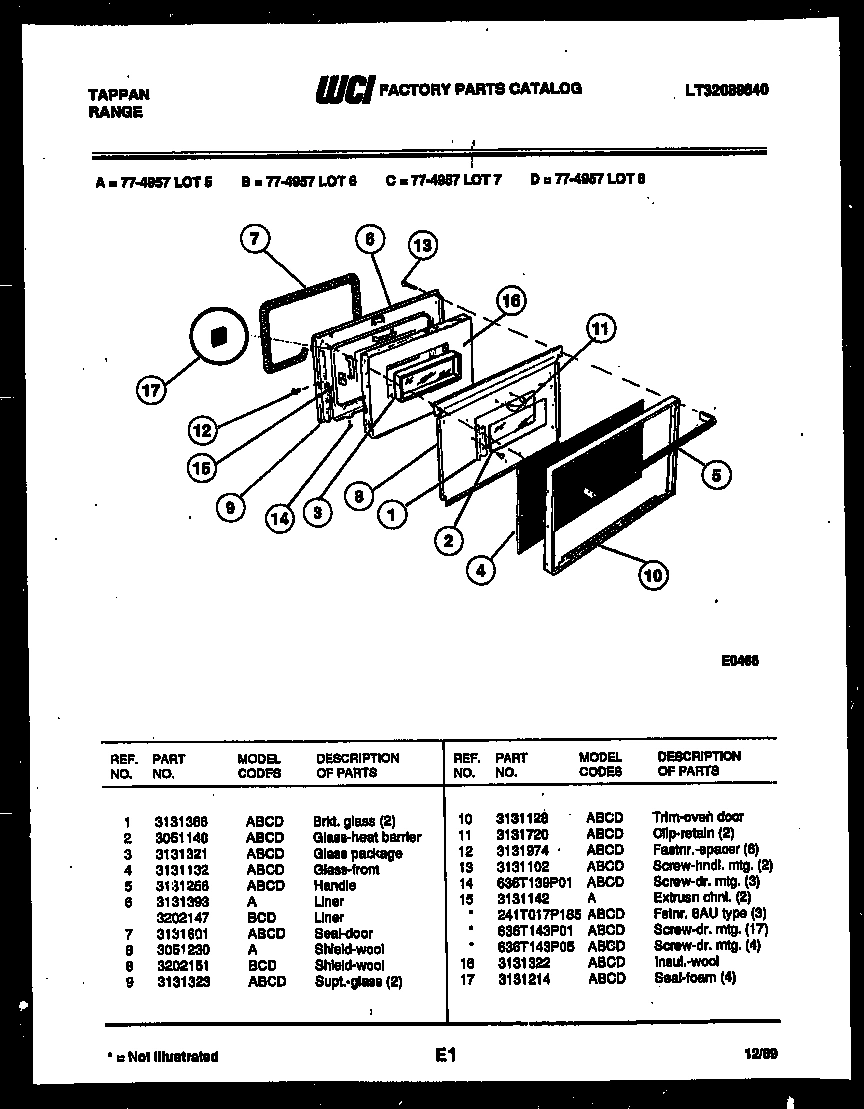

BRKT GLASS (2) WCI 3131366 Contact Us For Availability

1

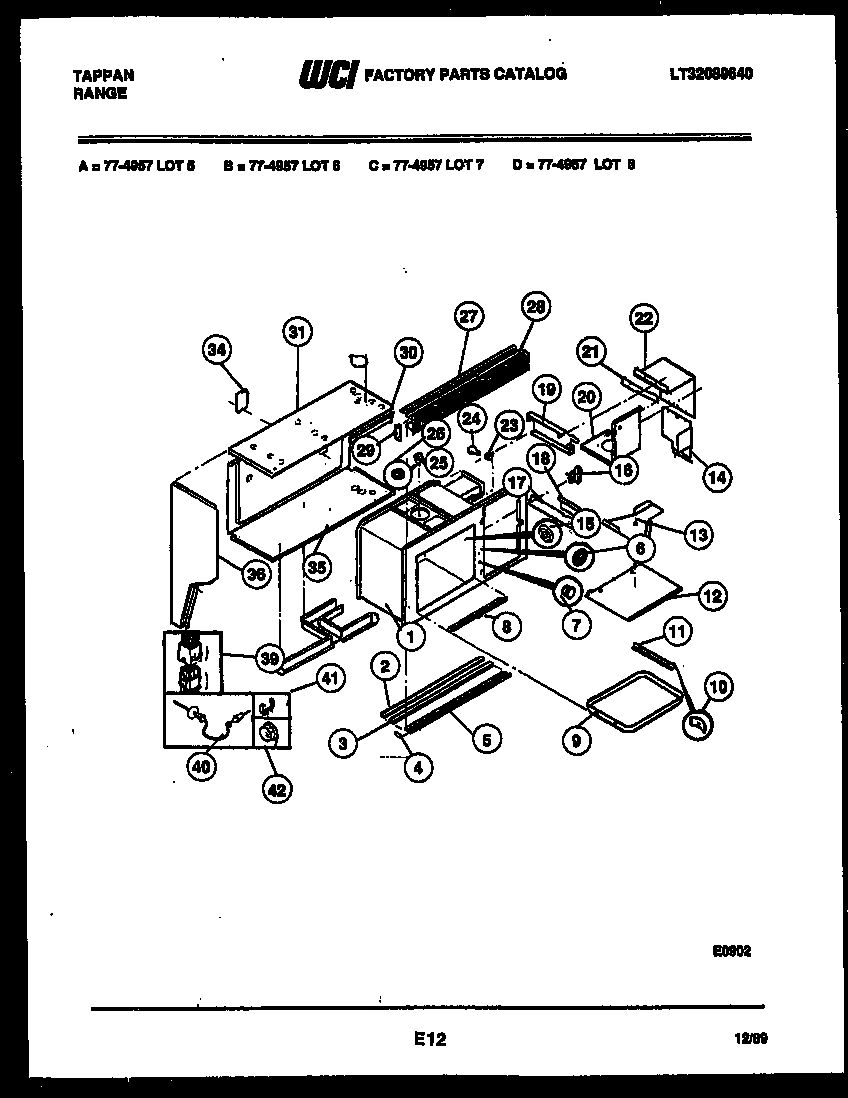

SPACER-B/S (8) WCI 3051736 Contact Us For Availability

1

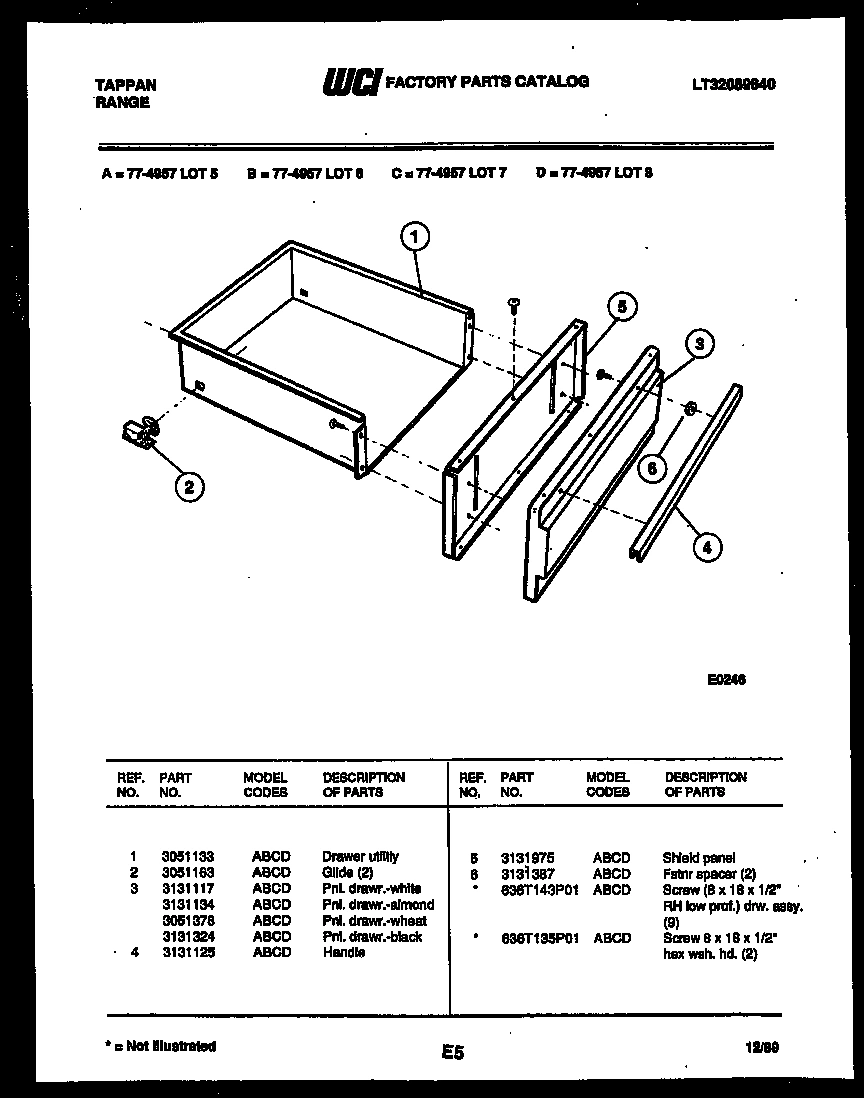

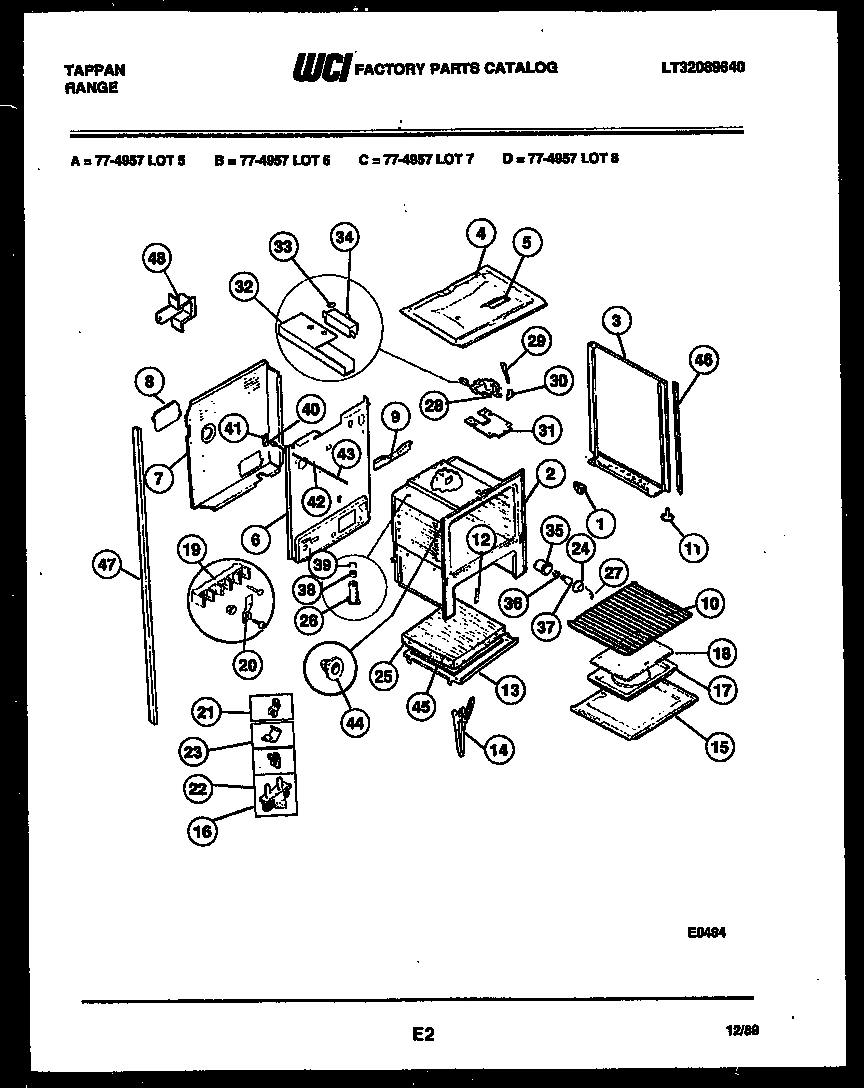

DRAWER, UTILITY WCI 3051133 Contact Us For Availability

1

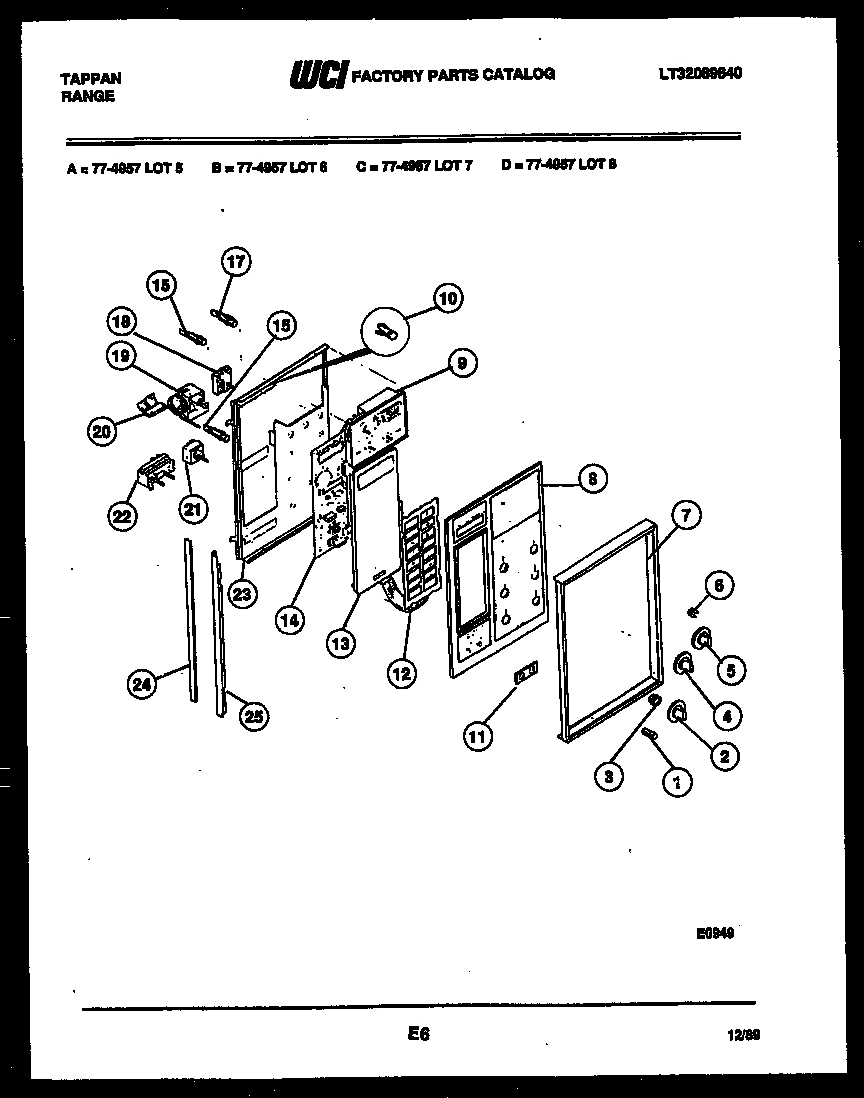

BUTTN PUSH ON-OFF (2) WCI 106T024P06 Contact Us For Availability

1

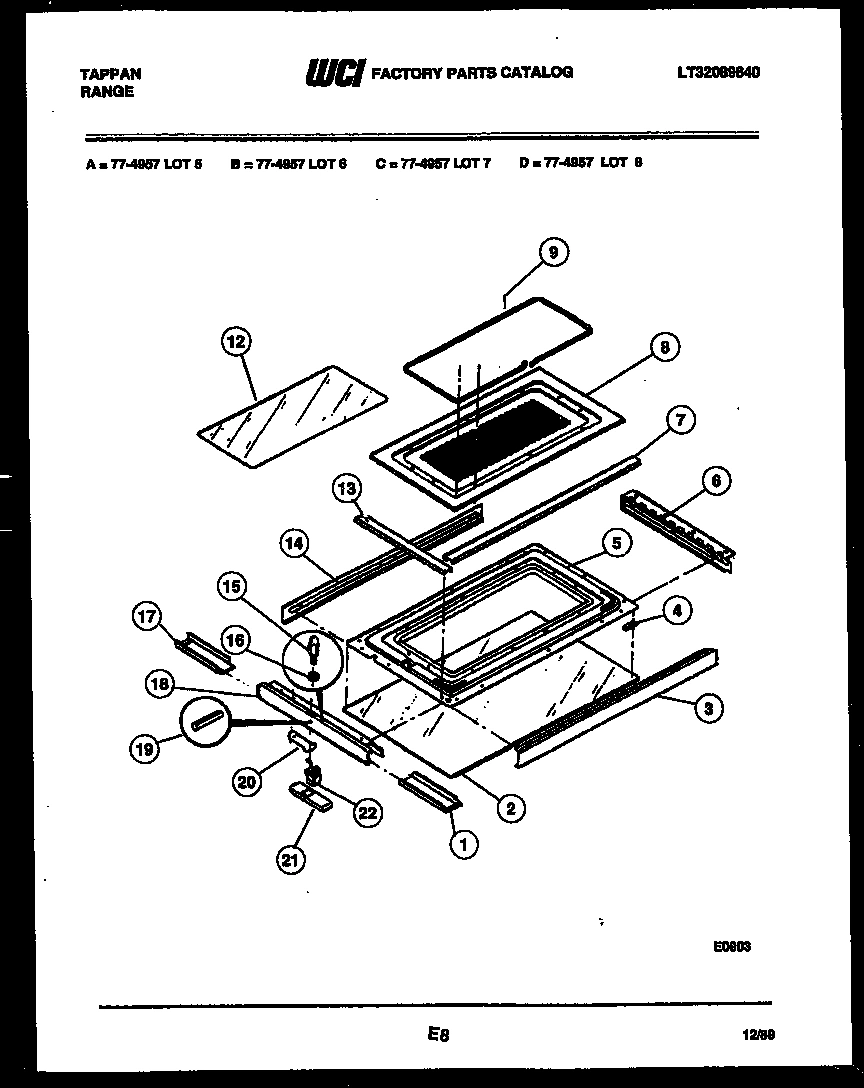

INSERT DR BOTTOM WCI 322T016P04 Contact Us For Availability

1

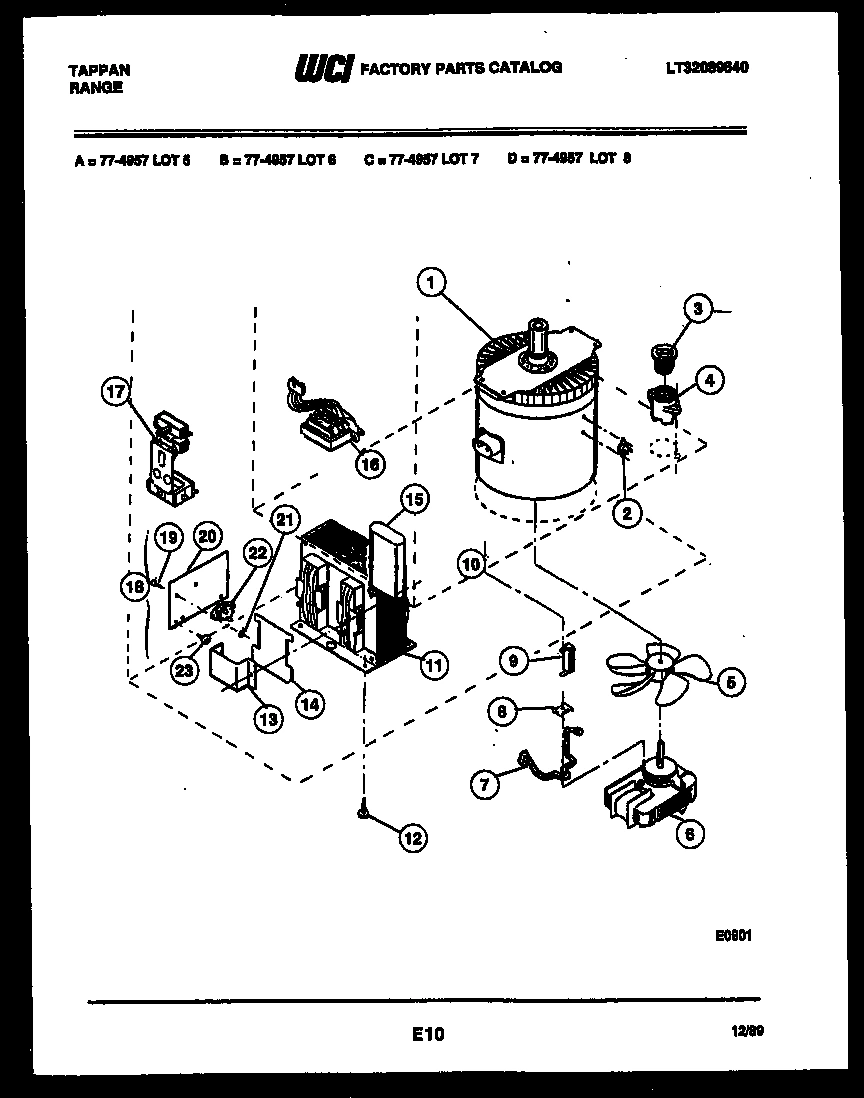

WCI 423T016P02 WCI 423T016P02 Contact Us For Availability

1

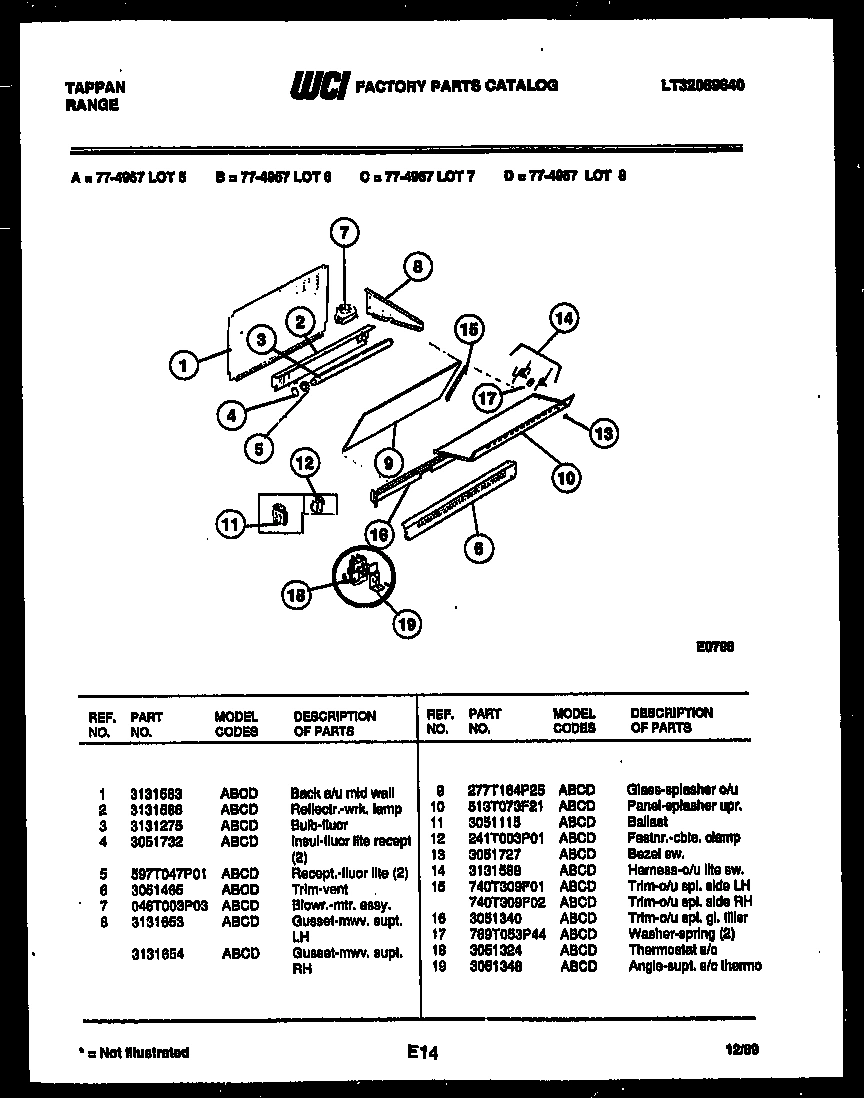

BACK A/U MID WALL WCI 3131583 Contact Us For Availability

1A

318372211 Frigidaire Oven 6" Electric Range B In Stock WCI 318372211 $12.96

1A

NUT HEX 5 MILLIM (NON-ILLUSTRATED) WCI 479T069P31 Contact Us For Availability

2

3051163 Frigidaire Oven Range Rear Broiler Dr In Stock WCI 3051163 $2.33

2

316048413 Frigidaire Oven Range Chrome 8" Dri In Stock WCI 316048413 $3.56

2

WCI 3051148 WCI 3051148 Contact Us For Availability

2

KNOB CONTRL INF. SW (4) WCI 3091393 Contact Us For Availability

2

GLASS OUTER DOOR WCI 3091382 Contact Us For Availability

2

SWITCH THERMO CUTOUT MAG. WCI 115T695P08 Contact Us For Availability

2

SEAL MICRO (2) WCI 643T013P03 Contact Us For Availability

2

REFLECTR WRK LAMP WCI 3131586 Contact Us For Availability

2A

316048414 Frigidaire Oven Range Chrome 6" Dri In Stock WCI 316048414 $2.62

2A

SCREW THERMO CUTOUT SW (NON-ILLUSTRATED) WCI 636T074P10 Contact Us For Availability

3

BULB-FLUOR WCI 3131275 Contact Us For Availability

3

GLASS, PACKAGE WCI 3131321 Contact Us For Availability

3

PNL. B/S LH-BLACK WCI 3201000 Contact Us For Availability

3

WCI 445T006P01 WCI 445T006P01 Contact Us For Availability

3

PNL-DRAWR-BLACK WCI 3131324 Contact Us For Availability

3

BUSHING C/P GLASS WCI 102T019P01 Contact Us For Availability

3

EXTRUSION BTM. WCI 233T027P02 Contact Us For Availability

3

WCI 262T010P01 WCI 262T010P01 Contact Us For Availability

3

COVER-MICRO SEAL (2) WCI 3200597 Contact Us For Availability

3A

PNL. B/S RH-BLACK WCI 3201001 Contact Us For Availability

4

5303935058 Frigidaire Oven Burner Receptacle In Stock WCI 5303935058 $4.05

4

WCI 3051870 WCI 3051870 Contact Us For Availability

4

WCI 3131132 WCI 3131132 Contact Us For Availability

4

WCI 3051109 WCI 3051109 Contact Us For Availability

4

WCI 3131125 WCI 3131125 Contact Us For Availability

4

KNOB THERMOSTAT WCI 3051442 Contact Us For Availability

4

SPACER 3/4 X 3/4 X 4`` (4) FOAM WCI 665T165P01 Contact Us For Availability

4

WCI 664T003P01 WCI 664T003P01 Contact Us For Availability

4

CAP END LWR TRIM (2) WCI 123T082P01 Contact Us For Availability

4

INSUL FLUOR LITE RECEPT (2) WCI 3051732 Contact Us For Availability

5

316075103 Frigidaire Oven Bake Element In Stock WCI 316075103 $14.21

5

WCI 3051354 WCI 3051354 Contact Us For Availability

5

WCI 3131256 WCI 3131256 Contact Us For Availability

5

WCI 3131101 WCI 3131101 Contact Us For Availability

5

WCI 3131975 WCI 3131975 Contact Us For Availability

5

KNOB SELEC SW WCI 3091392 Contact Us For Availability

5

WCI 260T002P01-18 WCI 260T002P01-18 Contact Us For Availability

5

FAN BLADE TRANSFORMER WCI 115T239P01 Contact Us For Availability

5

TRIM VENT BTM WCI 740T408P03 Contact Us For Availability

5

RECEPT FLUOR LITE (2) WCI 597T047P01 Contact Us For Availability

5A

WCI 3051355 WCI 3051355 Contact Us For Availability

5A

SCREW BTM TRIM MTG (3) (NON-ILLUSTRATED) WCI 636T090P54 Contact Us For Availability

6

5303051140 Frigidaire Broil Element Backorder WCI 5303051140 $119.12

6

LINER WCI 3202147 Contact Us For Availability

6

WCI 3203082 WCI 3203082 Contact Us For Availability

6

FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability

6

KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability

6

EXTRUSN HNG MTG ASSY WCI 233T026S13 Contact Us For Availability

6

MOTOR FAN WCI 115T463P03 Contact Us For Availability

6

MEDALLION DR STRIKE WCI 445T004P01 Contact Us For Availability

6

WCI 3051465 WCI 3051465 Contact Us For Availability

7

316203400 Frigidaire Oven Support Backorder WCI 316203400 $39.21

7

5303131601 Frigidaire Oven Seal Backorder WCI 5303131601 $199.68

7

SHIELD-LWR. WALL WCI 3203549 Contact Us For Availability

7

TRIM CNTRL PANEL WCI 740T406P04 Contact Us For Availability

7

SEAL DR TOP & BTM WCI 643T014P01 Contact Us For Availability

7

ROD FAN MTR SUPT WCI 618T048P01 Contact Us For Availability

7

GROMMET DR STRIKE WCI 287T003P08 Contact Us For Availability

7

WCI 046T003P03 WCI 046T003P03 Contact Us For Availability

8

WCI 3202151 WCI 3202151 Contact Us For Availability

8

CVR.-LWR. ACCESS WCI 3203405 Contact Us For Availability

8

GLASS-CNTRL. PNL. ASY. WCI 3091397 Contact Us For Availability

8

PANEL-DR. SEAL ALMOND WCI 3200605 Contact Us For Availability

8

CHANNL MTG GUIDE WCI 136T309F01 Contact Us For Availability

8

WCI 3200630 WCI 3200630 Contact Us For Availability

8

GUSSET MWV SUPT LH WCI 3131653 Contact Us For Availability

8A

GUSSET MWV SUPT RH WCI 3131654 Contact Us For Availability

9

SUPT. GLASS (2) WCI 3131323 Contact Us For Availability

9

COVER-FLUE WCI 3051368 Contact Us For Availability

9

WCI 3091385 WCI 3091385 Contact Us For Availability

9

TAPE SEAL 45`` IF EQUIPPED WCI 707R001P01 Contact Us For Availability

9

DIODE HI VOLTAGE WCI 115T198P02 Contact Us For Availability

9

TRAY OVEN WCI 736T005P01 Contact Us For Availability

9

GLASS SPLASHER O/U WCI 277T164P25 Contact Us For Availability

316067902 Frigidaire Oven Rack Backorder WCI 316067902 $63.90

5304409888 Frigidaire Oven Terminal Block Ass In Stock WCI 5304409888 $16.01

WCI 3131128 WCI 3131128 Contact Us For Availability

FSTNR.-CLOCK MTG. TWIST NUT (3) WCI 241T017P228 Contact Us For Availability

FASTNR TRAY GLIDE WCI 241T017P219 Contact Us For Availability

PANEL-SPLASHER UPR. WCI 513T073F21 Contact Us For Availability

10A

NUT HEX BRASS 10-32 (4) (NON-ILLUSTRATED) WCI 479T069P34 Contact Us For Availability

CLIP-RETAIN. (2) WCI 3131720 Contact Us For Availability

SCREW-LEVELING (4) WCI 3203397 Contact Us For Availability

BEZEL SELEC SW. WCI 3091347 Contact Us For Availability

WCI 737T061P01 WCI 737T061P01 Contact Us For Availability

WCI 3200607 WCI 3200607 Contact Us For Availability

WCI 3051115 WCI 3051115 Contact Us For Availability

CVR. HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability

FASTNR-SPACER (6) WCI 3131974 Contact Us For Availability

SW MEMBRANE TCH WCI 3091395 Contact Us For Availability

WCI 380T022P01 WCI 380T022P01 Contact Us For Availability

SCREW TRANSFORMER MTG (4) WCI 636T101P10 Contact Us For Availability

SCREW-TRANSFORMER MTG (4) WCI 636T101P14 Contact Us For Availability

COVER, STIRRER WCI 3200598 Contact Us For Availability

FASTNR CBLE CLAMP WCI 241T003P01 Contact Us For Availability

SCREW-HNDL MTG (2) WCI 3131102 Contact Us For Availability

SHIELD-WOOL LWR WCI 3200825 Contact Us For Availability

PANEL SW MTG WCI 511T048P01 Contact Us For Availability

WCI 643T014P02 WCI 643T014P02 Contact Us For Availability

WCI 612T104F01 WCI 612T104F01 Contact Us For Availability

WCI 239T043S02 WCI 239T043S02 Contact Us For Availability

BEZEL-SW. WCI 3051727 Contact Us For Availability

13A

NUT STIR SHAFT TO FAN (NON-ILLUSTRATED) WCI 479T069P01 Contact Us For Availability

CHANL DR. HNG. (2) WCI 316007002 No Longer Available

SCREW DR MTG (3) WCI 636T139P01 Contact Us For Availability

CIRCUIT BOARD PRINTED WCI 115T139P01 Contact Us For Availability

WCI 233T016P04 WCI 233T016P04 Contact Us For Availability

SHIELD CAPAC TERM WCI 655T378P01 Contact Us For Availability

COVER DUCT BTM EXTENSION WCI 174T267P01 Contact Us For Availability

HARNESS-O/U LITE SW WCI 3131588 Contact Us For Availability

14A

SCREW CIRCUIT BRD MTG (4) (NON-ILLUSTRATED) WCI 636T090P51 Contact Us For Availability

EXTRUSN CHNL (2) WCI 3131142 Contact Us For Availability

WCI 3203540 WCI 3203540 Contact Us For Availability

INDICATOR LIGHT WCI 318T023P12 Contact Us For Availability

SCREW DR STRIKE HEX WCI 636T111P03 Contact Us For Availability

CAPAC HI VOLTAGE NON-PCB WCI 115T157P02 Contact Us For Availability

NUT RECEPT MTG WCI 479T084P01 Contact Us For Availability

WCI 740T309F01 WCI 740T309F01 Contact Us For Availability

15A

WCI 740T309F02 WCI 740T309F02 Contact Us For Availability

15C

WCI 636T143P05 WCI 636T143P05 Contact Us For Availability

INSUL WOOL WCI 3131322 Contact Us For Availability

FUSE-THERM. CUTOUT WCI 3051385 Contact Us For Availability

TRANSFORMER LO VOLT WCI 737T055P02 Contact Us For Availability

WCI 597T035P01 WCI 597T035P01 Contact Us For Availability

TRIM O/U SPL GL FILLER WCI 3051340 Contact Us For Availability

SEAL, FOAM (4) WCI 3131214 Contact Us For Availability

WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability

INDICATOR LIGHT (3) WCI 318T023P11 Contact Us For Availability

INSERT TOP WCI 322T015P04 Contact Us For Availability

KIT INTERLOCK SW WCI 355T448S01 Contact Us For Availability

WCI 008T480P01 WCI 008T480P01 Contact Us For Availability

WASHER, SPRING (2) WCI 789T053P44 Contact Us For Availability

17A

SCREW INTERLK SW (6) (NON-ILLUSTRATED) WCI 636T095P16 Contact Us For Availability

WCI 3131356 WCI 3131356 Contact Us For Availability

SWITCH SELEC 6 POS. WCI 3051315 Contact Us For Availability

WCI 233T012P06 WCI 233T012P06 Contact Us For Availability

WCI 355T515S04 WCI 355T515S04 Contact Us For Availability

WCI 008T378F11 WCI 008T378F11 Contact Us For Availability

THERMOSTAT-S/C WCI 3051324 Contact Us For Availability

THERMOSTAT OVEN WCI 3051320 Contact Us For Availability

WCI 550T037P02 WCI 550T037P02 Contact Us For Availability

SCREW (2) WCI 636T095P11 Contact Us For Availability

SCREW WCI 636T095P47 Contact Us For Availability

CHANNL AIR WCI 136T321F02-18 Contact Us For Availability

ANGLE SUPT S/C THERMO WCI 3051348 Contact Us For Availability

GRND STRAP WCI 711T048P01 Contact Us For Availability

PLUG DISCONN 9 PLN WCI 558T032P01 Contact Us For Availability

SPRING, DOOR HANDLE WCI 675T072P02 Contact Us For Availability

WCI 554T338F02 WCI 554T338F02 Contact Us For Availability

WCI 211T044F04 WCI 211T044F04 Contact Us For Availability

20A

SCREW DUCT (2) (NON-ILLUSTRATED) WCI 636T090P05 Contact Us For Availability

CLIP-THERM. BULB (2) WCI 3131295 Contact Us For Availability

SWITCH TOP UNIT WCI 699T015P02 Contact Us For Availability

NUT HEX 6-32 SPECIAL (2) WCI 479T069P30 Contact Us For Availability

KIT HANDLE WCI 355T517S03 Contact Us For Availability

BRACKT MAGNETRON SUPPORT WCI 072T731F01 Contact Us For Availability

3051162 Frigidaire Oven Range Front Broiler D In Stock WCI 3051162 $1.73

SWITCH SELEC 2 POS WCI 697T047P04 Contact Us For Availability

WCI 306T008P01 WCI 306T008P01 Contact Us For Availability

WCI 742T005P01 WCI 742T005P01 Contact Us For Availability

COVER DUCT ASSY WCI 174T253S02 Contact Us For Availability

22A

SCREW SELEC SW. (NON-ILLUSTRATED) WCI 636T096P01 Contact Us For Availability

23

WCI 3051367 WCI 3051367 Contact Us For Availability

23

PANEL CONTROL WCI 3091343 Contact Us For Availability

23

WCI 3091197 WCI 3091197 Contact Us For Availability

23A

WCI 3091205 WCI 3091205 Contact Us For Availability

23B

HARNESS DIODE ASSY (NON-ILLUSTRATED) WCI 299T405S203 Contact Us For Availability

23C

SCREW TERM BLK MT (2) (NON-ILLUSTRATED) WCI 636T069P02 Contact Us For Availability

23D

WCI 3091206 WCI 3091206 Contact Us For Availability

24

5304524341 Frigidaire Lens In Stock WCI 5304524341 $8.02

24

WCI 643T013P01 WCI 643T013P01 Contact Us For Availability

24

LIGHT BULB 100W WCI 374T024P01 Contact Us For Availability

25

WCI 3051429 WCI 3051429 Contact Us For Availability

25

WCI 174T188P02 WCI 174T188P02 Contact Us For Availability

25

MTR STIRRER WCI 115T463P01 Contact Us For Availability

26

WCI 3051344 WCI 3051344 Contact Us For Availability

26

WASHER MICRO SEAL WCI 789T061P01 Contact Us For Availability

27

WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability

27

RETAINER VENT TR WCI 612T101F01 Contact Us For Availability

27A

INSUL WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability

27B

WCI 3131303 WCI 3131303 Contact Us For Availability

27D

SCREW-HNG MTG (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability

27E

NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability

27F

3203550 Frigidaire Oven Plug Backorder WCI 3203550 $8.93

28

WCI 3051258 WCI 3051258 Contact Us For Availability

28

TRIM VENT TOP WCI 740T454P02 Contact Us For Availability

29

WCI 3051473 WCI 3051473 Contact Us For Availability

29

CAP END LH UPPER TRIM WCI 123T081P05 Contact Us For Availability

29A

CAP END RH UPPER TRIM WCI 123T081P06 Contact Us For Availability

29B

SCREW END CAP 8A X 3/8 (2) (NON-ILLUSTRATED) WCI 636T090P34 Contact Us For Availability

30

WCI 358T158S02 WCI 358T158S02 Contact Us For Availability

30

WCI 655T307F02 WCI 655T307F02 Contact Us For Availability

30A

SCREW, SET, LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability

30A

WCI 655T307F03-18 WCI 655T307F03-18 Contact Us For Availability

31

SHIELD-LATCH WCI 3051413 Contact Us For Availability

31

PANEL TOP BLACK WCI 529T079F05-18 Contact Us For Availability

32

SHIELD BI MTG CATCH WCI 3131593 Contact Us For Availability

33

FSTNR PUSH ON (3) WCI 241T001P01 Contact Us For Availability

34

SW.-LATCHING WCI 3051734 Contact Us For Availability

34

WCI 3091338 WCI 3091338 Contact Us For Availability

35

WCI 805T023F06-18 WCI 805T023F06-18 Contact Us For Availability

36

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $36.58

36

PANEL BODYSIDE LH-BLACK WCI 3131907 Contact Us For Availability

37

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.44

38

WCI 3051737 WCI 3051737 Contact Us For Availability

39

RETAIN, CATALYST WCI 612T079P01 Contact Us For Availability

39

PLUG DISCONN. KIT OVN. ELMNT. WHITE WCI 355T442S01 Contact Us For Availability

39A

PLUG DISCONN KIT SURF ELMNT RED WCI 355T442S02 Contact Us For Availability

40

WCI 3014246 WCI 3014246 Contact Us For Availability

40

PROBE ROAST CNTRL WCI 115T563P03 Contact Us For Availability

41

BRKT LITE SW. WCI 3131289 Contact Us For Availability

42

WCI 3051495 WCI 3051495 Contact Us For Availability

42

WCI 102T028P01 WCI 102T028P01 Contact Us For Availability

43

WCI 3051251 WCI 3051251 Contact Us For Availability

44

BTN REMOTE LT SW WCI 3051731 Contact Us For Availability

45

SHIELD-HEAT LWR WCI 3200848 Contact Us For Availability

45A

INSUL.-TOUCH (NON-ILLUSTRATED) WCI 3131305 Contact Us For Availability

45B

3131903 Frigidaire Door/Drawer Bumper Backorder WCI 3131903 $32.52

46

TRIM-VERT B/S (2) WCI 3051326 Contact Us For Availability

47

WCI 3051723 WCI 3051723 Contact Us For Availability

47A

WCI 3051724 WCI 3051724 Contact Us For Availability

47B

SHIELD-HEAT B/S (2) (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability

47C

316403803 Frigidaire Insulation Backorder WCI 316403803 $27.63

47D

FASTENER-EDGE MOUNT (2) (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability

47E

ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability

48

WCI 3203582 WCI 3203582 Contact Us For Availability
