Model Maytag 7498XTA GAS RANGE/MICROWAVE COMBO – Common Parts & Diagrams
01 - BODY
02 - DOOR/DRAWER

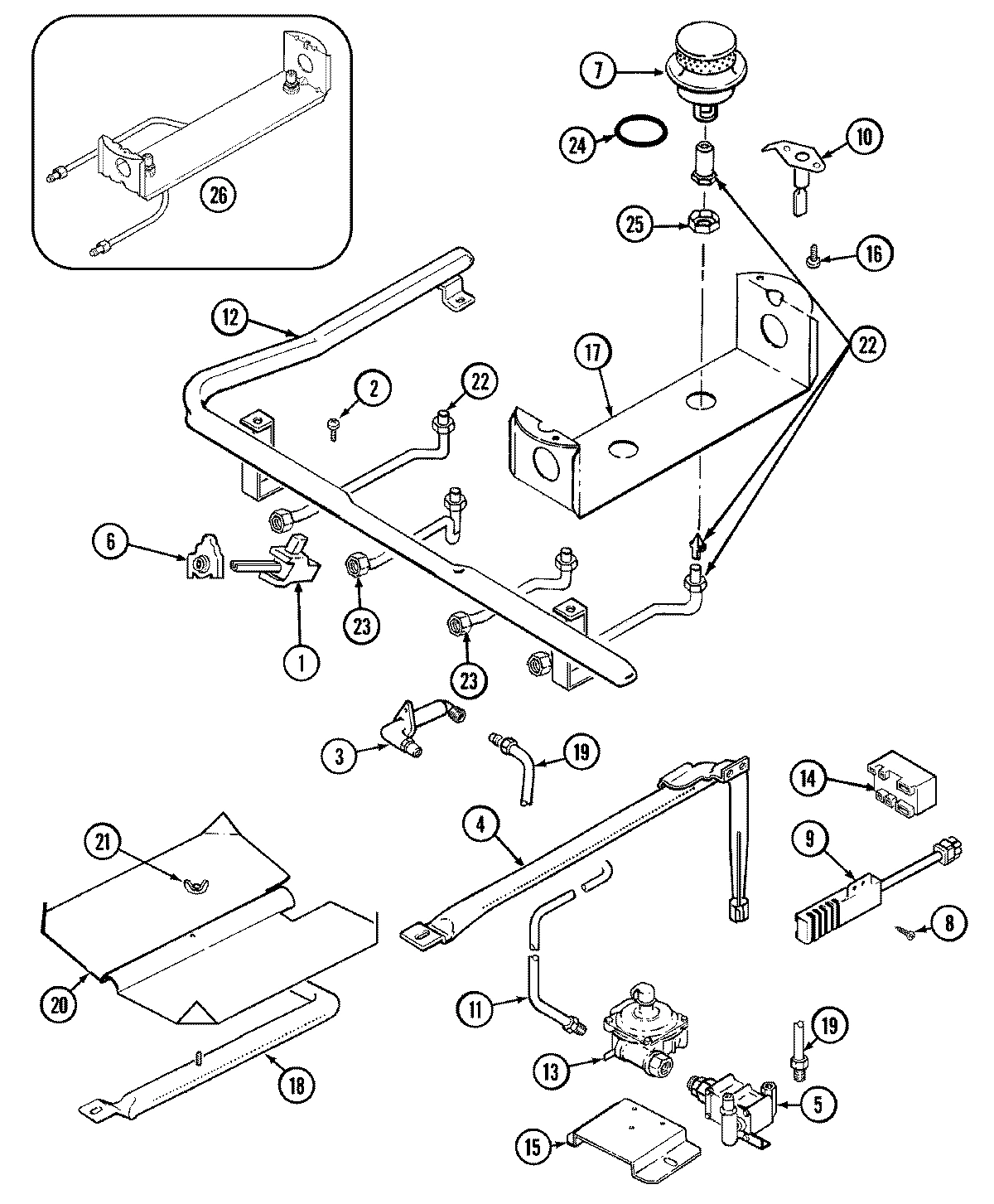

03 - GAS CONTROLS
04 - MICROWAVE OVEN

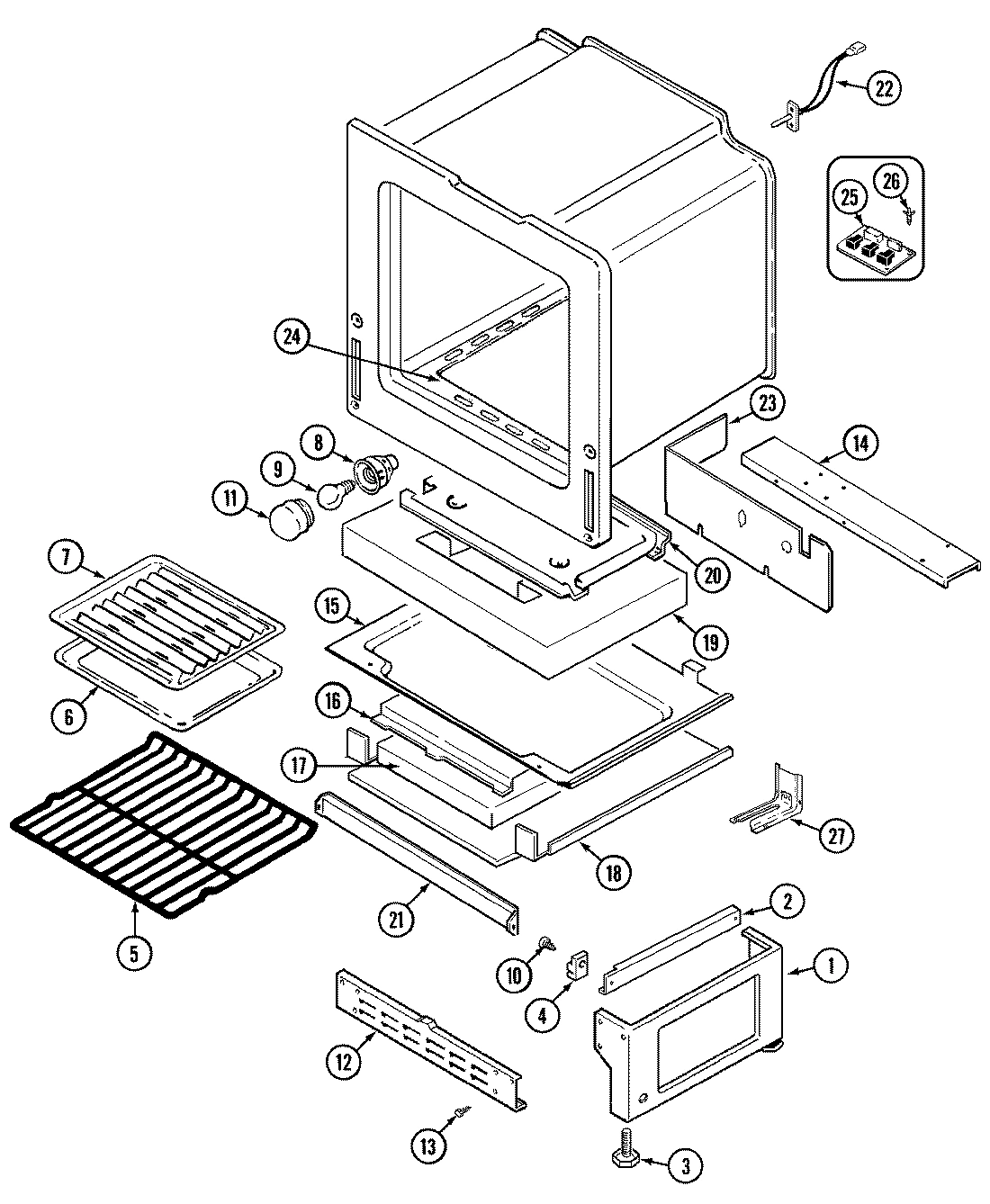

05 - OVEN/BASE

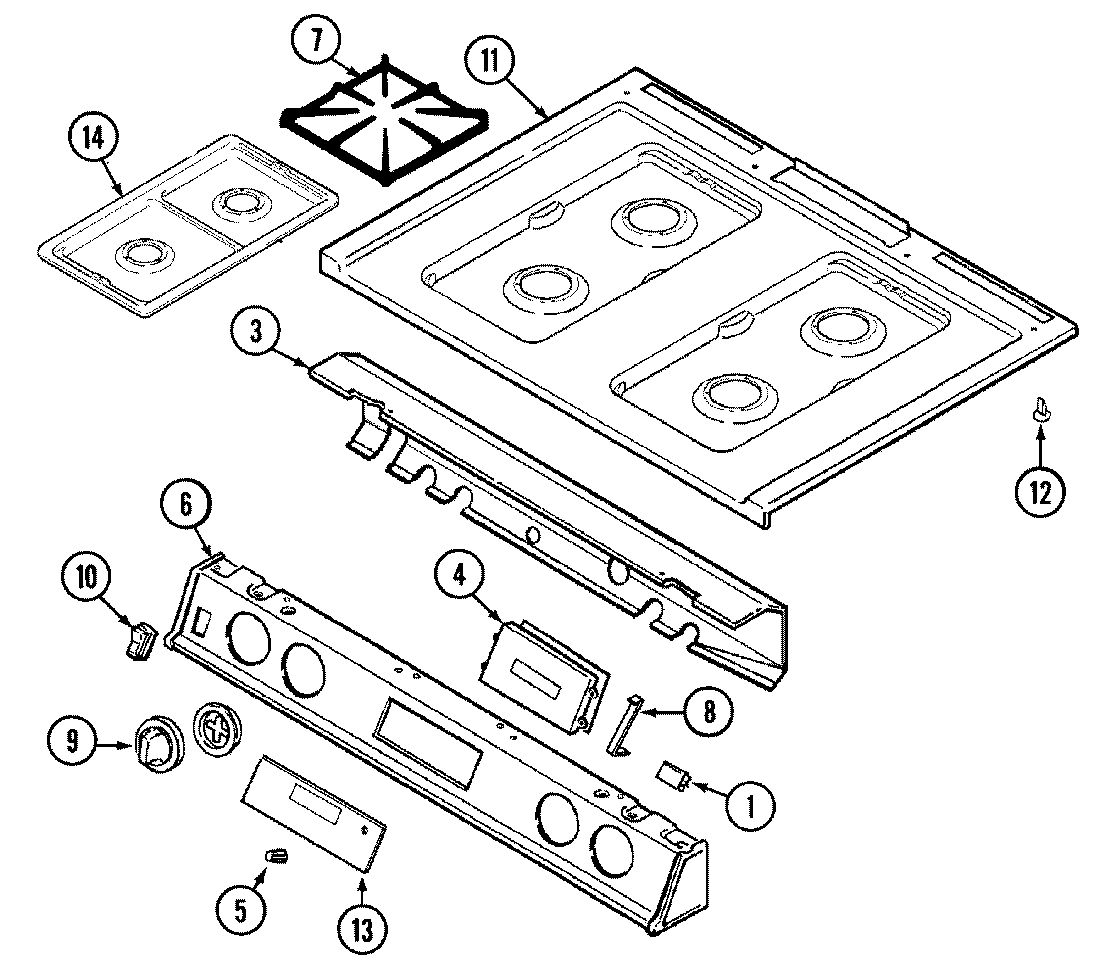

06 - TOP ASSEMBLY
Common parts from model Maytag 7498XTA GAS RANGE/MICROWAVE COMBO
1
MAY 7902P321-60 MAY 7902P321-60 Contact Us For Availability
1
MAY 7502P251-60 MAY 7502P251-60 Contact Us For Availability
1
MAY 4020W011-80 MAY 4020W011-80 Contact Us For Availability
1
MAY 7112P087-60 MAY 7112P087-60 Contact Us For Availability
2
MAY 8010P086-60 MAY 8010P086-60 Contact Us For Availability
2
MAY 7101P044-60 MAY 7101P044-60 Contact Us For Availability
2
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
3
NOT REQUIRED PART OR SEE NOTE FOR MICROWAVE P MAY W10124350 Contact Us For Availability
3
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY 3605F186-45 MAY 3605F186-45 Contact Us For Availability
3
MAY 7507P088-60 MAY 7507P088-60 Contact Us For Availability
3
MAY 7101P306-60 MAY 7101P306-60 Contact Us For Availability
3
MAY 74001542 MAY 74001542 Contact Us For Availability
3
MAY 74002588 MAY 74002588 Contact Us For Availability
4
MAY 74002312 MAY 74002312 Contact Us For Availability
4
MAY 3403D043-45 MAY 3403D043-45 Contact Us For Availability
4
MAY 3807F446-45 MAY 3807F446-45 Contact Us For Availability
4
MAY 7601P206-60 MAY 7601P206-60 Contact Us For Availability
5
MAY 7101P291-60 MAY 7101P291-60 Contact Us For Availability
5
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
5
MAY 7711P431-60 MAY 7711P431-60 Contact Us For Availability
6
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
6
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
6
MAY 74001069 MAY 74001069 Contact Us For Availability
6
MAY 74001084 MAY 74001084 Contact Us For Availability
6
MAY 8002P027-60 MAY 8002P027-60 Contact Us For Availability
6
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
6
MAY 7712P150-60 MAY 7712P150-60 Contact Us For Availability
7
MAY 4005F425-51 MAY 4005F425-51 Contact Us For Availability
7
MAY 7701P103-60 MAY 7701P103-60 Contact Us For Availability
7
MAY 3412D018-09 MAY 3412D018-09 Contact Us For Availability
7
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
7
MAY 2003W027-00 MAY 2003W027-00 Contact Us For Availability
8
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
8
MAY 3801F222-45 MAY 3801F222-45 Contact Us For Availability
8
MAY 7101P346-60 MAY 7101P346-60 Contact Us For Availability
9
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
9
MAY 7432P076-60 MAY 7432P076-60 Contact Us For Availability
10
MAY 74001449 MAY 74001449 Contact Us For Availability
10
MAY 2402W202-19 MAY 2402W202-19 Contact Us For Availability
11
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
11
MAY 4804F034-60 MAY 4804F034-60 Contact Us For Availability
11
MAY 3414F110-44 MAY 3414F110-44 Contact Us For Availability
11
MAY 2001F115-84 MAY 2001F115-84 Contact Us For Availability
11
MAY 2001F117-84 MAY 2001F117-84 Contact Us For Availability
12
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
12
MAY 7744P075-60 MAY 7744P075-60 Contact Us For Availability
12
MAY 7744P076-60 MAY 7744P076-60 Contact Us For Availability
12
MAY 8270P093-60 MAY 8270P093-60 Contact Us For Availability
12
MAY 7103P130-60 MAY 7103P130-60 Contact Us For Availability
12
MAY 7513P155-60 MAY 7513P155-60 Contact Us For Availability
12
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
12
MAY 74001428 MAY 74001428 Contact Us For Availability
13
MAY 3601F232-45 MAY 3601F232-45 Contact Us For Availability
13
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
13
MAY 3807F447-51 MAY 3807F447-51 Contact Us For Availability
13
MAY 7510P065-60 MAY 7510P065-60 Contact Us For Availability
13
MAY 7403P331-60 MAY 7403P331-60 Contact Us For Availability
14
MAY 8026P021-60 MAY 8026P021-60 Contact Us For Availability
14
MAY 3405F014-80 MAY 3405F014-80 Contact Us For Availability
14
MAY 3801F341-45 MAY 3801F341-45 Contact Us For Availability
14
MAY 7431P023-60 MAY 7431P023-60 Contact Us For Availability
14
MAY 7431P027-60 MAY 7431P027-60 Contact Us For Availability
14
MAY 3807F476-51 MAY 3807F476-51 Contact Us For Availability
14
MAY 5401A452-60 MAY 5401A452-60 Contact Us For Availability
15
MAY 7112P112-60 MAY 7112P112-60 Contact Us For Availability
15
MAY 7744P055-60 MAY 7744P055-60 Contact Us For Availability
15
MAY 8020P007-60 MAY 8020P007-60 Contact Us For Availability
15
MAY 3804F112-51 MAY 3804F112-51 Contact Us For Availability
15
MAY 5170P138-60 MAY 5170P138-60 Contact Us For Availability
15
MAY 5170P184-60 MAY 5170P184-60 Contact Us For Availability
15
MAY 5195D110-60 MAY 5195D110-60 Contact Us For Availability
16
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
16
MAY 7907P021-60 MAY 7907P021-60 Contact Us For Availability
16
MAY 7101P315-60 MAY 7101P315-60 Contact Us For Availability
16
MAY 3604F204-51 MAY 3604F204-51 Contact Us For Availability
16
MAY 16000329 MAY 16000329 Contact Us For Availability
16
MAY 8113P066-60 MAY 8113P066-60 Contact Us For Availability
17
MAY 7003P063-60 MAY 7003P063-60 Contact Us For Availability
17
MAY 7403P361-60 MAY 7403P361-60 Contact Us For Availability
17
MAY 3818F052-51 MAY 3818F052-51 Contact Us For Availability
17
MAY 3807F451-45 MAY 3807F451-45 Contact Us For Availability
17
INSULATION, DRAWER & SHIELD MAY 7002P140-60 Contact Us For Availability
18
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
18
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
18
MAY 3403D024-45 MAY 3403D024-45 Contact Us For Availability
18
MAY 3604F205-51 MAY 3604F205-51 Contact Us For Availability
19
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
19
MAY 3414F102-44 MAY 3414F102-44 Contact Us For Availability
19
MAY 8004P007-60 MAY 8004P007-60 Contact Us For Availability
19
MAY 4804F014-60 MAY 4804F014-60 Contact Us For Availability
20
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
20
MAY 8010P075-60 MAY 8010P075-60 Contact Us For Availability
20
MAY 3601F217-45 MAY 3601F217-45 Contact Us For Availability
20
MAY 74001651 MAY 74001651 Contact Us For Availability
21
MAY 4006W113-45 MAY 4006W113-45 Contact Us For Availability
21
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
21
NUT, WING MAY 7103P030-60 Contact Us For Availability
21
MAY 5504M004-19 MAY 5504M004-19 Contact Us For Availability
21
BAFFLE, OVEN FRONT MAY 74001219 Contact Us For Availability
22
MAY 7403P249-60 MAY 7403P249-60 Contact Us For Availability
22
MAY 7507P085-60 MAY 7507P085-60 Contact Us For Availability
22
MAY 7430P009-60 MAY 7430P009-60 Contact Us For Availability
23
MAY 7427P013-60 MAY 7427P013-60 Contact Us For Availability
23
MAY 7744P105-60 MAY 7744P105-60 Contact Us For Availability
23
MAY 7507P084-60 MAY 7507P084-60 Contact Us For Availability
23
MAY 4005F429-51 MAY 4005F429-51 Contact Us For Availability
24
MAY 3826W016-45 MAY 3826W016-45 Contact Us For Availability
24
MAY 7201P050-60 MAY 7201P050-60 Contact Us For Availability
24
BAFFLE, OVEN BOTTOM MAY 3601F239-45 Contact Us For Availability
25
MAY 3807F431-45 MAY 3807F431-45 Contact Us For Availability
25
LINING, DRAWER PANEL MAY 2404F030-51 Contact Us For Availability
25
MAY 7103P119-60 MAY 7103P119-60 Contact Us For Availability
25
MAY 7428P010-60 MAY 7428P010-60 Contact Us For Availability
26
MAY 4006F148-51 MAY 4006F148-51 Contact Us For Availability
26
MAY 2416F038-64 MAY 2416F038-64 Contact Us For Availability
26
MAY 5187D025-60 MAY 5187D025-60 Contact Us For Availability
26
MAY 3807F439-51 MAY 3807F439-51 Contact Us For Availability
26
MAY 8004P022-60 MAY 8004P022-60 Contact Us For Availability
27
MAY 4011F242-51 MAY 4011F242-51 Contact Us For Availability
27
MAY 3805F002-34 MAY 3805F002-34 Contact Us For Availability
27
MAY 7101P344-60 MAY 7101P344-60 Contact Us For Availability
27
MAY 74002311 MAY 74002311 Contact Us For Availability
28
MAY 7506P124-60 MAY 7506P124-60 Contact Us For Availability
29
MAY 7402P046-60 MAY 7402P046-60 Contact Us For Availability
30
MAY 7401P015-60 MAY 7401P015-60 Contact Us For Availability
31
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
31
MAY 74001159 MAY 74001159 Contact Us For Availability
× ![]()
