Model Electrolux 73-7857-66-01 RANGE – Common Parts & Diagrams
01 - COVER
02 - CONTROL PANEL

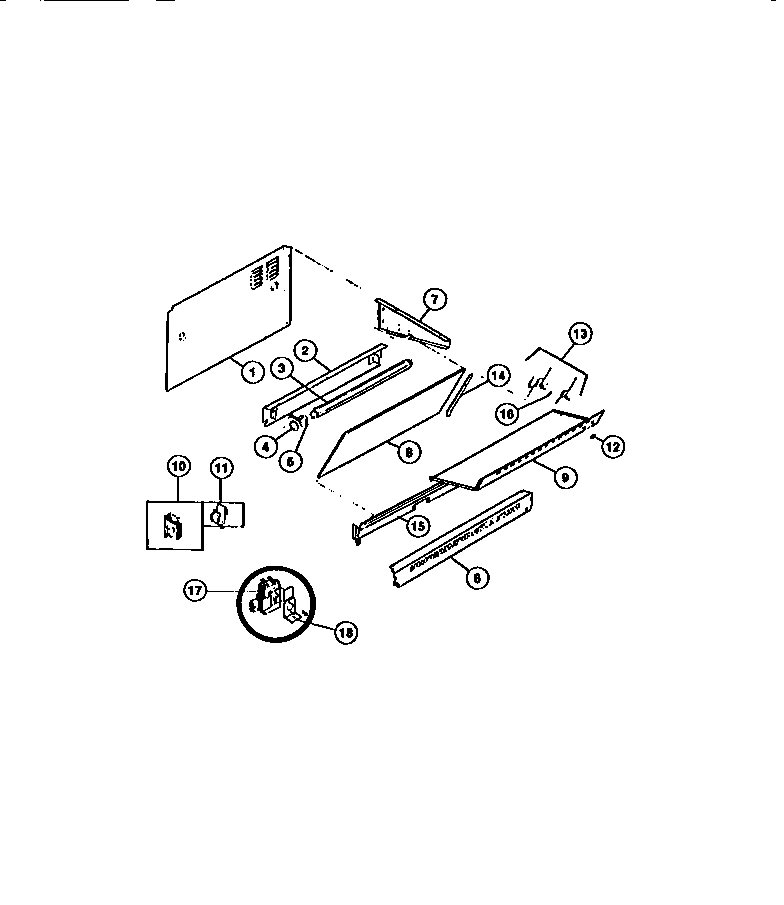

03 - SPLASHER CONTROL

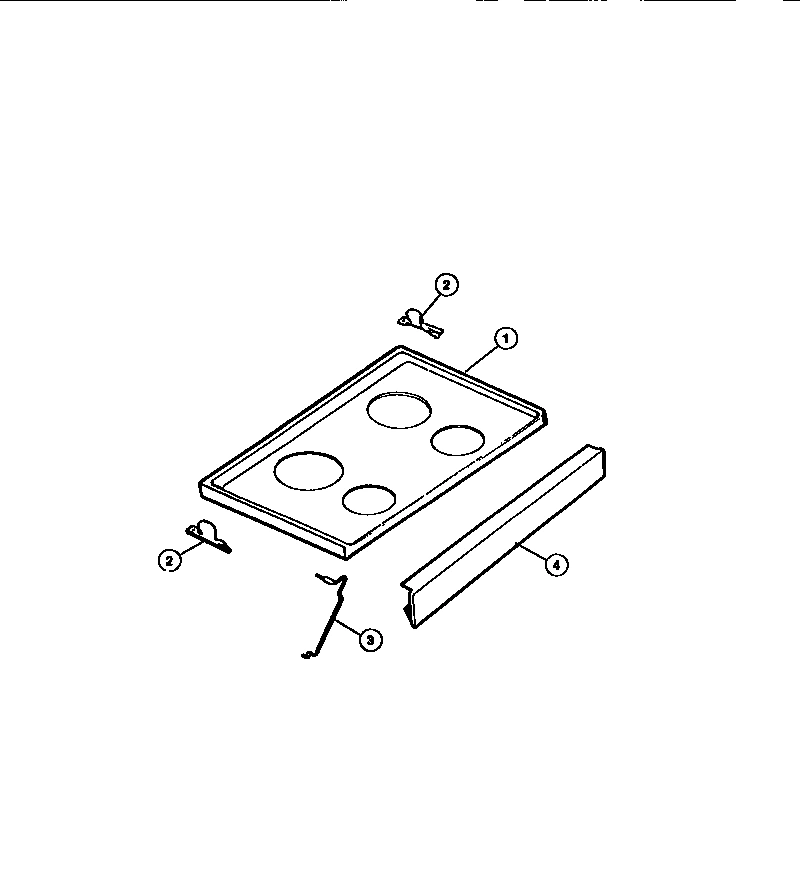

04 - COOKTOP PARTS

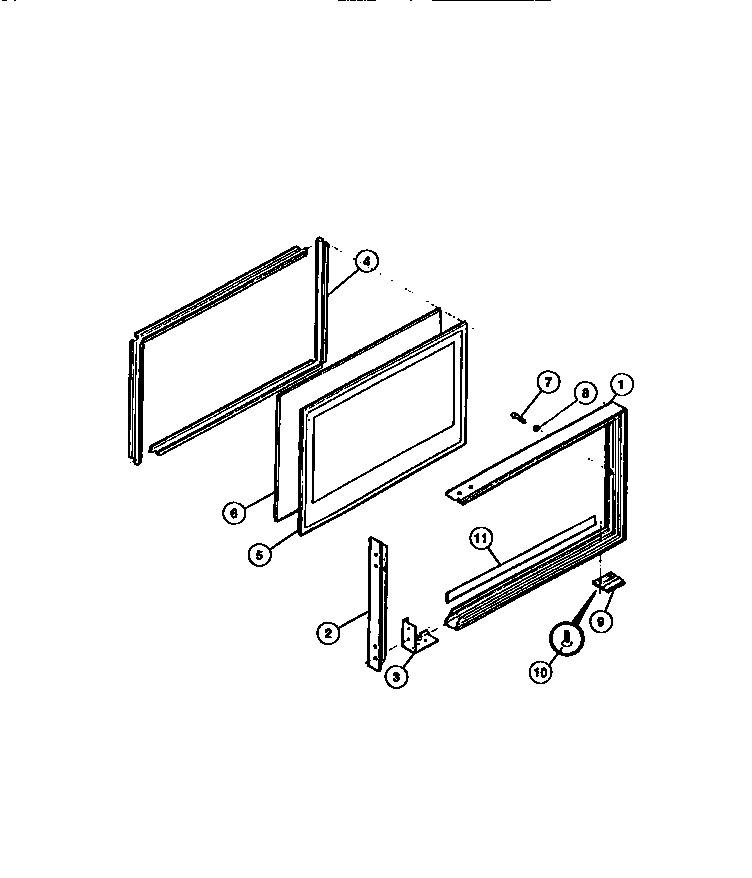

05 - UPPER OVEN DOOR PARTS

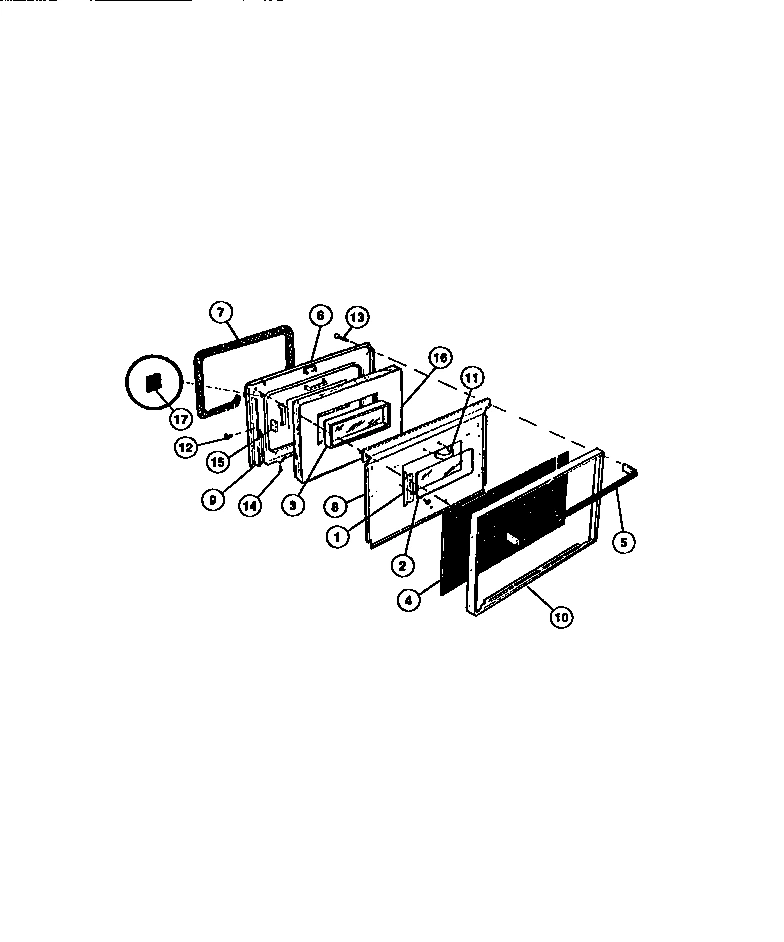

06 - LOWER OVEN DOOR PARTS

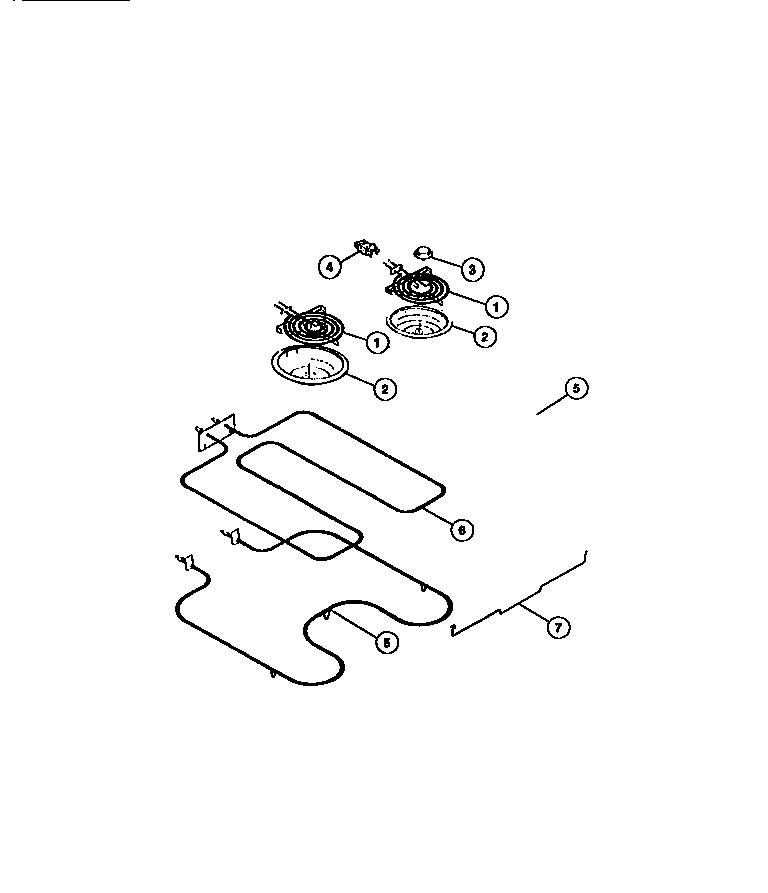

07 - BROILER PARTS

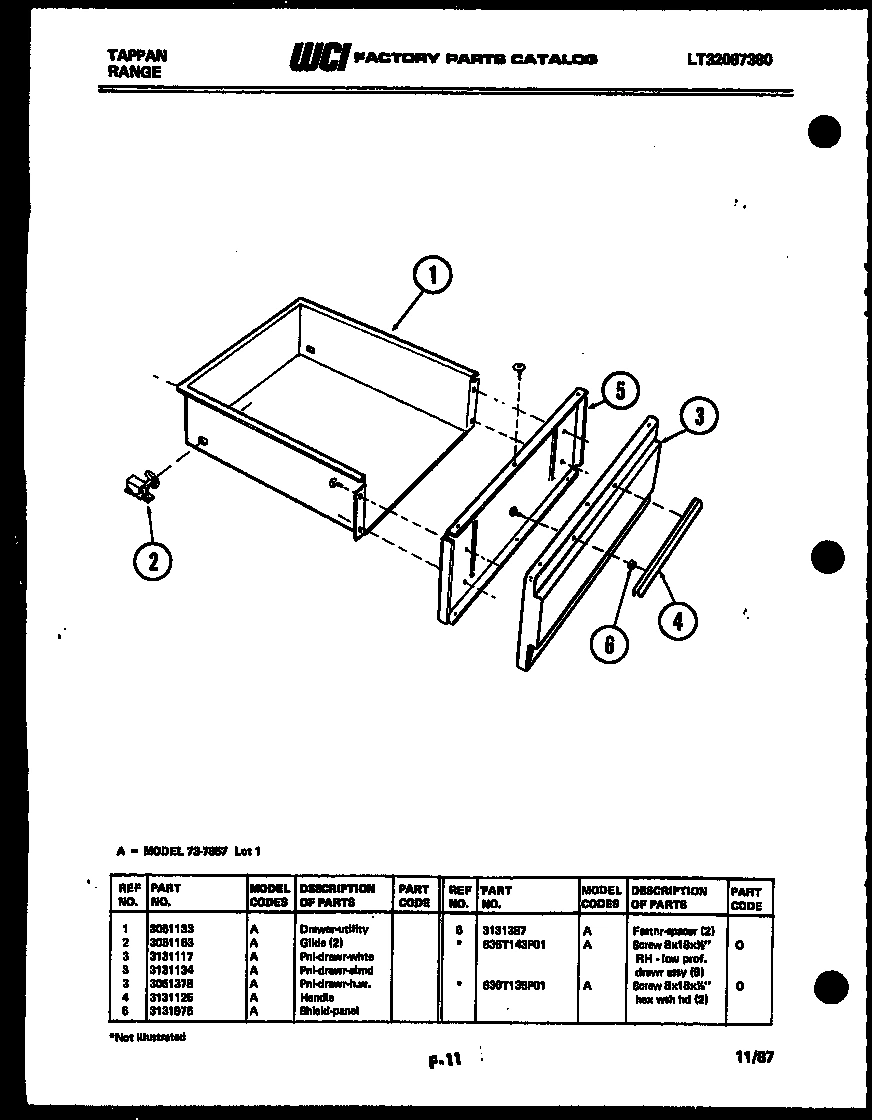

08 - DRAWER PARTS

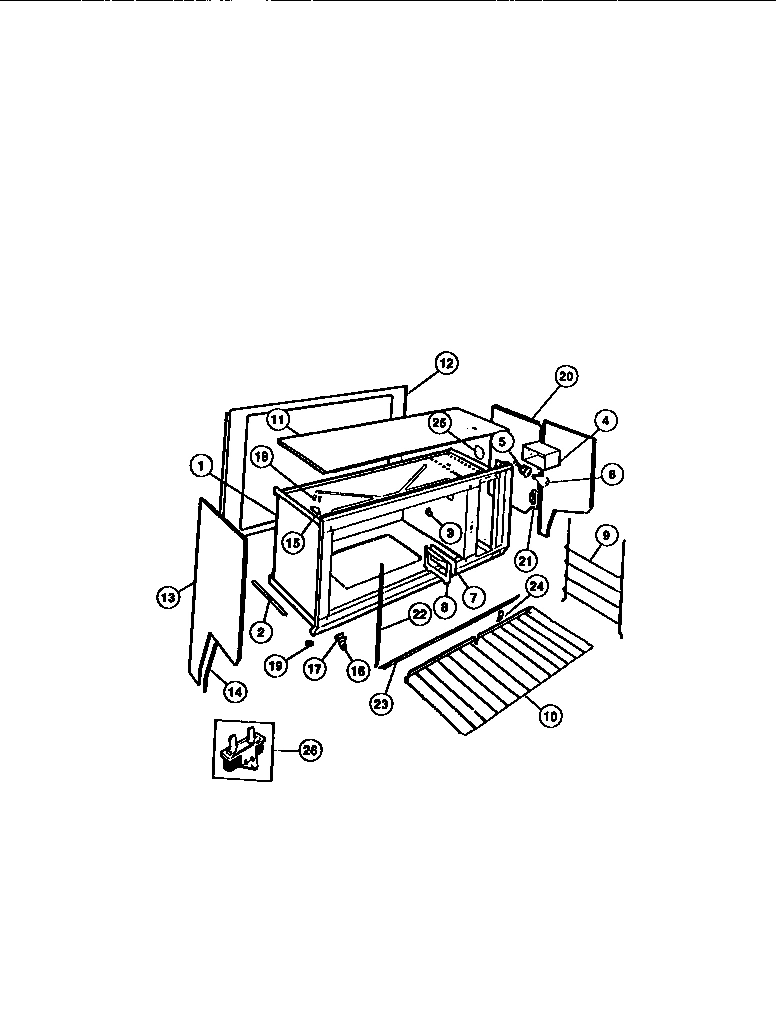

09 - UPPER BODY PARTS

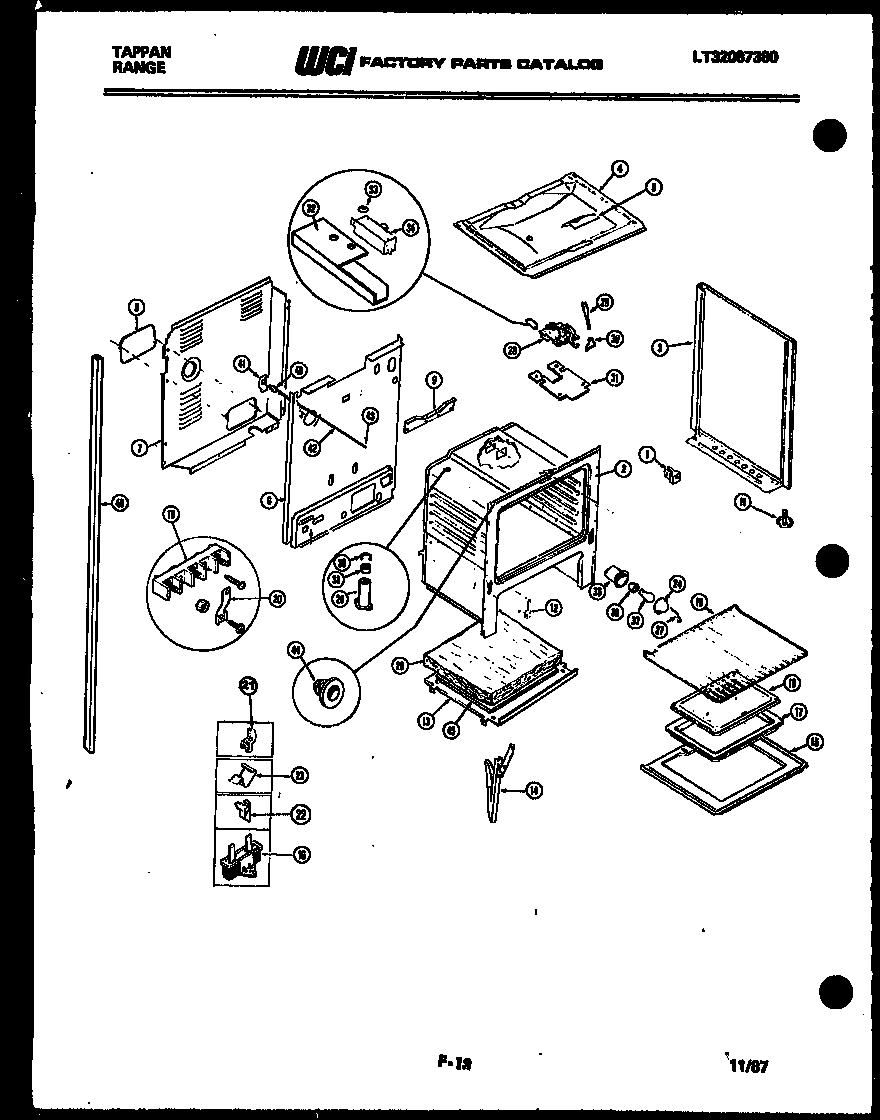

10 - LOWER BODY PARTS
Common parts from model Electrolux 73-7857-66-01 RANGE
*77523
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 636T135P01 Contact Us For Availability
*77554
WCI 557T021P29 WCI 557T021P29 Contact Us For Availability
1
MAIN TOP, WHEAT WCI 3051286 Contact Us For Availability
1
FRAME, CHANNEL WCI 136T187P03 Contact Us For Availability
1
BRKT GLASS (2) WCI 3131366 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
SPACER BDYSIDE (8) WCI 665T188P02 Contact Us For Availability
2
REFLCTR-WRK LAMP WCI 3131586 Contact Us For Availability
2
BRKT-HINGE LH WCI 3131286 Contact Us For Availability
2
BRKT-HNGE RH WCI 3131287 Contact Us For Availability
2
FRAME-CHNL-END WCI 136T188P01 Contact Us For Availability
2
WCI 3051148 WCI 3051148 Contact Us For Availability
2
WCI 008T268F01 WCI 008T268F01 Contact Us For Availability
2A
SCREW 10-32 X 1/2 FRAME ASSY (12) (NON-ILLUST WCI 636T098P18 Contact Us For Availability
2A
INSUL.-BOTTOM (NON-ILLUSTRATED) WCI 328T045P01 Contact Us For Availability
2B
INSUL.- TOP (NON-ILLUSTRATED) WCI 328T018P33 Contact Us For Availability
2C
INSUL.-WRAP (NON-ILLUSTRATED) WCI 328T061P01 Contact Us For Availability
3
BULB-FLUOR WCI 3131275 Contact Us For Availability
3
TOP SUPT ROD (2) WCI 618T038P05 Contact Us For Availability
3
GUSSET-CORNR (2) WCI 289T060P01 Contact Us For Availability
3
GLASS, PACKAGE WCI 3131321 Contact Us For Availability
3
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
3
PNL-DRAWR-H.W. WCI 3051378 Contact Us For Availability
3
PNL-BDYSD (RH) HW WCI 3131477 Contact Us For Availability
3
PNL-BDYSD (LH) HW WCI 3131478 Contact Us For Availability
4
SW.-TP ELMNT (4) WCI 699T015P02 Contact Us For Availability
4
INSULATR FLUOR. LITE RECEPT. (2) WCI 331T052P02 Contact Us For Availability
4
WCI 3051872 WCI 3051872 Contact Us For Availability
4
SPACR-GLASS (2) WCI 665T108P02 Contact Us For Availability
4
WCI 3131132 WCI 3131132 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
WCI 069T046F01 WCI 069T046F01 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
5
SW.-SELECTOR 6 POS. WCI 3051315 Contact Us For Availability
5
RECEPT FLUOR LITE (2) WCI 597T047P01 Contact Us For Availability
5
GLASS, OUTER WCI 3051722 Contact Us For Availability
5
WCI 3131256 WCI 3131256 Contact Us For Availability
5
ELMNT-OVN BAKE-LOWER WCI 3051388 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
6
THERM-OVN-UPPER WCI 3015189 Contact Us For Availability
6
THERM-OVEN-LWR WCI 3051320 Contact Us For Availability
6
TRIM, VENT WCI 3051165 Contact Us For Availability
6
GLASS, INNER WCI 276T091P01 Contact Us For Availability
6
LINER WCI 3131393 Contact Us For Availability
6
FASTNR-SPACER (2) WCI 3131387 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
7
CLOCK WCI 3051507 Contact Us For Availability
7
GUSSET SUPT LH WCI 694T090F01 Contact Us For Availability
7
GUSSET SUPT RH WCI 694T090F02 Contact Us For Availability
7
STRIKE, DOOR WCI 691T008P02 Contact Us For Availability
7
SUPT-ELMNT-UPPER WCI 694T029P01 Contact Us For Availability
7
LENS-OVN LIGHT WCI 277T162P01 Contact Us For Availability
7
SHIELD-LWR WALL WCI 3051400 Contact Us For Availability
8
KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability
8
GLASS-SPLSHR-UPPR WCI 277T164P25 Contact Us For Availability
8
WCI 3051230 WCI 3051230 Contact Us For Availability
8
COVER, LENS WCI 174T112F01 Contact Us For Availability
8
CVR-LWR ACCESS WCI 3051501 Contact Us For Availability
9
IND. LITE-125V (3) WCI 3091461 Contact Us For Availability
9
IND. LITE-250V (2) WCI 3091462 Contact Us For Availability
9
WCI 513T073F20 WCI 513T073F20 Contact Us For Availability
9
HANDLE WCI 296T058P01 Contact Us For Availability
9
SUPT. GLASS (2) WCI 3131323 Contact Us For Availability
9
WCI 280T021P05 WCI 280T021P05 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
BUSH-CNTRL PNL GLAS WCI 102T019P01 Contact Us For Availability
10
WCI 3051115 WCI 3051115 Contact Us For Availability
10
WCI 636T096P30 WCI 636T096P30 Contact Us For Availability
10
WCI 3131128 WCI 3131128 Contact Us For Availability
10
RACK, OVEN WCI 591T042P01 Contact Us For Availability
10A
CLIP-CNTRL PNL FRAME MTG (4) (NON-ILLUSTRATED WCI 241T017P124 Contact Us For Availability
11
KNOB-THERM-LWR WCI 3051442 Contact Us For Availability
11
KNOB-SEL 6 POS WCI 3091392 Contact Us For Availability
11
KNOB-SW S/U (4) WCI 3091393 Contact Us For Availability
11
KNOB-THERM-UPPER WCI 358T200P51 Contact Us For Availability
11
FSTNR CABLE CLAMP WCI 241T003P01 Contact Us For Availability
11
WCI 3051302 WCI 3051302 Contact Us For Availability
11
WCI 3131253 WCI 3131253 Contact Us For Availability
11
PANEL-TOP WCI 3131625 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
12
CVR. HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
BACK-OVN WALL-UPR WCI 3051236 Contact Us For Availability
12
BEZEL-SW. (2) WCI 3051727 Contact Us For Availability
12
FASTNR-SPACER (6) WCI 3131974 Contact Us For Availability
13
HARN.-O/U LITE SW. WCI 3131588 Contact Us For Availability
13
SCREW-HNDL MTG (2) WCI 3131102 Contact Us For Availability
13
PNL-BDYSD LH H.W WCI 3051262 Contact Us For Availability
13
PNL-BDYSD RH-H.W. WCI 3051265 Contact Us For Availability
13
SHIELD-WOOL LWR WCI 3051398 Contact Us For Availability
14
CHANL DR. HNG. (2) WCI 316007002 No Longer Available
14
TRIM, LH WCI 740T309F01 Contact Us For Availability
14
TRIM, RH WCI 740T309F02 Contact Us For Availability
14
SCREW DR MTG (3) WCI 636T139P01 Contact Us For Availability
15
TRIM-O/U SPL. GL. FILLER WCI 3051299 Contact Us For Availability
15
EXTRUSN CHNL (2) WCI 3131142 Contact Us For Availability
15
HINGE-TOP WCI 3131613 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15A
FSTNR-8AU TYPE (3) (NON-ILLUSTRATED) WCI 241T017P185 Contact Us For Availability
15B
SCRW-DR MTG (4) (NON-ILLUSTRATED) WCI 636T143P05 Contact Us For Availability
16
WSHR-SPRING (2) WCI 789T053P44 Contact Us For Availability
16
INSULAT.-WOOL WCI 3131322 Contact Us For Availability
16
HINGE, BOTTOM WCI 3051166 Contact Us For Availability
16
FUSE-THERM. CUTOUT WCI 3051147 Contact Us For Availability
17
THERMOS. (SC) WCI 3051324 Contact Us For Availability
17
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
17
PLATE, HINGE WCI 554T176F01 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
18
ANGLE SUPT S/C THERMO WCI 3051348 Contact Us For Availability
18
SCREW, 10-32 (2) WCI 636T087P01 Contact Us For Availability
18
INSERT-BROILR PAN WCI 3131356 Contact Us For Availability
19
WSHR-HINGE (2) WCI 789T052P01 Contact Us For Availability
20
SHIELD-WOOL (SIDE) WCI 3131679 Contact Us For Availability
20
GRND STRAP WCI 711T048P01 Contact Us For Availability
21
WCI 131T009P03 WCI 131T009P03 Contact Us For Availability
21
CLIP-THERM. BULB (2) WCI 3131295 Contact Us For Availability
22
RETAINR-DR SEAL SIDES (2) WCI 647T081P06 Contact Us For Availability
23
RETAINR-DR SEAL BOTTOM WCI 647T081P05 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
STRIKE, DOOR WCI 691T007P01 Contact Us For Availability
24
WCI 3131298 WCI 3131298 Contact Us For Availability
25
WCI 3131610 WCI 3131610 Contact Us For Availability
25
WCI 3051429 WCI 3051429 Contact Us For Availability
26
FUSE-THERM. CUTOUT WCI 3051385 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
WIRE-GLASS RETNR WCI 3131104 Contact Us For Availability
27A
INSUL - WRAP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
27B
WCI 3131303 WCI 3131303 Contact Us For Availability
27D
SCREW-HNG MTG (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27E
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
28
WCI 3051258 WCI 3051258 Contact Us For Availability
29
WCI 3051473 WCI 3051473 Contact Us For Availability
30
KNOB, LATCH WCI 358T158P02 Contact Us For Availability
30A
SCRW-SET-LATCH KNB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD-BI MTL CATCH WCI 3131593 Contact Us For Availability
33
FSTNR-PUSH ON (3) WCI 3051733 Contact Us For Availability
34
SW.-LATCHING WCI 3051734 Contact Us For Availability
35
TUBE-OV. IT. WCI 3131363 Contact Us For Availability
38
WCI 3051737 WCI 3051737 Contact Us For Availability
39
RETAIN, CATALYST WCI 612T079P01 Contact Us For Availability
40
WCI 3014246 WCI 3014246 Contact Us For Availability
41
BRKT-IT. SW. WCI 3131289 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
43
WCI 3051251 WCI 3051251 Contact Us For Availability
44
BTN-REMOT IT SW. WCI 3051731 Contact Us For Availability
45
WCI 3051430 WCI 3051430 Contact Us For Availability
45A
INSUL.-TOUCH (NON-ILLUSTRATED) WCI 3131305 Contact Us For Availability
46
WCI 3051723 WCI 3051723 Contact Us For Availability
46
WCI 3051724 WCI 3051724 Contact Us For Availability
× ![]()
