Model Electrolux 73-7857-23-06 RANGE – Common Parts & Diagrams

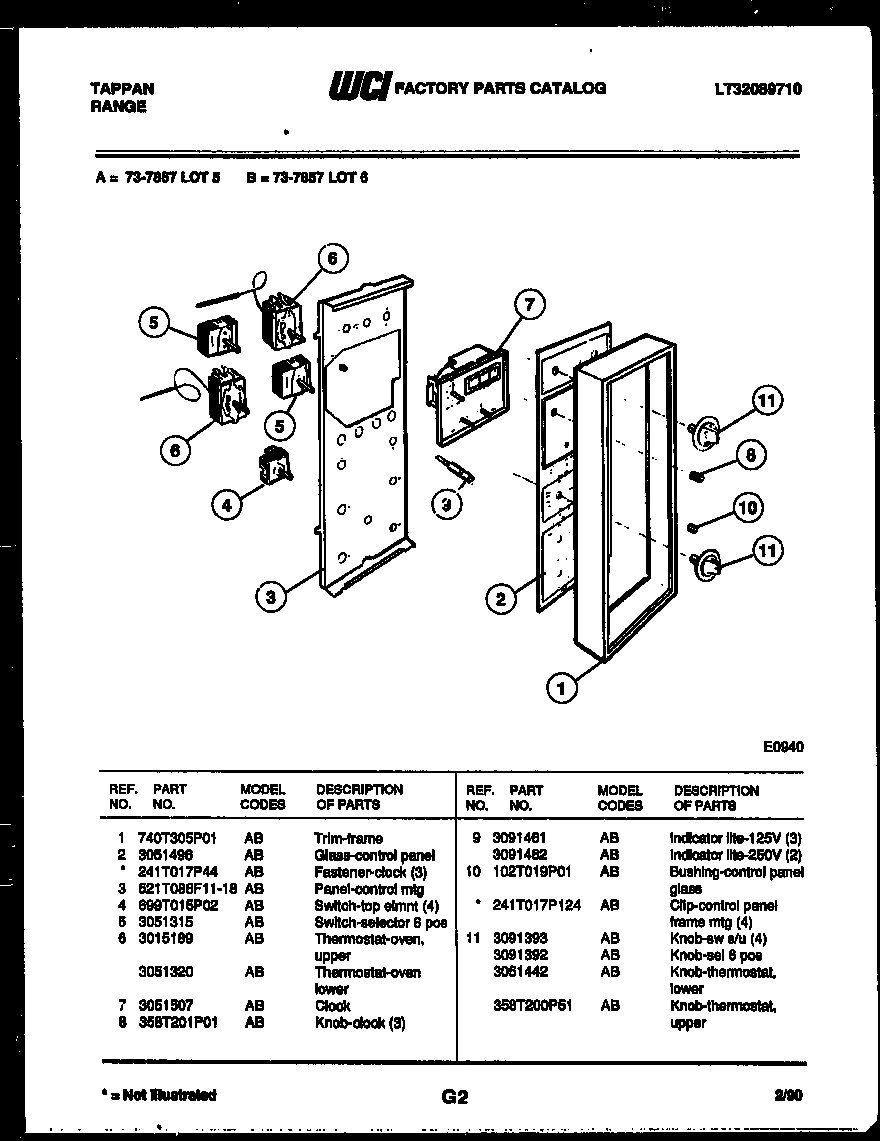

02 - CONTROL PANEL

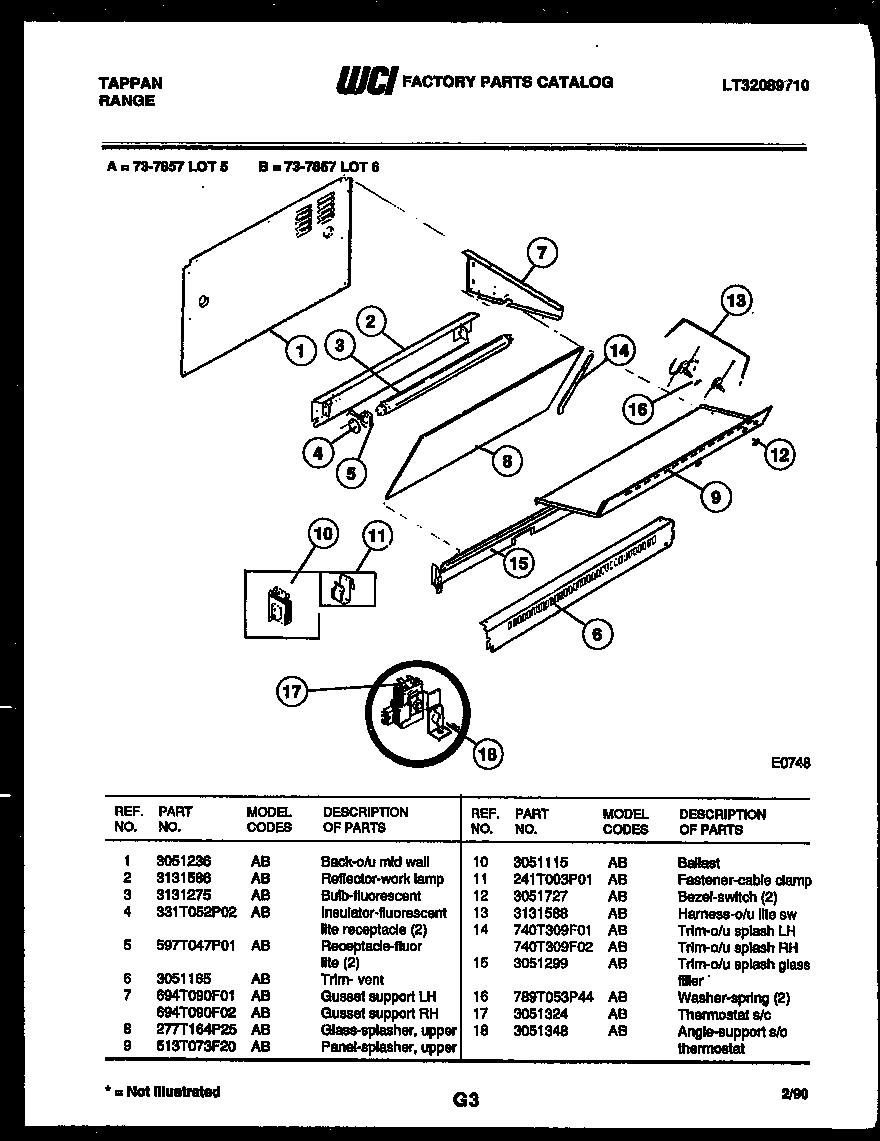

03 - SPLASHER CONTROL

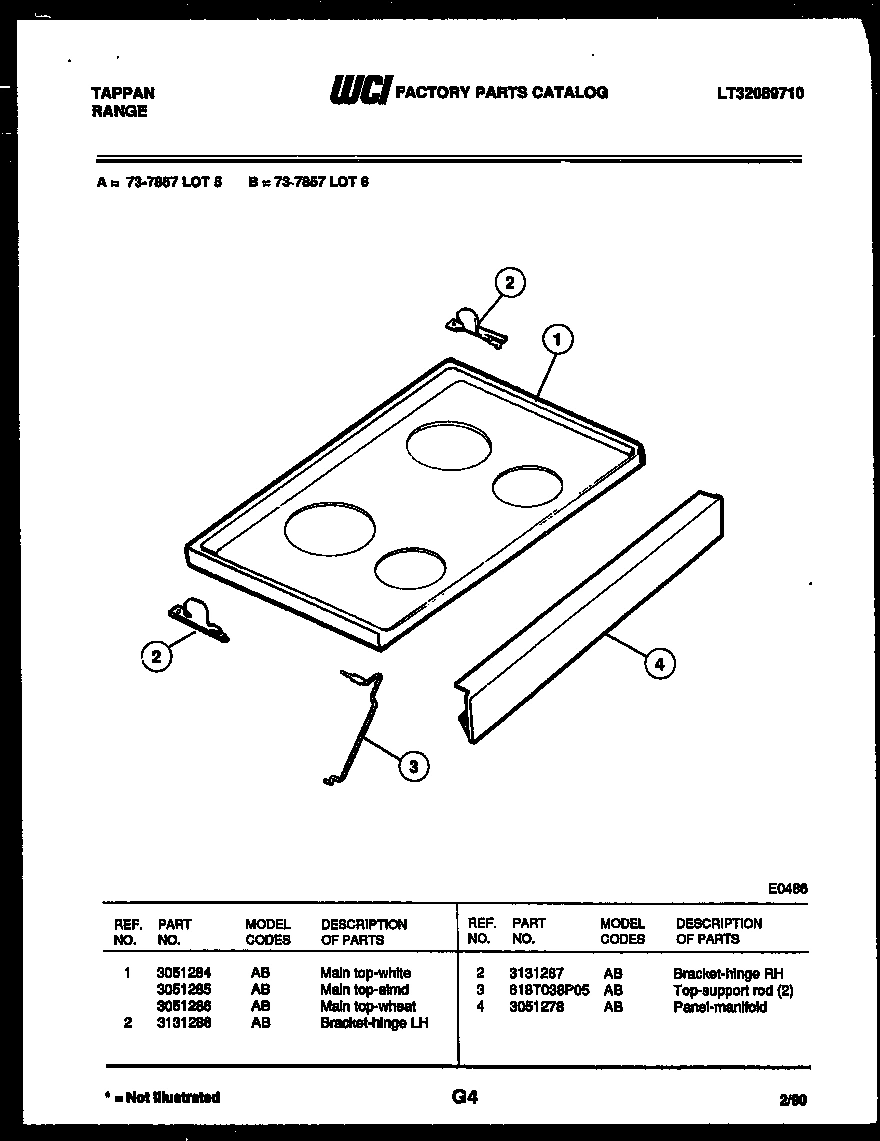

04 - COOKTOP PARTS

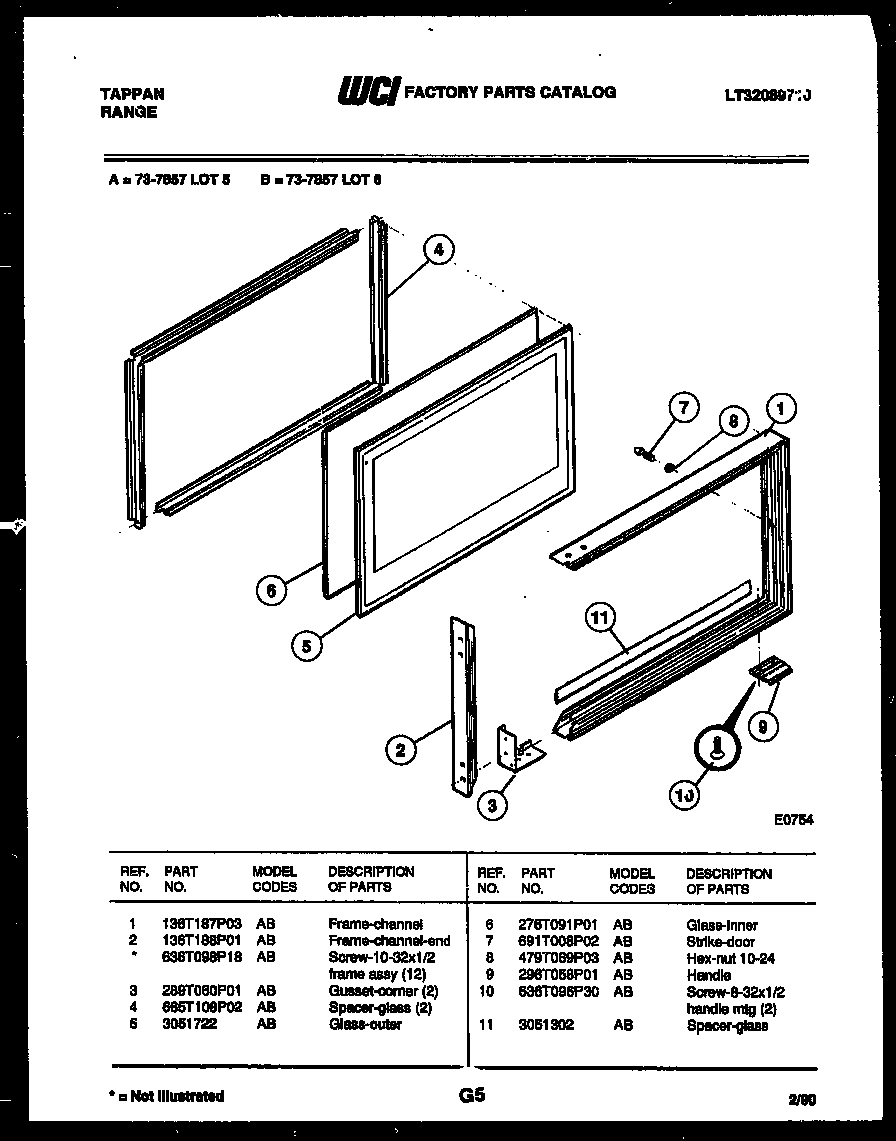

05 - UPPER DOOR PARTS
06 - LOWER DOOR PARTS

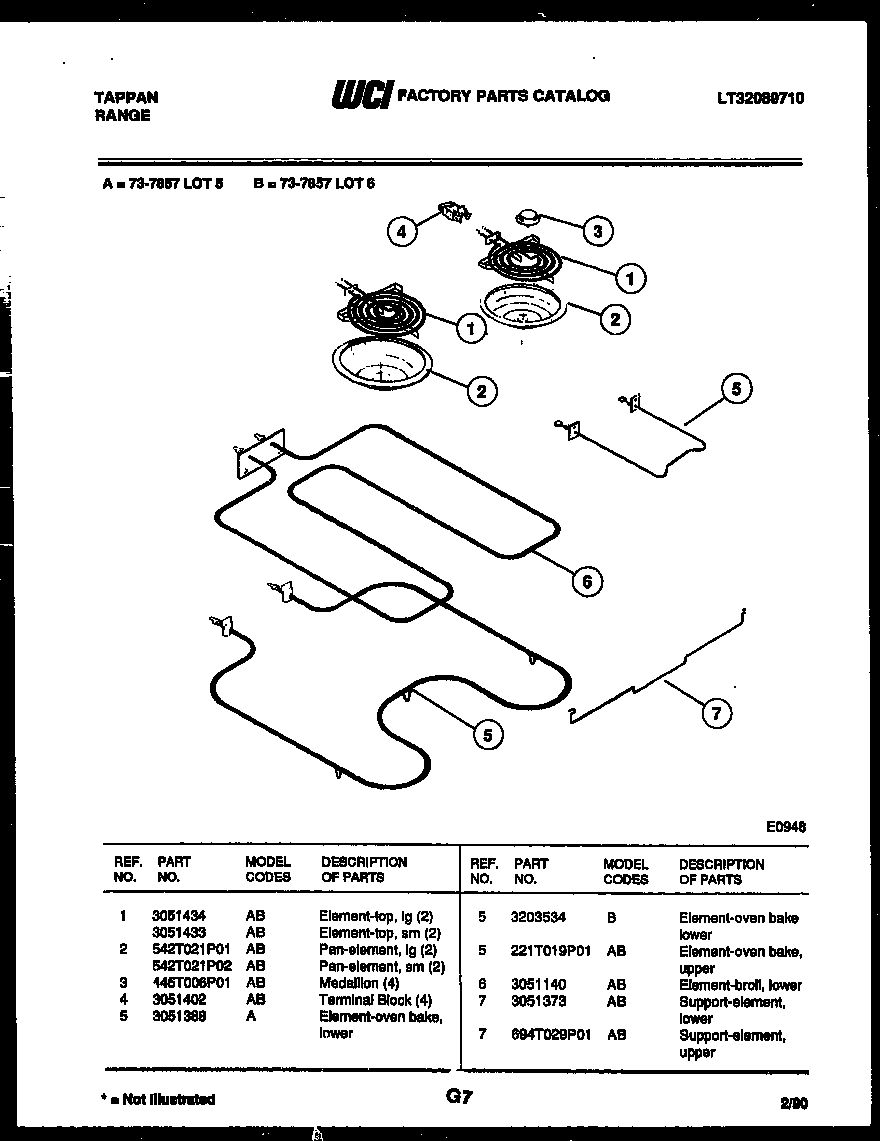

07 - BROILER PARTS
08 - UPPER BODY PARTS

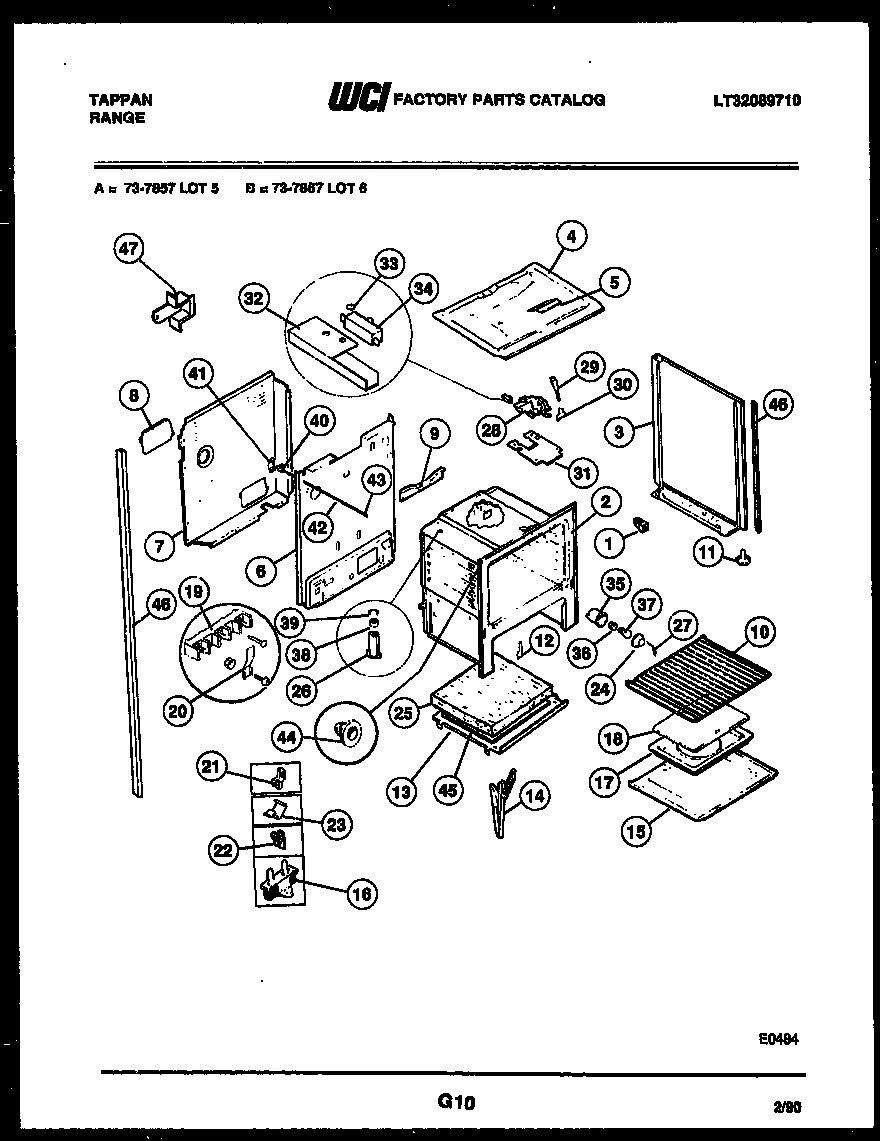

09 - LOWER BODY PARTS

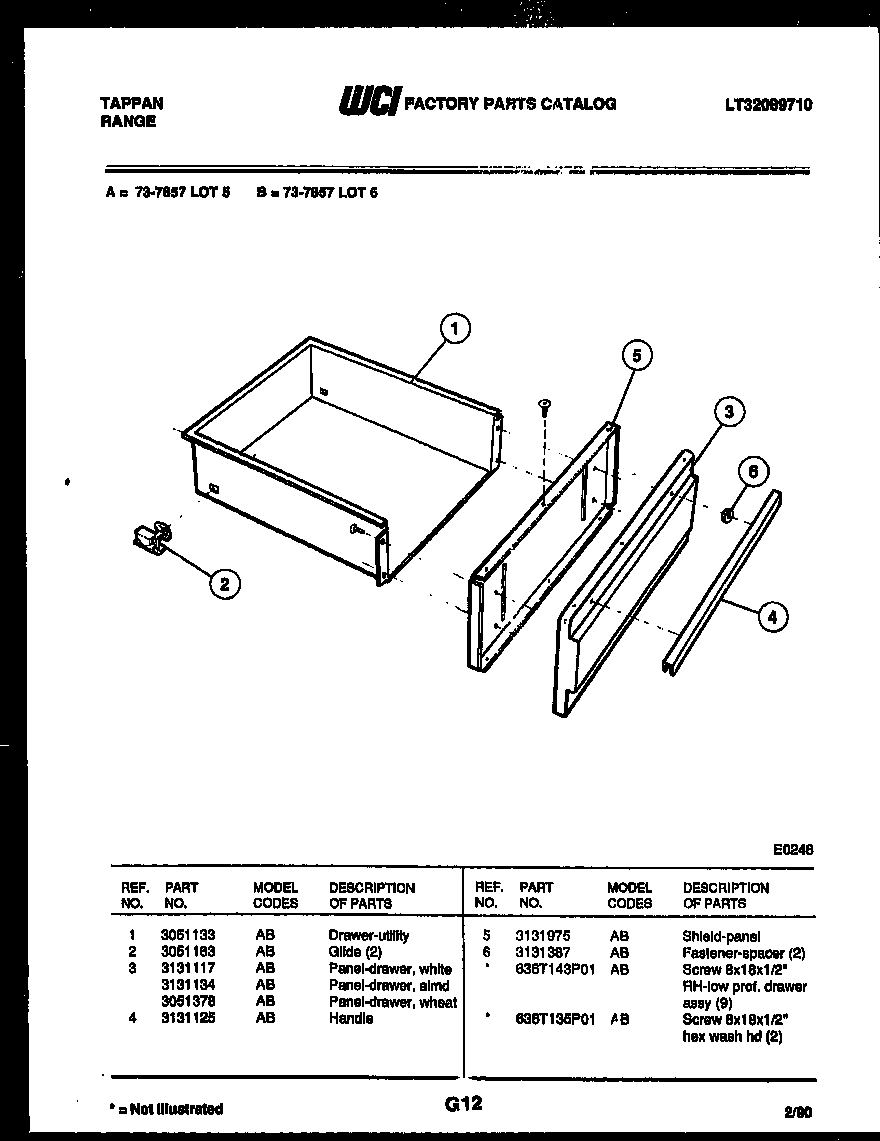

10 - DRAWER PARTS
Common parts from model Electrolux 73-7857-23-06 RANGE
*21040
SCREW-DOOR MTG (4) WCI 636T143P05 Contact Us For Availability
*21045
WCI 557T021P29 WCI 557T021P29 Contact Us For Availability
*21056
SCREW (8 X 18 X 1/2`` HEX WASH HD.) (2) WCI 636T135P01 Contact Us For Availability
1
MAIN TOP (ALMD) WCI 3051285 Contact Us For Availability
1
FRAME, CHANNEL WCI 136T187P03 Contact Us For Availability
1
BRACKET, GLASS (2) WCI 3131366 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
2
REFLECTOR, WORK LAMP WCI 3131586 Contact Us For Availability
2
BRACKET, HINGE, LH WCI 3131286 Contact Us For Availability
2
BRACKET, HINGE, RH WCI 3131287 Contact Us For Availability
2
FRAME, CHANNEL, END WCI 136T188P01 Contact Us For Availability
2
WCI 3051148 WCI 3051148 Contact Us For Availability
2
WCI 008T268F01 WCI 008T268F01 Contact Us For Availability
2A
SCREW-10-32 X 1/2 FRAME ASSY (12) WCI 636T098P18 Contact Us For Availability
2A
WCI 328T045P01 WCI 328T045P01 Contact Us For Availability
2B
WCI 328T018P33 WCI 328T018P33 Contact Us For Availability
2C
WCI 328T061P01 WCI 328T061P01 Contact Us For Availability
3
WCI 3131275 WCI 3131275 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 618T038P05 Contact Us For Availability
3
GUSSET, CORNER (2) WCI 289T060P01 Contact Us For Availability
3
GLASS, PACKAGE WCI 3131321 Contact Us For Availability
3
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
3
PANEL, BODYSIDE (LH), ALMOND WCI 3200793 Contact Us For Availability
3
PANEL, DRAWER, (ALMD) WCI 3131134 Contact Us For Availability
3A
PANEL, BODYSIDE (RH), ALMOND WCI 3200790 Contact Us For Availability
4
SWITCH-TOP ELMNT (4) WCI 699T015P02 Contact Us For Availability
4
INSULATOR, FLUORESCENT LITE RECEPTACLE (2) WCI 331T052P02 Contact Us For Availability
4
WCI 3051278 WCI 3051278 Contact Us For Availability
4
SPACER, GLASS (2) WCI 665T108P02 Contact Us For Availability
4
WCI 3131132 WCI 3131132 Contact Us For Availability
4
WCI 069T046F01 WCI 069T046F01 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
5
SWITCH-SELECTOR 6 POS. WCI 3051315 Contact Us For Availability
5
RECEPTACLE-FLUOR LITE (2) WCI 597T047P01 Contact Us For Availability
5
GLASS, OUTER WCI 3051722 Contact Us For Availability
5
WCI 3131256 WCI 3131256 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
6
WCI 3015189 WCI 3015189 Contact Us For Availability
6
TRIM, VENT WCI 3051165 Contact Us For Availability
6
GLASS, INNER WCI 276T091P01 Contact Us For Availability
6
LINER WCI 3202147 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
6A
WCI 3051320 WCI 3051320 Contact Us For Availability
7
CLOCK WCI 3051507 Contact Us For Availability
7
GUSSET SUPPORT LH WCI 694T090F01 Contact Us For Availability
7
STRIKE, DOOR WCI 691T008P02 Contact Us For Availability
7
WCI 694T029P01 WCI 694T029P01 Contact Us For Availability
7
LENS, OVEN LIGHT WCI 277T162P01 Contact Us For Availability
7
SHIELD-LOWER WALL WCI 3203549 Contact Us For Availability
7A
GUSSET SUPPORT RH WCI 694T090F02 Contact Us For Availability
8
KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability
8
GLASS, SPLASHER UPPER WCI 277T164P25 Contact Us For Availability
8
WCI 3202151 WCI 3202151 Contact Us For Availability
8
COVER, LENS WCI 174T112F01 Contact Us For Availability
8
WCI 3203405 WCI 3203405 Contact Us For Availability
9
INDICATOR LITE, 125V (3) WCI 3091461 Contact Us For Availability
9
WCI 513T073F20 WCI 513T073F20 Contact Us For Availability
9
HANDLE WCI 296T058P01 Contact Us For Availability
9
WCI 3131323 WCI 3131323 Contact Us For Availability
9
GLIDE, OVEN RACK (2) WCI 280T021P05 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9A
INDICATOR LITE, 250V (2) WCI 3091462 Contact Us For Availability
10
BUSHING, CONTROL PANEL GLASS WCI 102T019P01 Contact Us For Availability
10
WCI 3051115 WCI 3051115 Contact Us For Availability
10
WCI 636T096P30 WCI 636T096P30 Contact Us For Availability
10
WCI 3131128 WCI 3131128 Contact Us For Availability
10
RACK, OVEN WCI 591T042P01 Contact Us For Availability
10A
CLIP-CONTROL PANEL FRAME MTG (4) (NON-ILLUSTR WCI 241T017P124 Contact Us For Availability
11
WCI 3051442 WCI 3051442 Contact Us For Availability
11
KNOB-SEL 6 POS WCI 3091392 Contact Us For Availability
11
KNOB-SW S/U (4) WCI 3091393 Contact Us For Availability
11
KNOB, THERMOSTAT, UPPER WCI 358T200P51 Contact Us For Availability
11
FASTENER, CABLE CLAMP WCI 241T003P01 Contact Us For Availability
11
WCI 3051302 WCI 3051302 Contact Us For Availability
11
CLIP, RETAINER (2) WCI 3131253 Contact Us For Availability
11
PANEL-TOP WCI 3131625 Contact Us For Availability
11
SCREW-LEVELLING (4) WCI 3203397 Contact Us For Availability
12
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
BACK-OVEN WALL UPPER WCI 3051236 Contact Us For Availability
12
WCI 3051727 WCI 3051727 Contact Us For Availability
12
FASTENER, SPACER (6) WCI 3131974 Contact Us For Availability
13
HARNESS-O/U LITE SW WCI 3131588 Contact Us For Availability
13
SCREW-HANDLE MTG (2) WCI 3131102 Contact Us For Availability
13
PANEL, BODYSIDE, LH (ALMOND) WCI 3051261 Contact Us For Availability
13
PANEL-BODYSIDE RH-ALMOND WCI 3051264 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
CHANNEL-DOOR HNG (2) WCI 316007002 No Longer Available
14
TRIM, LH WCI 740T309F01 Contact Us For Availability
14
SCREW DR MTG (3) WCI 636T139P01 Contact Us For Availability
14A
TRIM, RH WCI 740T309F02 Contact Us For Availability
14A
FASTENER-8AU TYPE (3) WCI 241T017P185 Contact Us For Availability
15
TRIM-O/U SPLASH GLASS FILLER WCI 3051299 Contact Us For Availability
15
HINGE-TOP WCI 3131613 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
16
WASHER, SPRING (2) WCI 789T053P44 Contact Us For Availability
16
INSULATION, WOOL WCI 3131322 Contact Us For Availability
16
HINGE, BOTTOM WCI 3051166 Contact Us For Availability
16
FUSE-THERMO CUTOUT WCI 3051147 Contact Us For Availability
17
THERMOSTAT-S/C WCI 3051324 Contact Us For Availability
17
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
17
PLATE, HINGE WCI 554T176F01 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
18
ANGLE-SUPPORT S/C THERMOSTAT WCI 3051348 Contact Us For Availability
18
SCREW, 10-32 (2) WCI 636T087P01 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
19
WCI 789T052P01 WCI 789T052P01 Contact Us For Availability
20
SHIELD-WOOL (SIDE) WCI 3131679 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
21
WCI 131T009P03 WCI 131T009P03 Contact Us For Availability
21
CLIP-THERMO BULB (2) WCI 3131295 Contact Us For Availability
22
RETAINER, DOOR SEAL, SIDES (2) WCI 647T081P06 Contact Us For Availability
23
RETAINER, DOOR SEAL, BOTTOM WCI 647T081P05 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
STRIKE, DOOR WCI 691T007P01 Contact Us For Availability
25
WCI 3131610 WCI 3131610 Contact Us For Availability
25
INSULATION, BOTTOM WCI 3051429 Contact Us For Availability
26
FUSE, THERMO CUTOUT WCI 3051385 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability
27A
INSULATION, BACK (NON-ILLUSTRATED) WCI 3131303 Contact Us For Availability
27C
SCREW-HNG MTG (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27D
WCI 479T069P41 WCI 479T069P41 Contact Us For Availability
28
WCI 3051258 WCI 3051258 Contact Us For Availability
29
WCI 3051473 WCI 3051473 Contact Us For Availability
30
KNOB, LATCH WCI 358T158P02 Contact Us For Availability
30A
SCREW, SET LATCH KNOB WCI 636T144P01 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD, BI METAL CATCH WCI 3131593 Contact Us For Availability
33
FASTENER, PUSH ON (3) WCI 3051733 Contact Us For Availability
34
WCI 3051734 WCI 3051734 Contact Us For Availability
35
TUBE, OVEN LITE WCI 3131363 Contact Us For Availability
38
WCI 3051737 WCI 3051737 Contact Us For Availability
39
RETAIN, CATALYST WCI 612T079P01 Contact Us For Availability
40
WCI 3014246 WCI 3014246 Contact Us For Availability
41
BRACKET, LIGHT SWITCH WCI 3131289 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
43
WCI 3051251 WCI 3051251 Contact Us For Availability
44
BUTTON-REMOTE IT SWITCH WCI 3051731 Contact Us For Availability
45
WCI 3200848 WCI 3200848 Contact Us For Availability
45A
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
45B
SHIELD-HEAT BODYSIDE (2) (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
45D
FASTENER-EDGE MOUNTING (2) (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability
45E
WCI 3131305 WCI 3131305 Contact Us For Availability
46
WCI 3051723 WCI 3051723 Contact Us For Availability
46A
WCI 3051724 WCI 3051724 Contact Us For Availability
46B
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
47
WCI 3203582 WCI 3203582 Contact Us For Availability
× ![]()
