Model Electrolux 73-3957-66-02 RANGE – Common Parts & Diagrams

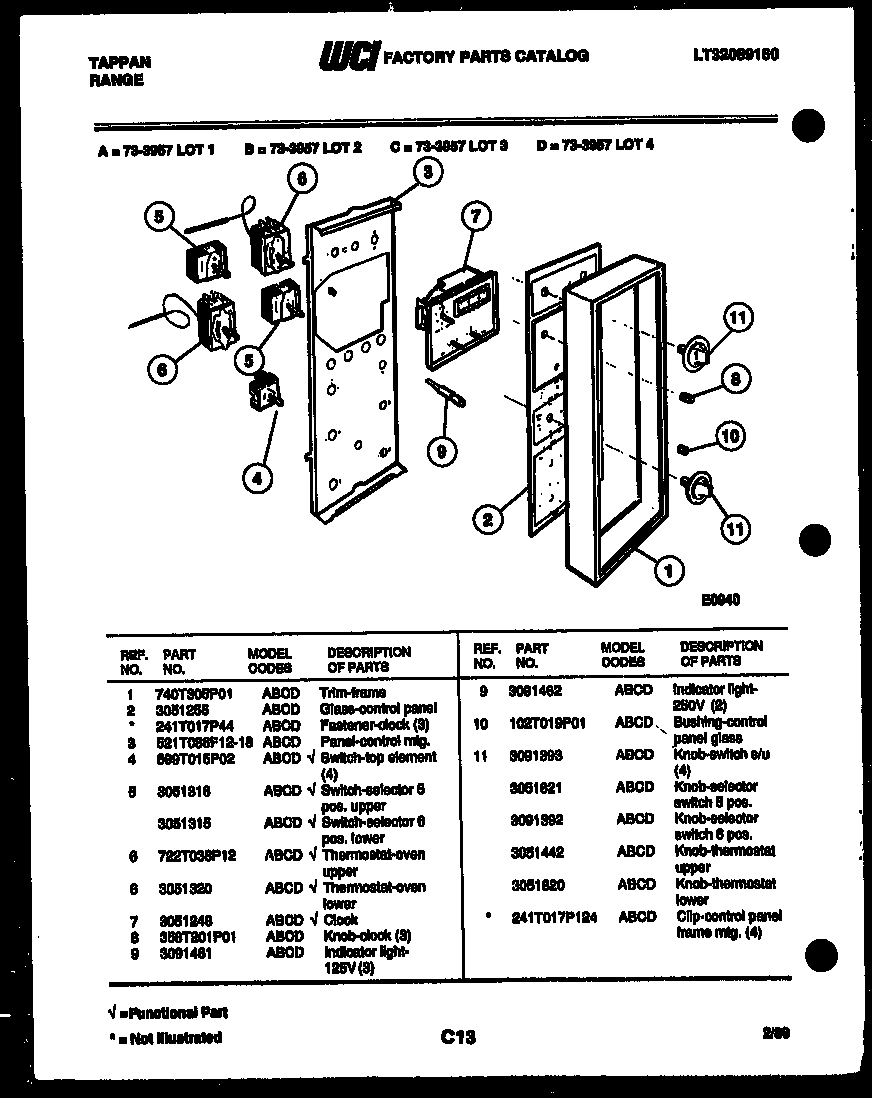

02 - CONTROL PANEL

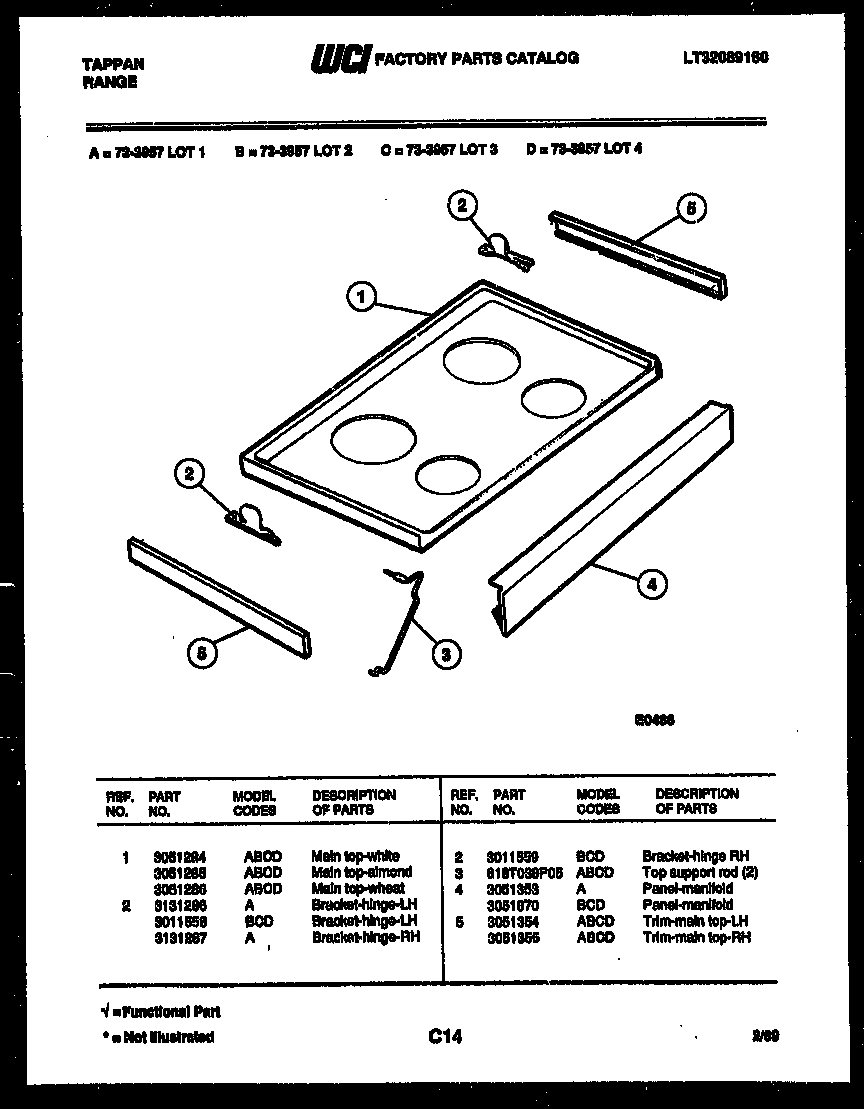

03 - COOKTOP PARTS
04 - SPLASHER CONTROL
05 - UPPER OVEN DOOR PARTS
06 - LOWER OVEN DOOR PARTS
07 - UPPER BODY PARTS
08 - LOWER BODY PARTS
09 - DRAWER PARTS
10 - BROILER PARTS
Common parts from model Electrolux 73-3957-66-02 RANGE
*15718
SCREW 8-18 X 1/2`` HEX WASHER HD (2) WCI 636T135P01 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
MAIN TOP, WHEAT WCI 3051286 Contact Us For Availability
1
FRAME, CHANNEL WCI 136T187P03 Contact Us For Availability
1
BRACKET, GLASS (2) WCI 3131366 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
2
WCI 3011558 WCI 3011558 Contact Us For Availability
2
WCI 3011559 WCI 3011559 Contact Us For Availability
2
REFLECTOR, WORK LAMP WCI 3018942 Contact Us For Availability
2
FRAME-CHANNEL ENC WCI 136T188P01 Contact Us For Availability
2
GLASS-HEAT BARRIER CONNECTING WCI 3051148 Contact Us For Availability
2
ANGLE-STIFFENER WCI 088T268F01 Contact Us For Availability
2A
BRACKET, HINGE, RH WCI 3131287 Contact Us For Availability
2A
SCREW 10-32 X 1/2`` PH FL HD (12) (NON-ILLUST WCI 636T098P18 Contact Us For Availability
2A
INSULATION-BOTTOM 1 1/2 X 13 X 22 1/2 (NON-IL WCI 328T045P01 Contact Us For Availability
2A
WCI 542T012P02 WCI 542T012P02 Contact Us For Availability
2B
INSULATION-TOP 3 X 12 1/2 X 24 (NON-ILLUSTRAT WCI 328T018P33 Contact Us For Availability
2C
INSULATION-BACK AND SIDE 2 X 6 X 50 (NON-ILLU WCI 328T061P01 Contact Us For Availability
3
BULB-FLUOR WORK LIT WCI 3131275 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 618T038P05 Contact Us For Availability
3
GUSSET, CORNER (2) WCI 289T060P01 Contact Us For Availability
3
WCI 3200548 WCI 3200548 Contact Us For Availability
3
PANEL-BODYSIDE LH (WHEAT) WCI 3131478 Contact Us For Availability
3
PANEL, DRAWER, WHEAT WCI 3051378 Contact Us For Availability
3
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
3A
PANEL-BODYSIDE RH (WHEAT) WCI 3131477 Contact Us For Availability
4
WCI 3051870 WCI 3051870 Contact Us For Availability
4
WCI 3051732 WCI 3051732 Contact Us For Availability
4
SPACER, GLASS (2) WCI 665T108P02 Contact Us For Availability
4
WCI 3131132 WCI 3131132 Contact Us For Availability
4
WCI 069T046F01 WCI 069T046F01 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
5
WCI 3051354 WCI 3051354 Contact Us For Availability
5
RECEPTACLE-FLUOR LIGHT (2) WCI 597T047S01 Contact Us For Availability
5
GLASS, OUTER WCI 3051722 Contact Us For Availability
5
WCI 3131256 WCI 3131256 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
ELEMENT, OVEN BAKE, LOWER WCI 3051388 Contact Us For Availability
5A
SWITCH-SELECTOR 6 POS. LOWER WCI 3051315 Contact Us For Availability
5A
WCI 3051355 WCI 3051355 Contact Us For Availability
6
WCI 3051320 WCI 3051320 Contact Us For Availability
6
THERMOSTAT-OVEN UPPER WCI 722T038P12 Contact Us For Availability
6
WCI 3051465 WCI 3051465 Contact Us For Availability
6
GLASS, INNER WCI 276T091P01 Contact Us For Availability
6
LINER WCI 3131393 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6
FASTENER, SPACER (2) WCI 241T017P232 Contact Us For Availability
6A
WCI 220T018P01 WCI 220T018P01 Contact Us For Availability
7
WCI 3051248 WCI 3051248 Contact Us For Availability
7
GUSSET SUPPORT LH WCI 3200527 Contact Us For Availability
7
STRIKE-DOOR WCI 691T008S01 Contact Us For Availability
7
LENS, OVEN LIGHT WCI 277T162P01 Contact Us For Availability
7
WCI 3051400 WCI 3051400 Contact Us For Availability
7A
GUSSET SUPPORT RH WCI 3200526 Contact Us For Availability
7A
WCI 694T029P01 WCI 694T029P01 Contact Us For Availability
8
KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability
8
GLASS-SPLASHER U/O WCI 277T164P25 Contact Us For Availability
8
WCI 3051230 WCI 3051230 Contact Us For Availability
8
COVER, LENS WCI 174T112F01 Contact Us For Availability
8
COVER, LOWER ACCESS WCI 3051501 Contact Us For Availability
9
INDICATOR LIGHT-125V (3) WCI 3091461 Contact Us For Availability
9
WCI 513T073F20 WCI 513T073F20 Contact Us For Availability
9
HANDLE WCI 296T058P01 Contact Us For Availability
9
WCI 3131323 WCI 3131323 Contact Us For Availability
9
WCI 280T021P01 WCI 280T021P01 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9A
INDICATOR LIGHT-250V (2) WCI 3091462 Contact Us For Availability
10
BUSHING, CONTROL PANEL GLASS WCI 102T019P01 Contact Us For Availability
10
WCI 3051115 WCI 3051115 Contact Us For Availability
10
SCREW 8-32 X 1/2 PH FLHD (2) WCI 636T096P30 Contact Us For Availability
10
WCI 3131128 WCI 3131128 Contact Us For Availability
10
RACK, OVEN WCI 591T042P01 Contact Us For Availability
11
WCI 3091393 WCI 3091393 Contact Us For Availability
11
FASTENER, CABLE CLAMP WCI 241T003P01 Contact Us For Availability
11
SPACER WCI 3051302 Contact Us For Availability
11
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
11
PANEL-TOP WCI 3131625 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
11A
WCI 3051821 WCI 3051821 Contact Us For Availability
11B
KNOB-SELECTOR SWITCH 6 POS. WCI 3091392 Contact Us For Availability
11C
KNOB-THERMOSTAT UPPER WCI 3051442 Contact Us For Availability
11D
WCI 3051820 WCI 3051820 Contact Us For Availability
12
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
12
BACK-OVEN WALL UPPER WCI 3051236 Contact Us For Availability
12
WCI 3051727 WCI 3051727 Contact Us For Availability
13
HARNESS, O/U LIGHT SWITCH WCI 3131588 Contact Us For Availability
13
SCREW-HANDLE MTG. (2) WCI 3016851 Contact Us For Availability
13
PANEL, BODYSIDE, LH (WHEAT) WCI 3051262 Contact Us For Availability
13
PANEL, BODYSIDE, RH (WHEAT) WCI 3051265 Contact Us For Availability
13
WCI 3051398 WCI 3051398 Contact Us For Availability
14
TRIM, LH WCI 740T309F01 Contact Us For Availability
14
SCREW-DOOR MTG. (3) WCI 636T139P01 Contact Us For Availability
14A
TRIM, RH WCI 740T309F02 Contact Us For Availability
15
TRIM-O/U SPLASHER GLASS FILLER WCI 3051340 Contact Us For Availability
15
WCI 3131142 WCI 3131142 Contact Us For Availability
15
HINGE-TOP WCI 3131613 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15A
FASTENER, 8 AU TYPE (3) (NON-ILLUSTRATED) WCI 241T017P185 Contact Us For Availability
15B
SCREW-DOOR MTG (4) (NON-ILLUSTRATED) WCI 636T143P05 Contact Us For Availability
16
WASHER, SPRING (2) WCI 789T053P44 Contact Us For Availability
16
HINGE, BOTTOM WCI 3051166 Contact Us For Availability
16
FUSE-THERMAL CUTOUT WCI 3051385 Contact Us For Availability
16A
WCI 3200528 WCI 3200528 Contact Us For Availability
17
WCI 3014343 WCI 3014343 Contact Us For Availability
17
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
17
PLATE, HINGE WCI 554T176F01 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
18
ANGLE-SUPPORT S/C THERMOSTAT WCI 3051348 Contact Us For Availability
18
SCREW 10-32 SHOULDER SPECIAL (2) WCI 636T087P01 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
19
WCI 789T052P01 WCI 789T052P01 Contact Us For Availability
20
SHIELD-WOOL (SIDE) WCI 3131679 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
21
WCI 131T009P03 WCI 131T009P03 Contact Us For Availability
21
CLIP, THERMAL BULB (2) WCI 3131295 Contact Us For Availability
22
SEAL-DOOR-SIDES (2) WCI 647T081P06 Contact Us For Availability
23
SEAL-DOOR TOP AND BOTTOM (2) WCI 647T081P05 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
WCI 3131610 WCI 3131610 Contact Us For Availability
24
GLASS-OVEN LIGHT LENS WCI 3131298 Contact Us For Availability
25
STRIKE, DOOR WCI 691T007P01 Contact Us For Availability
25
INSULATION, BOTTOM WCI 3051429 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
WCI 3131104 WCI 3131104 Contact Us For Availability
27A
INSULATION WRAP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
27B
INSULATION, BACK (NON-ILLUSTRATED) WCI 3131303 Contact Us For Availability
27D
SCREW-HINGE MT. (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27E
NUT-BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
28
WCI 3017396 WCI 3017396 Contact Us For Availability
29
WCI 3131357 WCI 3131357 Contact Us For Availability
30
WCI 358T158S02 WCI 358T158S02 Contact Us For Availability
30A
SCREW, SET, LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD-BI MTL LATCH WCI 3131593 Contact Us For Availability
33
FASTENER, PUSH ON (3) WCI 241T001P01 Contact Us For Availability
34
WCI 695T226P01 WCI 695T226P01 Contact Us For Availability
35
WCI 3131363 WCI 3131363 Contact Us For Availability
38
WCI 3051737 WCI 3051737 Contact Us For Availability
39
RETAINER, CATALYST WCI 612T079P01 Contact Us For Availability
40
WCI 3014246 WCI 3014246 Contact Us For Availability
41
BRACKET, LIGHT SWITCH WCI 3131289 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
43
WCI 3051251 WCI 3051251 Contact Us For Availability
44
BUTTON-REMOVE LIGHT SWITCH WCI 3051731 Contact Us For Availability
45
SHIELD, HEAT LOWER WCI 3051430 Contact Us For Availability
45A
WCI 3131305 WCI 3131305 Contact Us For Availability
46
WCI 3051723 WCI 3051723 Contact Us For Availability
46A
WCI 3051724 WCI 3051724 Contact Us For Availability
× ![]()
