Model Electrolux 73-3957-23-09 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - COOKTOP PARTS

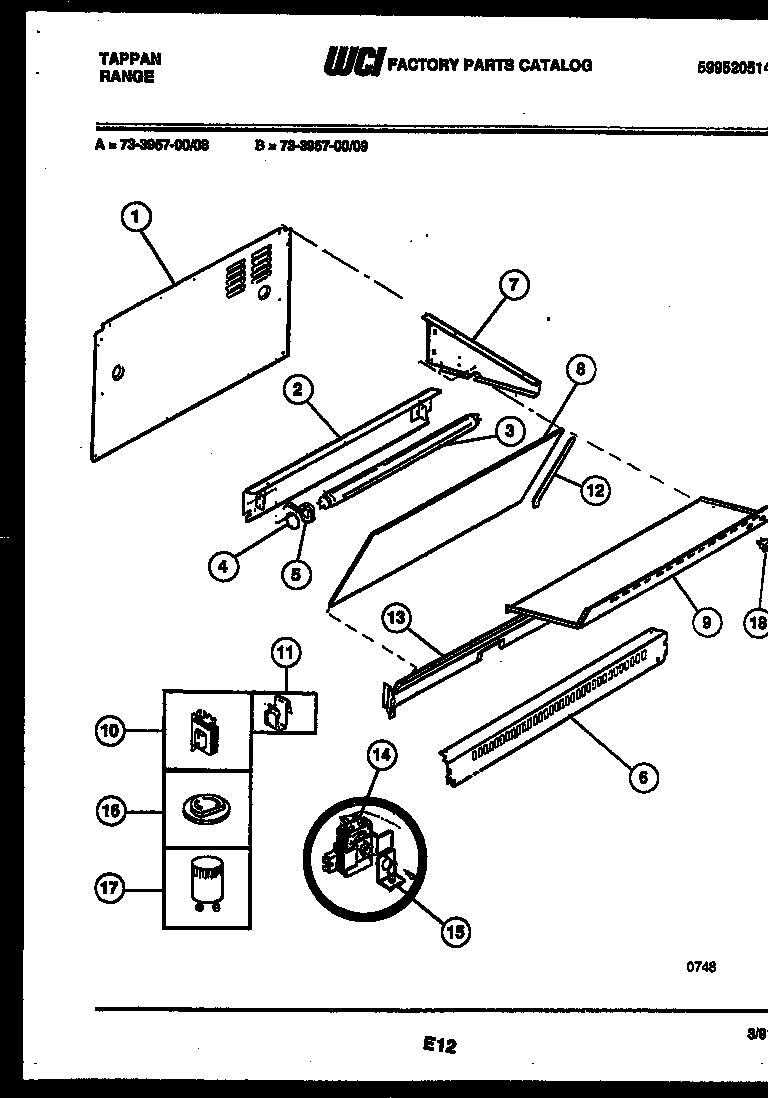

04 - SPLASHER CONTROL

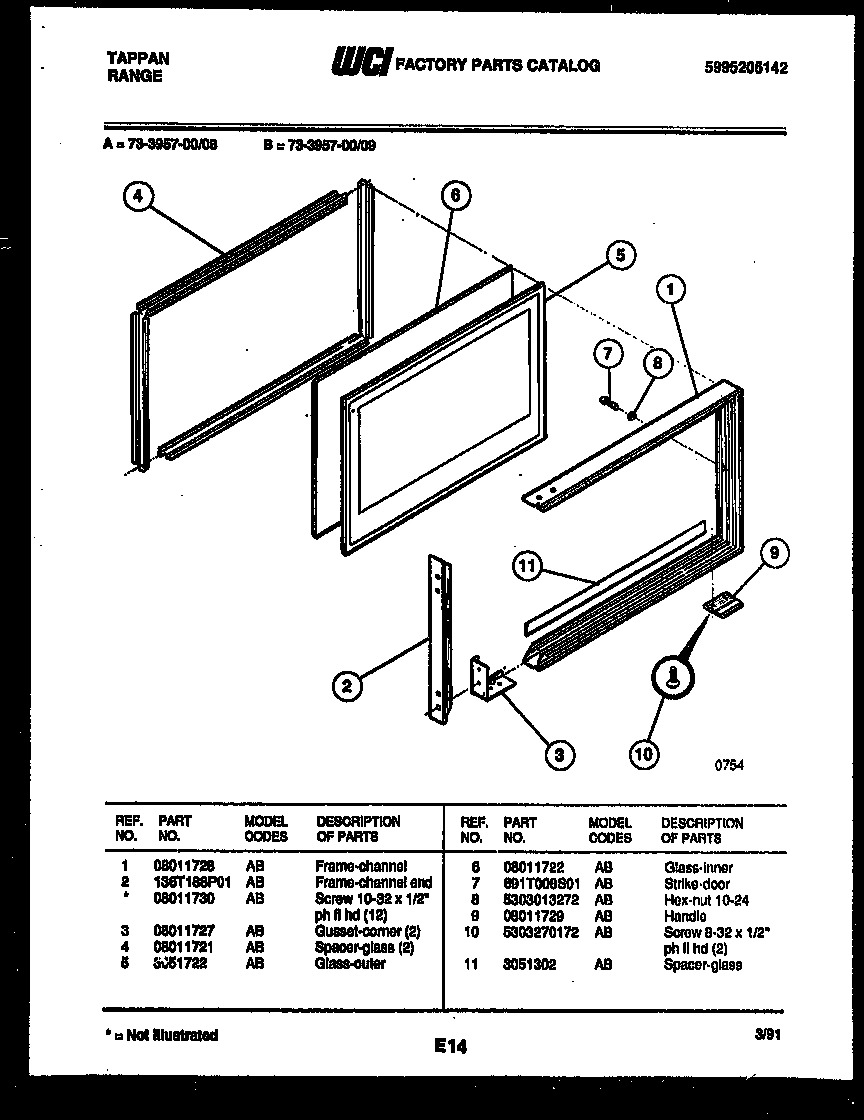

05 - UPPER OVEN DOOR PARTS

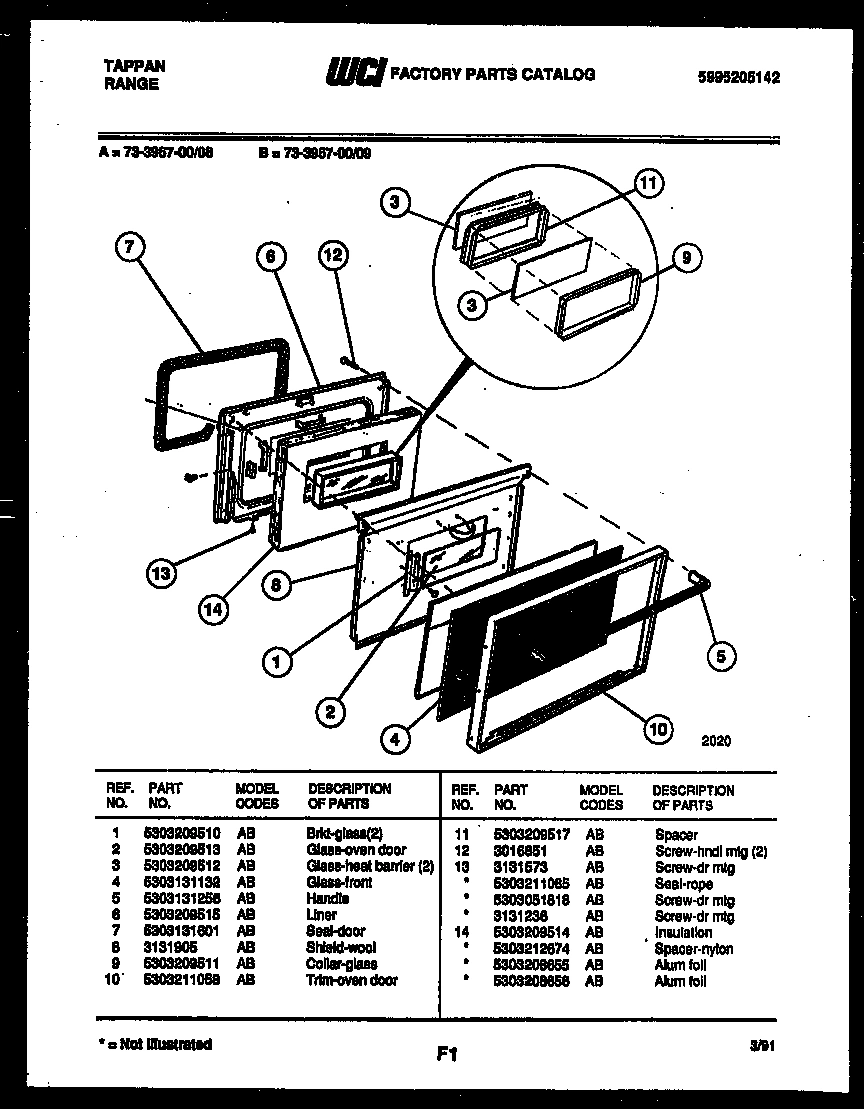

06 - LOWER OVEN DOOR PARTS

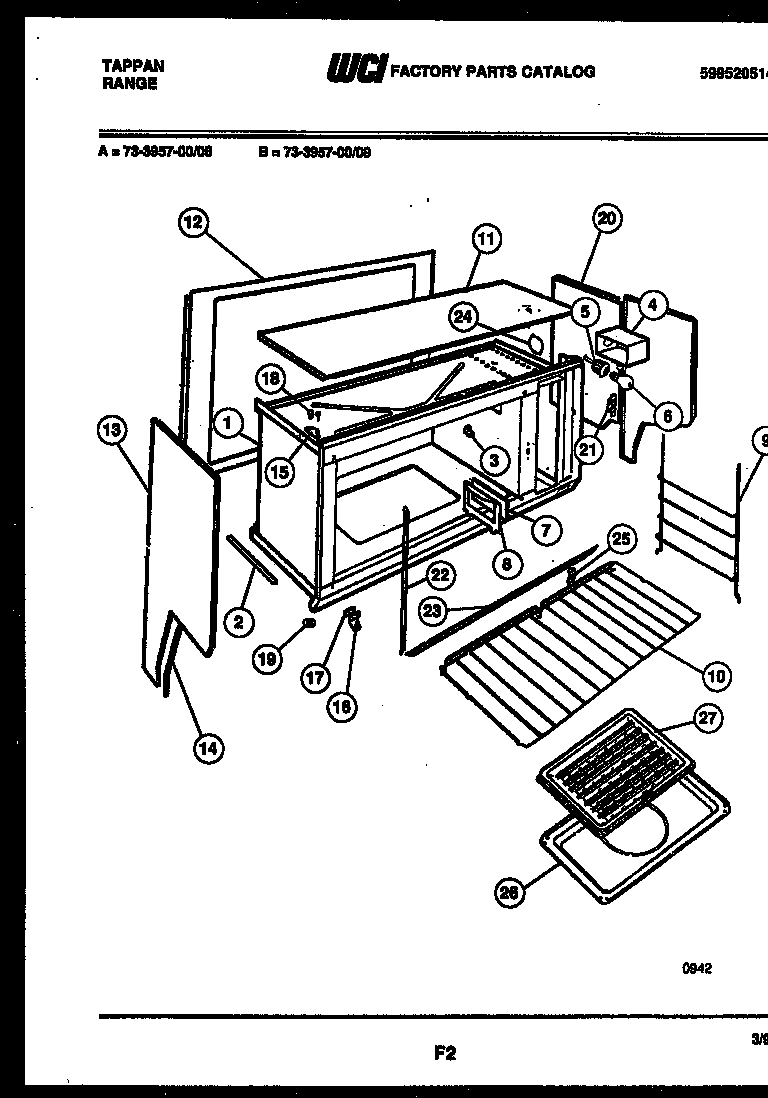

07 - UPPER BODY PARTS

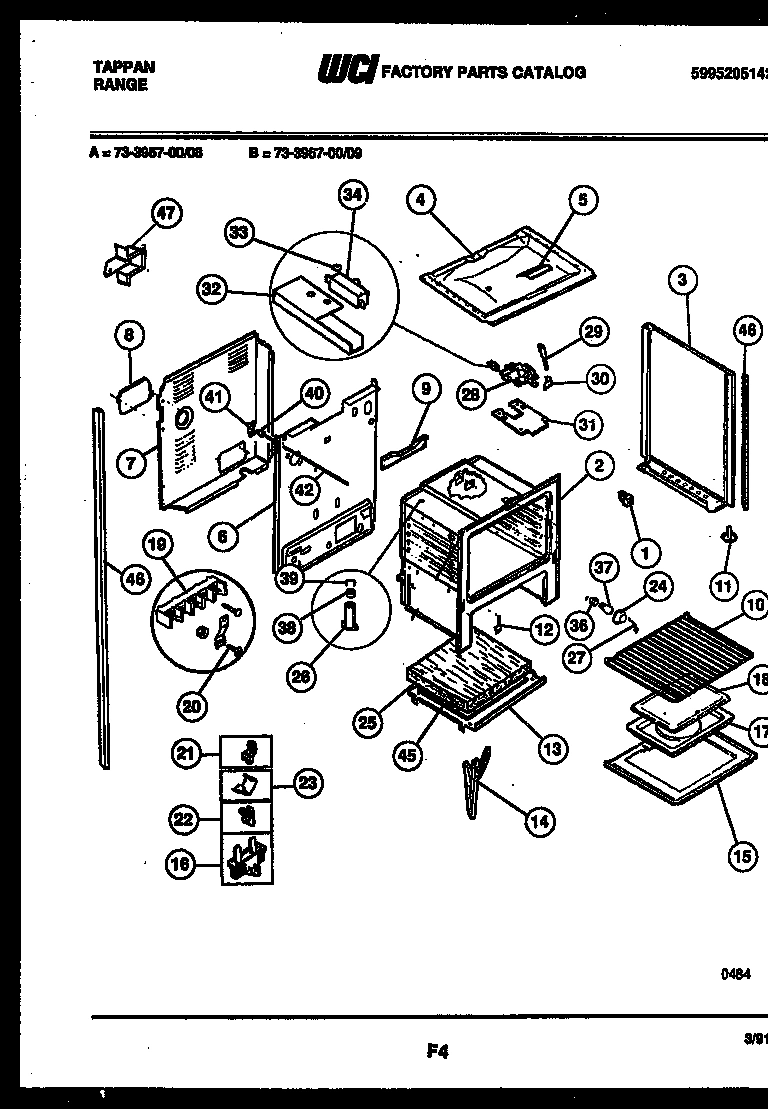

08 - LOWER BODY PARTS

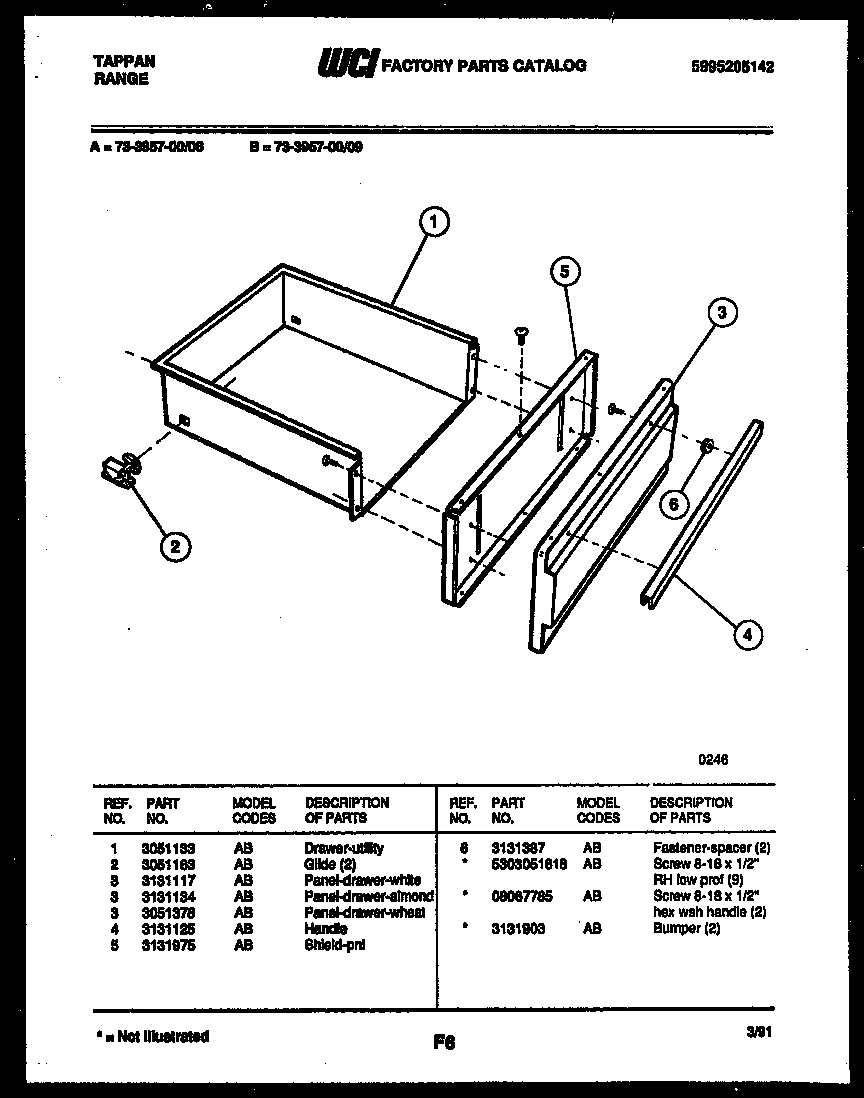

09 - DRAWER PARTS

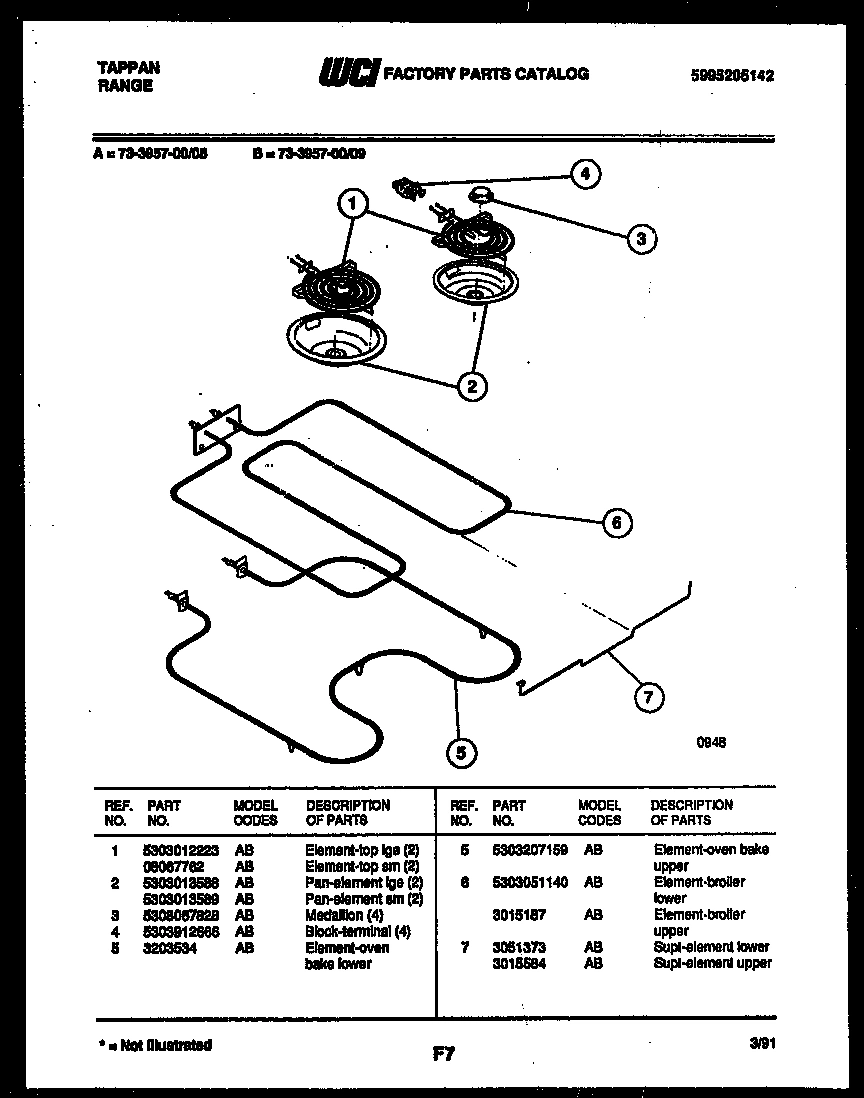

10 - BROILER PARTS
Common parts from model Electrolux 73-3957-23-09 RANGE
*44030
WCI 5303208656 WCI 5303208656 Contact Us For Availability
*44030
SPACER-NYLON WCI 5303212674 Contact Us For Availability
*44033
WCI 5303203651 WCI 5303203651 Contact Us For Availability
*44038
WCI 19100230001 WCI 19100230001 Contact Us For Availability
*44039
SCREW 8-18 X 1/2`` HEX WSH HANDLE (2) WCI 08067785 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
FRAME-CHANNEL WCI 08011728 Contact Us For Availability
1
BRKT-GLASS (2) WCI 5303209510 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
2
WCI 08067746 WCI 08067746 Contact Us For Availability
2
FRAME, CHANNEL, END WCI 136T188P01 Contact Us For Availability
2
WCI 5303209513 WCI 5303209513 Contact Us For Availability
2
WCI 008T268F01 WCI 008T268F01 Contact Us For Availability
2A
SCREW 10-32 X 1/2`` PH FL HD (12) (NON-ILLUST WCI 08011730 Contact Us For Availability
2A
INSULATION-BOTTOM 1 1/2 X 13 X 221/2 (NON-ILL WCI 3015590 Contact Us For Availability
2B
INSULATION-TOP 3 X 12 1/2 X 24 (NON-ILLUSTRAT WCI 3015588 Contact Us For Availability
2C
INSULATION-BACK AND SIDE 2 X 6 X 50 (NON-ILLU WCI 3015591 Contact Us For Availability
3
WCI 3131275 WCI 3131275 Contact Us For Availability
3
WCI 5303209512 WCI 5303209512 Contact Us For Availability
3
GUSSET-CORNER (2) WCI 08011727 Contact Us For Availability
3
PNL-BODYSIDE LH-ALMOND WCI 3205621 Contact Us For Availability
3
WCI 3131134 WCI 3131134 Contact Us For Availability
3
WCI 5308067828 WCI 5308067828 Contact Us For Availability
3A
PNL-BODYSIDE RH-ALMOND WCI 3205624 Contact Us For Availability
4
INSULATOR FLUORESCENT LIGHT RECEPT (2) WCI 3012947 Contact Us For Availability
4
SPACER-GLASS (2) WCI 08011721 Contact Us For Availability
4
GLASS, FRONT WCI 5303131132 Contact Us For Availability
4
WCI 069T046F01 WCI 069T046F01 Contact Us For Availability
4
WCI 5303271658 WCI 5303271658 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
5
RECEPTACLE-FLUOR LIGHT (2) WCI 597T047S01 Contact Us For Availability
5
GLASS, OUTER WCI 3051722 Contact Us For Availability
5
HANDLE WCI 5303131256 Contact Us For Availability
5
WCI 08067757 WCI 08067757 Contact Us For Availability
5
SHIELD-PNL WCI 3131975 Contact Us For Availability
6
WCI 5303202782 WCI 5303202782 Contact Us For Availability
6
GLASS-INNER WCI 08011722 Contact Us For Availability
6
WCI 3051465 WCI 3051465 Contact Us For Availability
6
LINER WCI 5303209515 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
6A
WCI 5303051320 WCI 5303051320 Contact Us For Availability
6A
WCI 3015187 WCI 3015187 Contact Us For Availability
7
GUSSET SUPPORT LH WCI 3200527 Contact Us For Availability
7
STRIKE-DOOR WCI 691T008S01 Contact Us For Availability
7
LENS-OVEN LIGHT WCI 08011668 Contact Us For Availability
7
SHIELD-LOWER WALL WCI 3203549 Contact Us For Availability
7A
GUSSET SUPPORT RH WCI 3200526 Contact Us For Availability
7A
WCI 3015584 WCI 3015584 Contact Us For Availability
8
GLASS-SPLASHER U/O WCI 3200496 Contact Us For Availability
8
WCI 3131905 WCI 3131905 Contact Us For Availability
8
COVER LENS WCI 08011669 Contact Us For Availability
8
WCI 3203405 WCI 3203405 Contact Us For Availability
9
HANDLE WCI 08011729 Contact Us For Availability
9
PANEL-SPLASHER UPPER WCI 5303208653 Contact Us For Availability
9
WCI 5303209511 WCI 5303209511 Contact Us For Availability
9
WCI 280T021S05 WCI 280T021S05 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
WCI 5303051115 WCI 5303051115 Contact Us For Availability
10
WCI 5303211058 WCI 5303211058 Contact Us For Availability
10
RACK-OVEN WCI 08011675 Contact Us For Availability
11
WCI 5303091393 WCI 5303091393 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 5303203397 Contact Us For Availability
11
FASTENER-CABLE CLAMP WCI 08067960 Contact Us For Availability
11
WCI 3051302 WCI 3051302 Contact Us For Availability
11
SPACER WCI 5303209517 Contact Us For Availability
11
PANEL-TOP WCI 3131625 Contact Us For Availability
11A
KNOB-SLCTR 5 POS (UPPER) WCI 3051821 Contact Us For Availability
11B
KNOB-SLCTR 6 POS (LOWER) WCI 5303091392 Contact Us For Availability
12
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
12
SCREW-HNDL MTG (2) WCI 3016851 Contact Us For Availability
12
BACK-OVEN WALL UPPER WCI 3051236 Contact Us For Availability
13
TRIM-O/U SPLASHER GLASS FILLER WCI 5303209039 Contact Us For Availability
13
SCREW-DR MTG WCI 3131573 Contact Us For Availability
13
PANEL, BODYSIDE, LH (ALMOND) WCI 3051261 Contact Us For Availability
13
PANEL-BODYSIDE RH-ALMOND WCI 3051264 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
13A
SEAL-ROPE (NON-ILLUSTRATED) WCI 5303211085 Contact Us For Availability
13C
SCREW-DR MTG (NON-ILLUSTRATED) WCI 3131236 Contact Us For Availability
14
CHAN-DOOR HINGE (2) WCI 316007002 No Longer Available
14
TRIM LH WCI 08010548 Contact Us For Availability
14
WCI 08067742 WCI 08067742 Contact Us For Availability
14
INSULATION WCI 5303209514 Contact Us For Availability
14A
TRIM-RH WCI 08010549 Contact Us For Availability
15
ANGLE-SUPPORT S/C THERMOSTAT WCI 3051348 Contact Us For Availability
15
HINGE-TOP WCI 3131613 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
16
WCI 5303051385 WCI 5303051385 Contact Us For Availability
16
RECEPTACLE, STARTER WCI 3204842 Contact Us For Availability
16
HINGE-BOTTOM WCI 5303051166 Contact Us For Availability
17
STARTER WCI 3206218 Contact Us For Availability
17
PLATE-HINGE WCI 08011665 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
18
WCI 5308011635 WCI 5308011635 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
19
WCI 08011664 WCI 08011664 Contact Us For Availability
20
SHIELD-WOOL SIDE WCI 5303208706 Contact Us For Availability
20
WCI 5303212739 WCI 5303212739 Contact Us For Availability
21
WCI 08011680 WCI 08011680 Contact Us For Availability
21
CLIP-THERMO BULB (2) WCI 08067754 Contact Us For Availability
22
SEAL-DOOR-SIDES (2) WCI 3201722 Contact Us For Availability
23
WCI 3201721 WCI 3201721 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
WCI 08067732 WCI 08067732 Contact Us For Availability
25
STRIKE, DOOR WCI 691T007P01 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
26A
WCI 3131104 WCI 3131104 Contact Us For Availability
27
WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability
27A
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
27B
WCI 3204582 WCI 3204582 Contact Us For Availability
27D
SCREW-HINGE MTG. (6) (NON-ILLUSTRATED) WCI 5303212740 Contact Us For Availability
28
WCI 3017396 WCI 3017396 Contact Us For Availability
29
HANDLE-LATCH WCI 3203218 Contact Us For Availability
30
WCI 5308010597 WCI 5308010597 Contact Us For Availability
30A
WCI 08013188 WCI 08013188 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD-BI MTL LATCH WCI 3131593 Contact Us For Availability
33
FASTENER-PUSH ON (3) WCI 08067776 Contact Us For Availability
34
WCI 08067781 WCI 08067781 Contact Us For Availability
38
WCI 08067810 WCI 08067810 Contact Us For Availability
39
RETAINER, CATALYST WCI 612T079P01 Contact Us For Availability
40
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
41
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
42
ROD LIGHT WCI 5303209316 Contact Us For Availability
45
WCI 3200848 WCI 3200848 Contact Us For Availability
45A
INSULATION-OVEN-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
45B
SHIELD-HEAT BODYSIDE (2) (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
45C
FASTENER-EDGE MOUNT (2) (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability
46
WCI 5303208642 WCI 5303208642 Contact Us For Availability
46A
TUBE-POST RH WCI 5303208643 Contact Us For Availability
46B
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
47
WCI 3203582 WCI 3203582 Contact Us For Availability
× ![]()
