Model Electrolux 73-3957-23-03 RANGE – Common Parts &amp; Diagrams

*15718

SCREW 8-18 X 1/2`` HEX WASHER HD (2) WCI 636T135P01 Contact Us For Availability

1

316442301 Frigidaire Oven 8 Coil Element 2600 In Stock WCI 316442301 $15.95

1

SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability

1

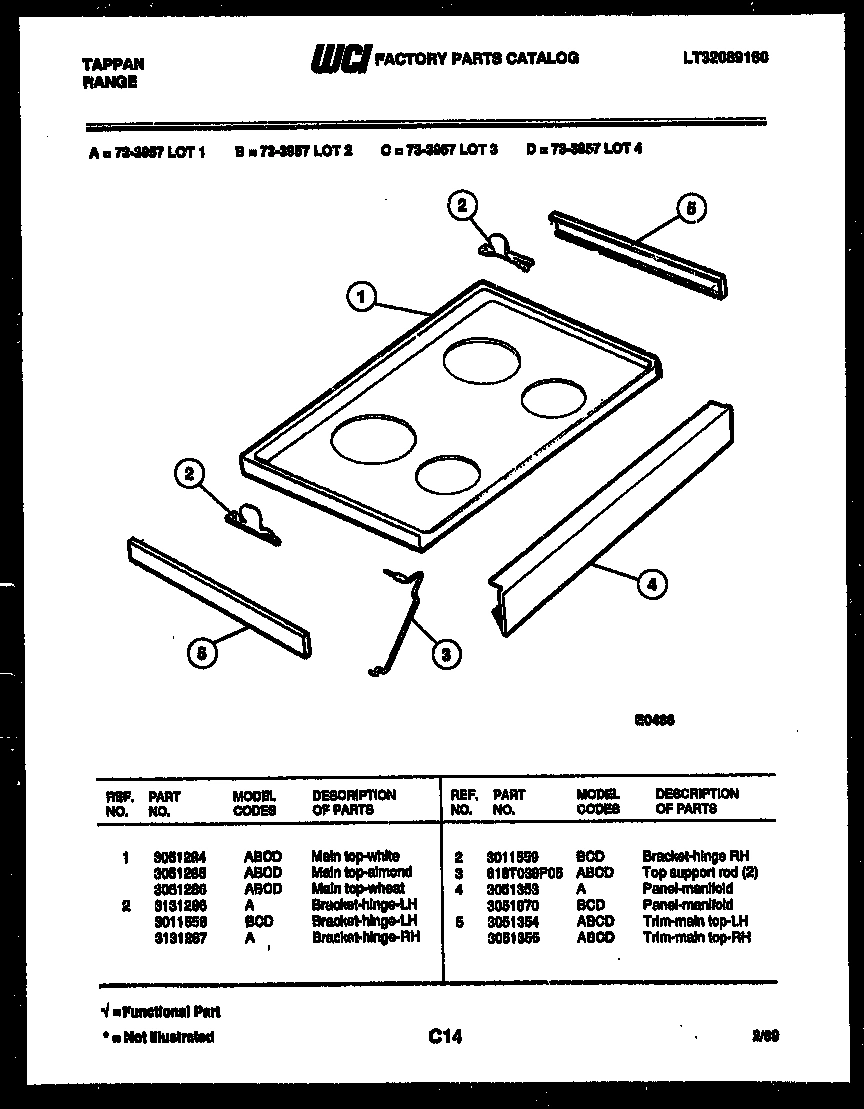

MAIN TOP, ALMOND WCI 3051285 Contact Us For Availability

1

FRAME, CHANNEL WCI 136T187P03 Contact Us For Availability

1

BRACKET, GLASS (2) WCI 3131366 Contact Us For Availability

1

DRAWER, UTILITY WCI 3051133 Contact Us For Availability

1A

318372211 Frigidaire Oven 6" Electric Range B In Stock WCI 318372211 $12.96

2

3051163 Frigidaire Oven Range Rear Broiler Dr In Stock WCI 3051163 $2.33

2

316048413 Frigidaire Oven Range Chrome 8" Dri In Stock WCI 316048413 $3.56

2

WCI 3011558 WCI 3011558 Contact Us For Availability

2

WCI 3011559 WCI 3011559 Contact Us For Availability

2

REFLECTOR, WORK LAMP WCI 3018942 Contact Us For Availability

2

FRAME-CHANNEL ENC WCI 136T188P01 Contact Us For Availability

2

GLASS-HEAT BARRIER CONNECTING WCI 3051148 Contact Us For Availability

2

ANGLE-STIFFENER WCI 088T268F01 Contact Us For Availability

BRACKET, HINGE, RH WCI 3131287 Contact Us For Availability

SCREW 10-32 X 1/2`` PH FL HD (12) (NON-ILLUST WCI 636T098P18 Contact Us For Availability

INSULATION-BOTTOM 1 1/2 X 13 X 22 1/2 (NON-IL WCI 328T045P01 Contact Us For Availability

WCI 542T012P02 WCI 542T012P02 Contact Us For Availability

2B

INSULATION-TOP 3 X 12 1/2 X 24 (NON-ILLUSTRAT WCI 328T018P33 Contact Us For Availability

2C

INSULATION-BACK AND SIDE 2 X 6 X 50 (NON-ILLU WCI 328T061P01 Contact Us For Availability

3

5303284616 Frigidaire Range Bulb Clip Thermos In Stock WCI 5303284616 $5.78

3

BULB-FLUOR WORK LIT WCI 3131275 Contact Us For Availability

3

TOP SUPPORT ROD (2) WCI 618T038P05 Contact Us For Availability

3

GUSSET, CORNER (2) WCI 289T060P01 Contact Us For Availability

3

WCI 3200548 WCI 3200548 Contact Us For Availability

3

PANEL, BODYSIDE (LH), ALMOND WCI 3200793 Contact Us For Availability

3

WCI 3131134 WCI 3131134 Contact Us For Availability

3

WCI 445T006P01 WCI 445T006P01 Contact Us For Availability

3A

PANEL, BODYSIDE (RH), ALMOND WCI 3200790 Contact Us For Availability

4

5303935058 Frigidaire Oven Burner Receptacle In Stock WCI 5303935058 $4.05

4

WCI 3051870 WCI 3051870 Contact Us For Availability

4

WCI 3051732 WCI 3051732 Contact Us For Availability

4

SPACER, GLASS (2) WCI 665T108P02 Contact Us For Availability

4

WCI 3131132 WCI 3131132 Contact Us For Availability

4

WCI 069T046F01 WCI 069T046F01 Contact Us For Availability

4

WCI 3051109 WCI 3051109 Contact Us For Availability

4

WCI 3131125 WCI 3131125 Contact Us For Availability

5

WCI 3051354 WCI 3051354 Contact Us For Availability

5

RECEPTACLE-FLUOR LIGHT (2) WCI 597T047S01 Contact Us For Availability

5

GLASS, OUTER WCI 3051722 Contact Us For Availability

5

WCI 3131256 WCI 3131256 Contact Us For Availability

5

WCI 3131101 WCI 3131101 Contact Us For Availability

5

WCI 3131975 WCI 3131975 Contact Us For Availability

5

ELEMENT, OVEN BAKE, LOWER WCI 3051388 Contact Us For Availability

5A

5303307010 Frigidaire Bake Element Backorder WCI 5303307010 $96.50

5A

SWITCH-SELECTOR 6 POS. LOWER WCI 3051315 Contact Us For Availability

5A

WCI 3051355 WCI 3051355 Contact Us For Availability

6

5303051140 Frigidaire Broil Element Backorder WCI 5303051140 $119.12

6

WCI 3051320 WCI 3051320 Contact Us For Availability

6

THERMOSTAT-OVEN UPPER WCI 722T038P12 Contact Us For Availability

6

WCI 3051465 WCI 3051465 Contact Us For Availability

6

GLASS, INNER WCI 276T091P01 Contact Us For Availability

6

LINER WCI 3131393 Contact Us For Availability

6

WCI 3131567 WCI 3131567 Contact Us For Availability

6

FASTENER, SPACER (2) WCI 241T017P232 Contact Us For Availability

6A

WCI 220T018P01 WCI 220T018P01 Contact Us For Availability

7

316203400 Frigidaire Oven Support Backorder WCI 316203400 $39.21

7

5303131601 Frigidaire Oven Seal Backorder WCI 5303131601 $199.68

7

WCI 3051248 WCI 3051248 Contact Us For Availability

7

GUSSET SUPPORT LH WCI 3200527 Contact Us For Availability

7

STRIKE-DOOR WCI 691T008S01 Contact Us For Availability

7

LENS, OVEN LIGHT WCI 277T162P01 Contact Us For Availability

7

WCI 3051400 WCI 3051400 Contact Us For Availability

7A

GUSSET SUPPORT RH WCI 3200526 Contact Us For Availability

7A

WCI 694T029P01 WCI 694T029P01 Contact Us For Availability

8

5303013272 Frigidaire Oven Nut Backorder WCI 5303013272 $11.11

8

KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability

8

GLASS-SPLASHER U/O WCI 277T164P25 Contact Us For Availability

8

WCI 3051230 WCI 3051230 Contact Us For Availability

8

COVER, LENS WCI 174T112F01 Contact Us For Availability

8

COVER, LOWER ACCESS WCI 3051501 Contact Us For Availability

9

INDICATOR LIGHT-125V (3) WCI 3091461 Contact Us For Availability

9

WCI 513T073F20 WCI 513T073F20 Contact Us For Availability

9

HANDLE WCI 296T058P01 Contact Us For Availability

9

WCI 3131323 WCI 3131323 Contact Us For Availability

9

WCI 280T021P01 WCI 280T021P01 Contact Us For Availability

9

COVER-FLUE WCI 3051368 Contact Us For Availability

9A

INDICATOR LIGHT-250V (2) WCI 3091462 Contact Us For Availability

316067902 Frigidaire Oven Rack Backorder WCI 316067902 $63.90

BUSHING, CONTROL PANEL GLASS WCI 102T019P01 Contact Us For Availability

WCI 3051115 WCI 3051115 Contact Us For Availability

SCREW 8-32 X 1/2 PH FLHD (2) WCI 636T096P30 Contact Us For Availability

WCI 3131128 WCI 3131128 Contact Us For Availability

RACK, OVEN WCI 591T042P01 Contact Us For Availability

WCI 3091393 WCI 3091393 Contact Us For Availability

FASTENER, CABLE CLAMP WCI 241T003P01 Contact Us For Availability

SPACER WCI 3051302 Contact Us For Availability

CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability

PANEL-TOP WCI 3131625 Contact Us For Availability

SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability

11A

WCI 3051821 WCI 3051821 Contact Us For Availability

11B

KNOB-SELECTOR SWITCH 6 POS. WCI 3091392 Contact Us For Availability

11C

KNOB-THERMOSTAT UPPER WCI 3051442 Contact Us For Availability

11D

WCI 3051820 WCI 3051820 Contact Us For Availability

12

COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability

12

BACK-OVEN WALL UPPER WCI 3051236 Contact Us For Availability

12

WCI 3051727 WCI 3051727 Contact Us For Availability

HARNESS, O/U LIGHT SWITCH WCI 3131588 Contact Us For Availability

SCREW-HANDLE MTG. (2) WCI 3016851 Contact Us For Availability

PANEL, BODYSIDE, LH (ALMOND) WCI 3051261 Contact Us For Availability

PANEL-BODYSIDE RH-ALMOND WCI 3051264 Contact Us For Availability

WCI 3200825 WCI 3200825 Contact Us For Availability

14

WCI 316007002 No Longer Available

14

TRIM, LH WCI 740T309F01 Contact Us For Availability

14

SCREW-DOOR MTG. (3) WCI 636T139P01 Contact Us For Availability

14A

TRIM, RH WCI 740T309F02 Contact Us For Availability

TRIM-O/U SPLASHER GLASS FILLER WCI 3051340 Contact Us For Availability

WCI 3131142 WCI 3131142 Contact Us For Availability

HINGE-TOP WCI 3131613 Contact Us For Availability

WCI 3051104 WCI 3051104 Contact Us For Availability

15A

FASTENER, 8 AU TYPE (3) (NON-ILLUSTRATED) WCI 241T017P185 Contact Us For Availability

15B

SCREW-DOOR MTG (4) (NON-ILLUSTRATED) WCI 636T143P05 Contact Us For Availability

16

WASHER, SPRING (2) WCI 789T053P44 Contact Us For Availability

16

HINGE, BOTTOM WCI 3051166 Contact Us For Availability

16

FUSE-THERMAL CUTOUT WCI 3051385 Contact Us For Availability

16A

WCI 3200528 WCI 3200528 Contact Us For Availability

WCI 3014343 WCI 3014343 Contact Us For Availability

SEAL, FOAM (4) WCI 3934033 Contact Us For Availability

PLATE, HINGE WCI 554T176F01 Contact Us For Availability

WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability

18

ANGLE-SUPPORT S/C THERMOSTAT WCI 3051348 Contact Us For Availability

18

SCREW 10-32 SHOULDER SPECIAL (2) WCI 636T087P01 Contact Us For Availability

18

WCI 3131356 WCI 3131356 Contact Us For Availability

19

5304409888 Frigidaire Oven Terminal Block Ass In Stock WCI 5304409888 $16.01

19

WCI 789T052P01 WCI 789T052P01 Contact Us For Availability

20

SHIELD-WOOL (SIDE) WCI 3131679 Contact Us For Availability

20

WCI 711T048P01 WCI 711T048P01 Contact Us For Availability

21

WCI 131T009P03 WCI 131T009P03 Contact Us For Availability

21

CLIP, THERMAL BULB (2) WCI 3131295 Contact Us For Availability

22

3051162 Frigidaire Oven Range Front Broiler D In Stock WCI 3051162 $1.73

22

SEAL-DOOR-SIDES (2) WCI 647T081P06 Contact Us For Availability

23

SEAL-DOOR TOP AND BOTTOM (2) WCI 647T081P05 Contact Us For Availability

23

WCI 3051367 WCI 3051367 Contact Us For Availability

24

WCI 3131610 WCI 3131610 Contact Us For Availability

24

GLASS-OVEN LIGHT LENS WCI 3131298 Contact Us For Availability

25

STRIKE, DOOR WCI 691T007P01 Contact Us For Availability

26

WCI 3051344 WCI 3051344 Contact Us For Availability

27

5304442087 Frigidaire Range Wall Oven Broil P Backorder WCI 5304442087 $32.72

27

WCI 3131104 WCI 3131104 Contact Us For Availability

27B

INSULATION, BACK (NON-ILLUSTRATED) WCI 3131303 Contact Us For Availability

27C

3131903 Frigidaire Door/Drawer Bumper Backorder WCI 3131903 $32.52

27D

SCREW-HINGE MT. (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability

27E

NUT-BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability

28

WCI 3017396 WCI 3017396 Contact Us For Availability

29

WCI 3131357 WCI 3131357 Contact Us For Availability

30

WCI 358T158S02 WCI 358T158S02 Contact Us For Availability

30A

SCREW, SET, LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability

31

SHIELD-LATCH WCI 3051413 Contact Us For Availability

32

SHIELD-BI MTL LATCH WCI 3131593 Contact Us For Availability

33

FASTENER, PUSH ON (3) WCI 241T001P01 Contact Us For Availability

34

WCI 695T226P01 WCI 695T226P01 Contact Us For Availability

35

WCI 3131363 WCI 3131363 Contact Us For Availability

36

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $36.58

37

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.44

38

WCI 3051737 WCI 3051737 Contact Us For Availability

39

RETAINER, CATALYST WCI 612T079P01 Contact Us For Availability

40

WCI 3014246 WCI 3014246 Contact Us For Availability

41

BRACKET, LIGHT SWITCH WCI 3131289 Contact Us For Availability

42

WCI 3051495 WCI 3051495 Contact Us For Availability

43

WCI 3051251 WCI 3051251 Contact Us For Availability

44

BUTTON-REMOVE LIGHT SWITCH WCI 3051731 Contact Us For Availability

45

WCI 3200848 WCI 3200848 Contact Us For Availability

45A

WCI 3131305 WCI 3131305 Contact Us For Availability

45B

SHIELD-HEAT BODYSIDE (2) (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability

45C

FASTENER-EDGE MOUNT (2) (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability

45D

INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability

45E

316403803 Frigidaire Insulation Backorder WCI 316403803 $27.63

46

WCI 3051723 WCI 3051723 Contact Us For Availability

46A

WCI 3051724 WCI 3051724 Contact Us For Availability
