Model Electrolux 73-3757-66-06 RANGE – Common Parts & Diagrams

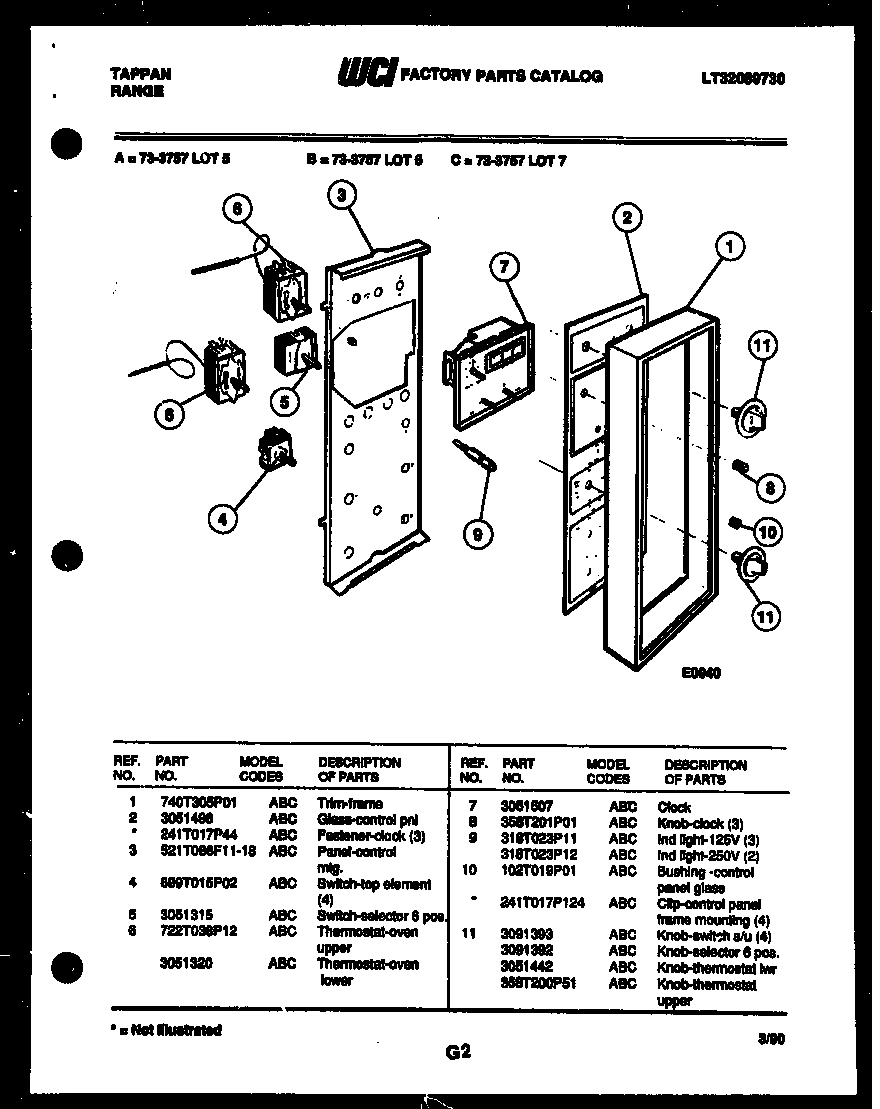

02 - CONTROL PANEL
03 - SPLASHER CONTROL
04 - COOKTOP PARTS
05 - UPPER OVEN DOOR PARTS
06 - LOWER OVEN DOOR PARTS
07 - BROILER PARTS
08 - UPPER BODY PARTS
09 - LOWER BODY PARTS
10 - DRAWER PARTS
Common parts from model Electrolux 73-3757-66-06 RANGE
*22764
SCREW 8-18 X 1/2 HEX WSH HANDLE (2) WCI 636T135P01 Contact Us For Availability
1
MAIN TOP, WHEAT WCI 3051286 Contact Us For Availability
1
FRAME, CHANNEL WCI 136T187P03 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
2
REFLECTOR, WORK LAMP WCI 3131586 Contact Us For Availability
2
BRACKET, HINGE, LH WCI 3131286 Contact Us For Availability
2
BRACKET, HINGE, RH WCI 3131287 Contact Us For Availability
2
FRAME, CHANNEL, END WCI 136T188P01 Contact Us For Availability
2
GLASS FRONT, BLACK WCI 276T106P03 Contact Us For Availability
2
WCI 088T268F01 WCI 088T268F01 Contact Us For Availability
2A
SCREW 10-32 X 1/2 FRAME ASSEMBLY (12) (NON-IL WCI 636T098P18 Contact Us For Availability
2A
WCI 542T012P02 WCI 542T012P02 Contact Us For Availability
2A
WCI 328T045P01 WCI 328T045P01 Contact Us For Availability
2B
WCI 328T018P33 WCI 328T018P33 Contact Us For Availability
2C
WCI 328T061P01 WCI 328T061P01 Contact Us For Availability
3
WCI 3131275 WCI 3131275 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 618T038P05 Contact Us For Availability
3
GUSSET, CORNER (2) WCI 289T060P01 Contact Us For Availability
3
HANDLE OVEN DOOR WCI 3051165 Contact Us For Availability
3
PNL-BODYSIDE LH-WHEAT WCI 3200794 Contact Us For Availability
3
PANEL, DRAWER, WHEAT WCI 3051378 Contact Us For Availability
3A
PNL-BODYSIDE RH-WHEAT WCI 3200791 Contact Us For Availability
4
SWITCH, TOP ELEMENT (4) WCI 699T015P02 Contact Us For Availability
4
INSULATOR FLUORESCENT LIGHT RECEPT (2) WCI 331T052P02 Contact Us For Availability
4
WCI 3051870 WCI 3051870 Contact Us For Availability
4
SPACER, GLASS (2) WCI 665T108P02 Contact Us For Availability
4
WCI 3201692 WCI 3201692 Contact Us For Availability
4
WCI 069T046P01 WCI 069T046P01 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
5
SWITCH-SELECTOR 6 POS. WCI 3051315 Contact Us For Availability
5
RECEPTACLE-FLUOR LIGHT (2) WCI 597T047S01 Contact Us For Availability
5
GLASS, OUTER WCI 3051722 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
SHIELD-PNL WCI 3131383 Contact Us For Availability
6
THERMOSTAT-OVEN UPPER WCI 722T038P12 Contact Us For Availability
6
WCI 3051465 WCI 3051465 Contact Us For Availability
6
GLASS, INNER WCI 276T091P01 Contact Us For Availability
6
WCI 3201693 WCI 3201693 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
FASTENER, SPACER (2) WCI 241T017P232 Contact Us For Availability
6A
WCI 3051320 WCI 3051320 Contact Us For Availability
7
CLOCK WCI 3051507 Contact Us For Availability
7
GUSSET SUPPORT LH WCI 3200527 Contact Us For Availability
7
WCI 691T007S01 WCI 691T007S01 Contact Us For Availability
7
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
7
LENS, OVEN LIGHT WCI 277T162P01 Contact Us For Availability
7
SHIELD-LOWER WALL WCI 3203549 Contact Us For Availability
7A
GUSSET SUPPORT RH WCI 3200526 Contact Us For Availability
8
KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability
8
GLASS SPLASHER O/U WCI 277T164P25 Contact Us For Availability
8
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
8
COVER, LENS WCI 174T112F01 Contact Us For Availability
8
WCI 3203405 WCI 3203405 Contact Us For Availability
9
IND LIGHT-125V (3) WCI 318T023P11 Contact Us For Availability
9
WCI 513T073F20 WCI 513T073F20 Contact Us For Availability
9
HANDLE WCI 296T058P01 Contact Us For Availability
9
WCI 3131362 WCI 3131362 Contact Us For Availability
9
GLIDE, OVEN RACK (2) WCI 280T021P05 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9A
IND LIGHT-250V (2) WCI 318T023P12 Contact Us For Availability
10
BUSHING, CONTROL PANEL GLASS WCI 102T019P01 Contact Us For Availability
10
WCI 3051115 WCI 3051115 Contact Us For Availability
10
WCI 636T096P30 WCI 636T096P30 Contact Us For Availability
10
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
10
RACK, OVEN WCI 591T042P01 Contact Us For Availability
10A
CLIP, CONTROL PANEL FRAME MOUNTING (4) (NON-I WCI 241T017P124 Contact Us For Availability
11
WCI 3091393 WCI 3091393 Contact Us For Availability
11
FASTENER, CABLE CLAMP WCI 241T003P01 Contact Us For Availability
11
WCI 3051302 WCI 3051302 Contact Us For Availability
11
FASTENER-NYLON (6) WCI 3051374 Contact Us For Availability
11
PANEL-TOP WCI 3131625 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 3203397 Contact Us For Availability
11A
WCI 3091392 WCI 3091392 Contact Us For Availability
11B
KNOB-THERMOSTAT LWR WCI 3051442 Contact Us For Availability
11C
KNOB, THERMOSTAT, UPPER WCI 358T200P51 Contact Us For Availability
12
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
12
BACK-OVEN WALL UPPER WCI 3051236 Contact Us For Availability
12
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
12
SCREW, HANDLE (2) WCI 3131102 Contact Us For Availability
13
HARNESS-O/U LIGHT SW. WCI 3131588 Contact Us For Availability
13
FSTNR-NYLON SPACER (3) WCI 241T017P185 Contact Us For Availability
13
PANEL, BODYSIDE, LH (WHEAT) WCI 3051262 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
13A
SCREW 8 X 18 X 1/2 (3) (NON-ILLUSTRATED) WCI 636T139P02 Contact Us For Availability
13A
PANEL, BODYSIDE, RH (WHEAT) WCI 3051265 Contact Us For Availability
14
TRIM, LH WCI 740T309F01 Contact Us For Availability
14
INSULATION, OVEN DOOR WCI 3131384 Contact Us For Availability
14
CHAN-DOOR HINGE (2) WCI 3131569 Contact Us For Availability
14A
TRIM, RH WCI 740T309F02 Contact Us For Availability
15
TRIM-O/U SPLASHER GLASS FILLER WCI 3051340 Contact Us For Availability
15
HINGE-TOP WCI 3131613 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
16
WASHER, SPRING (2) WCI 789T053P44 Contact Us For Availability
16
HINGE, BOTTOM WCI 3051166 Contact Us For Availability
16
FUSE-THERMO CUTOUT WCI 3051147 Contact Us For Availability
17
THERMOSTAT-S/C WCI 3051324 Contact Us For Availability
17
WCI 554T176P01 WCI 554T176P01 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
18
ANGLE-SUPPORT S/C THERMOSTAT WCI 3131467 Contact Us For Availability
18
SCREW-10-32 (2) SHOULDER SPECIAL (2) WCI 636T087P01 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
19
WCI 789T052P01 WCI 789T052P01 Contact Us For Availability
20
SHIELD-WOOL (SIDE) WCI 3131679 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
21
WCI 131T009P03 WCI 131T009P03 Contact Us For Availability
21
CLIP-THERMO BULB (2) WCI 3131295 Contact Us For Availability
22
RETAINER, DOOR SEAL, SIDES (2) WCI 647T081P06 Contact Us For Availability
23
RETAINER, DOOR SEAL, BOTTOM WCI 647T081P05 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
WCI 3131610 WCI 3131610 Contact Us For Availability
25
STRIKE, DOOR WCI 691T007P01 Contact Us For Availability
26
FUSE, THERMO CUTOUT WCI 3051385 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability
27A
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
27B
INSULATION, BACK (NON-ILLUSTRATED) WCI 3131303 Contact Us For Availability
27D
SCREW-HINGE MTG (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27E
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
28
WCI 3051258 WCI 3051258 Contact Us For Availability
29
WCI 3131357 WCI 3131357 Contact Us For Availability
30
WCI 358T158S02 WCI 358T158S02 Contact Us For Availability
30A
SCREW-SET (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD-BI MTL LATCH WCI 3131593 Contact Us For Availability
33
FASTENER, PUSH ON (3) WCI 241T001P01 Contact Us For Availability
34
WCI 695T226P01 WCI 695T226P01 Contact Us For Availability
38
WCI 244T041P01 WCI 244T041P01 Contact Us For Availability
39
RETAINER, CATALYST WCI 612T079P01 Contact Us For Availability
40
WCI 695T128P03 WCI 695T128P03 Contact Us For Availability
41
BRACKET, LIGHT SWITCH WCI 3131289 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
43
WCI 174T329P01 WCI 174T329P01 Contact Us For Availability
44
BUTTON-REMOTE LIGHT SWITCH WCI 102T044P02 Contact Us For Availability
45
WCI 3200848 WCI 3200848 Contact Us For Availability
45A
WCI 3131305 WCI 3131305 Contact Us For Availability
45B
SHIELD-HEAT BODYSIDE (2) (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
45C
FASTENER-EDGE MOUNT (2) (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability
46
WCI 3051723 WCI 3051723 Contact Us For Availability
46A
WCI 3051724 WCI 3051724 Contact Us For Availability
46B
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
47
SHIELD - REAR WALL BAKE ELEMENT WCI 3203582 Contact Us For Availability
× ![]()
