Model Electrolux 73-3757-23-04 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - SPLASHER CONTROL

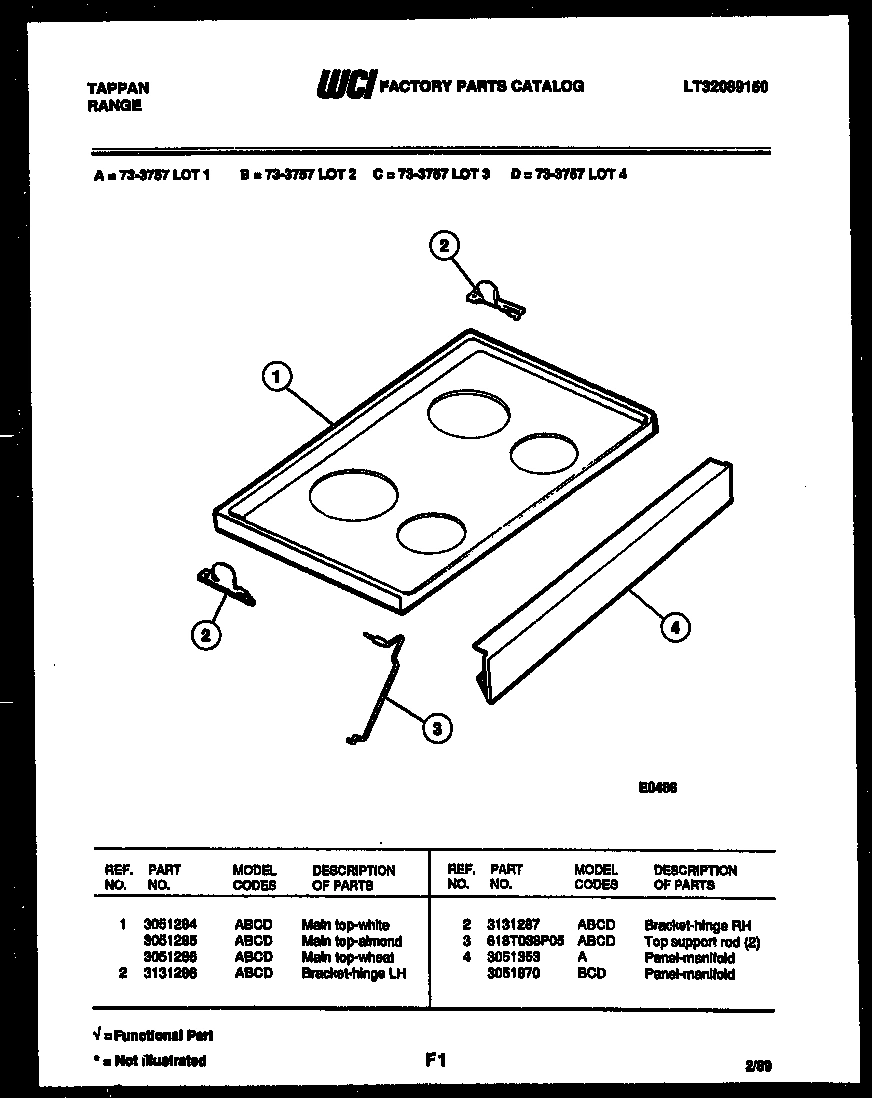

04 - COOKTOP PARTS

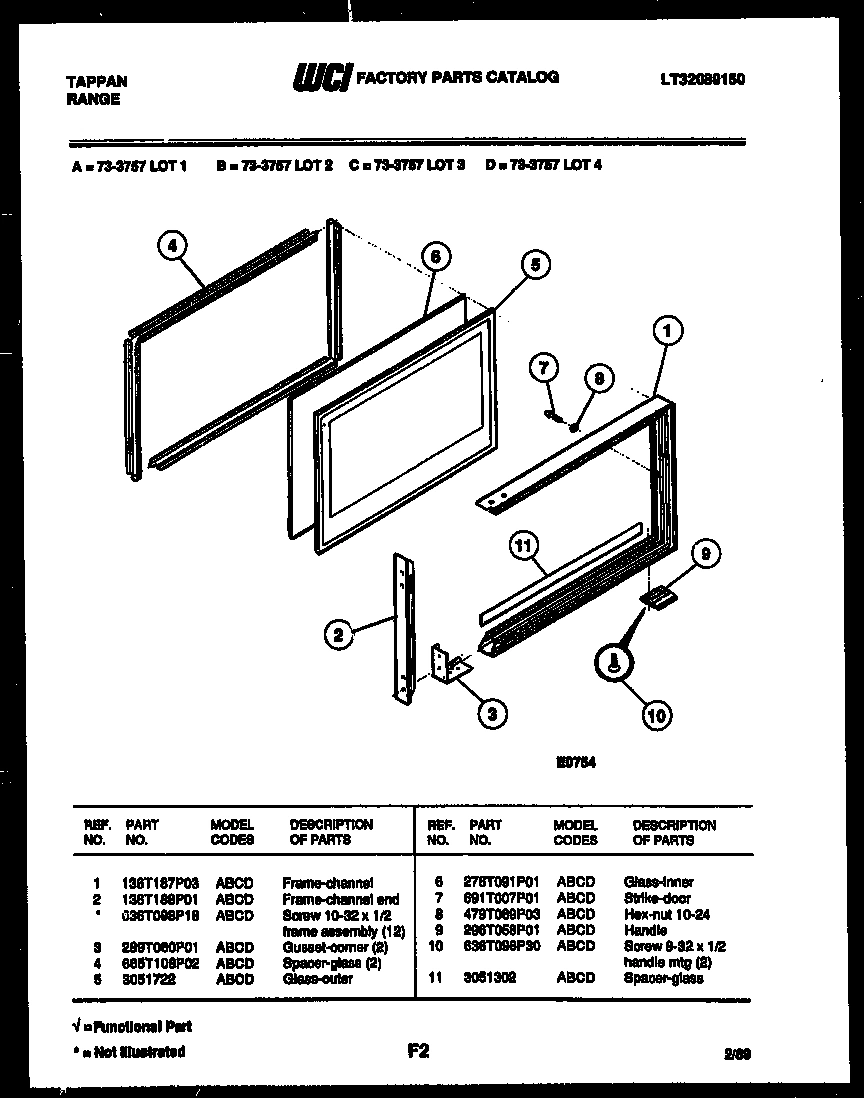

05 - UPPER OVEN DOOR PARTS

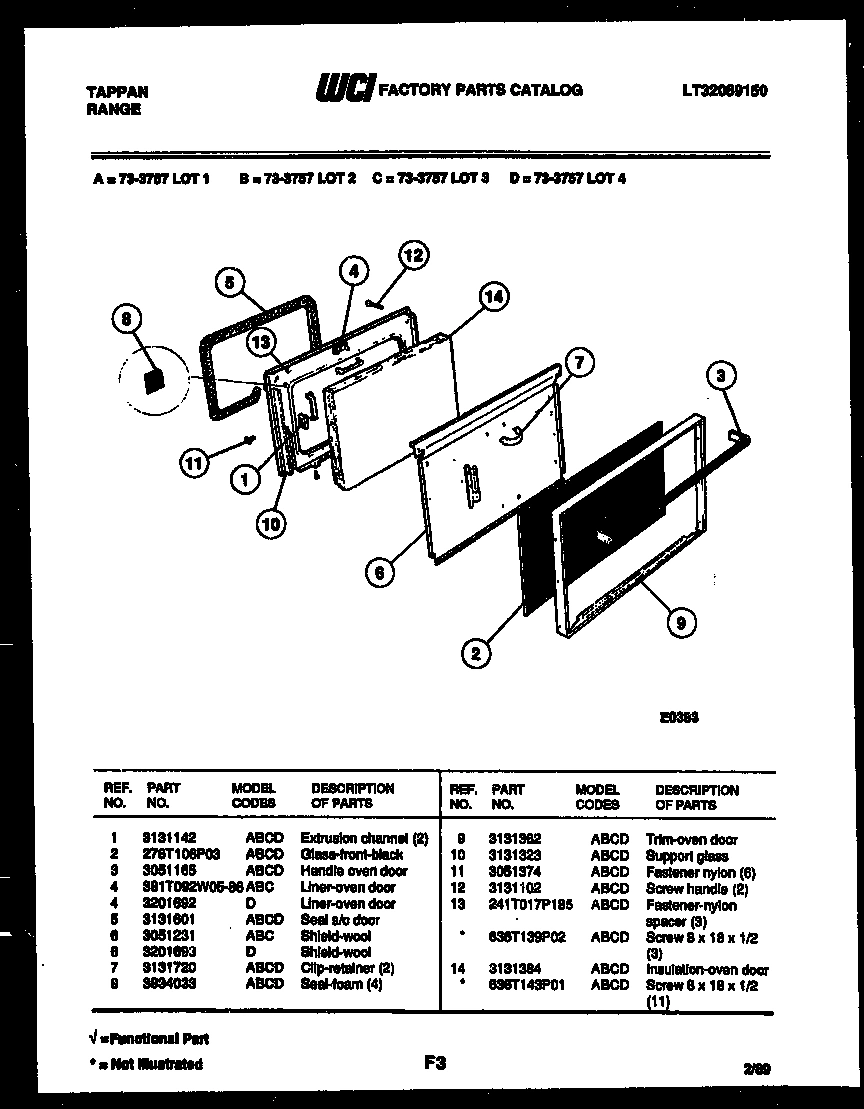

06 - LOWER OVEN DOOR PARTS

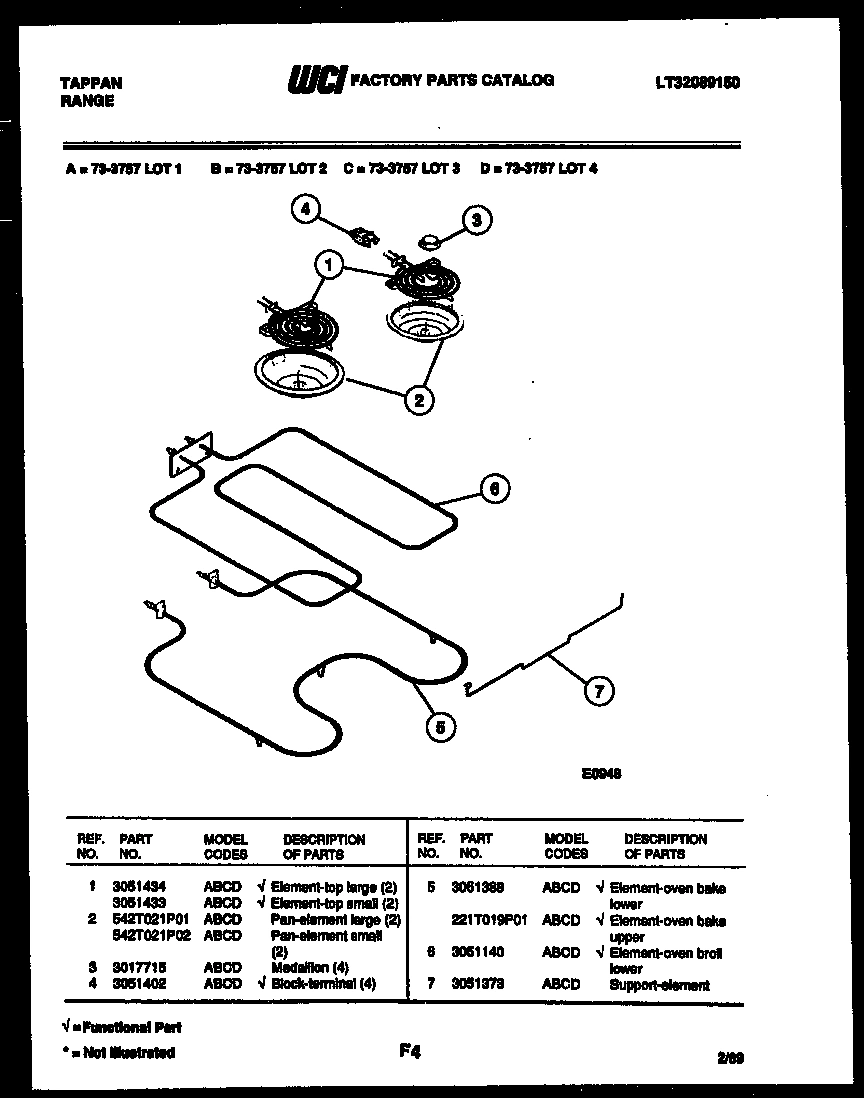

07 - BROILER PARTS

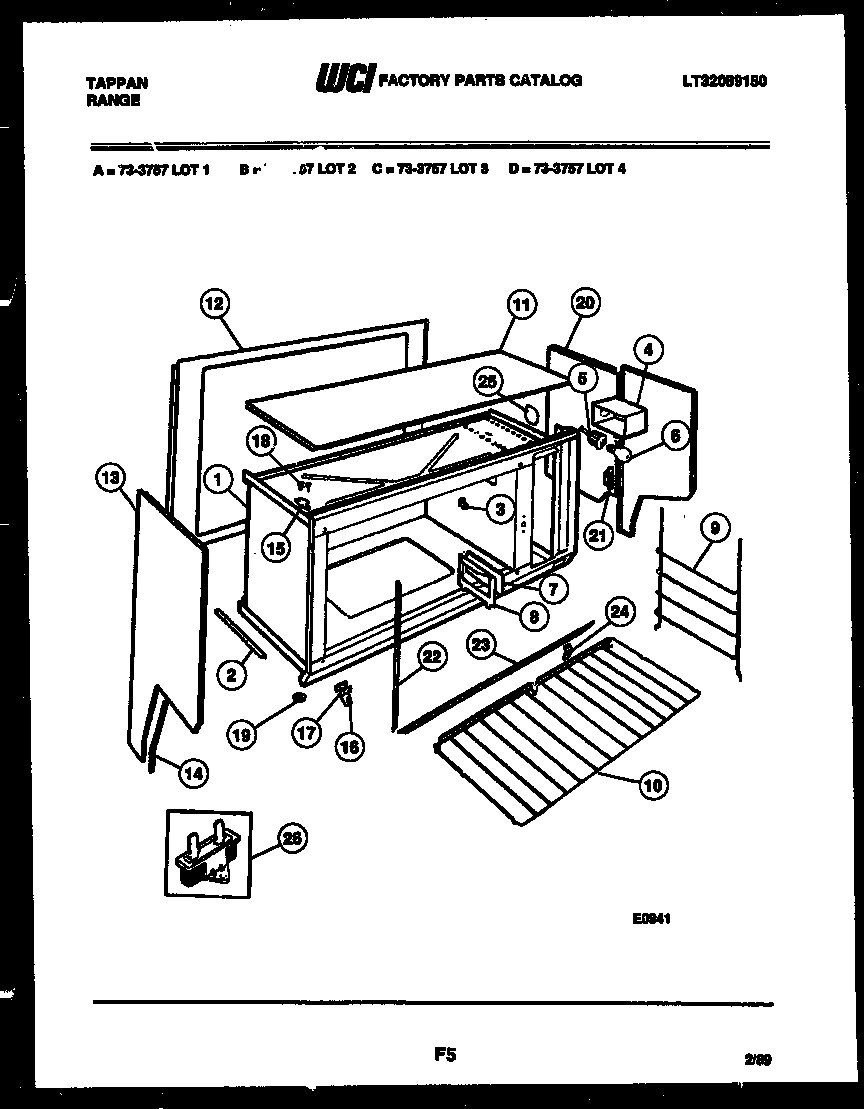

08 - UPPER BODY PARTS

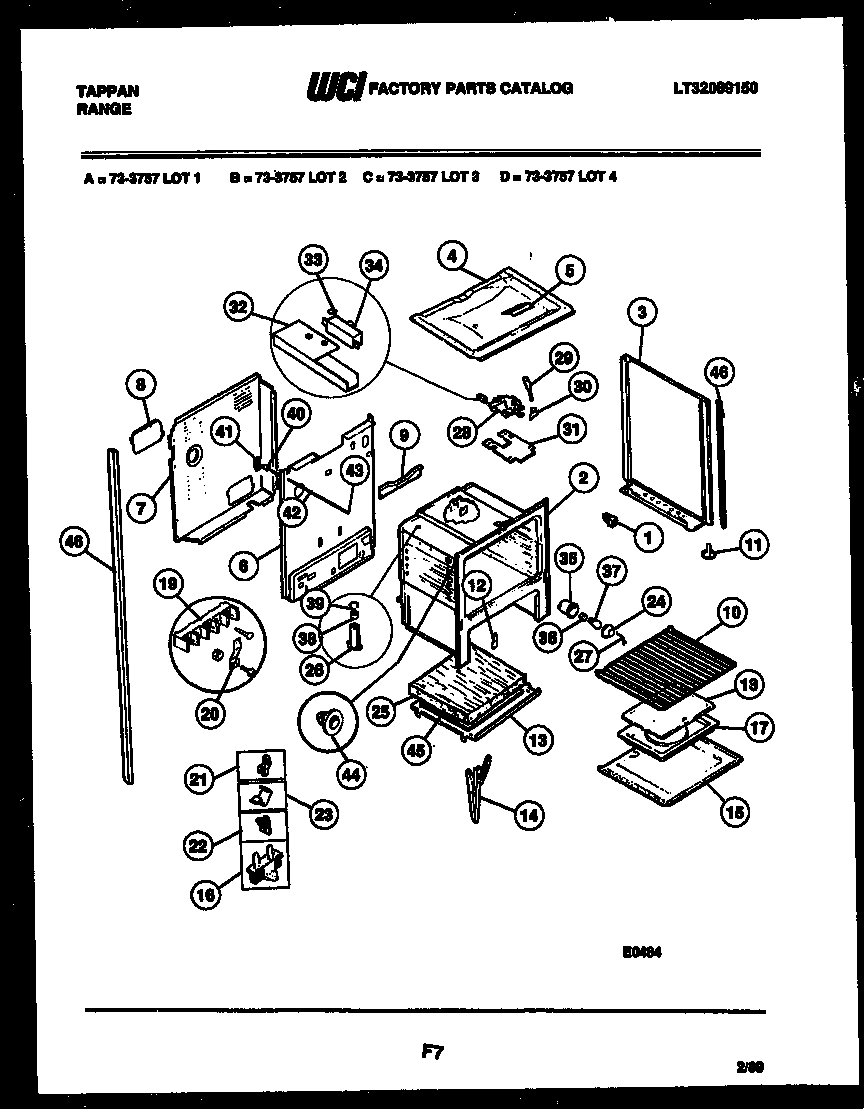

09 - LOWER BODY PARTS

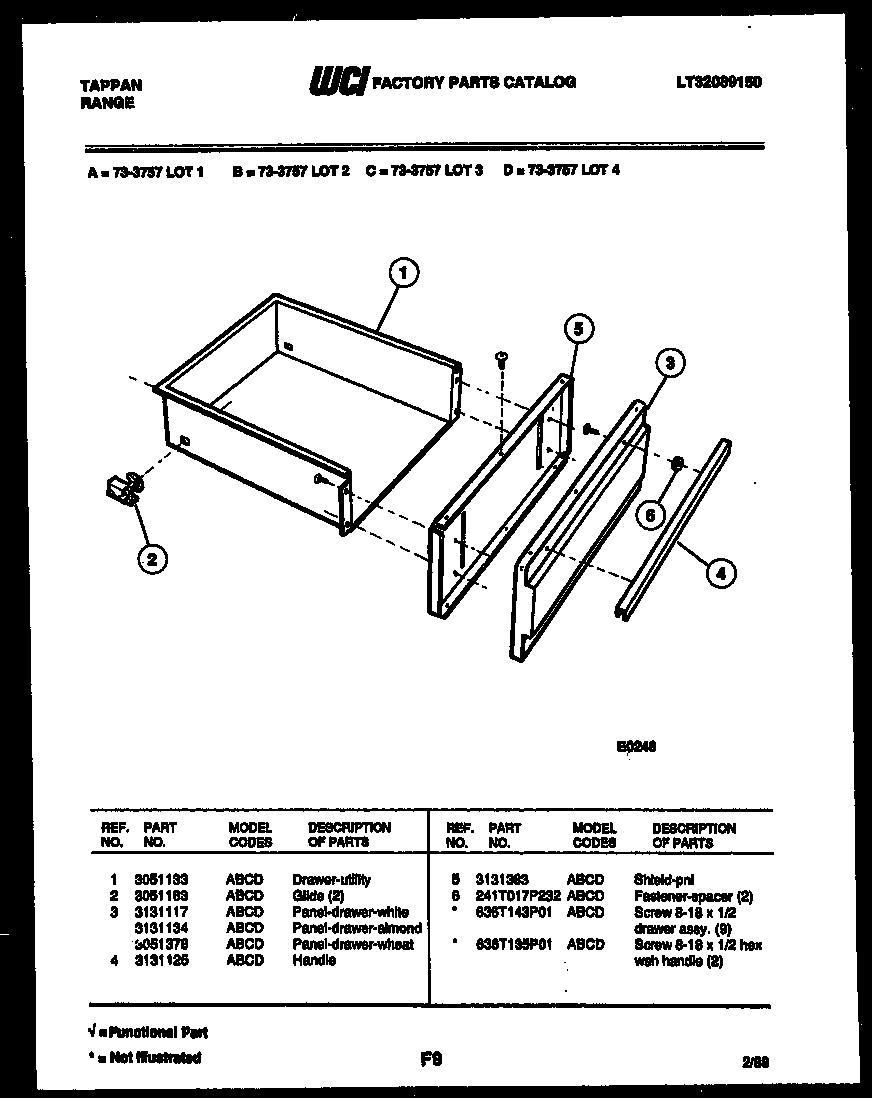

10 - DRAWER PARTS
Common parts from model Electrolux 73-3757-23-04 RANGE
*66006
WCI 557T021P29 WCI 557T021P29 Contact Us For Availability
*66045
SHIELD HEAT BODYSIDE (2) WCI 3200834 Contact Us For Availability
*66046
FASTENER-EDGE MOUNT (2) WCI 3200846 Contact Us For Availability
*66049
INSULATION, WRAP WCI 3200833 Contact Us For Availability
*66055
SCREW 8-18 X 1/2 HEX WSH HANDLE (2) WCI 636T135P01 Contact Us For Availability
1
MAIN TOP, ALMOND WCI 3051285 Contact Us For Availability
1
FRAME, CHANNEL WCI 136T187P03 Contact Us For Availability
1
WCI 3131142 WCI 3131142 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
2
REFLECTOR, WORK LAMP WCI 3131586 Contact Us For Availability
2
BRACKET, HINGE, LH WCI 3131286 Contact Us For Availability
2
BRACKET, HINGE, RH WCI 3131287 Contact Us For Availability
2
FRAME, CHANNEL, END WCI 136T188P01 Contact Us For Availability
2
GLASS FRONT, BLACK WCI 276T106P03 Contact Us For Availability
2
WCI 008T268F01 WCI 008T268F01 Contact Us For Availability
2A
SCREW 10-32 X 1/2 FRAME ASSEMBLY (12) (NON-IL WCI 636T098P18 Contact Us For Availability
2A
WCI 328T045P01 WCI 328T045P01 Contact Us For Availability
2B
WCI 328T018P33 WCI 328T018P33 Contact Us For Availability
2C
WCI 328T061P01 WCI 328T061P01 Contact Us For Availability
3
WCI 3131275 WCI 3131275 Contact Us For Availability
3
WCI 521T086F11-18 WCI 521T086F11-18 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 618T038P05 Contact Us For Availability
3
GUSSET, CORNER (2) WCI 289T060P01 Contact Us For Availability
3
HANDLE OVEN DOOR WCI 3051165 Contact Us For Availability
3
PNL-BODYSIDE LH-ALMOND WCI 3200793 Contact Us For Availability
3
PANEL, DRAWER, WHEAT WCI 3051378 Contact Us For Availability
3
WCI 3131117 WCI 3131117 Contact Us For Availability
3A
PNL-BODYSIDE RH-ALMOND WCI 3200790 Contact Us For Availability
4
SWITCH, TOP ELEMENT (4) WCI 699T015P02 Contact Us For Availability
4
INSULATOR FLUORESCENT LIGHT RECEPT (2) WCI 331T052P02 Contact Us For Availability
4
WCI 3051870 WCI 3051870 Contact Us For Availability
4
SPACER, GLASS (2) WCI 665T108P02 Contact Us For Availability
4
WCI 3201692 WCI 3201692 Contact Us For Availability
4
WCI 069T046P01 WCI 069T046P01 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
5
SWITCH-SELECTOR 6 POS. WCI 3051315 Contact Us For Availability
5
RECEPTACLE-FLUOR LIGHT (2) WCI 597T047S01 Contact Us For Availability
5
GLASS, OUTER WCI 3051722 Contact Us For Availability
5
ELEMENT, OVEN BAKE, LOWER WCI 3051388 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
SHIELD-PNL WCI 3131383 Contact Us For Availability
6
THERMOSTAT-OVEN UPPER WCI 722T038P12 Contact Us For Availability
6
WCI 3051465 WCI 3051465 Contact Us For Availability
6
GLASS, INNER WCI 276T091P01 Contact Us For Availability
6
WCI 3201693 WCI 3201693 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6
FASTENER, SPACER (2) WCI 241T017P232 Contact Us For Availability
6A
WCI 3051320 WCI 3051320 Contact Us For Availability
7
CLOCK WCI 3051507 Contact Us For Availability
7
GUSSET SUPPORT LH WCI 694T090F01 Contact Us For Availability
7
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
7
LENS, OVEN LIGHT WCI 277T162P01 Contact Us For Availability
7
WCI 3051400 WCI 3051400 Contact Us For Availability
7A
GUSSET SUPPORT RH WCI 694T090F02 Contact Us For Availability
8
KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability
8
GLASS, SPLASHER UPPER WCI 277T164P25 Contact Us For Availability
8
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
8
WCI 174112F01 WCI 174112F01 Contact Us For Availability
8
COVER, LOWER ACCESS WCI 3051501 Contact Us For Availability
9
IND LIGHT-125V (3) WCI 318T023P11 Contact Us For Availability
9
WCI 513T073F20 WCI 513T073F20 Contact Us For Availability
9
HANDLE WCI 296T058P01 Contact Us For Availability
9
WCI 3131362 WCI 3131362 Contact Us For Availability
9
GLIDE, OVEN RACK (2) WCI 280T021P05 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9A
IND LIGHT-250V (2) WCI 318T023P12 Contact Us For Availability
10
BUSH-CONTROL PANEL GLASS WCI 102T019P01 Contact Us For Availability
10
WCI 3051115 WCI 3051115 Contact Us For Availability
10
WCI 636T096P30 WCI 636T096P30 Contact Us For Availability
10
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
10
RACK, OVEN WCI 591T042P01 Contact Us For Availability
10A
CLIP, CONTROL PANEL FRAME MOUNTING (4) (NON-I WCI 241T017P124 Contact Us For Availability
11
WCI 3091393 WCI 3091393 Contact Us For Availability
11
FASTENER, CABLE CLAMP WCI 241T003P01 Contact Us For Availability
11
WCI 3051302 WCI 3051302 Contact Us For Availability
11
FASTENER-NYLON (6) WCI 3051374 Contact Us For Availability
11
PANEL-TOP WCI 3131625 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
11A
WCI 3091392 WCI 3091392 Contact Us For Availability
11B
WCI 3051442 WCI 3051442 Contact Us For Availability
11C
WCI 358T200P51 WCI 358T200P51 Contact Us For Availability
12
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
12
BACK-OVEN WALL UPPER WCI 3051236 Contact Us For Availability
12
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
12
SCREW, HANDLE (2) WCI 3131102 Contact Us For Availability
13
HARNESS-O/U LIGHT SW. WCI 3131588 Contact Us For Availability
13
FASTENER, NYLON SPACER (3) WCI 241T017P185 Contact Us For Availability
13
PANEL, BODYSIDE, LH (ALMOND) WCI 3051261 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
13A
SCREW 8 X 18 X 1/2 (3) (NON-ILLUSTRATED) WCI 636T139P02 Contact Us For Availability
13A
PANEL-BODYSIDE RH-ALMOND WCI 3051264 Contact Us For Availability
14
TRIM, LH WCI 740T309F01 Contact Us For Availability
14
INSULATION, OVEN DOOR WCI 3131384 Contact Us For Availability
14
CHANNEL, DOOR HINGE (2) WCI 3131569 Contact Us For Availability
14A
TRIM, RH WCI 740T309F02 Contact Us For Availability
15
TRIM-O/U SPLASHER GL FILLER WCI 3051340 Contact Us For Availability
15
HINGE-TOP WCI 3131613 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
16
WASHER, SPRING (2) WCI 789T053P44 Contact Us For Availability
16
HINGE, BOTTOM WCI 3051166 Contact Us For Availability
16
FUSE-THERMO CUTOUT WCI 3051147 Contact Us For Availability
17
THERMOSTAT-S/C WCI 3051324 Contact Us For Availability
17
WCI 554T176P01 WCI 554T176P01 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
18
ANGLE-SUPPORT S/C THERMOSTAT WCI 3131467 Contact Us For Availability
18
SCREW, 10-32 (2) WCI 636T087P01 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
19
WCI 789T052P01 WCI 789T052P01 Contact Us For Availability
20
SHIELD-WOOL (SIDE) WCI 3131679 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
21
WCI 131T009P03 WCI 131T009P03 Contact Us For Availability
21
CLIP-THERMO BULB (2) WCI 3131295 Contact Us For Availability
22
RETAINER, DOOR SEAL, SIDES (2) WCI 647T081P06 Contact Us For Availability
23
RETAINER, DOOR SEAL, BOTTOM WCI 647T081P05 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
STRIKE, DOOR WCI 691T007P01 Contact Us For Availability
24
GLASS-OVEN LIGHT LENS WCI 3131298 Contact Us For Availability
25
WCI 3131610 WCI 3131610 Contact Us For Availability
26
FUSE, THERMO CUTOUT WCI 3051385 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
WCI 3131104 WCI 3131104 Contact Us For Availability
27B
INSULATION, BACK (NON-ILLUSTRATED) WCI 3131303 Contact Us For Availability
27D
SCREW-HINGE MTG (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27E
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
28
WCI 3051258 WCI 3051258 Contact Us For Availability
29
WCI 3131357 WCI 3131357 Contact Us For Availability
30
WCI 358T158S02 WCI 358T158S02 Contact Us For Availability
30A
SCREW-SET (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD-BI MTL LATCH WCI 3131593 Contact Us For Availability
33
FASTENER, PUSH ON (3) WCI 241T001P01 Contact Us For Availability
34
WCI 695T226P01 WCI 695T226P01 Contact Us For Availability
35
WCI 3131363 WCI 3131363 Contact Us For Availability
38
WCI 244T041P01 WCI 244T041P01 Contact Us For Availability
39
RETAINER, CATALYST WCI 612T079P01 Contact Us For Availability
40
WCI 695T128P03 WCI 695T128P03 Contact Us For Availability
41
BRACKET, LIGHT SWITCH WCI 3131289 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
43
WCI 174T329P01 WCI 174T329P01 Contact Us For Availability
45
SHIELD, HEAT LOWER WCI 3051430 Contact Us For Availability
45
WCI 3200848 WCI 3200848 Contact Us For Availability
45A
WCI 3131305 WCI 3131305 Contact Us For Availability
46
WCI 3051723 WCI 3051723 Contact Us For Availability
46A
WCI 3051724 WCI 3051724 Contact Us For Availability
× ![]()
