Model Whirlpool 6ET19DKXDW02 REFRIGERATOR – Common Parts & Diagrams

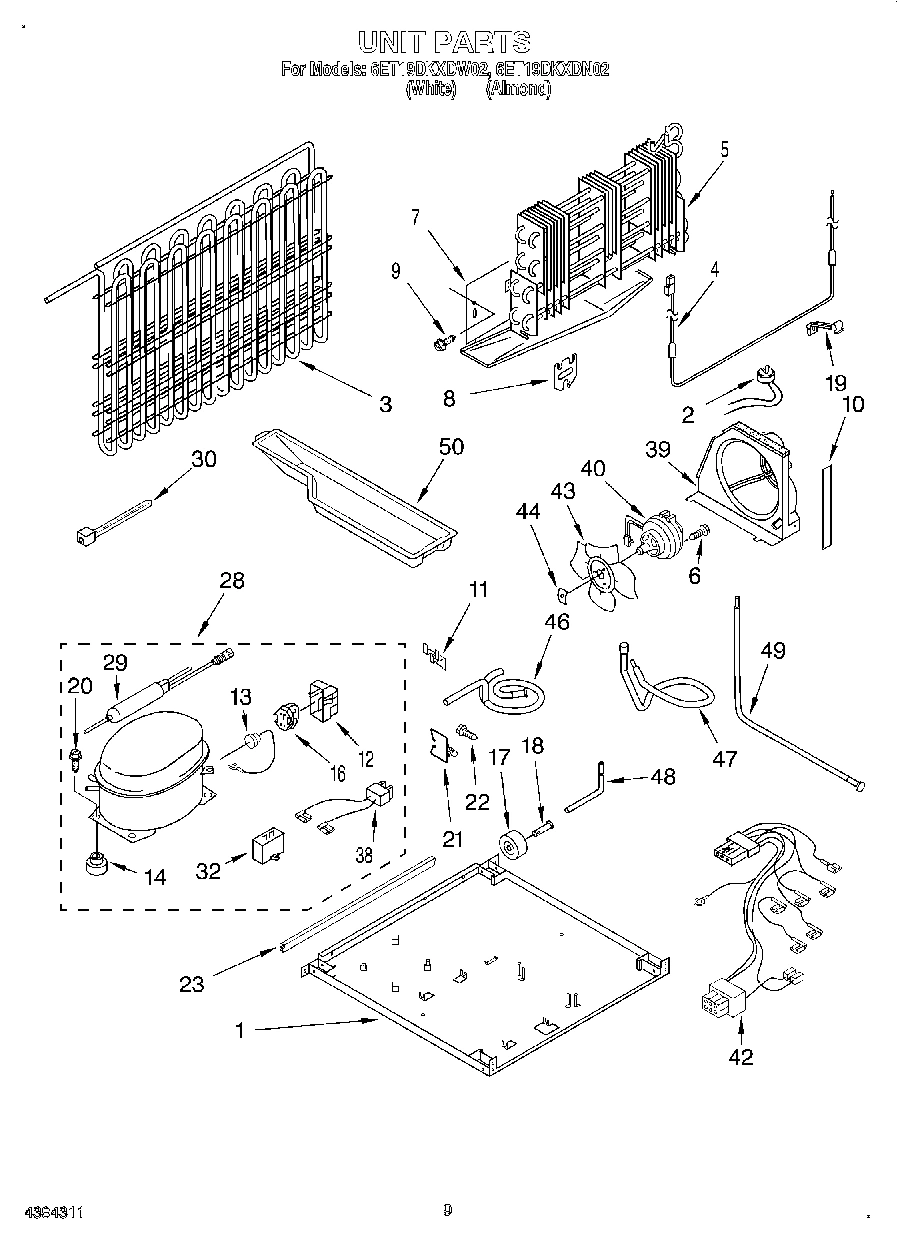

05 - UNIT

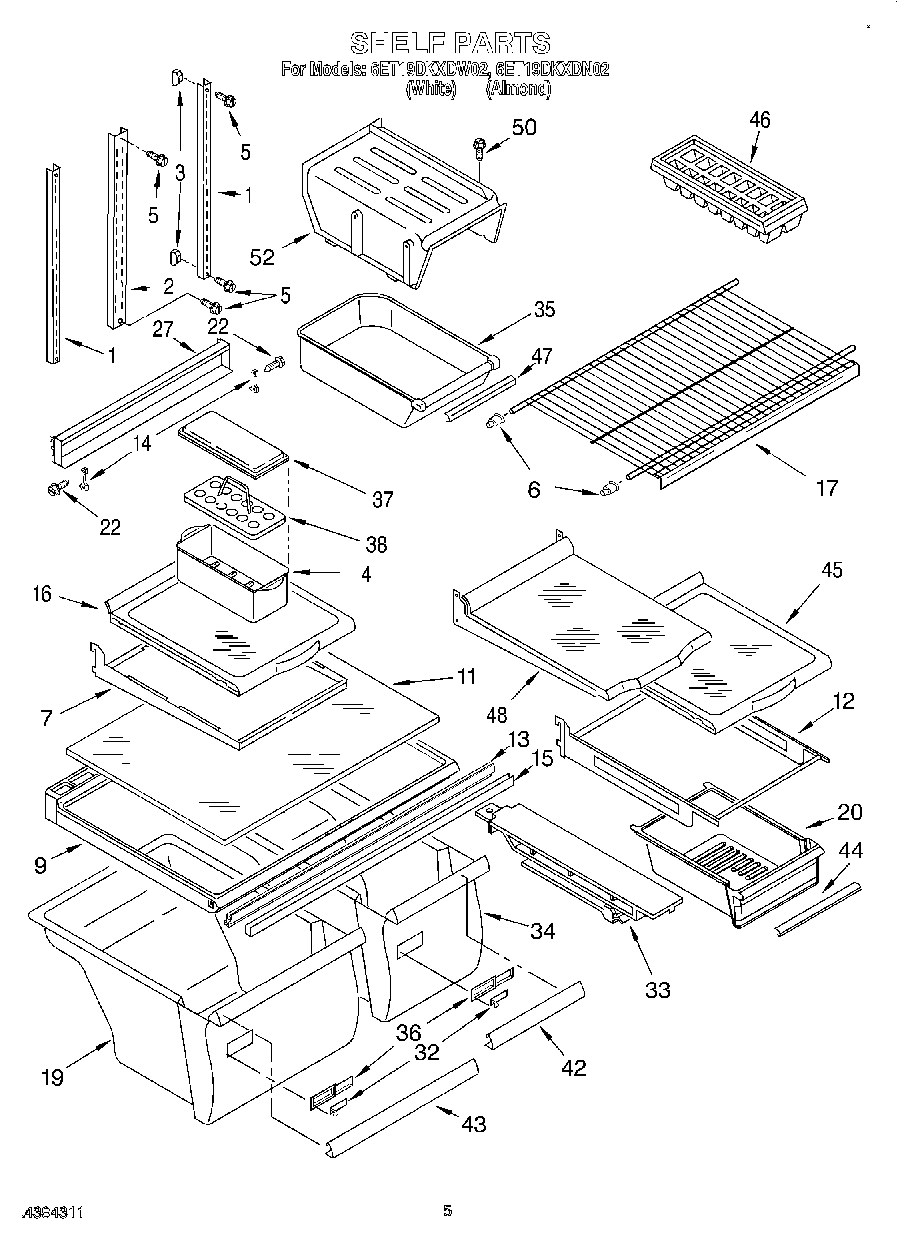

03 - SHELF
02 - LINER
04 - REFRIGERATOR DOOR
06 - FREEZER DOOR, LIT/OPTIONAL
01 - CABINET
Common parts from model Whirlpool 6ET19DKXDW02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2170417 WPL LIT2170417 Contact Us For Availability
WPL LIT2193089 WPL LIT2193089 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI16030A7 Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (White) WPL 2171245 Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (Almond) WPL 2171246 Contact Us For Availability
1
Freezer Door (Includes Item 8) (White) WPL 2182488 Contact Us For Availability
1
Freezer Door (Includes Item 8) (Almond) WPL 2182495 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI16027A2 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Divider, Door Bin WPL 2171284 Contact Us For Availability
2
Hinge (Top) WPL 2174690 Contact Us For Availability
3
Shim, Handle WPL 2183124 Contact Us For Availability
4
Timer, Defrost WPL 2193095 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193074 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Screw WPL 2174650 Contact Us For Availability
8
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
9
Damper, Air WPL 2179853 Contact Us For Availability
9
Terminal Block WPL 1129346 Contact Us For Availability
10
Fan Motor WPL 2166609 Contact Us For Availability
10
Tall Bottle Retainer WPL 2173643 Contact Us For Availability
10
Bushing WPL 1129449 Contact Us For Availability
11
Housing Compartment WPL 2156062 Contact Us For Availability
12
Control Box WPL 2179869 Contact Us For Availability
13
Tray, Door WPL 2159302 Contact Us For Availability
13
Service Cord WPL 1129331 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
14
Screw WPL 489346 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Divider, Door Shelf WPL 1123293 Contact Us For Availability
16
Cover, Evaporator WPL 2183152 Contact Us For Availability
16
Hinge, Center WPL 2183066 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171282 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Shim, Handle WPL 2179398 Contact Us For Availability
18
Nameplate (White) WPL 2180544 Contact Us For Availability
18
Nameplate (Almond) WPL 2180546 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle (White) WPL 2174003 Contact Us For Availability
19
Handle (Almond) WPL 2174004 Contact Us For Availability
19
Handle (White) WPL 2174000 Contact Us For Availability
19
Handle (Almond) WPL 2174001 Contact Us For Availability
19
Wire Assembly, Terminal Box WPL 2166651 Contact Us For Availability
20
Bin, Door Shelf (4) WPL 2179605 Contact Us For Availability
20
Hole Plug (White) WPL 2174433 Contact Us For Availability
20
Hole Plug (Almond) WPL 2174434 Contact Us For Availability
20
Hinge Butt WPL 2179810 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Gasket WPL 2167227 Contact Us For Availability
22
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
22
Knob, Thermostat WPL 2184573 Contact Us For Availability
22
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
22
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
22
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
TRIM, DOOR SHELF WPL 2159312 Contact Us For Availability
23
Spacer, Hinge WPL 2172745 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI16028A7 Contact Us For Availability
25
Freezer Floor WPL 2190590 Contact Us For Availability
26
Air Diffuser, Top (Includes Item 37) WPL 2179877 Contact Us For Availability
27
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
27
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Wire Assembly, Freezer Comp. WPL 2190603 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Slide, Crisper WPL 2176222 Contact Us For Availability
34
Knob, Damper WPL 2182479 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille (White) WPL 2182429 Contact Us For Availability
36
Grille (Almond) WPL 2182430 Contact Us For Availability
38
Endcap, Door Trim WPL 2177340 Contact Us For Availability
39
Plug-Trim WPL 2159300 Contact Us For Availability
39
Shim WPL 2176201 Contact Us For Availability
40
Housing Base WPL 2182382 Contact Us For Availability
40
Cover-Hinge (White) WPL 2172613 Contact Us For Availability
40
Cover-Hinge (Almond) WPL 2176204 Contact Us For Availability
41
Electric Shield, Freezer Light WPL 2182384 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI16029A7 Contact Us For Availability
42
Trim, Crisper Pan WPL 2190551 Contact Us For Availability
42
Wiring Harness, Freezer Light WPL 2193096 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
43
Trim, Crisper Pan WPL 2190552 Contact Us For Availability
43
Gasket, Rear WPL 2166284 Contact Us For Availability
44
Trim, Meat Pan WPL 2190555 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2184419 Contact Us For Availability
47
Trim, Ice Bucket WPL 2176360 Contact Us For Availability
48
Shelf Assembly, Spillguard WPL 2174469 Contact Us For Availability
49
Pullout, Freezer Floor (Includes Item 56) WPL 2179774 Contact Us For Availability
50
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
50
Rear Fence, Pull- Out Freezer Floor WPL 2176242 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Shelf, Ice Tray WPL 2172569 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2179720 Contact Us For Availability
56
Insulation, Freezer Floor WPL 2179772 Contact Us For Availability
58
Sleeve, Air Tower WPL 2179712 Contact Us For Availability
× ![]()
