Model Whirlpool 6ER9GTKXKS00 REFRIGERATOR – Common Parts & Diagrams

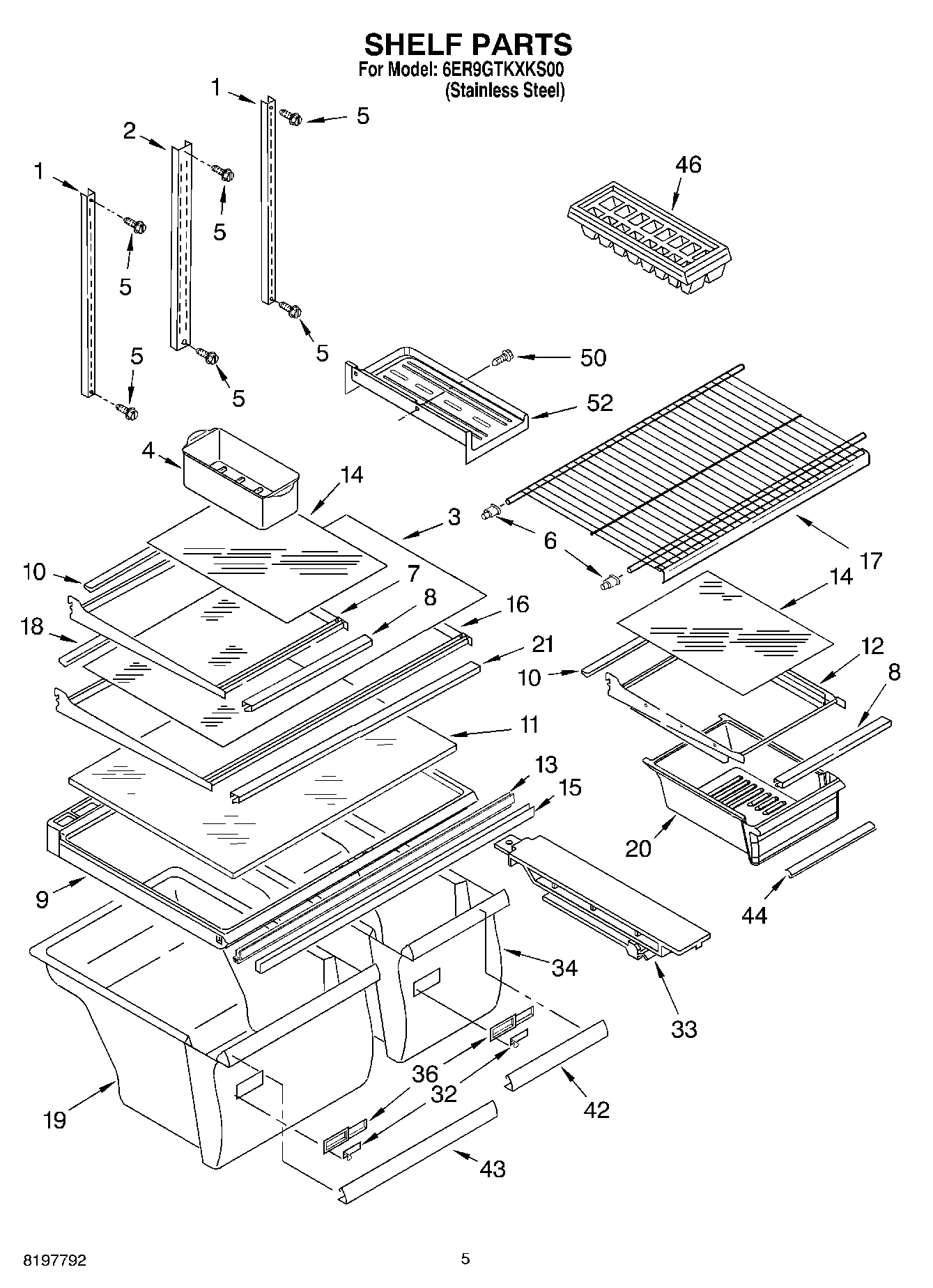

03 - SHELF

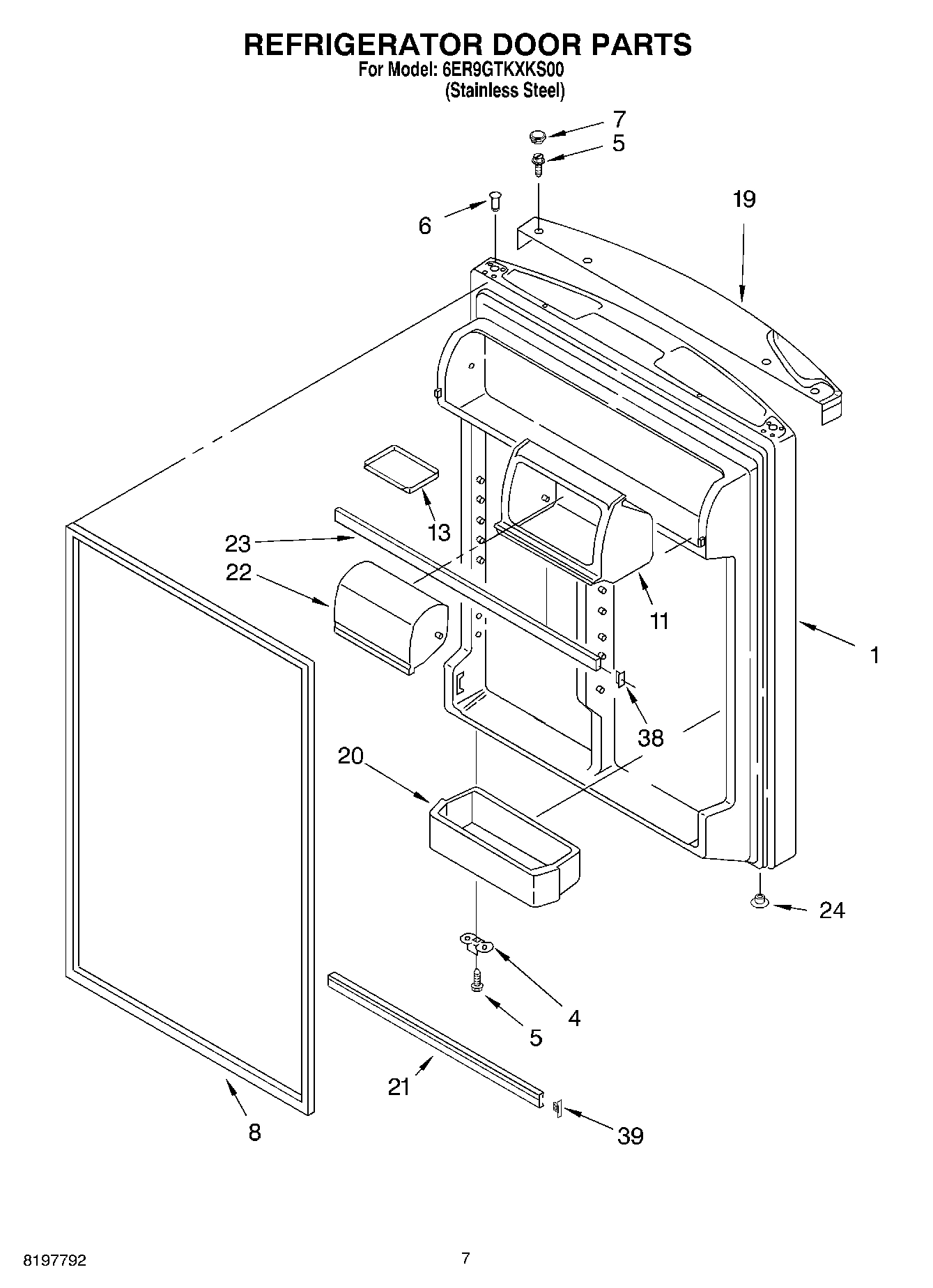

04 - REFRIGERATOR DOOR

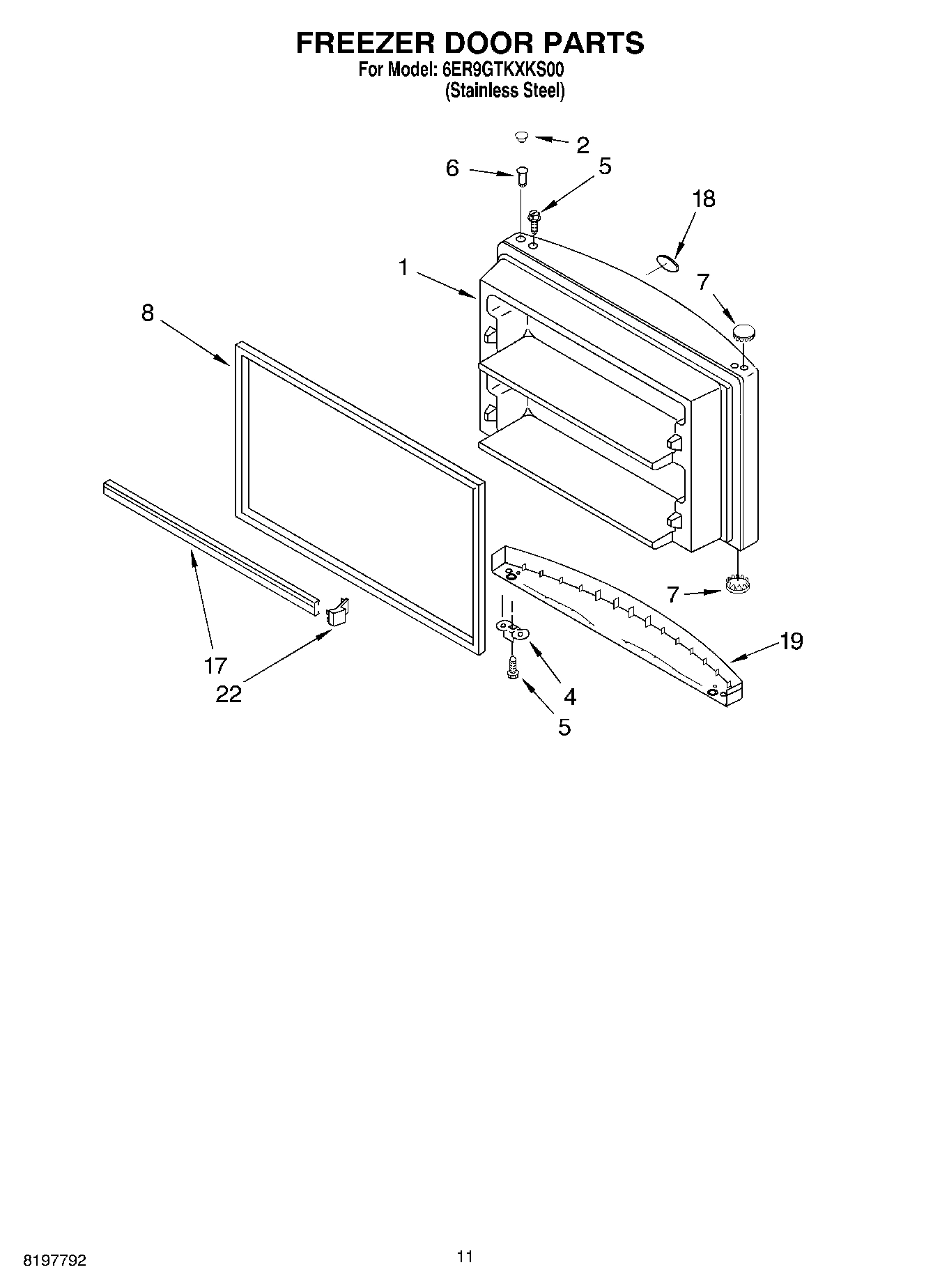

06 - FREEZER DOOR

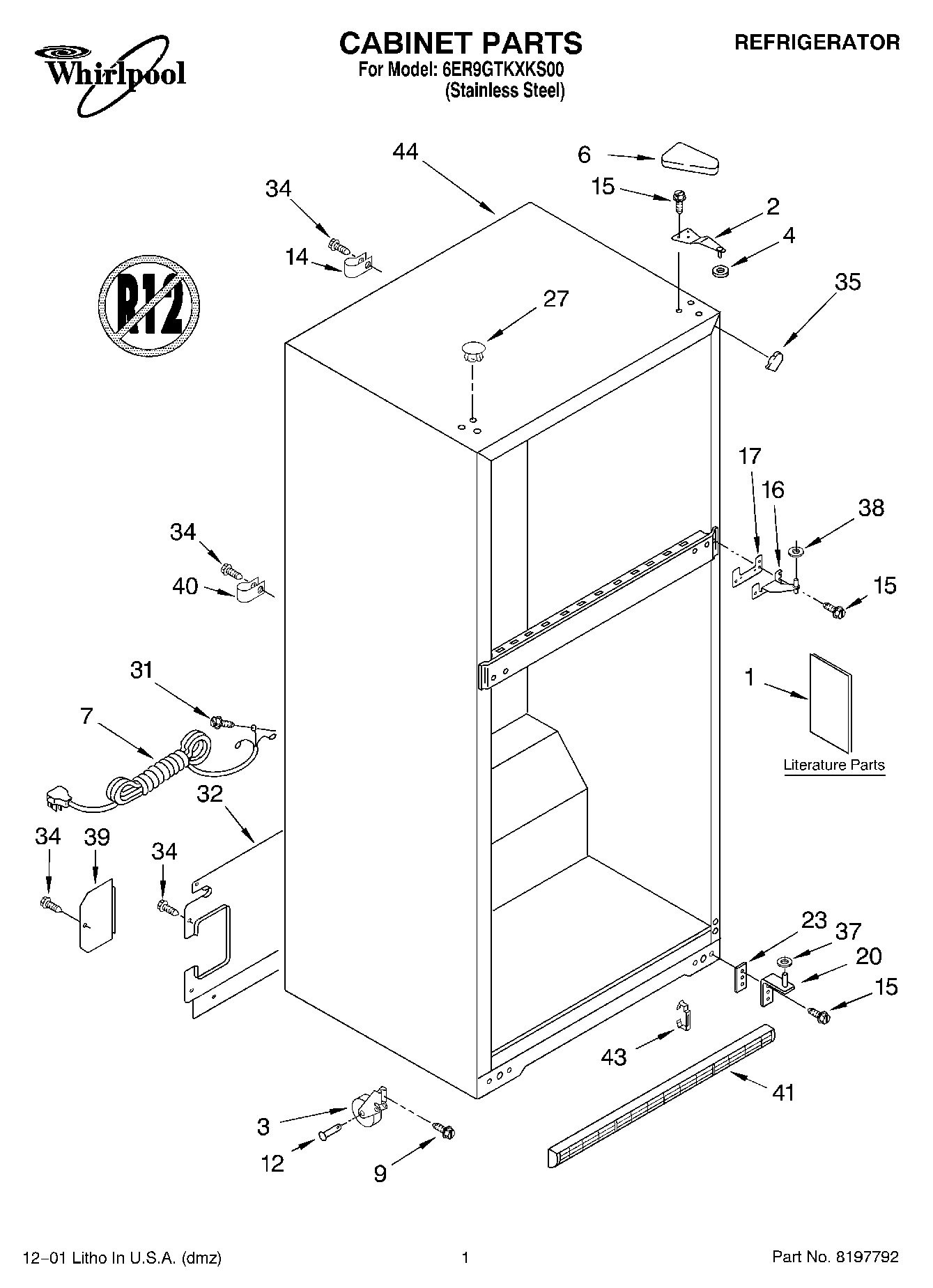

01 - CABINET, LITERATURE

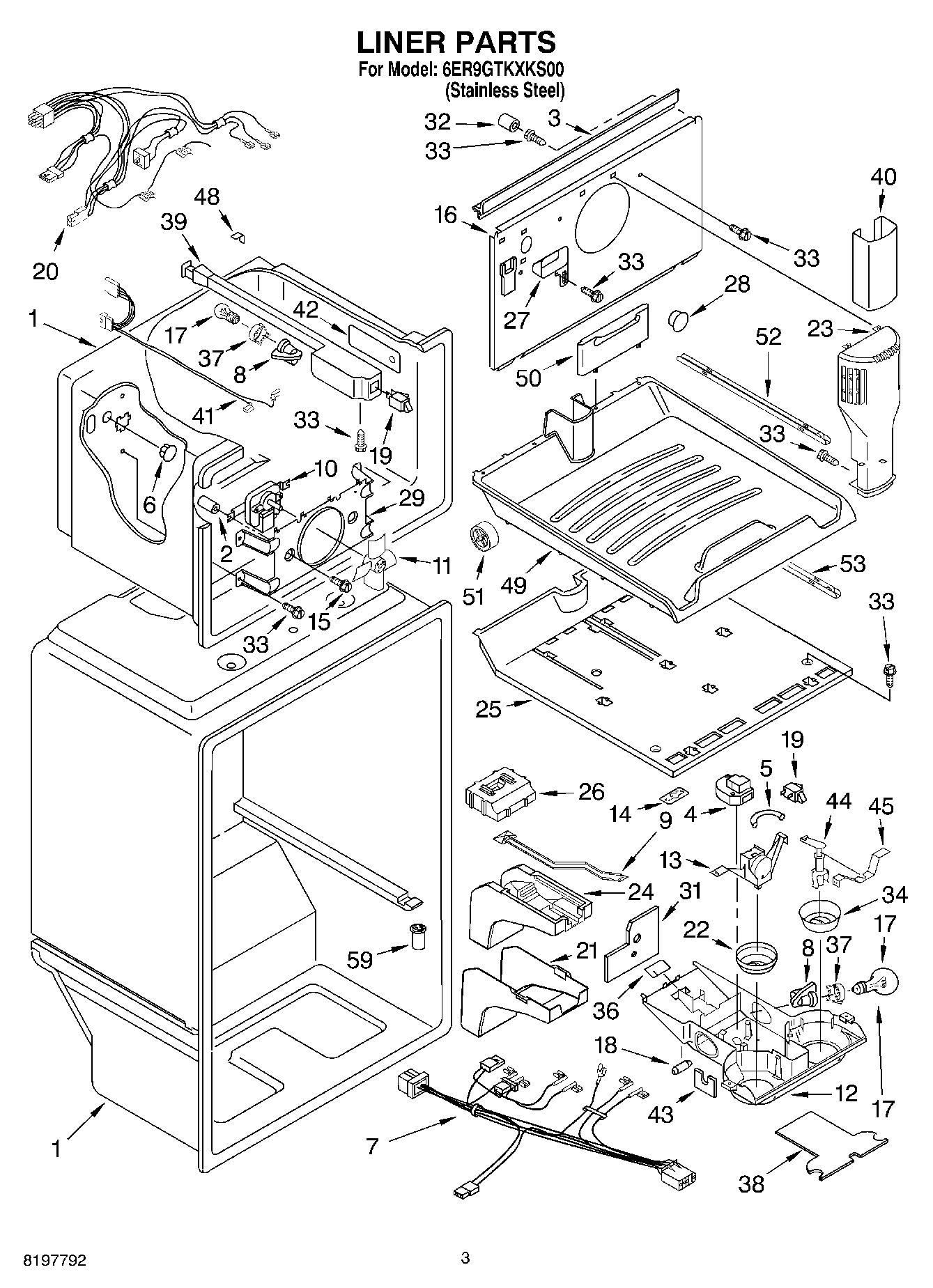

02 - LINER

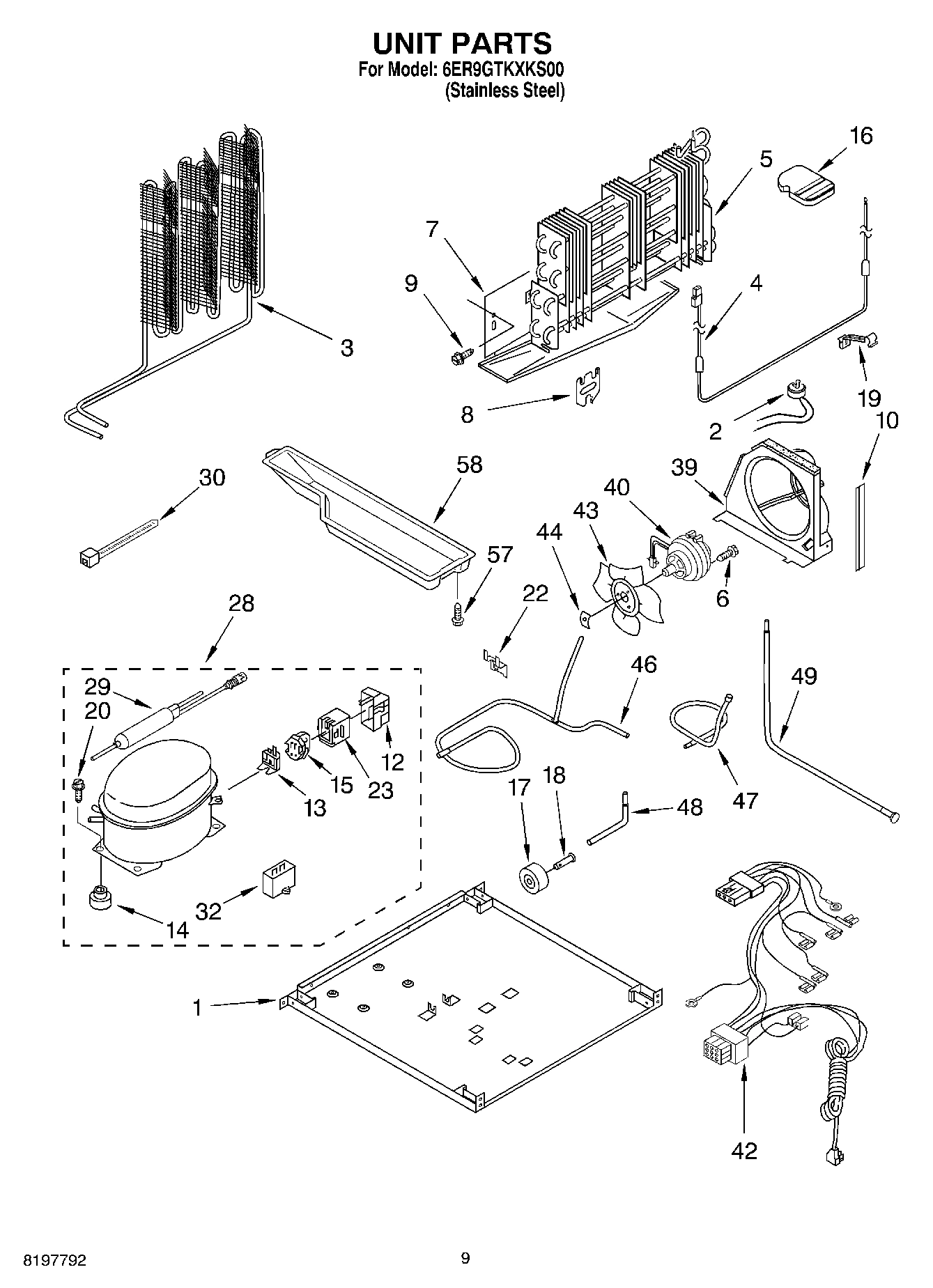

05 - UNIT
Common parts from model Whirlpool 6ER9GTKXKS00 REFRIGERATOR
1
Plate, Unit Mounting WPL 2205341 Contact Us For Availability
3
Glass, Full Shelf WPL 2177824 Contact Us For Availability
4
Heater, Defrost WPL 2166657 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
12
Control Box WPL 2200820 Contact Us For Availability
13
Tray, Door WPL 2159302 Contact Us For Availability
13
Thermostat WPL 2210376 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Support Block WPL 2201184 Contact Us For Availability
16
Cover-Evaporator WPL 2201173 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2204811 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2187303 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
Torx Key WPL 1117510 Contact Us For Availability
22
Clip WPL 2166683 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Start-Device Combination (Start Relay and Ove WPL 2204308 Contact Us For Availability
25
Freezer Floor WPL 2204746 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Cover, Hole WPL 2205003 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 29 WPL 2187203 Contact Us For Availability
29
Bracket, Fan Motor WPL 2200511 Contact Us For Availability
31
Shield, heat WPL 2204639 Contact Us For Availability
32
Capacitor (Production) WPL 2210329 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
38
Shield WPL 2201082 Contact Us For Availability
39
Housing Base WPL 2182382 Contact Us For Availability
39
Air Baffle WPL 2188262 Contact Us For Availability
40
Sleeve, Air Tower WPL 2179712 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2187281 Contact Us For Availability
42
Trim, Crisper Pan WPL 2195340 Contact Us For Availability
42
Insulation, Freezer Light WPL 2193491 Contact Us For Availability
42
Wire Assy. Unit WPL 2187410 Contact Us For Availability
43
Fan, Blade WPL 2190685 Contact Us For Availability
43
CLIP, GRILLE WPL 2189356 Contact Us For Availability
43
Foil, Control Box WPL 2179838 Contact Us For Availability
44
Post, Damper WPL 2179859 Contact Us For Availability
45
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor (Includes Item 56) WPL 2189429 Contact Us For Availability
49
Tube, Transition WPL 2212603 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
58
Evap. Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
