Model Whirlpool 6ED20TKXDW00 REFRIGERATOR – Common Parts & Diagrams

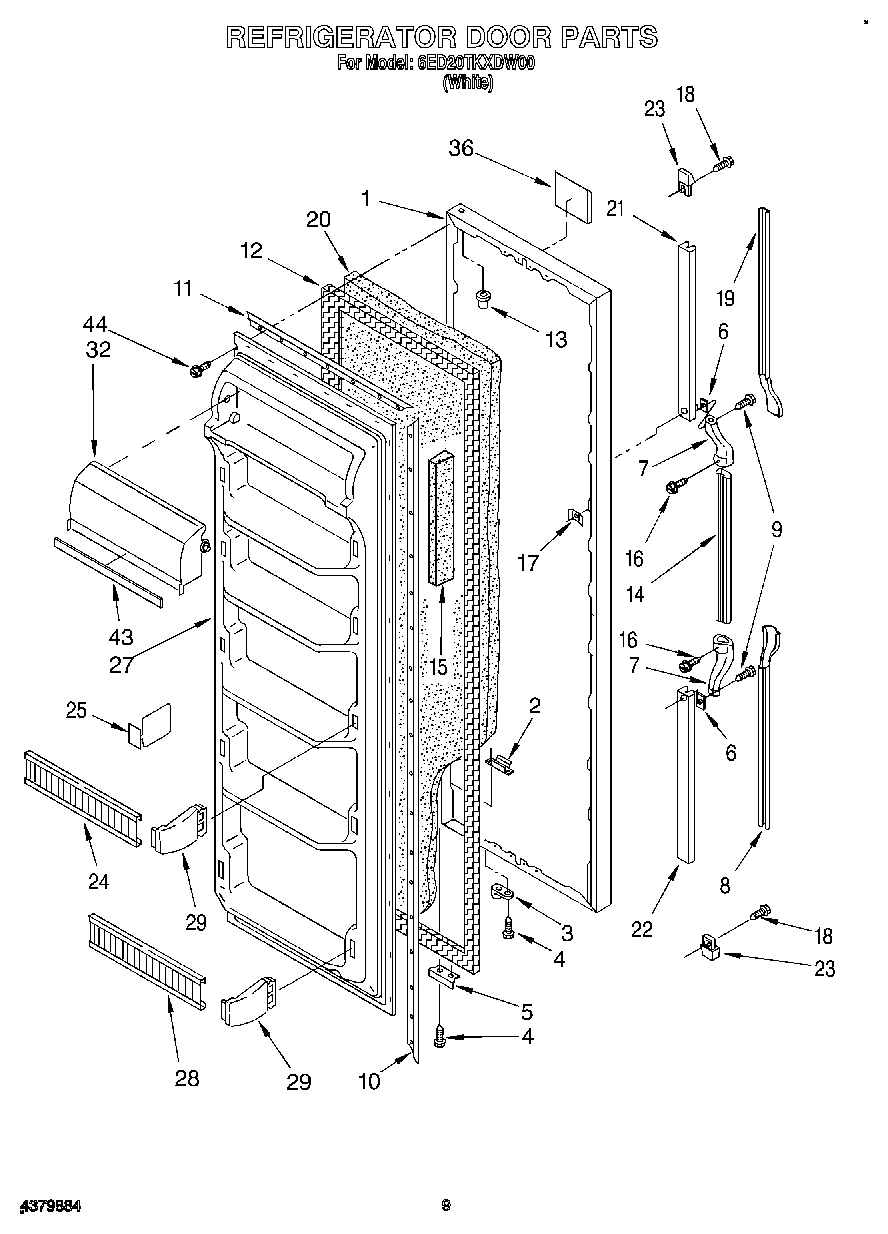

06 - REFRIGERATOR DOOR

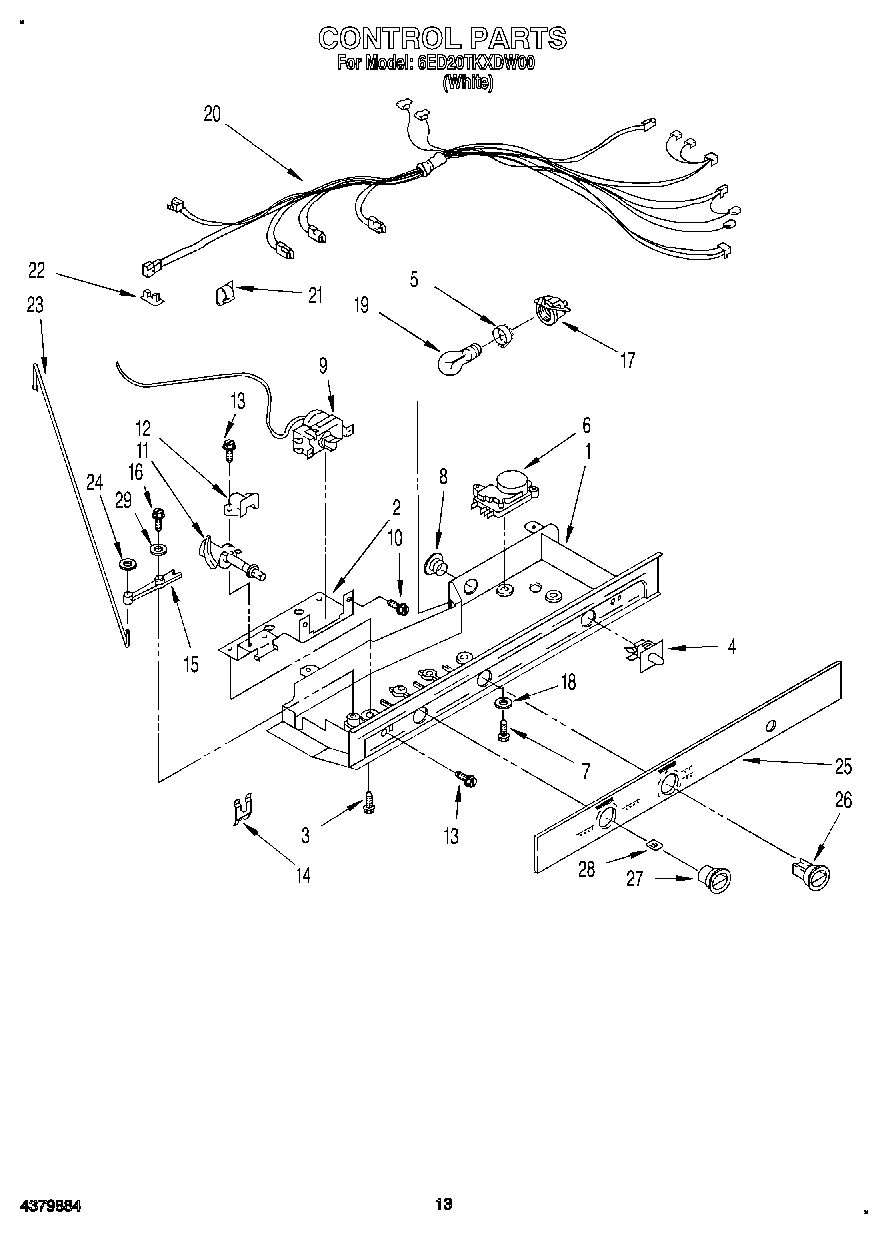

08 - CONTROL, LIT/OPTIONAL

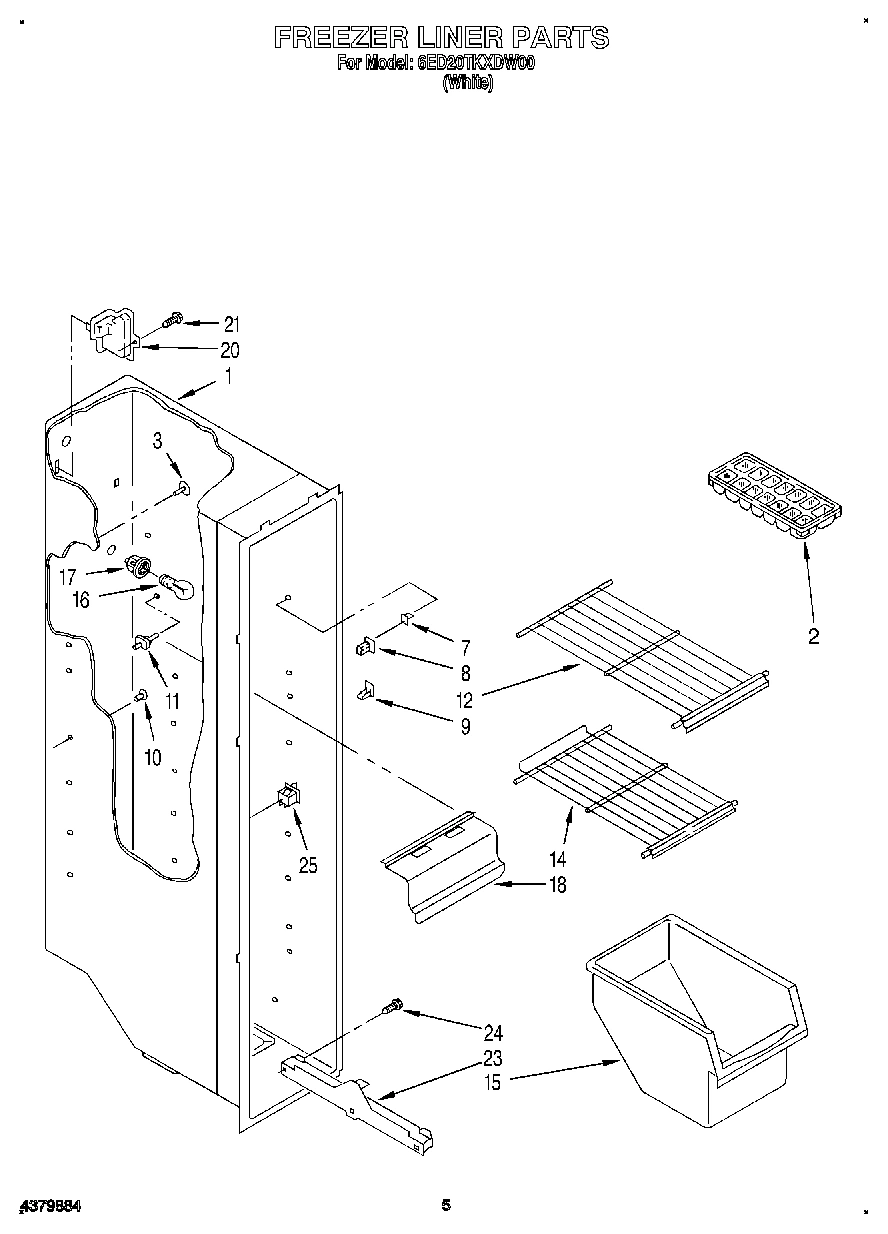

03 - FREEZER LINER

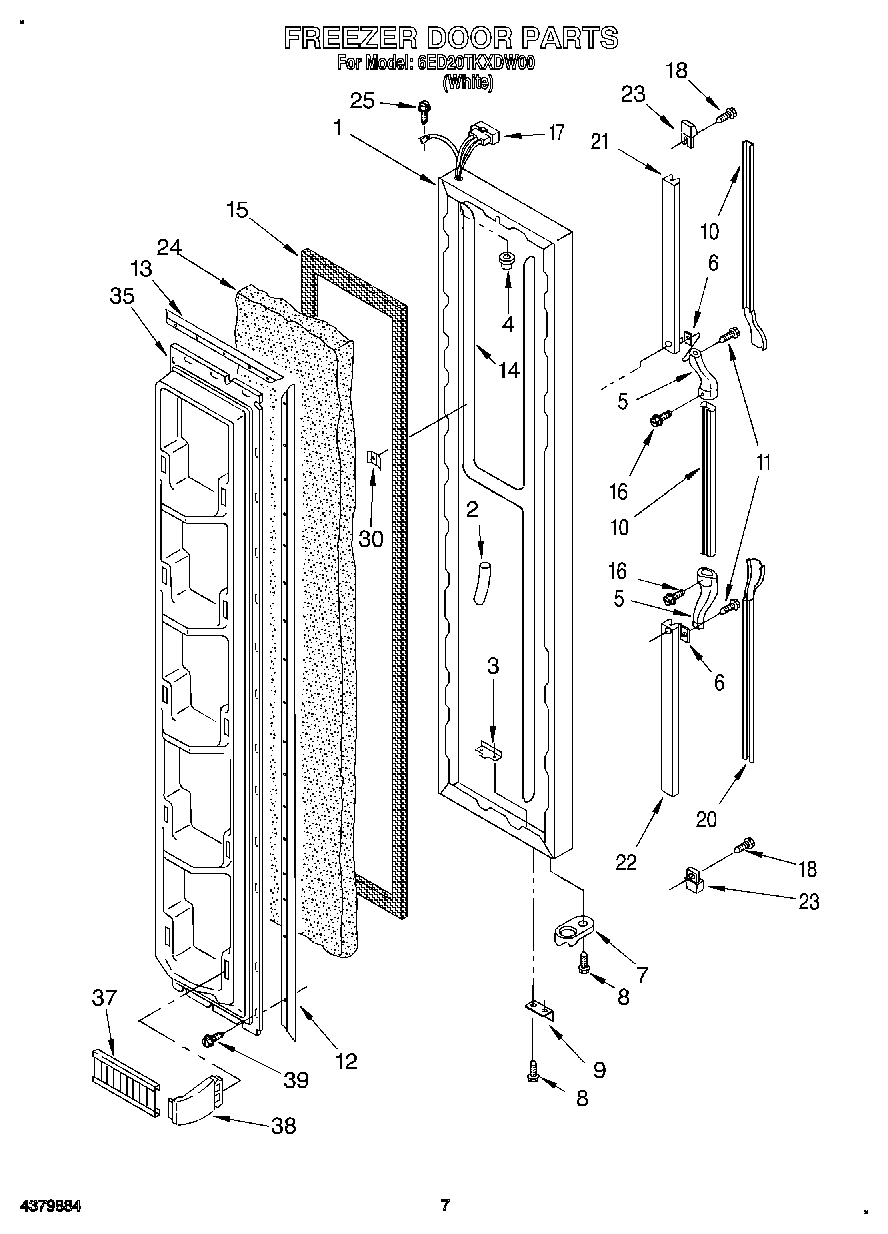

05 - FREEZER DOOR

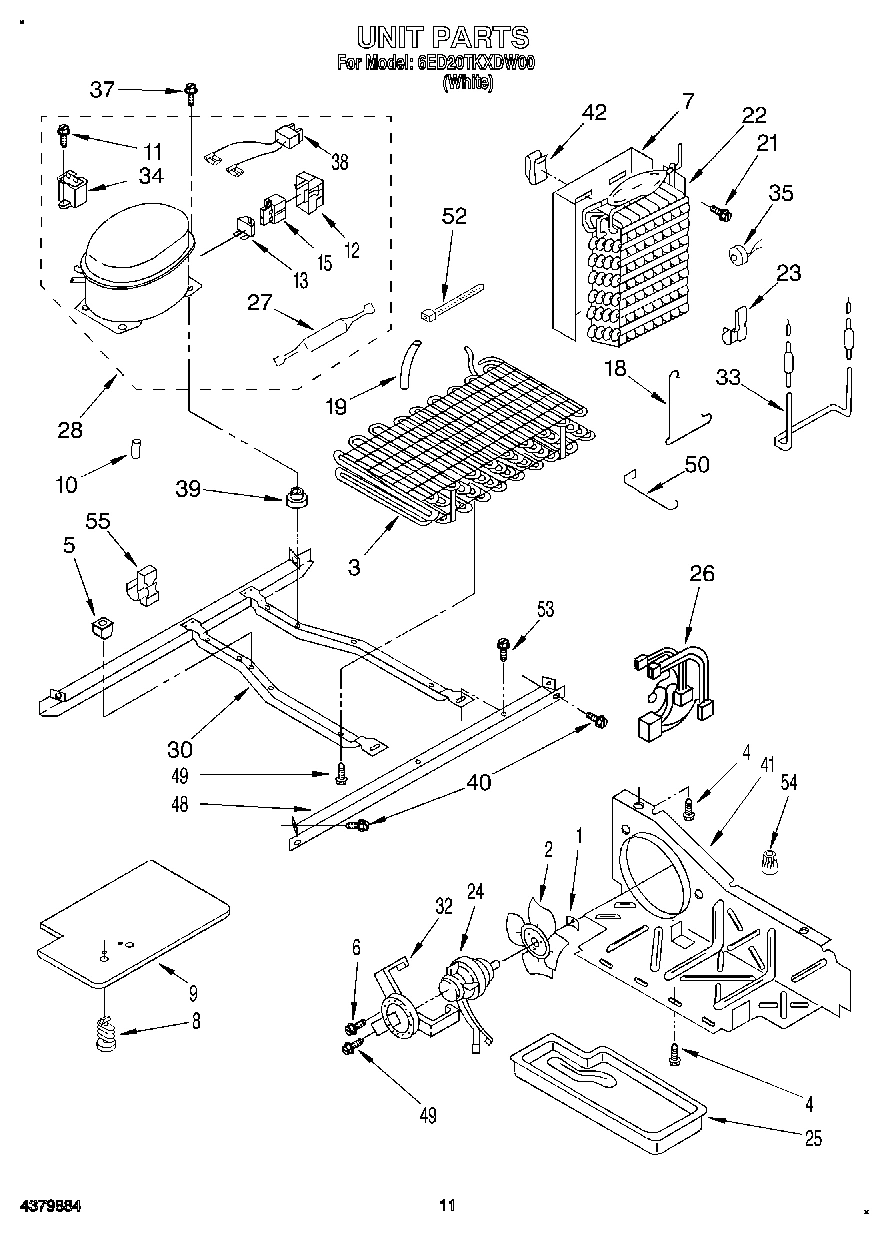

07 - UNIT

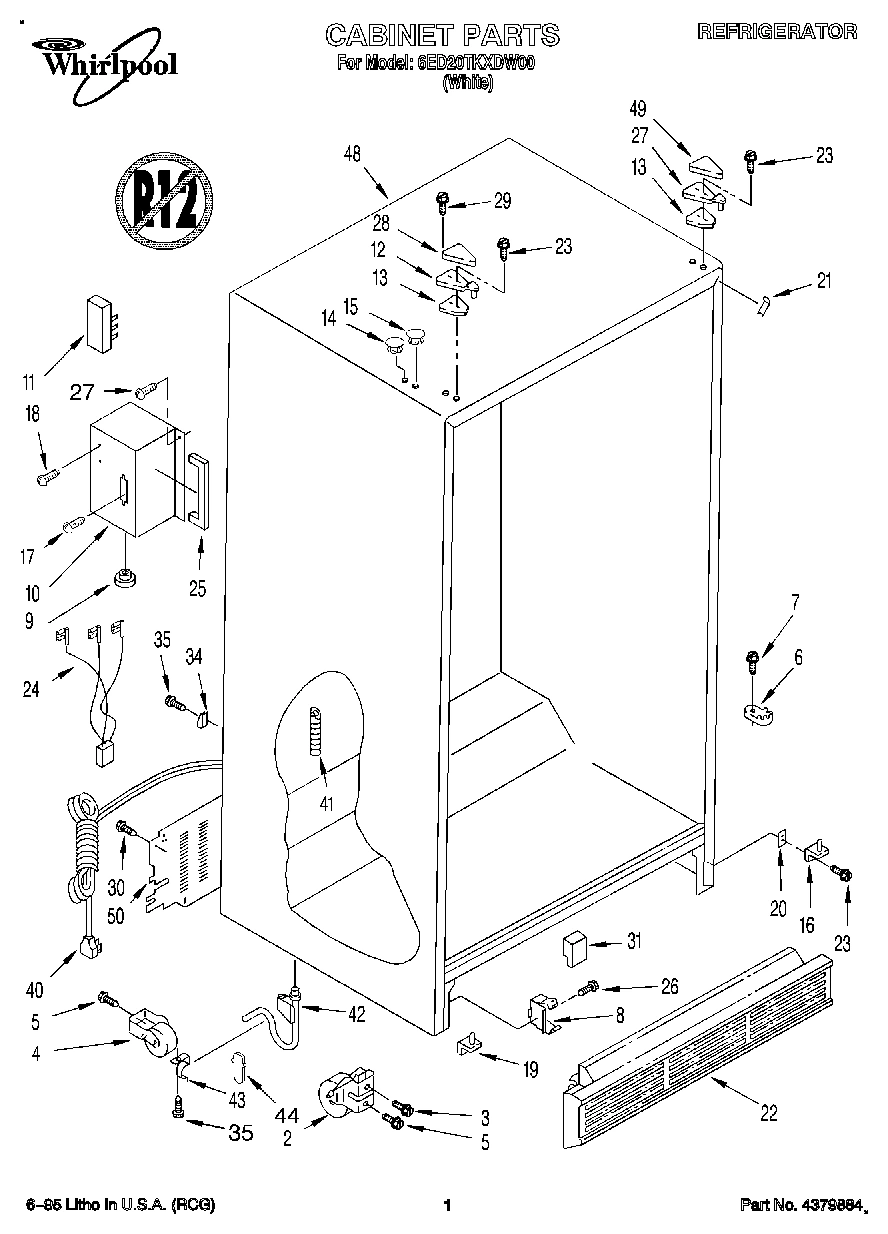

01 - CABINET

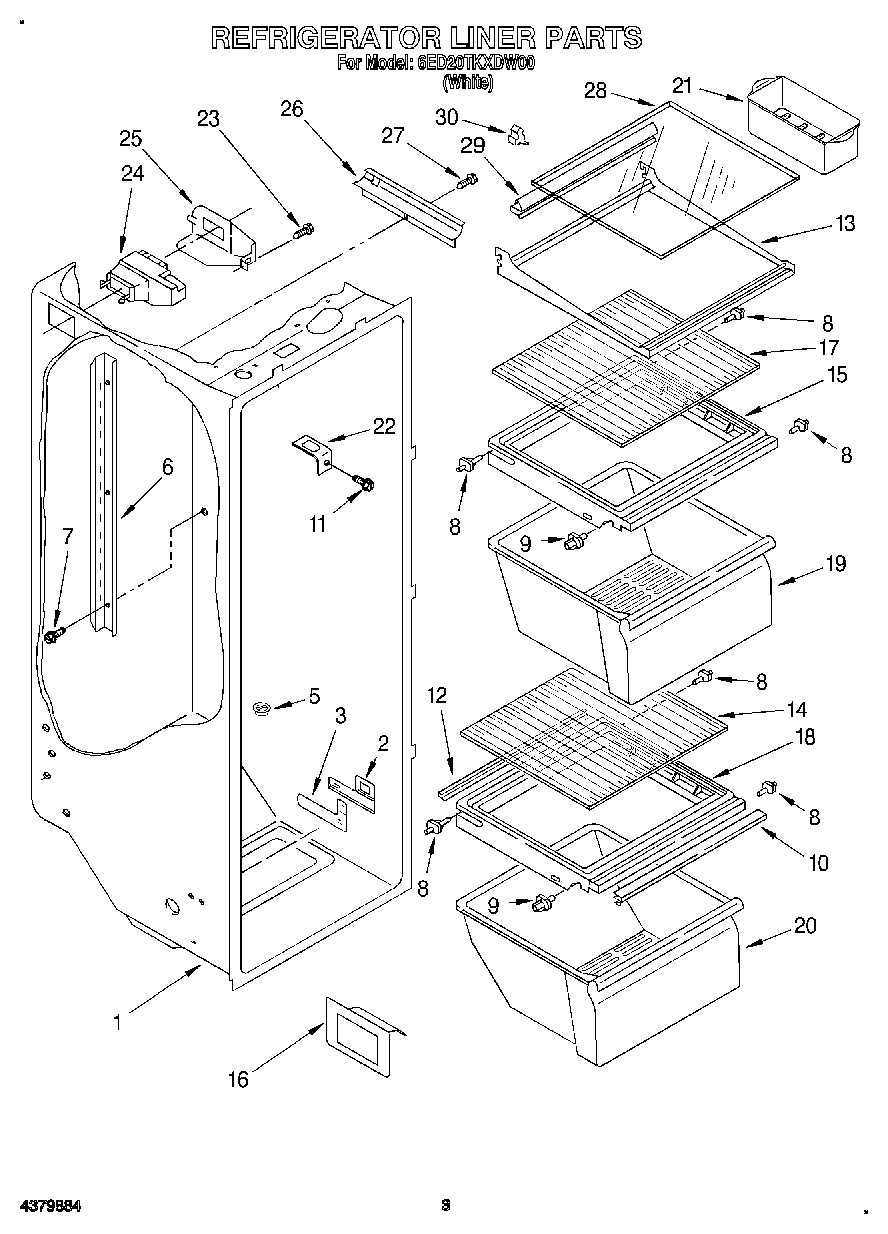

02 - REFRIGERATOR LINER

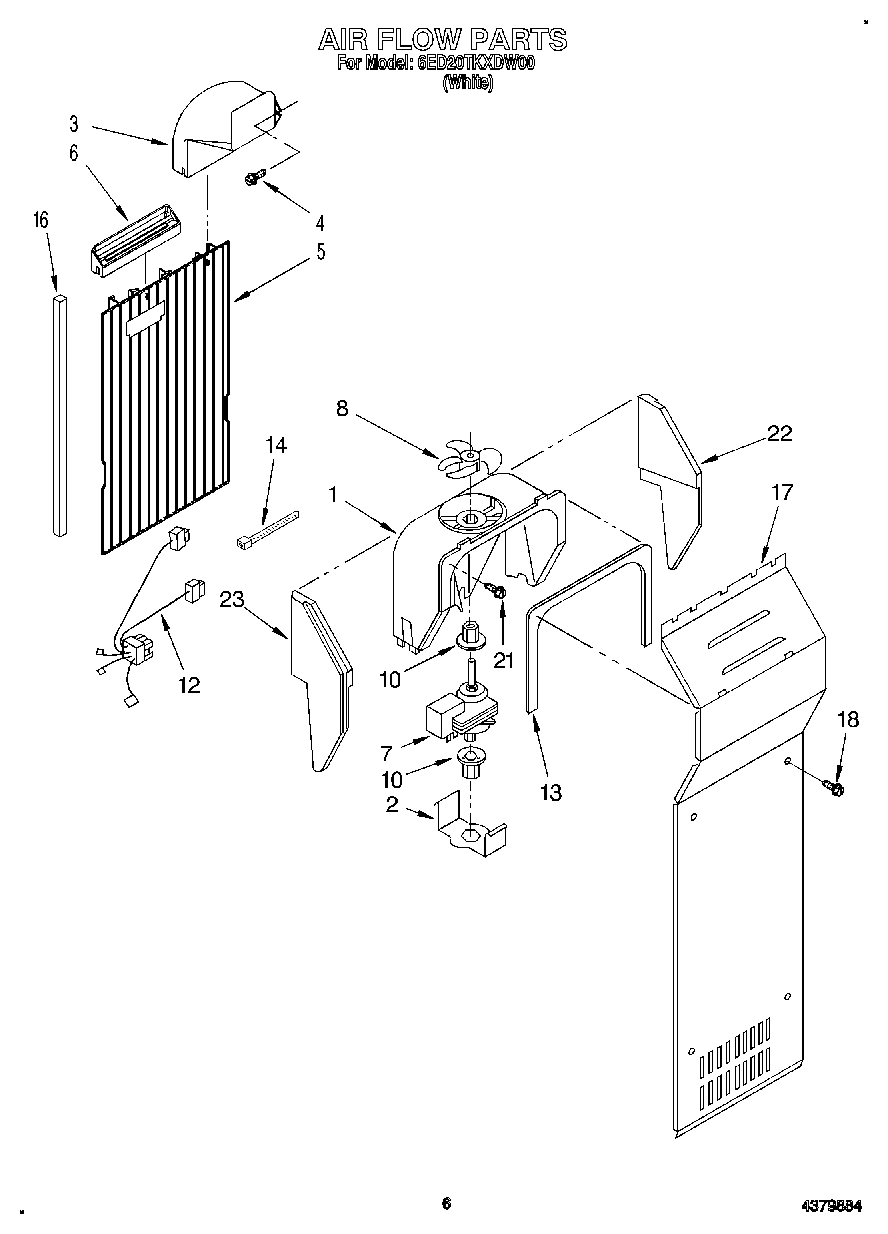

04 - AIR FLOW
Common parts from model Whirlpool 6ED20TKXDW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI15740A4 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 24) WPL 4362049 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI15739A4 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Tube, Door Wiring WPL 1119059 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Tap, Plate WPL 2155335 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
5
Grommet WPL 509812 Contact Us For Availability
6
Shim WPL 935075 Contact Us For Availability
6
Shelf Ladder (2) WPL 2171995 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Support, Stud (10) WPL 946355 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
8
Stud, Front (4) WPL 946356 Contact Us For Availability
9
Stud R.S. Rear (4) WPL 1106982 Contact Us For Availability
9
Bracket, Door Stop WPL 2155332 Contact Us For Availability
9
Cover, Unit Compartment WPL 2160505 Contact Us For Availability
9
Bushing WPL 1129449 Contact Us For Availability
10
Grommet (10) WPL 2176134 Contact Us For Availability
10
Insert, Top WPL 1119367 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
10
Gasket, Front WPL 2174442 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
12
Shelf WPL 2163612 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
12
Gasket, Rear WPL 2174483 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2176138 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
13
Shelf, Cantilever WPL 2173178 Contact Us For Availability
14
Shelf (1) WPL 2174269 Contact Us For Availability
14
Shelf (2) WPL 2174270 Contact Us For Availability
14
Heater, Door WPL 2165272 Contact Us For Availability
14
Hole Plug WPL 849391 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bin, Freezer WPL 2171707 Contact Us For Availability
15
Hole Plug WPL 1115352 Contact Us For Availability
16
Screw WPL 489022 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
17
Connector WPL 2154491 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
18
Screw WPL 489346 Contact Us For Availability
19
Handle, Center WPL 1124713 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
20
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
20
Cover, Wiring WPL 2155571 Contact Us For Availability
20
Insert, Bottom WPL 1119361 Contact Us For Availability
20
Spacer, Hinge WPL 836196 Contact Us For Availability
21
Insert Retainer (Top) WPL 1119366 Contact Us For Availability
21
Filler, Wrapper WPL 1110708 Contact Us For Availability
22
Insert Retainer (Bottom) WPL 1119360 Contact Us For Availability
22
Grille WPL 2155477 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
23
End Cap (2) WPL 2156220 Contact Us For Availability
23
Clip, Heater (2) WPL 2161330 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
26
Harness, Intermediate WPL 2165296 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Glass, Shelf WPL 2175955 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black ( WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
29
Screw WPL 489284 Contact Us For Availability
29
Reflector WPL 2170621 Contact Us For Availability
30
Screw Anchor WPL 941242 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
31
Insert, Air Baffle WPL 2176796 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
35
Panel, Interior Door WPL 1129241 Contact Us For Availability
37
Trim, Door Shelf WPL 2170585 Contact Us For Availability
40
Service Cord WPL 1129331 Contact Us For Availability
41
Air Baffle WPL 2155301 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI15738A4 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Cover, Unit WPL 2160521 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
