Model Whirlpool 6ED20PKXBW00 REFRIGERATOR – Common Parts & Diagrams

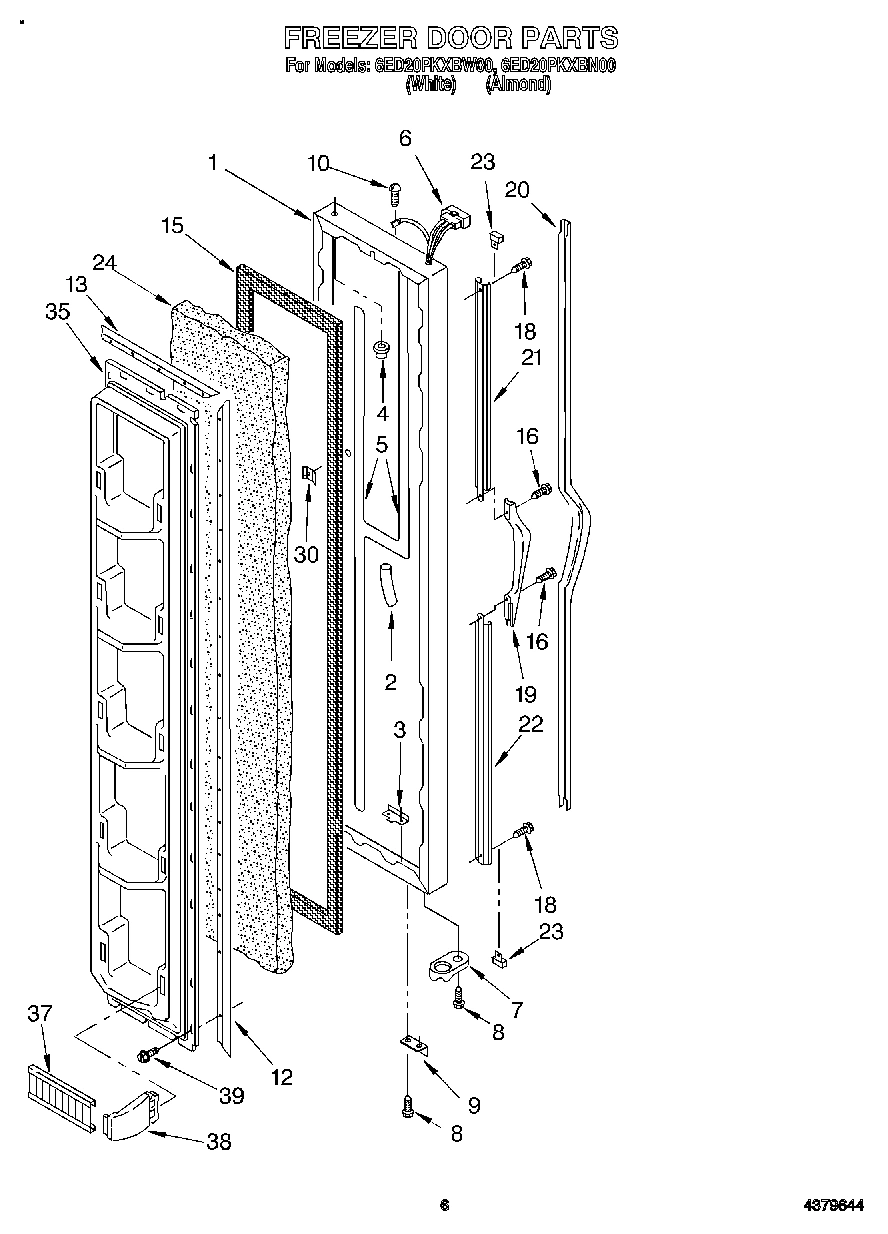

04 - FREEZER DOOR

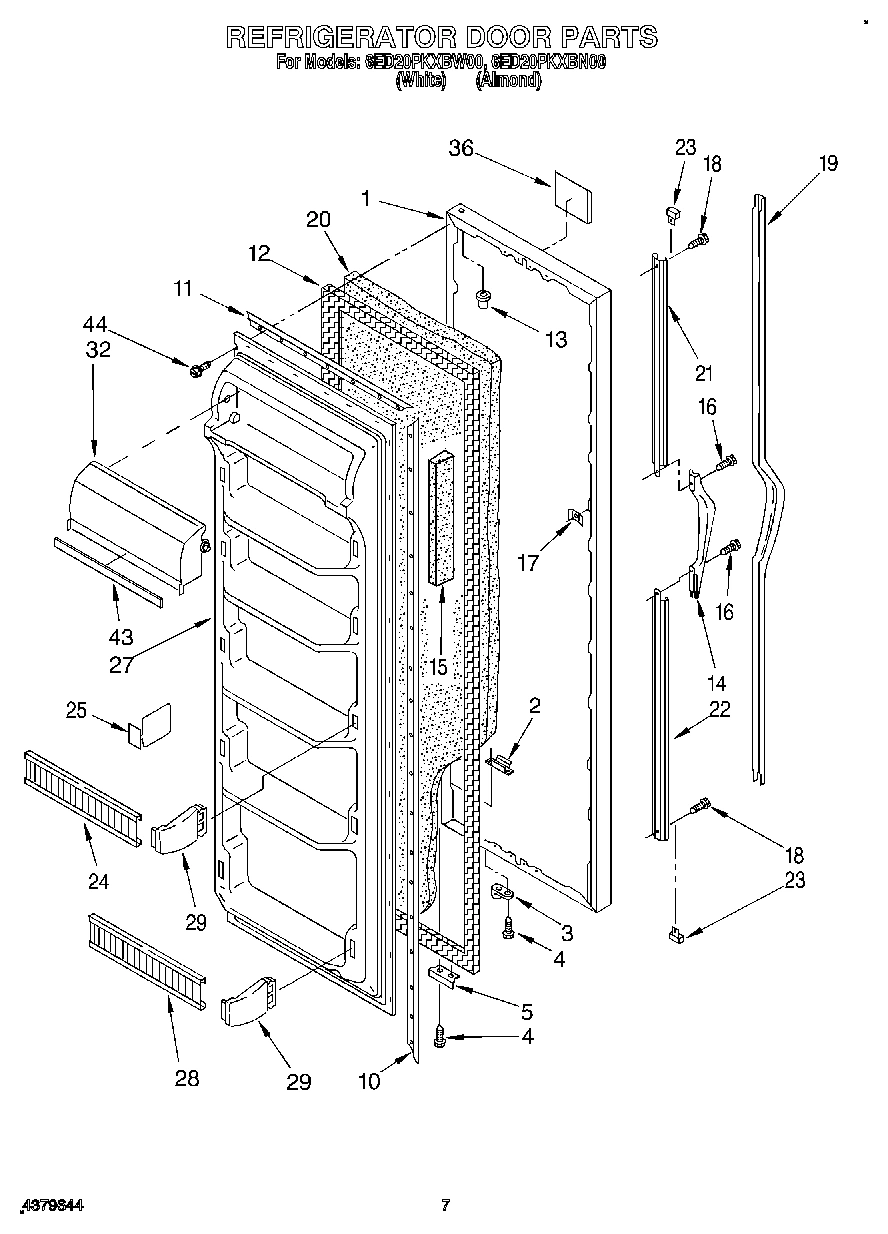

05 - REFRIGERATOR DOOR
06 - UNIT
07 - AIR FLOW
08 - CONTROL, LIT/OPTIONAL
02 - REFRIGERATOR LINER
01 - CABINET
03 - FREEZER LINER
Common parts from model Whirlpool 6ED20PKXBW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2167461 WPL LIT2167461 Contact Us For Availability
WPL LIT2167475 WPL LIT2167475 Contact Us For Availability
WPL LIT2169253 WPL LIT2169253 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI15736A9 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI15737A9 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Front Roller (2) WPL 2174749 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Reflector WPL 2170621 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Shroud, Light WPL 2167012 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
6
Hole Plug WPL 655411 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
7
Support, Stud (16) WPL 946355 Contact Us For Availability
8
Cover, Unit Compartment WPL 2160505 Contact Us For Availability
8
Stud (5) WPL 946356 Contact Us For Availability
9
Cover, Terminal Block WPL 2158579 Contact Us For Availability
9
Stud (5) WPL 1106982 Contact Us For Availability
10
Glass, Shelf WPL 2148108 Contact Us For Availability
10
Terminal Block WPL 1129346 Contact Us For Availability
10
Grommet (14) WPL 1110779 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Bushing WPL 1129449 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2158782 Contact Us For Availability
12
Shelf WPL 1106979 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Shelf, Cantilever WPL 2148087 Contact Us For Availability
13
Trim, Shelf WPL 2162938 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Trim, Shelf (3) WPL 2170597 Contact Us For Availability
14
Hole, Plug (White) WPL 849391 Contact Us For Availability
14
Hole Plug (Almond) WPL 989958 Contact Us For Availability
14
Shelf (Large 2) WPL 1106980 Contact Us For Availability
14
Shelf (Small 1) WPL 2155603 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bin, Freezer WPL 2148194 Contact Us For Availability
16
Trim, Cover WPL 2170835 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2155320 Contact Us For Availability
17
Glass, Shelf WPL 1114687 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2155322 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Meat Pan WPL 2170932 Contact Us For Availability
20
Spacer, Hinge WPL 836196 Contact Us For Availability
20
Cover, Wiring WPL 2155571 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Grille WPL 2155476 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
Screw WPL 489346 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
26
Harness, Intermediate WPL 2165296 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Hole Plug (White) WPL 1115352 Contact Us For Availability
28
Hole Plug (Almond) WPL 1115354 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enam WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
29
Cover WPL 2170949 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Heater, Defrost WPL 2162213 Contact Us For Availability
34
Clip, Heater WPL 2161330 Contact Us For Availability
40
Service Cord WPL 1129331 Contact Us For Availability
41
Air Baffle WPL 2155301 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
45
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI15735A8 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Screw WPL 489284 Contact Us For Availability
53
Cover, Unit WPL 2160521 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
61
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
61
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
