Model Maytag 6892VVV ELECTRIC RANGE – Common Parts & Diagrams

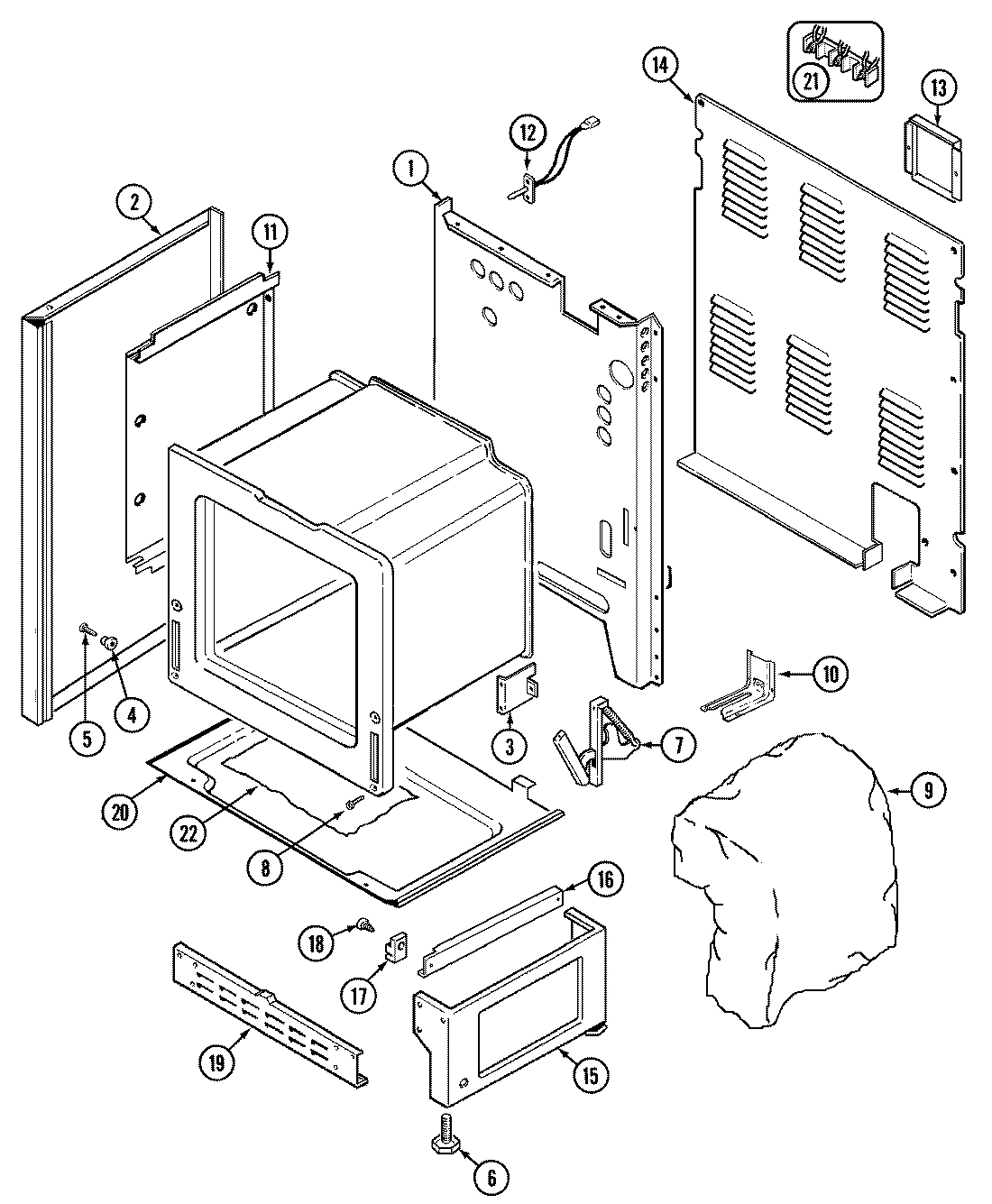

01 - BODY

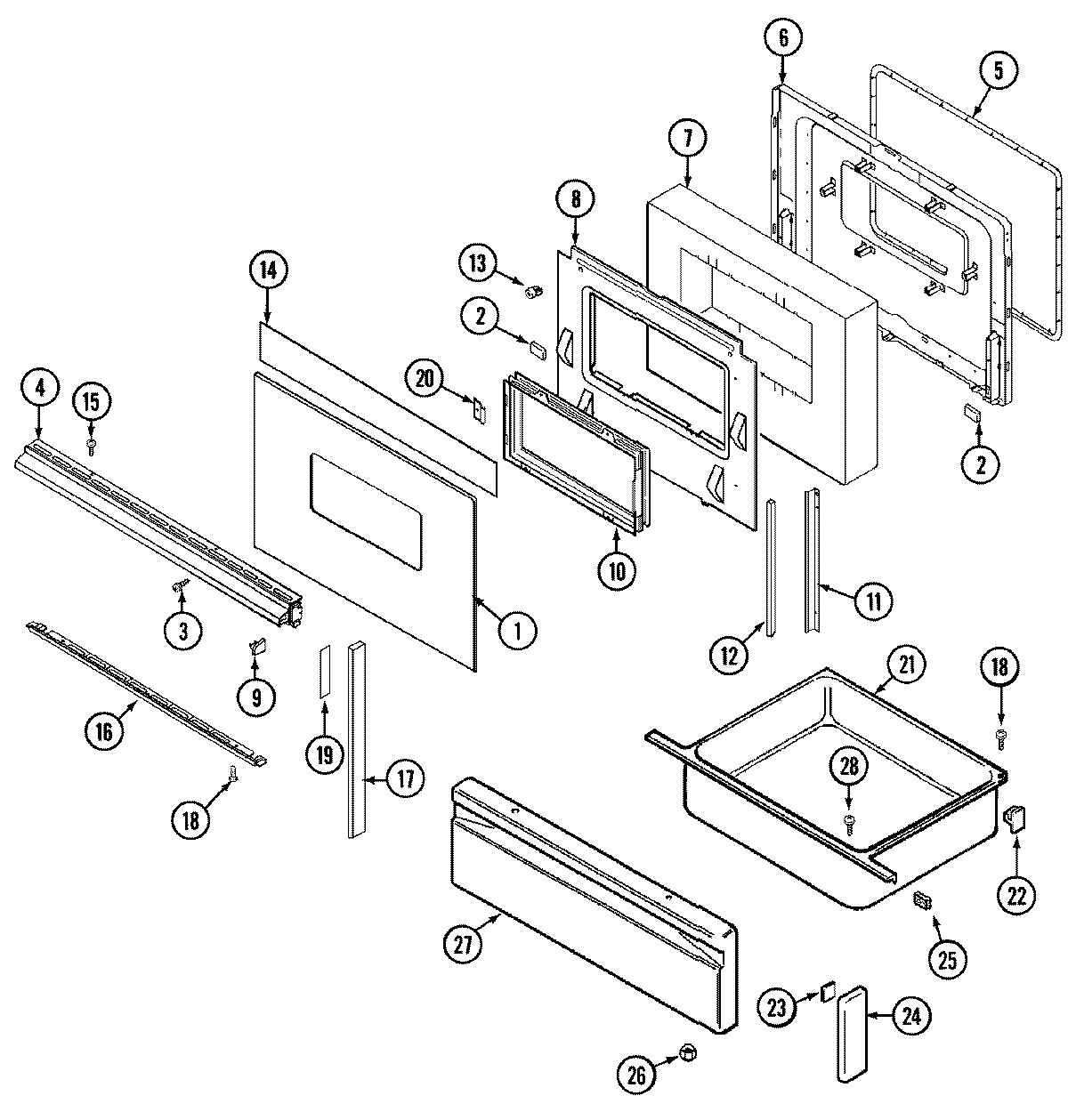

02 - DOOR/DRAWER

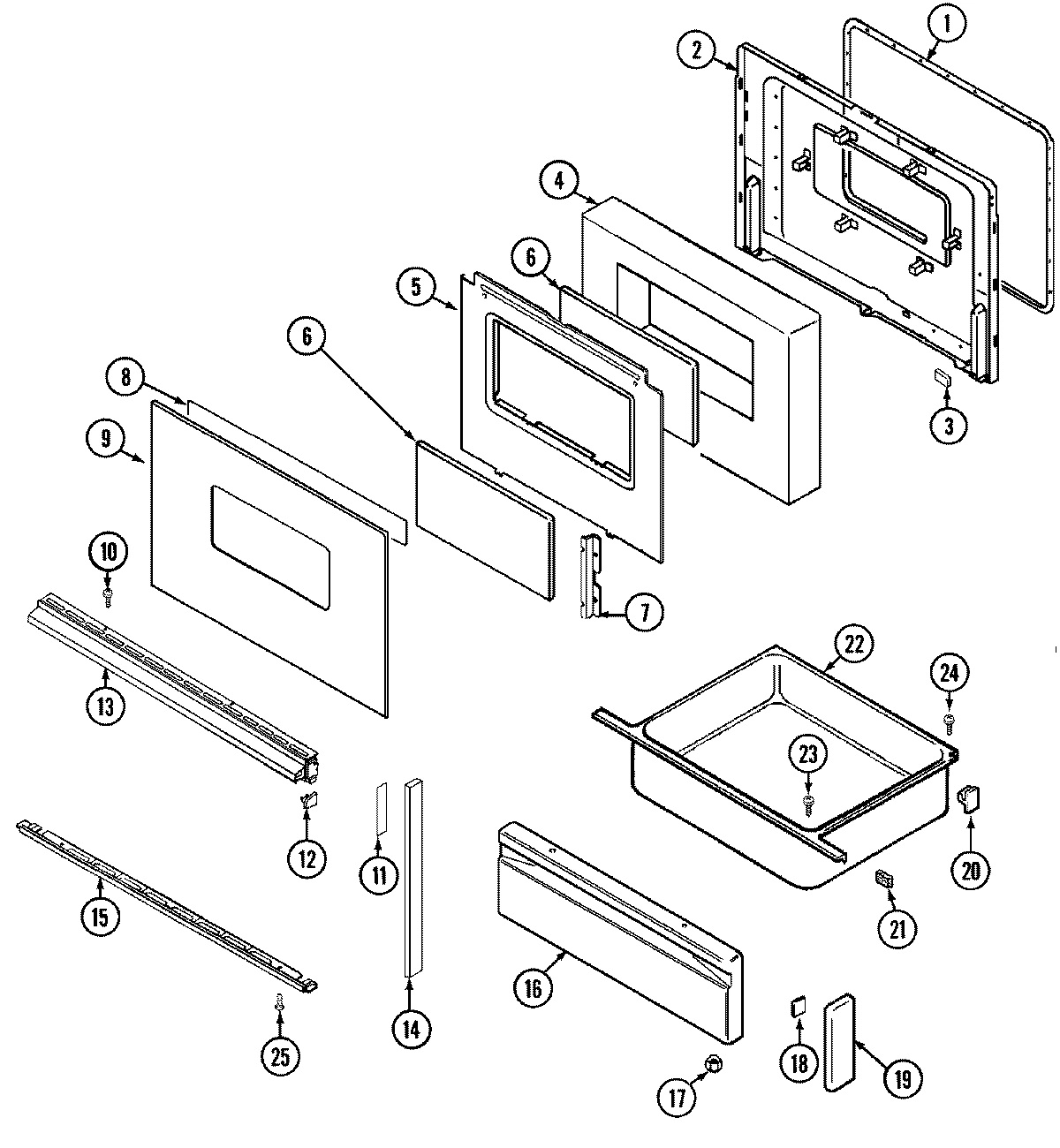

03 - DOOR/DRAWER (SERIAL PREFIX 12)

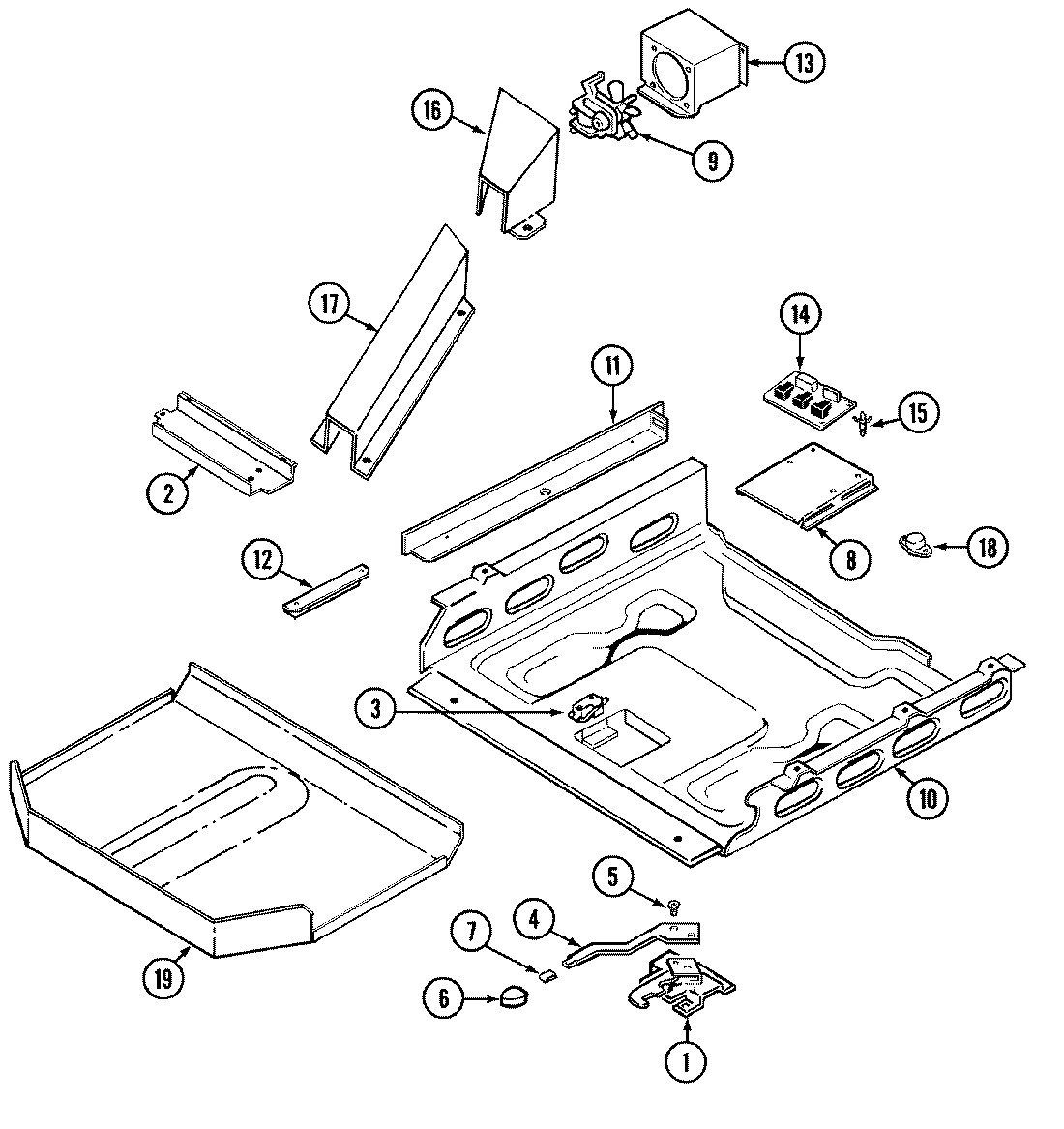

04 - INTERNAL CONTROLS

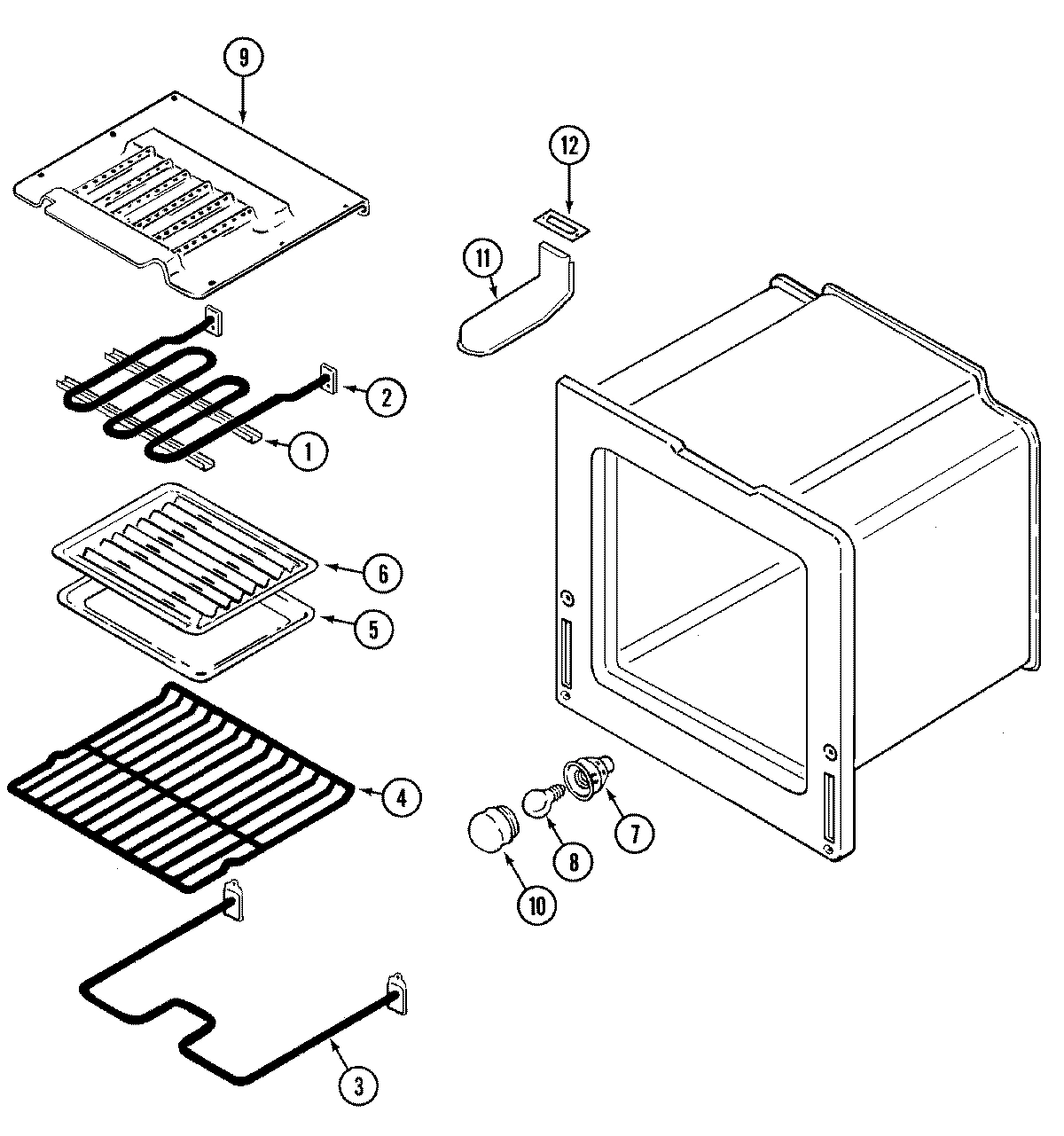

05 - OVEN

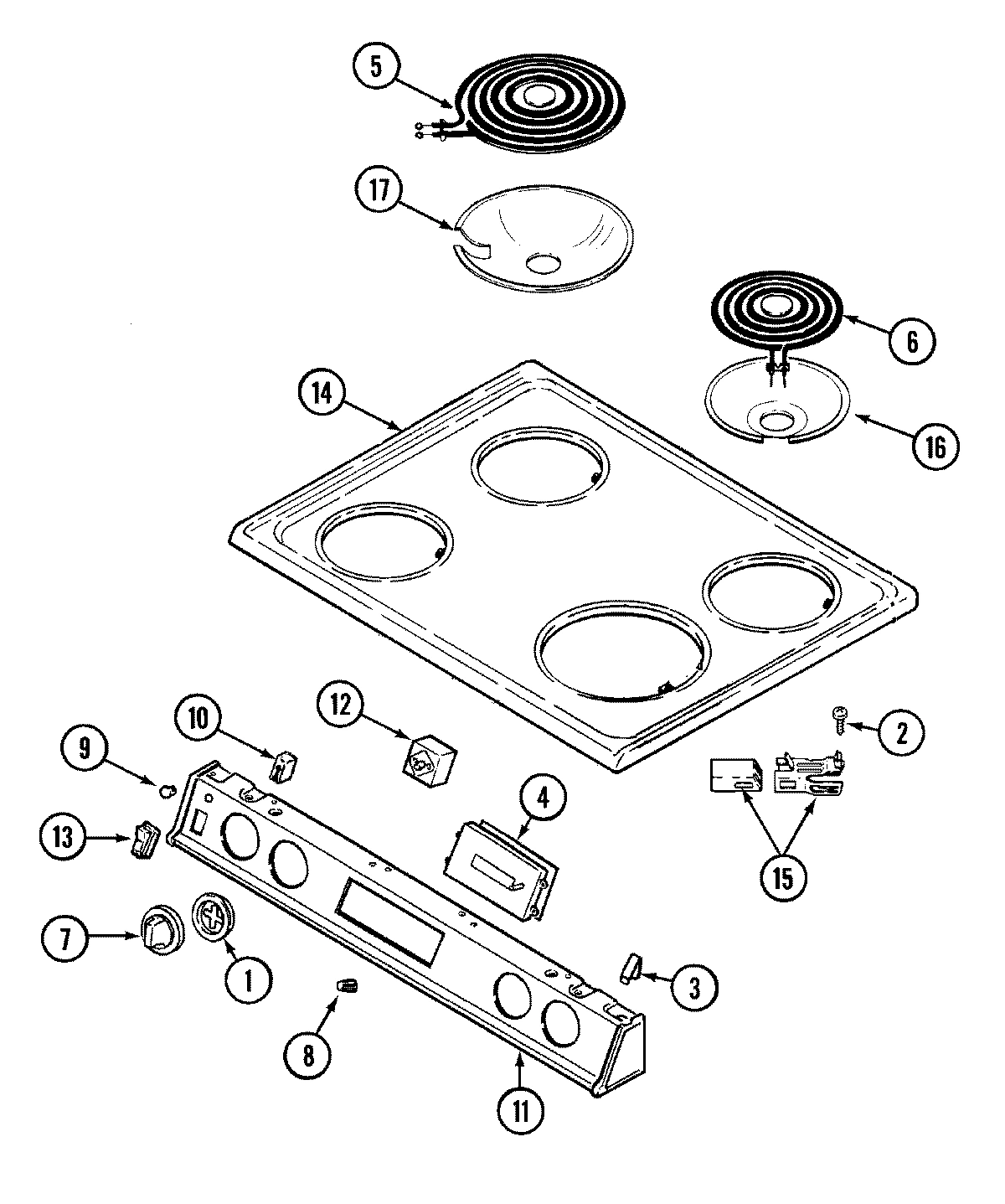

06 - TOP ASSEMBLY

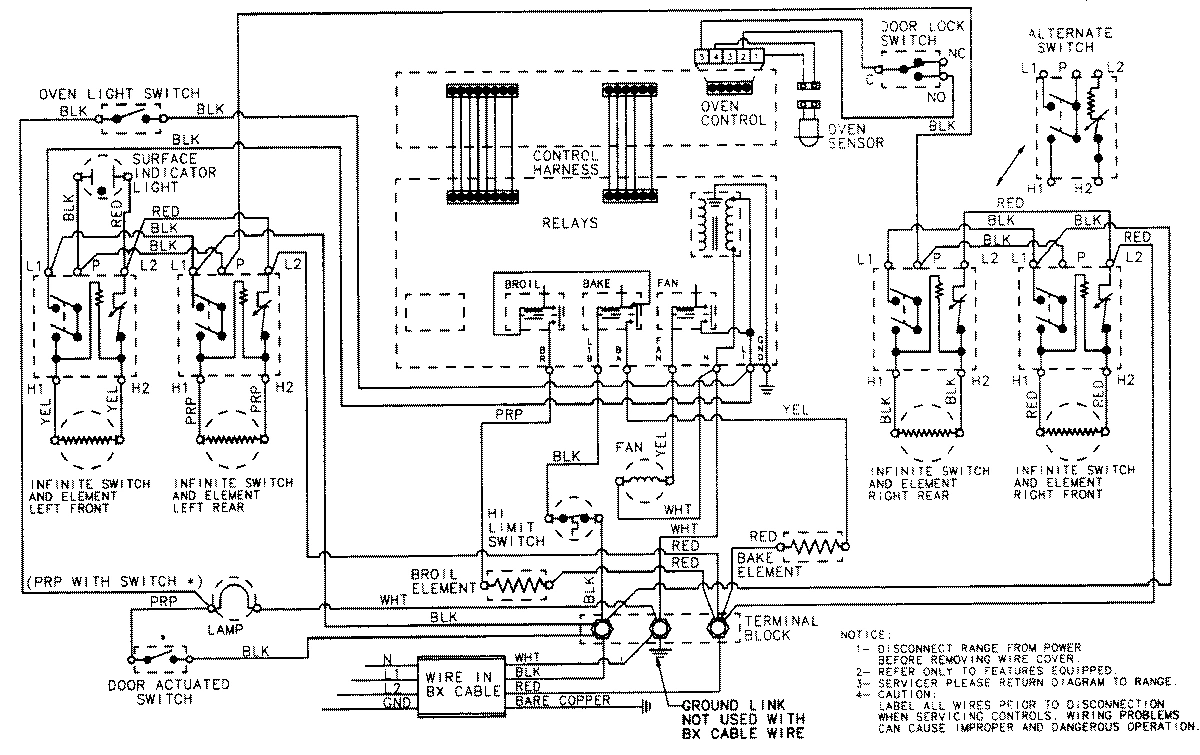

07 - WIRING INFORMATION
Common parts from model Maytag 6892VVV ELECTRIC RANGE
1
MAY 3604F159-45 MAY 3604F159-45 Contact Us For Availability
1
MAY 74003032 MAY 74003032 Contact Us For Availability
1
MAY 8002P025-60 MAY 8002P025-60 Contact Us For Availability
1
MAY 3807F387-45 MAY 3807F387-45 Contact Us For Availability
1
MAY 7101P300-60 MAY 7101P300-60 Contact Us For Availability
1
MAY 7740P023-60 MAY 7740P023-60 Contact Us For Availability
2
MAY 2402W209-19 MAY 2402W209-19 Contact Us For Availability
2
MAY 74003244 MAY 74003244 Contact Us For Availability
2
MAY 3818F059-51 MAY 3818F059-51 Contact Us For Availability
2
MAY 7101P061-60 MAY 7101P061-60 Contact Us For Availability
2
MAY 7406P065-60 MAY 7406P065-60 Contact Us For Availability
2
SCREW MAY 7101P349-60 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY 7101P031-60 MAY 7101P031-60 Contact Us For Availability
3
MAY 74001708 MAY 74001708 Contact Us For Availability
3
MAY 7406P092-60 MAY 7406P092-60 Contact Us For Availability
3
MAY 7112P087-60 MAY 7112P087-60 Contact Us For Availability
4
MAY 74001842 MAY 74001842 Contact Us For Availability
4
MAY 74002973 MAY 74002973 Contact Us For Availability
4
MAY 8009P028-60 MAY 8009P028-60 Contact Us For Availability
4
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
4
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
4
MAY 7101P346-60 MAY 7101P346-60 Contact Us For Availability
4
MAY 74002272 MAY 74002272 Contact Us For Availability
4
MAY 74003191 MAY 74003191 Contact Us For Availability
4
MAY 7601P279-60 MAY 7601P279-60 Contact Us For Availability
5
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
5
MAY 74001843 MAY 74001843 Contact Us For Availability
5
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
5
MAY 7116P003-60 MAY 7116P003-60 Contact Us For Availability
5
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
5
MAY 74001775 MAY 74001775 Contact Us For Availability
5
MAY 74004087 MAY 74004087 Contact Us For Availability
5
MAY 7406P037-60 MAY 7406P037-60 Contact Us For Availability
5
MAY 7406P088-60 MAY 7406P088-60 Contact Us For Availability
6
MAY 74001311 MAY 74001311 Contact Us For Availability
6
MAY 74001841 MAY 74001841 Contact Us For Availability
6
MAY 7701P133-60 MAY 7701P133-60 Contact Us For Availability
6
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
6
MAY 74001777 MAY 74001777 Contact Us For Availability
6
MAY 74004088 MAY 74004088 Contact Us For Availability
6
MAY 7406P087-60 MAY 7406P087-60 Contact Us For Availability
7
MAY 7002P155-60 MAY 7002P155-60 Contact Us For Availability
7
MAY 74001844 MAY 74001844 Contact Us For Availability
7
MAY 7112P112-60 MAY 7112P112-60 Contact Us For Availability
7
MAY 74003125 MAY 74003125 Contact Us For Availability
7
MAY 7731P081-60 MAY 7731P081-60 Contact Us For Availability
8
NOT REQUIRED PART OR SEE NOTE NOT REQUIRED MAY W10124350 Contact Us For Availability
8
MAY 3601F236-47 MAY 3601F236-47 Contact Us For Availability
8
MAY 8270P078-60 MAY 8270P078-60 Contact Us For Availability
8
MAY 4005F443-51 MAY 4005F443-51 Contact Us For Availability
8
MAY 7711P493-60 MAY 7711P493-60 Contact Us For Availability
9
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
9
MAY 7902P328-60 MAY 7902P328-60 Contact Us For Availability
9
MAY 74003395 MAY 74003395 Contact Us For Availability
9
MAY 7427P012-60 MAY 7427P012-60 Contact Us For Availability
9
MAY 3601F237-45 MAY 3601F237-45 Contact Us For Availability
10
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
10
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
10
MAY 7907P021-60 MAY 7907P021-60 Contact Us For Availability
10
MAY 4011F250-80 MAY 4011F250-80 Contact Us For Availability
11
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
11
MAY 3818F052-80 MAY 3818F052-80 Contact Us For Availability
11
MAY 8270P048-60 MAY 8270P048-60 Contact Us For Availability
11
MAY 3604F213-51 MAY 3604F213-51 Contact Us For Availability
11
MAY 3604F214-51 MAY 3604F214-51 Contact Us For Availability
11
MAY 4006W112-45 MAY 4006W112-45 Contact Us For Availability
11
MAY 74003009 MAY 74003009 Contact Us For Availability
11
MAY 7722P135-60 MAY 7722P135-60 Contact Us For Availability
12
MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability
12
MAY 7744P075-60 MAY 7744P075-60 Contact Us For Availability
12
MAY 7744P076-60 MAY 7744P076-60 Contact Us For Availability
12
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
12
MAY 74002738 MAY 74002738 Contact Us For Availability
12
MAY 74002739 MAY 74002739 Contact Us For Availability
12
MAY 3801F327-51 MAY 3801F327-51 Contact Us For Availability
12
MAY 7201P060-60 MAY 7201P060-60 Contact Us For Availability
13
MAY 4005F427-51 MAY 4005F427-51 Contact Us For Availability
13
MAY 7701P105-60 MAY 7701P105-60 Contact Us For Availability
13
MAY 7103P045-60 MAY 7103P045-60 Contact Us For Availability
13
MAY 74001171 MAY 74001171 Contact Us For Availability
13
MAY 74003396 MAY 74003396 Contact Us For Availability
13
MAY 4001F080-51 MAY 4001F080-51 Contact Us For Availability
13
MAY 7403P200-60 MAY 7403P200-60 Contact Us For Availability
14
MAY 4005F447-51 MAY 4005F447-51 Contact Us For Availability
14
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
14
MAY 7744P065-60 MAY 7744P065-60 Contact Us For Availability
14
MAY 74002342 MAY 74002342 Contact Us For Availability
14
MAY 74003398 MAY 74003398 Contact Us For Availability
14
MAY 7428P021-60 MAY 7428P021-60 Contact Us For Availability
14
MAY 74001248 MAY 74001248 Contact Us For Availability
15
MAY 4020W015-80 MAY 4020W015-80 Contact Us For Availability
15
MAY 74003003 MAY 74003003 Contact Us For Availability
15
MAY 7101P308-60 MAY 7101P308-60 Contact Us For Availability
15
MAY 7744P103-60 MAY 7744P103-60 Contact Us For Availability
15
MAY 74003397 MAY 74003397 Contact Us For Availability
15
MAY 8004P032-60 MAY 8004P032-60 Contact Us For Availability
15
MAY 1430306K MAY 1430306K Contact Us For Availability
16
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
16
RUNNER, DRAWER MAY 74003565 Contact Us For Availability
16
MAY 2416F038-62 MAY 2416F038-62 Contact Us For Availability
16
MAY 3818F056-51 MAY 3818F056-51 Contact Us For Availability
16
MAY 74001519 MAY 74001519 Contact Us For Availability
16
MAY 7725P048-60 MAY 7725P048-60 Contact Us For Availability
17
MAY 7725P047-60 MAY 7725P047-60 Contact Us For Availability
17
MAY 8004P025-60 MAY 8004P025-60 Contact Us For Availability
17
MAY 3818F053-51 MAY 3818F053-51 Contact Us For Availability
17
MAY 74001518 MAY 74001518 Contact Us For Availability
18
TAPE MAY 8270P098-60 Contact Us For Availability
18
MAY 7403P307-60 MAY 7403P307-60 Contact Us For Availability
19
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
19
MAY 7744P067-60 MAY 7744P067-60 Contact Us For Availability
19
MAY 74002804 MAY 74002804 Contact Us For Availability
19
MAY 74001549 MAY 74001549 Contact Us For Availability
19
MAY 5170P228-60 MAY 5170P228-60 Contact Us For Availability
19
MAY 5195D103-60 MAY 5195D103-60 Contact Us For Availability
19
MAY 74001583 MAY 74001583 Contact Us For Availability
20
MAY 74003566 MAY 74003566 Contact Us For Availability
20
MAY 3804F109-51 MAY 3804F109-51 Contact Us For Availability
20
MAY 3805F002-34 MAY 3805F002-34 Contact Us For Availability
20
MAY 74001449 MAY 74001449 Contact Us For Availability
20
MAY 16007454 MAY 16007454 Contact Us For Availability
20
MAY 8113P026-60 MAY 8113P026-60 Contact Us For Availability
20
MAY 8113P068-60 MAY 8113P068-60 Contact Us For Availability
21
MAY 16000329 MAY 16000329 Contact Us For Availability
22
MAY 8312P058-60 MAY 8312P058-60 Contact Us For Availability
22
MAY 3405F018-80 MAY 3405F018-80 Contact Us For Availability
22
MAY 74003618 MAY 74003618 Contact Us For Availability
25
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
NI
MAY 15001375 MAY 15001375 Contact Us For Availability
× ![]()
