Model Whirlpool 6551XUB ELECTRIC RANGE – Common Parts & Diagrams

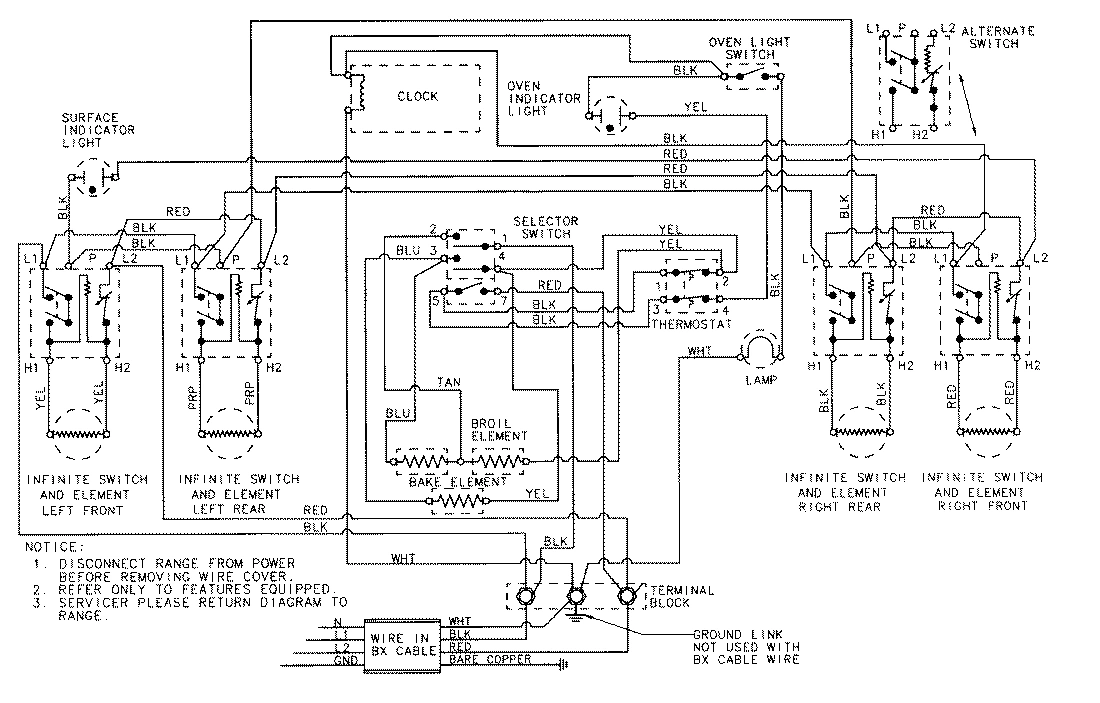

06 - WIRING INFORMATION

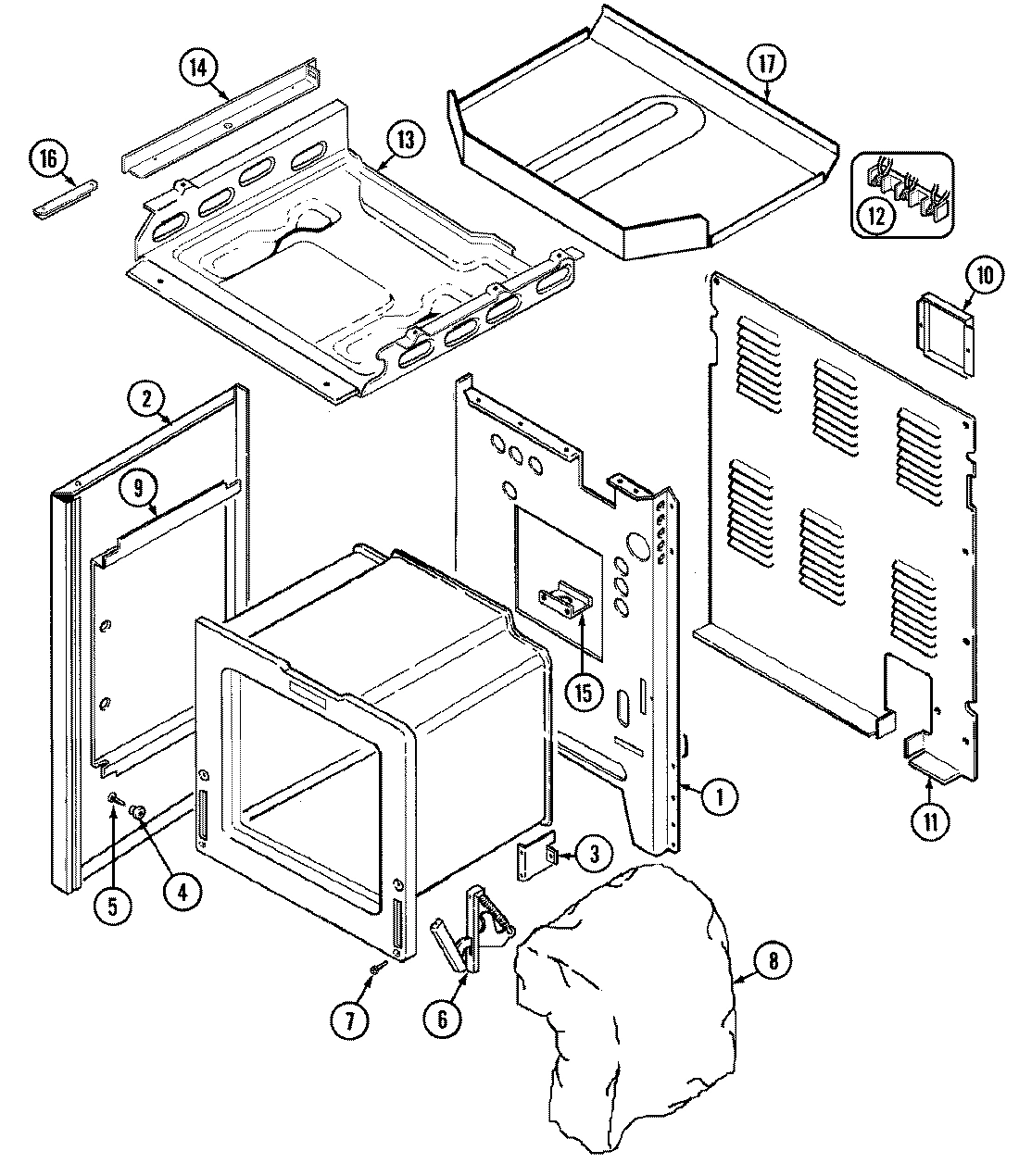

01 - BODY

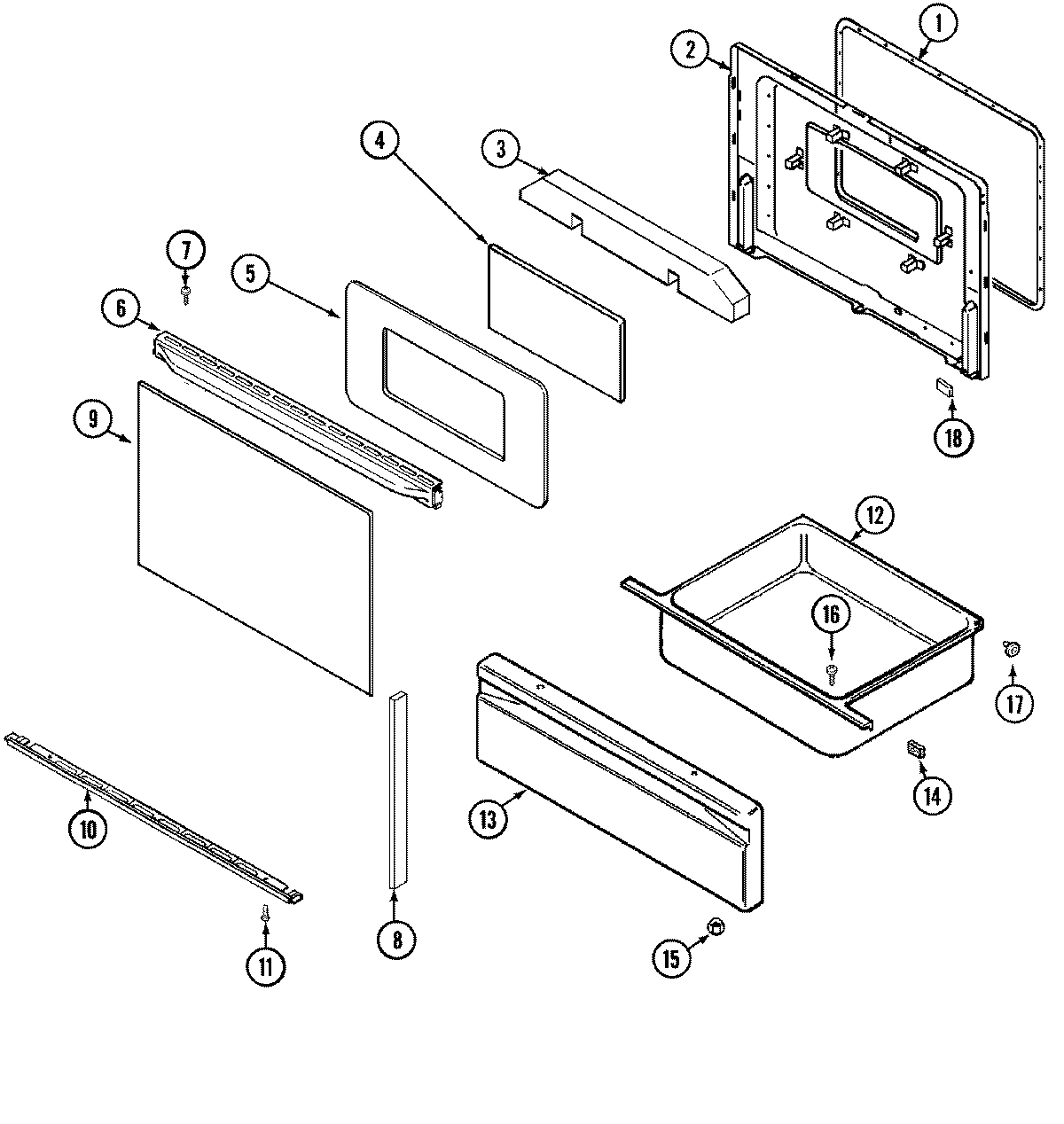

03 - DOOR/DRAWER (XUB SERIES 27)

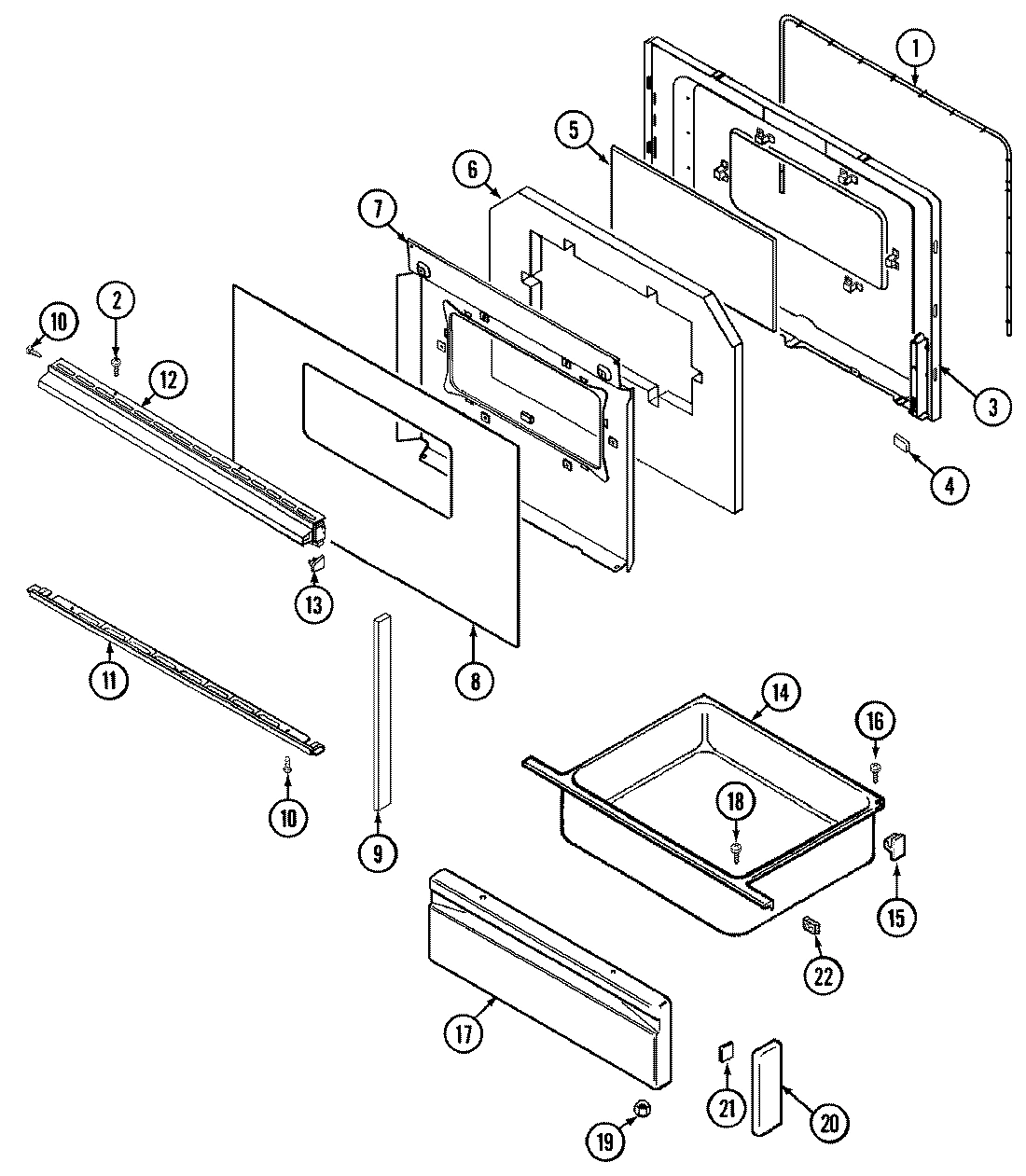

02 - DOOR/DRAWER (6551XUx)

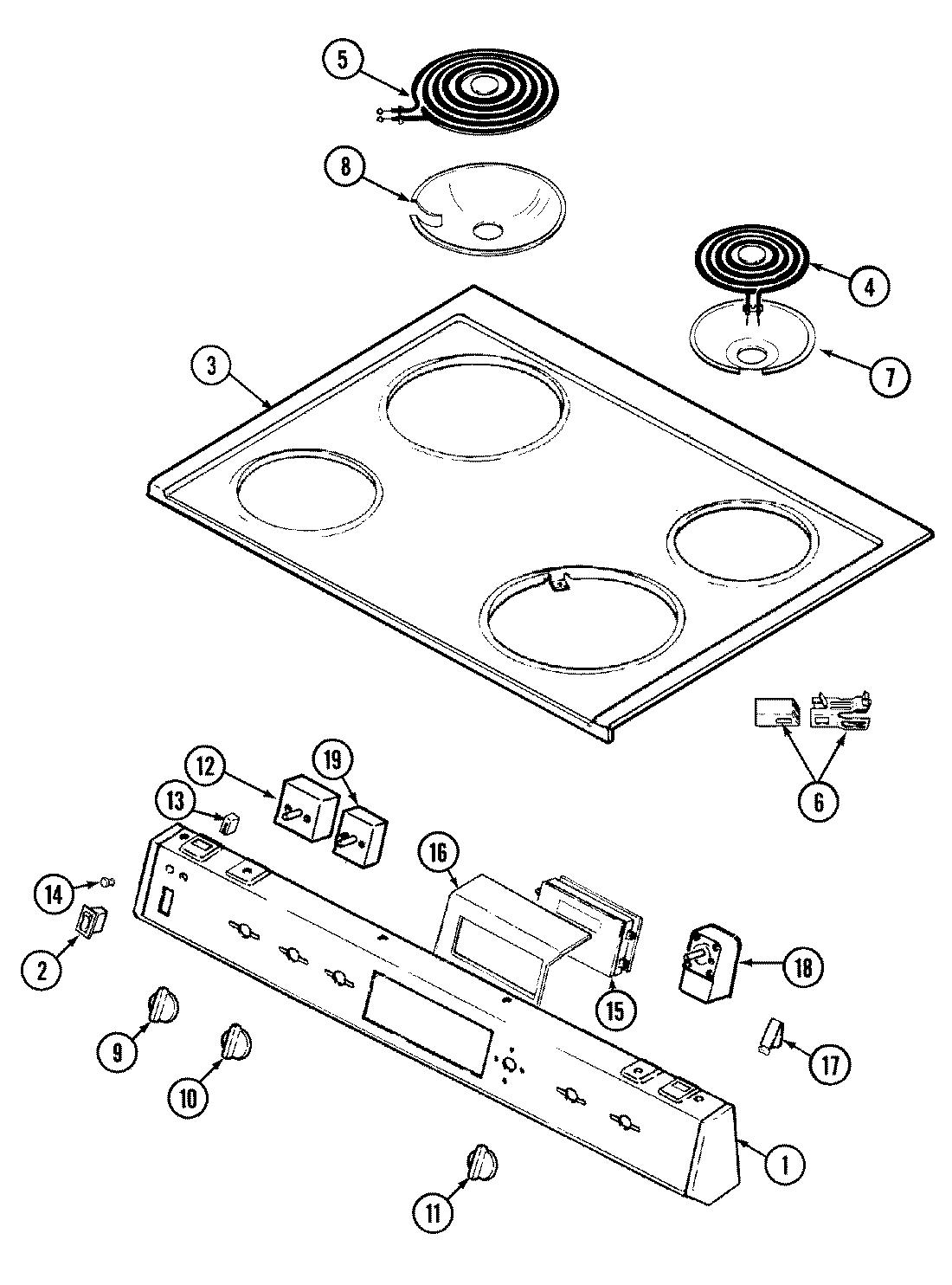

05 - TOP ASSEMBLY

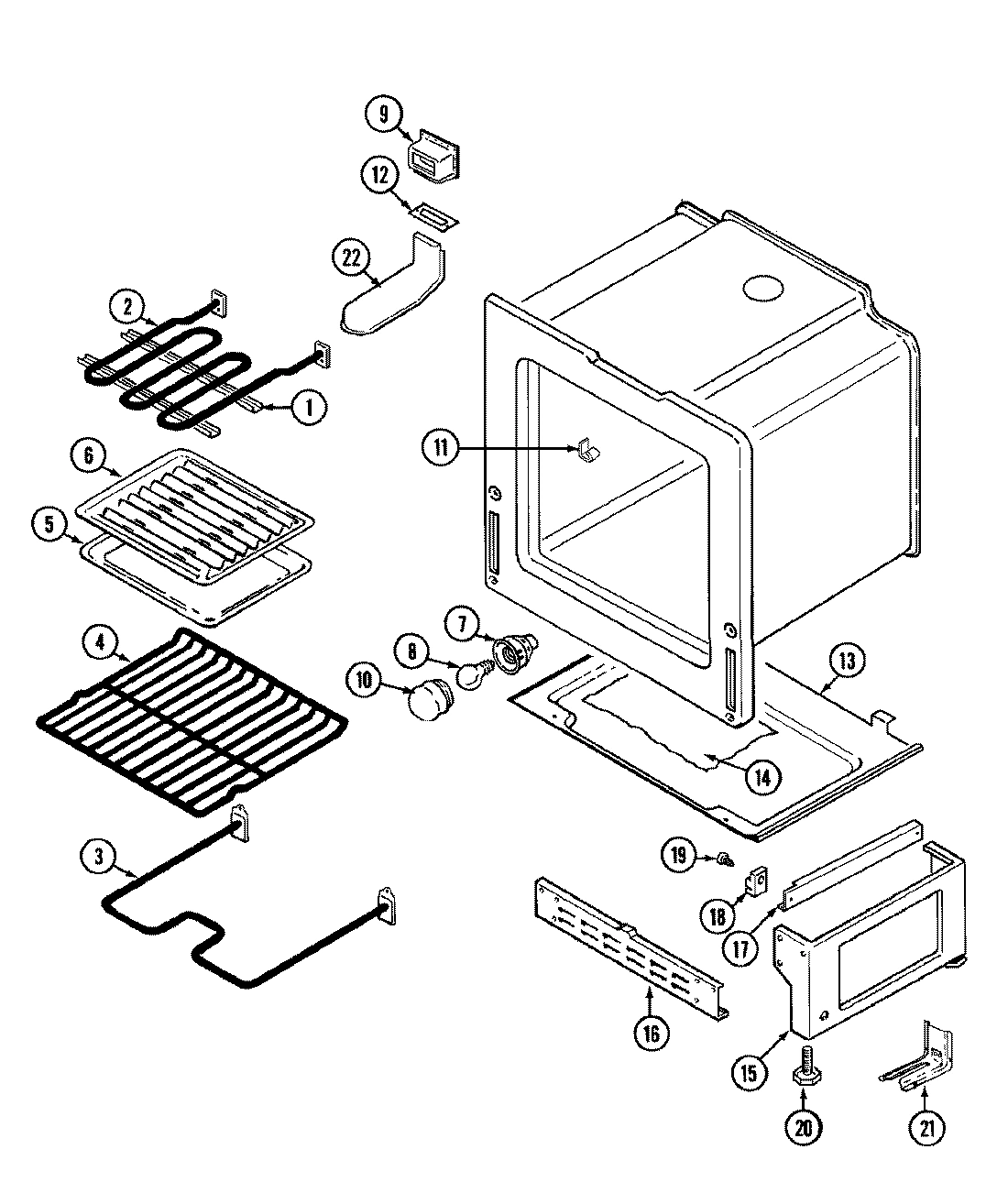

04 - OVEN/BASE
Common parts from model Whirlpool 6551XUB ELECTRIC RANGE
1
BACK, MAIN WPL 74001873 Contact Us For Availability
1
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
1
PANEL, CONTROL (BLK) WPL 74003231 Contact Us For Availability
1
PANEL, UPPER FRONT WPL 7722P12760 Contact Us For Availability
1
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
2
PANEL, SIDE (LT-BLK) WPL 2618F10670 Contact Us For Availability
2
PANEL, SIDE (RT-BLK) WPL 2618F10770 Contact Us For Availability
2
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
2
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P07260 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
3
LINING, DOOR WPL 74003248 Contact Us For Availability
3
INSULATION, DOOR WPL 74002458 Contact Us For Availability
3
LINING, DOOR WPL 74002460 Contact Us For Availability
3
TOP ASSY. (BLK) WPL 74001246 Contact Us For Availability
3
EXTRUSION, FILLER WPL 7706P30160 Contact Us For Availability
4
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
4
GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability
4
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
5
SCREW WPL 7101P33460 Contact Us For Availability
5
SCREW WPL 7101P20960 Contact Us For Availability
5
BAFFLE, DOOR WPL 74002461 Contact Us For Availability
5
GLASS, DOOR (INNER)----NA WPL 7902P31960 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
HINGE WPL 7106P05660 Contact Us For Availability
6
HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability
6
INSULATION, DOOR WPL 7002P15860 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
SCREW WPL 7101P11260 Contact Us For Availability
7
BAFFLE, DOOR WPL 3601F24080 Contact Us For Availability
7
RECEPTACLE, BULB WPL 74003125 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
8
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
8
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
8
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
8
END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability
8
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
9
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
9
GLASS, DOOR (OUTER-BLK) WPL 74003431 Contact Us For Availability
9
END CAP, DOOR (BLK) WPL 74002084 Contact Us For Availability
9
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
9
KNOB, INF. SWITCH WPL 7737P03360 Contact Us For Availability
9
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
10
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
10
TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability
10
KNOB, SELECTOR WPL 7739P04160 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
COVER, MAIN BACK WPL 4005F35651 Contact Us For Availability
11
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
11
KNOB, T-STAT WPL 7735P03660 Contact Us For Availability
11
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
12
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
12
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
12
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
12
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
12
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
12
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
12
GASKET, VENT WPL 7201P06060 Contact Us For Availability
13
BOX, BURNER WPL 74002357 Contact Us For Availability
13
PANEL, DRAWER (BLK) WPL 74003701 Contact Us For Availability
13
END CAP, HANDLE (RT-BLK) WPL 74002539 Contact Us For Availability
13
END CAP, HANDLE (LT-BLK) WPL 74002540 Contact Us For Availability
13
END CAP (RT) WPL 7744P07560 Contact Us For Availability
13
END CAP (LT) WPL 7744P07660 Contact Us For Availability
13
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
14
SHIELD, HEAT (LT) WPL 3604F21351 Contact Us For Availability
14
SHIELD, HEAT (RT) WPL 3604F21451 Contact Us For Availability
14
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
15
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
15
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
15
CLOCK (BLK) WPL 7602P11960 Contact Us For Availability
15
PEDESTAL (SIDES) WPL 74001705 Contact Us For Availability
15
PEDESTAL, SIDE WPL 74003003 Contact Us For Availability
16
BRACKET WPL 3801F32751 Contact Us For Availability
16
SCREW WPL 7101P07260 Contact Us For Availability
16
BRACKET WPL 3801F33245 Contact Us For Availability
16
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
16
BRACKET, CLOCK WPL 74003890 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
17
SHIELD, WIRE WPL 74001549 Contact Us For Availability
17
PANEL, DRAWER (BLK) WPL 2416F03865 Contact Us For Availability
17
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
18
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
18
NUT WPL 7103P08260 Contact Us For Availability
18
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
18
SCREW, STAINLESS WPL 7101P03760 Contact Us For Availability
18
SCREW WPL 7101P30960 Contact Us For Availability
18
THERMOSTAT WPL 7404P07260 Contact Us For Availability
19
NUT, LOCK WPL 7103P13960 Contact Us For Availability
19
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
19
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
20
END CAP (BLK) WPL 7744P06860 Contact Us For Availability
20
HARNESS, CONTROL PANEL WPL 5195D09460 Contact Us For Availability
20
HARNESS, WIRE CONTROL/TOP WPL 74001588 Contact Us For Availability
20
COVER, LEVELING LEG WPL 4005F42080 Contact Us For Availability
20
LEG, LEVELING WPL 7101P31660 Contact Us For Availability
21
TAPE WPL 8270P09860 Contact Us For Availability
21
MANUAL, USE & CARE WPL 8113P02360 Contact Us For Availability
21
SCREW WPL 7101P35260 Contact Us For Availability
22
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
22
BOX, VENT WPL 4006W11245 Contact Us For Availability
× ![]()
