Model Whirlpool 654WD-HVW ELECTRIC RANGE – Common Parts & Diagrams

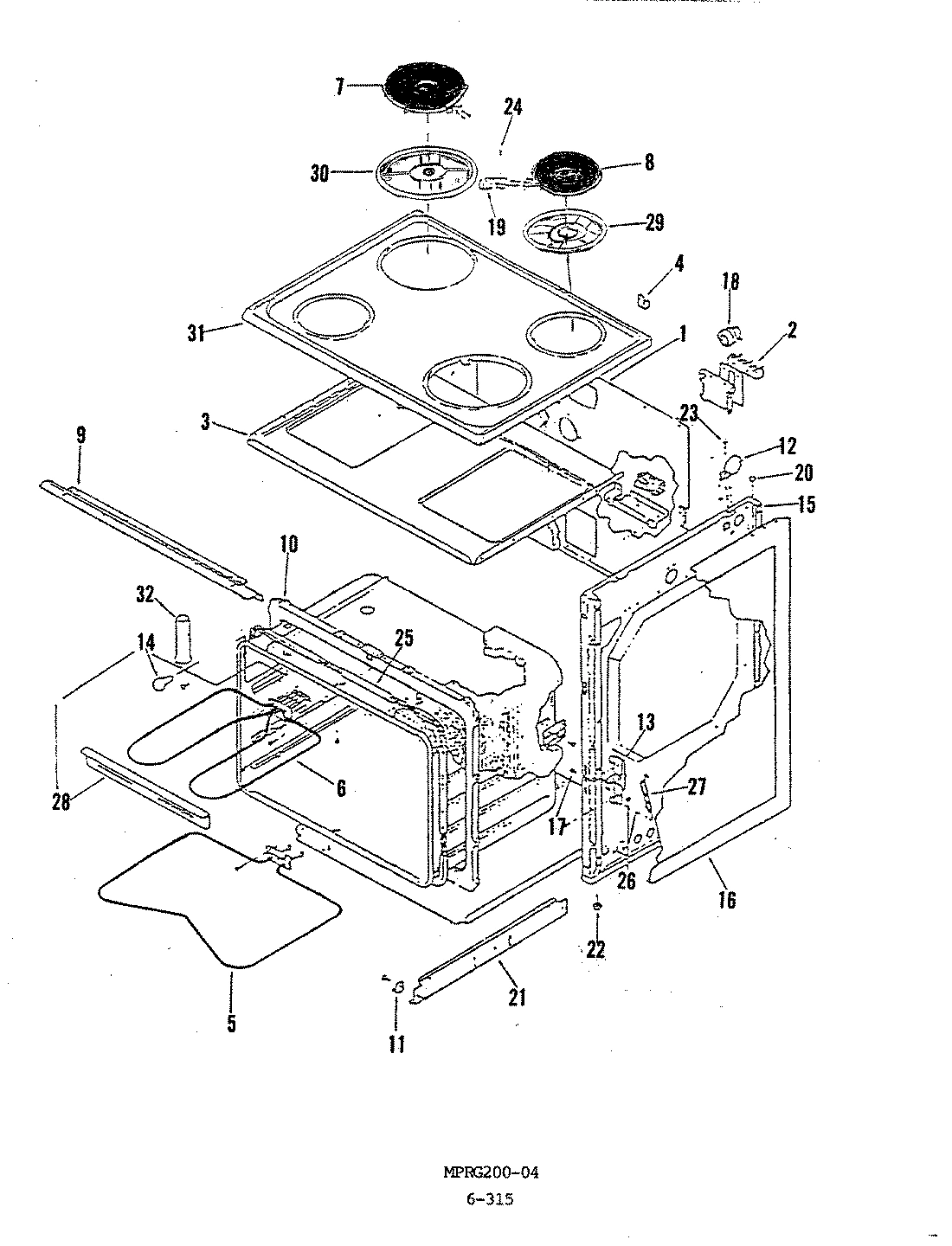

01 - BODY

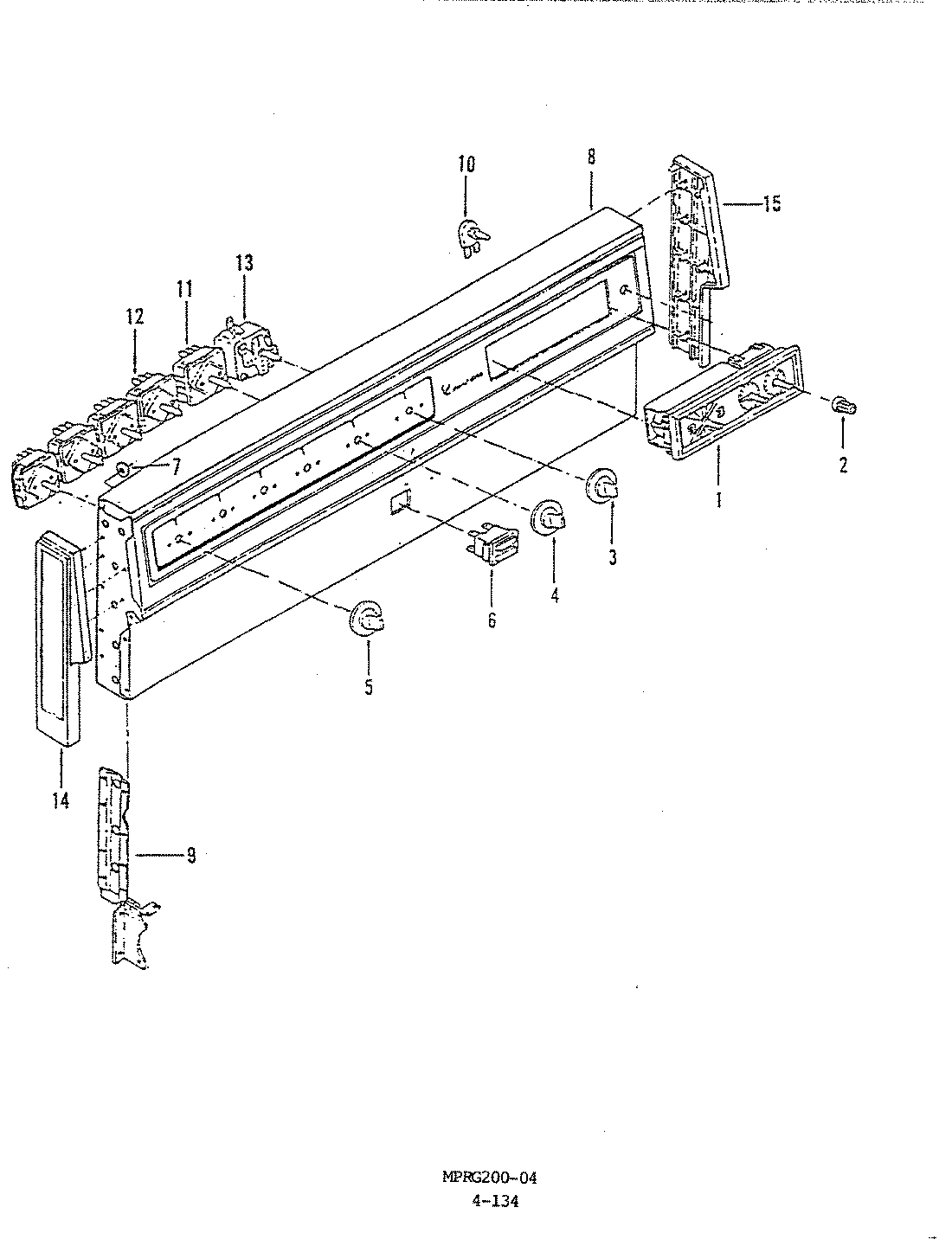

02 - CONTROL PANEL

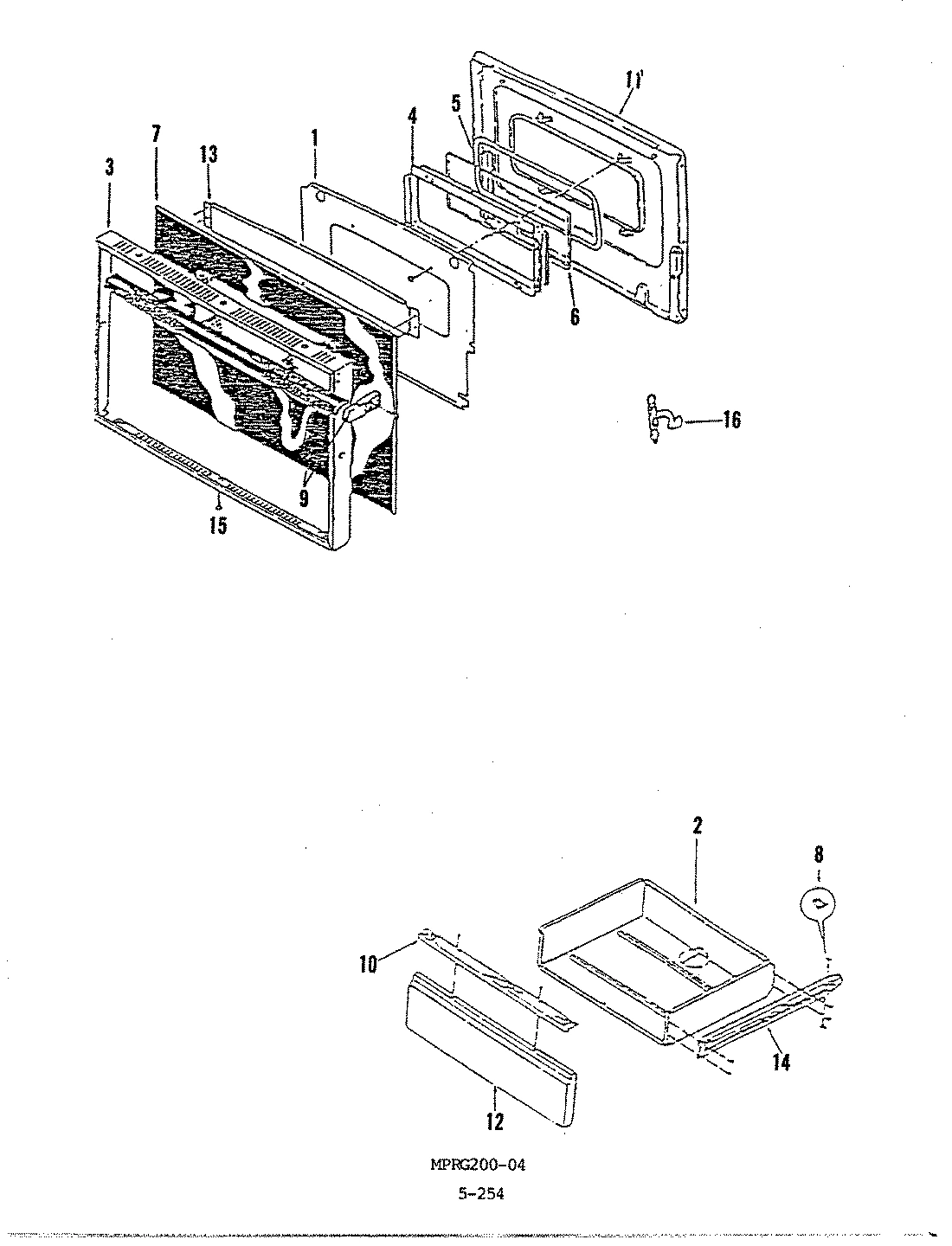

03 - DOOR\LATCH ASSY.
Common parts from model Whirlpool 654WD-HVW ELECTRIC RANGE
1
BACK, MAIN WPL 0903114 Contact Us For Availability
1
GLASS, CLOCK WPL 1327135 Contact Us For Availability
1
+ CLOCK, INTER TIMER WPL 7602P03860 Contact Us For Availability
1
BRACKET WPL 0284324 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F094 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
1
CLIP, DOOR GLASS WPL 7712E031 Contact Us For Availability
2
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
2
DRAWER ASSY. WPL 0384227 Contact Us For Availability
3
BRACE WPL 0277238 Contact Us For Availability
3
BRACE WPL 0277257 Contact Us For Availability
3
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
3
BOX, VENT WPL 4006W02545 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 4011C073 Contact Us For Availability
3
BOX, BURNER WPL 4011F08023 Contact Us For Availability
3
FRAME, OVN DOOR WPL 7706E007 Contact Us For Availability
3
FRAME, DOOR WPL 7706P17860 Contact Us For Availability
4
SHIELD, ACCESS WPL 0787407 Contact Us For Availability
4
CLAMP WPL 1140201 Contact Us For Availability
4
CLIP WPL 1141237 Contact Us For Availability
4
KNOB, SELECTOR WPL 7711E125 Contact Us For Availability
4
FRAME, WINDOW WPL 3603J013 Contact Us For Availability
5
KNOB, SELECTOR WPL 1362239 Contact Us For Availability
5
GASKET WPL 1313263 Contact Us For Availability
6
LIGHT, INDICATOR WPL 1406251 Contact Us For Availability
6
GLASS WPL 1327100 Contact Us For Availability
7
ELEMENT, SOLID DISC (8``) WPL 7406P02460 Contact Us For Availability
7
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
7
+ GLASS, DOOR WPL 7902E064 Contact Us For Availability
8
ELEMENT (6``) WPL 7406P02360 Contact Us For Availability
8
GLIDE WPL 1329101 Contact Us For Availability
8
GLIDE, SERVICE DRAWER (FRONT) WPL 8016E005 Contact Us For Availability
8
PLUG WPL 1605203 Contact Us For Availability
8
PANEL, BKGD-N WPL 2601W15081 Contact Us For Availability
8
PANEL, BKGD-A WPL 2601W15084 Contact Us For Availability
8
PANEL, BKGD-Y WPL 2601W15086 Contact Us For Availability
8
PANEL, BKGD-G WPL 2601W15087 Contact Us For Availability
8
PANEL, BKGD-B WPL 2601W15088 Contact Us For Availability
8
SHIELD, BKGD WIRE WPL Y0787432 Contact Us For Availability
9
FRAME, BURNER BOX WPL 0462240 Contact Us For Availability
9
SUPPORT WPL 0862417 Contact Us For Availability
9
SUPPORT WPL 0862418 Contact Us For Availability
9
HANDLE, DOOR WPL 7701E019 Contact Us For Availability
10
FRAME, OVEN WPL 2201C014 Contact Us For Availability
10
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
10
HANDLE, DOOR WPL 1355304 Contact Us For Availability
11
SWITCH WPL 1832378 Contact Us For Availability
11
LINING ASSY, OV DR WPL 2402W09023 Contact Us For Availability
11
LINING, OVEN DOOR WPL 2422C074 Contact Us For Availability
12
+ HINGE, MAIN TOP WPL 0529103 Contact Us For Availability
12
+ HINGE, MAIN TOP WPL 0529104 Contact Us For Availability
12
SWITCH, INF. CONTROL WPL 7403P06460 Contact Us For Availability
12
SWITCH, SURFACE ELEMENT (6``) WPL 7403P07060 Contact Us For Availability
12
SWITCH, INF. CONTROL WPL 7403P07460 Contact Us For Availability
12
+ PANEL, SERVICE DWR WPL 0684316A Contact Us For Availability
12
+ PANEL, SERVICE WPL 0684316B Contact Us For Availability
12
+ PANEL, SERVICE WPL 0684316G Contact Us For Availability
12
+ PANEL, SERVICE WPL 0684316N Contact Us For Availability
12
+ PANEL, SERVICE WPL 0684316Y Contact Us For Availability
13
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
13
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
13
INSERT WPL Y0507229 Contact Us For Availability
13
HOUSING WPL Y0537241 Contact Us For Availability
13
THERMOSTAT WPL 7404P02960 Contact Us For Availability
13
TRIM, BKGD WPL 7703P13160 Contact Us For Availability
13
RETAINER, GLASS WPL 3804F040 Contact Us For Availability
14
RUNNER, OUTER WPL 3406J007 Contact Us For Availability
14
TRIM WPL 1916187 Contact Us For Availability
14
SCREW, SPECIAL WPL 1986231 Contact Us For Availability
14
WIRE WPL 766215 Contact Us For Availability
15
LINING, INNER SIDE WPL 4009W02920 Contact Us For Availability
15
TRIM WPL 1916188 Contact Us For Availability
15
SEAL WPL 1726252 Contact Us For Availability
15
SCREW, SPECIAL WPL 1986258 Contact Us For Availability
15
SCREW, OVEN DOOR WPL 7101E083 Contact Us For Availability
15
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
16
PANEL, SIDE WPL 0801240N Contact Us For Availability
16
SUPPORT WPL 0862426 Contact Us For Availability
16
STOP, DOOR WPL Y0112241 Contact Us For Availability
17
PIN, OVEN DOOR HINGE WPL 1584204 Contact Us For Availability
17
RACK, OVEN WPL 1636254 Contact Us For Availability
18
RECEPTACLE, OVEN LIGHT WPL 1657202 Contact Us For Availability
20
BUMPER WPL 1784202 Contact Us For Availability
21
RUNNER WPL Y0766215 Contact Us For Availability
22
SCREW, SPECIAL WPL 1986204 Contact Us For Availability
23
SCREW, TOP HINGE WPL 1986339 Contact Us For Availability
23
SCREW, INF SWITCH WPL 7101P10260 Contact Us For Availability
25
SHIELD WPL 0787411 Contact Us For Availability
25
SEAL WPL 1726257 Contact Us For Availability
26
RING, SNAP WPL 1013214 Contact Us For Availability
26
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
28
SUPPORT, BROIL ELEMENT WPL Y0862419 Contact Us For Availability
29
SUPPORT, 6`` WPL 8004P01160 Contact Us For Availability
30
TERMINAL WPL 1860211 Contact Us For Availability
30
SUPPORT, 8`` WPL 8004P01260 Contact Us For Availability
31
TOP ASSY, MAIN N WPL 2002W02601 Contact Us For Availability
32
TUBE, OVEN VENT WPL 8026E005 Contact Us For Availability
32
TUBE, OVEN VENT WPL 8026P00560 Contact Us For Availability
× ![]()
