Model Maytag 6498VVV GAS RANGE – Common Parts & Diagrams
01 - BODY
02 - DOOR/DRAWER

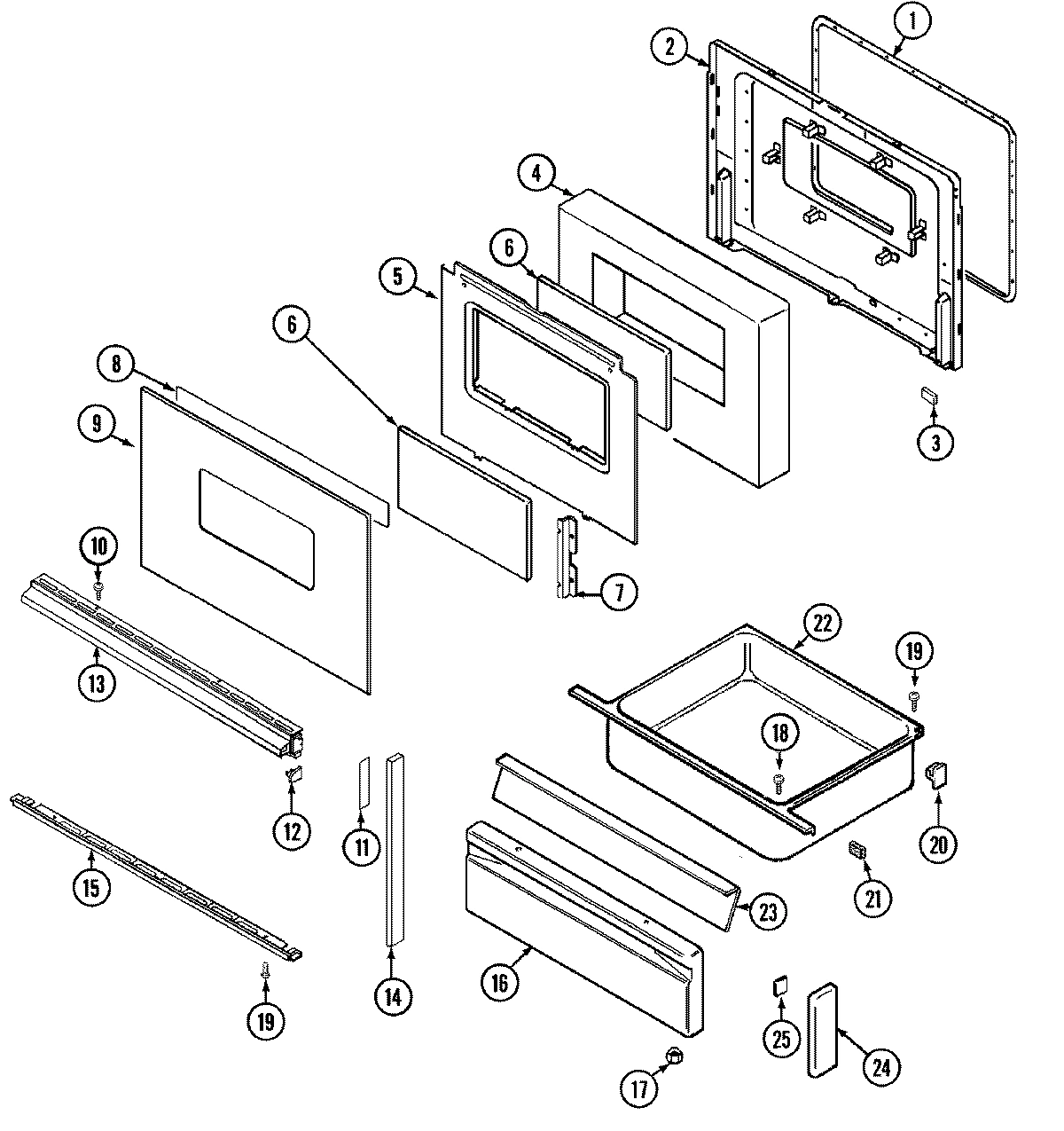

03 - DOOR/DRAWER (SER. PRE. 13)

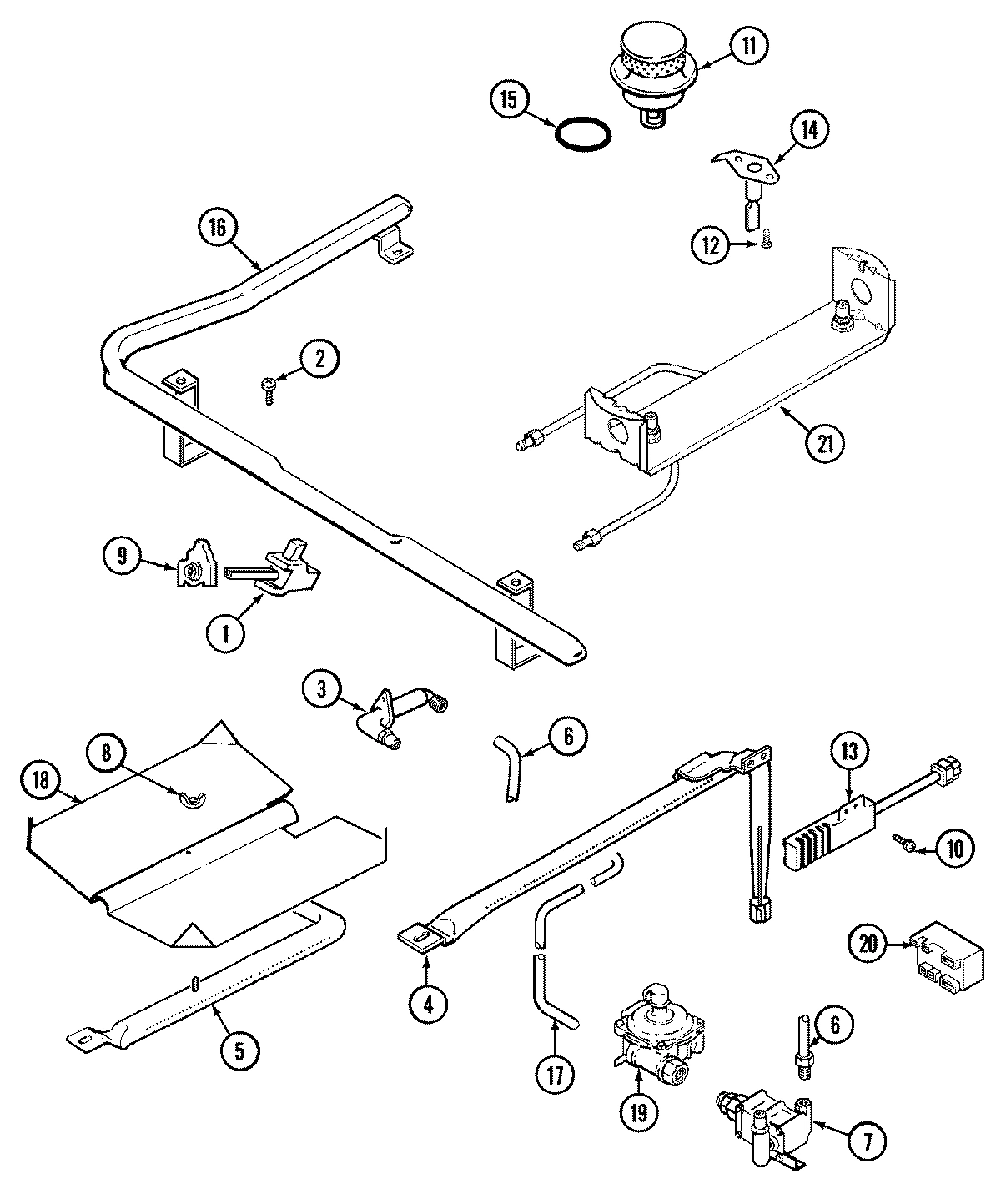

04 - GAS CONTROLS

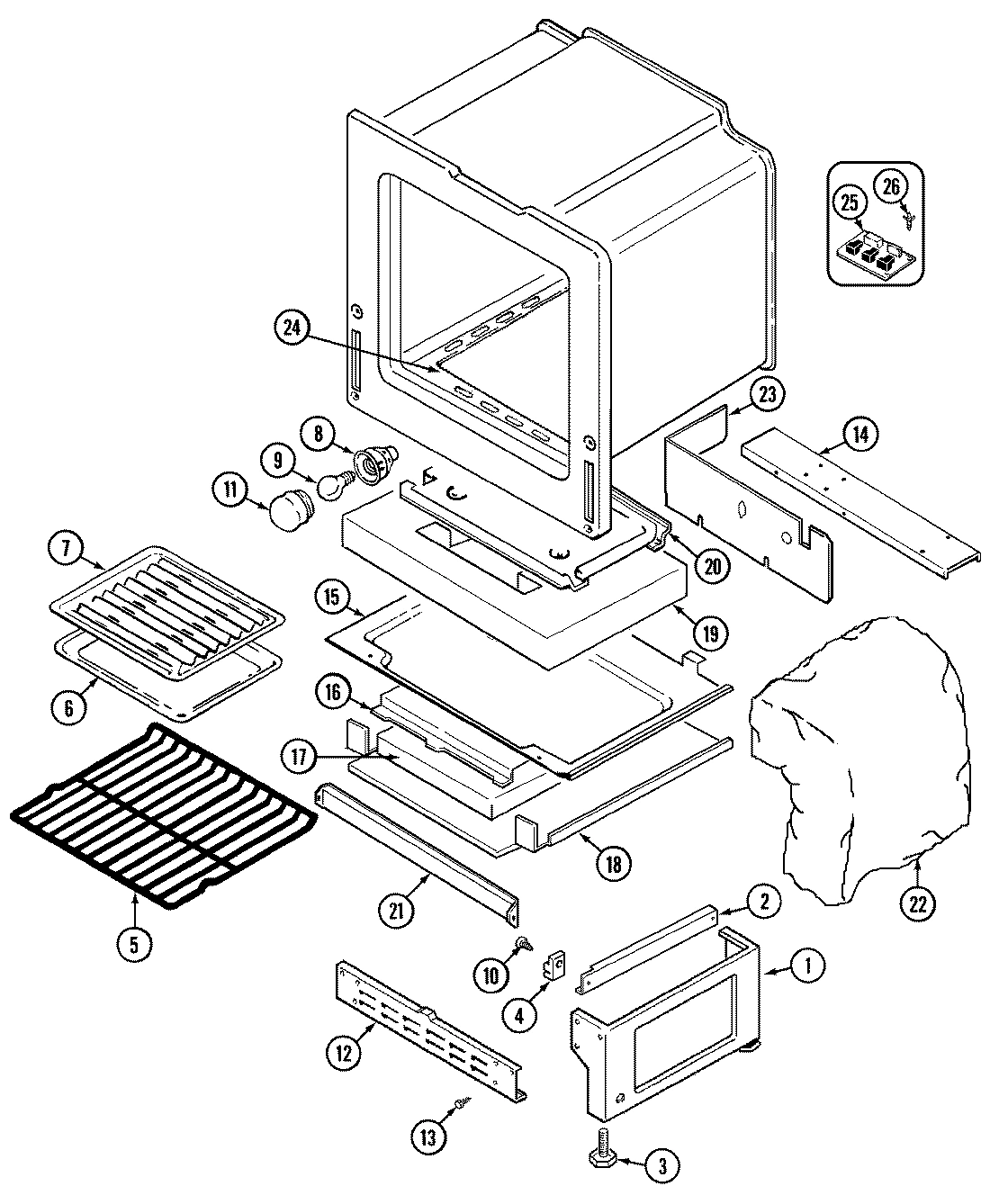

05 - OVEN/BASE

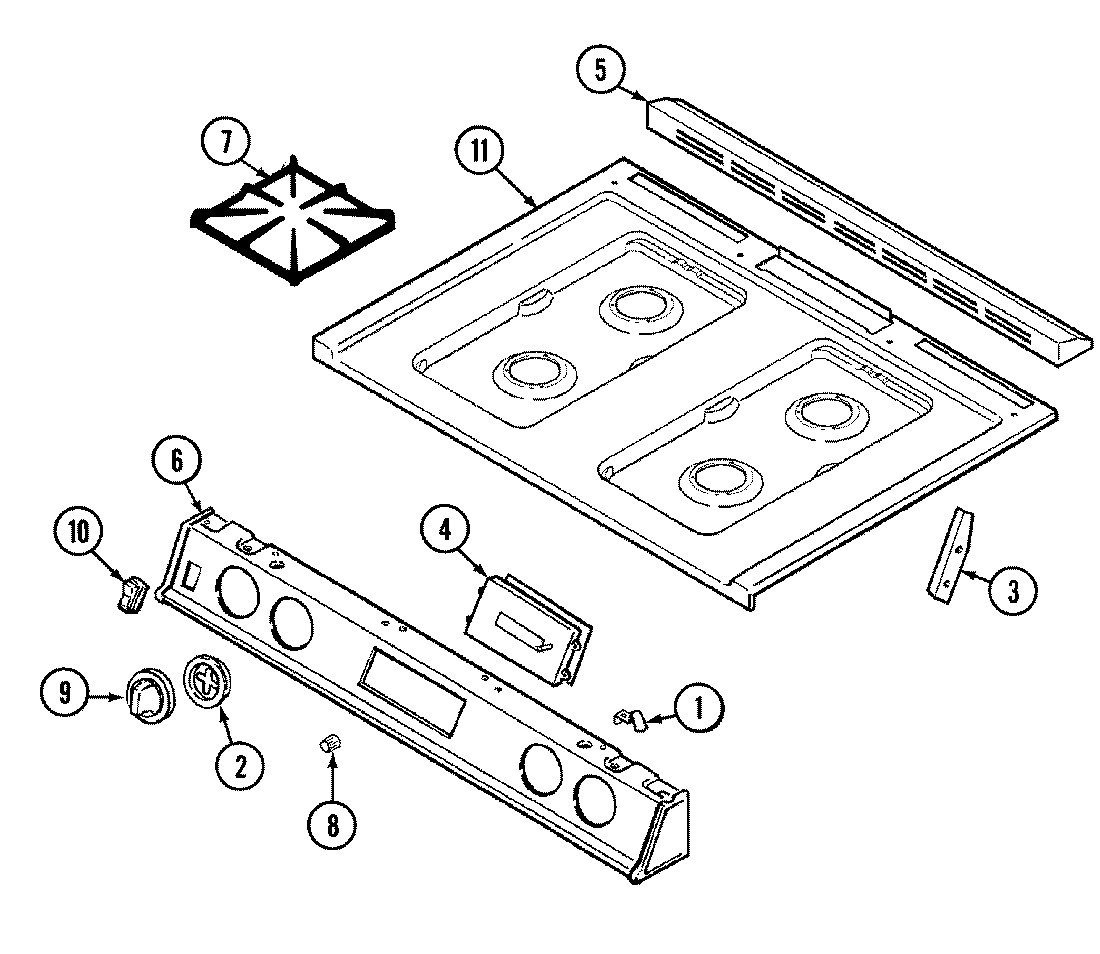

06 - TOP ASSEMBLY

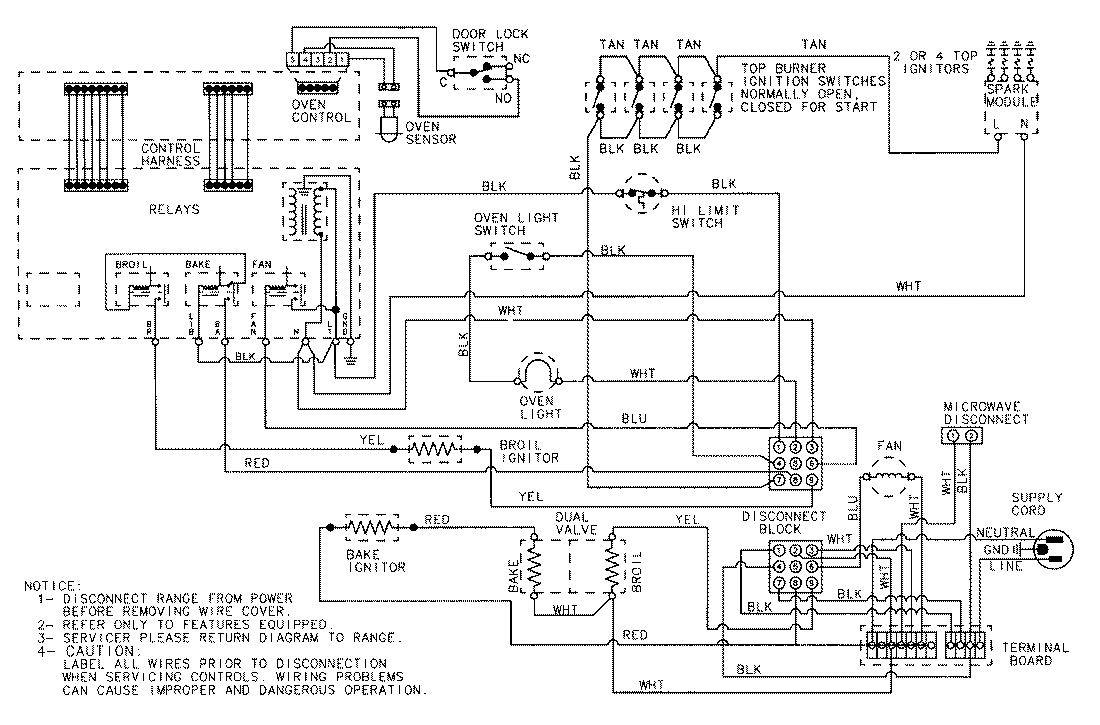

07 - WIRING INFORMATION
Common parts from model Maytag 6498VVV GAS RANGE
1
MAY 7502P251-60 MAY 7502P251-60 Contact Us For Availability
1
MAY 4020W009-80 MAY 4020W009-80 Contact Us For Availability
1
MAY 3801F318-51 MAY 3801F318-51 Contact Us For Availability
2
MAY 2402W209-19 MAY 2402W209-19 Contact Us For Availability
2
MAY 74003244 MAY 74003244 Contact Us For Availability
2
MAY 7101P044-60 MAY 7101P044-60 Contact Us For Availability
2
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
2
RUNNER, DRAWER MAY 74003565 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY 3605F186-45 MAY 3605F186-45 Contact Us For Availability
3
MAY 7507P088-60 MAY 7507P088-60 Contact Us For Availability
3
MAY 7101P316-60 MAY 7101P316-60 Contact Us For Availability
3
MAY 3807F431-45 MAY 3807F431-45 Contact Us For Availability
4
SPACER, MAIN TOP (RT) MAY 8010P088-60 Contact Us For Availability
4
MAY 74001842 MAY 74001842 Contact Us For Availability
4
MAY 74003566 MAY 74003566 Contact Us For Availability
4
MAY 3403D043-45 MAY 3403D043-45 Contact Us For Availability
4
MAY 3807F446-45 MAY 3807F446-45 Contact Us For Availability
4
MAY 8004P025-60 MAY 8004P025-60 Contact Us For Availability
4
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
4
MAY 74002298 MAY 74002298 Contact Us For Availability
4
MAY 74002888 MAY 74002888 Contact Us For Availability
4
MAY 74003191 MAY 74003191 Contact Us For Availability
4
MAY 7601P277-60 MAY 7601P277-60 Contact Us For Availability
5
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
5
BAFFLE,VENT COVER MAY 3601F221-45 Contact Us For Availability
5
MAY 74001843 MAY 74001843 Contact Us For Availability
5
MAY 3403D024-45 MAY 3403D024-45 Contact Us For Availability
5
MAY 7801P040-60 MAY 7801P040-60 Contact Us For Availability
5
MAY 4825D001-59 MAY 4825D001-59 Contact Us For Availability
5
MAY 7201P061-60 MAY 7201P061-60 Contact Us For Availability
6
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
6
MAY 74001069 MAY 74001069 Contact Us For Availability
6
MAY 74001084 MAY 74001084 Contact Us For Availability
6
MAY 8002P027-60 MAY 8002P027-60 Contact Us For Availability
6
MAY 74001841 MAY 74001841 Contact Us For Availability
6
MAY 3414F102-44 MAY 3414F102-44 Contact Us For Availability
6
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
6
MAY 7112P102-60 MAY 7112P102-60 Contact Us For Availability
6
MAY 74001542 MAY 74001542 Contact Us For Availability
6
MAY 74002588 MAY 74002588 Contact Us For Availability
6
MAY 74003914 MAY 74003914 Contact Us For Availability
6
MAY 7712P197-60 MAY 7712P197-60 Contact Us For Availability
7
MAY 74001655 MAY 74001655 Contact Us For Availability
7
MAY 4005F355-51 MAY 4005F355-51 Contact Us For Availability
7
MAY 7002P155-60 MAY 7002P155-60 Contact Us For Availability
7
MAY 74001844 MAY 74001844 Contact Us For Availability
7
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
7
MAY 2003W027-26 MAY 2003W027-26 Contact Us For Availability
7
MAY 74001061 MAY 74001061 Contact Us For Availability
8
MAY 7109P015-60 MAY 7109P015-60 Contact Us For Availability
8
MAY 7112P112-60 MAY 7112P112-60 Contact Us For Availability
8
MAY 74002973 MAY 74002973 Contact Us For Availability
8
MAY 8009P025-60 MAY 8009P025-60 Contact Us For Availability
8
MAY 8009P028-60 MAY 8009P028-60 Contact Us For Availability
8
NOT REQUIRED PART OR SEE NOTE NOT REQUIRED (6 MAY W10124350 Contact Us For Availability
8
MAY 3601F236-47 MAY 3601F236-47 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
8
NUT, WING MAY 7103P030-60 Contact Us For Availability
8
MAY 74003125 MAY 74003125 Contact Us For Availability
8
MAY 7711P432-60 MAY 7711P432-60 Contact Us For Availability
9
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
9
MAY 7902P328-60 MAY 7902P328-60 Contact Us For Availability
9
MAY 74003395 MAY 74003395 Contact Us For Availability
10
MAY 7701P089-60 MAY 7701P089-60 Contact Us For Availability
10
MAY 7907P021-60 MAY 7907P021-60 Contact Us For Availability
10
MAY 7403P200-60 MAY 7403P200-60 Contact Us For Availability
11
MAY 3818F052-80 MAY 3818F052-80 Contact Us For Availability
11
MAY 8270P093-60 MAY 8270P093-60 Contact Us For Availability
11
MAY 3412D018-26 MAY 3412D018-26 Contact Us For Availability
11
MAY 2001W089-81 MAY 2001W089-81 Contact Us For Availability
12
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
12
MAY 7744P075-60 MAY 7744P075-60 Contact Us For Availability
12
MAY 7744P076-60 MAY 7744P076-60 Contact Us For Availability
12
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
12
MAY 74002738 MAY 74002738 Contact Us For Availability
12
MAY 74002739 MAY 74002739 Contact Us For Availability
12
MAY 7101P315-60 MAY 7101P315-60 Contact Us For Availability
12
MAY 5125A312-60 MAY 5125A312-60 Contact Us For Availability
12
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
12
MAY 5170P228-60 MAY 5170P228-60 Contact Us For Availability
12
MAY 5195D105-60 MAY 5195D105-60 Contact Us For Availability
12
MAY 74001575 MAY 74001575 Contact Us For Availability
13
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
13
MAY 7101P300-60 MAY 7101P300-60 Contact Us For Availability
13
MAY 7701P105-60 MAY 7701P105-60 Contact Us For Availability
13
MAY 7103P045-60 MAY 7103P045-60 Contact Us For Availability
13
MAY 74001171 MAY 74001171 Contact Us For Availability
13
MAY 74003396 MAY 74003396 Contact Us For Availability
13
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
13
MAY 7432P076-60 MAY 7432P076-60 Contact Us For Availability
13
MAY 16000329 MAY 16000329 Contact Us For Availability
13
MAY 16007437 MAY 16007437 Contact Us For Availability
13
MAY 16008701 MAY 16008701 Contact Us For Availability
13
MAY 8113P066-60 MAY 8113P066-60 Contact Us For Availability
14
MAY 4022W009-45 MAY 4022W009-45 Contact Us For Availability
14
MAY 74002333 MAY 74002333 Contact Us For Availability
14
MAY 7403P249-60 MAY 7403P249-60 Contact Us For Availability
14
MAY 7744P065-60 MAY 7744P065-60 Contact Us For Availability
14
MAY 74002342 MAY 74002342 Contact Us For Availability
14
MAY 74003398 MAY 74003398 Contact Us For Availability
14
MAY 3807F447-51 MAY 3807F447-51 Contact Us For Availability
15
MAY 8026P021-60 MAY 8026P021-60 Contact Us For Availability
15
MAY 7101P308-60 MAY 7101P308-60 Contact Us For Availability
15
MAY 7744P103-60 MAY 7744P103-60 Contact Us For Availability
15
MAY 74003397 MAY 74003397 Contact Us For Availability
15
MAY 7201P050-60 MAY 7201P050-60 Contact Us For Availability
15
MAY 3804F109-51 MAY 3804F109-51 Contact Us For Availability
16
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
16
MAY 2416F038-62 MAY 2416F038-62 Contact Us For Availability
16
PANEL, DRAWER (WHT) MAY 74003407 Contact Us For Availability
16
MAY 7103P130-60 MAY 7103P130-60 Contact Us For Availability
16
MAY 7513P121-60 MAY 7513P121-60 Contact Us For Availability
16
MAY 3604F204-51 MAY 3604F204-51 Contact Us For Availability
17
MAY 3801F267-45 MAY 3801F267-45 Contact Us For Availability
17
MAY 7003P063-60 MAY 7003P063-60 Contact Us For Availability
17
MAY 7403P361-60 MAY 7403P361-60 Contact Us For Availability
17
MAY 7403P363-60 MAY 7403P363-60 Contact Us For Availability
17
MAY 3414F103-44 MAY 3414F103-44 Contact Us For Availability
17
INSULATION, DRAWER & SHIELD MAY 7002P140-60 Contact Us For Availability
18
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
18
MAY 3601F217-47 MAY 3601F217-47 Contact Us For Availability
18
MAY 3604F205-51 MAY 3604F205-51 Contact Us For Availability
19
SCREW, HINGE MAY 7101P017-60 Contact Us For Availability
19
MAY 8270P048-60 MAY 8270P048-60 Contact Us For Availability
19
MAY 4804F014-60 MAY 4804F014-60 Contact Us For Availability
20
MAY 7101P130-60 MAY 7101P130-60 Contact Us For Availability
20
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
20
MAY 3805F002-34 MAY 3805F002-34 Contact Us For Availability
20
MAY 74001449 MAY 74001449 Contact Us For Availability
20
MAY 74003288 MAY 74003288 Contact Us For Availability
20
MAY 7431P027-60 MAY 7431P027-60 Contact Us For Availability
20
MAY 3401F024-45 MAY 3401F024-45 Contact Us For Availability
21
MAY 4006W122-45 MAY 4006W122-45 Contact Us For Availability
21
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
21
MAY 5187D036-60 MAY 5187D036-60 Contact Us For Availability
21
MAY 5187D037-60 MAY 5187D037-60 Contact Us For Availability
21
MAY 3601F208-45 MAY 3601F208-45 Contact Us For Availability
21
BAFFLE, OVEN FRONT MAY 74001219 Contact Us For Availability
22
MAY 7430P009-60 MAY 7430P009-60 Contact Us For Availability
22
MAY 3405F018-80 MAY 3405F018-80 Contact Us For Availability
22
MAY 7101P291-60 MAY 7101P291-60 Contact Us For Availability
22
MAY 71003042 MAY 71003042 Contact Us For Availability
22
MAY 5140D038-60 MAY 5140D038-60 Contact Us For Availability
22
MAY 4804F029-60 MAY 4804F029-60 Contact Us For Availability
22
MAY 4804F030-60 MAY 4804F030-60 Contact Us For Availability
23
MAY 7427P013-60 MAY 7427P013-60 Contact Us For Availability
23
LINING, DRAWER PANEL MAY 2404F030-51 Contact Us For Availability
23
MAY 4005F429-51 MAY 4005F429-51 Contact Us For Availability
24
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
24
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
24
MAY 7744P067-60 MAY 7744P067-60 Contact Us For Availability
24
MAY 3601F229-45 MAY 3601F229-45 Contact Us For Availability
24
MAY 3804F010-50 MAY 3804F010-50 Contact Us For Availability
24
MAY 5504M004-19 MAY 5504M004-19 Contact Us For Availability
25
MAY 3801F292-51 MAY 3801F292-51 Contact Us For Availability
25
TAPE MAY 8270P098-60 Contact Us For Availability
25
MAY 74003168 MAY 74003168 Contact Us For Availability
25
MAY 7428P020-60 MAY 7428P020-60 Contact Us For Availability
26
MAY 4006F134-51 MAY 4006F134-51 Contact Us For Availability
26
MAY 8004P020-60 MAY 8004P020-60 Contact Us For Availability
27
MAY 4011F156-51 MAY 4011F156-51 Contact Us For Availability
27
MAY 4005F420-80 MAY 4005F420-80 Contact Us For Availability
28
MAY 7506P124-60 MAY 7506P124-60 Contact Us For Availability
29
MAY 3604F173-51 MAY 3604F173-51 Contact Us For Availability
30
MAY 3604F174-51 MAY 3604F174-51 Contact Us For Availability
NI
MAY 15001412 MAY 15001412 Contact Us For Availability
× ![]()
