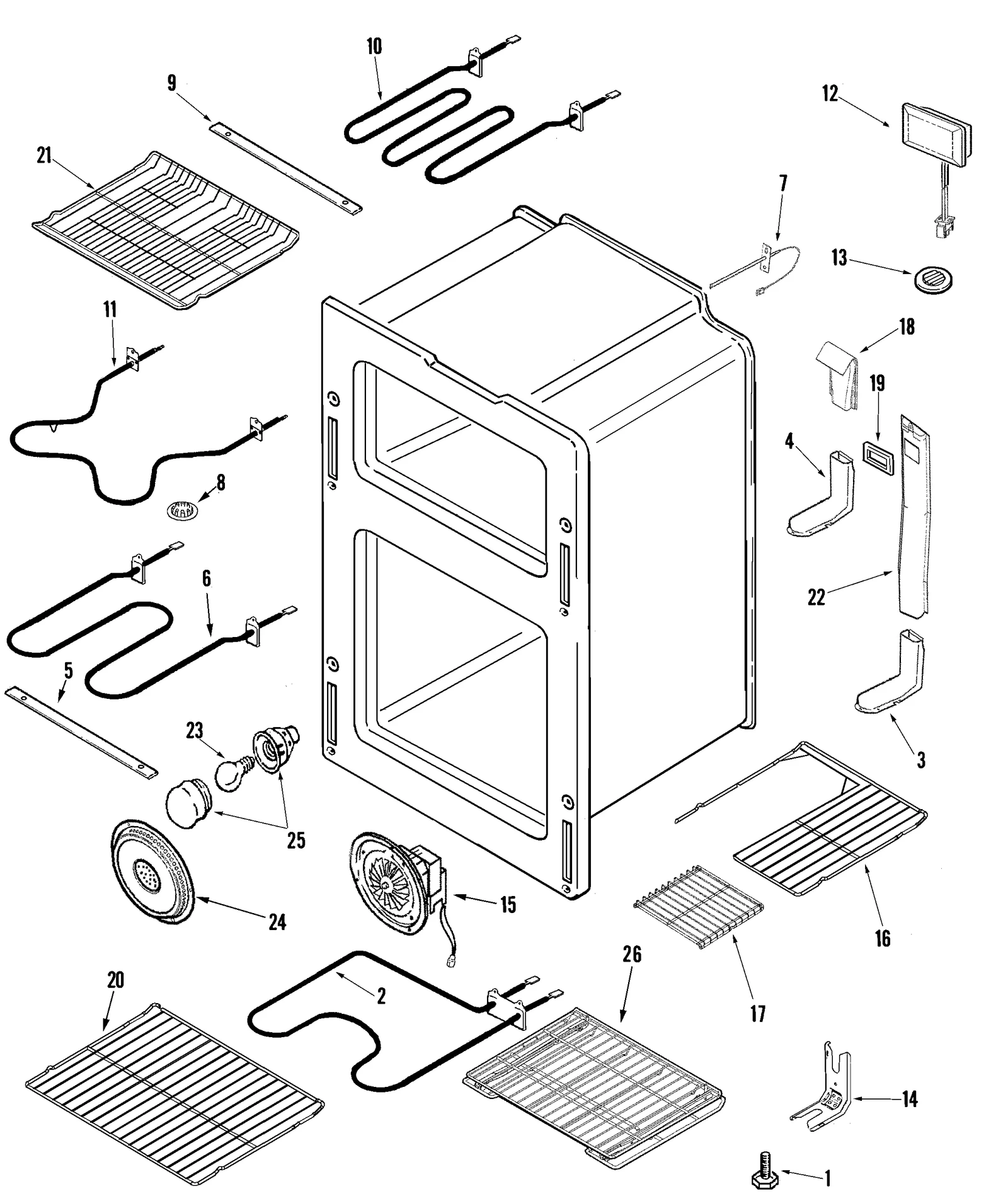

Model Whirlpool 629.60003600 Electric Freestanding Range (Kenmore 62960003600) – Common Parts &amp; Diagrams

1

Mini Manual WPL 74011860 Contact Us For Availability

1

Oven Lining WPL 74004564 Contact Us For Availability

1

Backing Panel WPL 74011850 Contact Us For Availability

1A

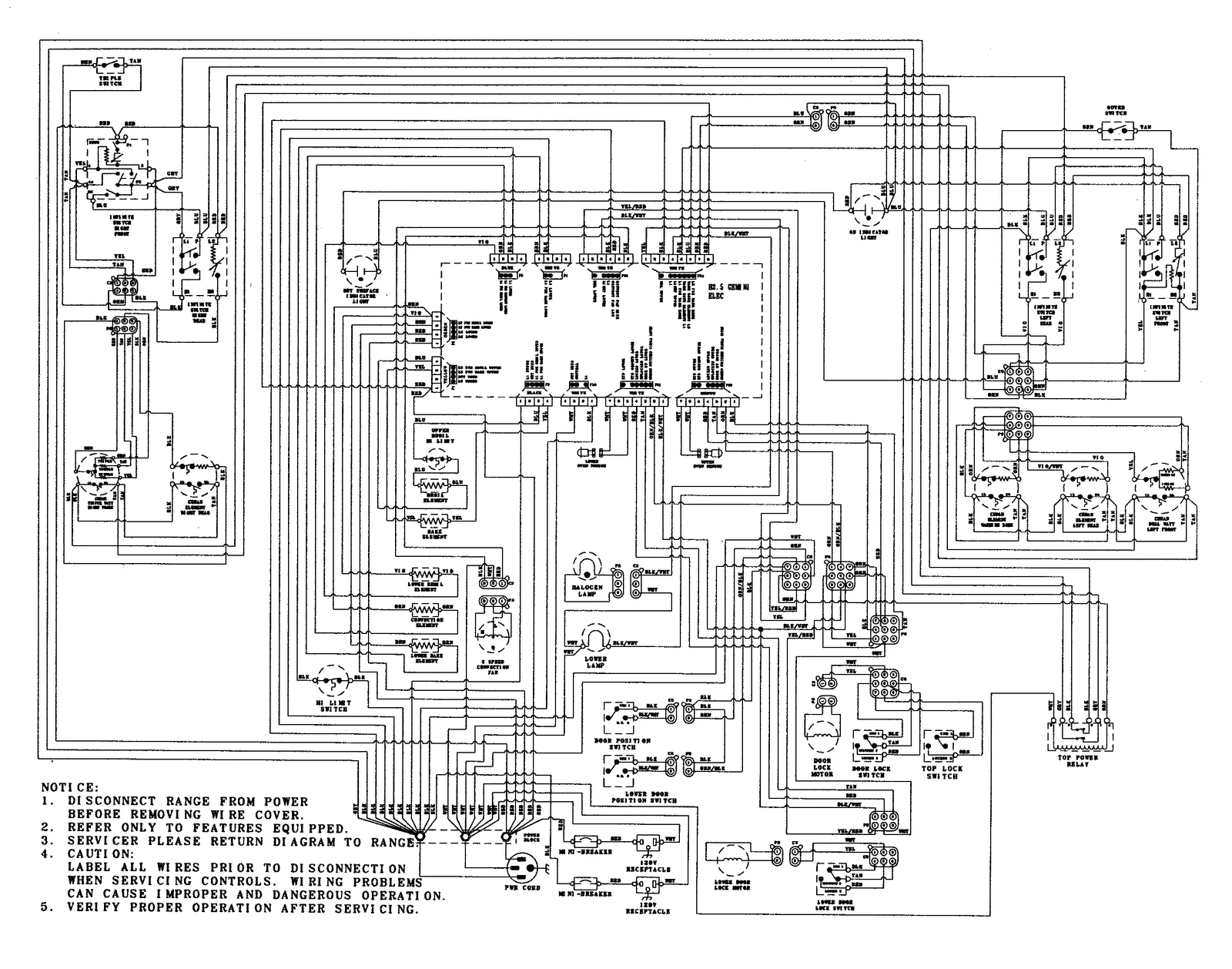

WIRING INFORMATION (FRC) (Series 10) (Non-Ill WPL 15003909 Contact Us For Availability

2

WP74009029 Whirlpool Door Gasket Backorder WPL WP74009029 $63.74

2

Use and Care Manual WPL 8113P638-60 Contact Us For Availability

2

Range Screw WPL 74007476 Contact Us For Availability

2

Range Oven Door Outer Panel (Stainless) WPL 74010197 Contact Us For Availability

2

Control Bracket WPL 74011859 Contact Us For Availability

2A

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.55

2B

WP74010043 Whirlpool Insulation Backorder WPL WP74010043 $30.26

3

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $4.65

3

SVC MAN, RANGE, ELECT (Series 10) (Non-Illus) WPL 16023416 Contact Us For Availability

3

Range Oven Door Seal WPL 74004518 Contact Us For Availability

3

Outer Glass WPL 74010196 Contact Us For Availability

3

Control Switch WPL 74011835 Contact Us For Availability

3A

Control Switch WPL 74011836 Contact Us For Availability

4

74007429 Whirlpool Door Latch Assembly Primar In Stock WPL 74007429 $141.42

4

WP7201P091-60 Whirlpool Door Gasket Backorder WPL WP7201P091-60 $58.97

4

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $3.76

4

Infinite Switch Wire Harness WPL 74011842 Contact Us For Availability

4A

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $9.75

4B

Door Lock La WPL 74007637 Contact Us For Availability

4C

Door Shield WPL 74010199 Contact Us For Availability

5

74008916 Whirlpool Window Gasket Backorder WPL 74008916 $58.48

5

WP7730P011-60 Whirlpool Indicator Lens Backorder WPL WP7730P011-60 $2.90

5

Main Harness WPL 74011840 Contact Us For Availability

5

Panel WPL 74003283 Contact Us For Availability

5

Range Oven Door Inner Glass WPL 74004566 Contact Us For Availability

6

WP74003122 Whirlpool Infinite Switch Assembly In Stock WPL WP74003122 $48.29

6

Harness, Doo WPL 74009975 Contact Us For Availability

6

Main Bracket WPL 74003384 Contact Us For Availability

6

Glass Frame WPL 74004567 Contact Us For Availability

6A

WP74010824 Whirlpool Range Element Control Sw In Stock WPL WP74010824 $67.90

6B

WP7403P238-60 Whirlpool Infinite Switch Small In Stock WPL WP7403P238-60 $26.26

7

74011142 Whirlpool Stove Range Oven Door Hing In Stock WPL 74011142 $75.82

7

Harness WPL 74011841 Contact Us For Availability

7

Door Glass WPL 74003649 Contact Us For Availability

7

Range Rocker Switch (Black) WPL 74008718 Contact Us For Availability

7B

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $24.83

8

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $97.70

8

74009965 Whirlpool Range Harness Backorder WPL 74009965 $32.59

8

WP4159193 Whirlpool Screw In Stock WPL WP4159193 $2.96

8

Hole Plug WPL 74004517 Contact Us For Availability

8

Oven Baffle WPL 74009976 Contact Us For Availability

8

Range Control Panel Support Bracket, Right WPL 74010201 Contact Us For Availability

8A

Backguard Support WPL 74010202 Contact Us For Availability

8C

WP98008545 Whirlpool Screw Backorder WPL WP98008545 $2.68

9

Broiler Support WPL 3807F176-19 Contact Us For Availability

9

Infinite Switch Wire Harness WPL 74011843 Contact Us For Availability

9

Hinge Assembly WPL 74007830 Contact Us For Availability

9

Insulation WPL 74004569 Contact Us For Availability

9

"T" FITTING (FLANGE) WPL N/P Contact Us For Availability

9A

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.75

W10201551 Whirlpool Range Broil Element In Stock WPL W10201551 $35.25

Harness Sensor WPL 74010402 Contact Us For Availability

Trim Kick Plate WPL 74007478 Contact Us For Availability

Door Shield WPL 74010040 Contact Us For Availability

Insulation WPL 74004570 Contact Us For Availability

Rear Cover WPL 74010983 Contact Us For Availability

3601F373-51 Whirlpool Baffle Backorder WPL 3601F373-51 $114.68

74004105 Whirlpool Range Upper Oven Bake Elem In Stock WPL 74004105 $64.14

Harness, Doo WPL 74010393 Contact Us For Availability

Range Oven Insulation WPL 74009968 Contact Us For Availability

Glass Retainer WPL 74004896 Contact Us For Availability

Range Surface Element Knob WPL 74004187 Contact Us For Availability

11A

Range Insulation WPL 74007336 Contact Us For Availability

11A

Infinite Knob WPL 74011848 Contact Us For Availability

11B

Insulation WPL 74007338 Contact Us For Availability

11C

Range Oven Insulation, Upper WPL 74007899 Contact Us For Availability

11D

Range Insulation WPL 74009979 Contact Us For Availability

Range Oven Light Assembly WPL 74009970 Contact Us For Availability

Auxiliary Relay WPL 74009845 Contact Us For Availability

Insulation WPL 74003647 Contact Us For Availability

Range Oven Door Middle Glass WPL 74004691 Contact Us For Availability

Main Top WPL 74011832 Contact Us For Availability

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $4.65

Smoke Screen WPL 74008597 Contact Us For Availability

Door Shield WPL 74007642 Contact Us For Availability

Door Handle WPL 74011846 Contact Us For Availability

Door Lining WPL 74011456 Contact Us For Availability

Range Screw and Washer WPL 7101P280-60 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.26

WPW10162384 Whirlpool Door Gasket In Stock WPL WPW10162384 $67.53

TECH SH, DOM RANGE, DBL OVEN (Series 10) (Non WPL 16027033 Contact Us For Availability

Bracket Reinforcement WPL 74007446 Contact Us For Availability

Range Upper Oven Door Outer Panel (Stainless) WPL 74010195 Contact Us For Availability

14A

WP7101P485-60 Whirlpool Anchor Tip Backorder WPL WP7101P485-60 $13.84

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $31.97

WPW10206586 Whirlpool Convection Motor Backorder WPL WPW10206586 $197.31

Main WPL 74009961 Contact Us For Availability

Outer Glass WPL 74010046 Contact Us For Availability

Range Radiant Surface Element WPL 74009898 Contact Us For Availability

15A

Screw WPL 74005401 Contact Us For Availability

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $102.83

WP74006515 Whirlpool Washer Screw In Stock WPL WP74006515 $2.55

Half Rack WPL WPW10273862 No Longer Available

Range Thermal Cut-Off WPL 74009969 Contact Us For Availability

Door Retainer WPL 74010041 Contact Us For Availability

16A

Range Screw WPL 7101P287-60 Contact Us For Availability

17

W10823719 Whirlpool Radiant Surface Element Backorder WPL W10823719 $166.68

17

Oven Insert WPL 74009587 Contact Us For Availability

17

Gemini Base WPL 74009962 Contact Us For Availability

18

WP74009899 Whirlpool Element Backorder WPL WP74009899 $112.73

18

Extension, V WPL 74009987 Contact Us For Availability

18

Burner Box WPL 74007671 Contact Us For Availability

18A

Burner Box WPL 74007672 Contact Us For Availability

18B

Ven Bracket WPL 74009988 Contact Us For Availability

19

Vent Gasket WPL 74004533 Contact Us For Availability

19

Access Cover WPL 74010256 Contact Us For Availability

19A

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $2.55

20

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.80

20

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $6.90

20

Oven Rack WPL 74011813 Contact Us For Availability

21

WPW10273816 Whirlpool Oven Rack In Stock WPL WPW10273816 $84.15

21

Switch Bracket WPL 74001632 Contact Us For Availability

21

Rear Shield WPL 74009701 Contact Us For Availability

21A

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.55

21A

Screw WPL 700502 Contact Us For Availability

22

Extension, O WPL 74004535 Contact Us For Availability

22

Range Oven Door Switch WPL 74004536 Contact Us For Availability

22

Receptacle WPL 71003068 Contact Us For Availability

22A

Latch Screw WPL 7101P330-60 Contact Us For Availability

23

Range Oven Door Switch Spring WPL 74001629 No Longer Available

23

Oven Bulb WPL 707319 Contact Us For Availability

23

Circuit Breaker WPL 71003070 Contact Us For Availability

24

Conversion Plate WPL 74005783 Contact Us For Availability

24

Bumper Rod WPL 74001631 Contact Us For Availability

25

WP74011278 Whirlpool Light Backorder WPL WP74011278 $70.66

25

Door Light Rod WPL 74003562 Contact Us For Availability

26

Telescoping Rack WPL 74005218 Contact Us For Availability

26

Insulator, S WPL 74001872 Contact Us For Availability

27

Power Shield WPL 74005653 Contact Us For Availability

28

Main Spacer WPL 8010P087-60 Contact Us For Availability

28A

Main Spacer WPL 8010P088-60 Contact Us For Availability

29

Screw WPL 7101P313-60 Contact Us For Availability

30

WPW10245259 Whirlpool Terminal Block In Stock WPL WPW10245259 $13.67

30A

Insulator, H WPL 74004532 Contact Us For Availability

31

Main Cover WPL 74004576 Contact Us For Availability

32

Terminal Cover WPL 74004577 Contact Us For Availability

33

Oven Support WPL 74005499 Contact Us For Availability

33A

Oven Support WPL 74005500 Contact Us For Availability

34

Retainer WPL 74011858 Contact Us For Availability

36

Power Cord WPL 7402P050-60 Contact Us For Availability
