Model Whirlpool 5VEV188NAS00 VERTICAL FREEZER – Common Parts & Diagrams
04 - UNIT PARTS
03 - DOOR PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)

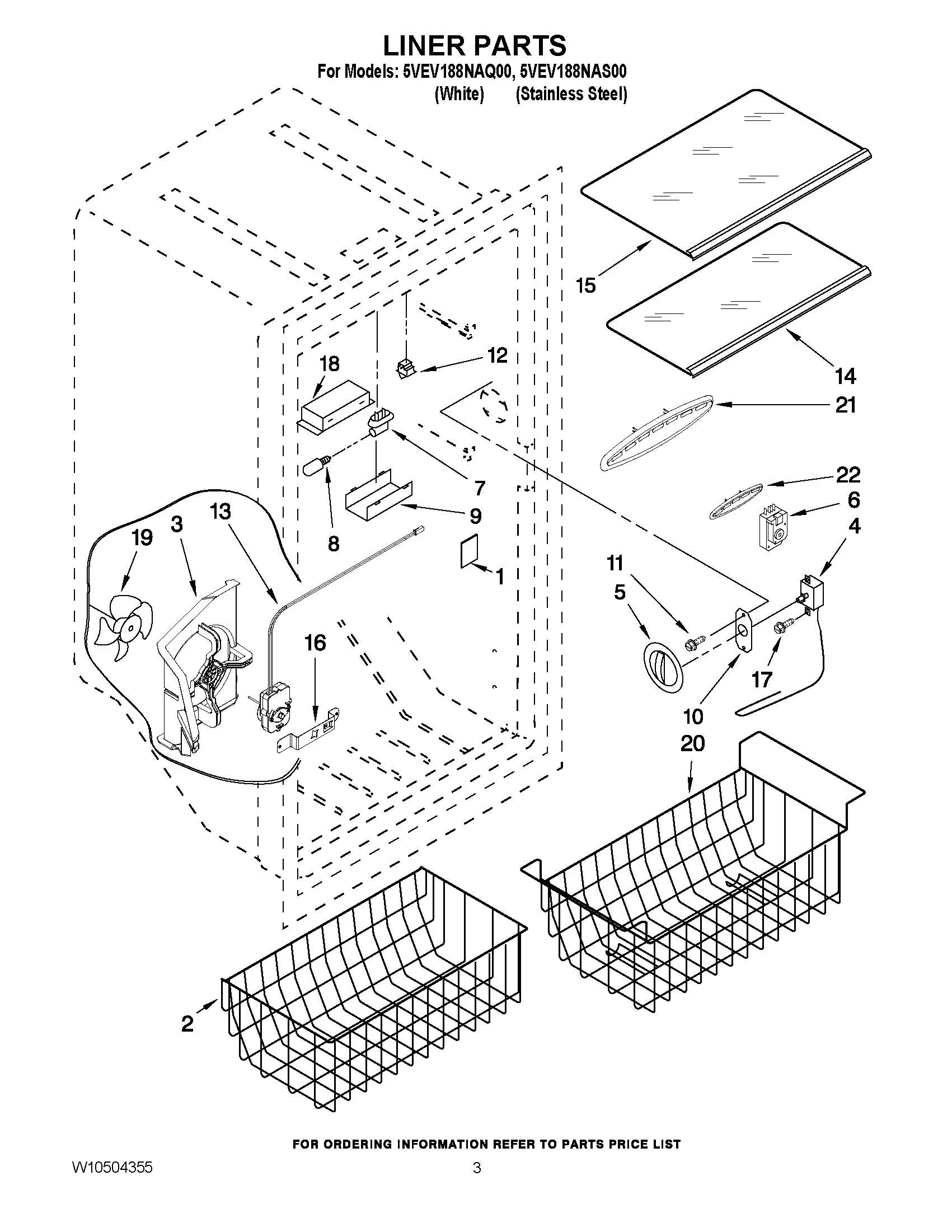

02 - LINER PARTS

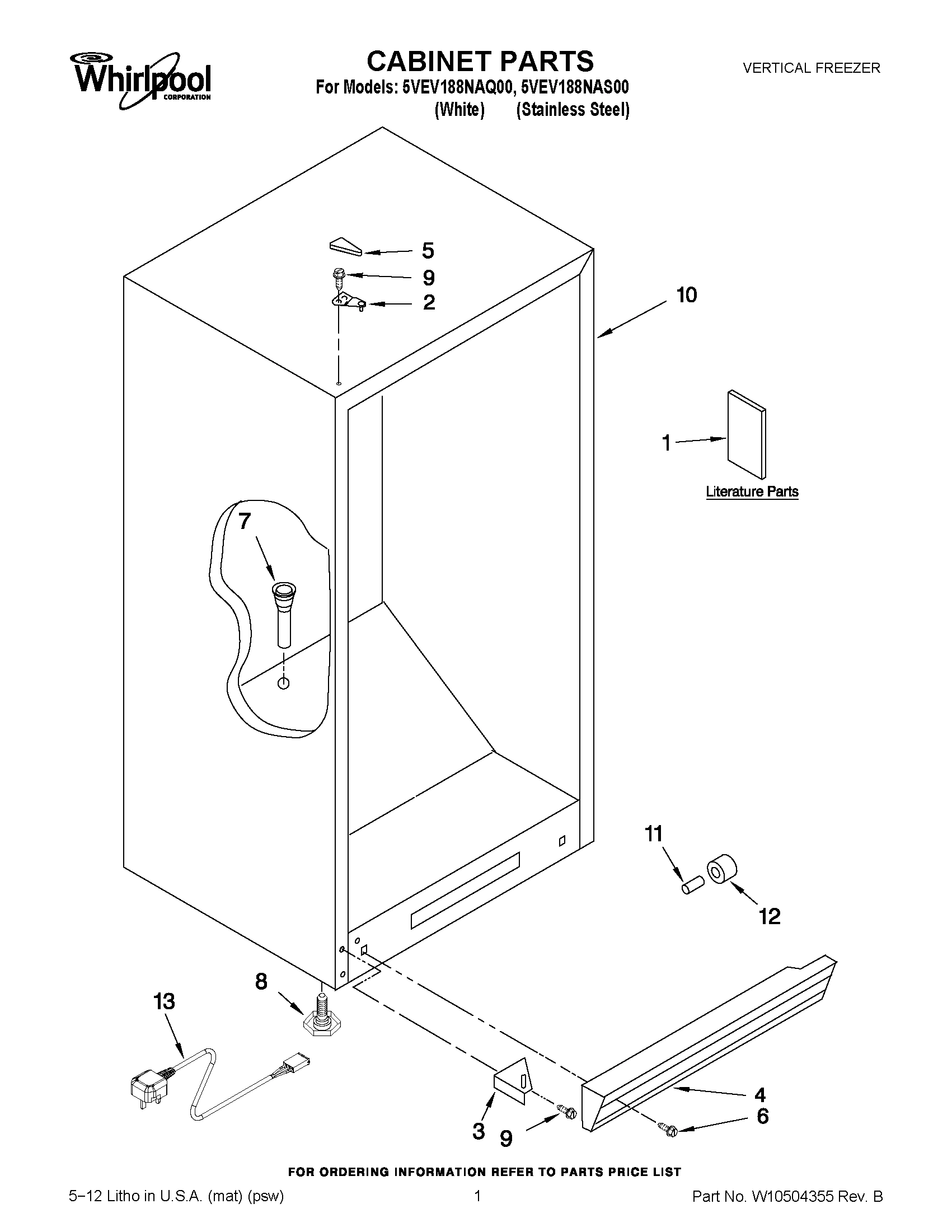

01 - CABINET PARTS
Common parts from model Whirlpool 5VEV188NAS00 VERTICAL FREEZER
1
DOOR ASSEMBLY (INCLUDES INTERIOR G81DOOR LINE WPL 482827057 Contact Us For Availability
1
DOOR ASSEMBLY (INCLUDES INTERIOR G81DOOR LINE WPL 482827060 Contact Us For Availability
1
COVER, ICEMAKER HOLE WPL 160123001 Contact Us For Availability
1
OWNERS MANUAL WPL W10443588 Contact Us For Availability
2
EVAPORATOR WPL W10455861 Contact Us For Availability
2
GASKET (WHITE) WPL 465151002 Contact Us For Availability
2
GASKET (BLACK) WPL 465151010 Contact Us For Availability
2
BASKET, MIDDLE WPL 482880001 Contact Us For Availability
2
TOP HINGE (WHITE) WPL 281016105 Contact Us For Availability
2
TOP HINGE (BLACK) WPL 281016107 Contact Us For Availability
3
STOP, DOOR (TOP) (NATURAL) WPL 281124001 Contact Us For Availability
3
STOP, DOOR (TOP) (BLACK) WPL 281124004 Contact Us For Availability
3
SHROUD, CONDENSER MOTOR WPL 482690001 Contact Us For Availability
4
STOP, DOOR (BOTTOM) WPL 281125001 Contact Us For Availability
4
THERMOSTAT WPL 460186001 Contact Us For Availability
4
GRILLE (WHITE) WPL 460461005 Contact Us For Availability
4
GRILLE (BLACK) WPL 460461010 Contact Us For Availability
5
RAIL, DOOR (LOWER) WPL 465449001 Contact Us For Availability
5
KNOB, THERMOSTAT WPL 481294004 Contact Us For Availability
5
HINGE COVER (WHITE) WPL 380838003 Contact Us For Availability
5
HINGE COVER (BLACK) WPL 380838007 Contact Us For Availability
6
TIMER, DEFROST WPL 381329001 Contact Us For Availability
6
SCREW WPL 324004107 Contact Us For Availability
7
SCREW WPL 360696001 Contact Us For Availability
8
BIN, DOOR WPL 465454001 Contact Us For Availability
8
LEG, LEVELLER (BLACK) WPL 382710001 Contact Us For Availability
9
SHIELD, LIGHT WPL 360197001 Contact Us For Availability
9
SCREW WPL 180271103 Contact Us For Availability
10
CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
10
BUSHING (WHITE) WPL 360199001 Contact Us For Availability
10
BUSHING (BLACK) WPL 360199004 Contact Us For Availability
10
PLATE, THERMOSTAT WPL 181154 Contact Us For Availability
11
AXLE WPL 160316001 Contact Us For Availability
11
SCREW WPL 180283110 Contact Us For Availability
12
ROLLER, FRONT WPL 360315001 Contact Us For Availability
12
LIGHT, SWITCH WPL 232164001 Contact Us For Availability
13
MOTOR, CONDENSER WPL W10443762 Contact Us For Availability
14
HANDLE (WHITE) WPL 383029002 Contact Us For Availability
14
HANDLE (SATINA) WPL 383029004 Contact Us For Availability
14
SHELF, MIDDLE WPL 460209002 Contact Us For Availability
15
VENT PLUG WPL 324898007 Contact Us For Availability
15
SHELF, TOP WPL 460207002 Contact Us For Availability
17
SCREW WPL 380732014 Contact Us For Availability
18
BRACKET, LIGHT WPL 460201001 Contact Us For Availability
19
BLADE-FAN WPL 382692001 Contact Us For Availability
20
BASKET, LOWER WPL 460064002 Contact Us For Availability
21
DIFFUSER, AIR UPR WPL 482556002 Contact Us For Availability
22
DIFFUSER, AIR LWR WPL 482573002 Contact Us For Availability
28
SCREW WPL 324838048 Contact Us For Availability
31
SCREW WPL 324004079 Contact Us For Availability
33
GROMMET WPL 180275101 Contact Us For Availability
34
CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
