Model Whirlpool 5VEV188NAQ00 VERTICAL FREEZER – Common Parts & Diagrams
02 - LINER PARTS
01 - CABINET PARTS

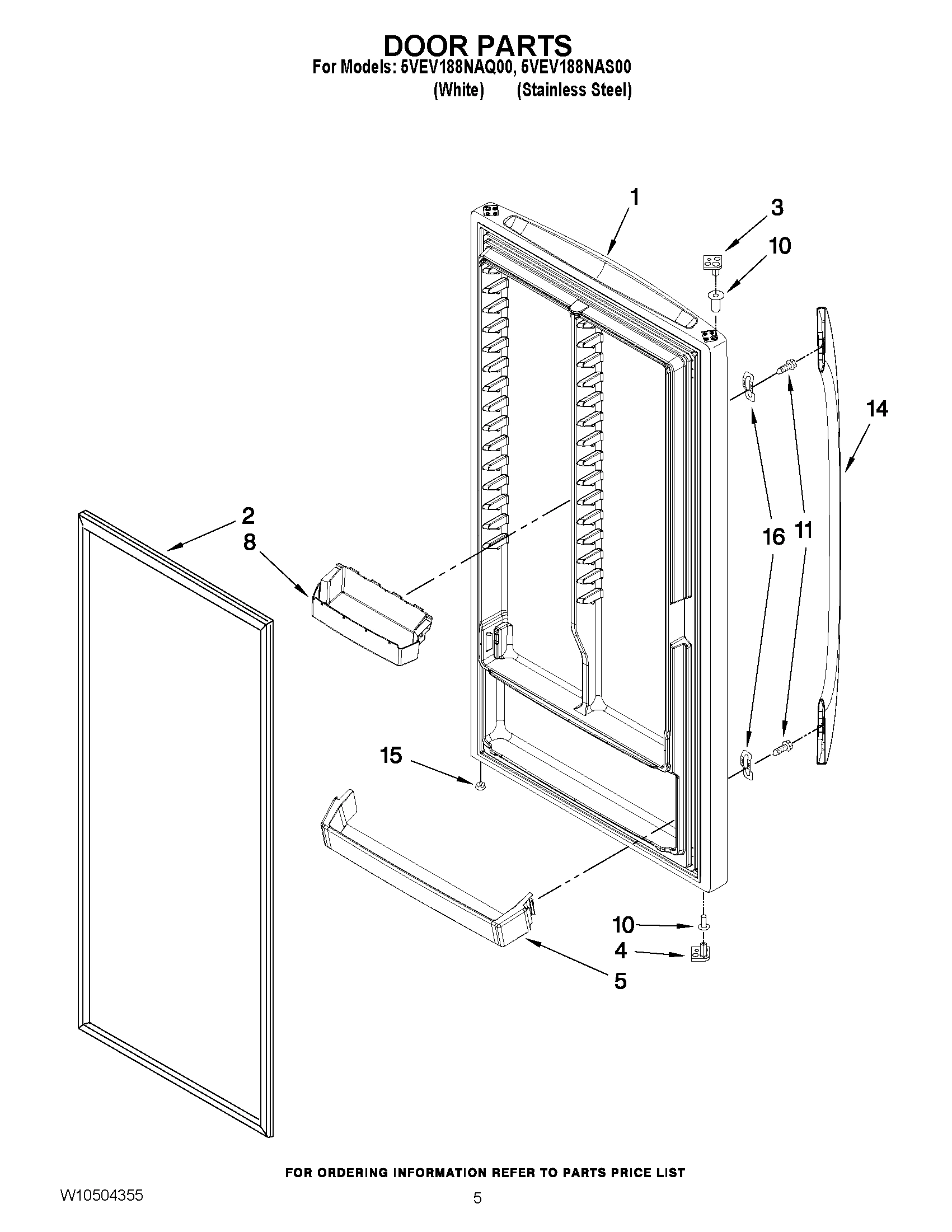

03 - DOOR PARTS

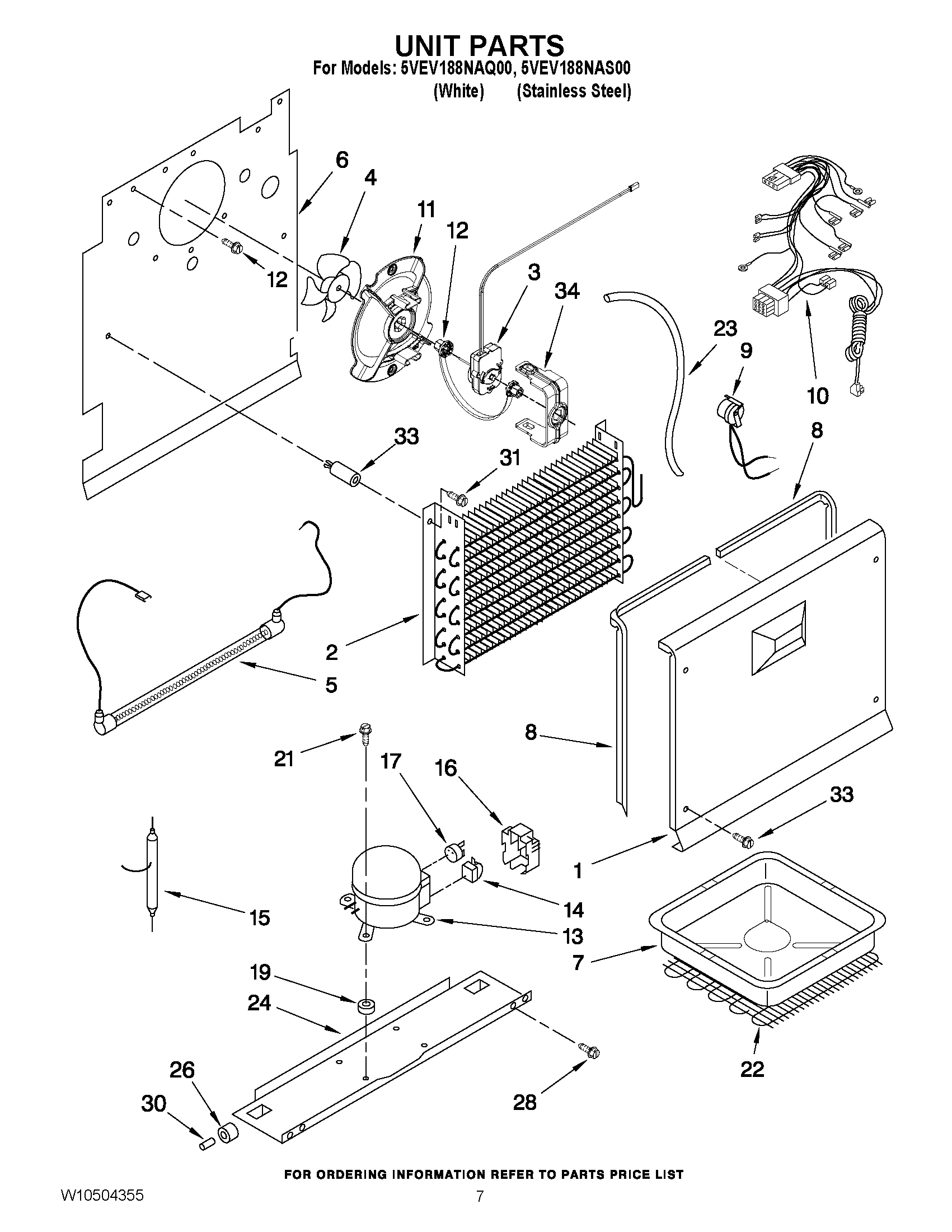

04 - UNIT PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool 5VEV188NAQ00 VERTICAL FREEZER
1
OWNERS MANUAL WPL W10443588 Contact Us For Availability
1
DOOR ASSEMBLY (INCLUDES INTERIOR G81DOOR LINE WPL 482827057 Contact Us For Availability
1
DOOR ASSEMBLY (INCLUDES INTERIOR G81DOOR LINE WPL 482827060 Contact Us For Availability
1
COVER, EVAPORATOR WPL W10452370 Contact Us For Availability
2
EVAPORATOR WPL W10455861 Contact Us For Availability
2
TOP HINGE (WHITE) WPL 281016105 Contact Us For Availability
2
TOP HINGE (BLACK) WPL 281016107 Contact Us For Availability
2
GASKET (WHITE) WPL 465151002 Contact Us For Availability
2
GASKET (BLACK) WPL 465151010 Contact Us For Availability
3
STOP, DOOR (TOP) (NATURAL) WPL 281124001 Contact Us For Availability
3
STOP, DOOR (TOP) (BLACK) WPL 281124004 Contact Us For Availability
4
GRILLE (WHITE) WPL 460461005 Contact Us For Availability
4
GRILLE (BLACK) WPL 460461010 Contact Us For Availability
4
STOP, DOOR (BOTTOM) WPL 281125001 Contact Us For Availability
5
HINGE COVER (WHITE) WPL 380838003 Contact Us For Availability
5
HINGE COVER (BLACK) WPL 380838007 Contact Us For Availability
5
RAIL, DOOR (LOWER) WPL 465449001 Contact Us For Availability
6
SCREW WPL 324004107 Contact Us For Availability
7
SCREW WPL 360696001 Contact Us For Availability
7
DRAIN PAN WPL 482749001 Contact Us For Availability
8
LEG, LEVELLER (BLACK) WPL 382710001 Contact Us For Availability
8
BIN, DOOR WPL 465454001 Contact Us For Availability
8
GASKET, COVER EVAPORATOR (RIGHT) WPL 360180001 Contact Us For Availability
8
GASKET, COVER EVAPORATOR (LEFT) WPL 360180002 Contact Us For Availability
9
SCREW WPL 180271103 Contact Us For Availability
10
BUSHING (WHITE) WPL 360199001 Contact Us For Availability
10
BUSHING (BLACK) WPL 360199004 Contact Us For Availability
10
HARNESS, WIRING (WITH POWER CORD) WPL W10415853 Contact Us For Availability
14
HANDLE (WHITE) WPL 383029002 Contact Us For Availability
14
HANDLE (SATINA) WPL 383029004 Contact Us For Availability
14
RELAY WPL 235154011 Contact Us For Availability
15
VENT PLUG WPL 324898007 Contact Us For Availability
17
OVERLOAD WPL 234286027 Contact Us For Availability
20
BASKET, LOWER WPL 460064002 Contact Us For Availability
21
DIFFUSER, AIR UPR WPL 482556002 Contact Us For Availability
21
SCREW, COMPRESSOR WPL 282082001 Contact Us For Availability
22
DIFFUSER, AIR LWR WPL 482573002 Contact Us For Availability
22
CONDENSER WPL 482683001 Contact Us For Availability
23
HEAT, EXCHANGER WPL W10474982 Contact Us For Availability
24
PAN, COMPRESSOR WPL W10470129 Contact Us For Availability
26
ROLLER WPL 360315001 Contact Us For Availability
28
SCREW WPL 324838048 Contact Us For Availability
30
AXLE WPL 160316001 Contact Us For Availability
31
SCREW WPL 324004079 Contact Us For Availability
33
GROMMET WPL 180275101 Contact Us For Availability
34
CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
NI
REFRIGERANT CHARGE (5.8 OZ. (R-134A)) WPL NP Contact Us For Availability
× ![]()
