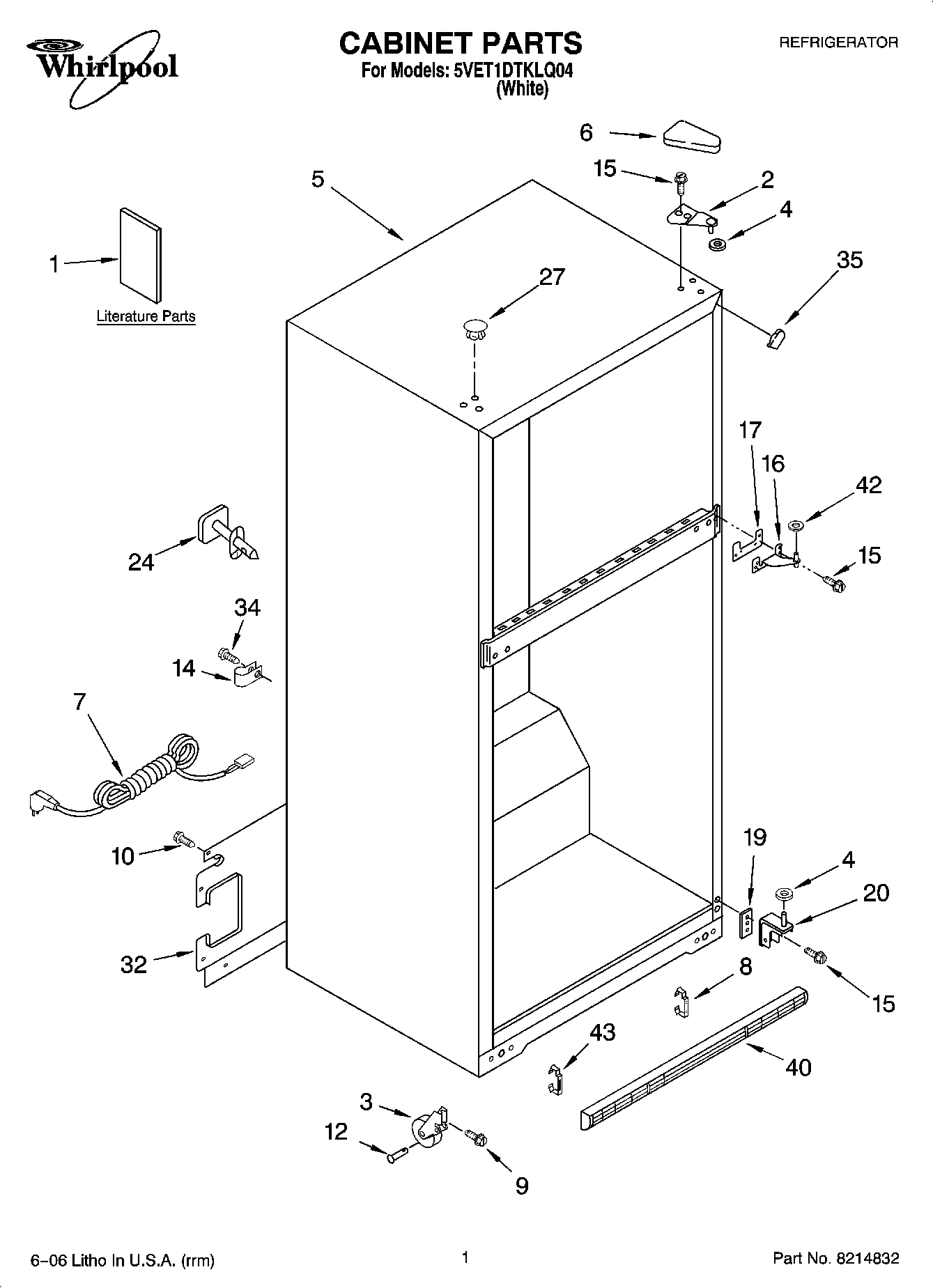

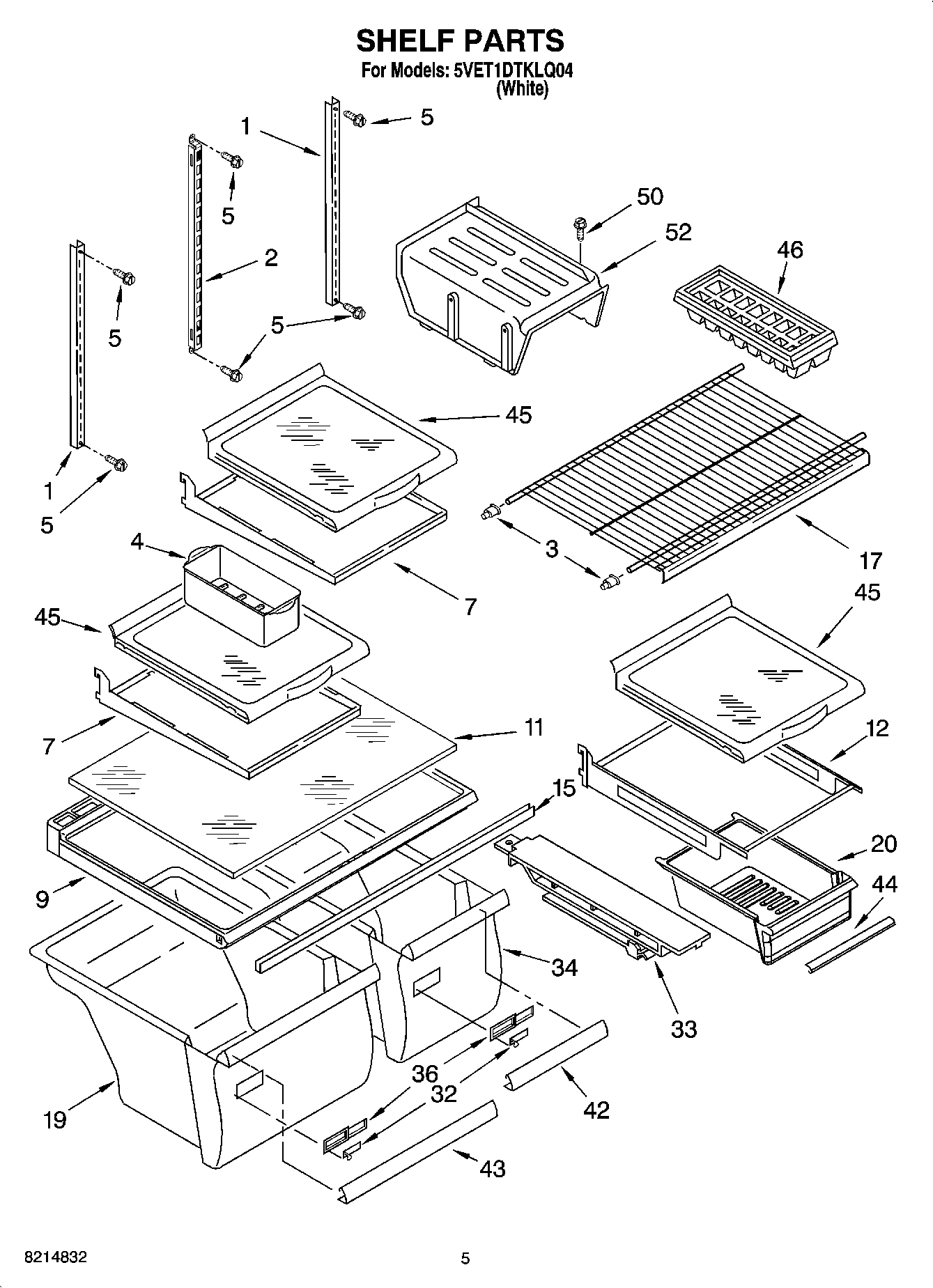

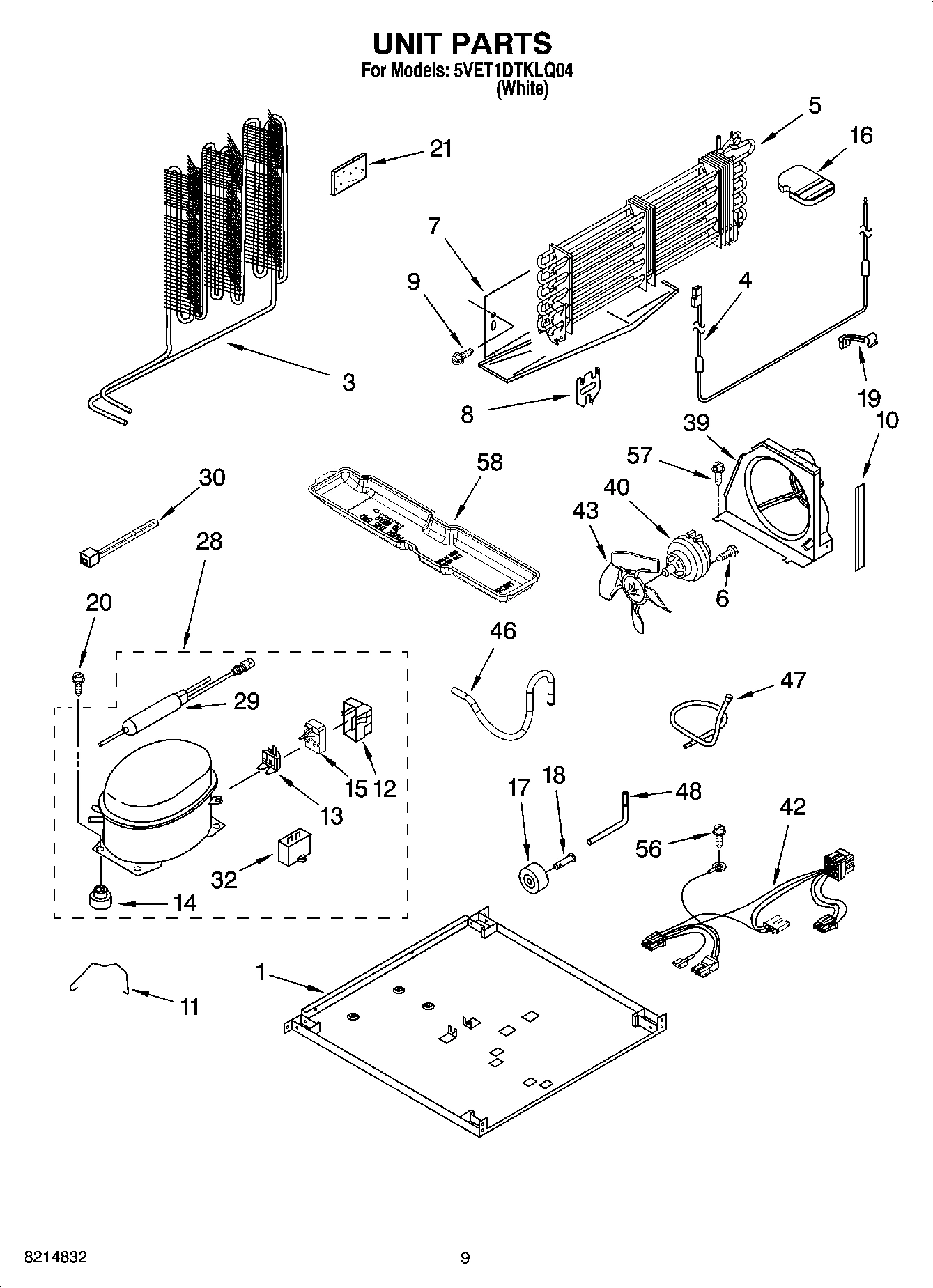

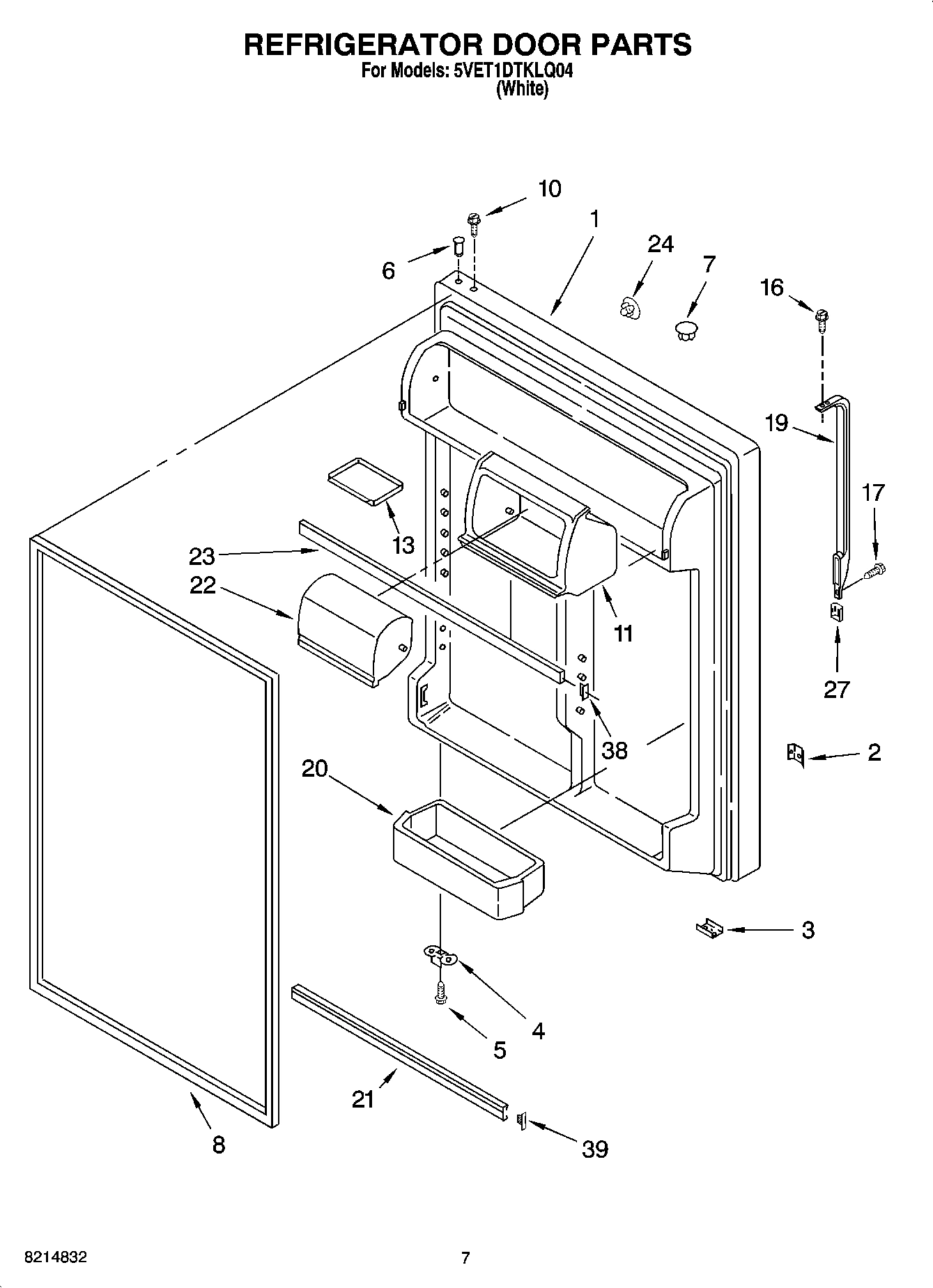

Model Whirlpool 5VET1DTKLQ04 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

Plate, Unit Mounting WPL 2225597 Contact Us For Availability

2

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

2

Tap Plate WPL 2183000 Contact Us For Availability

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

4

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

4

Heater, Defrost WPL 2166657 Contact Us For Availability

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Evaporator Assy. WPL 2254250 Contact Us For Availability

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

6

WPW10171469 Whirlpool Refrigerator Screw In Stock WPL WPW10171469 $4.58

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Drain Pan WPL 2254294 Contact Us For Availability

8

2254385 Whirlpool Refrigerator Clip Backorder WPL 2254385 $31.31

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

10

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

10

Extension, Air Baffle WPL 2300638 Contact Us For Availability

11

Strap WPL 2302129 Contact Us For Availability

12

WP61002138 Whirlpool Refrigerator Terminal Co Backorder WPL WP61002138 $4.48

13

2169410 Whirlpool Refrigerator Overload Backorder WPL 2169410 $34.81

13

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

13

Tray, Door WPL 2159302 Contact Us For Availability

14

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

Start-Device, Combination (Start Relay and Ov WPL 2302127 Contact Us For Availability

16

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

16

Support Block WPL 2201184 Contact Us For Availability

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $69.61

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WP8281146 Whirlpool Screw In Stock WPL WP8281146 $2.51

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

19

Spacer, Hinge Bottom WPL 2172743 Contact Us For Availability

19

Clip, Heater WPL 2182338 Contact Us For Availability

20

WP2218127K Whirlpool Meat Pan Backorder WPL WP2218127K $81.90

21

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

WP2218109 Whirlpool Refrigerator Door Compres Backorder WPL WP2218109 $42.64

23

WP2159312 Whirlpool Refrigerator Door Trim Backorder WPL WP2159312 $41.05

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

24

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

26

Air Separator Assembly WPL 2210390 Contact Us For Availability

27

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

27

Cover, Hole WPL 2205003 Contact Us For Availability

28

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

28

Compressor (Includes Items 12,13,14,29 & 32) WPL 2218964 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $31.79

32

2321245 Whirlpool Refrigerator Capacitor Backorder WPL 2321245 $46.87

32

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

32

WP2201147 Whirlpool Refrigerator Capacitor Backorder WPL WP2201147 $48.06

33

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $11.91

34

W10856580 Whirlpool Crisper Pan In Stock WPL W10856580 $90.63

34

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

34

Knob, Damper WPL 2302536 Contact Us For Availability

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

36

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

39

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

39

Air Baffle WPL 2302250 Contact Us For Availability

40

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $31.60

40

WP2321271 Whirlpool Refrigerator Condenser Mo Backorder WPL WP2321271 $231.95

42

Trim, Crisper Pan WPL 2195340 Contact Us For Availability

42

Wire Assembly, Unit WPL 2187586 Contact Us For Availability

43

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

43

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $27.12

43

CLIP, GRILLE WPL 2189356 Contact Us For Availability

44

Trim, Meat Pan WPL 2176356 Contact Us For Availability

45

Shelf Assembly, Spillguard (3) WPL 2225713 Contact Us For Availability

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $28.80

46

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

47

2214924 Whirlpool Refrigerator Tube Backorder WPL 2214924 $34.18

47

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

50

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

50

Rear Fence, Freezer Floor WPL 2198768 Contact Us For Availability

52

Shelf, Ice Tray WPL 2212770 Contact Us For Availability

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

57

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

8201826 Whirlpool Refrigerator Evaporator Tra In Stock WPL 8201826 $45.05

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI141246A Contact Us For Availability

REFRIGERANT CHARGE 4.20 Ozs. (R134A) WPL ARI141247A Contact Us For Availability

59

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80
