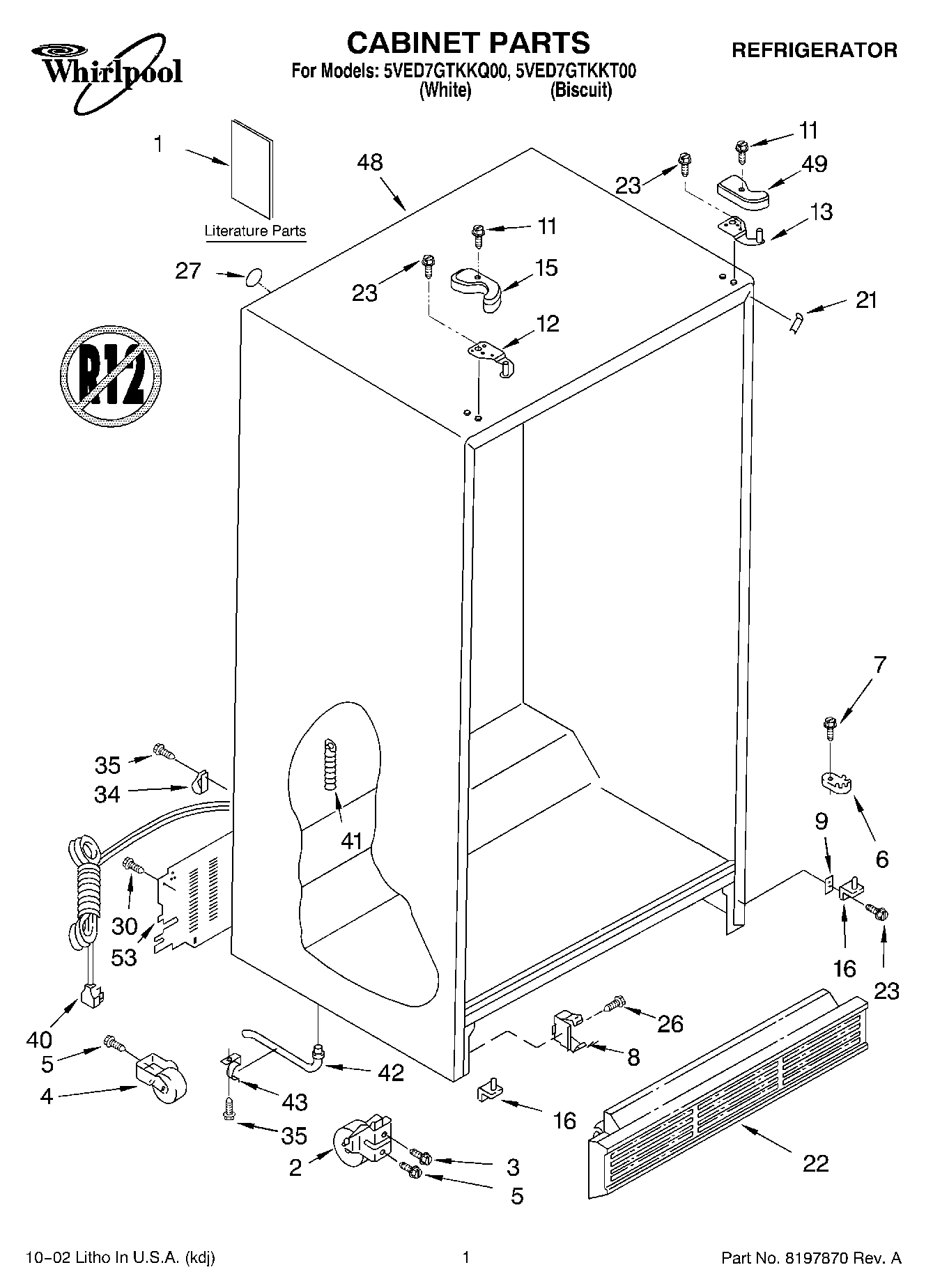

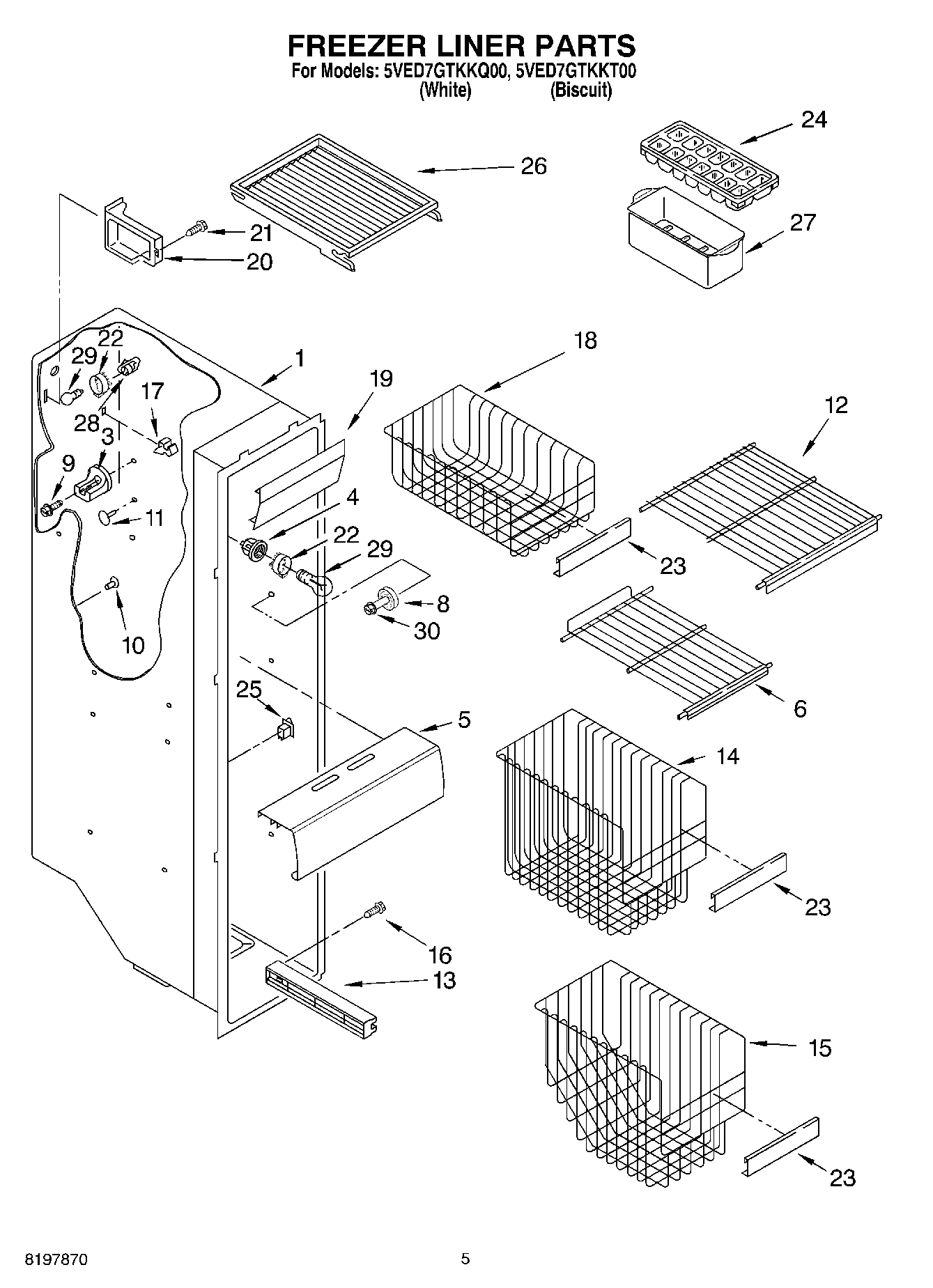

Model Whirlpool 5VED7GTKKT00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI15413A2 Contact Us For Availability

1

Control Box WPL 2200137 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2187172 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2187172 $24.03

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

Stud, Rear WPL 2196207 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2182147 Contact Us For Availability

5

Air Duct Freezer WPL 2203594 No Longer Available

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

5

Glass (3) WPL 2177986 Contact Us For Availability

6

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

6

Retainer, Glass WPL 1125594 Contact Us For Availability

6

Defrost Timer WPL 2187235 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

7

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

8

Handle (White) WPL 2186649W Contact Us For Availability

9

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Grommet (8) WPL 2176134 Contact Us For Availability

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

12

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

12

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

12

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

13

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

13

Shelf Assembly, Cantilever (3) WPL 2163572 Contact Us For Availability

14

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

14

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

14

Ladder, Shelf (2) WPL 2206273 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $110.82

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

Trim, Door-Bottom (White) WPL 2194969W Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

16

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

16

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

17

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

17

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

17

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

18

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

18

Meat Pan Cover WPL 2217039 Contact Us For Availability

19

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

19

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $90.28

19

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

20

2311636 Whirlpool Refrigerator Wire Harness Backorder WPL 2311636 $130.51

20

WP2188664 Whirlpool Dishwasher Meat Crisper P In Stock WPL WP2188664 $45.77

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

22

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

22

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Clip WPL 2161324 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

24

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

24

Fastener, Push-On WPL 489285 Contact Us For Availability

25

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

25

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

25

Escutcheon, Control Box WPL 2194977 Contact Us For Availability

26

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

27

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

27

Knob, Air Control WPL 2197871 Contact Us For Availability

28

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

30

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

34

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

34

Light Lens WPL 2206269 Contact Us For Availability

37

Screw WPL 489473 Contact Us For Availability

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Clip, Heat WPL 2155547 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

50

Guard, Fan WPL 1110663 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPW10190943 Whirlpool Refrigerator Icemaker Backorder WPL WPW10190943 $174.94

WPL 978029 WPL 978029 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
