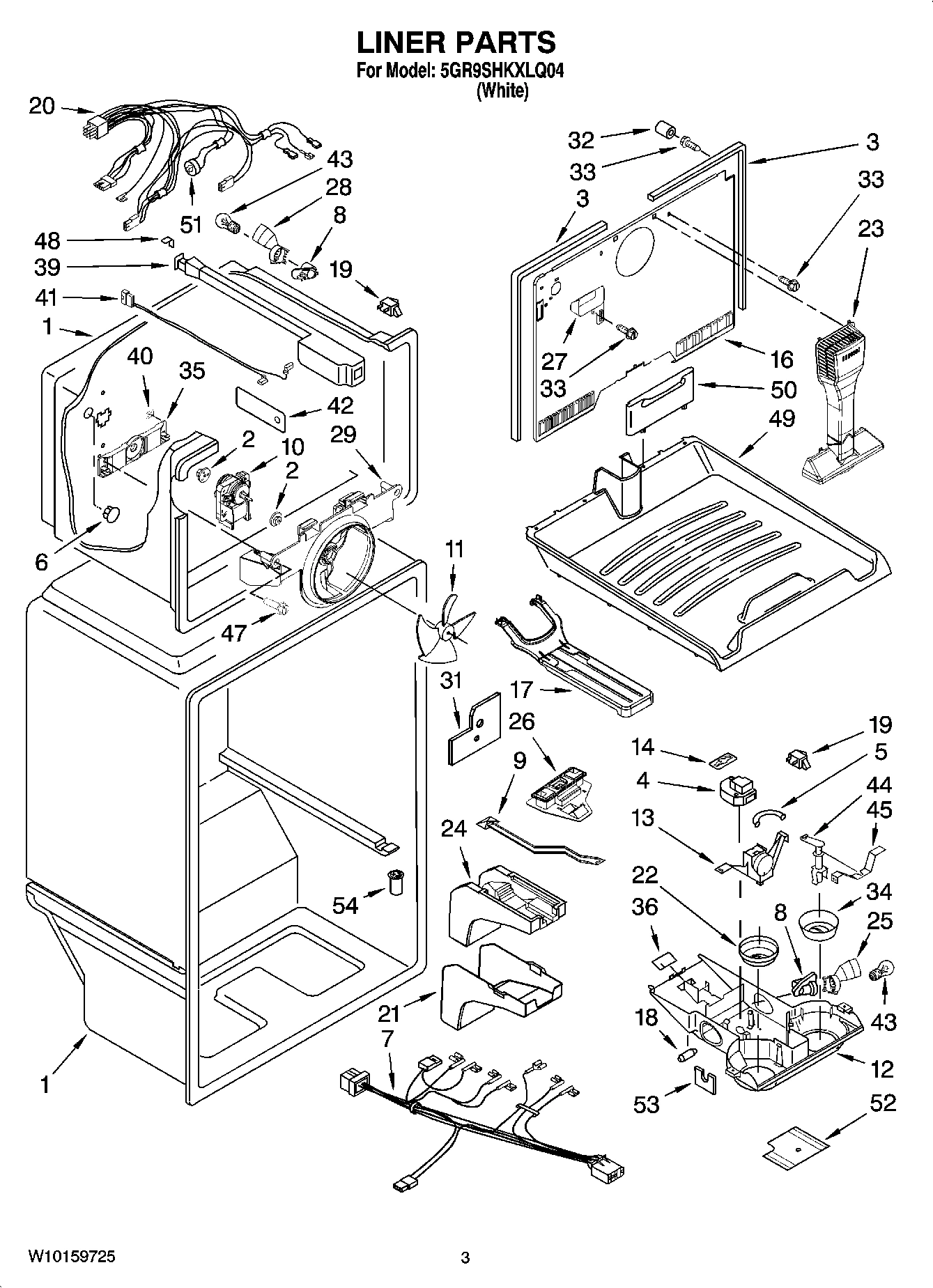

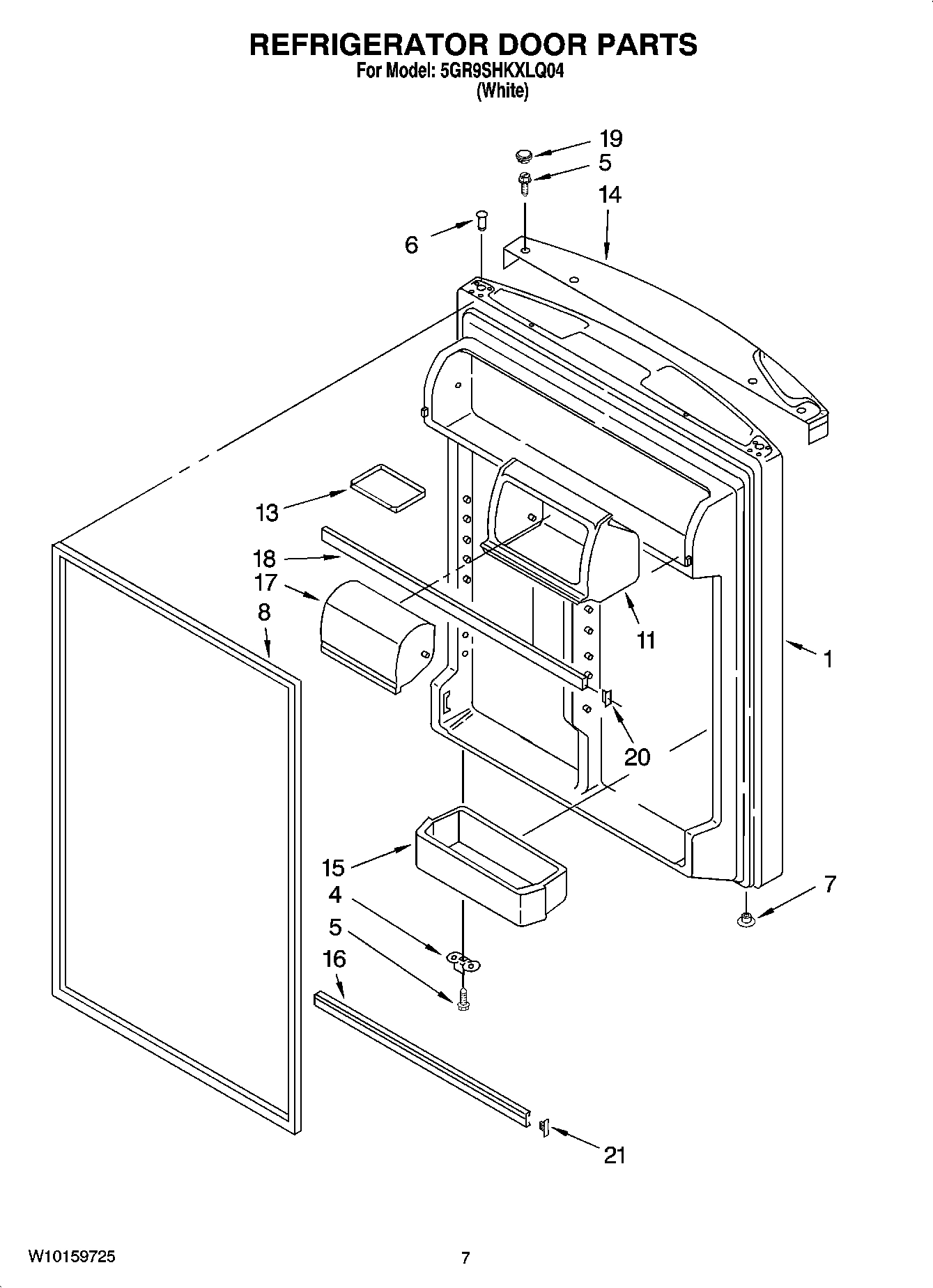

Model Whirlpool 5GR9SHKXLQ04 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI141132A Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI141133A Contact Us For Availability

1

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

1

Plate, Unit Mounting WPL 2320188 Contact Us For Availability

2

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

2

Shelf, Ladder Center WPL 2300520 Contact Us For Availability

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

4

W10123579 Whirlpool Refrigerator Heater Backorder WPL W10123579 $69.00

5

Evaporator Assy. WPL 2254250 Contact Us For Availability

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

7

Frame Assembly, Shelf WPL 2225696 Contact Us For Availability

7

Drain Pan WPL 2254294 Contact Us For Availability

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

WP2314548 Whirlpool Refrigerator Cover Backorder WPL WP2314548 $96.71

9

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

9

Nameplate WPL 2220214 Contact Us For Availability

10

CLIP, GRILLE WPL 2189356 Contact Us For Availability

10

Extension, Air Baffle WPL 2300638 Contact Us For Availability

11

WP2169921 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2169921 $118.25

11

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

11

Strap WPL 2302129 Contact Us For Availability

12

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

12

Frame Assembly, Meat Shelf WPL 2205161 Contact Us For Availability

13

Tray, Door WPL 2159302 Contact Us For Availability

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

15

2321301 Whirlpool Start Device Backorder WPL 2321301 $57.38

15

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

16

Support Block WPL 2201184 Contact Us For Availability

16

Cover, Evaporator WPL 2320191 Contact Us For Availability

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $69.61

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WP2218109 Whirlpool Refrigerator Door Compres Backorder WPL WP2218109 $42.64

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

18

WP2159312 Whirlpool Refrigerator Door Trim Backorder WPL WP2159312 $41.05

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

19

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $89.14

19

Clip, Heater WPL 2182338 Contact Us For Availability

20

WP2218127K Whirlpool Meat Pan Backorder WPL WP2218127K $81.90

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

W10856580 Whirlpool Crisper Pan In Stock WPL W10856580 $90.63

23

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

24

Trim, Crisper Pan WPL 2195340 Contact Us For Availability

25

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $27.12

26

Air Separator Assembly WPL 2210390 Contact Us For Availability

26

Trim, Meat Pan WPL 2176356 Contact Us For Availability

27

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

27

Cover, Hole WPL 2205003 Contact Us For Availability

27

Shelf Assembly, Spillguard WPL 2225713 Contact Us For Availability

28

W10170300 Whirlpool Compressor Backorder WPL W10170300 $351.52

28

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

28

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $31.60

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

Shelf, Ice Tray WPL 2212770 Contact Us For Availability

30

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

32

2254385 Whirlpool Refrigerator Clip Backorder WPL 2254385 $31.31

32

2321245 Whirlpool Refrigerator Capacitor Backorder WPL 2321245 $46.87

32

WP2201147 Whirlpool Refrigerator Capacitor Backorder WPL WP2201147 $48.06

33

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

34

Knob, Damper WPL 2302536 Contact Us For Availability

34

Rail, Center (Not Serviced) WPL ARI141129A Contact Us For Availability

35

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $31.79

35

WP2189475 Whirlpool Refrigerator Unit Cover Backorder WPL WP2189475 $68.24

36

Cabinet, (Not A Serviceable Part) WPL ARI141130A Contact Us For Availability

39

Air Baffle WPL 2302250 Contact Us For Availability

40

WP2321271 Whirlpool Refrigerator Condenser Mo Backorder WPL WP2321271 $231.95

41

WPW10171469 Whirlpool Refrigerator Screw In Stock WPL WPW10171469 $4.58

42

Wire Assembly, Unit WPL W10123567 Contact Us For Availability

43

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

45

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $28.80

47

2214924 Whirlpool Refrigerator Tube Backorder WPL 2214924 $34.18

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

49

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

50

WP2254574 Whirlpool Refrigerator Evaporator T In Stock WPL WP2254574 $57.83

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

54

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80
