Model Maytag 5GFC20PRYA0 REFRIGERATOR – Common Parts & Diagrams

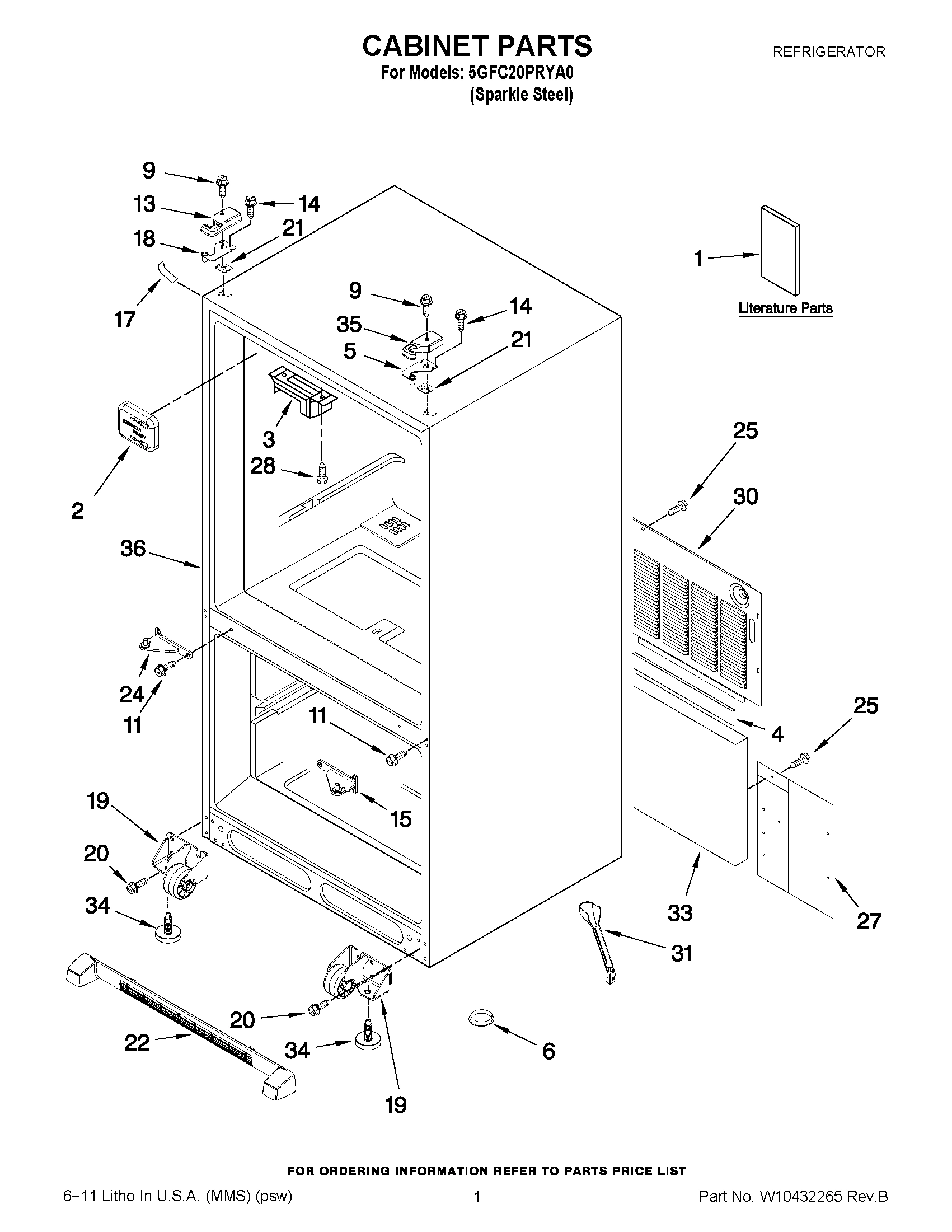

01 - CABINET PARTS

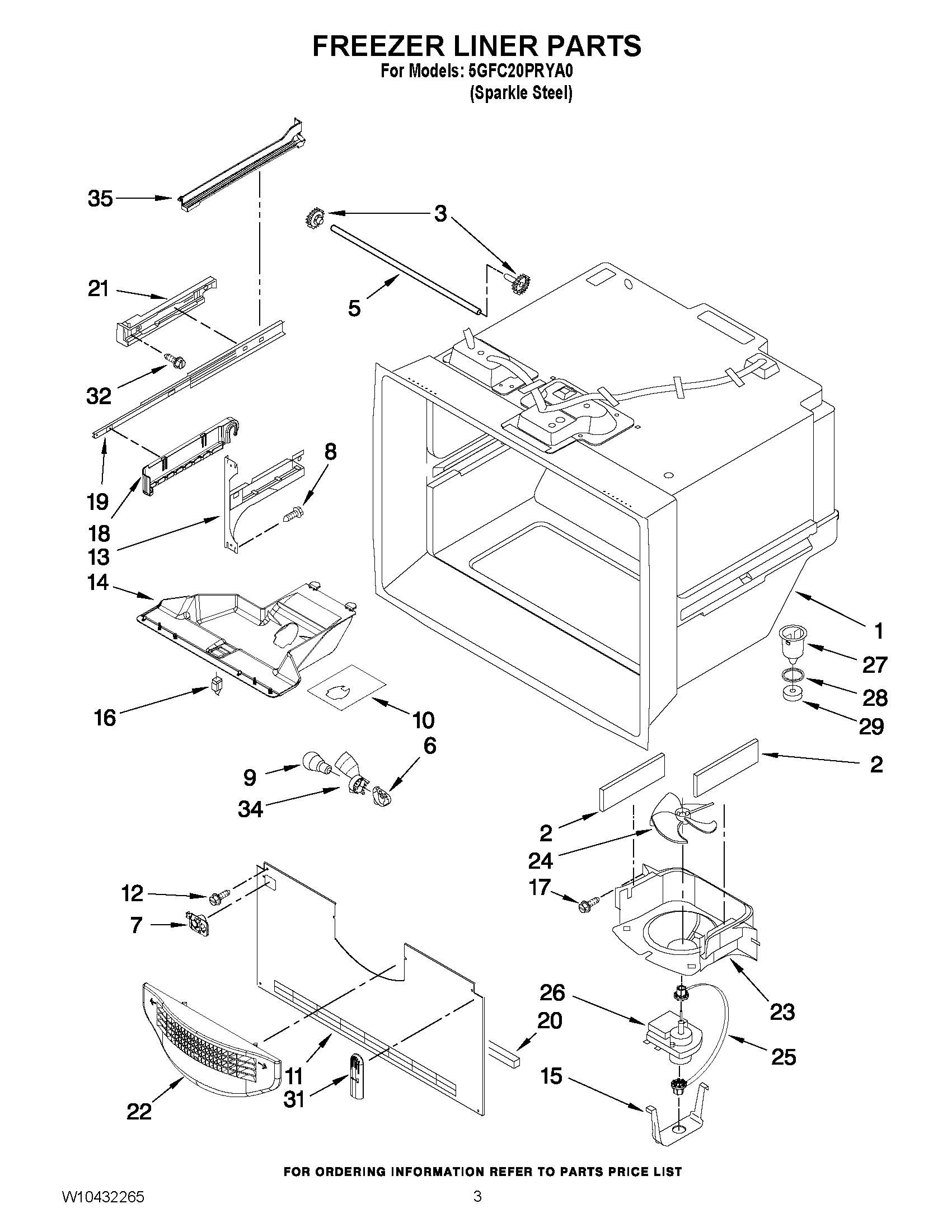

02 - FREEZER LINER PARTS
03 - REFRIGERATOR LINER PARTS
04 - REFRIGERATOR DOOR PARTS
05 - UNIT PARTS
06 - SHELF PARTS
07 - FREEZER DOOR PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 5GFC20PRYA0 REFRIGERATOR
1
DOOR, LEFT (SPARKLE STEEL) MAY 13107835F Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 12204829 MAY 12204829 Contact Us For Availability
1
FREEZER DOOR (SPARKLE STEEL) MAY 12977852F Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY 12806302 MAY 12806302 Contact Us For Availability
2
DOOR, RIGHT (SPARKLE STEEL) MAY 13107834F Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY 12463911 MAY 12463911 Contact Us For Availability
2
HANDLE MAY W10252300 Contact Us For Availability
3
Block, Pivot MAY 12698403 Contact Us For Availability
3
MAY 12816517 MAY 12816517 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10210985 MAY W10210985 Contact Us For Availability
3
MAY W10164042 MAY W10164042 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12806406 MAY 12806406 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY 12655902SP MAY 12655902SP Contact Us For Availability
5
MAY 12963205ED MAY 12963205ED Contact Us For Availability
5
SHAFT MAY 12812903WD Contact Us For Availability
5
MAY 12784417V MAY 12784417V Contact Us For Availability
5
BIN, SHELF (3) (MEDIUM) MAY W10371193 Contact Us For Availability
5
CAPACITOR MAY 2321245 Contact Us For Availability
5
MAY 12227305WH MAY 12227305WH Contact Us For Availability
6
SWITCH, LIGHT (2) MAY C3680314 Contact Us For Availability
6
MAY 12732501AP MAY 12732501AP Contact Us For Availability
6
MAY W10286438 MAY W10286438 Contact Us For Availability
6
TRACK, PANTRY MAY 12531901 Contact Us For Availability
7
MAY 12932103 MAY 12932103 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 12990204 MAY 12990204 Contact Us For Availability
7
HARNESS, EVAP. HEATER MAY W10280429 Contact Us For Availability
8
Screw (8) MAY 12990521 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
MAY W10179332 MAY W10179332 Contact Us For Availability
8
MAY W10296785 MAY W10296785 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
BULB, LIGHT (2) MAY A0282808V Contact Us For Availability
9
HANDLE, DOOR MAY W10252288 Contact Us For Availability
9
SCREW MAY 12991001N Contact Us For Availability
9
MAY 12656901 MAY 12656901 Contact Us For Availability
10
SOCKET, LIGHT (2) MAY W10134764V Contact Us For Availability
10
FOIL-FZ LIGHT MAY W10277466 Contact Us For Availability
10
MAY 12729132 MAY 12729132 Contact Us For Availability
10
MAY 12656202 MAY 12656202 Contact Us For Availability
11
SCREW (6) MAY 12992201 Contact Us For Availability
11
MAY W10308418 MAY W10308418 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
Stop, Door (Apollo Grey) MAY 12968202AP Contact Us For Availability
11
STRAP, BALE MAY 2302129 Contact Us For Availability
12
Screw (2) MAY 12990604 Contact Us For Availability
12
MAY 61002504 MAY 61002504 Contact Us For Availability
12
START DEVICE MAY W10361441 Contact Us For Availability
12
SLIDE, TEMPERATURE MAY 12655402 Contact Us For Availability
13
COVER, LEFT HINGE MAY W10337648 Contact Us For Availability
13
MAY W10119064 MAY W10119064 Contact Us For Availability
13
MAY W10119295 MAY W10119295 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
GROMMET-COND-(4) MAY 2319835 Contact Us For Availability
14
SCREW (6) MAY 12992403 Contact Us For Availability
14
MODULE-FZ LIGHT MAY W10277025 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
Thermostat, Defrost MAY 12639322SP Contact Us For Availability
14
GLIDE, DRAWER (2) MAY W10235370 Contact Us For Availability
15
Hinge, Center (RT) (Apollo Grey) MAY 13000002AP Contact Us For Availability
15
Control, Damper (Incl. Harness) MAY W10177399 Contact Us For Availability
15
Closure, Door (Apollo Grey) MAY 12028505AP Contact Us For Availability
15
Roller (2) MAY 12477102 Contact Us For Availability
16
MAY 12466114 MAY 12466114 Contact Us For Availability
16
BIN, SHELF (2) (GALLON) MAY W10289496 Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
ENDCAP, PANTRY (RIGHT) MAY 12656018 Contact Us For Availability
16
Endcap, Pantry (Left) MAY 12656105 Contact Us For Availability
17
Cover, Corner (Apollo Grey) MAY 12587703AP Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
17
PAN, CRISPER (2) MAY 12531105 Contact Us For Availability
18
MAY 12963204ED MAY 12963204ED Contact Us For Availability
18
CRADLE, BASKET (LEFT) MAY W10281115 Contact Us For Availability
18
CRADLE, BASKET (RIGHT) MAY W10281116 Contact Us For Availability
18
MAY W10346420 MAY W10346420 Contact Us For Availability
18
Brace, Crisper MAY 12227304WD Contact Us For Availability
19
ROLLER ASSY.(RIGHT) MAY W10275849 Contact Us For Availability
19
ROLLER ASSY.(LEFT) MAY W10275850 Contact Us For Availability
19
Slide, Drawer (2) MAY 13055901 Contact Us For Availability
19
MAY W10281329 MAY W10281329 Contact Us For Availability
19
MAY W10231346 MAY W10231346 Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
Gasket, Bottom MAY A3189397 Contact Us For Availability
20
MAY W10292803 MAY W10292803 Contact Us For Availability
20
MAY 12531202SP MAY 12531202SP Contact Us For Availability
21
SHIM, HINGE (LEFT) MAY 12999501 Contact Us For Availability
21
SHIM, HINGE (RIGHT) MAY 12999502 Contact Us For Availability
21
ADAPTER, SLIDE (LEFT) MAY W10284692 Contact Us For Availability
21
ADAPTER, SLIDE (RIGHT) MAY W10284693 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
Glass, Crisper Cover MAY 12204821 Contact Us For Availability
22
MAY W10244558 MAY W10244558 Contact Us For Availability
22
Grille, Fz Air MAY 13024803 Contact Us For Availability
22
MAY W10317014 MAY W10317014 Contact Us For Availability
22
MAY W10273463 MAY W10273463 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
23
MAY W10251971 MAY W10251971 Contact Us For Availability
24
Hinge, Center (LT) (Apollo Grey) MAY 13000001AP Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability
24
MAY W10246191 MAY W10246191 Contact Us For Availability
24
Screw (6) MAY 12990513 Contact Us For Availability
25
MAY W10121318 MAY W10121318 Contact Us For Availability
25
SCREW (2) MAY W10215666 Contact Us For Availability
26
MAY 10449516 MAY 10449516 Contact Us For Availability
26
MAY W10234312 MAY W10234312 Contact Us For Availability
26
Screw (4) MAY 12990512 Contact Us For Availability
27
MAY W10217701 MAY W10217701 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
27
MAY 12530805SP MAY 12530805SP Contact Us For Availability
28
SCREW (2) MAY 12990303 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
MAY W10223234 MAY W10223234 Contact Us For Availability
28
ROD, TEMPERATURE CONTROL MAY 12655303 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
MAY 12655702 MAY 12655702 Contact Us For Availability
30
MAY W10212203 MAY W10212203 Contact Us For Availability
30
Axle, Roller (2) MAY 12477202 Contact Us For Availability
30
MAY 12655204V MAY 12655204V Contact Us For Availability
31
MAY W10210988 MAY W10210988 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
MAY W10189187 MAY W10189187 Contact Us For Availability
31
MAY 12656814 MAY 12656814 Contact Us For Availability
32
Screw (6) MAY 12990501 Contact Us For Availability
32
EXTENSION-BASEPAN MAY W10225121 Contact Us For Availability
32
MAY W10150040 MAY W10150040 Contact Us For Availability
33
Insulation, Sound MAY 12820505 Contact Us For Availability
33
MAY W10206339 MAY W10206339 Contact Us For Availability
33
DIVIDER, LOWER BASKET MAY W10150061 Contact Us For Availability
34
FOOT, BRAKE MAY W10141622 Contact Us For Availability
34
SHROUD-LGHT SOCKET MAY W10119914 Contact Us For Availability
34
MAY W10188805 MAY W10188805 Contact Us For Availability
35
MAY 12684202B MAY 12684202B Contact Us For Availability
35
MAY W10284696 MAY W10284696 Contact Us For Availability
35
MAY W10284697 MAY W10284697 Contact Us For Availability
35
DIVIDER, PANTRY DRAWER MAY 12709301 Contact Us For Availability
36
Screw (4) MAY 12990504 Contact Us For Availability
43
MAY 12812904WD MAY 12812904WD Contact Us For Availability
45
MOUNT, GEAR (LEFT) MAY W10348259 Contact Us For Availability
45
MOUNT, GEAR (RIGHT) MAY W10348260 Contact Us For Availability
46
MAY W10146446 MAY W10146446 Contact Us For Availability
46
MAY W10158749 MAY W10158749 Contact Us For Availability
47
DIVIDER-UPPER FZ MAY W10241046 Contact Us For Availability
NI
REFRIGERANT CHARGE (.25 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
MAY 12973603 MAY 12973603 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
Cleaner, Stnls Steel Magic MAY 20000008 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, White (13 MAY 350930 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, Black (13 MAY 350939 Contact Us For Availability
NI
Customer Touch-Up Material (Primer, White (13 MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
Refinishing Material (Enamel, Black (1 Qt. Un MAY 799340 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
MAY 876305 MAY 876305 Contact Us For Availability
NI
MAY 876370 MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE (IC514) MAY W10261455 Contact Us For Availability
× ![]()
