Model Maytag 5GBR22PRYA0 REFRIGERATOR – Common Parts & Diagrams

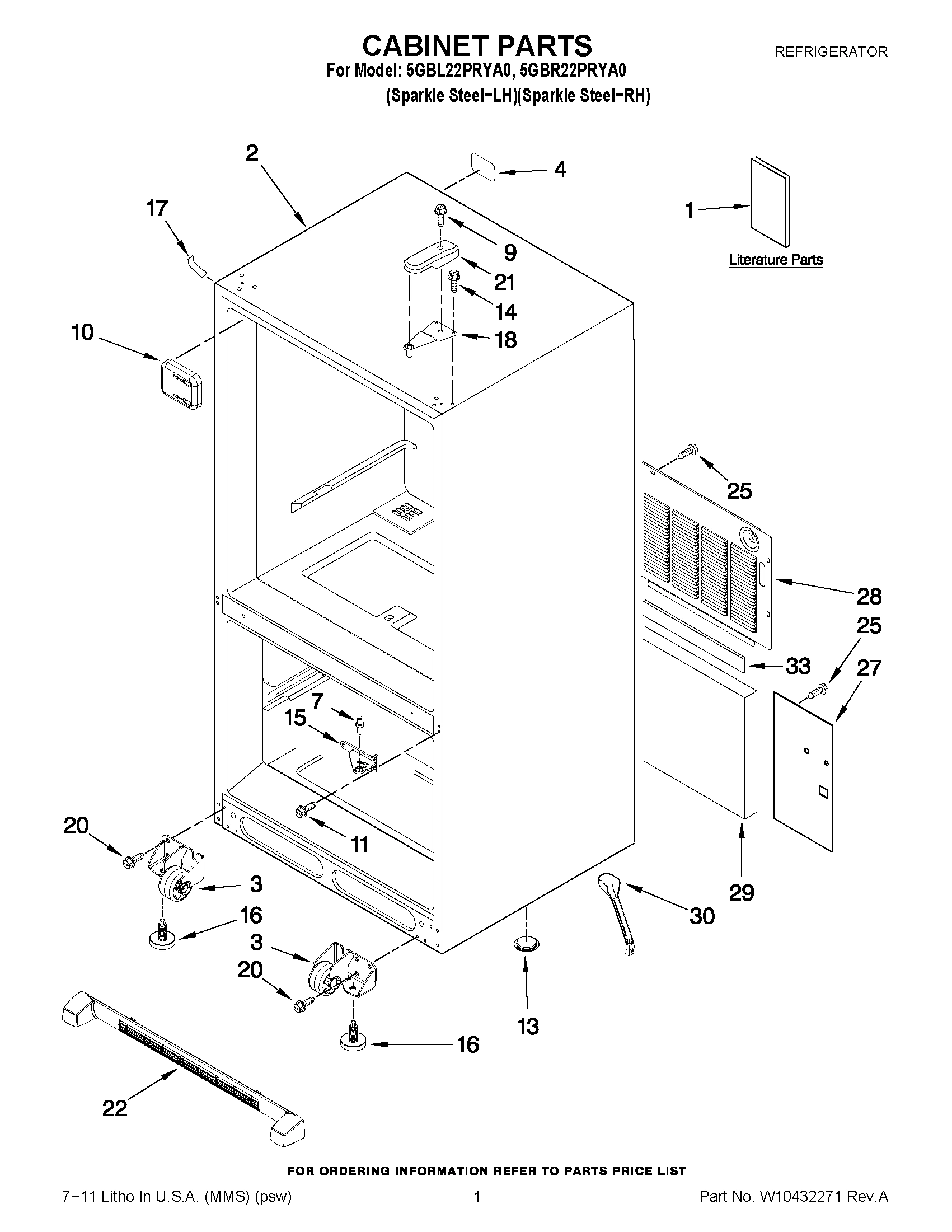

01 - CABINET PARTS

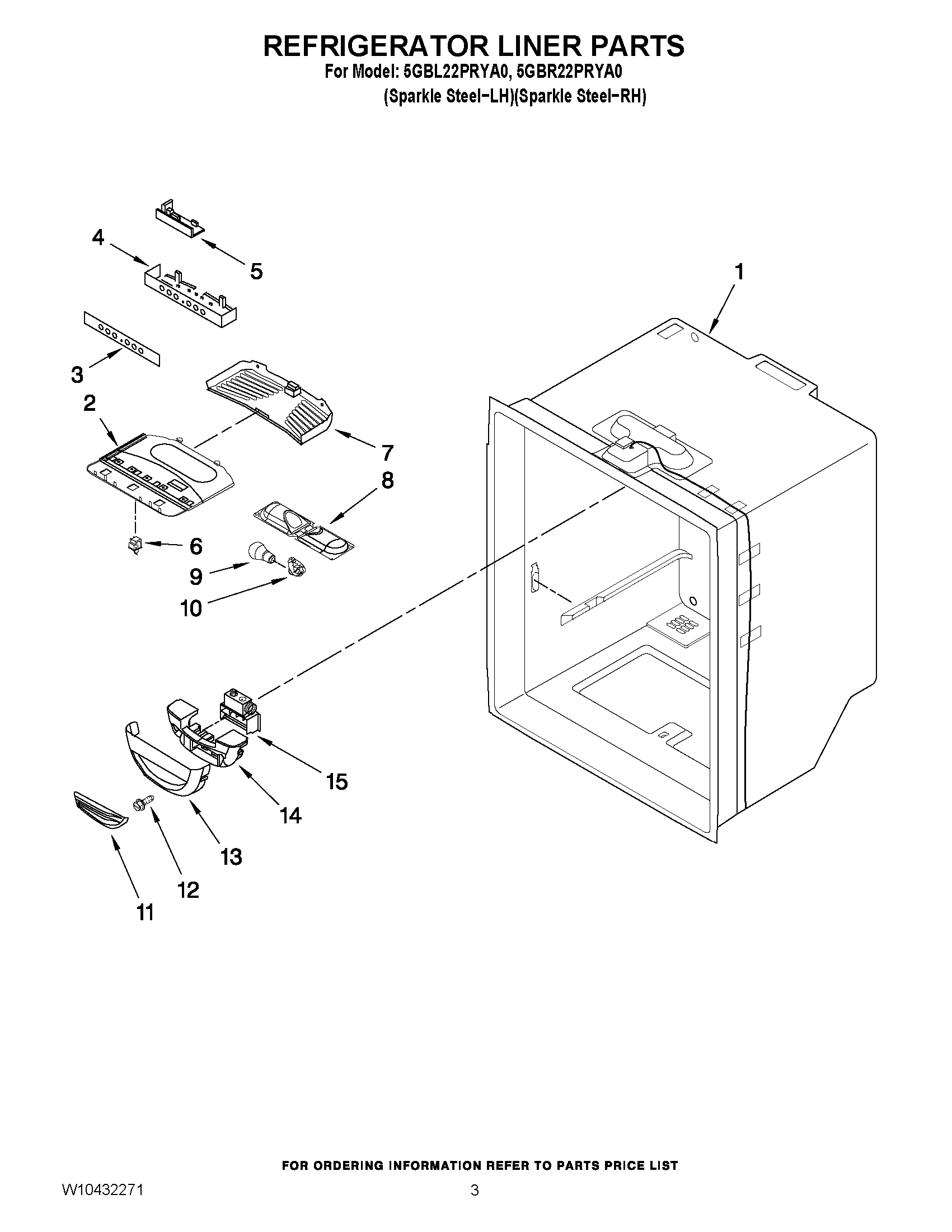

02 - REFRIGERATOR LINER PARTS
03 - FREEZER LINER PARTS
04 - REFRIGERATOR DOOR PARTS
05 - SHELF PARTS
06 - UNIT PARTS
07 - FREEZER DOOR PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 5GBR22PRYA0 REFRIGERATOR
1
MAY 13107531F MAY 13107531F Contact Us For Availability
1
MAY 13107532F MAY 13107532F Contact Us For Availability
1
MAY W10251969 MAY W10251969 Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 13092281F MAY 13092281F Contact Us For Availability
2
MAY 12806301 MAY 12806301 Contact Us For Availability
2
Gasket, Foam (2) MAY A3189392 Contact Us For Availability
2
HANDLE, DOOR STAINLESS MAY W10252288 Contact Us For Availability
2
MAY 12990513 MAY 12990513 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
3
ASSEMBLY, ROLLER (RIGHT) MAY W10275849 Contact Us For Availability
3
ASSEMBLY, ROLLER (LEFT) MAY W10275850 Contact Us For Availability
3
MAY 12816515N MAY 12816515N Contact Us For Availability
3
MAY 12932103 MAY 12932103 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10273463 MAY W10273463 Contact Us For Availability
3
MAY W10210983 MAY W10210983 Contact Us For Availability
3
Gasket, Door (Apollo Grey) MAY W10180623 Contact Us For Availability
4
LABEL-FILL TUBE MAY 12249902 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
Housing, Electronic Control MAY 12806406 Contact Us For Availability
4
RACK-SIDE (LEFT) MAY W10284694 Contact Us For Availability
4
RACK-SIDE (RIGHT) MAY W10284695 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
SCREW (2) MAY W10215666 Contact Us For Availability
5
MAY 12784417V MAY 12784417V Contact Us For Availability
5
SHROUD-LGHT SOCKET MAY W10119914 Contact Us For Availability
5
BUCKET (4) (MEDIUM) MAY W10371193 Contact Us For Availability
5
SLIDE-PANTRY MAY 12531502N Contact Us For Availability
6
SWITCH, LIGHT MAY C3680314 Contact Us For Availability
6
MAY W10134764V MAY W10134764V Contact Us For Availability
6
SHELF(4) MAY 12463310 Contact Us For Availability
6
MAY W10306059 MAY W10306059 Contact Us For Availability
7
MAY 10351006 MAY 10351006 Contact Us For Availability
7
MAY 12806501N MAY 12806501N Contact Us For Availability
7
MAY 12812902WD MAY 12812902WD Contact Us For Availability
7
MAY 12204822N MAY 12204822N Contact Us For Availability
7
HARNESS, EVAP. HEATER MAY W10280429 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
GASKET, DOOR MAGNETIC (APOLLO GREY) MAY W10180621 Contact Us For Availability
8
STOP, DOOR (APOLLO GREY) MAY 10447114 Contact Us For Availability
8
FRAME, CRISPER MAY 12530401SP Contact Us For Availability
8
MAY W10296784 MAY W10296784 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY A0282808V MAY A0282808V Contact Us For Availability
9
MAY 12990504 MAY 12990504 Contact Us For Availability
9
MAY 12812905WD MAY 12812905WD Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
10
COVER-FILL TUBE MAY 12477501 Contact Us For Availability
10
FOIL-FZ LIGHT MAY W10277466 Contact Us For Availability
10
Slide, Humidity MAY 12530805SP Contact Us For Availability
10
MAY 12729131 MAY 12729131 Contact Us For Availability
11
MAY 12992201 MAY 12992201 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY W10308417 MAY W10308417 Contact Us For Availability
11
BAR-PANTRY MAY 12531401N Contact Us For Availability
11
STRAP, BALE MAY 2302129 Contact Us For Availability
12
Screw (2) MAY 12990604 Contact Us For Availability
12
SCREW (7) MAY 12990101 Contact Us For Availability
12
MAY 12530701N MAY 12530701N Contact Us For Availability
12
START PROTECT, COMBO (PRODUCTION) MAY W10361441 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
BRACKET, DOOR (LEFT) MAY W10122147 Contact Us For Availability
13
BRACKET, DOOR (RIGHT) MAY W10122148 Contact Us For Availability
13
MAY 12557905 MAY 12557905 Contact Us For Availability
13
BRACE, CRISPER FRAME MAY 12227303WD Contact Us For Availability
14
Screw (3) MAY 12992403 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
MODULE-FZ LIGHT MAY W10277025 Contact Us For Availability
14
MAY W10231341 MAY W10231341 Contact Us For Availability
15
HINGE, CENTER (APOLLO GREY) MAY 12607103AP Contact Us For Availability
15
MAY W10177399 MAY W10177399 Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
PAN, CRISPER (2) MAY 12530505 Contact Us For Availability
15
MAY W10206337 MAY W10206337 Contact Us For Availability
16
FOOT BRAKE (2) MAY W10141622 Contact Us For Availability
16
MAY 12466114 MAY 12466114 Contact Us For Availability
16
BASKET, UPPER MAY W10169950 Contact Us For Availability
17
Cover, Corner (Apollo Grey) MAY 12587703AP Contact Us For Availability
17
DIVIDER, LOWER MAY W10146440 Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
18
MAY 12566606ED MAY 12566606ED Contact Us For Availability
18
CRADLE, BASKET (LEFT) MAY W10280608 Contact Us For Availability
18
CRADLE, BASKET (RIGHT) MAY W10280613 Contact Us For Availability
18
Divider, Upper Basket MAY W10241046 Contact Us For Availability
18
MAY W10346420 MAY W10346420 Contact Us For Availability
19
MAY W10120018 MAY W10120018 Contact Us For Availability
19
TRACK, DELI MAY 12531901 Contact Us For Availability
19
FASTENER, BASEPAN EXTENSION MAY W10206339 Contact Us For Availability
20
Screw (8) MAY 12991302 Contact Us For Availability
20
Gasket, Bottom MAY 12739112 Contact Us For Availability
20
MAY W10150038 MAY W10150038 Contact Us For Availability
20
MAY W10292802 MAY W10292802 Contact Us For Availability
21
COVER, HINGE (APOLLO GREY) MAY 12477601AP Contact Us For Availability
21
ADAPTER, SIDE (LEFT) MAY W10284684 Contact Us For Availability
21
ADAPTER, SIDE (RIGHT) MAY W10284685 Contact Us For Availability
21
TRIM, PANTRY MAY W10231333 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
22
GRILLE ASSEMBLY (INCLUDES CLIPS) (APOLLO GREY MAY W10236194 Contact Us For Availability
22
Cover, Fan Shroud MAY 13024803 Contact Us For Availability
22
MOUNT, GEAR (LEFT) MAY W10348259 Contact Us For Availability
22
MOUNT, GEAR (RIGHT) MAY W10348260 Contact Us For Availability
22
MAY W10317013 MAY W10317013 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
MAY W10328329 MAY W10328329 Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
24
Fan, Evaporator MAY 2169142 Contact Us For Availability
24
GEAR (LEFT) MAY W10146446 Contact Us For Availability
24
GEAR (RIGHT) MAY W10158749 Contact Us For Availability
24
MAY W10246191 MAY W10246191 Contact Us For Availability
25
Grommet (2) MAY W10121318 Contact Us For Availability
25
SUPPORT-LEFT MAY 12531001 Contact Us For Availability
25
SUPPORT-RIGHT MAY 12531002 Contact Us For Availability
26
MAY 10449516 MAY 10449516 Contact Us For Availability
26
MAY 12531802 MAY 12531802 Contact Us For Availability
26
MAY W10273559 MAY W10273559 Contact Us For Availability
27
MAY W10217701 MAY W10217701 Contact Us For Availability
27
FUNNEL, DRAIN (INCL. No. 28 & 29) MAY D7753903 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
28
MAY W10212535 MAY W10212535 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & MAY W10120455 Contact Us For Availability
29
Insulation, Sound MAY 12820505 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
CAPACITOR MAY 2321245 Contact Us For Availability
30
MAY W10210988 MAY W10210988 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
33
MAY B5759655 MAY B5759655 Contact Us For Availability
34
MAY W10281329 MAY W10281329 Contact Us For Availability
35
Roller (2) MAY 12477102 Contact Us For Availability
36
Clip, Evap (2) MAY 10623002 Contact Us For Availability
37
Grommet (4) MAY W10137529 Contact Us For Availability
NI
REFRIGERANT CHARGE (4.25 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
MAY 12973503 MAY 12973503 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
Cleaner, Stainless Steel MAY 4396920 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE (IC514) MAY W10261455 Contact Us For Availability
× ![]()
