Model Whirlpool 596.71854100 Bottom-Mount Refrigerator (Kenmore 59671854100) – Common Parts &amp; Diagrams

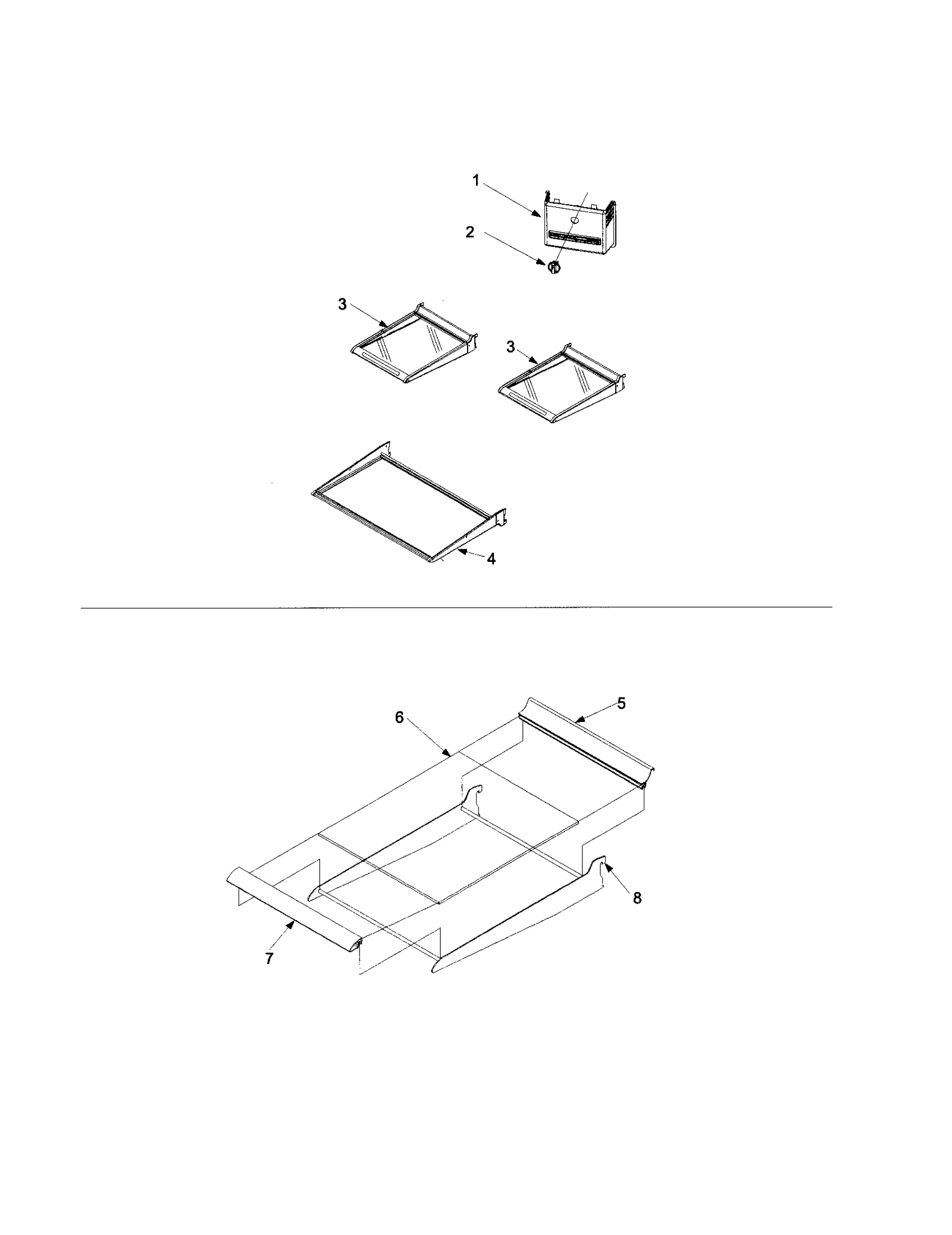

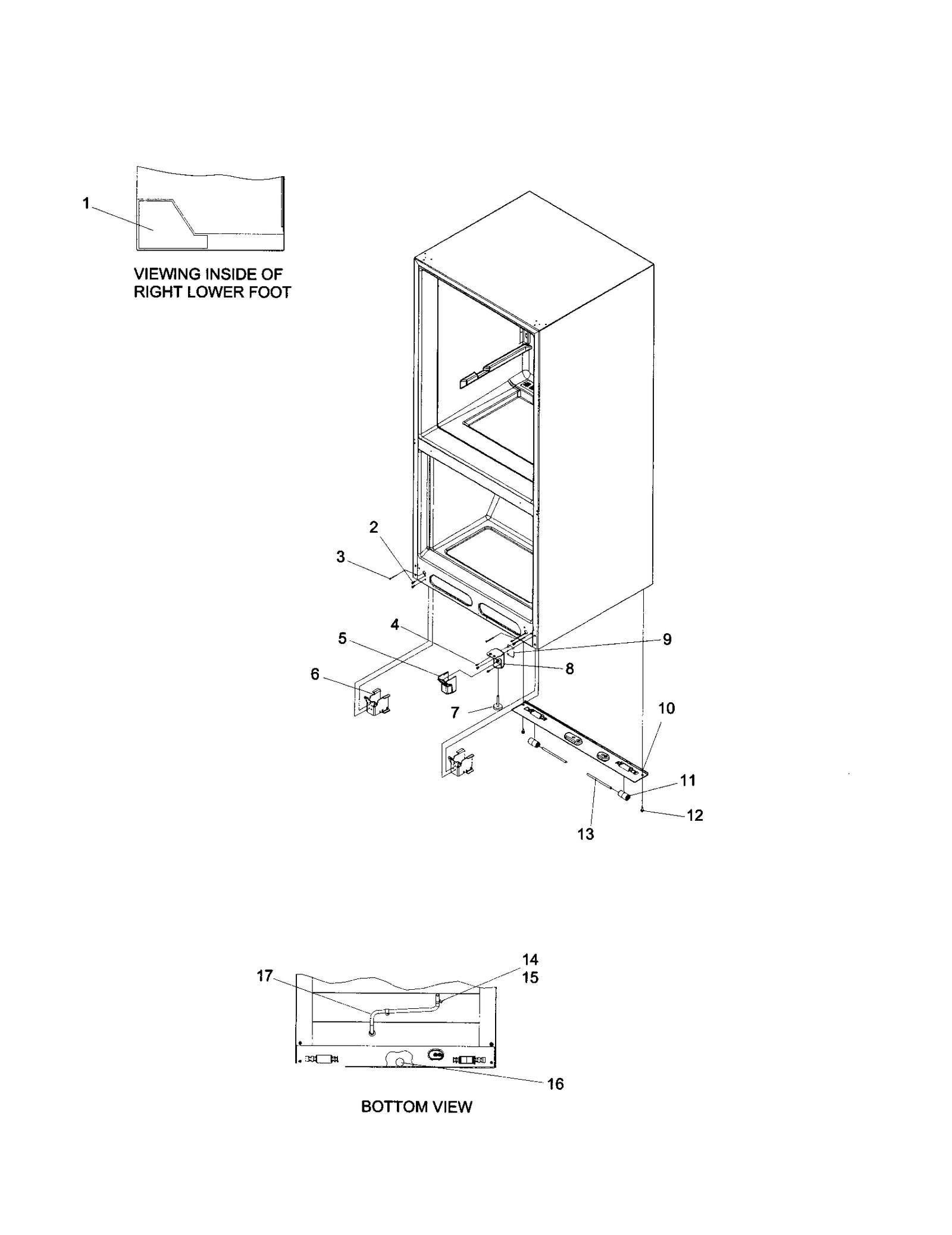

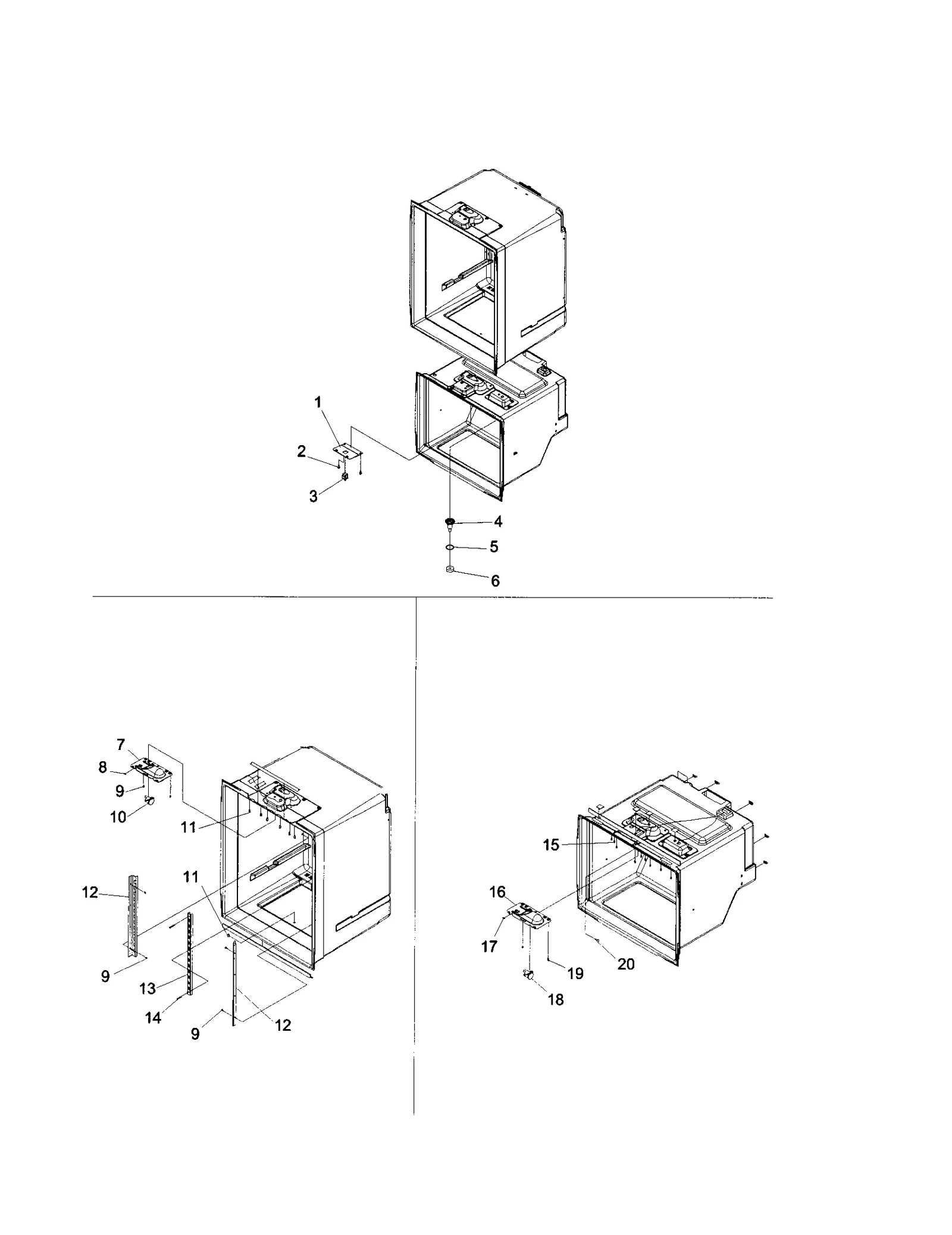

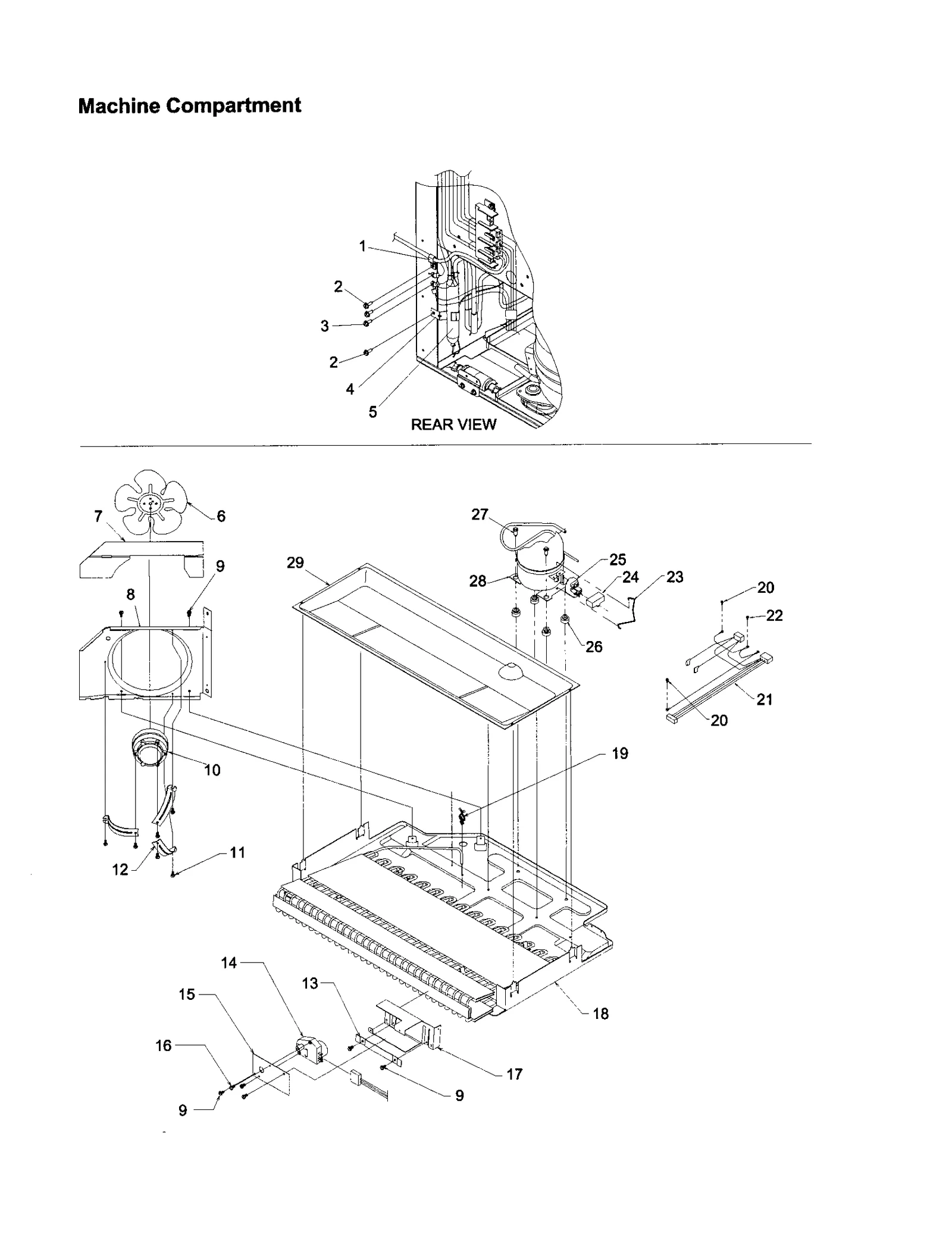

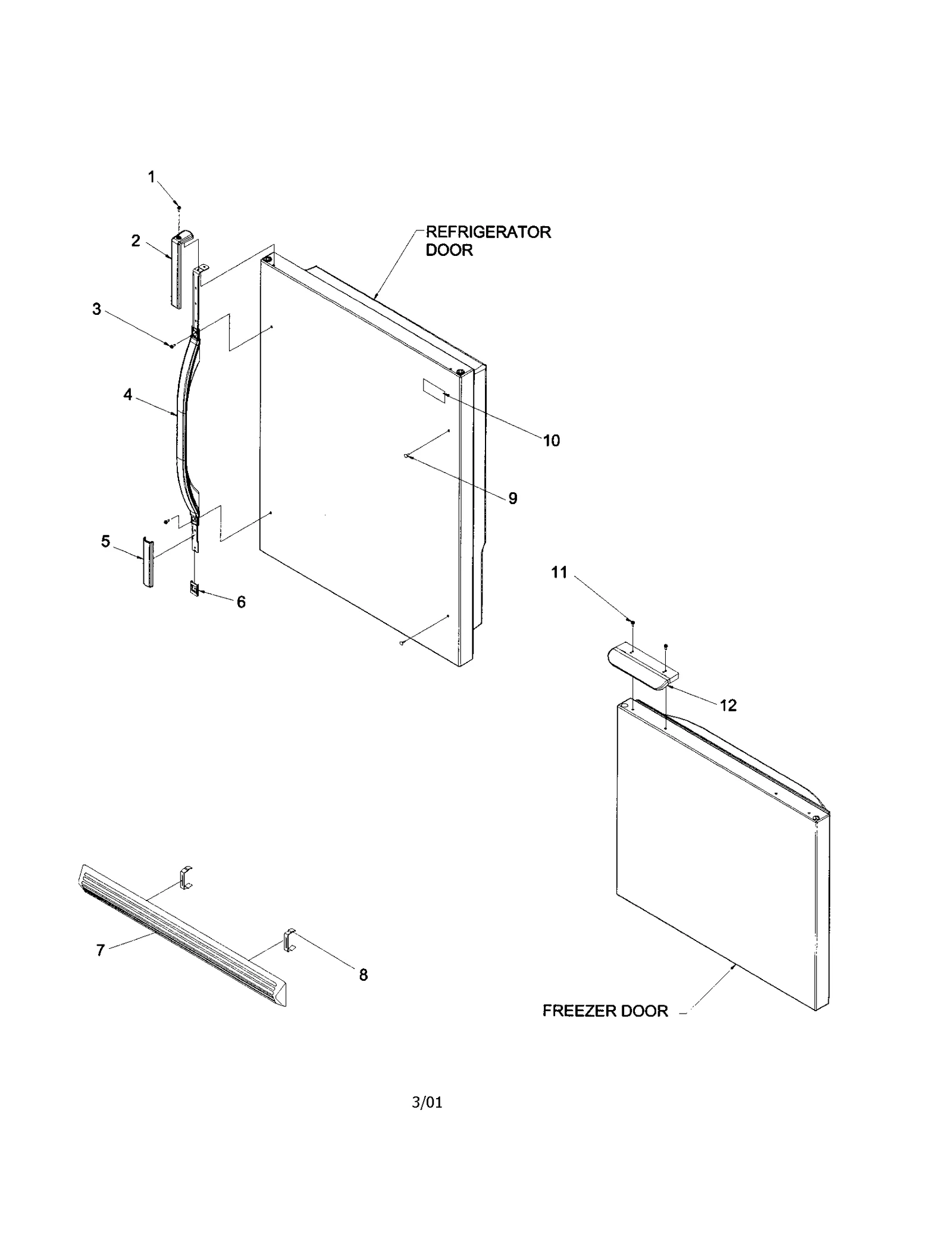

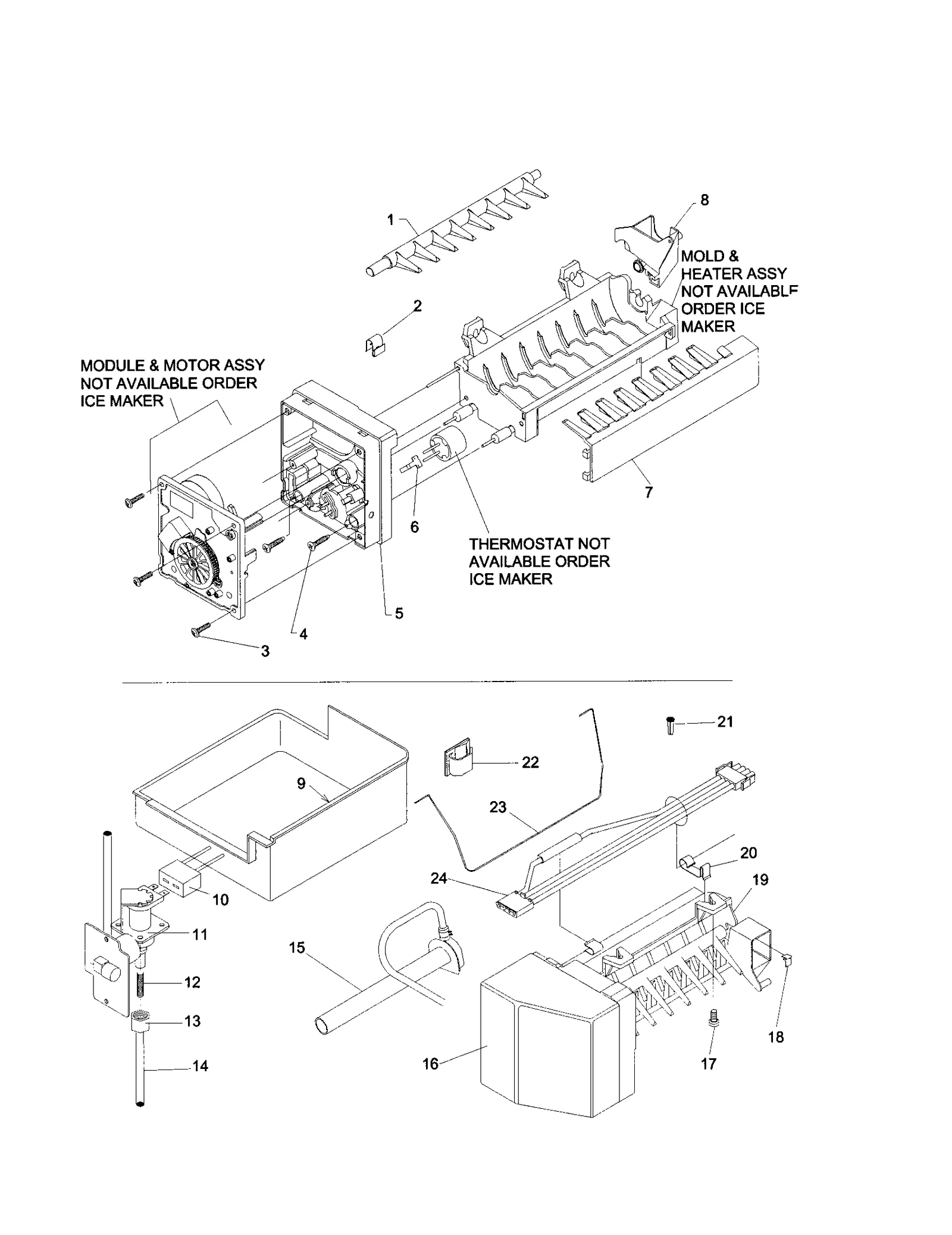

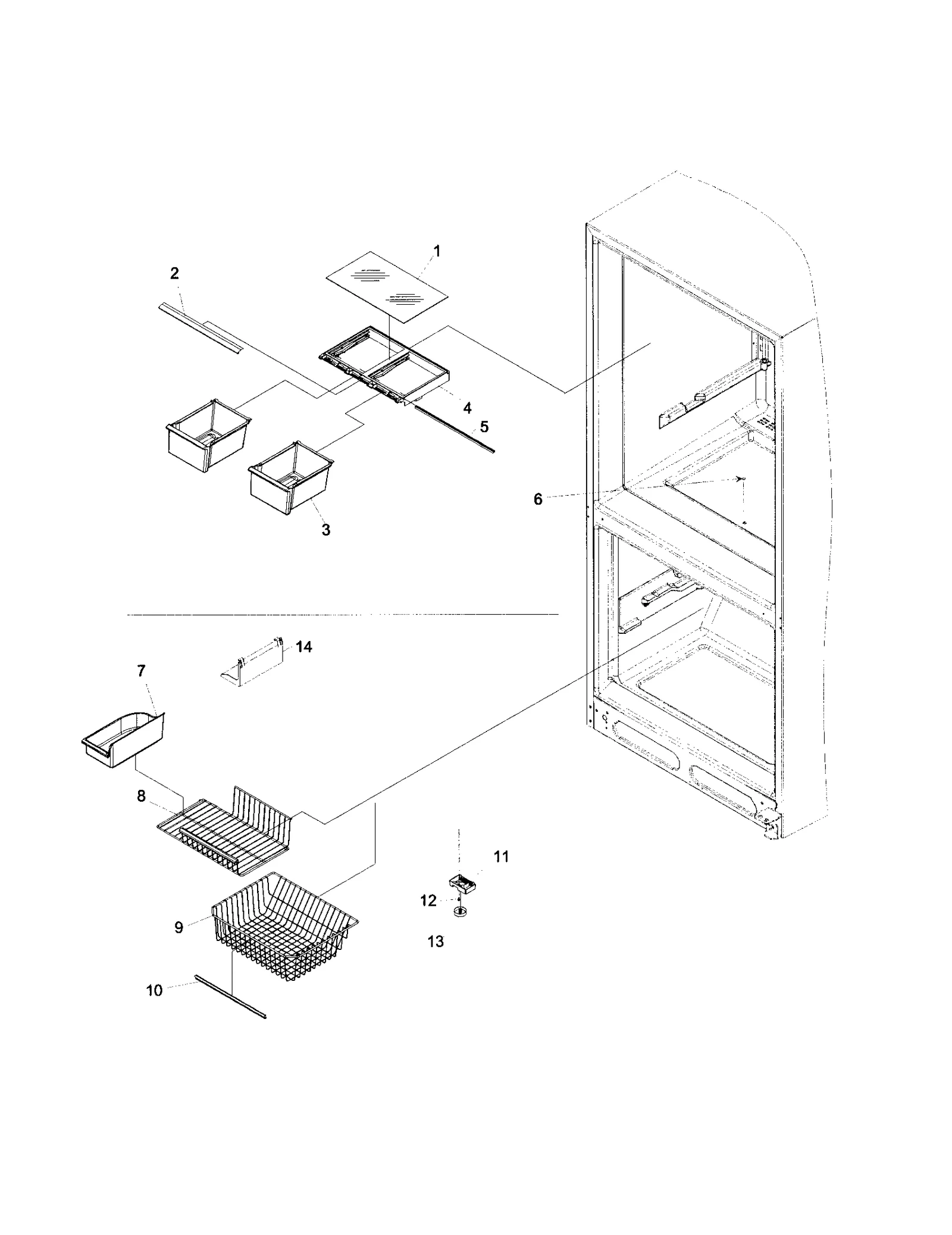

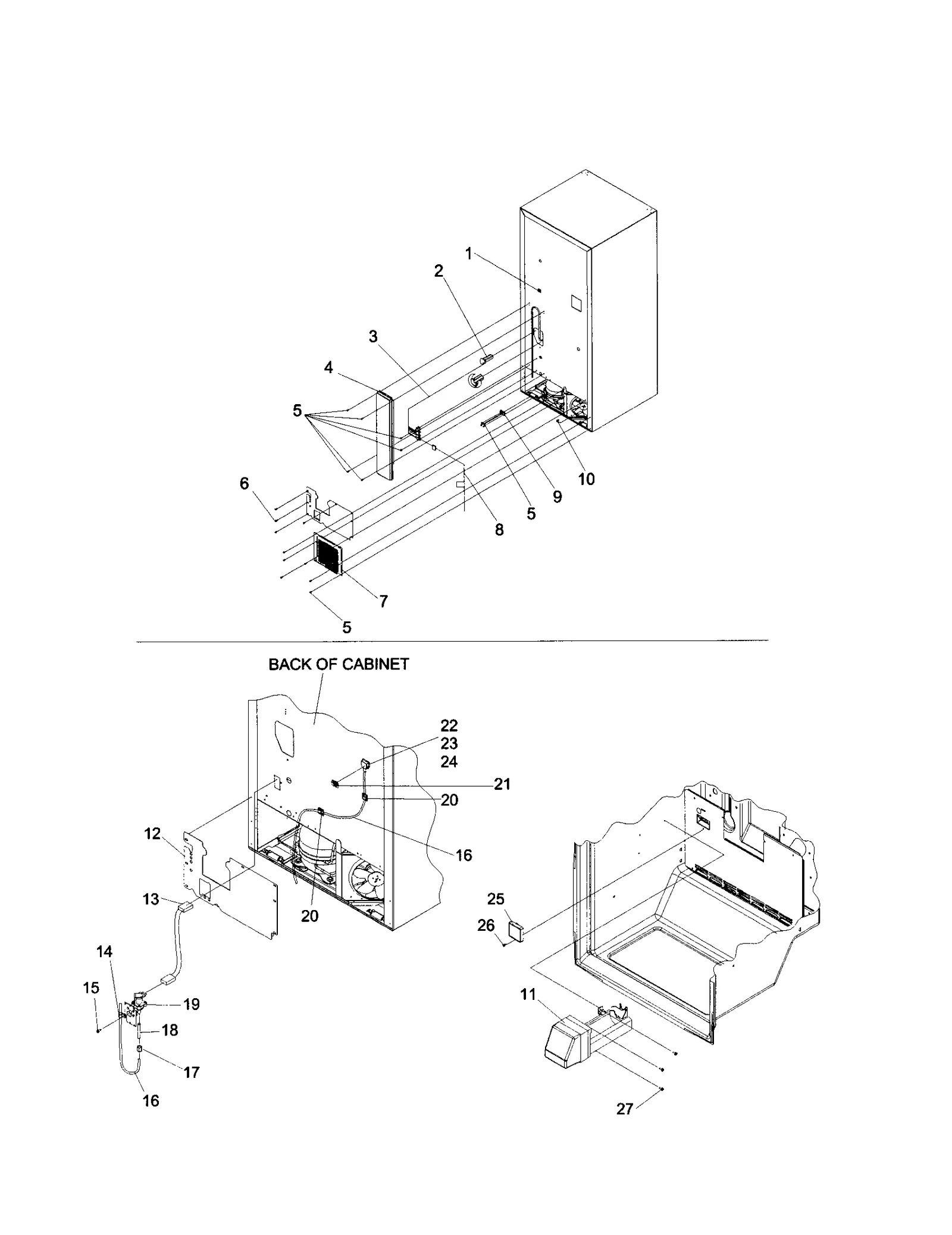

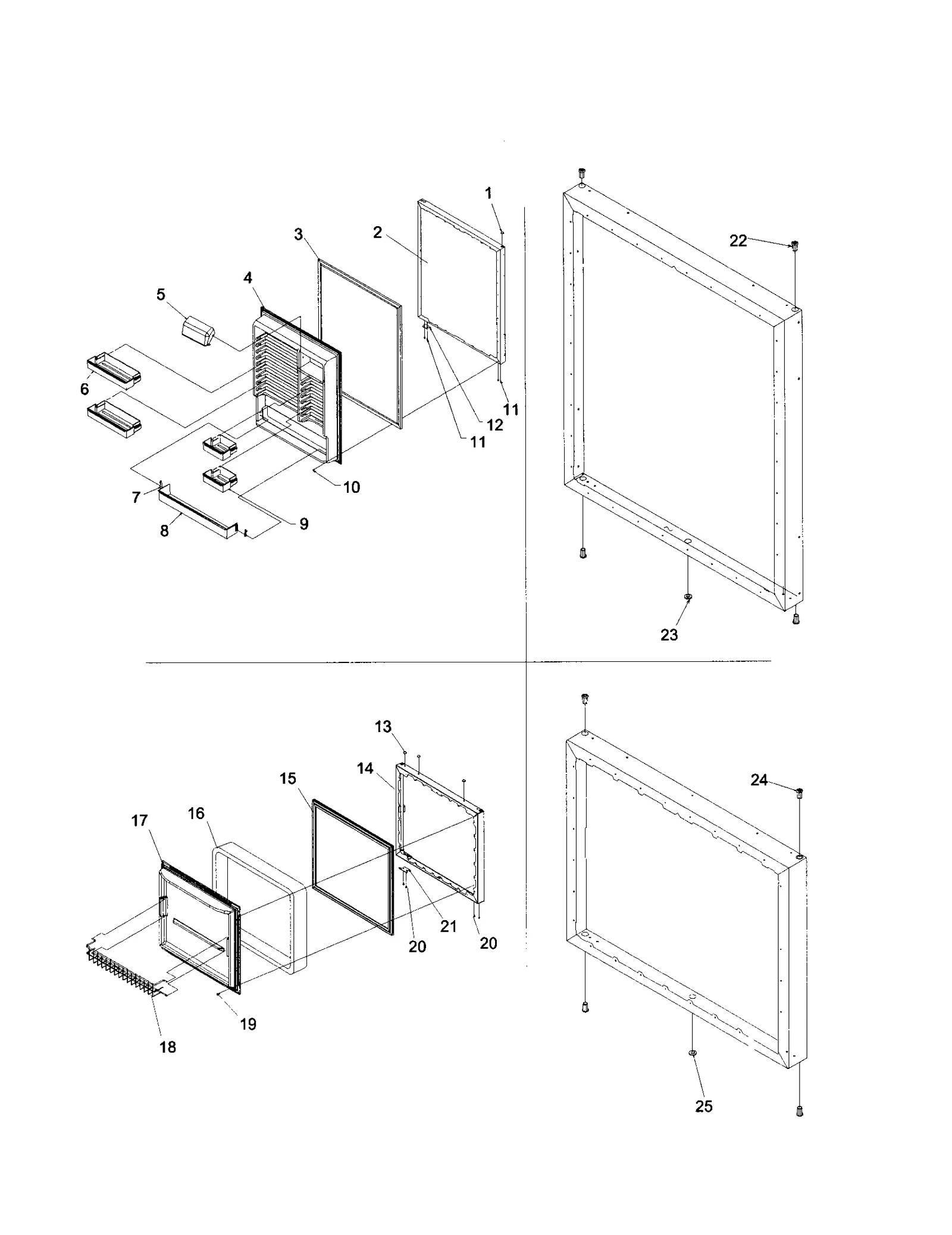

1

Refrigerator Gasket WPL B5759611 Contact Us For Availability

1

Refrigerator Screw WPL 12248201 Contact Us For Availability

1

Speed Clamp WPL M0103904 Contact Us For Availability

1

Refrigerator Glass Shelf WPL 12204804 Contact Us For Availability

1

Refrigerator Cover WPL D7297604 Contact Us For Availability

1

Refrigerator Cover WPL 12219301 Contact Us For Availability

1

Refrigerator Button Plug WPL 10686407 Contact Us For Availability

1

Refrigerator Insulation WPL 10663001 Contact Us For Availability

1A

Refrigerator Plug WPL 10686401 Contact Us For Availability

2

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

2

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.59

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

Refrigerator Damper Control WPL R0161050 Contact Us For Availability

2

Plug-tunne WPL 12060601 Contact Us For Availability

2

Refrigerator Handle Trim WPL 12443304 Contact Us For Availability

2

Refrigerator Extrusion WPL 10688095 Contact Us For Availability

2

Knob, White WPL D7795826 Contact Us For Availability

2

Refrigerator Door Foam WPL 12206801C Contact Us For Availability

2A

Refrigerator Trim WPL 12443301 Contact Us For Availability

2A

Refrigerator Door Foam WPL 12206801W Contact Us For Availability

3

R9800670 Whirlpool Refrigerator Screw Kit In Stock WPL R9800670 $2.78

3

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $15.76

3

WP12550121Q Whirlpool Refrigerator Gasket Backorder WPL WP12550121Q $154.31

3

Refrigerator Grille WPL 10502401 Contact Us For Availability

3

Refrigerator Control Harness WPL 12509402 Contact Us For Availability

3

Refrigerator Crisper Pan WPL 12226703 Contact Us For Availability

3

Refrigerator Screw WPL R0186041 Contact Us For Availability

3

Refrigerator Shelf WPL 10480442Q Contact Us For Availability

3

Refrigerator Screw WPL M0204336 Contact Us For Availability

4

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $30.82

4

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $3.70

4

Refrigerator Cover WPL 10502303 Contact Us For Availability

4

Refrigerator Handle WPL 12272810 Contact Us For Availability

4

Refrigerator Clip WPL 10547001 Contact Us For Availability

4

Refrigerator Crisper Frame WPL 12227201 Contact Us For Availability

4

Refrigerator Screw WPL R0186040 Contact Us For Availability

4

Refrigerator Glass Shelf WPL 10480441Q Contact Us For Availability

4

Refrigerator Door Liner WPL 12228701 Contact Us For Availability

4A

Refrigerator Handle WPL 12272807 Contact Us For Availability

5

WP10946013 Whirlpool Refrigerator Shelf Trim Backorder WPL WP10946013 $65.76

5

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $38.36

5

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.30

5

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $71.88

5

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

5

Refrigerator Evaporator Cover WPL 12226005 Contact Us For Availability

5

Refrigerator Handle Trim WPL 12273521 Contact Us For Availability

5

Refrigerator Dairy Door WPL 10423420 Contact Us For Availability

5

Refrigerator Hinge Cover WPL 10584806 Contact Us For Availability

5A

Refrigerator Trim WPL 12273510 Contact Us For Availability

5A

Refrigerator Shelf WPL 10946012 Contact Us For Availability

5A

Refrigerator Hinge Cover WPL 10584802 Contact Us For Availability

6

WP12204809 Whirlpool Refrigerator Glass Shelf Backorder WPL WP12204809 $160.98

6

Refrigerator Button Plug WPL M0310330 Contact Us For Availability

6

Refrigerator Gasket WPL A3189320 Contact Us For Availability

6

Refrigerator Screw WPL M0219704 Contact Us For Availability

6

Refrigerator Trim WPL 12273402 Contact Us For Availability

6

Refrigerator Fan Blade WPL 85742604 Contact Us For Availability

6

RETAINER-THERMOSTAT WPL R0181094 Contact Us For Availability

6

GASKET-DRAIN TUBE WPL B8381502 Contact Us For Availability

6

Refrigerator Shelf WPL 10419707 Contact Us For Availability

6

Refrigerator Roller Bracket WPL 12452601Q Contact Us For Availability

6A

Refrigerator Shelf Frame WPL 12204808 Contact Us For Availability

7

W11177593 Whirlpool Leveling Feet In Stock WPL W11177593 $7.08

7

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $29.83

7

Refrigerator Back WPL 12039807 Contact Us For Availability

7

Toe Grll/bis WPL 10474906 Contact Us For Availability

7

Refrigerator Gasket WPL 10442702 Contact Us For Availability

7

Refrigerator Pan WPL 12045503 Contact Us For Availability

7

Refrigerator Housing WPL 12427502 Contact Us For Availability

7

Extr, Full S WPL 10459931 Contact Us For Availability

7

Refrigerator Clip WPL 10202001 Contact Us For Availability

7A

Refrigerator Grille (White) WPL 10474902 Contact Us For Availability

7A

Refrigerator Shelf WPL 10459930 Contact Us For Availability

8

W10840992 Whirlpool Refrigerator Shelf Frame Backorder WPL W10840992 $108.09

8

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.55

8

Refrigerator Clip WPL 10623002 Contact Us For Availability

8

Refrigerator Power Cord WPL 10916502 Contact Us For Availability

8

Clip Grill WPL 10551502 Contact Us For Availability

8

Refrigerator Shroud WPL 10426911 Contact Us For Availability

8

Refrigerator Freezer Shelf WPL 12209001 Contact Us For Availability

8

Ground Clip WPL B5733302 Contact Us For Availability

8

Refrigerator Retainer WPL 10419107 Contact Us For Availability

8

Refrigerator Hinge WPL 10585508 Contact Us For Availability

8A

Refrigerator Glass Shelf WPL 10460114 Contact Us For Availability

9

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $91.39

9

Refrigerator Water Valve WPL 12047201 Contact Us For Availability

9

Refrigerator Basket WPL 12216802 Contact Us For Availability

9

Refrigerator Bucket WPL 10502911 Contact Us For Availability

9

Refrigerator Hinge Shim WPL 10447905 Contact Us For Availability

9A

Refrigerator Hinge Shim WPL 10447906 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

Refrigerator Socket WPL D7714408 Contact Us For Availability

Refrigerator Shield WPL 12209502 Contact Us For Availability

Refrigerator Clip WPL B5720303 Contact Us For Availability

Refrigerator Harness WPL 10525901 Contact Us For Availability

Refrigerator Nameplate WPL 12329504 Contact Us For Availability

Refrigerator Handle WPL 10508512 Contact Us For Availability

Screw WPL M0219730 Contact Us For Availability

Refrigerator Brace WPL 10427110 Contact Us For Availability

10A

Refrigerator Tag WPL 12329501 Contact Us For Availability

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

Refrigerator Roller WPL 10450701 Contact Us For Availability

Refrigerator Screw WPL M0223816 Contact Us For Availability

Refrigerator Glide WPL 12217101 Contact Us For Availability

Refrigerator Drip Tray WPL 12226502 Contact Us For Availability

Refrigerator Cover WPL D7878824 Contact Us For Availability

Refrigerator Grommet Screw WPL M0581001 Contact Us For Availability

67003781 Whirlpool Refrigerator Door Stop (BS Backorder WPL 67003781 $37.42

WP67005141 Whirlpool Refrigerator Handle Backorder WPL WP67005141 $76.96

Refrigerator Back WPL 12041854 Contact Us For Availability

Spring WPL A1055101 Contact Us For Availability

Refrigerator Bracket WPL 10582501 Contact Us For Availability

Refrigerator Screw WPL M0216531 Contact Us For Availability

Refrigerator Ladder WPL 12614202 Contact Us For Availability

Refrigerator Screw WPL M0260242 Contact Us For Availability

12A

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $30.84

12A

WP67005140 Whirlpool Door Handle In Stock WPL WP67005140 $59.46

12A

Refrigerator Back WPL 12041855 Contact Us For Availability

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.55

Refrigerator Glide WPL 12217102 Contact Us For Availability

Washer WPL 10542701 Contact Us For Availability

Refrigerator Knob WPL D7689905 Contact Us For Availability

Refrigerator Axle WPL 10450901 Contact Us For Availability

13A

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $3.70

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

R0131577 Whirlpool Defrost Timer In Stock WPL R0131577 $34.59

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.81

W10752646 Whirlpool Control Thermostat In Stock WPL W10752646 $79.39

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $4.45

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $7.39

Refrigerator Screw WPL M0227217 Contact Us For Availability

Refrigerator Rack WPL 10448903 Contact Us For Availability

Refrigerator Door Foam WPL 12206901C Contact Us For Availability

14A

Refrigerator Door Foam WPL 12206901W Contact Us For Availability

W10887190 Whirlpool Refrigerator Light Bulb Backorder WPL W10887190 $7.06

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $46.57

WP12550122Q Whirlpool Refrigerator Freezer Do Backorder WPL WP12550122Q $139.36

Refrigerator Bracket WPL 12271401 Contact Us For Availability

Refrigerator Cover WPL 12515801 Contact Us For Availability

Clamp WPL M0102303 Contact Us For Availability

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $106.84

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.53

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $13.36

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Refrigerator Insulation WPL 10663002 Contact Us For Availability

EVAP FN SHROUD-E CT WPL 10619310 Contact Us For Availability

Refrigerator Screw WPL M0216705 Contact Us For Availability

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

Refrigerator Post WPL 12442401 Contact Us For Availability

Refrigerator Bracket WPL 10503201 Contact Us For Availability

Refrigerator Door Liner WPL 12228801 Contact Us For Availability

Refrigerator Drain Tube WPL 12205401 Contact Us For Availability

Refrigerator Grommet WPL 12442501 Contact Us For Availability

Pan Condenser WPL 10481224 Contact Us For Availability

Refrigerator Clip WPL B5720302 Contact Us For Availability

Refrigerator Retainer WPL 12208702 Contact Us For Availability

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $64.55

W10833899 Whirlpool Refrigerator Water Inlet In Stock WPL W10833899 $140.59

Refrigerator Button Plug WPL M0310738 Contact Us For Availability

Refrigerator Screw WPL M0219711 Contact Us For Availability

Refrigerator Clip WPL B5667304 Contact Us For Availability

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $9.59

WP12013211Q Whirlpool Refrigerator Evaporator In Stock WPL WP12013211Q $203.70

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

Screw WPL M0253916 Contact Us For Availability

Refrigerator Clamp WPL 10526701 Contact Us For Availability

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.70

WPM0274057 Whirlpool Refrigerator Shim In Stock WPL WPM0274057 $2.51

Refrigerator Plug WPL 10544301 Contact Us For Availability

Refrigerator Harness WPL 12556101 Contact Us For Availability

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

WP67006744 Whirlpool Refrigerator Center Pin Backorder WPL WP67006744 $3.70

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.51

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.59

Double Bracket Damper Washer WPL 12227701 Contact Us For Availability

Refrigerator Door Bushing WPL 10961001 Contact Us For Availability

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $9.59

WP10442411 Whirlpool Bimetal Defrost Thermost In Stock WPL WP10442411 $13.16

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $35.01

Refrigerator Strap WPL 12576801 Contact Us For Availability

Refrigerator Button Plug WPL M0310344 Contact Us For Availability

23A

Refrigerator Button Plug WPL M0310308 Contact Us For Availability

23A

Refrigerator Strap WPL 12604101 Contact Us For Availability

WP12219401 Whirlpool Refrigerator EV Heater Backorder WPL WP12219401 $72.00

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $40.74

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $23.36

Refrigerator Hinge WPL 12446503 Contact Us For Availability

W11673433 Whirlpool Clip Backorder WPL W11673433 $66.52

Refrigerator Hinge Shim WPL 10562211 Contact Us For Availability

Refrigerator Plug Cover WPL D7874403 Contact Us For Availability

Refrigerator Overload WPL 12555901 Contact Us For Availability

25A

WP12555902 Whirlpool Refrigerator Overload In Stock WPL WP12555902 $83.50

26

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.70

26

Refrigerator Shim WPL 10562203 Contact Us For Availability

26

Double Bracket Damper Washer WPL 12227801 Contact Us For Availability

27

Refrigerator Compressor Mounting Screw WPL M0221523 Contact Us For Availability

27

Side WPL R9900032 Contact Us For Availability

28

67007018 Whirlpool Refrigerator Bottom Hinge Backorder WPL 67007018 $3.70

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

28A

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

29

Refrigerator Shim WPL M0274058 Contact Us For Availability

29

Refrigerator Drain Pan WPL 10427404 Contact Us For Availability

30

Refrigerator Pin Shim WPL 12545201 Contact Us For Availability

31

Refrigerator Hinge WPL 12077316 Contact Us For Availability

32

Refrigerator Hinge Cover WPL 12076305 Contact Us For Availability

32A

W Hinge Cov WPL 12076302 Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Refrigerator Parts Manual WPL 10075078 Contact Us For Availability

SHEET-TECH DATA (596.61852100, 596.61854100, WPL 10096875 Contact Us For Availability

SHEET-TECH DATA (596.51852101, 596.61854101, WPL 10096876 Contact Us For Availability

Instl-manl WPL 10527047 Contact Us For Availability

Icemaker Lab WPL 10834701 Contact Us For Availability

Refrigerator Owner's Manual WPL 10937055 Contact Us For Availability

Instl-manl WPL 12123326 Contact Us For Availability

TAG-6185 (596.61852100/2101/4100/4101) WPL 12603321 Contact Us For Availability

TAG-7185 (596.71852100/2101/4100/4101) WPL 12603322 Contact Us For Availability

TAG-6284 (596.52842100/2101/4100/4101) WPL 12603329 Contact Us For Availability

TAG-7284 (596.72842100/2101/4100/4101) WPL 12603330 Contact Us For Availability

Labelwarrant WPL A3036901 Contact Us For Availability

Refrigerator Button Plug WPL M0311301 Contact Us For Availability
