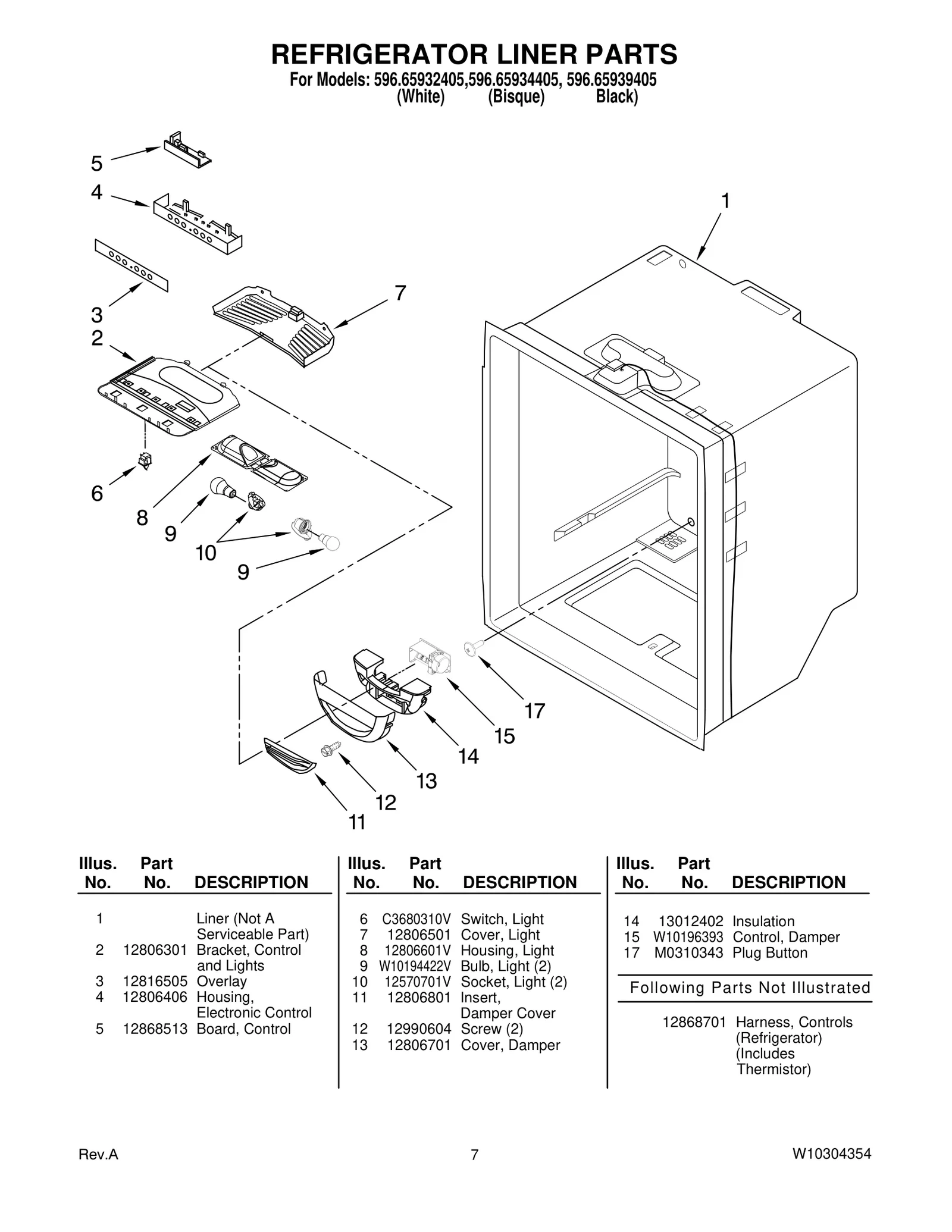

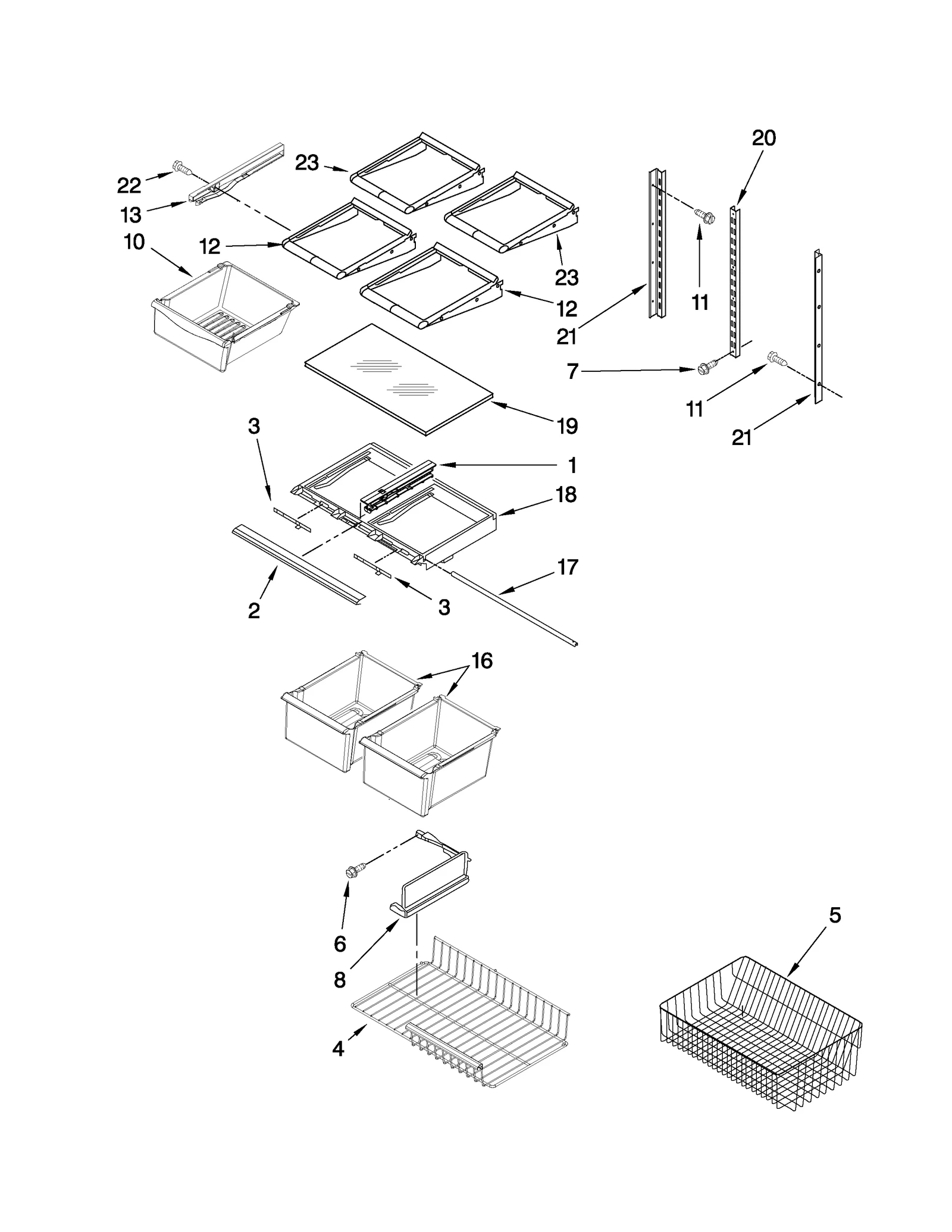

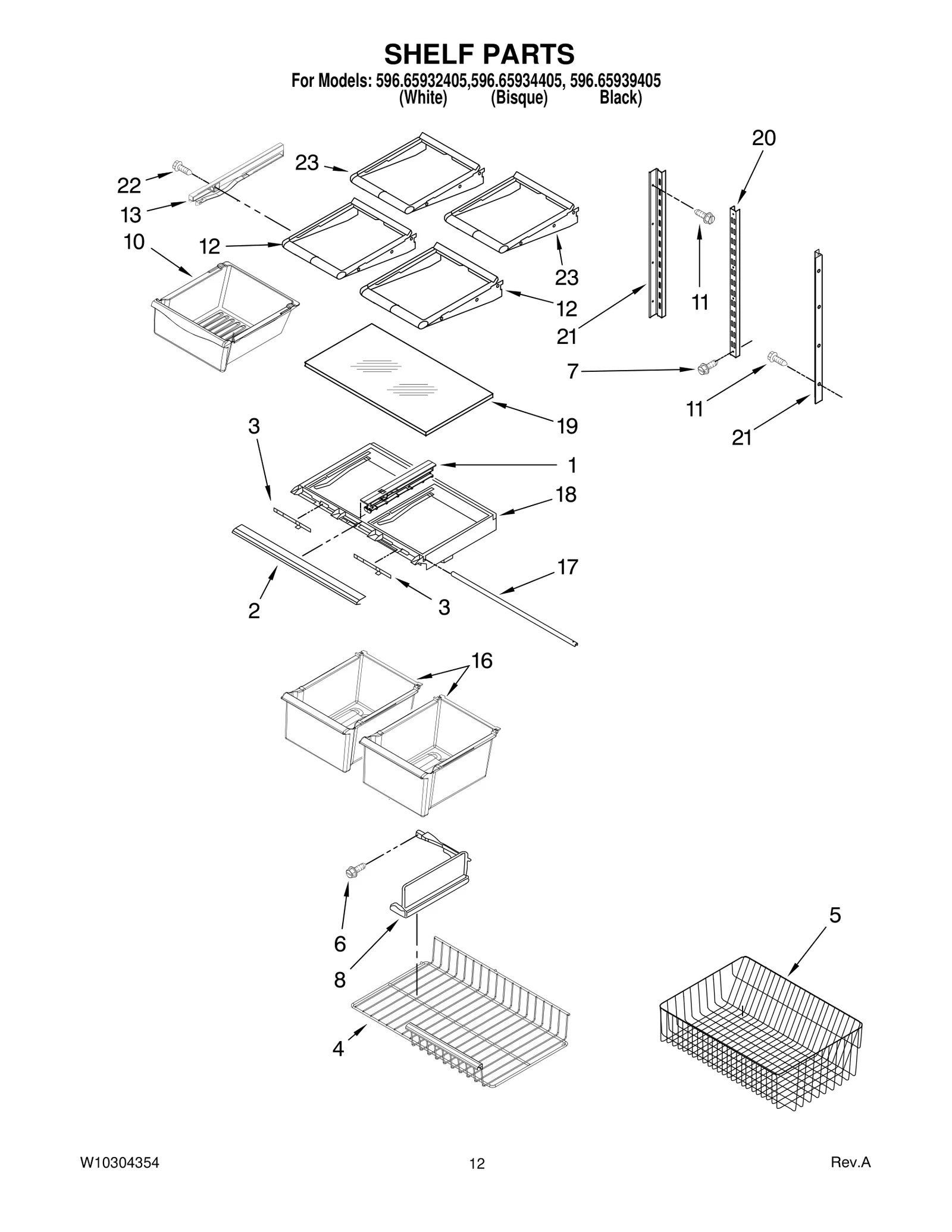

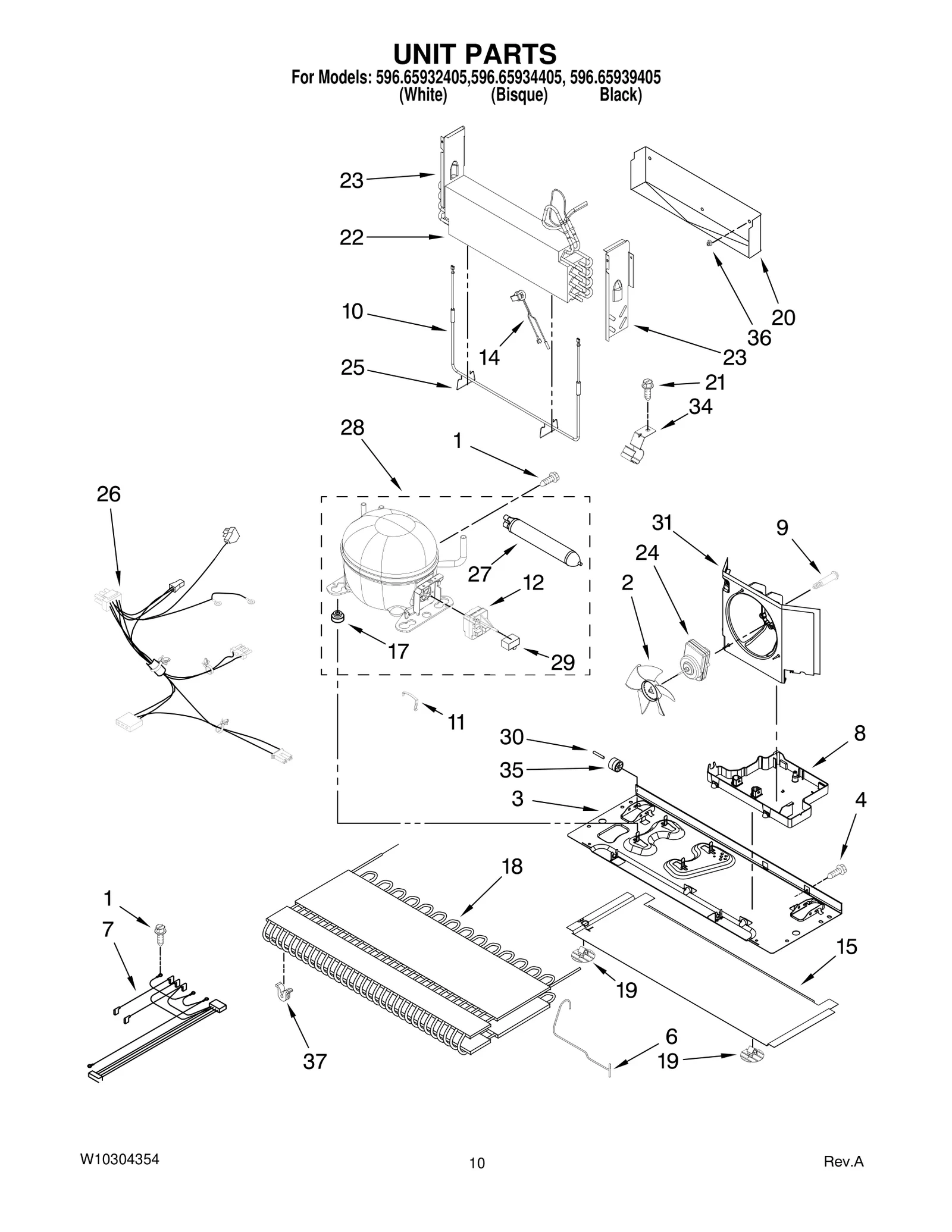

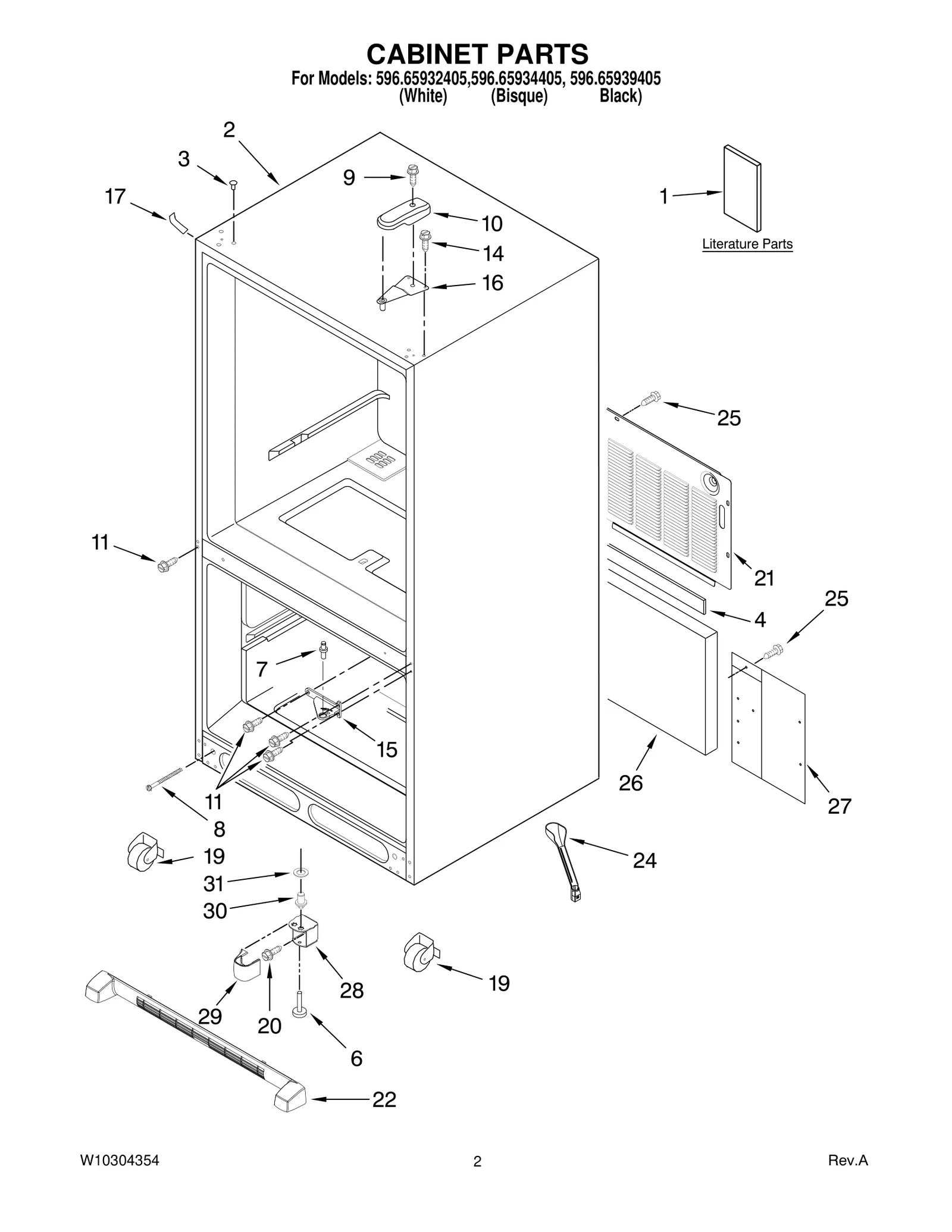

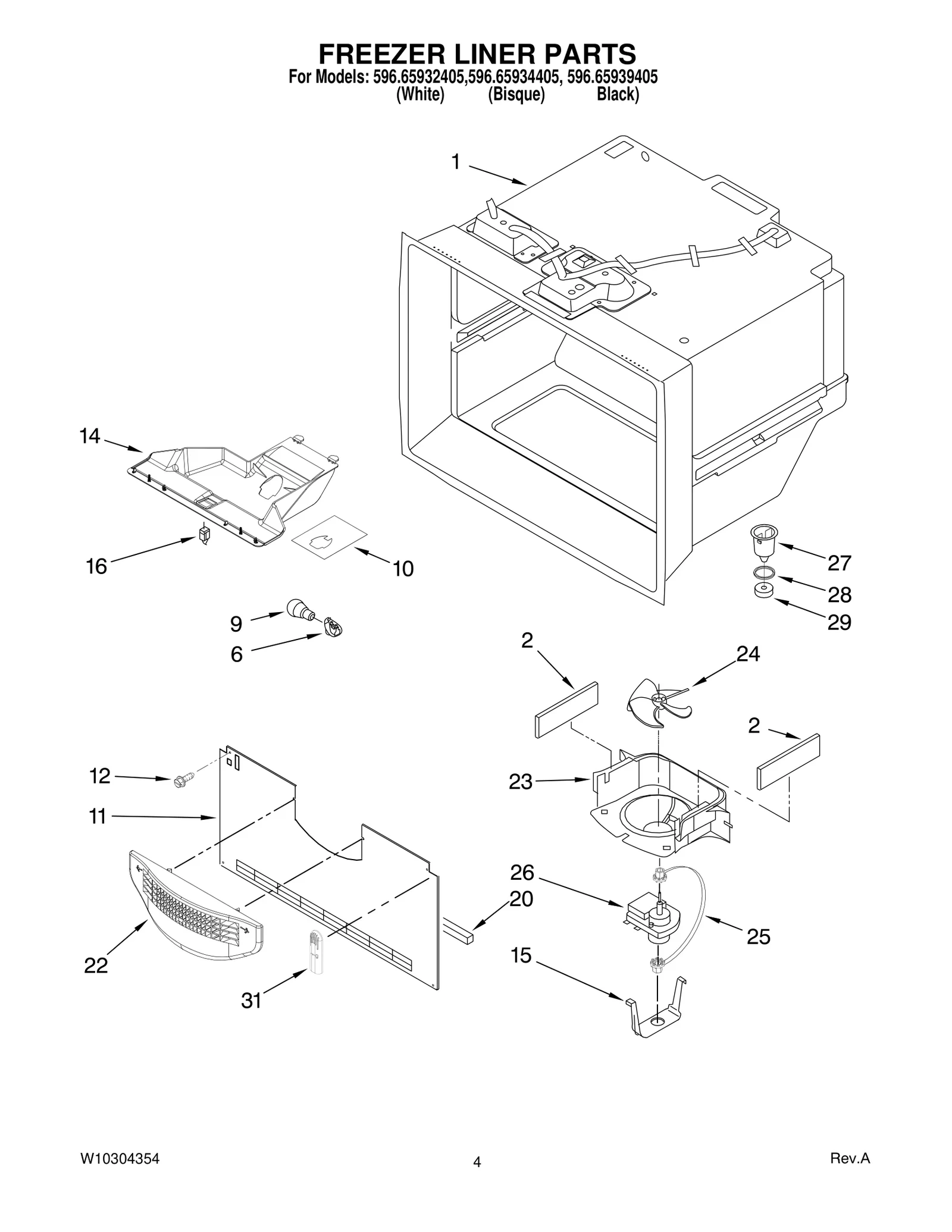

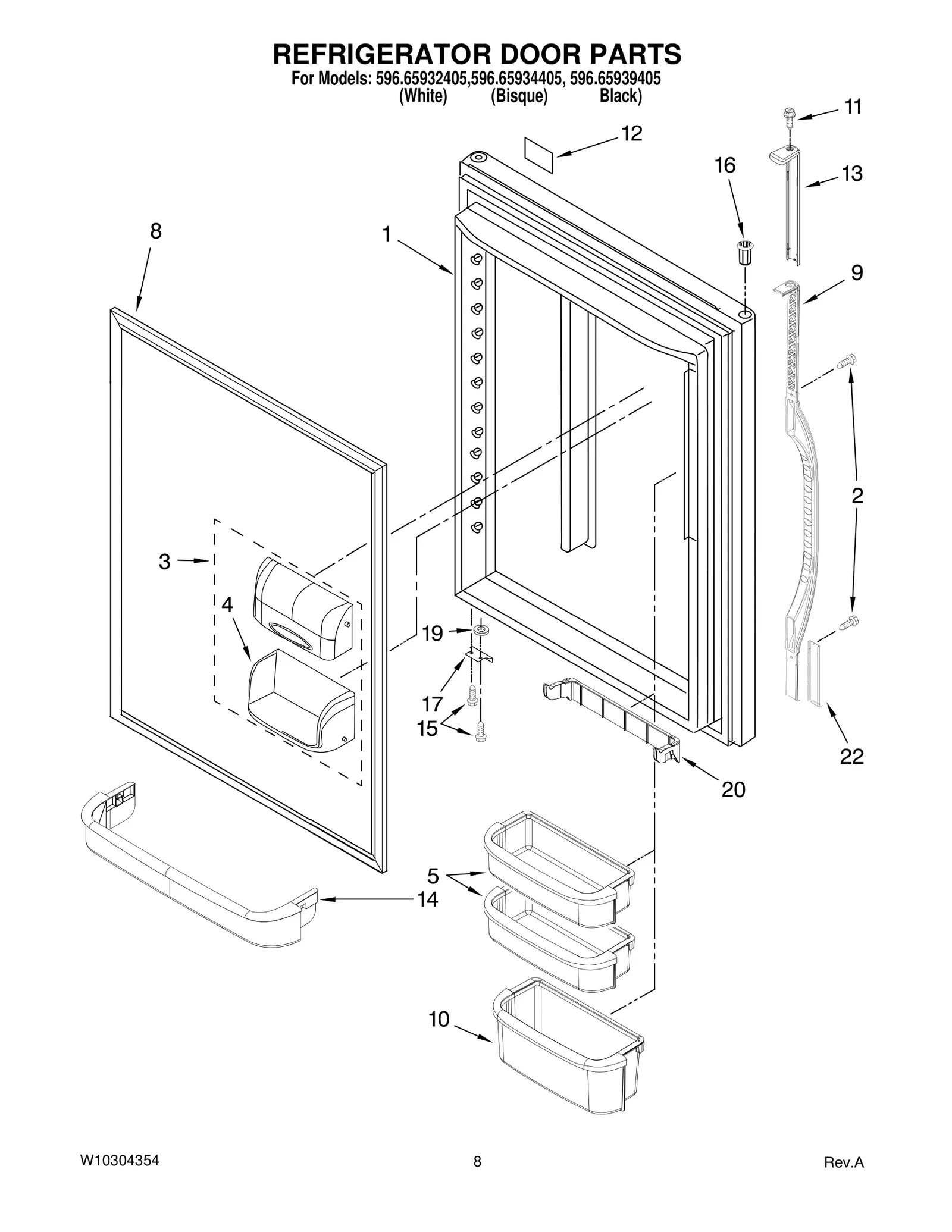

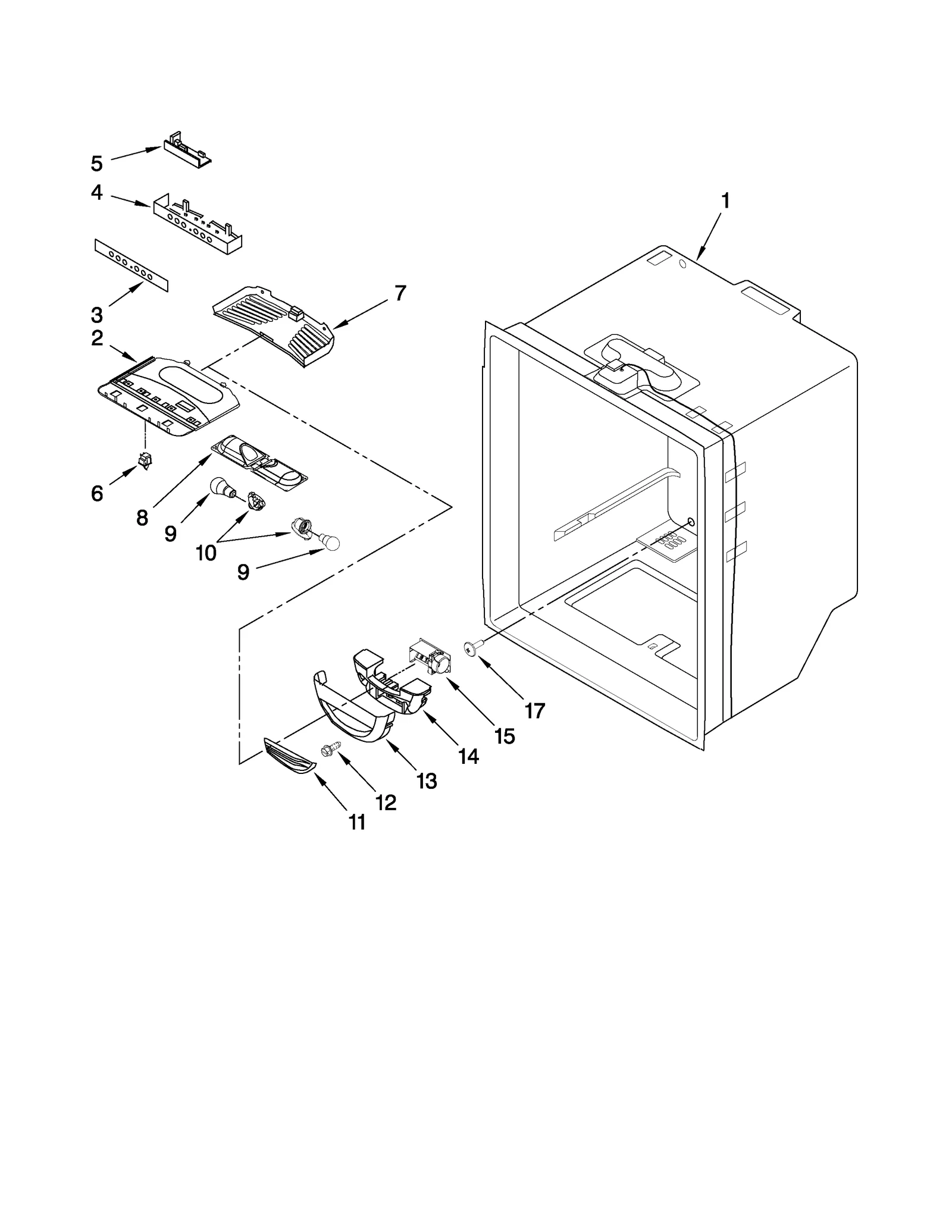

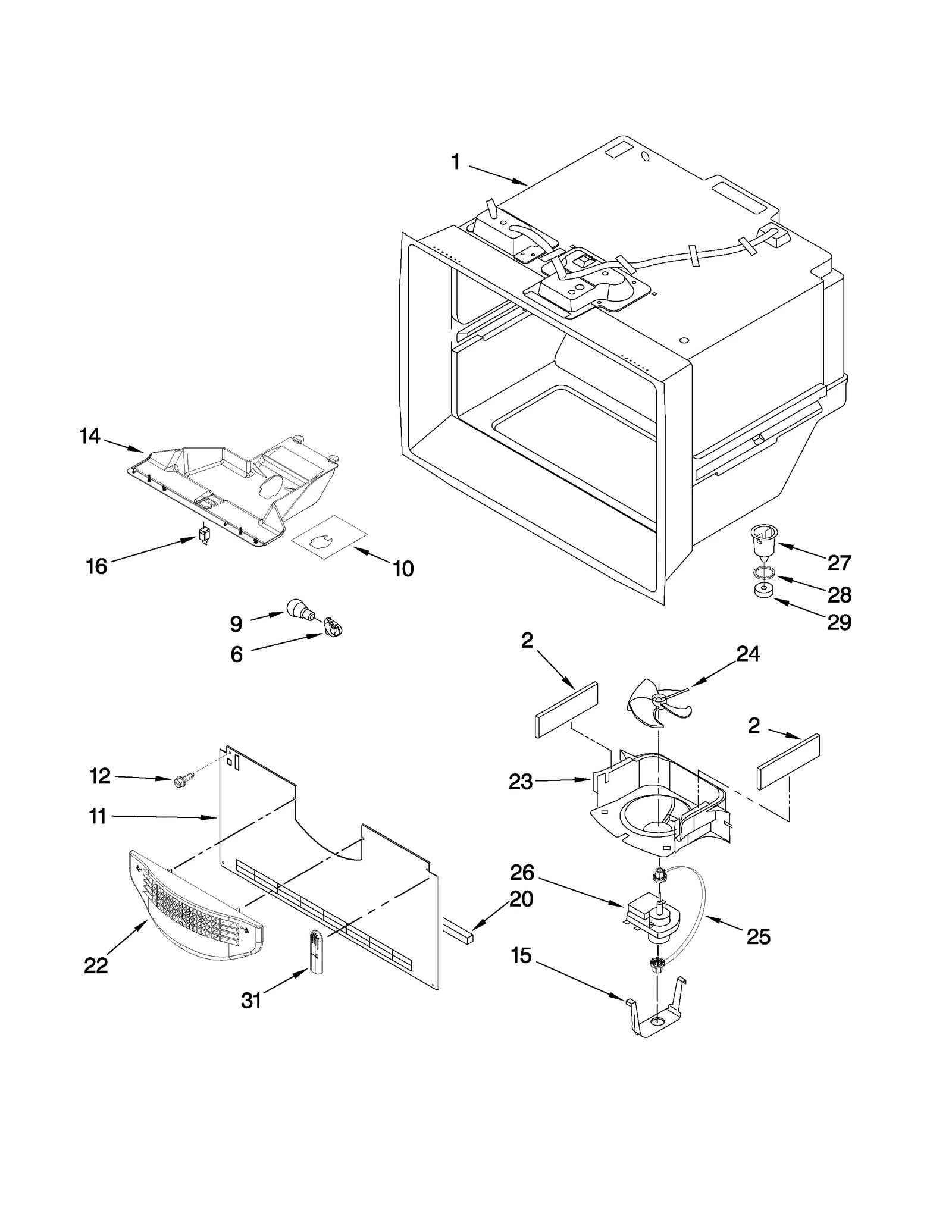

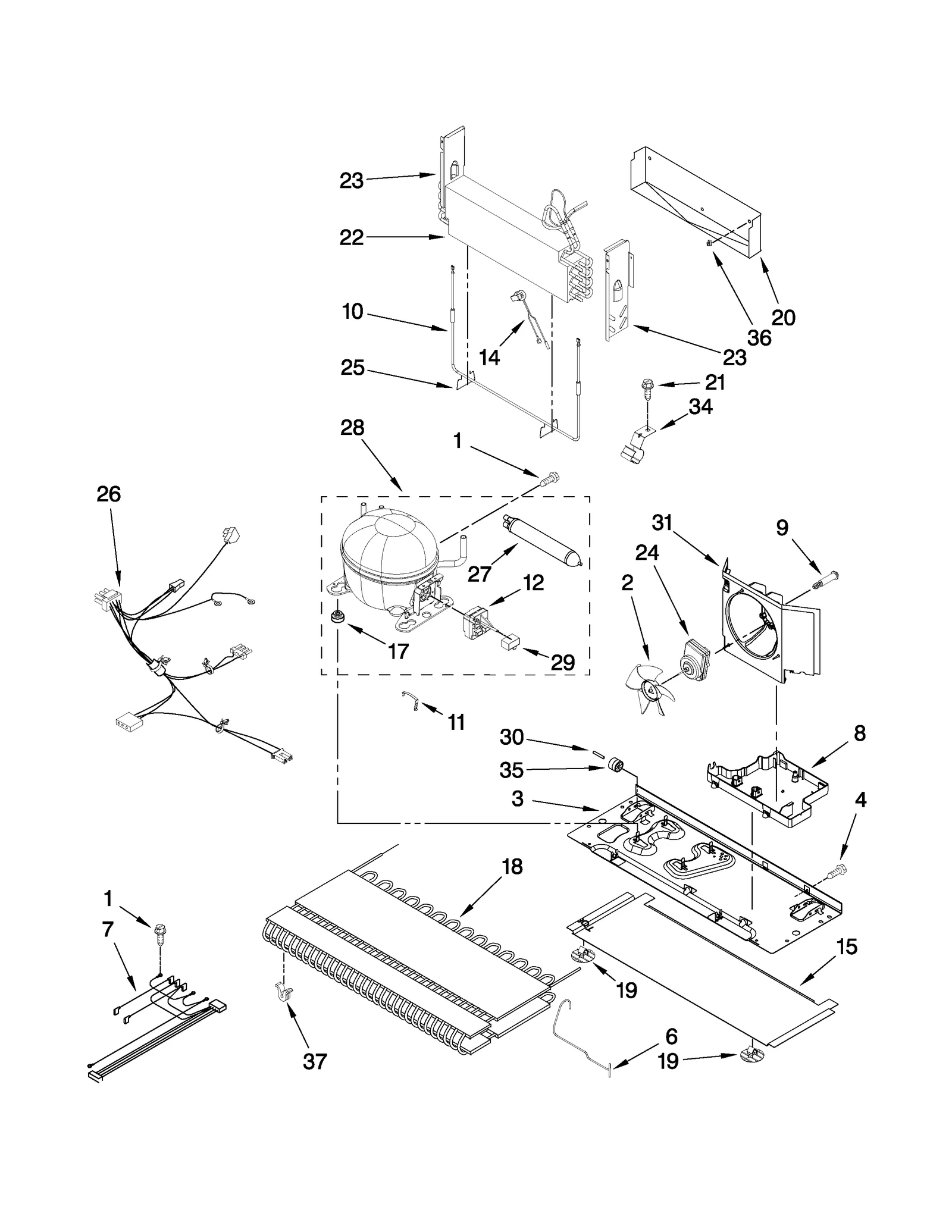

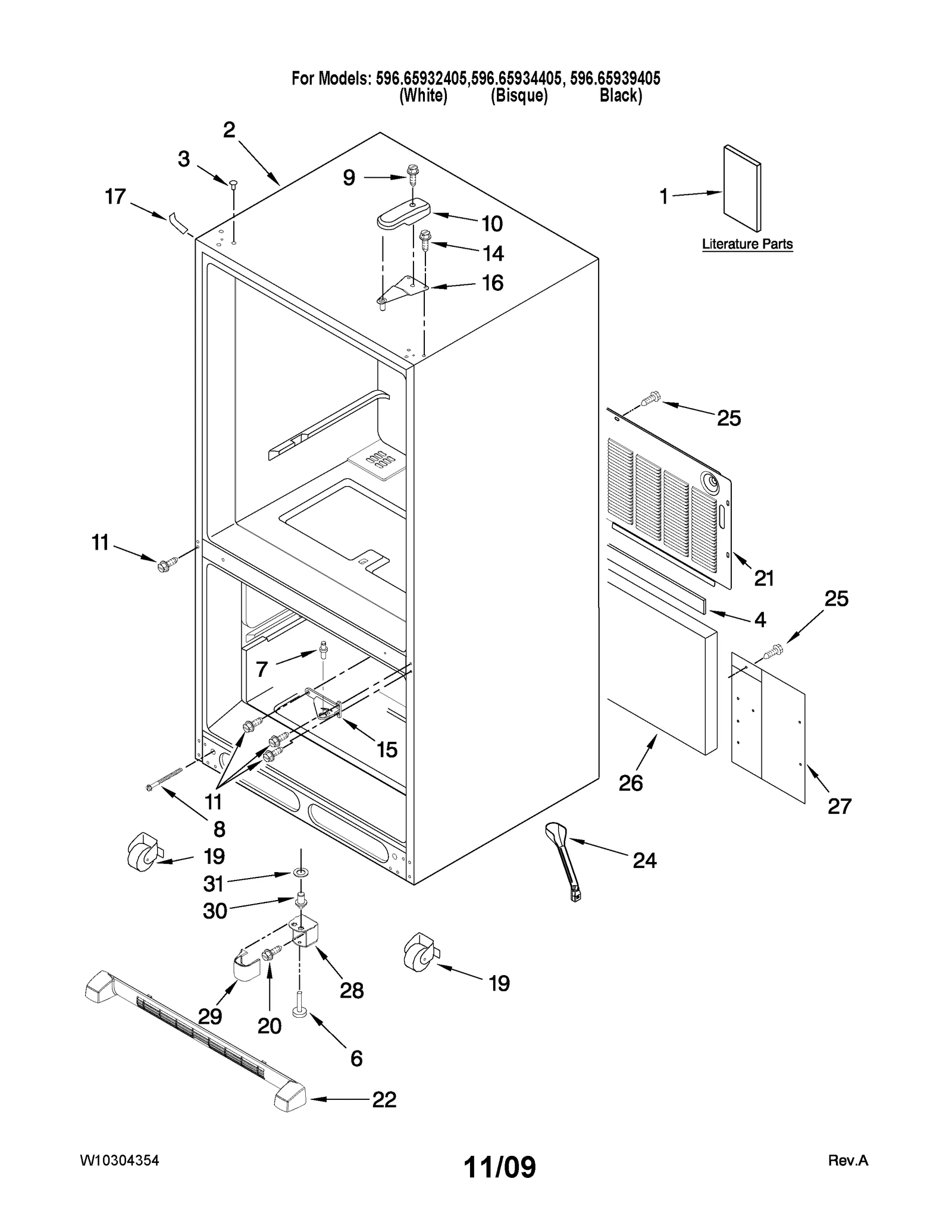

Model Whirlpool 596.65932405 Refrigerator (Kenmore 59665932405) – Common Parts &amp; Diagrams

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $14.12

1

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $44.55

1

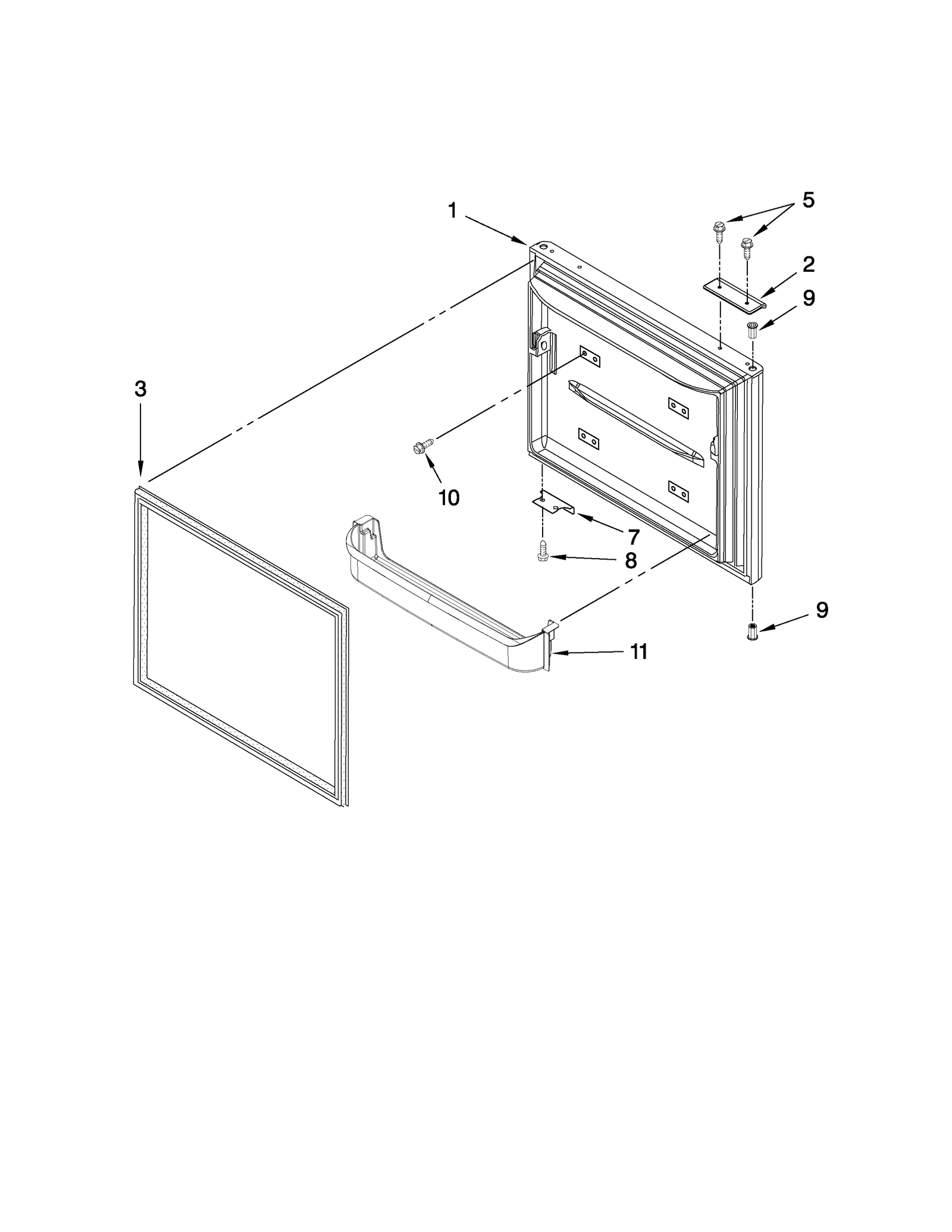

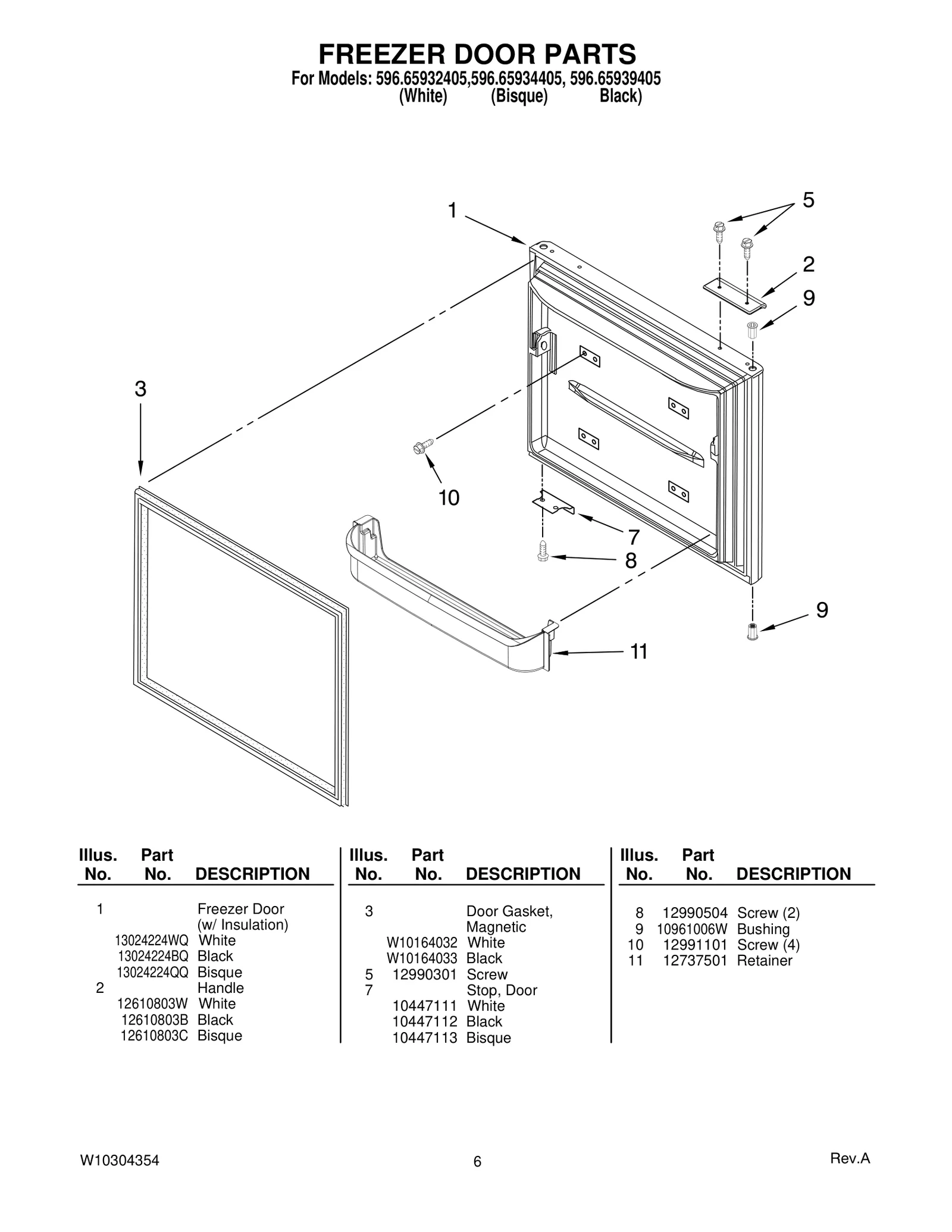

Freezer Door Assembly (White) WPL 13024224WQ Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL N/S Contact Us For Availability

1

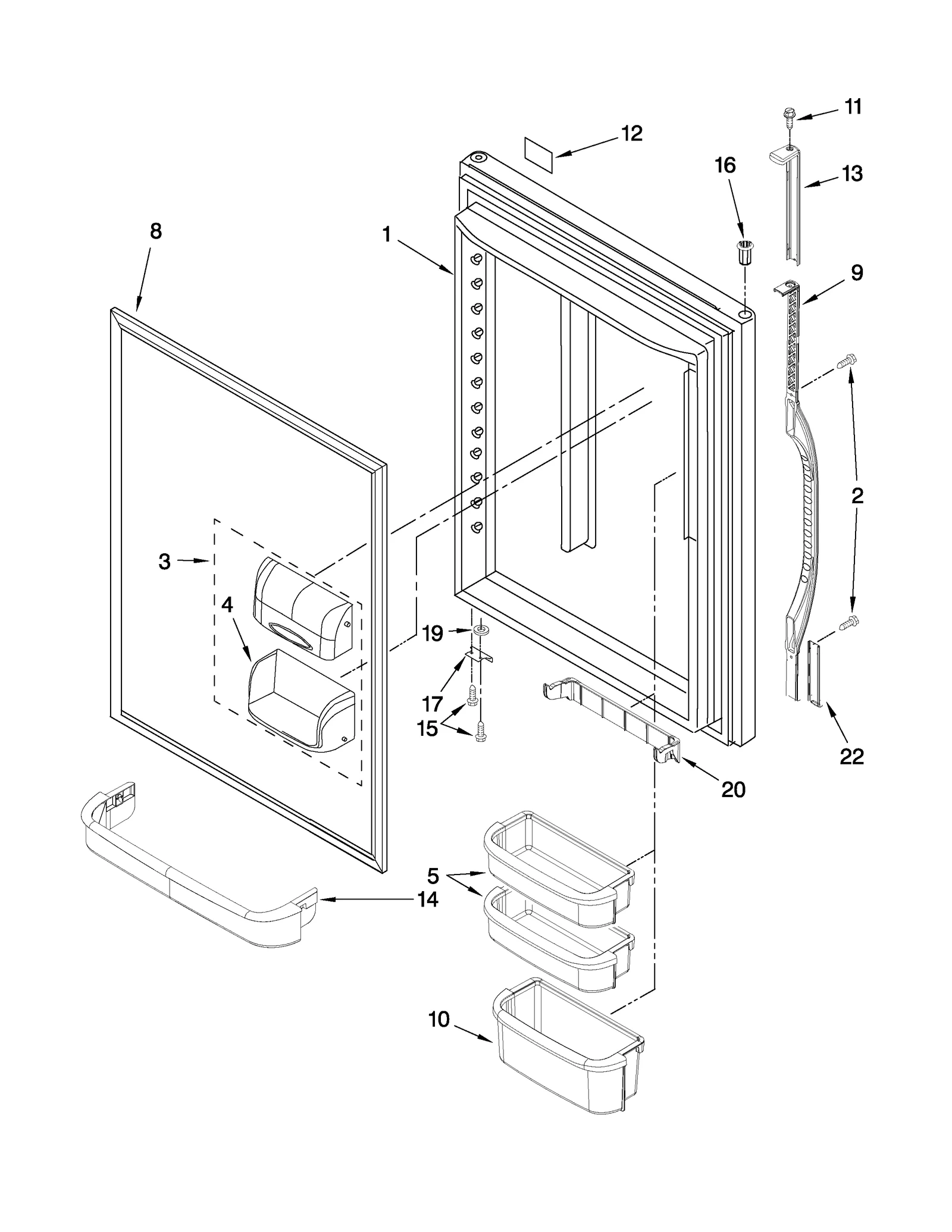

Refrigerator Door — White WPL 12658501WQ Contact Us For Availability

1

Refrigerator Door — Bisque WPL 12658501CQ Contact Us For Availability

1

Refrigerator Owner's Manual WPL W10224301 Contact Us For Availability

1A

Freezer Door Assembly (Black) WPL 13024224BQ Contact Us For Availability

1A

Refrigerator Energy Guide WPL W10183279 Contact Us For Availability

1B

Freezer Door Assembly (Bisque) WPL 13024224QQ Contact Us For Availability

1B

Refrigerator Technical Sheet WPL W10279329 Contact Us For Availability

2

60001022 Whirlpool Oven Screw Backorder WPL 60001022 $35.04

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $40.08

2

WP67005140 Whirlpool Door Handle In Stock WPL WP67005140 $59.46

2

WPW10231481 Whirlpool Refrigerator Shelf Trim In Stock WPL WPW10231481 $45.64

2

Bracket, Control and Lights WPL 12806301 Contact Us For Availability

2

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

2A

67005125 Whirlpool Refrigerator Door Handle ( In Stock WPL 67005125 $76.60

2B

WP67005141 Whirlpool Refrigerator Handle Backorder WPL WP67005141 $78.24

3

W10480107 Whirlpool Refrigerator Plate Backorder WPL W10480107 $64.11

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $60.04

3

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $3.76

3

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.76

3

WPW10443311 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443311 $134.83

3

Overlay WPL 12816505 Contact Us For Availability

3A

WPW10436247 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436247 $224.68

3A

Plug, Top Hi WPL M0310738 Contact Us For Availability

3B

Refrigerator Door Hole Plug WPL M0310731 Contact Us For Availability

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.81

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $52.77

4

WPW10464769 Whirlpool Refrigerator Housing In Stock WPL WPW10464769 $41.85

4

Shelf, Freezer Glide WPL 12694606 Contact Us For Availability

5

67001141 Whirlpool Refrigerator Small Bucket Backorder WPL 67001141 $48.56

5

WP12754803 Whirlpool Refrigerator Freezer Bas Backorder WPL WP12754803 $139.03

5

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.55

5

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $143.88

6

W11177593 Whirlpool Leveling Feet In Stock WPL W11177593 $7.20

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $16.01

6

Tube, Discharge WPL W10217744 Contact Us For Availability

6

Screw WPL 12990601 Contact Us For Availability

7

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.94

7

W11260592 Whirlpool Refrigerator Wire Harness In Stock WPL W11260592 $35.28

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $41.07

7

WP67006744 Whirlpool Refrigerator Center Pin Backorder WPL WP67006744 $3.76

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $48.99

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.93

8

WPW10436245 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436245 $133.00

8

WPW10443309 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443309 $138.21

8

WPW10655367 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655367 $62.08

8

Divider, Basket Top WPL 12693802 Contact Us For Availability

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $5.10

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.94

9

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $3.76

9

Door Handle — White WPL 12477003W Contact Us For Availability

9

Door Handle — Black WPL 12477003B Contact Us For Availability

9

Door Handle — Bisque WPL 12477003C Contact Us For Availability

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $9.75

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $10.94

W11447232 Whirlpool Refrigerator Socket Backorder WPL W11447232 $4.65

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.94

WP12729127 Whirlpool Refrigerator Heater Backorder WPL WP12729127 $74.24

WP67001308 Whirlpool Deli Drawer Backorder WPL WP67001308 $93.09

Bucket, Tall WPL 12846502V Contact Us For Availability

10A

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $31.40

10B

Top Cover WPL 12477601C Contact Us For Availability

67003397 Whirlpool Refrigerator Door Retainer Backorder WPL 67003397 $57.81

67003900 Whirlpool Refrigerator Insert Damper Backorder WPL 67003900 $3.76

W11092534 Whirlpool Refrigerator Clip Backorder WPL W11092534 $4.46

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.55

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.55

W11772394 Whirlpool Screw In Stock WPL W11772394 $7.85

WP2320150 Whirlpool Refrigerator Start Device In Stock WPL WP2320150 $65.04

WPW10197426 Whirlpool Refrigerator Start Devi Backorder WPL WPW10197426 $64.75

Nameplate WPL 13056602 Contact Us For Availability

Shelf, Sta (2) WPL 12463603 Contact Us For Availability

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $42.80

WP67001053 Whirlpool Drawer Glide In Stock WPL WP67001053 $3.94

WP67001054 Whirlpool Left Glide In Stock WPL WP67001054 $3.94

Trim, Handle Top — White WPL 12641702W Contact Us For Availability

Trim, Handle Top — Black WPL 12641702B Contact Us For Availability

Trim, Handle Top — Bisque WPL 12641702C Contact Us For Availability

67001139 Whirlpool Refrigerator Shelf Trim Backorder WPL 67001139 $59.78

W11750607 Whirlpool Insulation Backorder WPL W11750607 $20.70

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $35.21

WPW10277025 Whirlpool Refrigerator Housing In Stock WPL WPW10277025 $59.16

W10206336 Whirlpool Refrigerator Extension Backorder WPL W10206336 $29.65

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $28.46

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.55

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $70.87

Clip, Evap. Motor WPL 13058002 Contact Us For Availability

15A

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $53.74

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.94

W10833528 Whirlpool Whirlpool Refrigerator Cr In Stock WPL W10833528 $70.87

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $18.30

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $3.76

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.94

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $31.34

67003781 Whirlpool Refrigerator Door Stop (BS Backorder WPL 67003781 $38.04

M0310343 Whirlpool Button Plug Backorder WPL M0310343 $4.80

W11619328 Whirlpool Wire Harness Backorder WPL W11619328 $52.97

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.15

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $38.99

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.76

17A

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.94

17B

Corner Cover WPL 12587703C Contact Us For Availability

18

W10346423 Whirlpool Refrigerator Condenser Backorder WPL W10346423 $102.91

18

WPW10671240 Whirlpool Refrigerator Frame In Stock WPL WPW10671240 $72.14

19

W10206339 Whirlpool Fastener Backorder WPL W10206339 $4.78

19

WP67006877 Whirlpool Refrigerator Glass Shelf Backorder WPL WP67006877 $128.26

19

Refrigerator Roller WPL 12580304 Contact Us For Availability

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $2.55

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $11.57

Tray, Drip WPL 12225401WD Contact Us For Availability

Bracket, Tilt Out WPL 12737902V Contact Us For Availability

21

W10210978 Whirlpool Refrigerator Back Cover Backorder WPL W10210978 $85.85

21

W10251970 Whirlpool Refrigerator Ladder Backorder WPL W10251970 $12.11

21

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $29.65

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.75

Evaporator WPL 12726401 Contact Us For Availability

Trim, Handle Bottom — White WPL 12660304W Contact Us For Availability

Trim, Handle Bottom — Black WPL 12660304B Contact Us For Availability

Trim, Handle Bottom — Bisque WPL 12660304C Contact Us For Availability

GRILLE ASSEMBLY (INCLUDES CLIPS) (WHITE) WPL 12734404W Contact Us For Availability

22A

GRILLE ASSEMBLY (BLACK) WPL 12734404B Contact Us For Availability

22B

GRILLE ASSEMBLY (INCLUDES CLIPS) (BISQUE) WPL 12734404C Contact Us For Availability

23

Dam — Left Side WPL 12225602 Contact Us For Availability

23

Dam — Right Side WPL 12225702 Contact Us For Availability

23

Shelf, Glide Out (2) WPL 12463404V Contact Us For Availability

24

W10619951 Whirlpool Drain Tube with Grommet In Stock WPL W10619951 $23.97

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $53.87

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.88

25

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.55

25

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $30.88

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $67.62

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $40.79

26

WPW10234024 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10234024 $187.82

26

Refrigerator Sound Dampening Pad WPL 12820505 Contact Us For Availability

27

W11684617 Whirlpool Valve Cover Backorder WPL W11684617 $7.53

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.92

28

Refrigerator Hinge WPL 12465002WD Contact Us For Availability

28

Compressor Kit (Contains Items 12, 17, 27, & WPL W10130129 Contact Us For Availability

28A

Refrigerator Door Hinge WPL 12465005ED Contact Us For Availability

29

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $27.62

29

Lo Hnge Cov WPL 12561901W Contact Us For Availability

29A

Refrigerator Door Hinge Cover WPL 12561901B Contact Us For Availability

29B

Bisq Hng Cov WPL 12561901C Contact Us For Availability

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $3.76

30

67007018 Whirlpool Refrigerator Bottom Hinge Backorder WPL 67007018 $3.76

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $31.45

31

WPM0274057 Whirlpool Refrigerator Shim In Stock WPL WPM0274057 $2.55

31A

WPM0274062 Whirlpool Refrigerator Shim In Stock WPL WPM0274062 $13.15

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.67

35

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.94

36

Clip, Evap (2) WPL 10623002 Contact Us For Availability

37

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $3.76

37

Valve, Access WPL 978029 Contact Us For Availability

37

Valve, Access WPL 978028 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $36.55

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $38.41

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $40.18

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $29.30

OPT-1

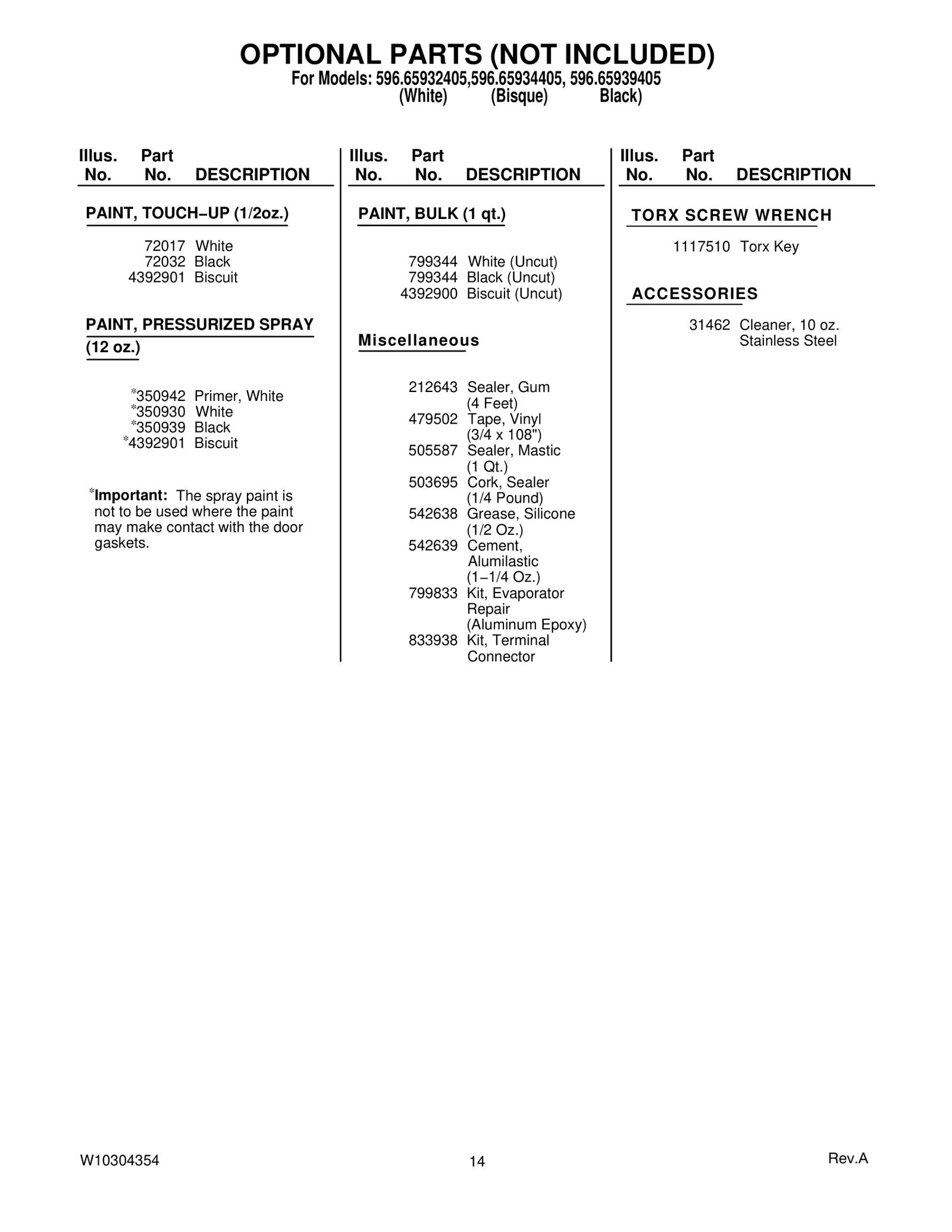

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $5.00

OPT-2

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.33

OPT-4

350942 Whirlpool Spray Paint Backorder WPL 350942 $51.15

OPT-5

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.76

OPT-6

285006 Whirlpool Spray In Stock WPL 285006 $45.11

OPT-7

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $44.64

OPT-9

Black (Uncut) WPL 799344 Contact Us For Availability

OPT-10

Biscuit (Uncut) WPL 4392900 Contact Us For Availability

OPT-11

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.75

OPT-12

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-13

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $65.43

OPT-14

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $44.32

OPT-15

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.96

OPT-16

Cement, WPL 542639 Contact Us For Availability

OPT-17

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-18

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.76

OPT-19

Torx Key WPL 1117510 Contact Us For Availability

OPT-20

Cleaner, 10 oz. WPL 31462 Contact Us For Availability
