Model Whirlpool 596.61273101 21" Refrigerator/Freezer (Kenmore 59661273101) – Common Parts & Diagrams
LIGHT SWITCHES/DRAIN FUNNEL
All Parts

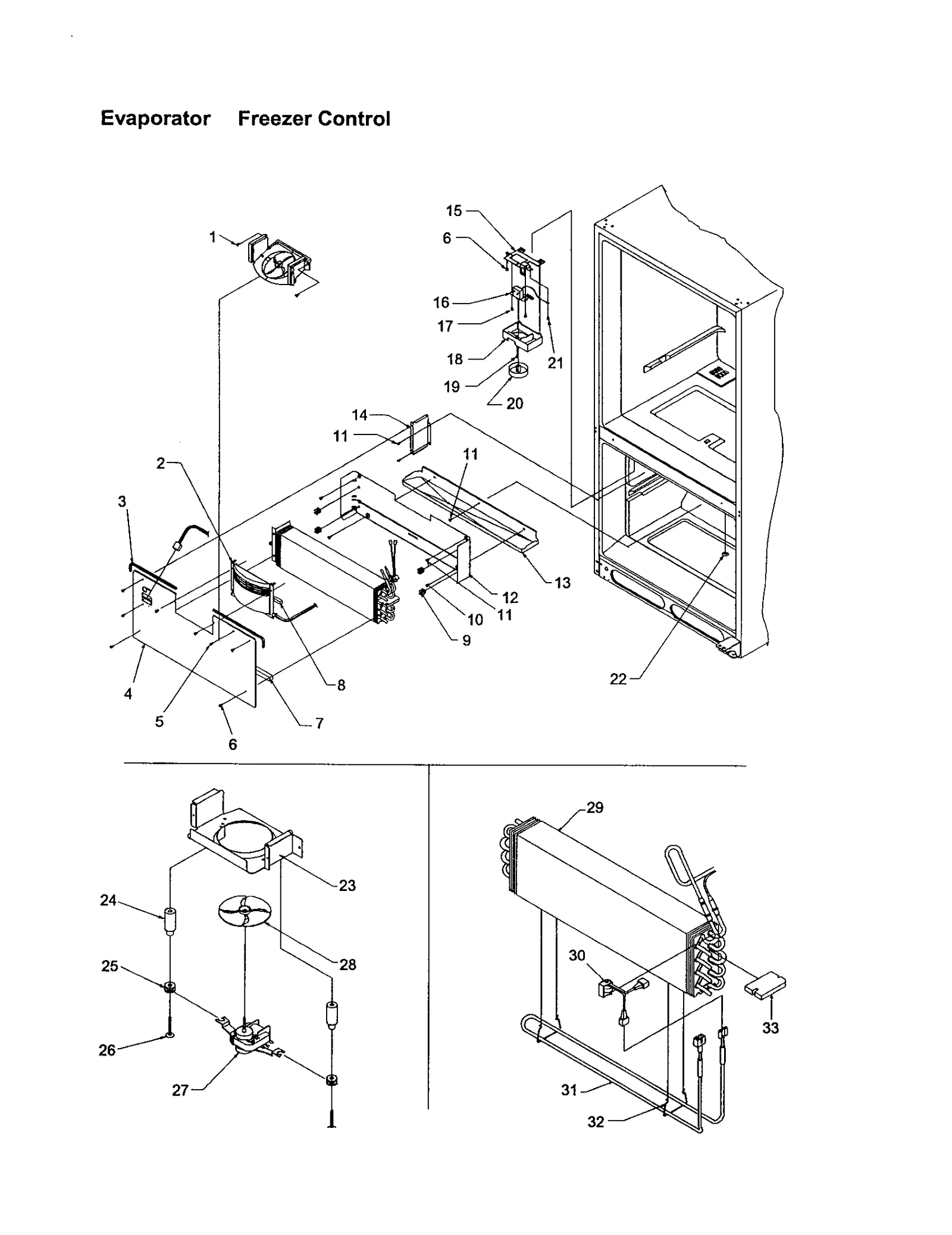

EVAPORATOR/FREEZER CONTROL

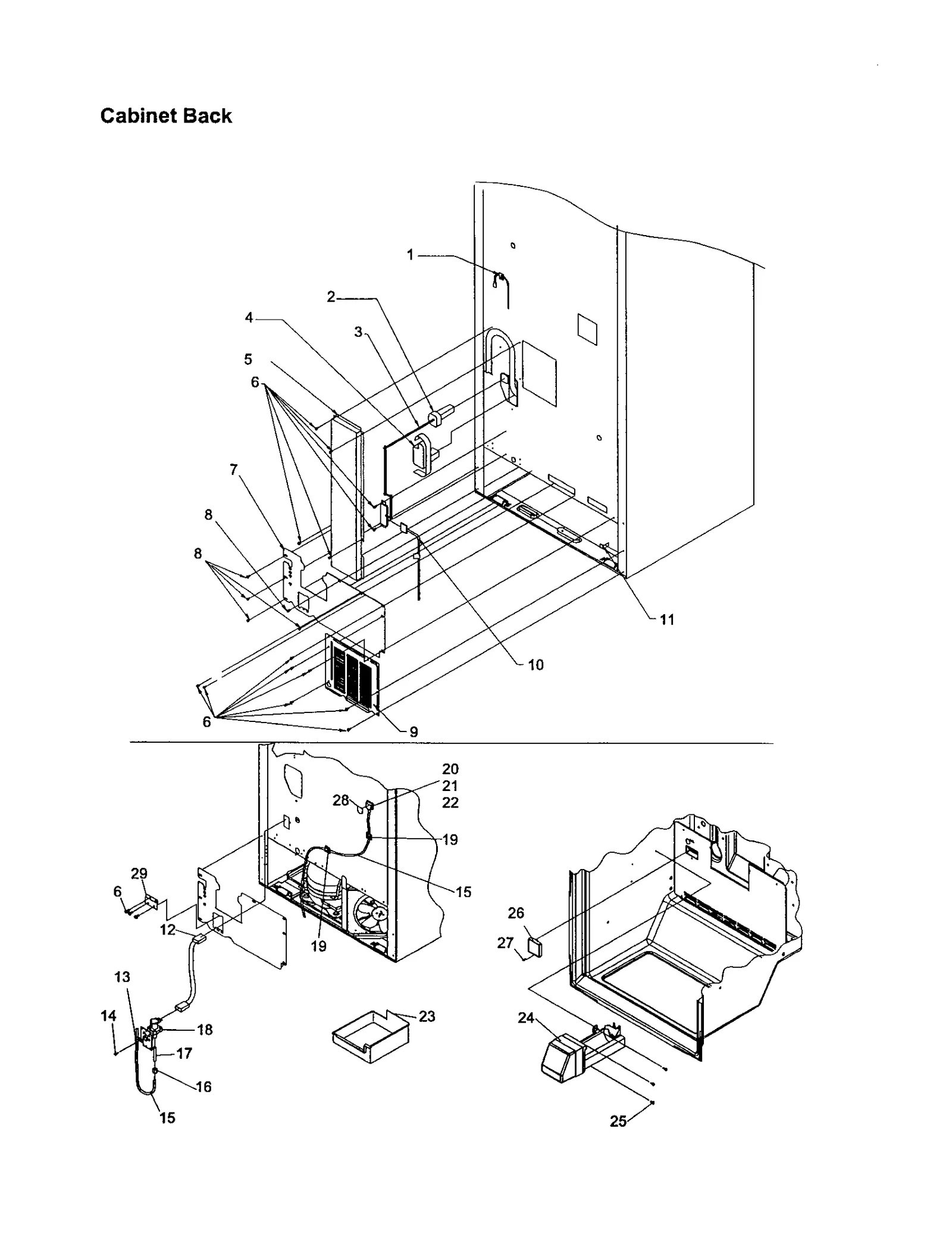

CABINET BACK

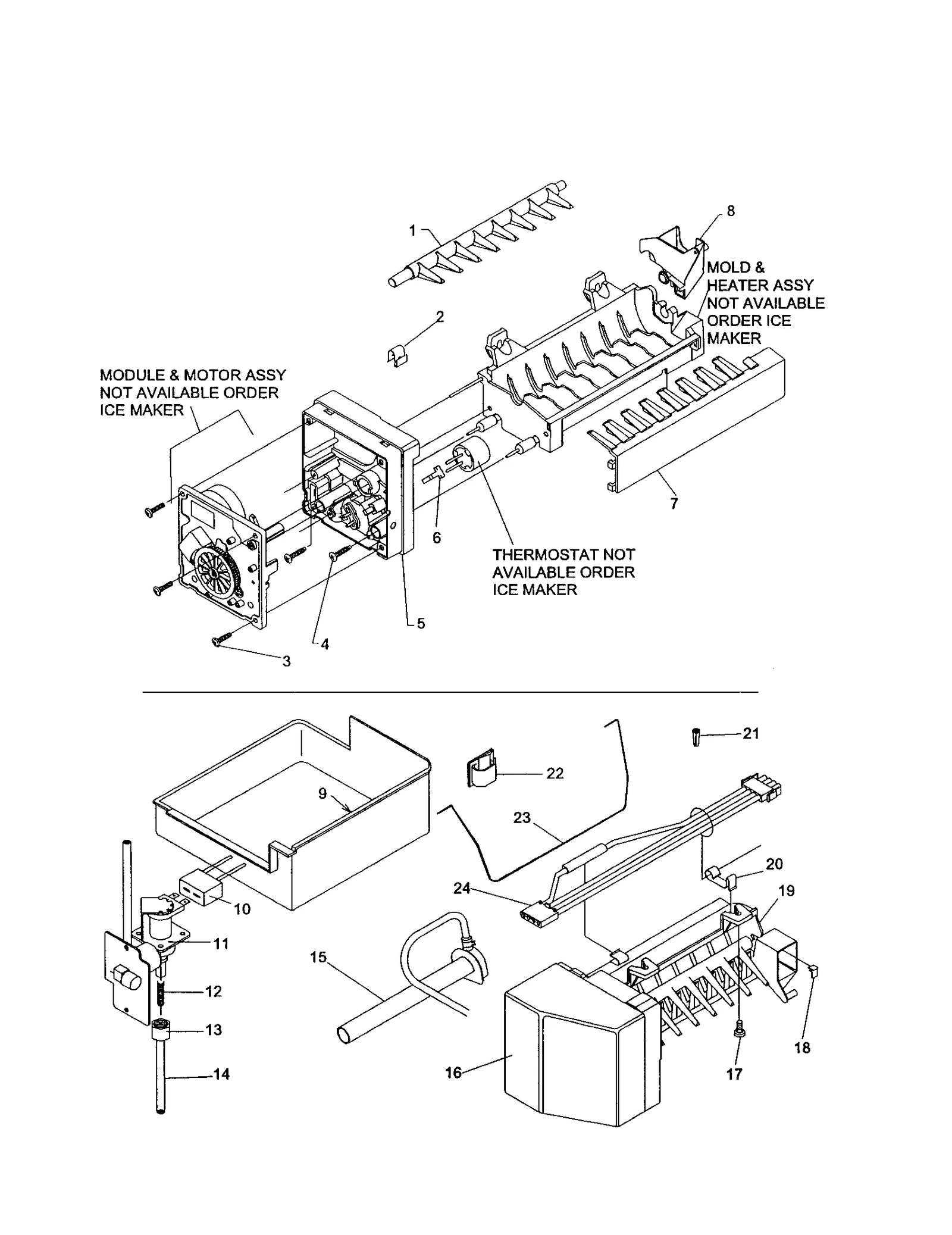

ICE MAKER ASSEMBLY

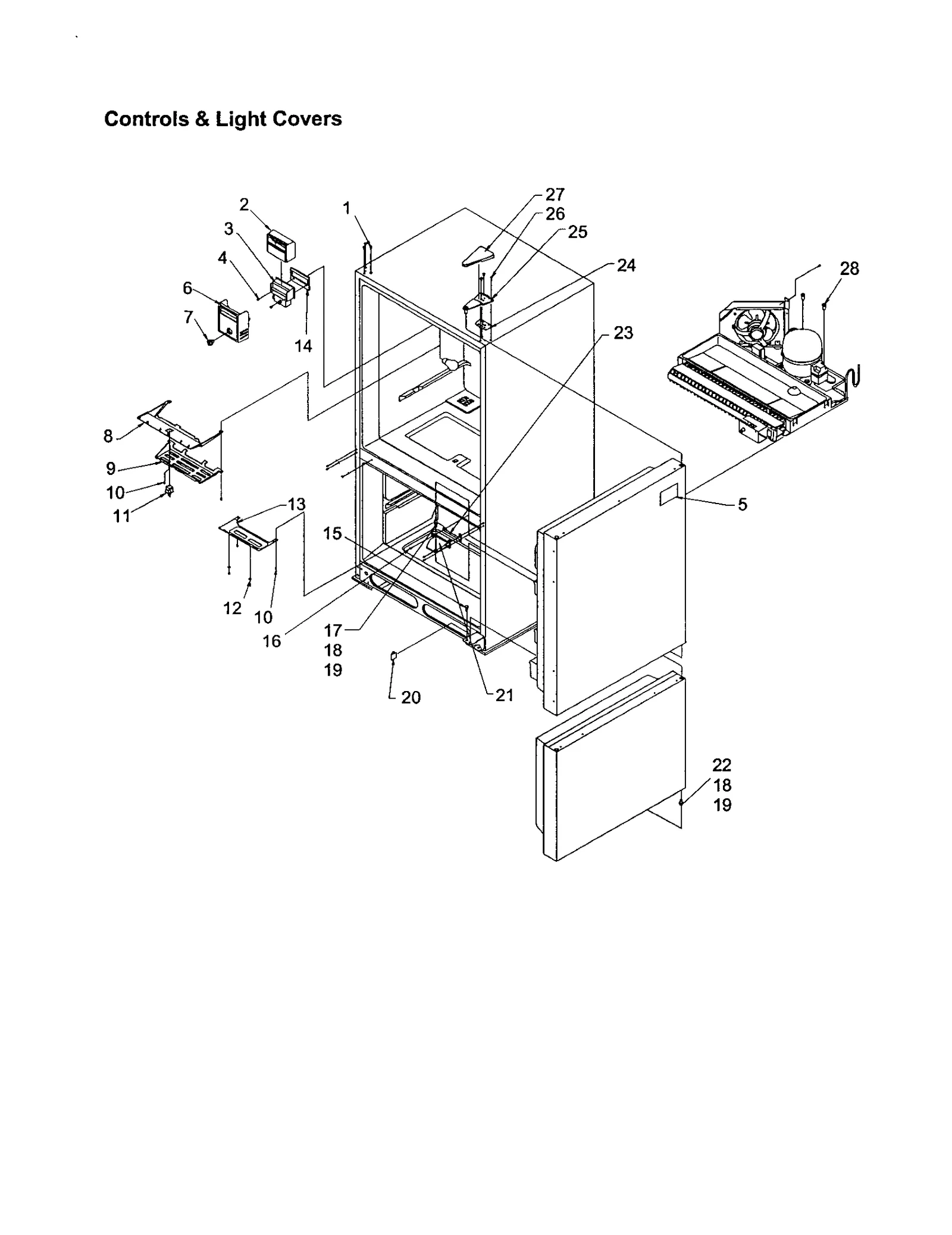

CONTROLS/LIGHT COVERS

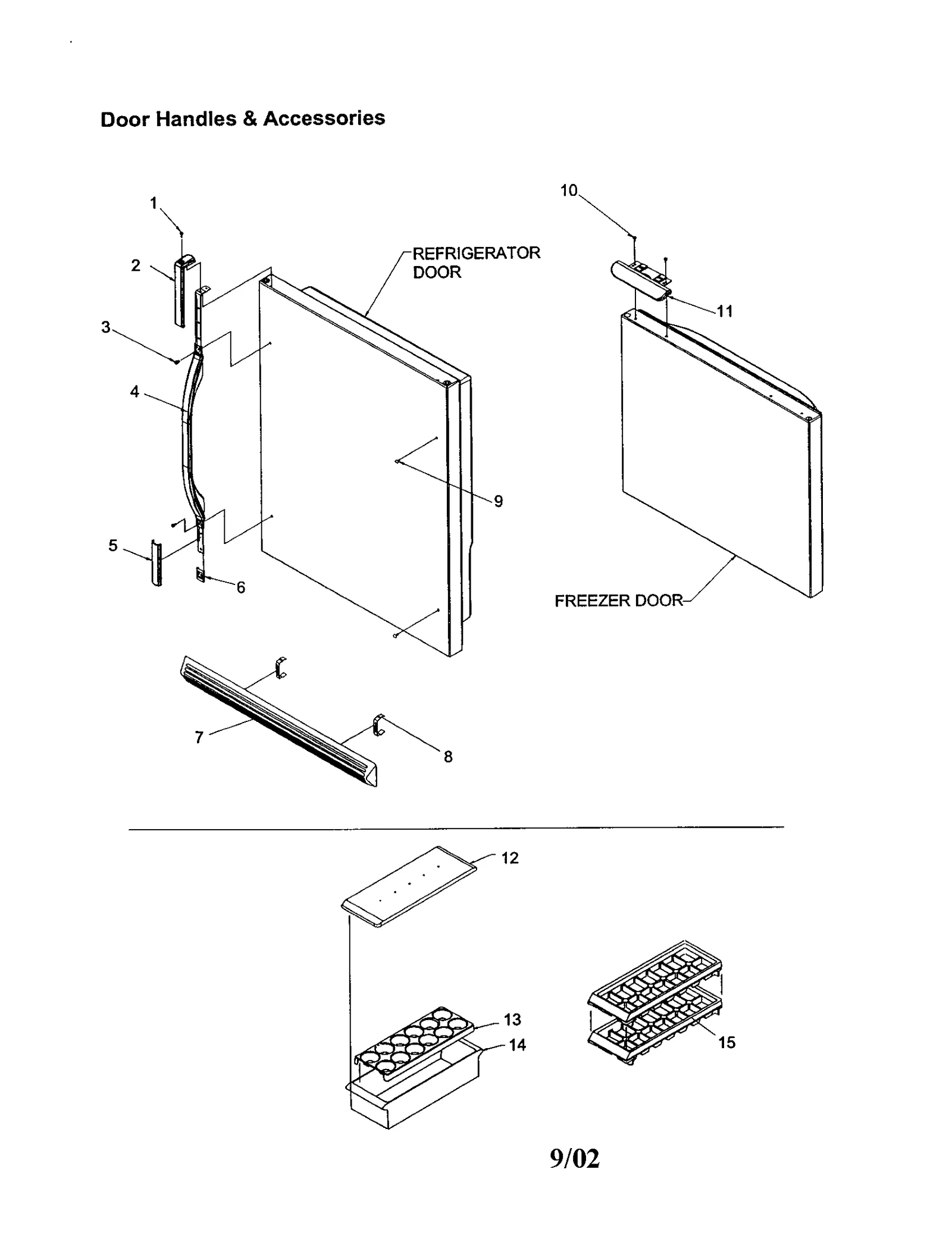

DOOR HANDLES/ACCESSORIES

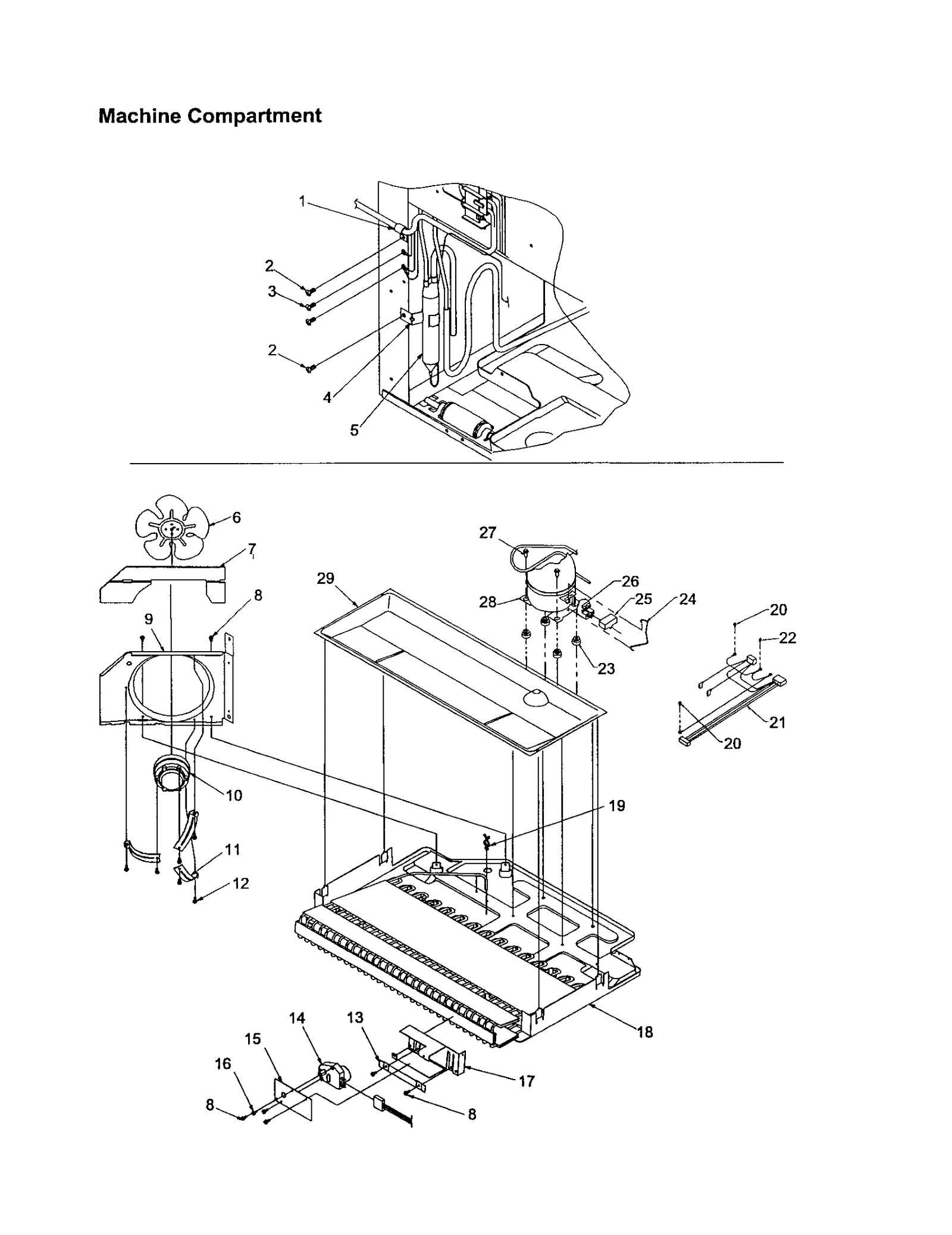

MACHINE COMPARTMENT

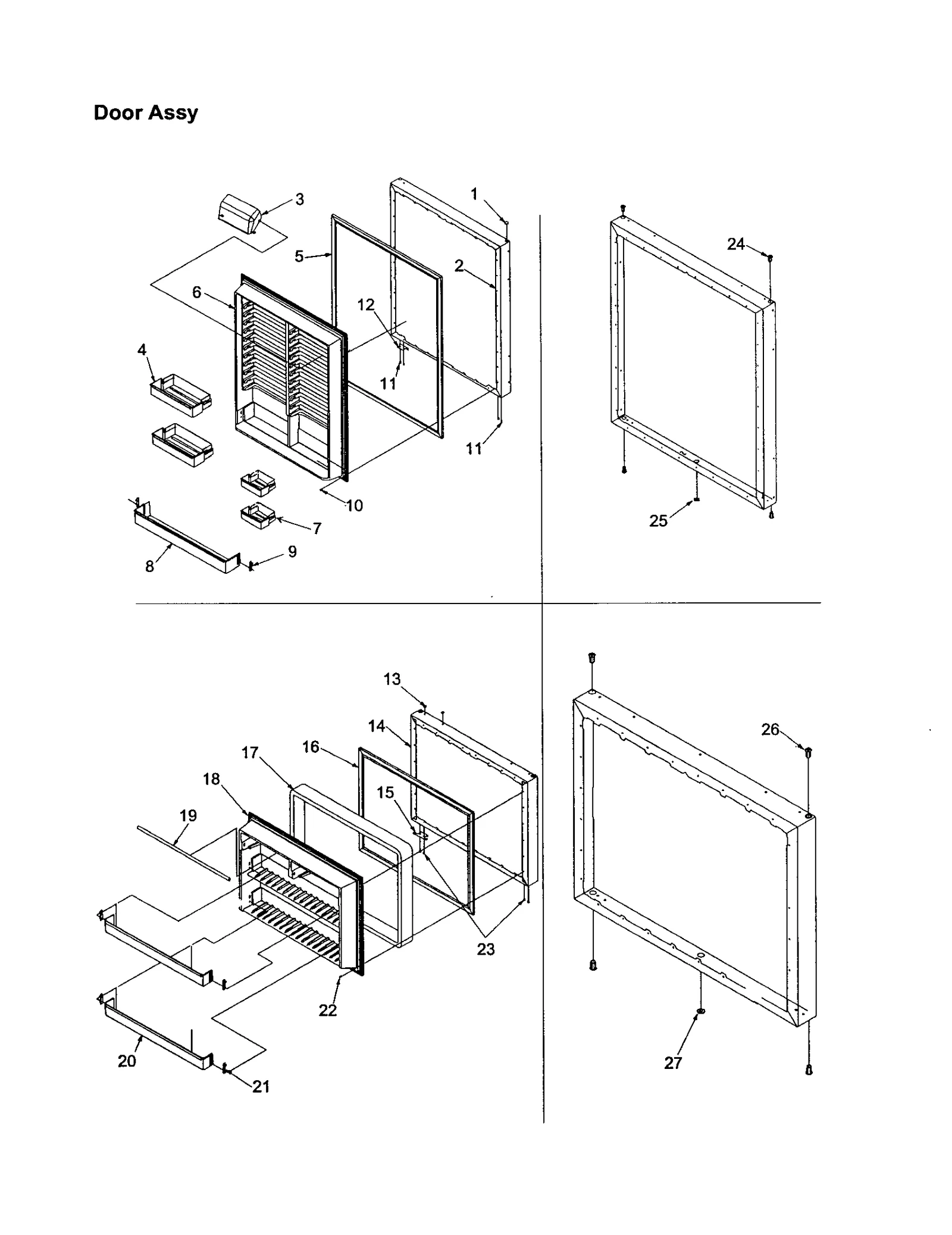

DOOR ASSEMBLY
INSULATION AND ROLLER ASSEMBLY

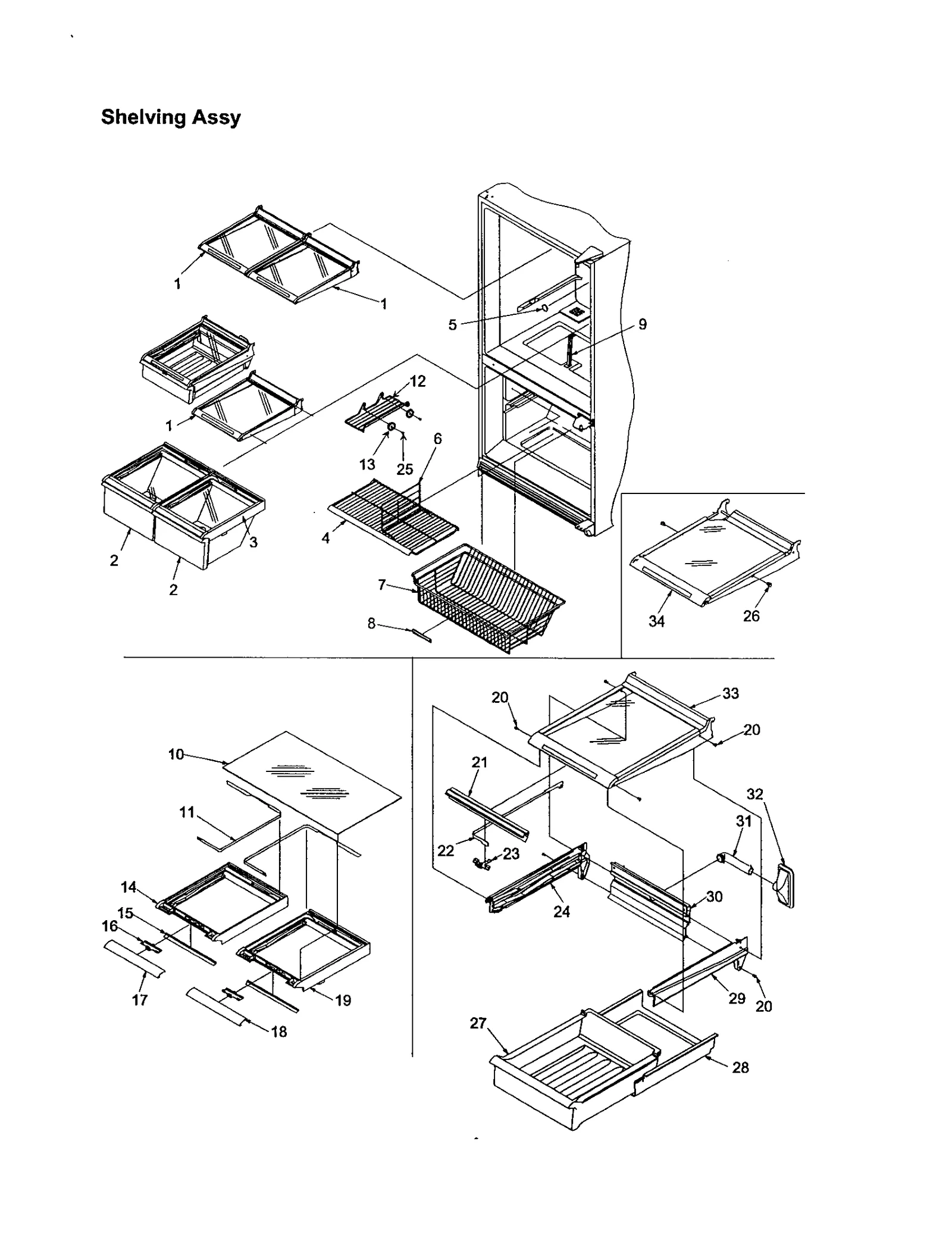

SHELVING ASSEMBLY
Common parts from model Whirlpool 596.61273101 21" Refrigerator/Freezer (Kenmore 59661273101)
(NI)
Refrigerator Owner's Manual WPL 10937056 Contact Us For Availability
1
Refrigerator Button Plug WPL M0310738 Contact Us For Availability
1
Refrigerator Screw WPL 12248201 Contact Us For Availability
1
Speed Clamp WPL M0103904 Contact Us For Availability
1
Refrigerator Button Plug WPL 10686407 Contact Us For Availability
1
Refrigerator Insulation WPL 12403608 Contact Us For Availability
1
Refrigerator Shelf WPL 10926206Q Contact Us For Availability
1A
Refrigerator Plug WPL M0310731 Contact Us For Availability
1A
Refrigerator Plug WPL 10686404 Contact Us For Availability
1B
Refrigerator Plug WPL 10686401 Contact Us For Availability
2
Refrigerator Grille WPL 10502401 Contact Us For Availability
2
Refrigerator Grommet WPL 10699301 Contact Us For Availability
2
Refrigerator Insulation WPL 12607401 Contact Us For Availability
2
Refrigerator Handle Trim WPL 12443304 Contact Us For Availability
2
Refrigerator Door WPL 12258307C Contact Us For Availability
2
Refrigerator Plug WPL M0310342 Contact Us For Availability
2
Refrigerator Crisper Pan WPL 10432015 Contact Us For Availability
2A
Refrigerator Trim WPL 12443303 Contact Us For Availability
2A
Refrigerator Door WPL 12258307E Contact Us For Availability
2B
Refrigerator Trim WPL 12443301 Contact Us For Availability
2B
Ff Out Panel WPL 12258307S Contact Us For Availability
2C
Refrigerator Foam WPL 12258307W Contact Us For Availability
3
Refrigerator Damper Control WPL R0161050 Contact Us For Availability
3
Refrigerator Gasket WPL A3030353 Contact Us For Availability
3
Refrigerator Harness WPL 12583902 Contact Us For Availability
3
Refrigerator Dairy Door WPL 10423420 Contact Us For Availability
3
Refrigerator Crisper WPL 12431811Q Contact Us For Availability
4
Refrigerator Cover WPL 10485406 Contact Us For Availability
4
Refrigerator Plug WPL 10428001 Contact Us For Availability
4
Refrigerator Screw WPL R0186041 Contact Us For Availability
4
Refrigerator Handle WPL 12272810 Contact Us For Availability
4
Refrigerator Clip WPL 10547001 Contact Us For Availability
4
Refrigerator Door Shelf WPL 10416912 Contact Us For Availability
4
Refrigerator Screw WPL M0204336 Contact Us For Availability
4
Refrigerator Freezer Shelf WPL 12204704 Contact Us For Availability
4A
Refrigerator Handle WPL 12272809 Contact Us For Availability
4B
Refrigerator Handle WPL 12272807 Contact Us For Availability
5
Refrigerator Plug WPL M0310305 Contact Us For Availability
5
Refrigerator Cover WPL 10502303 Contact Us For Availability
5
Refrigerator Screw WPL R0186040 Contact Us For Availability
5
Refrigerator Nameplate WPL 12329504 Contact Us For Availability
5
Refrigerator Trim WPL 12273516 Contact Us For Availability
5
Refrigerator Door Gasket WPL 12550108 Contact Us For Availability
5
Refrigerator Hinge WPL 10585509 Contact Us For Availability
5A
Refrigerator Tag WPL 12329503 Contact Us For Availability
5A
Refrigerator Trim WPL 12273515 Contact Us For Availability
5A
Refrigerator Hinge WPL 10585508 Contact Us For Availability
5B
Refrigerator Tag WPL 12329501 Contact Us For Availability
5B
Refrigerator Trim WPL 12273513 Contact Us For Availability
6
Refrigerator Cover WPL D7687535 Contact Us For Availability
6
Refrigerator Trim WPL 12273402 Contact Us For Availability
6
Refrigerator Fan Blade WPL B5742604 Contact Us For Availability
6
Interior Panel WPL 10462502 Contact Us For Availability
6
Refrigerator Roller Bracket WPL 12452601Q Contact Us For Availability
6
Refrigerator Divider WPL D7806002 Contact Us For Availability
7
Refrigerator Gasket WPL A3189320 Contact Us For Availability
7
Refrigerator Cover WPL 12098605 Contact Us For Availability
7
Knob, White WPL D7795826 Contact Us For Availability
7
Refrigerator Toe Grille WPL 10474806 Contact Us For Availability
7
Refrigerator Gasket WPL 10442702 Contact Us For Availability
7
Refrigerator Bucket WPL 10502911 Contact Us For Availability
7
Refrigerator Hinge Cover WPL 10584806 Contact Us For Availability
7
Refrigerator Basket WPL 12433501 Contact Us For Availability
7A
Refrigerator Cover WPL 12098606 Contact Us For Availability
7A
Refrigerator Grille WPL 10474801 Contact Us For Availability
7A
Refrigerator Hinge Cover WPL 10584801 Contact Us For Availability
7B
Refrigerator Back WPL 12041851 Contact Us For Availability
7B
Refrigerator Grille (White) WPL 10474802 Contact Us For Availability
7B
Refrigerator Hinge Cover WPL 10584802 Contact Us For Availability
7C
MC BACK ASSEMBLY (596.61103101/61109101) WPL 12041852 Contact Us For Availability
8
Refrigerator Gasket WPL B5759611 Contact Us For Availability
8
Refrigerator Screw WPL M0219704 Contact Us For Availability
8
Refrigerator Shield WPL 12056201 Contact Us For Availability
8
Clip Grill WPL 10551502 Contact Us For Availability
8
Refrigerator Retainer WPL 10183120 Contact Us For Availability
8
Refrigerator Handle WPL 10508511 Contact Us For Availability
9
Refrigerator Clip WPL 10623002 Contact Us For Availability
9
Refrigerator Back WPL 12039807 Contact Us For Availability
9
Refrigerator Cover WPL 12056301 Contact Us For Availability
9
Refrigerator Shroud WPL 10426911 Contact Us For Availability
9
Refrigerator Clip WPL 10202001 Contact Us For Availability
9
Refrigerator Hinge Shim WPL 10447905 Contact Us For Availability
9A
Refrigerator Hinge Shim WPL 10447906 Contact Us For Availability
10
Refrigerator Socket WPL D7714408 Contact Us For Availability
10
Refrigerator Power Cord WPL 10916502 Contact Us For Availability
10
Refrigerator Harness WPL 10525901 Contact Us For Availability
10
Refrigerator Screw WPL M0238846 Contact Us For Availability
10
Refrigerator Motor WPL 10522105 Contact Us For Availability
10
Screw WPL M0219730 Contact Us For Availability
10
Refrigerator Glass WPL 10370035 Contact Us For Availability
11
Refrigerator Clip WPL B5720303 Contact Us For Availability
11
Refrigerator Bracket WPL 10582501 Contact Us For Availability
11
Refrigerator Cabinet WPL 10427112 Contact Us For Availability
11
Refrigerator Band WPL 10514002 Contact Us For Availability
12
Refrigerator Screw WPL M0223816 Contact Us For Availability
12
Evaporator Shield WPL 10427716 Contact Us For Availability
12
Spring WPL A1055101 Contact Us For Availability
12
Washer WPL M0270538 Contact Us For Availability
12
Refrigerator Lid WPL 10436404 Contact Us For Availability
12
Refrigerator Axle WPL 10450901 Contact Us For Availability
12
Refrigerator Rack WPL 12228201 Contact Us For Availability
13
Refrigerator Roller WPL 10450701 Contact Us For Availability
13
Refrigerator Drip Tray WPL 10486104 Contact Us For Availability
13
Cover-fz L WPL 10493302 Contact Us For Availability
13
Refrigerator Tray WPL 10436506 Contact Us For Availability
13
Washer WPL 10542701 Contact Us For Availability
14
Refrigerator Duct WPL 10638601 Contact Us For Availability
14
Refrigerator Damper Gasket WPL B8345401 Contact Us For Availability
14
Eggbin WPL 10423131 Contact Us For Availability
14
Refrigerator Freezer Door WPL 10537407C Contact Us For Availability
14
Refrigerator Screw WPL M0260242 Contact Us For Availability
14
Refrigerator Frame WPL 10485902 Contact Us For Availability
14A
FZ DR FOAM ASSEMBLY (596.61279100,596.6127910 WPL 10537407E Contact Us For Availability
14B
Freezer Stainless Steel Door Panel WPL 10537407S Contact Us For Availability
14C
Refrigerator Door Foam WPL 10537407W Contact Us For Availability
15
Refrigerator Bracket WPL 12271401 Contact Us For Availability
15
Refrigerator Screw WPL M0227217 Contact Us For Availability
15
Refrigerator Button Plug WPL M0310330 Contact Us For Availability
15
Refrigerator Cover WPL 12515801 Contact Us For Availability
16
Refrigerator Screw WPL M0216705 Contact Us For Availability
16
Clamp WPL M0102303 Contact Us For Availability
16
Refrigerator Slide WPL 10797501 Contact Us For Availability
17
Refrigerator Bracket WPL 10503201 Contact Us For Availability
17
Refrigerator Drain Tube WPL 10513302 Contact Us For Availability
17
Refrigerator Trim WPL 10530323 Contact Us For Availability
18
Refrigerator Cover WPL D7878824 Contact Us For Availability
18
Pan Condenser WPL 10481220 Contact Us For Availability
18
Refrigerator Liner WPL 12324801 Contact Us For Availability
18
Refrigerator Trim WPL 10530322 Contact Us For Availability
19
Refrigerator Ladder WPL 12614202 Contact Us For Availability
19
Refrigerator Screw WPL M0216531 Contact Us For Availability
19
Refrigerator Shim (Black) WPL M0274063 Contact Us For Availability
19
Refrigerator Clip WPL B5667304 Contact Us For Availability
19
Refrigerator Extrusion WPL 10304111 Contact Us For Availability
19
Refrigerator Frame WPL 10485901 Contact Us For Availability
19A
Refrigerator Shim WPL M0274058 Contact Us For Availability
20
Refrigerator Screw WPL M0231426 Contact Us For Availability
20
Refrigerator Knob WPL D7689905 Contact Us For Availability
20
Screw WPL M0253916 Contact Us For Availability
20
Refrigerator Clamp WPL 10526701 Contact Us For Availability
20
Refrigerator Retainer WPL 10419016 Contact Us For Availability
21
Refrigerator Hinge WPL 12446504 Contact Us For Availability
21
HARNESS-MC WPL 12606001 Contact Us For Availability
21
Refrigerator Extrusion WPL 10920303 Contact Us For Availability
21A
Refrigerator Hinge WPL 12446503 Contact Us For Availability
22
Refrigerator Clip WPL B5720302 Contact Us For Availability
22
Refrigerator Band WPL 10935002 Contact Us For Availability
23
EVAP FN SHROUD-E CT WPL 10619310 Contact Us For Availability
23
Refrigerator Pan WPL 12045503 Contact Us For Availability
23
Refrigerator Hinge Shim WPL 10562211 Contact Us For Availability
23
Refrigerator Slide WPL 10920401 Contact Us For Availability
23A
Refrigerator Shim WPL 10562203 Contact Us For Availability
24
Refrigerator Post WPL 12442401 Contact Us For Availability
24
Refrigerator Pin Shim WPL 12545201 Contact Us For Availability
24
Refrigerator Strap WPL 12576801 Contact Us For Availability
24
Bushing Do WPL 10961002 Contact Us For Availability
24
Left Glide WPL 10897102 Contact Us For Availability
24A
Refrigerator Strap WPL 12604101 Contact Us For Availability
24A
Refrigerator Door Bushing WPL 10961001 Contact Us For Availability
25
Refrigerator Grommet WPL 12442501 Contact Us For Availability
25
Refrigerator Hinge WPL 12077316 Contact Us For Availability
25
Refrigerator Button Plug WPL M0310344 Contact Us For Availability
25A
Refrigerator Plug Button (Black) WPL M0310336 Contact Us For Availability
25B
Refrigerator Button Plug WPL M0310308 Contact Us For Availability
26
Refrigerator Screw WPL M0219711 Contact Us For Availability
26
Refrigerator Plug Cover WPL D7874403 Contact Us For Availability
26
Refrigerator Overload WPL 12555901 Contact Us For Availability
26
Shelf Stop WPL 10875101 Contact Us For Availability
27
Refrigerator Hinge Cover WPL 12076305 Contact Us For Availability
27
Refrigerator Compressor Mounting Screw WPL M0221523 Contact Us For Availability
27
Refrigerator Pan WPL 10417018 Contact Us For Availability
27A
Refrigerator Hinge Cover WPL 12076301 Contact Us For Availability
27B
W Hinge Cov WPL 12076302 Contact Us For Availability
28
Refrigerator Plug WPL 10544301 Contact Us For Availability
28
Refrigerator Sleeve WPL 10437305 Contact Us For Availability
29
Low Side WPL R0170047 Contact Us For Availability
29
Refrigerator Water Valve WPL 12047201 Contact Us For Availability
29
Refrigerator Drain Pan WPL 10427405 Contact Us For Availability
29
Glide-rh WPL 10880202 Contact Us For Availability
30
Refrigerator Extrusion WPL 10934903 Contact Us For Availability
31
Refrigerator Tunnel WPL 10486401 Contact Us For Availability
32
Refrigerator Grommet WPL 10501901 Contact Us For Availability
33
Refrigerator Block WPL 10519101 Contact Us For Availability
33
Stationary Deli WPL 10895713 Contact Us For Availability
34
Refrigerator Shelf WPL 10895812 Contact Us For Availability
NI02
Instl-manl WPL 12123326 Contact Us For Availability
NI06
Refrigerator Parts Manual WPL 10075072 Contact Us For Availability
NI07
Refrigerator Technical Sheet WPL 10096869 Contact Us For Availability
NI08
TAG-6127*ENERGY (596.61272100,596.61272101,59 WPL 12555712 Contact Us For Availability
NI09
TAG-7127*ENERGY (596.71272100,596.71272101,59 WPL 12555713 Contact Us For Availability
NI14
Instl-manl WPL 10527047 Contact Us For Availability
NI15
Icemaker Lab WPL 10834701 Contact Us For Availability
NI16
Labelwarrant WPL A3036901 Contact Us For Availability
NI17
Refrigerator Button Plug WPL M0311301 Contact Us For Availability
× ![]()
Login and Registration Form
