Model Whirlpool 596.57085790 20" Builder Side-By-Side Refrigerator (Kenmore 59657085790) – Common Parts & Diagrams

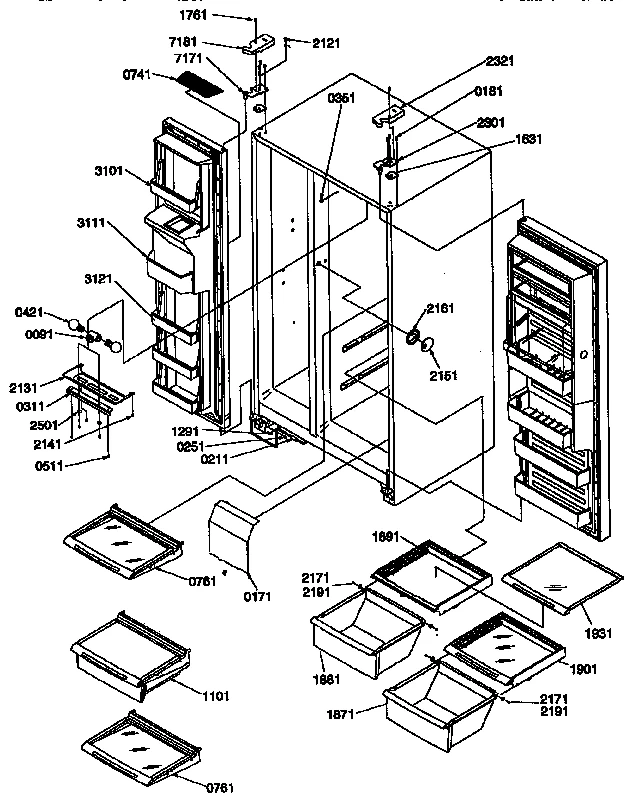

SHELVES, LIGHTS AND HINGES

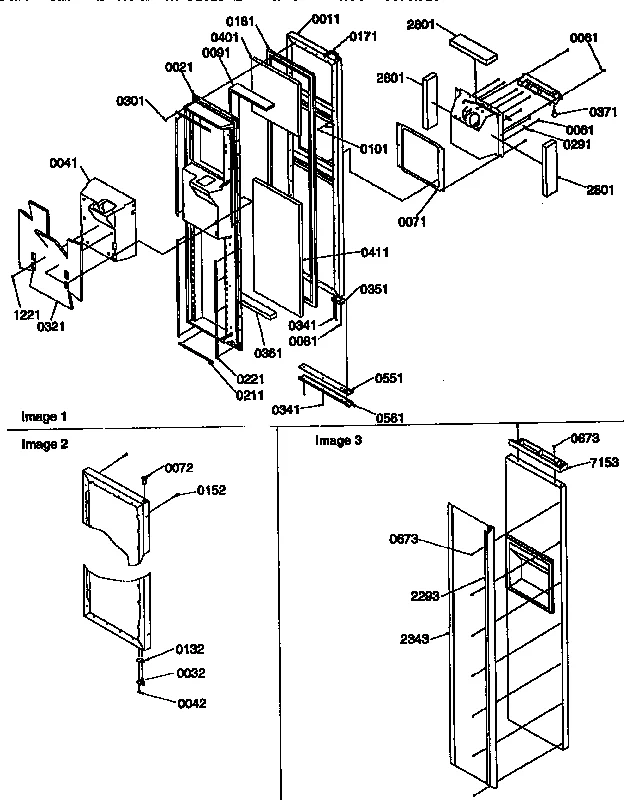

FREEZER DOOR
ICE MAKER/CONTROL ASSEMBLY
ICE AND WATER CAVITY, ELECTRONIC BRACKET ASSEMBLY
MACHINE COMPARTMENT
CABINET
CABINET BACK
REFRIGERATOR DOOR
FREEZER SHELVES & LIGHT
DOOR TRIM AND PANELS
DELI, SHELF, AND CRISPER ASSEMBLIES
All Parts
ICE BUCKET AUGER/ICE MAKER
DRAIN SYSTEM, ROLLERS
Common parts from model Whirlpool 596.57085790 20" Builder Side-By-Side Refrigerator (Kenmore 59657085790)
11
FZ DR FOAM ASSEMBLY WPL 110881211E Contact Us For Availability
11
Pn-chte Door WPL A1061501 Contact Us For Availability
11
Pan Condenser WPL 10883404 Contact Us For Availability
11
Foam Assembly WPL 10881001E Contact Us For Availability
11
Refrigerator Screw WPL M0238229 Contact Us For Availability
11
Washer WPL 10275101 Contact Us For Availability
12
Refrigerator Bracket WPL 10323305 Contact Us For Availability
12
Refrigerator Control WPL 12050504 Contact Us For Availability
12
Panel-blk WPL 10096944 Contact Us For Availability
12
Refrigerator Rack WPL 10448902 Contact Us For Availability
13
Refrigerator Toe Grille WPL 12321813 Contact Us For Availability
13
Refrigerator Shelf WPL 10809525 Contact Us For Availability
14
Refrigerator Seal WPL 10968801 Contact Us For Availability
16
Refrigerator Roller Bracket WPL C8742401 Contact Us For Availability
21
Refrigerator Panel WPL 10860901 Contact Us For Availability
21
Ice Retainer WPL A1061601 Contact Us For Availability
21
Refrigerator Drive Liner WPL 10861502 Contact Us For Availability
21
Panel-blk WPL 10096949 Contact Us For Availability
21
Refrigerator Shelf WPL 10809526 Contact Us For Availability
22
Refrigerator Switch WPL 10533002 Contact Us For Availability
23
Clip-grill WPL WPM0117303 No Longer Available
23
STOP-SHELF (QTY 4) WPL 108675101 Contact Us For Availability
24
Refrigerator Band WPL 10882701 Contact Us For Availability
25
Refrigerator Band WPL 10882702 Contact Us For Availability
25
Refrigerator Bi-Metal WPL R0161091 Contact Us For Availability
31
Insulation Chute WPL B8380701 Contact Us For Availability
31
Refrigerator Insulation WPL B0523590 Contact Us For Availability
31
Panel-blk WPL 10096950 Contact Us For Availability
31
Deli Sleeve WPL 10783901 Contact Us For Availability
32
High Voltage Box WPL 10277032 Contact Us For Availability
32
Closure WPL 12113204 Contact Us For Availability
32
Refrigerator Lid WPL 10436404 Contact Us For Availability
34
Refrigerator Slide WPL 10852501 Contact Us For Availability
41
Refrigerator Cavity WPL 10870301 Contact Us For Availability
41
Refrigerator Chute Bracket WPL B8380801 Contact Us For Availability
41
Tunl Ex Heat WPL C8971902 Contact Us For Availability
41
Refrigerator Retainer WPL B8391225 Contact Us For Availability
41
Refrigerator Deli Gasket WPL 10872701 Contact Us For Availability
41
Refrigerator Bar WPL 10113801 Contact Us For Availability
42
Refrigerator Screw WPL M0237809 Contact Us For Availability
42
Refrigerator Bin WPL 10423127 Contact Us For Availability
42
STRIPPER-ICE WPL R0193120 Contact Us For Availability
45
Refrigerator Glass Shelf WPL 10370065 Contact Us For Availability
46
Refrigerator Rivet WPL M1205302 Contact Us For Availability
51
Refrigerator Cover WPL D7788817 Contact Us For Availability
51
Chute Spring WPL B8380901 Contact Us For Availability
51
Refrigerator Manifold WPL 10872601 Contact Us For Availability
51
Refrigerator Tank WPL 10988502 Contact Us For Availability
52
H.v. Box Top WPL 10276906 Contact Us For Availability
52
Refrigerator Egg Tray WPL 10436505 Contact Us For Availability
53
Chili Shelf WPL 10520418 Contact Us For Availability
54
Refrigerator Bracket WPL 10656102 Contact Us For Availability
55
Low Side As WPL R0170055 Contact Us For Availability
61
Refrigerator Screw WPL M0216517 Contact Us For Availability
61
Refrigerator Auger Motor WPL 10114804 Contact Us For Availability
61
Refrigerator Spring WPL B8385401 Contact Us For Availability
63
Refrigerator Shelf WPL 10521820 Contact Us For Availability
64
Refrigerator Frame WPL 10782901 Contact Us For Availability
65
Refrigerator Frame WPL 10783001 Contact Us For Availability
71
Agitator Ice WPL 10114401 Contact Us For Availability
71
Refrigerator Gasket WPL D7791003 Contact Us For Availability
71
Refrigerator Fill Tube WPL 12023401 Contact Us For Availability
71
Refrigerator Band WPL 10986402 Contact Us For Availability
72
Refrigerator Bushing (Black) WPL C8964402 Contact Us For Availability
72
Refrigerator Switch WPL 10166101 Contact Us For Availability
72
Refrigerator Support WPL M0585504 Contact Us For Availability
72
Bushing Do WPL 10961002 Contact Us For Availability
72
Refrigerator Butter Tray WPL 10310901 Contact Us For Availability
72
MODULE AMD MOTOR ASSEMBLY WPL R0197203 Contact Us For Availability
74
Refrigerator Motor Bracket WPL 10909401 Contact Us For Availability
75
Refrigerator Crisper Trim WPL 12113006 Contact Us For Availability
81
Refrigerator Door Gasket WPL 10359710 Contact Us For Availability
81
Refrigerator Frame WPL 10783702 Contact Us For Availability
81
Refrigerator Wheel WPL 10114702 Contact Us For Availability
82
Refrigerator Socket WPL 10131702 Contact Us For Availability
82
Refrigerator Clamp WPL M0585703 Contact Us For Availability
82
Refrigerator Snugger WPL 10169004 Contact Us For Availability
84
Refrigerator Roller WPL 10481001 Contact Us For Availability
91
Refrigerator Insulation WPL B0523562 Contact Us For Availability
91
Refrigerator Retainer WPL C8972501 Contact Us For Availability
91
Refrigerator Rail WPL 10809915 Contact Us For Availability
91
Refrigerator Ice Bucket WPL 10111905 Contact Us For Availability
92
Refrigerator Wire WPL D7726590 Contact Us For Availability
92
SPACER-REF PANEL WPL 10234608 Contact Us For Availability
95
Refrigerator Block WPL 10629601 Contact Us For Availability
101
Refrigerator Delay Door WPL C8973602 Contact Us For Availability
101
Refrigerator Fan Blade WPL B5742604 Contact Us For Availability
101
Refrigerator Spacer WPL 10234609 Contact Us For Availability
101
Refrigerator Rail WPL 10809916 Contact Us For Availability
101
Refrigerator Bucket WPL 10870904 Contact Us For Availability
102
Refrigerator Grommet WPL 10281002 Contact Us For Availability
102
Refrigerator Wire WPL D7726597 Contact Us For Availability
102
Refrigerator Retainer WPL 10237602 Contact Us For Availability
102
Support M.c. WPL C8913701 Contact Us For Availability
105
Refrigerator Block WPL 10629001 Contact Us For Availability
111
Refrigerator Cavity WPL 10876003 Contact Us For Availability
111
Refrigerator Socket WPL D7714407 Contact Us For Availability
111
Refrigerator Spacer WPL 10234614 Contact Us For Availability
111
Refrigerator Extrusion WPL 10873801 Contact Us For Availability
112
Refrigerator Switch WPL 10533001 Contact Us For Availability
113
Dairy Shelf WPL 10883803 Contact Us For Availability
121
Refrigerator Door Chute WPL 10246601 Contact Us For Availability
121
Refrigerator Frame WPL 10519004 Contact Us For Availability
121
Refrigerator Socket Plate WPL D7753503 Contact Us For Availability
121
Refrigerator Tape WPL R0195044 Contact Us For Availability
131
Ice Arm WPL 12102203 Contact Us For Availability
131
Refrigerator Tunnel WPL 10923101 Contact Us For Availability
131
Refrigerator Light Shield WPL D7786602 Contact Us For Availability
131
Refrigerator Deli Pan WPL 10784101 Contact Us For Availability
131
Refrigerator Front WPL 10115001 Contact Us For Availability
132
Refrigerator Shim WPL 10361804 Contact Us For Availability
132
Refrigerator Clip WPL B5667304 Contact Us For Availability
132
Refrigerator Bushing WPL A3293504 Contact Us For Availability
132
Refrigerator Bracket WPL B8391802 Contact Us For Availability
133
Refrigerator Track WPL 12102907 Contact Us For Availability
141
ARM-E WATER ACTUATOR WPL 1064906 Contact Us For Availability
141
Refrigerator Cover WPL 10114002 Contact Us For Availability
142
Refrigerator Cover WPL 10131802 Contact Us For Availability
143
Refrigerator Track WPL 12102908 Contact Us For Availability
151
Back-inner WPL D7821154 Contact Us For Availability
151
Heater Cavity WPL 10882106 Contact Us For Availability
151
Refrigerator Blade WPL 10114601 Contact Us For Availability
152
Refrigerator Harness WPL 10973902 Contact Us For Availability
161
Refrigerator Screw WPL M0211116 Contact Us For Availability
161
Refrigerator Compressor Mounting Screw WPL M0221523 Contact Us For Availability
161
Refrigerator Spacer Cover WPL 10113901 Contact Us For Availability
162
Refrigerator Screw WPL M0223803 Contact Us For Availability
162
Refrigerator Screw WPL R0186041 Contact Us For Availability
162
Refrigerator Roller Bracket WPL C8956101 Contact Us For Availability
163
Cantilever WPL D7789808 Contact Us For Availability
171
Refrigerator Harness WPL 10952106 Contact Us For Availability
171
Refrigerator Grille WPL D7785402 Contact Us For Availability
171
Refrigerator Blade WPL 10114501 Contact Us For Availability
172
Refrigerator Screw WPL R0186040 Contact Us For Availability
172
Refrigerator Cotter Pin WPL M1200004 Contact Us For Availability
173
Refrigerator Ladder WPL D7789809 Contact Us For Availability
173
Drive Chiller WPL 10519208 Contact Us For Availability
181
Refrigerator Door Gasket WPL 10359711 Contact Us For Availability
181
Ice Damper WPL 10275201 Contact Us For Availability
182
Refrigerator Switch WPL 10166002 Contact Us For Availability
182
Refrigerator Pin WPL M1200202 Contact Us For Availability
183
Refrigerator Glide WPL 10162101 Contact Us For Availability
191
Refrigerator Tunnel WPL 12033201 Contact Us For Availability
191
Washer WPL 10114301 Contact Us For Availability
193
Refrigerator Drain Tube WPL 12142001 Contact Us For Availability
201
Refrigerator Clip WPL 10165101 Contact Us For Availability
201
Bumper Pad WPL M0051701 Contact Us For Availability
201
Refrigerator Pin WPL M1200108 Contact Us For Availability
202
Refrigerator Nut WPL M0753003 Contact Us For Availability
211
Refrigerator Door Retainer WPL C8982801 Contact Us For Availability
211
Refrigerator Overload WPL 10377015 Contact Us For Availability
211
Blade Anchor WPL 10114101 Contact Us For Availability
221
Refrigerator Door Retainer WPL D7828601 Contact Us For Availability
221
(SEE NOTE) VT MULL-PNT WPL N/P Contact Us For Availability
221
Refrigerator Screw WPL M0231704 Contact Us For Availability
222
Refrigerator Damper Control WPL D7547411 Contact Us For Availability
232
Refrigerator Insert Control WPL C8902601 Contact Us For Availability
233
Clamp WPL M0102303 Contact Us For Availability
242
Refrigerator Control Cover WPL 10862707 Contact Us For Availability
271
Screw WPL M0213529 Contact Us For Availability
281
Refrigerator Terminal Cover WPL 10757301 Contact Us For Availability
291
Refrigerator Clip WPL C8992901 Contact Us For Availability
301
Refrigerator Motor Bracket WPL C8982102 Contact Us For Availability
303
Refrigerator Grommet Screw WPL M0581001 Contact Us For Availability
303
Refrigerator O-Ring Seal WPL M0500706 Contact Us For Availability
315
Refrigerator Back WPL D7788912 Contact Us For Availability
321
Refrigerator Insulation WPL 10941501 Contact Us For Availability
325
Refrigerator Screw WPL M0219704 Contact Us For Availability
341
Refrigerator Wire Tie WPL M0322202 Contact Us For Availability
351
Screw WPL M0219730 Contact Us For Availability
351
Grommet WPL M0580007 Contact Us For Availability
353
Button Plug WPL A3080001 Contact Us For Availability
381
Refrigerator Trim WPL 10602605 Contact Us For Availability
401
Refrigerator Insulation WPL 12016901 Contact Us For Availability
402
Refrigerator Air Duct WPL 10176602 Contact Us For Availability
411
Refrigerator Insulation WPL 12016902 Contact Us For Availability
413
Refrigerator Dairy Door WPL 12103001 Contact Us For Availability
421
Tunnel Wire WPL 10187501 Contact Us For Availability
431
Tunnel Wire WPL 10187601 Contact Us For Availability
451
Housing-re WPL D7716409 Contact Us For Availability
451
Refrigerator Clip WPL 10202001 Contact Us For Availability
454
Speed Clamp WPL M0103904 Contact Us For Availability
461
Refrigerator Cover WPL D7297603 Contact Us For Availability
462
Refrigerator Screw Bolt WPL M0204339 Contact Us For Availability
471
Refrigerator Cover WPL D7749002 Contact Us For Availability
471
Refrigerator Support WPL 10494603 Contact Us For Availability
481
Refrigerator Door Stop (Black) WPL C8972403 Contact Us For Availability
481
Refrigerator Shelf WPL 12328601 Contact Us For Availability
491
Lh Rail WPL 12012901 Contact Us For Availability
501
Refrigerator Gasket WPL A3030357 Contact Us For Availability
501
Refrigerator Switch WPL C3680311 Contact Us For Availability
501
R.h. Rail WPL 10991601 Contact Us For Availability
501
Refrigerator Cover Bracket WPL 10894901 Contact Us For Availability
521
Refrigerator Hinge WPL 10496104 Contact Us For Availability
531
Screw WPL M0253916 Contact Us For Availability
531
Hinge-bk WPL 10496112 Contact Us For Availability
532
Refrigerator Insulation WPL D7788201 Contact Us For Availability
541
Refrigerator Support WPL D7749205 Contact Us For Availability
551
Refrigerator Support WPL 10494604 Contact Us For Availability
552
Refrigerator Control Box WPL D7822404 Contact Us For Availability
561
Refrigerator Trim WPL 10602505 Contact Us For Availability
581
Refrigerator Cover WPL D7838302 Contact Us For Availability
601
Refrigerator Arm WPL D7877001 Contact Us For Availability
601
Refrigerator Light Housing WPL 10270203 Contact Us For Availability
611
Refrigerator Gasket WPL A3189337 Contact Us For Availability
631
Cover I.m. WPL D7820401 Contact Us For Availability
651
Refrigerator Air Gasket WPL B8386602 Contact Us For Availability
651
Refrigerator Shroud WPL 10845504 Contact Us For Availability
651
Refrigerator Trim WPL 10494212 Contact Us For Availability
661
Refrigerator Drain Pan WPL 10845601 Contact Us For Availability
662
Refrigerator Screw WPL M0216539 Contact Us For Availability
702
Refrigerator Trim WPL 10494417 Contact Us For Availability
711
Refrigerator Handle WPL 10508504 Contact Us For Availability
722
Refrigerator Spacer Damper WPL A3044208 Contact Us For Availability
732
Refrigerator Top WPL D7868606 Contact Us For Availability
741
Refrigerator Sump Grille WPL D7750602 Contact Us For Availability
761
Refrigerator Shelf WPL 10883318 Contact Us For Availability
782
Refrigerator Damper Gasket WPL B8345401 Contact Us For Availability
783
Refrigerator Rod Retainer WPL 12102801 Contact Us For Availability
801
Ground Clip WPL B5733302 Contact Us For Availability
812
Refrigerator Gasket WPL 10177901 Contact Us For Availability
821
Facade-e WPL 10986103 Contact Us For Availability
831
Refrigerator Screw (Black) WPL M0219601 Contact Us For Availability
862
Spring WPL A1055101 Contact Us For Availability
872
Spring, An WPL A1055105 Contact Us For Availability
881
Refrigerator Clamp WPL C8976201 Contact Us For Availability
881
Cap-blk Sw WPL 12043808 Contact Us For Availability
891
Refrigerator Air Gasket WPL C8976102 Contact Us For Availability
891
Refrigerator Handle Cap WPL 10952908 Contact Us For Availability
901
Refrigerator Gasket WPL A3030305 Contact Us For Availability
902
Refrigerator Handle Cap WPL 10952907 Contact Us For Availability
931
Refrigerator Clip WPL 10874601 Contact Us For Availability
941
H.v. Box Shf WPL 10845302 Contact Us For Availability
962
Refrigerator Clamp WPL C8977301 Contact Us For Availability
981
GASKET-FOAM WPL Z3189367 Contact Us For Availability
1091
Refrigerator Gasket WPL B5759645 Contact Us For Availability
1092
Refrigerator Bracket WPL C8992302 Contact Us For Availability
1101
Refrigerator Shelf WPL 10877222 Contact Us For Availability
1103
Refrigerator Baffle WPL 12021201 Contact Us For Availability
1111
Refrigerator Gasket WPL A3030359 Contact Us For Availability
1112
Refrigerator Screw WPL 10093301 Contact Us For Availability
1132
Refrigerator Water Valve WPL D7742203 Contact Us For Availability
1241
Clip WPL B5720301 Contact Us For Availability
1302
Refrigerator Bracket WPL 10496302 Contact Us For Availability
1311
Refrigerator Wire Cover WPL 10178505 Contact Us For Availability
1341
Refrigerator Glide WPL D7849904 Contact Us For Availability
1392
KNOB-WH CONTROL (QTY 2) WPL D7995829 Contact Us For Availability
1402
Washer WPL M0274067 Contact Us For Availability
1591
Refrigerator Plug WPL M0311602 Contact Us For Availability
1605
Refrigerator Tube Clamp WPL M0108001 Contact Us For Availability
1631
Refrigerator Shim WPL 12223003 Contact Us For Availability
1871
Refrigerator Pan WPL 10783301 Contact Us For Availability
1881
Refrigerator Pan WPL 10783201 Contact Us For Availability
1891
Refrigerator Crisper Frame WPL 10882801 Contact Us For Availability
1901
Refrigerator Frame WPL 10882811 Contact Us For Availability
1911
Refrigerator Basket WPL 12011904 Contact Us For Availability
1931
Refrigerator Shelf WPL 10783114 Contact Us For Availability
2021
Support WPL M0560005 Contact Us For Availability
2061
Refrigerator Gasket WPL A3189336 Contact Us For Availability
2081
Wire Tie WPL M0585203 Contact Us For Availability
2091
Refrigerator Fill Tube WPL A3127412 Contact Us For Availability
2102
Refrigerator Gasket WPL 10383201 Contact Us For Availability
2131
Refrigerator Cover WPL 10493202 Contact Us For Availability
2141
Refrigerator Screw WPL M0238846 Contact Us For Availability
2151
Refrigerator Grille WPL 10164813 Contact Us For Availability
2161
Refrigerator Control WPL 10164702 Contact Us For Availability
2234
Refrigerator Handle WPL 12106311 Contact Us For Availability
2244
Refrigerator Insert WPL 12328503 Contact Us For Availability
2293
Refrigerator Handle WPL 12106312 Contact Us For Availability
2301
Refrigerator Hinge WPL 12077314 Contact Us For Availability
2321
Refrigerator Hinge Cover WPL 10504214 Contact Us For Availability
2343
Refrigerator Insert WPL 12328507 Contact Us For Availability
2501
Washer WPL M0270508 Contact Us For Availability
2511
Refrigerator Gasket WPL A3189335 Contact Us For Availability
2531
Refrigerator Rail WPL 12012801 Contact Us For Availability
2541
R.h. Rail WPL 10991401 Contact Us For Availability
2603
Refrigerator Basket WPL 10573102 Contact Us For Availability
2613
Refrigerator Door WPL 10573301 Contact Us For Availability
2623
Refrigerator Door Trim WPL 10050211 Contact Us For Availability
2801
Refrigerator Insulation WPL B0523596 Contact Us For Availability
3101
Refrigerator Shelf WPL 10525516 Contact Us For Availability
3111
Refrigerator Shelf WPL 10534716 Contact Us For Availability
3121
Refrigerator Freezer Shelf WPL 10521712 Contact Us For Availability
3501
Refrigerator Insert WPL 10984638 Contact Us For Availability
3701
Refrigerator Bracket WPL 12146901 Contact Us For Availability
4012
Gasket (2) WPL B8386608 Contact Us For Availability
4023
Refrigerator Harness WPL 12026002 Contact Us For Availability
4042
Refrigerator Gasket WPL B8386607 Contact Us For Availability
4052
Evaporator Shield WPL 10893802 Contact Us For Availability
4062
Refrigerator Drip Tray WPL D7850202 Contact Us For Availability
4082
RIVET-AUTO FEED (QTY 3) WPL 1098801 Contact Us For Availability
4132
Refrigerator Grommet WPL M0580002 Contact Us For Availability
4152
Refrigerator Clip WPL 10527401 Contact Us For Availability
4162
Refrigerator Clip WPL 10623003 Contact Us For Availability
4172
Refrigerator Shroud WPL 10890202 Contact Us For Availability
4182
Refrigerator Socket WPL 10281601 Contact Us For Availability
4701
Refrigerator Evaporator Cover WPL 10655902 Contact Us For Availability
4731
Refrigerator Cover WPL 10270101 Contact Us For Availability
4784
Clamp WPL B5794201 Contact Us For Availability
4815
Refrigerator Gasket WPL A3030361 Contact Us For Availability
5001
Screw 1/2" WPL M0220418 Contact Us For Availability
5001
Refrigerator Ice Chute WPL 10504101 Contact Us For Availability
5011
Refrigerator Gasket WPL 12044501 Contact Us For Availability
5021
SHIM- DR CLOSURE WPL N8387703 Contact Us For Availability
5981
Refrigerator Freezer Trim WPL 10494508 Contact Us For Availability
6021
Refrigerator Basket WPL 12011804 Contact Us For Availability
6041
Refrigerator Tape WPL R0195042 Contact Us For Availability
6051
Cover-oc WPL 10178405 Contact Us For Availability
6072
Refrigerator Trim WPL 10494507 Contact Us For Availability
6501
SCREW-SM (QTY 6) WPL M0220317 Contact Us For Availability
7014
Refrigerator Power Cord WPL 10678503 Contact Us For Availability
7021
Refrigerator Shim WPL 12146701 Contact Us For Availability
7031
Refrigerator Shim WPL 12146702 Contact Us For Availability
7044
Refrigerator Clip WPL 10547001 Contact Us For Availability
7091
Refrigerator Screw WPL M0211357 Contact Us For Availability
7164
Refrigerator Extension WPL 10979103 Contact Us For Availability
7171
Refrigerator Hinge WPL 12077315 Contact Us For Availability
7181
Refrigerator Hinge Cover WPL 10504213 Contact Us For Availability
8111
Strip-lh WPL 12146602 Contact Us For Availability
8121
Strip-rh WPL 12146601 Contact Us For Availability
8131
Shim-rh WPL 12146801 Contact Us For Availability
8141
Shim-lh WPL 12146802 Contact Us For Availability
8151
Refrigerator Rivet WPL A4539631 Contact Us For Availability
8161
Refrigerator Hinge Cam WPL 12147602 Contact Us For Availability
NI
Refrigerator Label WPL 10834704 Contact Us For Availability
NI
Refrigerator Wire WPL D7383473 Contact Us For Availability
NI
Refrigerator Harness WPL D7824601 Contact Us For Availability
NI
Refrigerator Door Chute WPL R0156692 Contact Us For Availability
× ![]()
Login and Registration Form
