Model Kenmore 587.15232901A DISHWASHER – Common Parts &amp; Diagrams

*

154641601 Frigidaire Dishwasher Insulation Backorder WCI 154641601 $3.90

*

154647101 Frigidaire Dishwasher Pin Hinge Backorder WCI 154647101 $9.06

*

154686401 Frigidaire Dishwasher Bearing Backorder WCI 154686401 $6.79

*

154779601 Frigidaire Dishwasher Screw Backorder WCI 154779601 $0.87

*

154783101 Frigidaire Dishwasher Screw Backorder WCI 154783101 $4.51

*

808690701 Frigidaire Dishwasher Screw Backorder WCI 808690701 $2.26

*#

154753101 Frigidaire Dishwasher Thermistor In Stock WCI 154753101 $15.83

*#

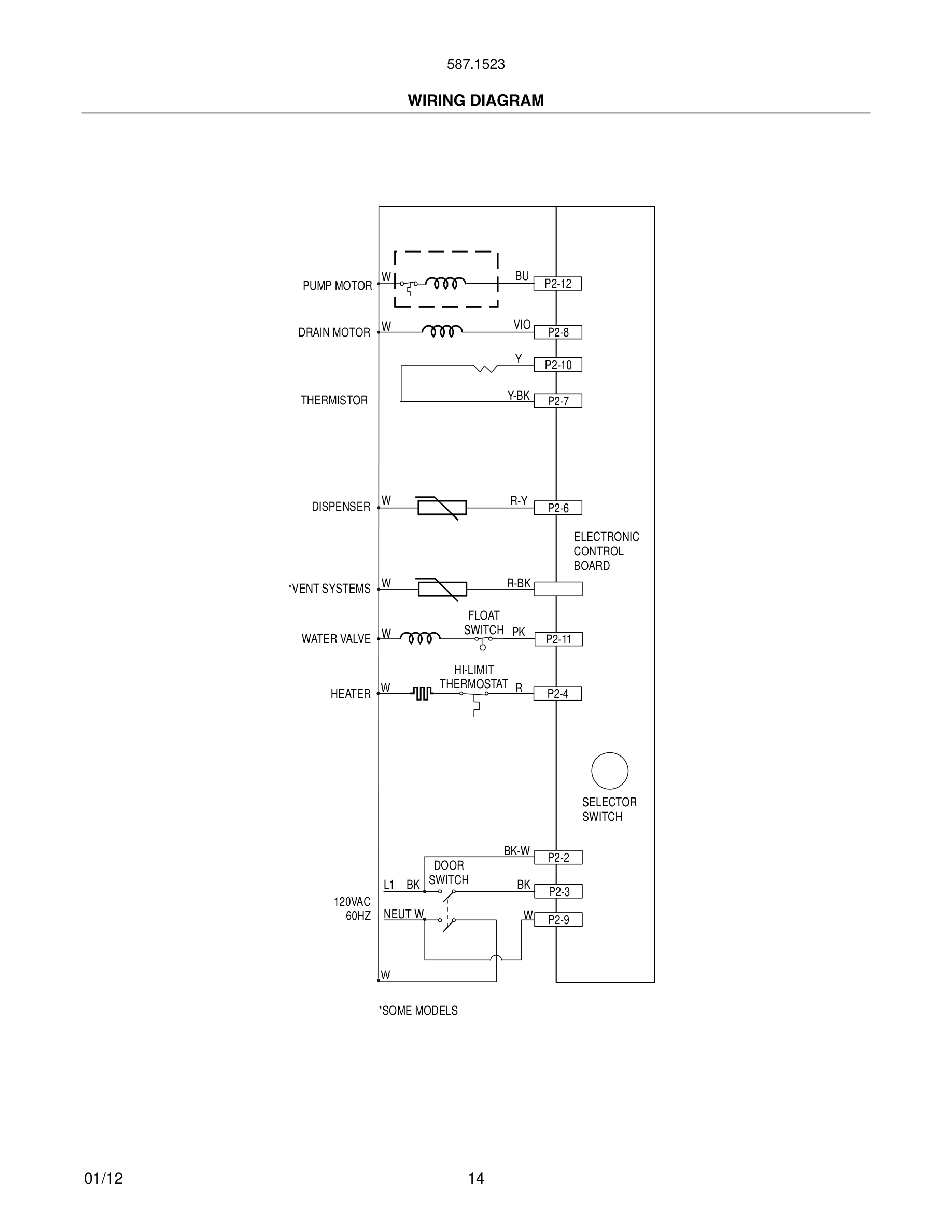

Harness, wiring, main WCI 154866401 Contact Us For Availability

1

154430501 Frigidaire Dishwasher Door Spring In Stock WCI 154430501 $25.37

1

Panel, control, black WCI 154645003 Contact Us For Availability

1

Panel, control, white WCI 154645001 Contact Us For Availability

1*

154106202 Frigidaire Dishwasher Heater Nut In Stock WCI 154106202 $4.88

1*

154289801 Frigidaire Dishwasher Shield Backorder WCI 154289801 $4.97

1A

154325201 Frigidaire Linkage Spring In Stock WCI 154325201 $25.37

2

154093301 Frigidaire Dishwasher ARM Assembly In Stock WCI 154093301 $1.35

2

154465101 Frigidaire Dishwasher Heating Eleme Backorder WCI 154465101 $7.25

2

154662601 Frigidaire Door Strike Latch In Stock WCI 154662601 $25.37

2

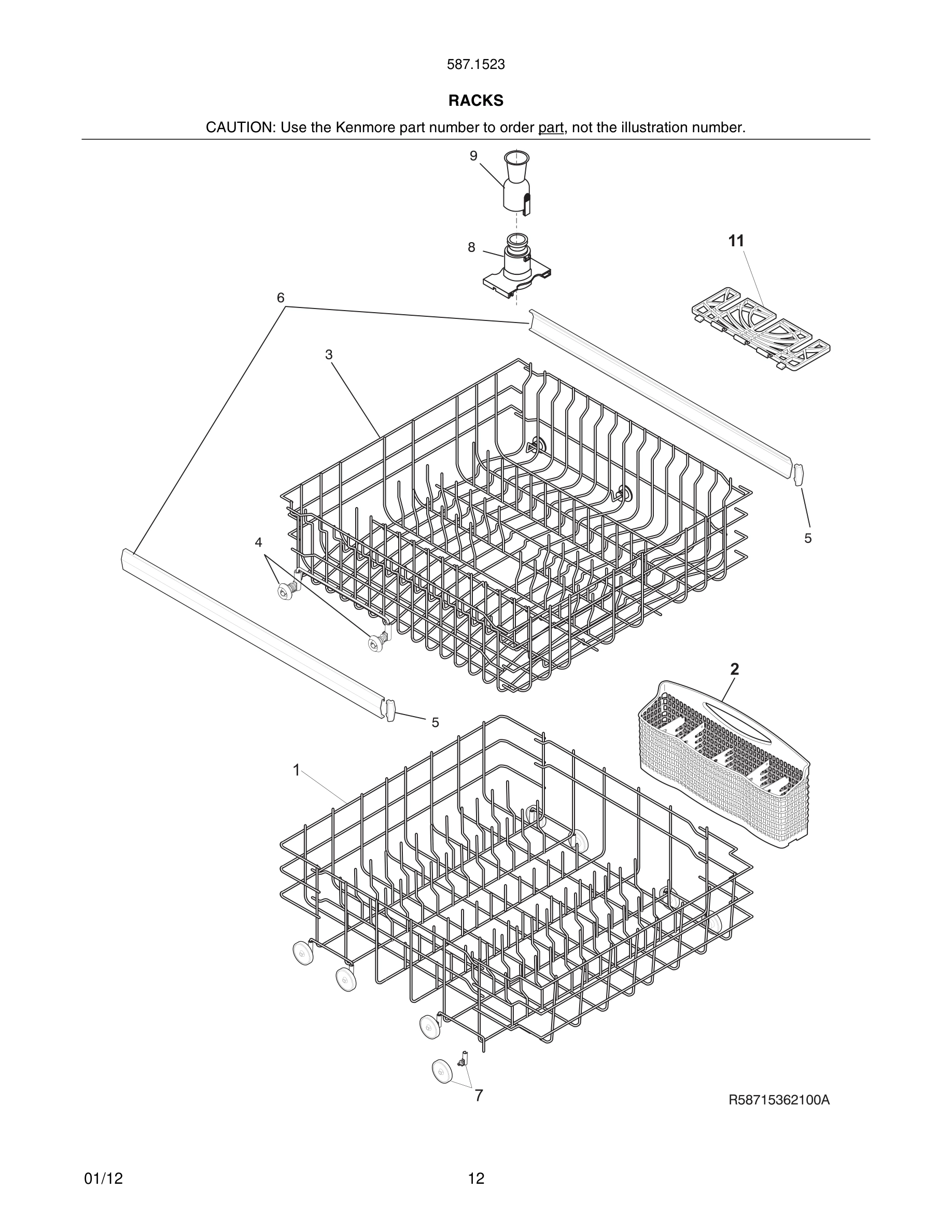

5304535382 Frigidaire Basket Assembly In Stock WCI 5304535382 $12.89

2

Insert, control panel, black WCI 154764603 Contact Us For Availability

3#

154637401 Frigidaire Dishwasher Fill Valve Wa In Stock WCI 154637401 $22.19

3#

5304512731 Frigidaire Dishwasher Control Boar In Stock WCI 5304512731 $82.49

3A

5304513274 Frigidaire Dishwasher Counterbalan In Stock WCI 5304513274 $43.03

4

154522902 Frigidaire Dishwasher Wheel and Bus In Stock WCI 154522902 $18.58

4

5304508587 Frigidaire Dishwasher Brace Backorder WCI 5304508587 $18.12

4

808326801 Frigidaire Dishwasher Screw Backorder WCI 808326801 $1.79

4

Cover, control WCI 154552101 Contact Us For Availability

5

5300809927 Frigidaire End Cap Backorder WCI 5300809927 $2.26

6

154597801 Frigidaire Dishwasher Upper Rack Sl In Stock WCI 154597801 $5.68

6

5303943103 Frigidaire Dishwasher P-1 Screw Ki Backorder WCI 5303943103 $11.32

7

Liner, door assy. WCI 154494601 Contact Us For Availability

8

154745503 Frigidaire Dishwasher Toe Panel In Stock WCI 154745503 $10.41

8

Base, funnel WCI 154728001 Contact Us For Availability

8#

154774401 Frigidaire Dishwasher 8 Button Swit Backorder WCI 154774401 $81.52

9

154574401 Frigidaire Dishwasher Dispenser In Stock WCI 154574401 $48.35

9

Funnel WCI 154251801 Contact Us For Availability

9

Kickplate Assy, white WCI 154854901 Contact Us For Availability

9*

154294701 Frigidaire Dishwasher Screw Backorder WCI 154294701 $5.86

154103702 Frigidaire Dishwasher Screw Backorder WCI 154103702 $8.60

154371301 Frigidaire Dishwasher Screw Backorder WCI 154371301 $8.14

154724001 Frigidaire Lower Arm Support In Stock WCI 154724001 $6.32

154754801 Frigidaire Dishwasher Screw In Stock WCI 154754801 $1.35

11

154200701 Frigidaire Dishwasher Screw Backorder WCI 154200701 $8.60

13

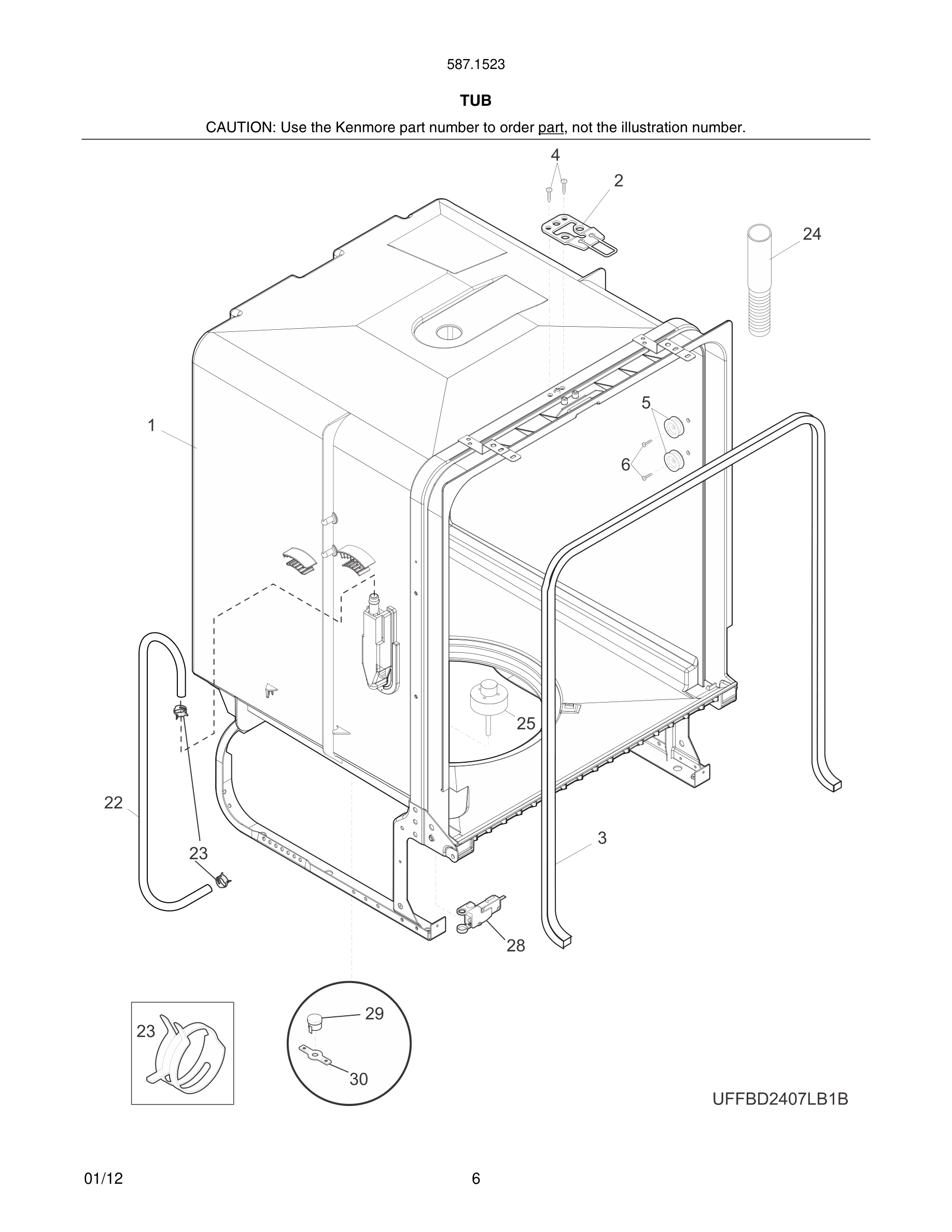

154246801 Frigidaire Dishwasher Primary Gaske In Stock WCI 154246801 $31.71

14

154728201 Frigidaire Dishwasher Sump Assembly In Stock WCI 154728201 $39.44

15

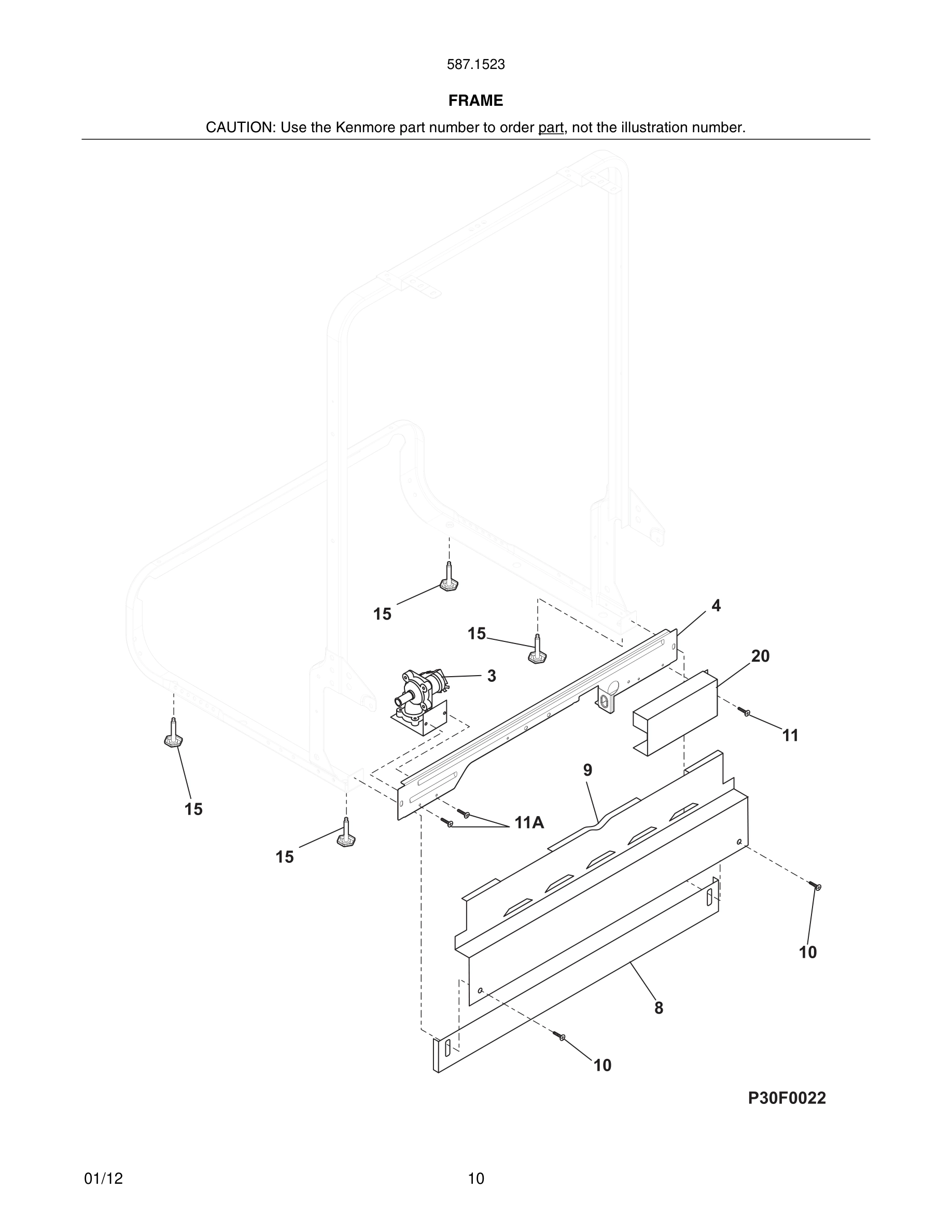

5304506540 Frigidaire Dishwasher Leg Assembly In Stock WCI 5304506540 $6.79

16

154246502 Frigidaire Dishwasher Bracket In Stock WCI 154246502 $25.79

16*

154754901 Frigidaire Dishwasher Screw In Stock WCI 154754901 $2.70

154758501 Frigidaire Power Cord Cover Backorder WCI 154758501 $12.67

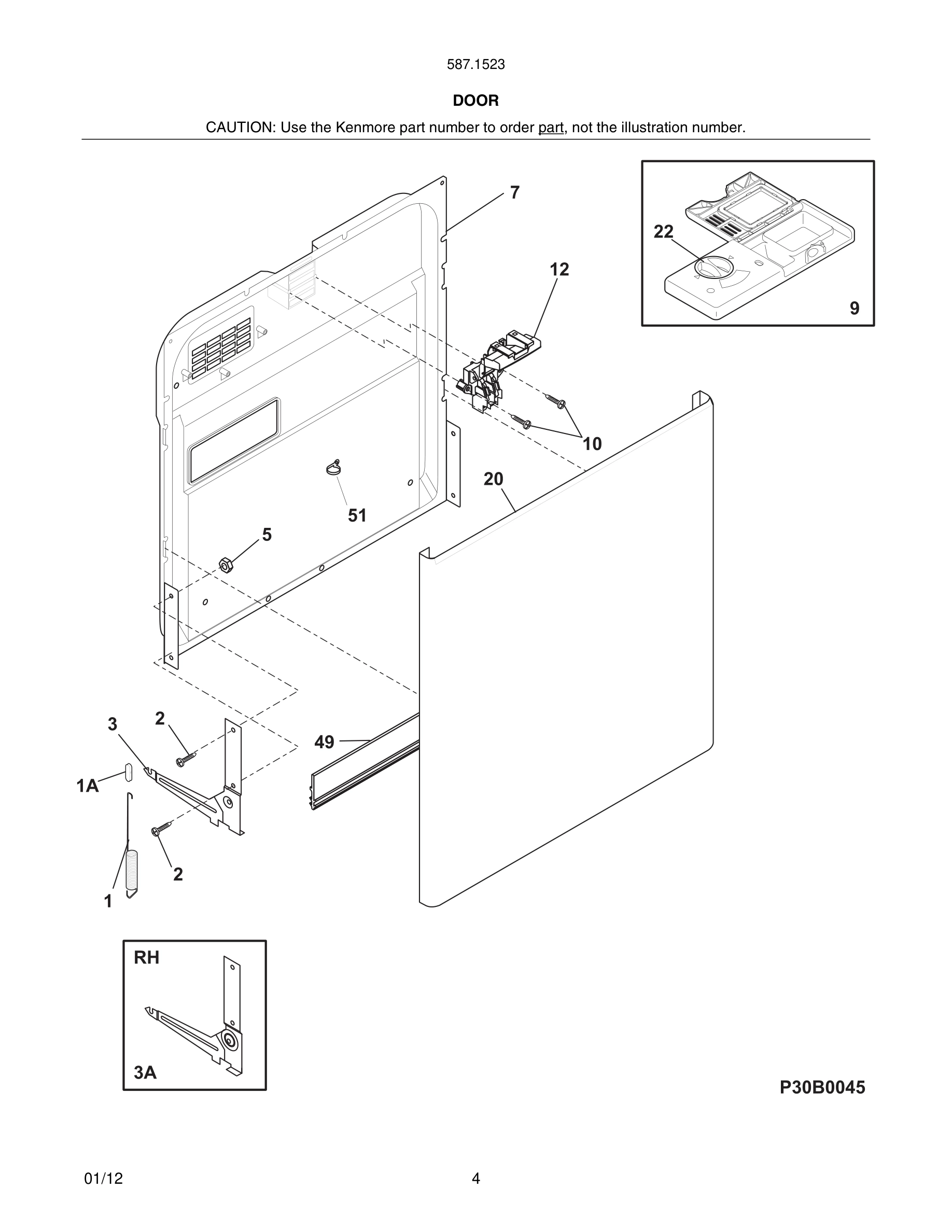

154829001 Frigidaire Dishwasher Door Assembly Backorder WCI 154829001 $87.63

154829003 Frigidaire Dishwasher Door Backorder WCI 154829003 $91.58

154829007 Frigidaire Dishwasher Door Backorder WCI 154829007 $116.97

Vent assy, static dry WCI 154433001 Contact Us For Availability

Door, outer, silver mist, w/barrier WCI 154829006 Contact Us For Availability

20*

154754701 Frigidaire Dishwasher Screw Backorder WCI 154754701 $2.26

22

154388801 Frigidaire Dishwasher Rinse Aid Dis In Stock WCI 154388801 $15.85

22

5304523457 Frigidaire Inlet Hose In Stock WCI 5304523457 $8.15

23

5304538466 Frigidaire Hose Clamp Backorder WCI 5304538466 $1.48

24

5304517203 Frigidaire Dishwasher Lower Wash A In Stock WCI 5304517203 $22.11

24A

154313601 Frigidaire Dishwasher Control Arm P In Stock WCI 154313601 $28.53

24A*

Nut, spray arm, center WCI 154252001 Contact Us For Availability

25#

5304506520 Frigidaire Dishwasher Float Assemb In Stock WCI 5304506520 $4.31

28#

154773201 Frigidaire Dishwasher Switch Assemb In Stock WCI 154773201 $35.33

29#

5304525221 Frigidaire Dishwasher Thermostat In Stock WCI 5304525221 $10.39

30

154241101 Frigidaire Dishwasher Retainer Backorder WCI 154241101 $2.26

30*

154297701 Frigidaire Dishwasher Screw Backorder WCI 154297701 $8.60

32

Tube, delivery WCI 154406601 Contact Us For Availability

32A

154406401 Frigidaire Delivery Tube Gasket In Stock WCI 154406401 $6.99

33

154553501 Frigidaire Dishwasher Gasket In Stock WCI 154553501 $27.05

49

809006501 Frigidaire Bottom Seal/Gasket Door In Stock WCI 809006501 $15.31

51

Clamp, drip loop, wire WCI 154320301 Contact Us For Availability

55

5304534830 Frigidaire Dishwasher Bracket In Stock WCI 5304534830 $3.46

58

154246402 Frigidaire Dishwasher P-1 Ball Asse Backorder WCI 154246402 $35.78

59

154246901 Frigidaire Dishwasher Rear O-Ring f In Stock WCI 154246901 $36.24

59A

154247001 Frigidaire Dishwasher Pump Gasket S In Stock WCI 154247001 $36.24

60*

154741501 Frigidaire Dishwasher Screw Backorder WCI 154741501 $8.60

61

Nozzle, 3rd level, spray WCI 154606801 No Longer Available

62

5304518968 Frigidaire Lower Spray Arm Support In Stock WCI 5304518968 $7.25

65

5304506525 Frigidaire Dishwasher Filter Assem In Stock WCI 5304506525 $17.21

66

154252701 Frigidaire Dishwasher Filter Trap In Stock WCI 154252701 $38.09

70#

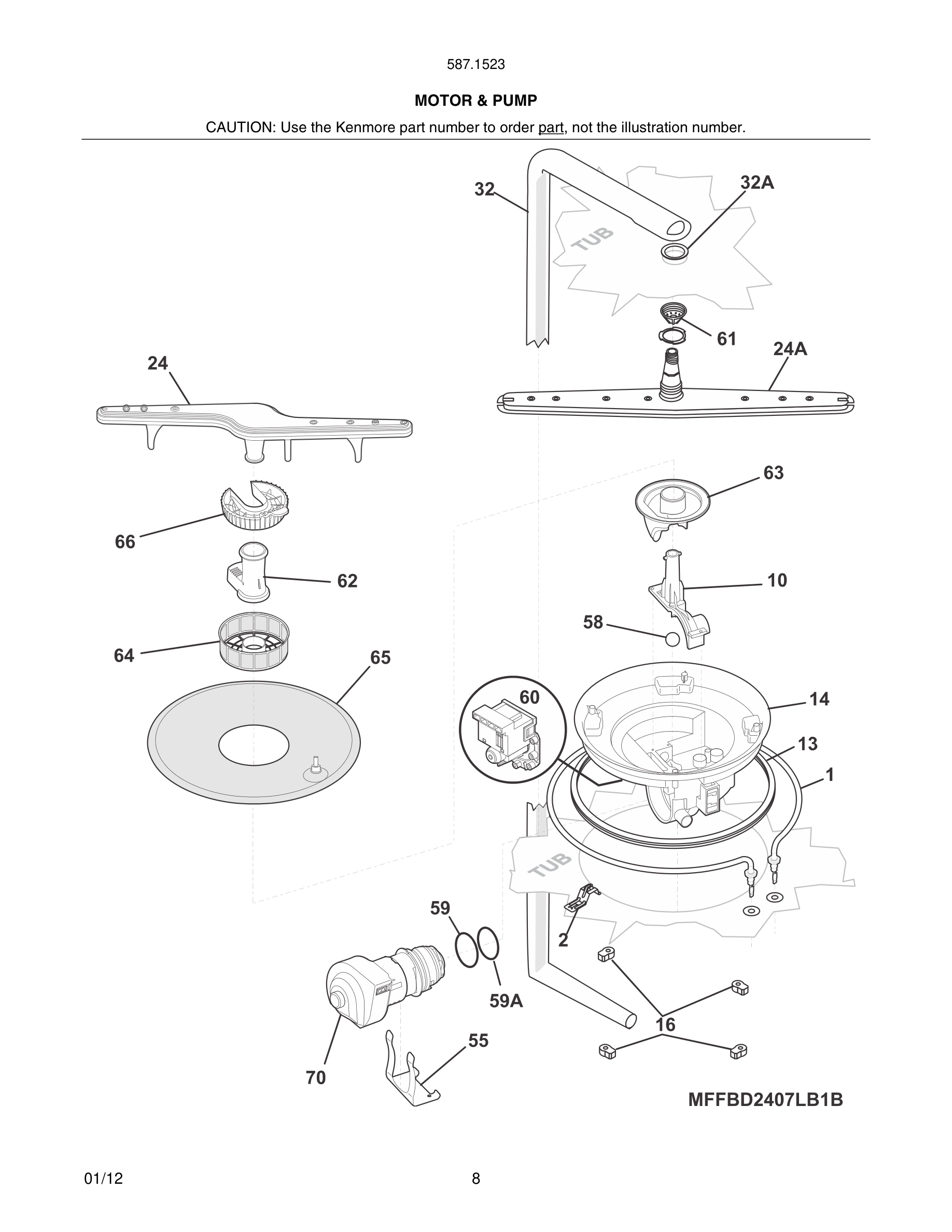

154844301 Frigidaire Dishwasher Motor Kit In Stock WCI 154844301 $183.86
