Model Electrolux 57-2709-10-03 WALL OVEN – Common Parts & Diagrams
02 - LOWER BODY PARTS
03 - UPPER BODY PARTS

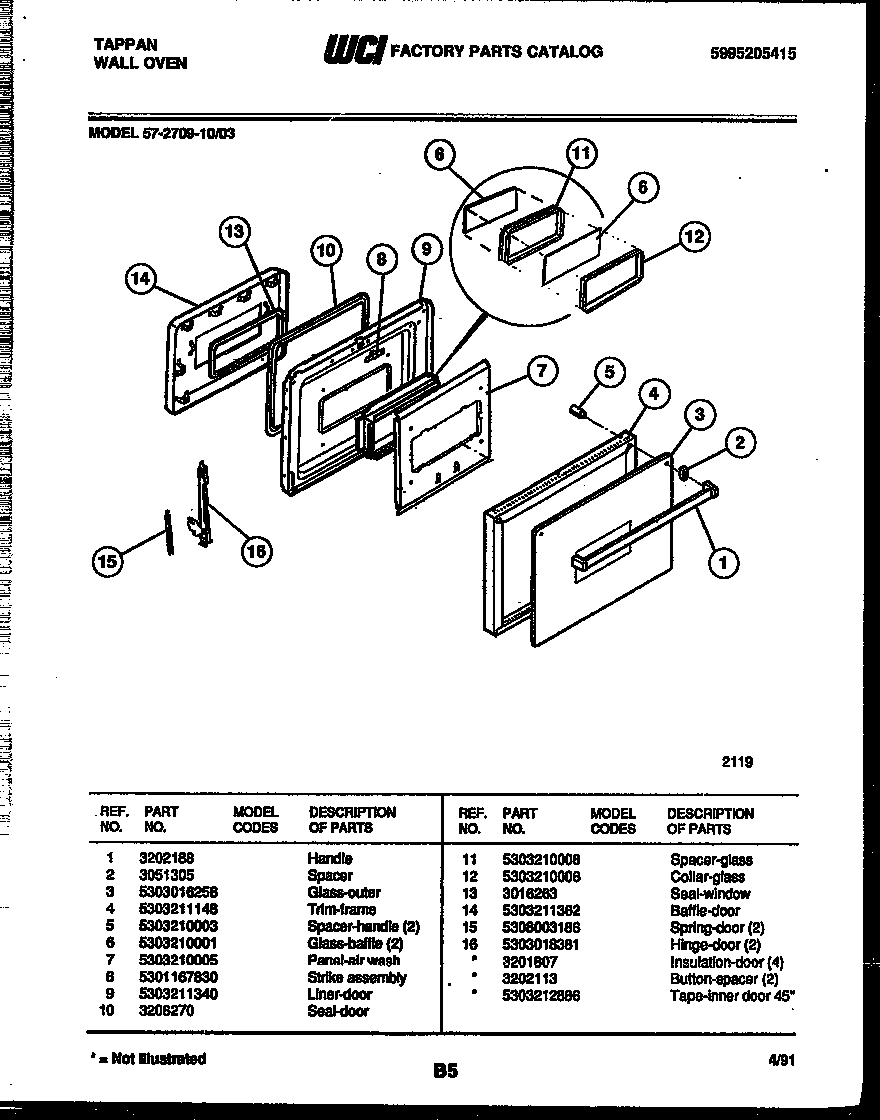

04 - LOWER OVEN DOOR PARTS

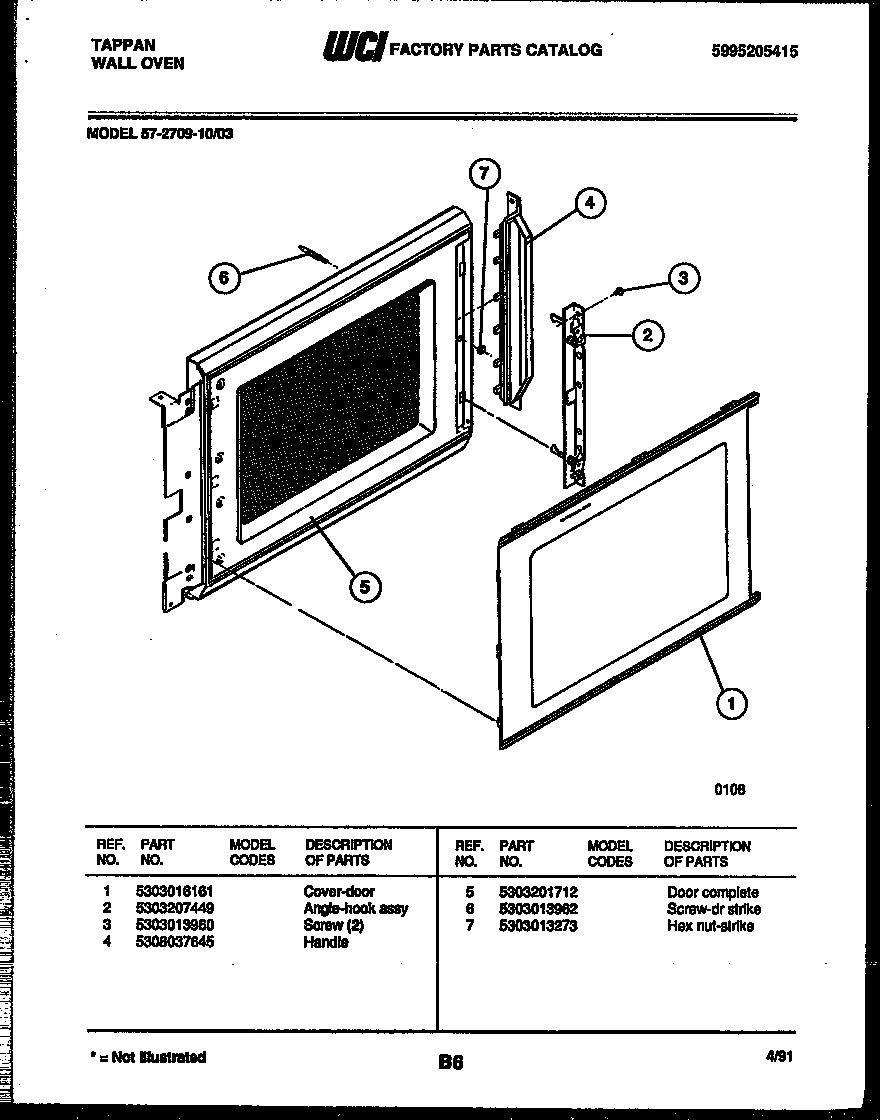

05 - UPPER OVEN DOOR PARTS

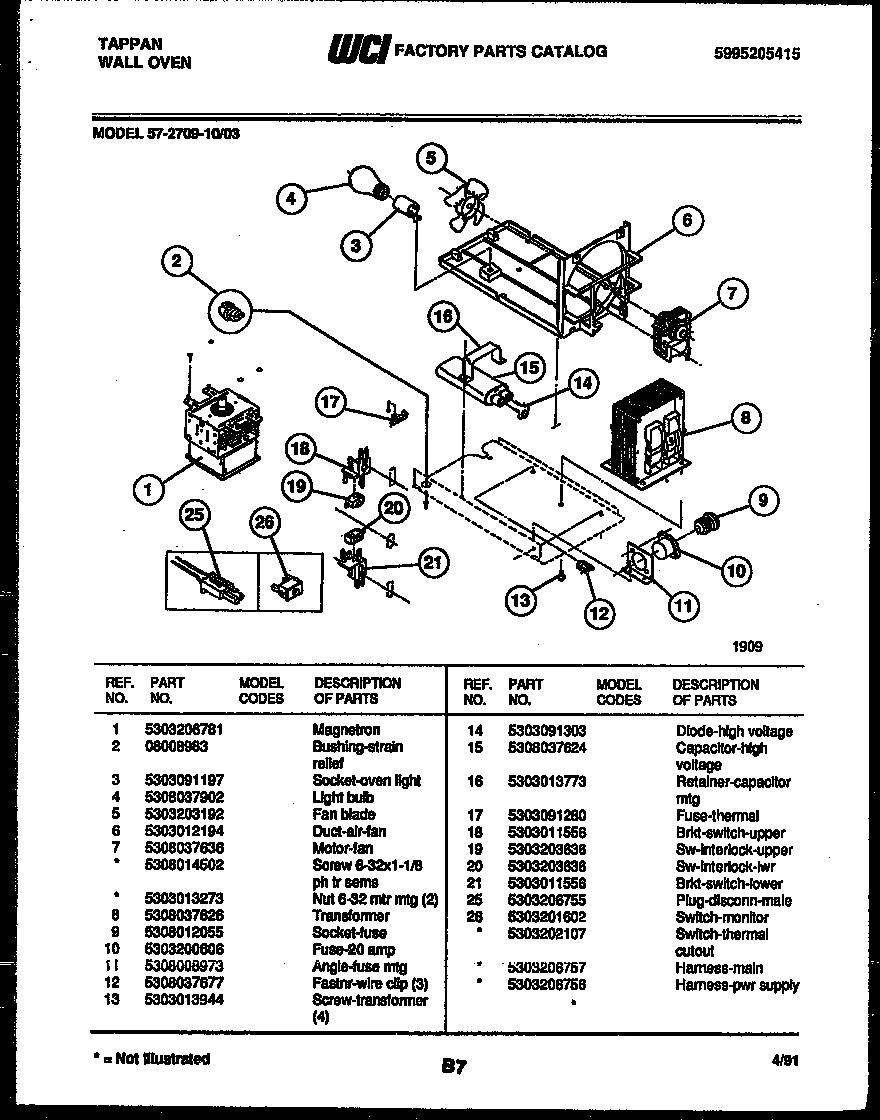

06 - POWER CONTROL
07 - WRAPPER AND BODY PARTS

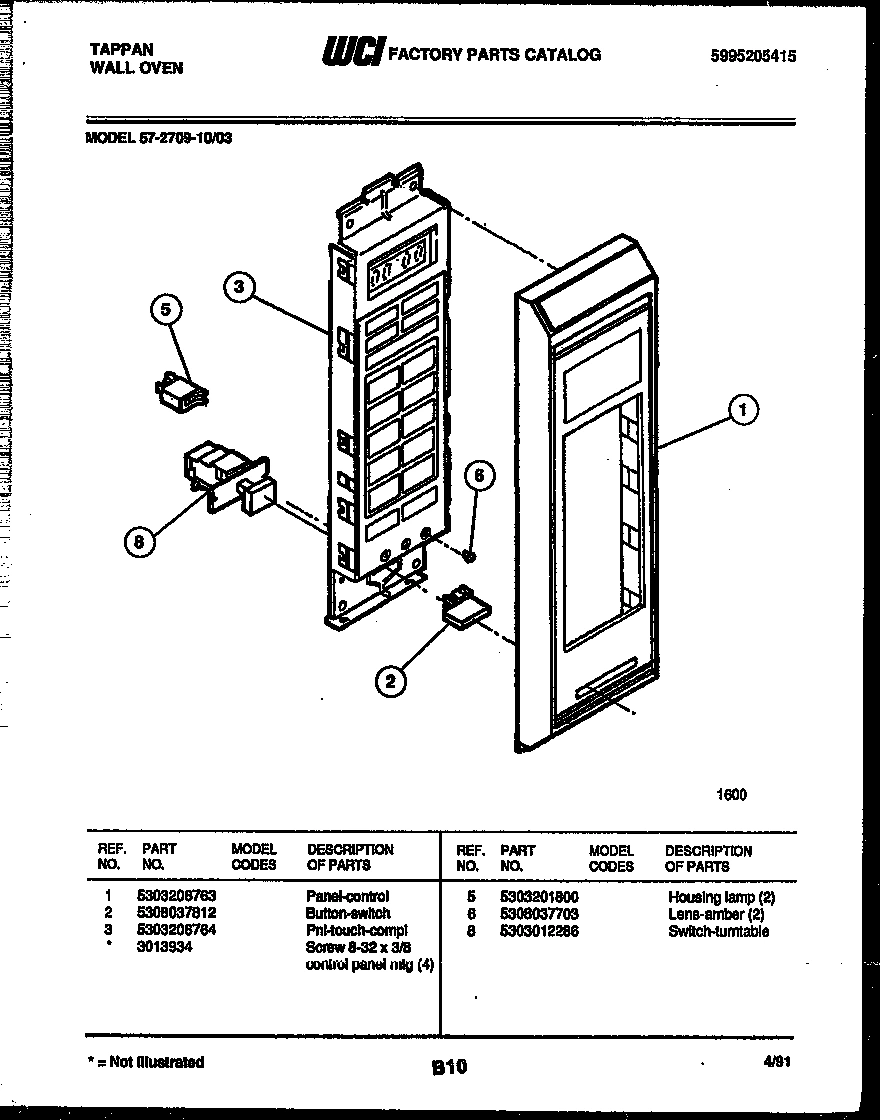

08 - CONTROL PANEL

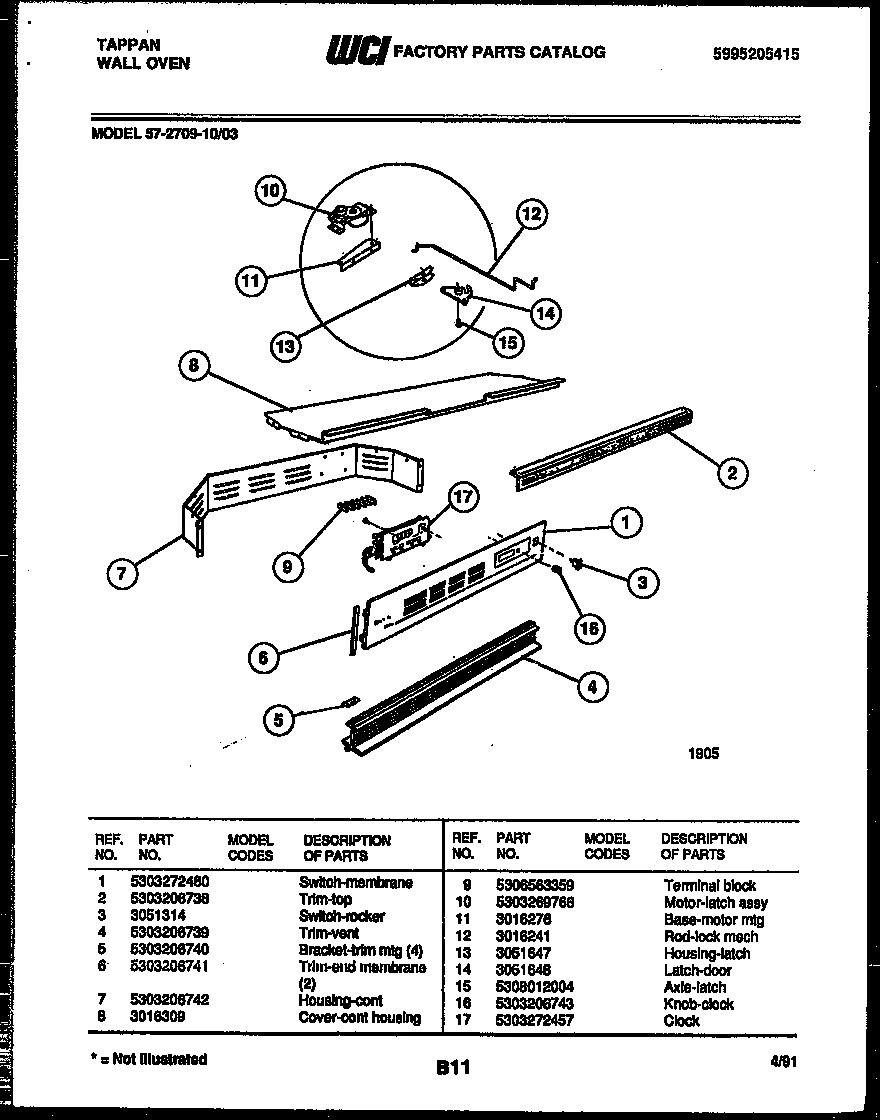

09 - CONTROL PANEL
Common parts from model Electrolux 57-2709-10-03 WALL OVEN
*46067
WCI 3201807 WCI 3201807 Contact Us For Availability
*46067
WCI 3202113 WCI 3202113 Contact Us For Availability
*46068
TAPE-INNER DOOR 45`` WCI 5303212886 Contact Us For Availability
*46071
WCI 5303206757 WCI 5303206757 Contact Us For Availability
*46072
WCI 5303206756 WCI 5303206756 Contact Us For Availability
1
WCI 5303202101 WCI 5303202101 Contact Us For Availability
1
WCI 3202188 WCI 3202188 Contact Us For Availability
1
WCI 5303016161 WCI 5303016161 Contact Us For Availability
1
WCI 5303206781 WCI 5303206781 Contact Us For Availability
1
WCI 5303203194 WCI 5303203194 Contact Us For Availability
1
WCI 5303206763 WCI 5303206763 Contact Us For Availability
1
WCI 5303272460 WCI 5303272460 Contact Us For Availability
2
TRIM-SIDE (2) WCI 3012268 Contact Us For Availability
2
SPACER WCI 3051305 Contact Us For Availability
2
WCI 5303207449 WCI 5303207449 Contact Us For Availability
2
WCI 08008983 WCI 08008983 Contact Us For Availability
2
WCI 5308037812 WCI 5308037812 Contact Us For Availability
2
WCI 5303206738 WCI 5303206738 Contact Us For Availability
3
WCI 3019065 WCI 3019065 Contact Us For Availability
3
WCI 5303016258 WCI 5303016258 Contact Us For Availability
3
SCREW (2) WCI 5303013960 Contact Us For Availability
3
SOCKET-OVEN LIGHT WCI 5303091197 Contact Us For Availability
3
SHIELD-OVN BOTTOM WCI 3014060 Contact Us For Availability
3
WCI 5303206764 WCI 5303206764 Contact Us For Availability
3
SWITCH-ROCKER WCI 3051314 Contact Us For Availability
3A
SCREW 8-32 X 3/8 CONTROL PANEL MTG (4) (NON-I WCI 3013934 Contact Us For Availability
4
WCI 3019060 WCI 3019060 Contact Us For Availability
4
WCI 5303211148 WCI 5303211148 Contact Us For Availability
4
WCI 5308037645 WCI 5308037645 Contact Us For Availability
4
WCI 5308037902 WCI 5308037902 Contact Us For Availability
4
WCI 5303206739 WCI 5303206739 Contact Us For Availability
5
WCI 3019079 WCI 3019079 Contact Us For Availability
5
WCI 5303210003 WCI 5303210003 Contact Us For Availability
5
WCI 5303201712 WCI 5303201712 Contact Us For Availability
5
WCI 5303203192 WCI 5303203192 Contact Us For Availability
5
WCI 5303922046 WCI 5303922046 Contact Us For Availability
5
HOUSING LAMP (2) WCI 5303201800 Contact Us For Availability
5
WCI 5303206740 WCI 5303206740 Contact Us For Availability
6
WCI 3204483 WCI 3204483 Contact Us For Availability
6
WCI 3019062 WCI 3019062 Contact Us For Availability
6
GLASS - BAFFLE (2) WCI 5303210001 Contact Us For Availability
6
SCREW-DR STRIKE WCI 5303013962 Contact Us For Availability
6
DUCT-AIR (FAN) WCI 5303012194 Contact Us For Availability
6
WASHER-STIRRER WCI 5303014620 Contact Us For Availability
6
LENS-AMBER (2) WCI 5308037703 Contact Us For Availability
6
WCI 5303206741 WCI 5303206741 Contact Us For Availability
7
WCI 5303922044 WCI 5303922044 Contact Us For Availability
7
WCI 3019063 WCI 3019063 Contact Us For Availability
7
WCI 3019068 WCI 3019068 Contact Us For Availability
7
WCI 5303210005 WCI 5303210005 Contact Us For Availability
7
MOTOR-FAN WCI 5308037636 Contact Us For Availability
7
WCI 5303206742 WCI 5303206742 Contact Us For Availability
7A
SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATE WCI 5308014502 Contact Us For Availability
7B
NUT-6-32 MTR MTG (2) (NON-ILLUSTRATED) WCI 5303013273 Contact Us For Availability
8
SUPT-ROLLER ASSY WCI 5303091004 Contact Us For Availability
8
WCI 3202076 WCI 3202076 Contact Us For Availability
8
WCI 3019067 WCI 3019067 Contact Us For Availability
8
WCI 5301167830 WCI 5301167830 Contact Us For Availability
8
WCI 5308037626 WCI 5308037626 Contact Us For Availability
8
SWITCH-TURNTABLE WCI 5303012286 Contact Us For Availability
8
COVER - CONT HOUSING WCI 3016309 Contact Us For Availability
9
WCI 3016272 WCI 3016272 Contact Us For Availability
9
WCI 5303206777 WCI 5303206777 Contact Us For Availability
9
WCI 5303211340 WCI 5303211340 Contact Us For Availability
9
WCI 5308012055 WCI 5308012055 Contact Us For Availability
9
TRAY-OVN-CIRCULAR WCI 5308037674 Contact Us For Availability
10
TUBE-OVEN VENT WCI 3205683 Contact Us For Availability
10
WCI 5303206778 WCI 5303206778 Contact Us For Availability
10
WCI 3206270 WCI 3206270 Contact Us For Availability
10
WCI 5303200606 WCI 5303200606 Contact Us For Availability
10
WCI 5303011698 WCI 5303011698 Contact Us For Availability
10
WCI 5303269766 WCI 5303269766 Contact Us For Availability
11
SUPPORT - HEIGHT ADJ WCI 3016278 Contact Us For Availability
11
WCI 5303206787 WCI 5303206787 Contact Us For Availability
11
SPACER-GLASS WCI 5303210008 Contact Us For Availability
11
WCI 5308008973 WCI 5308008973 Contact Us For Availability
11
ELMNT-BROWNER WCI 5303012207 Contact Us For Availability
11
BASE MOTOR MTG WCI 3016276 Contact Us For Availability
12
WCI 3016324 WCI 3016324 Contact Us For Availability
12
WCI 3019058 WCI 3019058 Contact Us For Availability
12
WCI 5303210006 WCI 5303210006 Contact Us For Availability
12
FASTNR-WIRE CLIP (3) WCI 5308037677 Contact Us For Availability
12
GLASS-STIRRER CVR WCI 5303012681 Contact Us For Availability
12
ROD-LOCK MECH WCI 3016241 Contact Us For Availability
13
WCI 3016326 WCI 3016326 Contact Us For Availability
13
WCI 3019057 WCI 3019057 Contact Us For Availability
13
WCI 3016263 WCI 3016263 Contact Us For Availability
13
SCREW, TRANSFORMER (4) WCI 5303013944 Contact Us For Availability
13
CHANL-SUPT LH WCI 5303011776 Contact Us For Availability
13
WCI 3051647 WCI 3051647 Contact Us For Availability
13A
CHANL-SUPT RH WCI 5303011777 Contact Us For Availability
14
WCI 5303206735 WCI 5303206735 Contact Us For Availability
14
WCI 5303206786 WCI 5303206786 Contact Us For Availability
14
WCI 5303211362 WCI 5303211362 Contact Us For Availability
14
DIODE HIGH VOLTAGE WCI 5303091303 Contact Us For Availability
14
WCI 5308037708 WCI 5308037708 Contact Us For Availability
14
LATCH-DOOR WCI 3051648 Contact Us For Availability
15
WCI 5308003186 WCI 5308003186 Contact Us For Availability
15
CAPACITOR-HIGH VOLTAGE WCI 5308037624 Contact Us For Availability
15
SUPT-STIRRER WCI 5303202875 Contact Us For Availability
15
WCI 5308012004 WCI 5308012004 Contact Us For Availability
16
WCI 5303018381 WCI 5303018381 Contact Us For Availability
16
RETAINER-CAPACITOR MTG WCI 5303013773 Contact Us For Availability
16
WCI 5303011826 WCI 5303011826 Contact Us For Availability
16
KNOB-CLOCK WCI 5303206743 Contact Us For Availability
17
WCI 5303091280 WCI 5303091280 Contact Us For Availability
17
WCI 5303210624 WCI 5303210624 Contact Us For Availability
17
CLOCK WCI 5303272457 Contact Us For Availability
18
WCI 3019056 WCI 3019056 Contact Us For Availability
19
WCI 3016275 WCI 3016275 Contact Us For Availability
19
BRKT-CONTROL-MTG-LOWER WCI 5303011555 Contact Us For Availability
20
WCI 3016281 WCI 3016281 Contact Us For Availability
20
WCI 5303203636 WCI 5303203636 Contact Us For Availability
20
WCI 5308037644 WCI 5308037644 Contact Us For Availability
21
WCI 3019061 WCI 3019061 Contact Us For Availability
21
BRKT-SWITCH-LOWER WCI 5303011556 Contact Us For Availability
21
WCI 5303206085 WCI 5303206085 Contact Us For Availability
22
BEZEL-LATCH (2) WCI 5303200551 Contact Us For Availability
23
SPACER-RACK (4) WCI 5303018581 Contact Us For Availability
25
WCI 3016248 WCI 3016248 Contact Us For Availability
25
WCI 5303206755 WCI 5303206755 Contact Us For Availability
25
DUCT-AIR (FOAM) WCI 5303011667 Contact Us For Availability
26
SWITCH-MONITOR WCI 5303201602 Contact Us For Availability
26
WCI 3201631 WCI 3201631 Contact Us For Availability
26
COVER-IT ACCESS WCI 3091338 Contact Us For Availability
27
WCI 3016277 WCI 3016277 Contact Us For Availability
27
SPACER - WRAPPER WCI 5308014510 Contact Us For Availability
28
SHIELD-INSUL BASE WCI 3016273 Contact Us For Availability
28
FASTNR-WRAPPER CLIP (2) WCI 5303012322 Contact Us For Availability
29
WCI 5303016283 WCI 5303016283 Contact Us For Availability
29
PLUG-BUTTON (PROBE) WCI 5303201365 Contact Us For Availability
30
SWITCH-OVEN LIGHT WCI 3202452 Contact Us For Availability
30
PLUG-BUTTON TRAY (2) WCI 5308037665 Contact Us For Availability
31
WCI 3019050 WCI 3019050 Contact Us For Availability
31
FSTNR-TWIST NUT CHNL SUPT L&R (4) WCI 5303131215 Contact Us For Availability
31A
WCI 3019049 WCI 3019049 Contact Us For Availability
32
TRIM-CAP LH WCI 3202180 Contact Us For Availability
32
SW-THERMO CUTOUT WCI 5303202107 Contact Us For Availability
32A
TRIM-CAP RH WCI 3202179 Contact Us For Availability
33
WCI 5303206736 WCI 5303206736 Contact Us For Availability
33
SUPT-RACK (8) WCI 5303014221 Contact Us For Availability
34
WCI 5303011773 WCI 5303011773 Contact Us For Availability
34A
WCI 5308037640 WCI 5308037640 Contact Us For Availability
34B
SHIELD-OVEN LITE (MYLAR) (NON-ILLUSTRATED) WCI 5303011685 Contact Us For Availability
34C
LABEL-COOK GUIDE (NON-ILLUSTRATED) WCI 5303018849 Contact Us For Availability
35
WCI 3202082 WCI 3202082 Contact Us For Availability
35
WCI 5303206759 WCI 5303206759 Contact Us For Availability
35A
WCI 3019048 WCI 3019048 Contact Us For Availability
35B
INSULATION - BACK (NON-ILLUSTRATED) WCI 3016274 Contact Us For Availability
36
BELT-STIRRER WCI 5303011495 Contact Us For Availability
36
WCI 3202077 WCI 3202077 Contact Us For Availability
37
WCI 530320888 WCI 530320888 Contact Us For Availability
37
PULLEY-STIRRER WCI 5303013647 Contact Us For Availability
38
WCI 3205539 WCI 3205539 Contact Us For Availability
38
WCI 5303203692 WCI 5303203692 Contact Us For Availability
39
INSERT-BROILER WCI 3205234 Contact Us For Availability
39
ANGLE-AIR BAFFLE WCI 3091058 Contact Us For Availability
40
WCI 3201632 WCI 3201632 Contact Us For Availability
41
BRACKET-SW MTG WCI 3202384 Contact Us For Availability
× ![]()
