Model Electrolux 57-2709-00-07 WALL OVEN – Common Parts & Diagrams
02 - LOWER BODY PARTS
03 - UPPER BODY PARTS
04 - LOWER OVEN DOOR PARTS

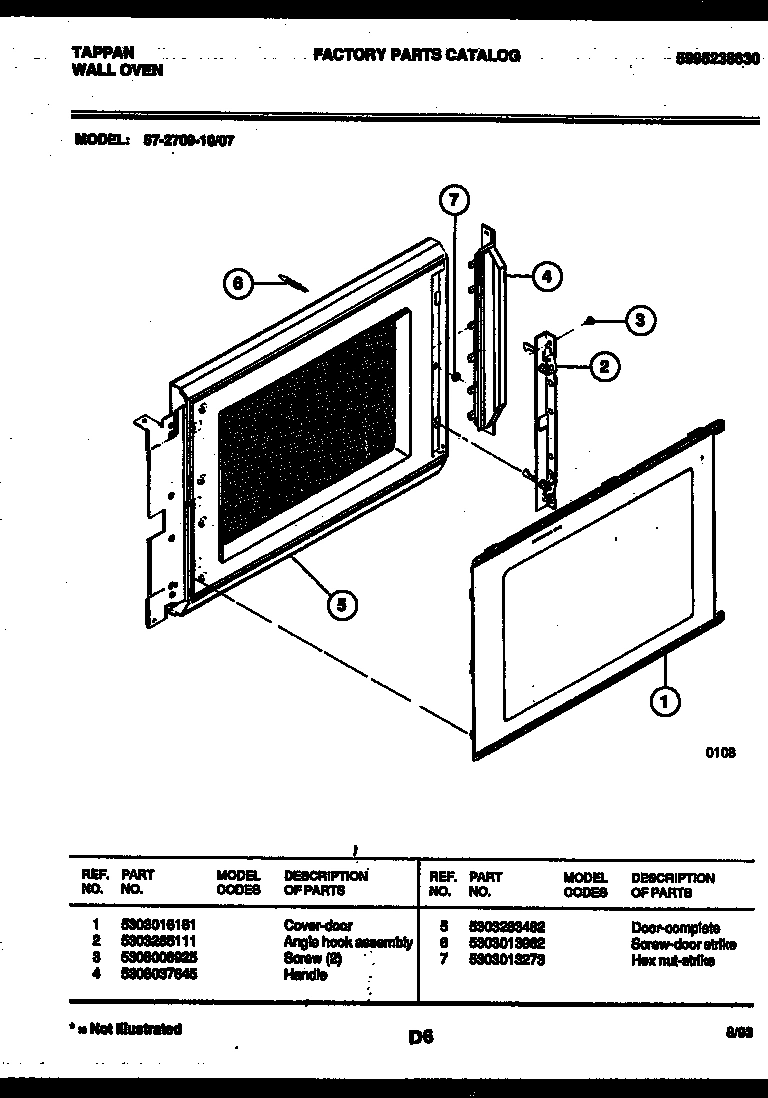

05 - UPPER OVEN DOOR PARTS

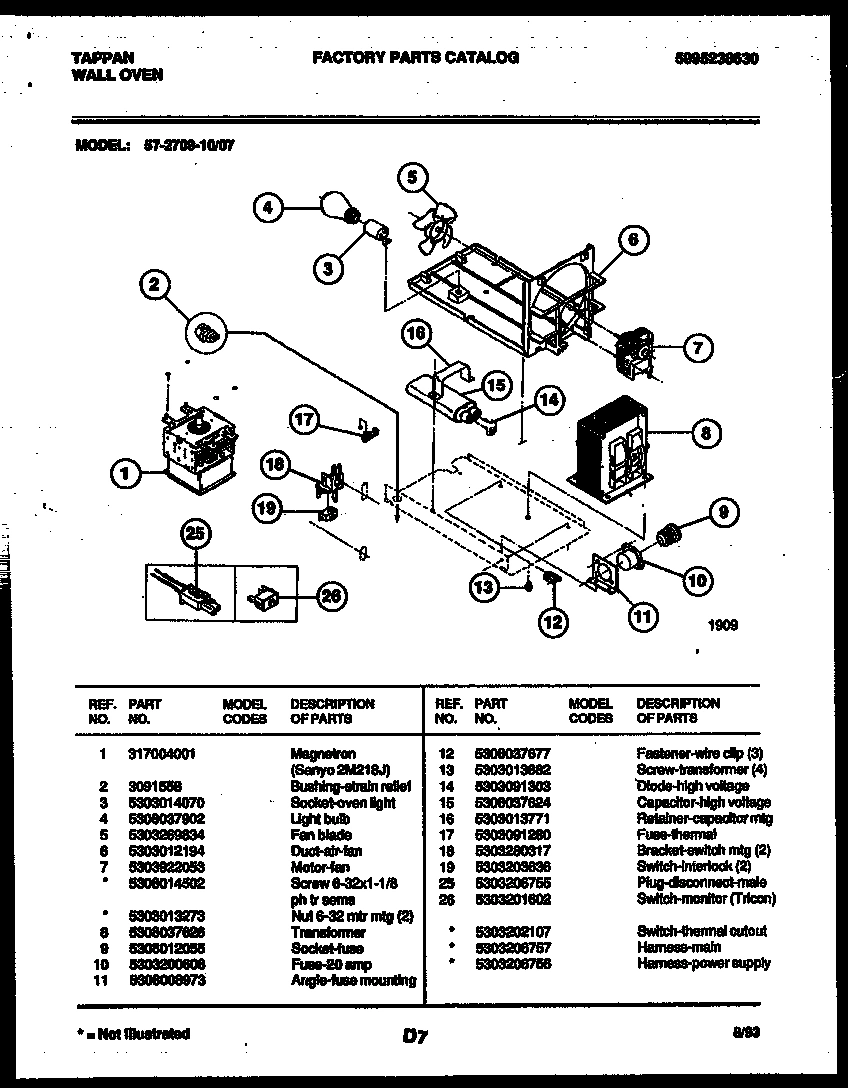

06 - POWER CONTROL

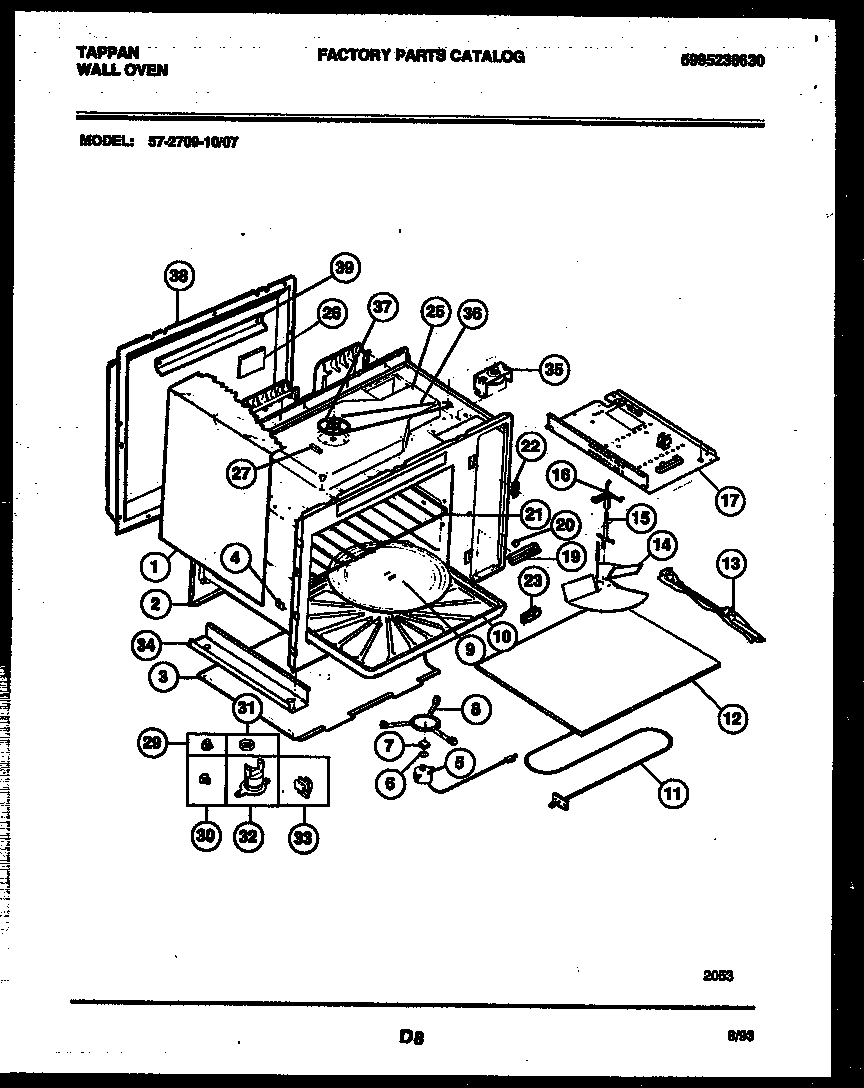

07 - WRAPPER AND BODY PARTS

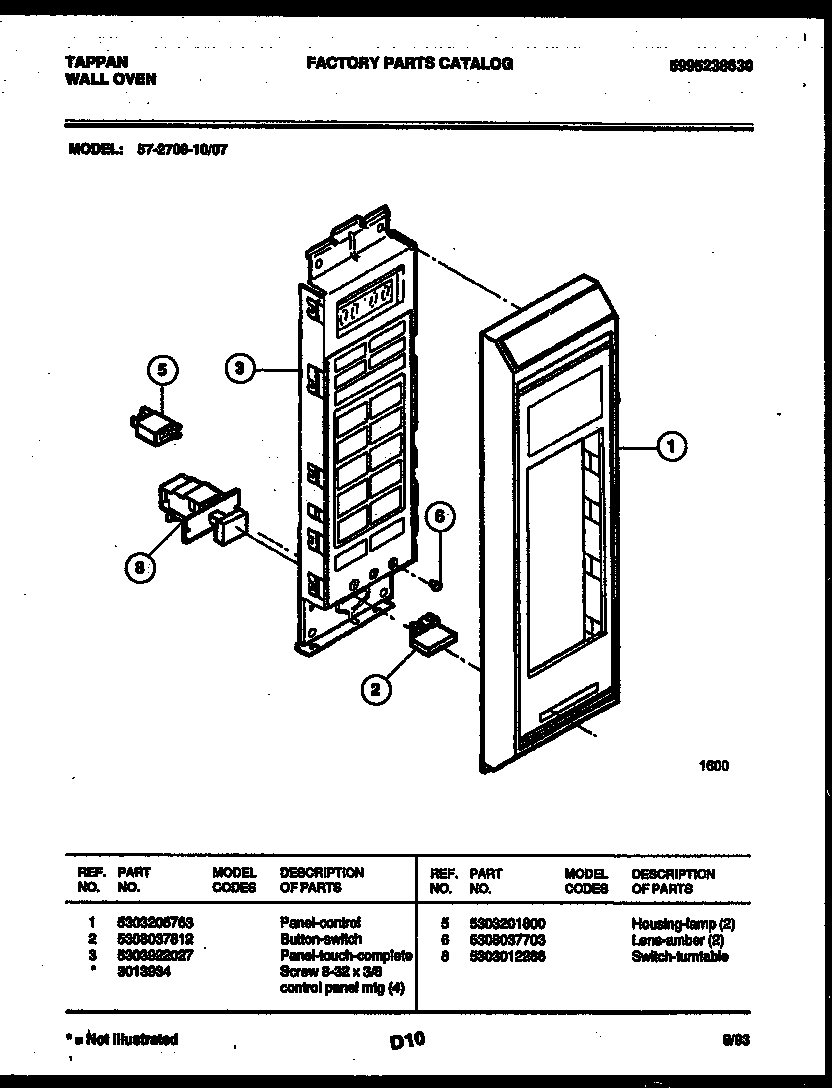

08 - CONTROL PANEL

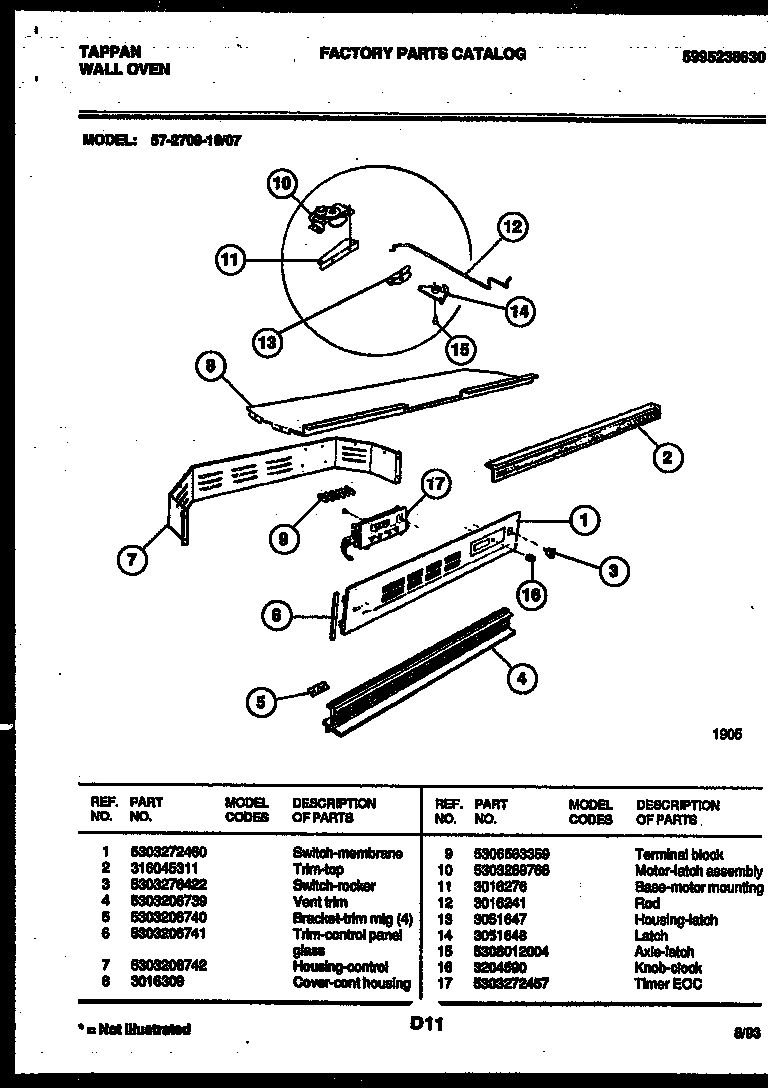

09 - CONTROL PANEL
Common parts from model Electrolux 57-2709-00-07 WALL OVEN
*88114
WCI 5303271499 WCI 5303271499 Contact Us For Availability
*88117
BUTTON-PLUG (2) WCI 3202113 Contact Us For Availability
*88117
TAPE-INNER DOOR WCI 5303212886 Contact Us For Availability
*88117
WCI 5303299277 WCI 5303299277 Contact Us For Availability
*88122
HARNESS-POWER SUPPLY WCI 5303206756 Contact Us For Availability
*88122
WCI 5303206757 WCI 5303206757 Contact Us For Availability
*88128
SPACER-MOTOR WCI 5303203151 Contact Us For Availability
1
HANDLE-DOOR WCI 3202188 Contact Us For Availability
1
WCI 5303016161 WCI 5303016161 Contact Us For Availability
1
WCI 317004001 WCI 317004001 Contact Us For Availability
1
WRAPPER-TOP & SIDES WCI 5303283576 Contact Us For Availability
1
WCI 5303206763 WCI 5303206763 Contact Us For Availability
1
WCI 5303272460 WCI 5303272460 Contact Us For Availability
2
TRIM-SIDE (2) WCI 3012268 Contact Us For Availability
2
WCI 3051305 WCI 3051305 Contact Us For Availability
2
ANGLE HOOK ASSEMBLY WCI 5303285111 Contact Us For Availability
2
WCI 3091558 WCI 3091558 Contact Us For Availability
2
WCI 5308037812 WCI 5308037812 Contact Us For Availability
2
WCI 316045311 WCI 316045311 Contact Us For Availability
3
WCI 3019065 WCI 3019065 Contact Us For Availability
3
DOOR GLASS WCI 5303016258 Contact Us For Availability
3
WCI 5308008925 WCI 5308008925 Contact Us For Availability
3
WCI 5303014070 WCI 5303014070 Contact Us For Availability
3
SHIELD-OVEN BOTTOM WCI 317009402 Contact Us For Availability
3
PANEL-TOUCH-COMPLETE WCI 5303922027 Contact Us For Availability
3
SWITCH-ROCKER WCI 5303276422 Contact Us For Availability
3A
SCREW 8-32 X 3/8 CONTROL PANEL MTG (4) (NON-I WCI 3013934 Contact Us For Availability
4
VENT TRIM WCI 5303206739 Contact Us For Availability
4
WCI 3019060 WCI 3019060 Contact Us For Availability
4
WCI 5303211148 WCI 5303211148 Contact Us For Availability
4
WCI 5308037645 WCI 5308037645 Contact Us For Availability
4
WCI 5308037902 WCI 5308037902 Contact Us For Availability
5
WCI 3019079 WCI 3019079 Contact Us For Availability
5
WCI 5303210003 WCI 5303210003 Contact Us For Availability
5
WCI 5303283482 WCI 5303283482 Contact Us For Availability
5
FAN BLADE WCI 5303269834 Contact Us For Availability
5
MOTOR-TURNTABLE WCI 317005501 Contact Us For Availability
5
HOUSING LAMP (2) WCI 5303201800 Contact Us For Availability
5
WCI 5303206740 WCI 5303206740 Contact Us For Availability
6
WCI 3204483 WCI 3204483 Contact Us For Availability
6
WCI 3019062 WCI 3019062 Contact Us For Availability
6
WCI 5303210001 WCI 5303210001 Contact Us For Availability
6
SCREW-DOOR STRIKE WCI 5303013962 Contact Us For Availability
6
DUCT-AIR (FAN) WCI 5303012194 Contact Us For Availability
6
WASHER-STIRRER WCI 5303014620 Contact Us For Availability
6
LENS-AMBER (2) WCI 5308037703 Contact Us For Availability
6
TRIM-CONTROL PANEL GLASS WCI 5303206741 Contact Us For Availability
7
WCI 3019063 WCI 3019063 Contact Us For Availability
7
WCI 3019068 WCI 3019068 Contact Us For Availability
7
WCI 5303210005 WCI 5303210005 Contact Us For Availability
7
MOTOR-FAN WCI 5303922053 Contact Us For Availability
7
BUSHING-MOTOR WCI 5303212919 Contact Us For Availability
7
HOUSING-CONTROL WCI 5303206742 Contact Us For Availability
7A
SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATE WCI 5308014502 Contact Us For Availability
7B
NUT-6-32 MTR MTG (2) (NON-ILLUSTRATED) WCI 5303013273 Contact Us For Availability
8
SUPPORT-ROLLER ASSY WCI 5303091004 Contact Us For Availability
8
WCI 5303299384 WCI 5303299384 Contact Us For Availability
8
WCI 3019067 WCI 3019067 Contact Us For Availability
8
WCI 5301167830 WCI 5301167830 Contact Us For Availability
8
WCI 5308037626 WCI 5308037626 Contact Us For Availability
8
SWITCH-TURNTABLE WCI 5303012286 Contact Us For Availability
8
COVER - CONT HOUSING WCI 3016309 Contact Us For Availability
9
WCI 5303299270 WCI 5303299270 Contact Us For Availability
9
WCI 5303206777 WCI 5303206777 Contact Us For Availability
9
INNER DOOR ASSEMBLY WCI 5303299276 Contact Us For Availability
9
WCI 5308012055 WCI 5308012055 Contact Us For Availability
9
TRAY-OVEN (CIRCULAR) WCI 5308037674 Contact Us For Availability
10
WCI 3205683 WCI 3205683 Contact Us For Availability
10
WCI 5303283460 WCI 5303283460 Contact Us For Availability
10
SEAL, DOOR WCI 5303299275 Contact Us For Availability
10
WCI 5303200606 WCI 5303200606 Contact Us For Availability
10
WCI 5303011698 WCI 5303011698 Contact Us For Availability
10
MOTOR-LATCH ASSEMBLY WCI 5303269766 Contact Us For Availability
11
WCI 3016278 WCI 3016278 Contact Us For Availability
11
WCI 5303206787 WCI 5303206787 Contact Us For Availability
11
WCI 5303210008 WCI 5303210008 Contact Us For Availability
11
ANGLE-FUSE MOUNTING WCI 5308008973 Contact Us For Availability
11
WCI 5303012207 WCI 5303012207 Contact Us For Availability
11
BASE-MOTOR MOUNTING WCI 3016276 Contact Us For Availability
12
WCI 3016324 WCI 3016324 Contact Us For Availability
12
WCI 5303210006 WCI 5303210006 Contact Us For Availability
12
FASTENER-WIRE CLIP (3) WCI 5308037677 Contact Us For Availability
12
WCI 5303012681 WCI 5303012681 Contact Us For Availability
12
WCI 3016241 WCI 3016241 Contact Us For Availability
13
WCI 3016326 WCI 3016326 Contact Us For Availability
13
WCI 3016263 WCI 3016263 Contact Us For Availability
13
SCREW-TRANSFORMER (4) WCI 5303013882 Contact Us For Availability
13
CHANNEL-SUPPORT-LH WCI 5303272823 Contact Us For Availability
13
WCI 3051647 WCI 3051647 Contact Us For Availability
13A
CHANNEL-SUPPORT-RH WCI 5303272824 Contact Us For Availability
14
WCI 5303206735 WCI 5303206735 Contact Us For Availability
14
WCI 5303206786 WCI 5303206786 Contact Us For Availability
14
WCI 5303299274 WCI 5303299274 Contact Us For Availability
14
DIODE HIGH VOLTAGE WCI 5303091303 Contact Us For Availability
14
FAN-STIRRER WCI 5303274930 Contact Us For Availability
14
WCI 3051648 WCI 3051648 Contact Us For Availability
15
CAPACITOR-HIGH VOLTAGE WCI 5308037624 Contact Us For Availability
15
WCI 5303202875 WCI 5303202875 Contact Us For Availability
15
WCI 5308012004 WCI 5308012004 Contact Us For Availability
16
HINGE ASSEMBLY WCI 5303018381 Contact Us For Availability
16
RETAINER-CAPACITOR MTG WCI 5303013771 Contact Us For Availability
16
WCI 5303011826 WCI 5303011826 Contact Us For Availability
16
KNOB-CLOCK WCI 3204590 Contact Us For Availability
17
WCI 5303091280 WCI 5303091280 Contact Us For Availability
17
WCI 5303210624 WCI 5303210624 Contact Us For Availability
17
TIMER-EOC WCI 5303272457 Contact Us For Availability
18
DUCT-OVEN VENT-CNTR WCI 3019056 Contact Us For Availability
18
BRACKET-SWITCH MTG (2) WCI 5303280317 Contact Us For Availability
19
WCI 3016275 WCI 3016275 Contact Us For Availability
19
WCI 5303203636 WCI 5303203636 Contact Us For Availability
19
BRACKET-CONTROL-MOUNTING-LOWER WCI 5303011555 Contact Us For Availability
20
WCI 3016281 WCI 3016281 Contact Us For Availability
20
WCI 5308037644 WCI 5308037644 Contact Us For Availability
21
WCI 3019061 WCI 3019061 Contact Us For Availability
21
WCI 5303206085 WCI 5303206085 Contact Us For Availability
22
WCI 5303212767 WCI 5303212767 Contact Us For Availability
23
SPACER-RACK (4) WCI 5303018581 Contact Us For Availability
25
WCI 3016248 WCI 3016248 Contact Us For Availability
25
PLUG-DISCONNECT-MALE WCI 5303206755 Contact Us For Availability
25
DUCT-AIR (FOAM) WCI 5303011667 Contact Us For Availability
26
SWITCH-MONITOR (TRICON) WCI 5303201602 Contact Us For Availability
26
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
26
WCI 3091338 WCI 3091338 Contact Us For Availability
27
WCI 3016277 WCI 3016277 Contact Us For Availability
27
SPACER-WRAPPER WCI 5308037724 Contact Us For Availability
28
WCI 3016273 WCI 3016273 Contact Us For Availability
29
WCI 5303299253 WCI 5303299253 Contact Us For Availability
29
PLUG-BUTTON (PROBE) WCI 5303201365 Contact Us For Availability
30
SWITCH - OVEN LIGHT WCI 5303275924 Contact Us For Availability
30
PLUG-BUTTON TRAY (2) WCI 5308037665 Contact Us For Availability
31
WCI 3019049 WCI 3019049 Contact Us For Availability
31A
WCI 3019050 WCI 3019050 Contact Us For Availability
32
WCI 5303271106 WCI 5303271106 Contact Us For Availability
32
SWITCH-THERMO CUTOUT WCI 5303202107 Contact Us For Availability
32A
WCI 5303271107 WCI 5303271107 Contact Us For Availability
33
WCI 5303284904 WCI 5303284904 Contact Us For Availability
33
SUPPORT RACK (8) WCI 5303014221 Contact Us For Availability
33A
INSULATION (NON-ILLUSTRATED) WCI 5303299252 Contact Us For Availability
33B
INSULATION - BACK (NON-ILLUSTRATED) WCI 3016274 Contact Us For Availability
34
WCI 5303011773 WCI 5303011773 Contact Us For Availability
34A
DUCT AIR FOAM WCI 5308037640 Contact Us For Availability
34B
SHIELD OVEN LIGHT-MYLAR WCI 5303269841 Contact Us For Availability
34C
LABEL-COOK GUIDE WCI 5303271795 Contact Us For Availability
35
WCI 5303206759 WCI 5303206759 Contact Us For Availability
36
BELT-STIRRER WCI 5303011495 Contact Us For Availability
36
WCI 3202077 WCI 3202077 Contact Us For Availability
37
PULLEY-STIRRER WCI 5303013647 Contact Us For Availability
38
WCI 5303292159 WCI 5303292159 Contact Us For Availability
38
WCI 5303203692 WCI 5303203692 Contact Us For Availability
39
WCI 3205234 WCI 3205234 Contact Us For Availability
39
ANGLE-AIR BAFFLE WCI 3091058 Contact Us For Availability
40
WCI 3201632 WCI 3201632 Contact Us For Availability
41
WCI 3202384 WCI 3202384 Contact Us For Availability
× ![]()
