Model Whirlpool 5651XRA ELECTRIC RANGE – Common Parts & Diagrams

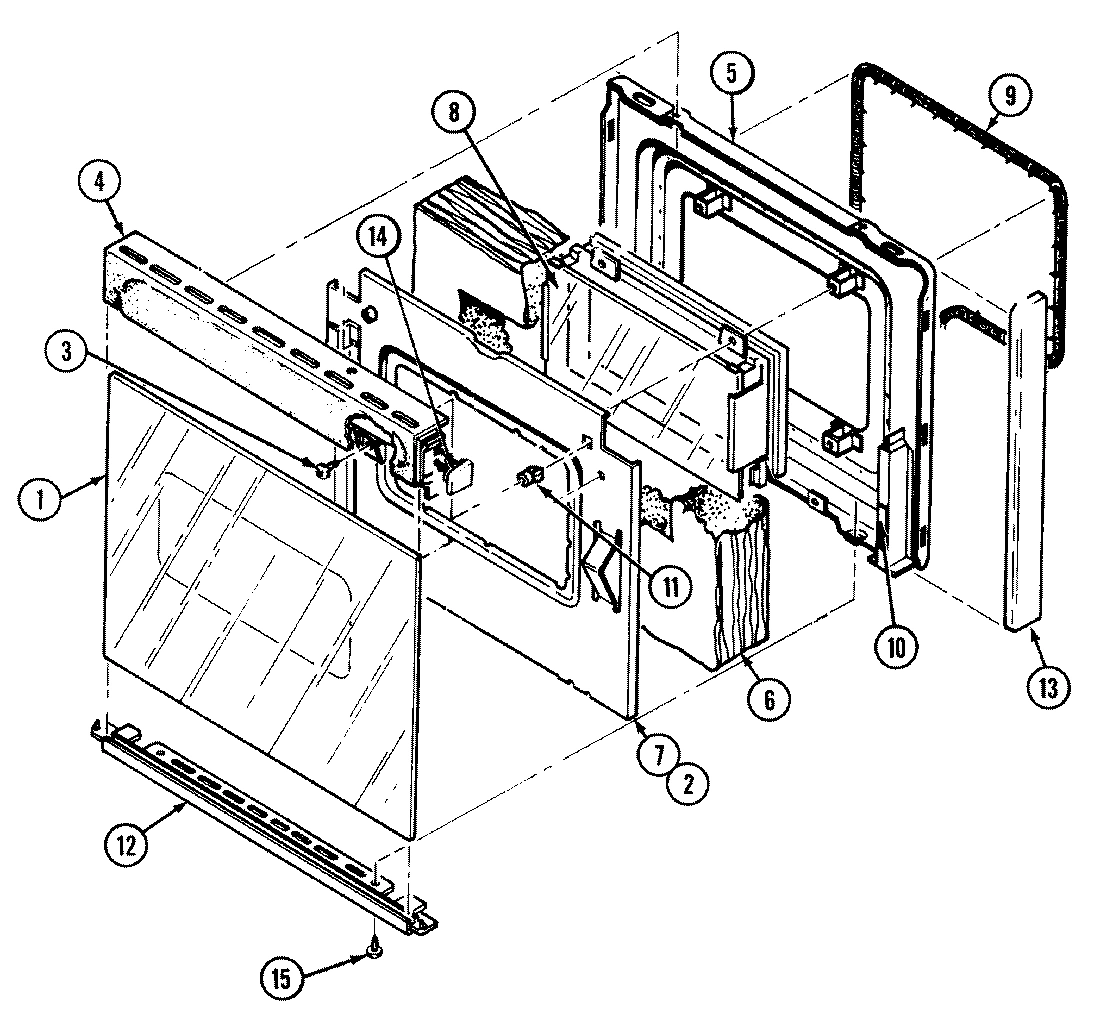

01 - DOOR

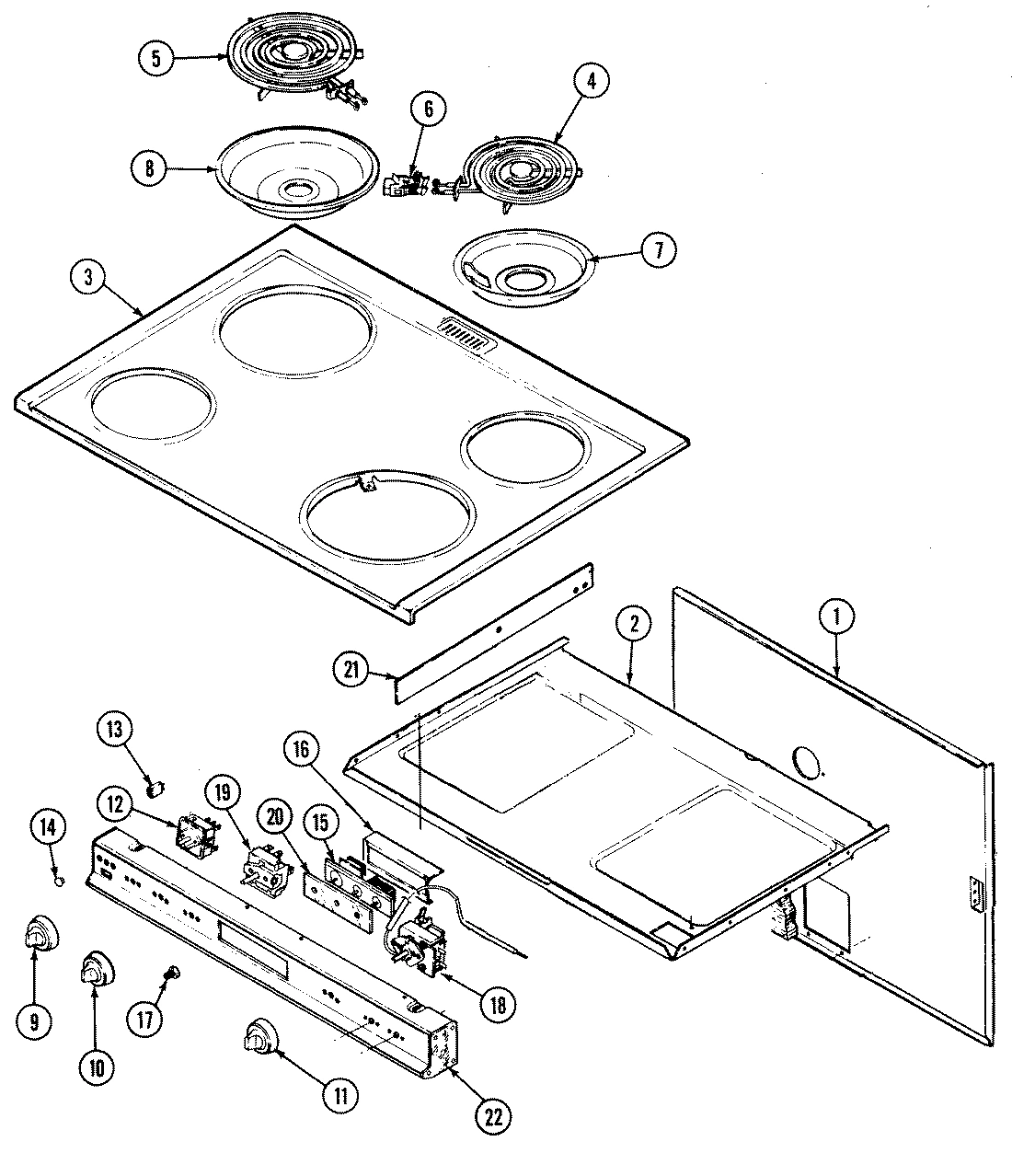

02 - MAIN TOP
Common parts from model Whirlpool 5651XRA ELECTRIC RANGE
1
BACK, MAIN WPL 4002F20580 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
BOX, BURNER WPL 4011F22480 Contact Us For Availability
3
TOP, MAIN WPL 2002W08484 Contact Us For Availability
3
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
3
EXTRUSION, FILLER WPL 7706P30160 Contact Us For Availability
4
SCREW WPL 7101P32960 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
5
LINING, DOOR WPL 2402W20319 Contact Us For Availability
6
INSULATION, DOOR WPL 7002P15660 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
7
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
7
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
8
WINDOW ASY. WPL 7907P01660 Contact Us For Availability
8
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
9
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
9
KNOB, INF. SWITCH WPL 7737P03360 Contact Us For Availability
10
NUT, NYLON WPL 7103P04560 Contact Us For Availability
10
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
10
KNOB, SELECTOR WPL 7739P04160 Contact Us For Availability
11
SPACER WPL 8010P07560 Contact Us For Availability
11
KNOB, T-STAT WPL 7735P03660 Contact Us For Availability
12
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
12
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
12
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
13
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
13
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
13
LIGHT, INDICATOR WPL W10127320 Contact Us For Availability
14
END CAP (RT) WPL 7744P07560 Contact Us For Availability
14
END CAP (LT) WPL 7744P07660 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
15
CLOCK WPL 7602P10560 Contact Us For Availability
15
SHAFT, BIT GENERATOR WPL 8312P01960 Contact Us For Availability
16
BRACKET, CLOCK WPL 3801F22345 Contact Us For Availability
16
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
17
KNOB, CLOCK WPL 7711P42260 Contact Us For Availability
18
SCREW WPL 7101P30960 Contact Us For Availability
18
THERMOSTAT WPL 7404P07260 Contact Us For Availability
19
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
19
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
20
GLASS, CLOCK WPL 7902P36960 Contact Us For Availability
21
SHIELD, HEAT (LT) WPL 3604F17351 Contact Us For Availability
21
SHIELD, HEAT (RT) WPL 3604F17451 Contact Us For Availability
22
BRACKET, PANEL WPL 3801F25651 Contact Us For Availability
22
HARNESS, TO COOKTOP WPL 5175D06460 Contact Us For Availability
22
HARNESS WPL 5195D09660 Contact Us For Availability
22
PANEL, CONTROL WPL 7722P11560 Contact Us For Availability
23
MANUAL, USE & CARE WPL 8113P02360 Contact Us For Availability
× ![]()
