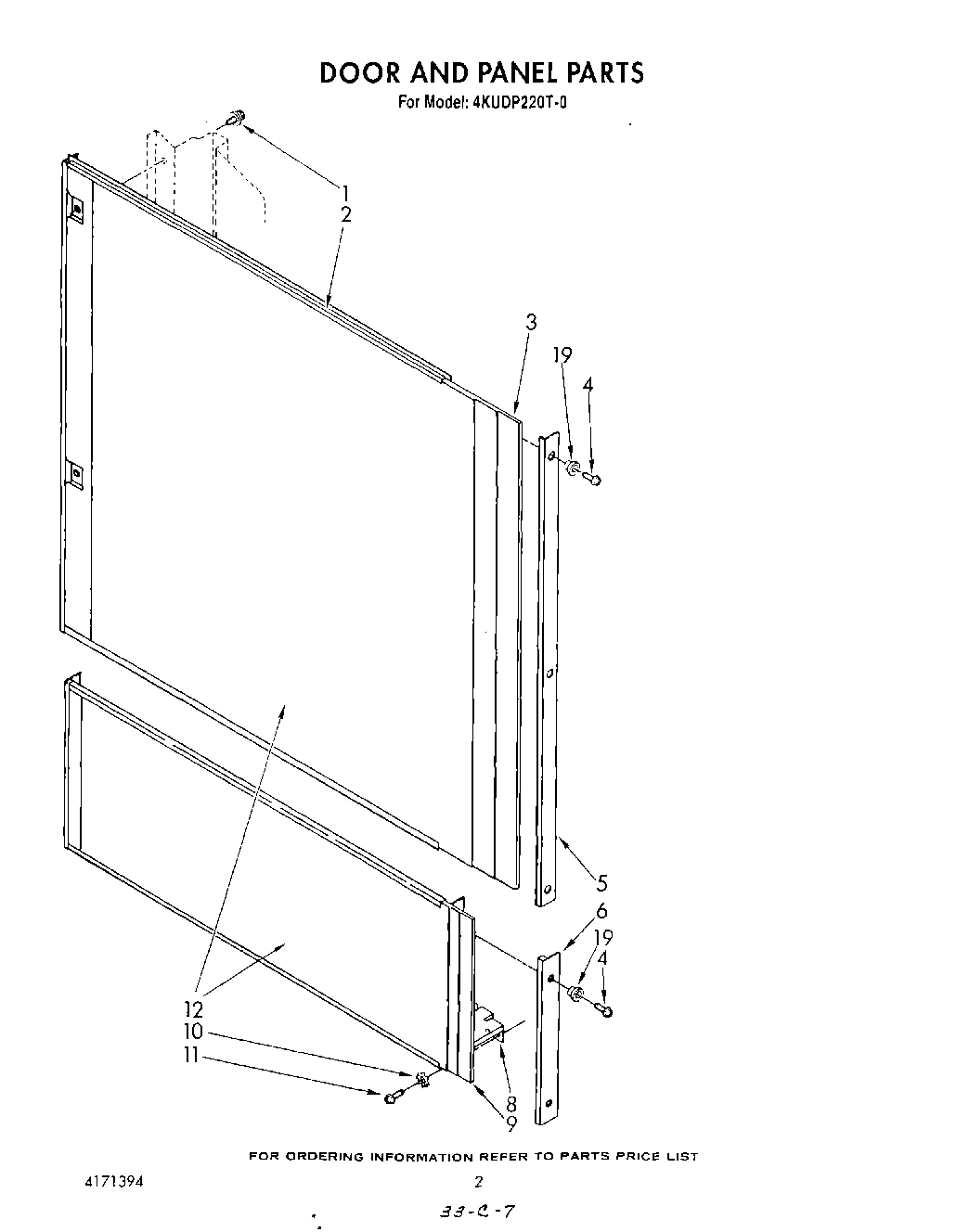

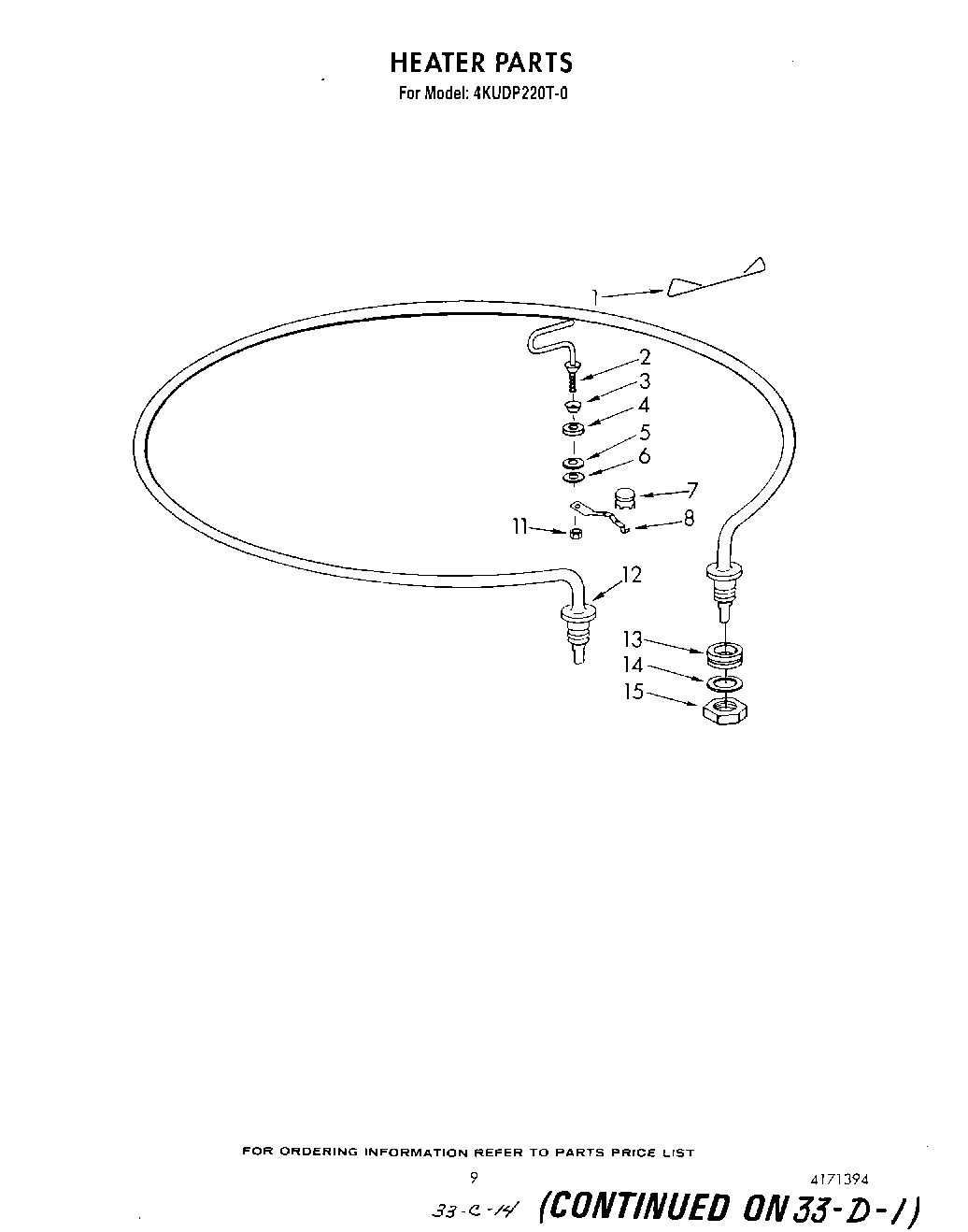

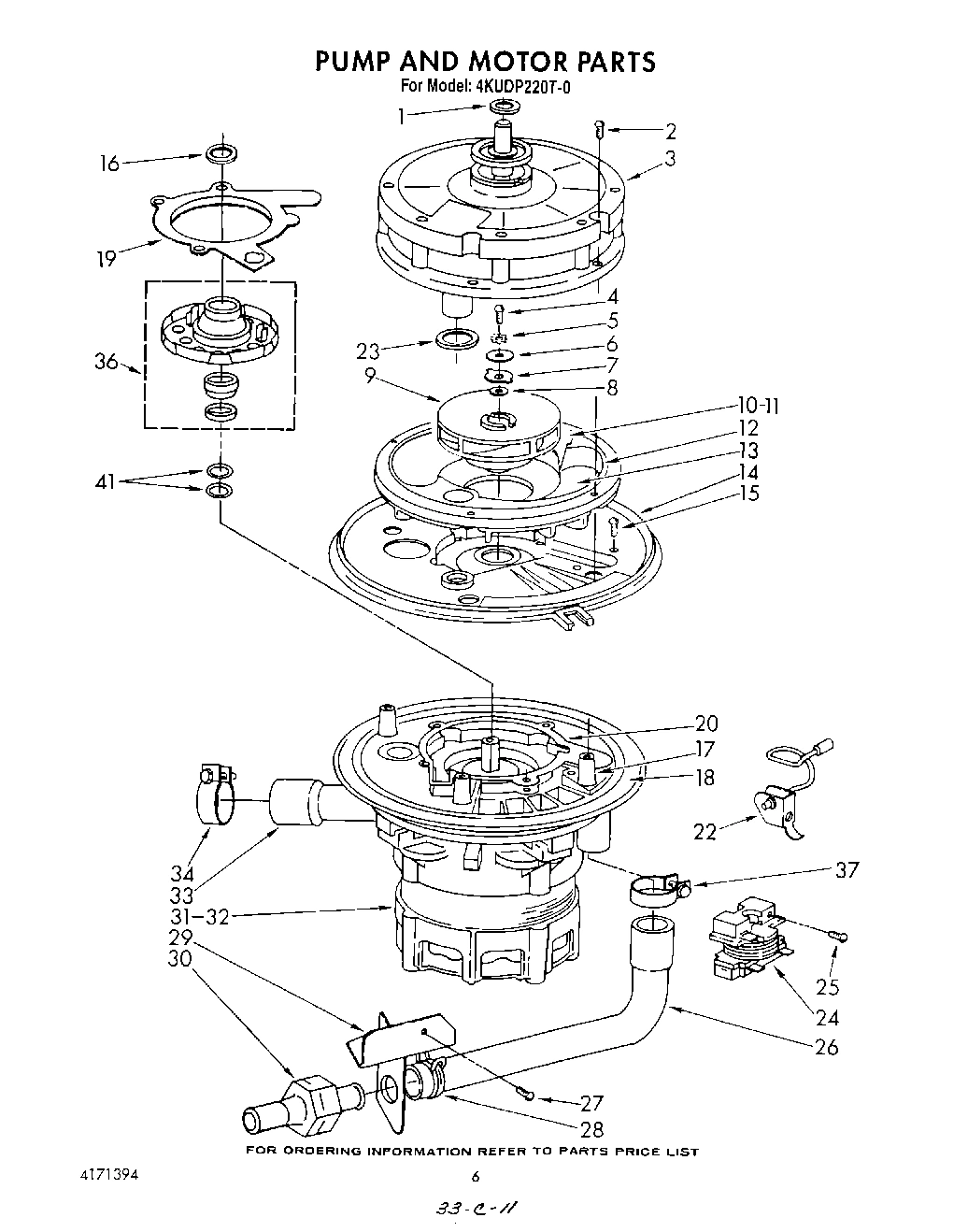

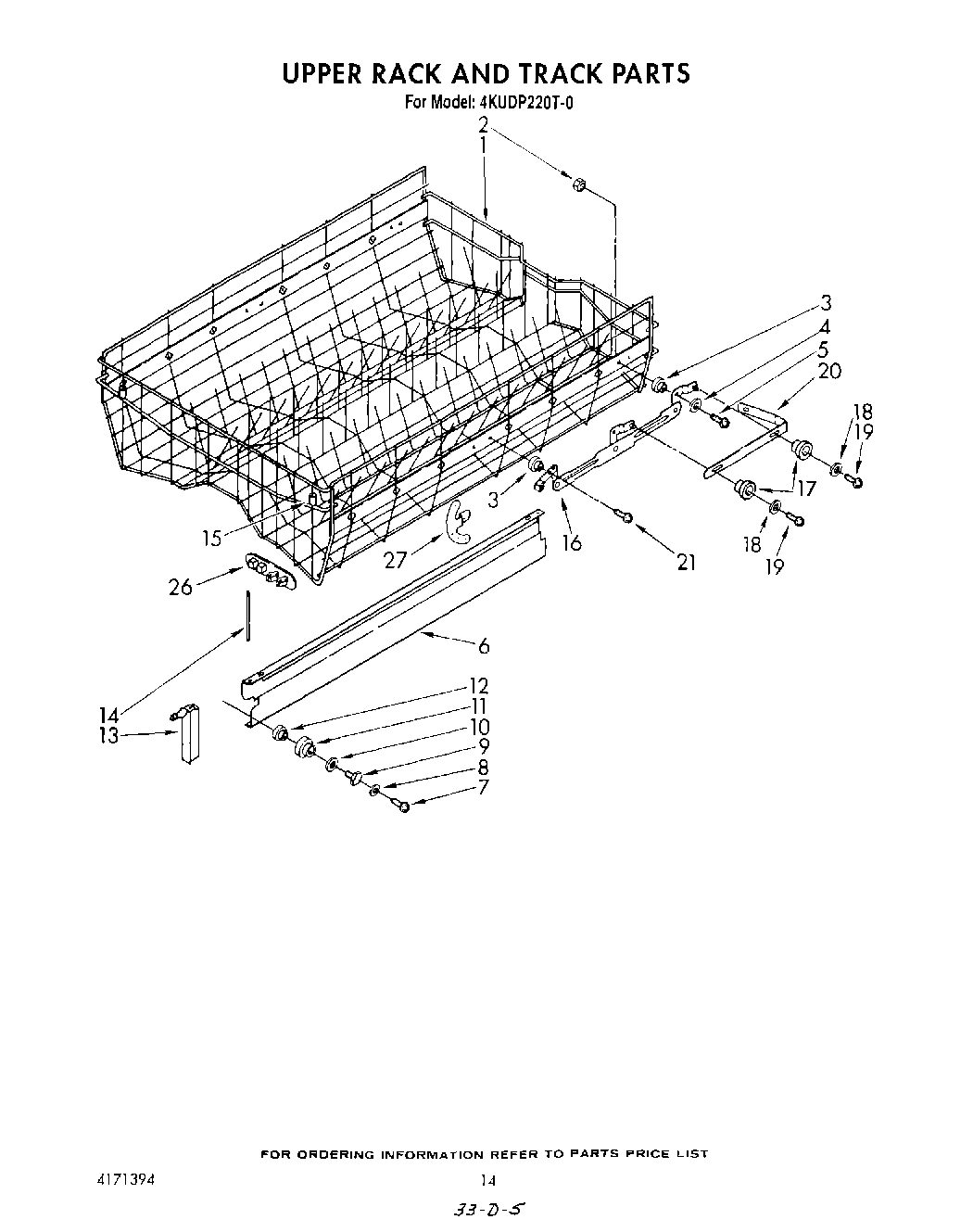

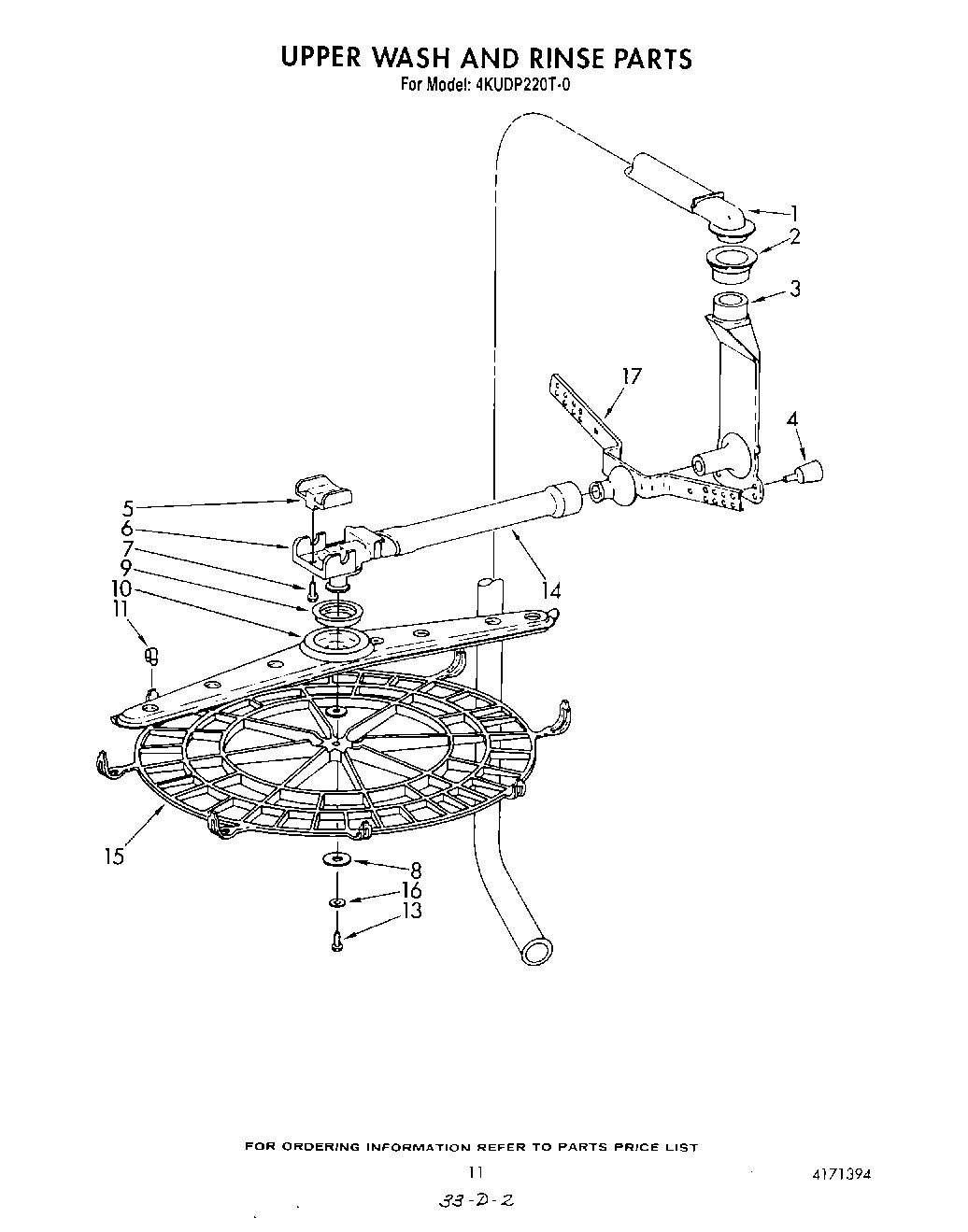

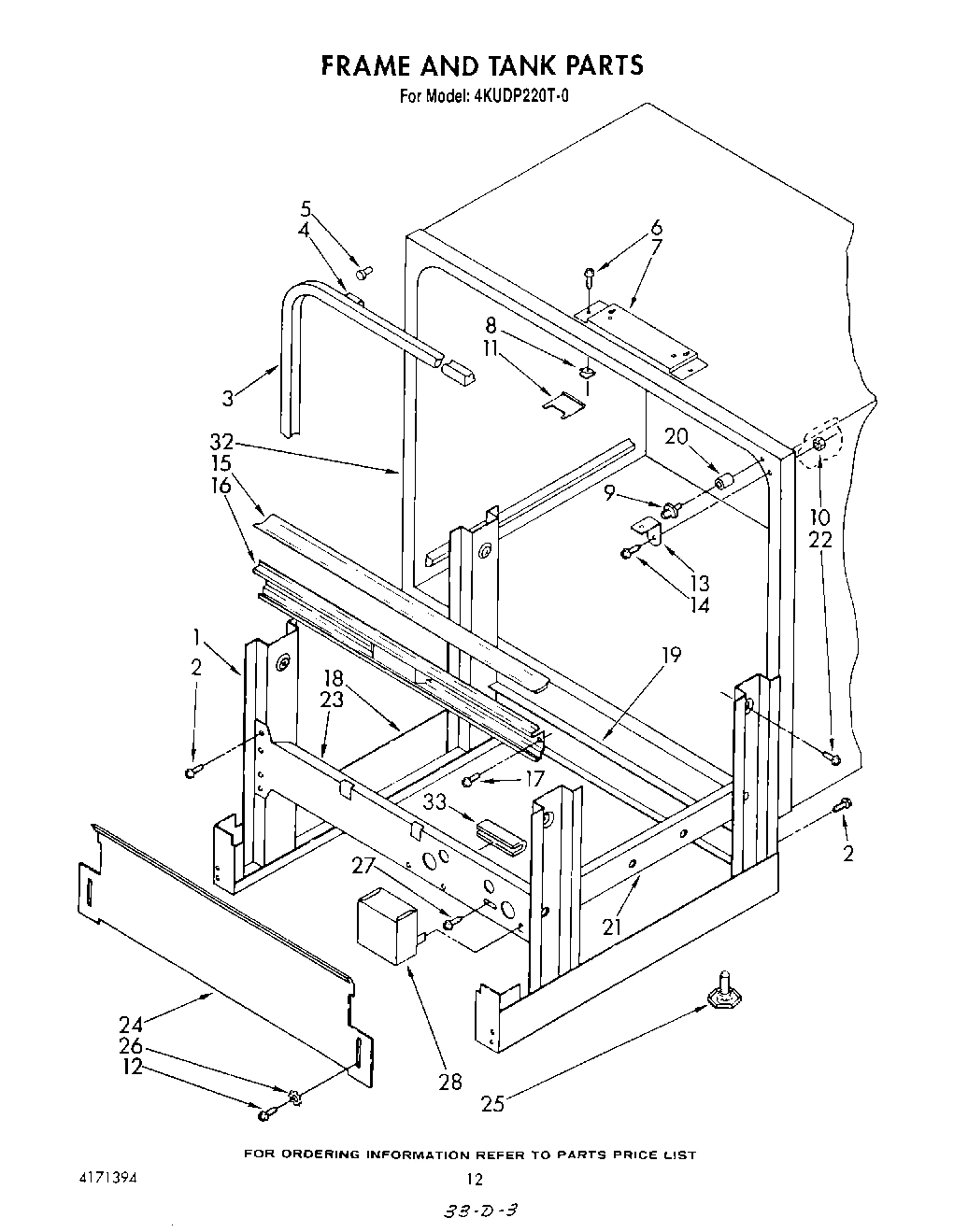

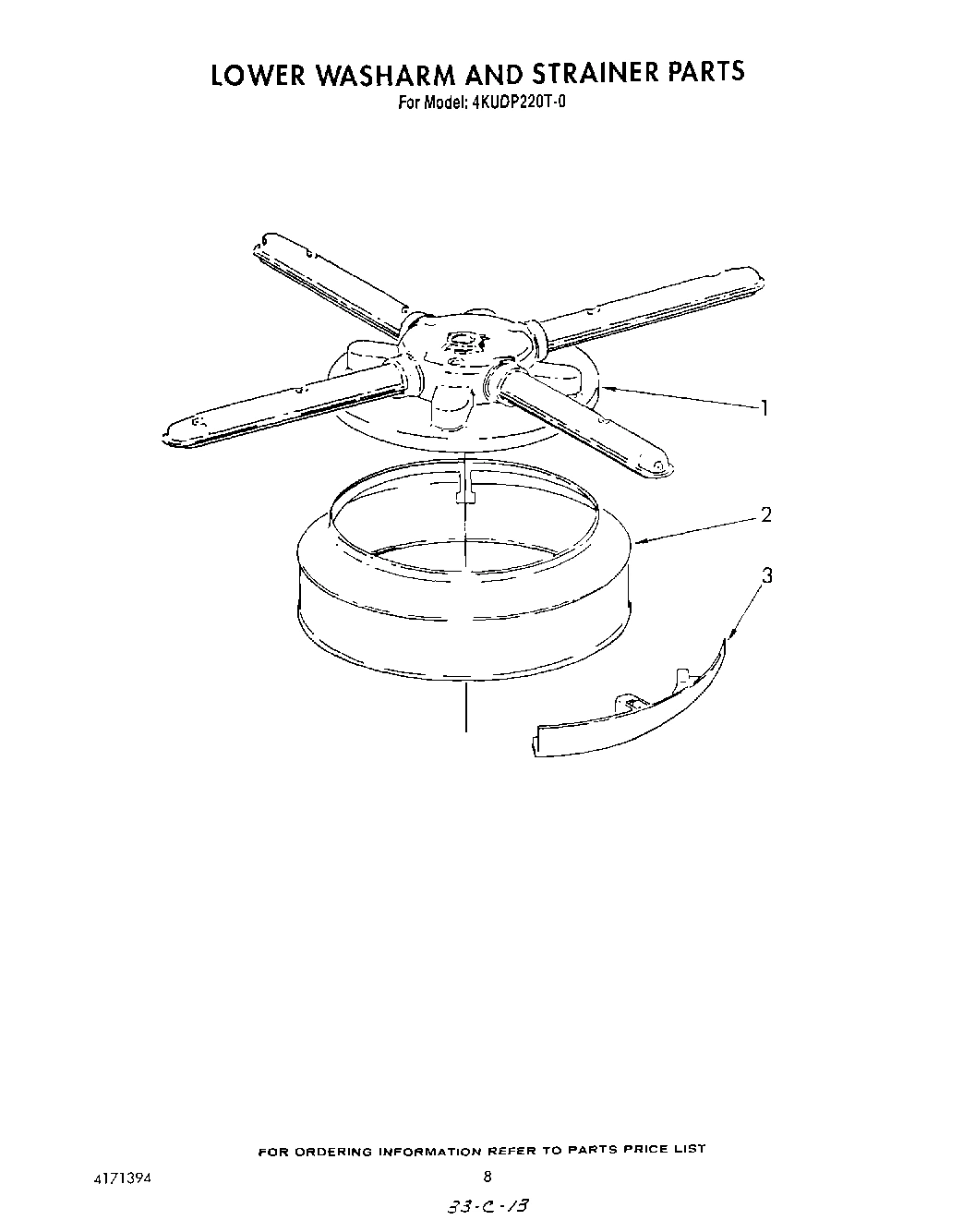

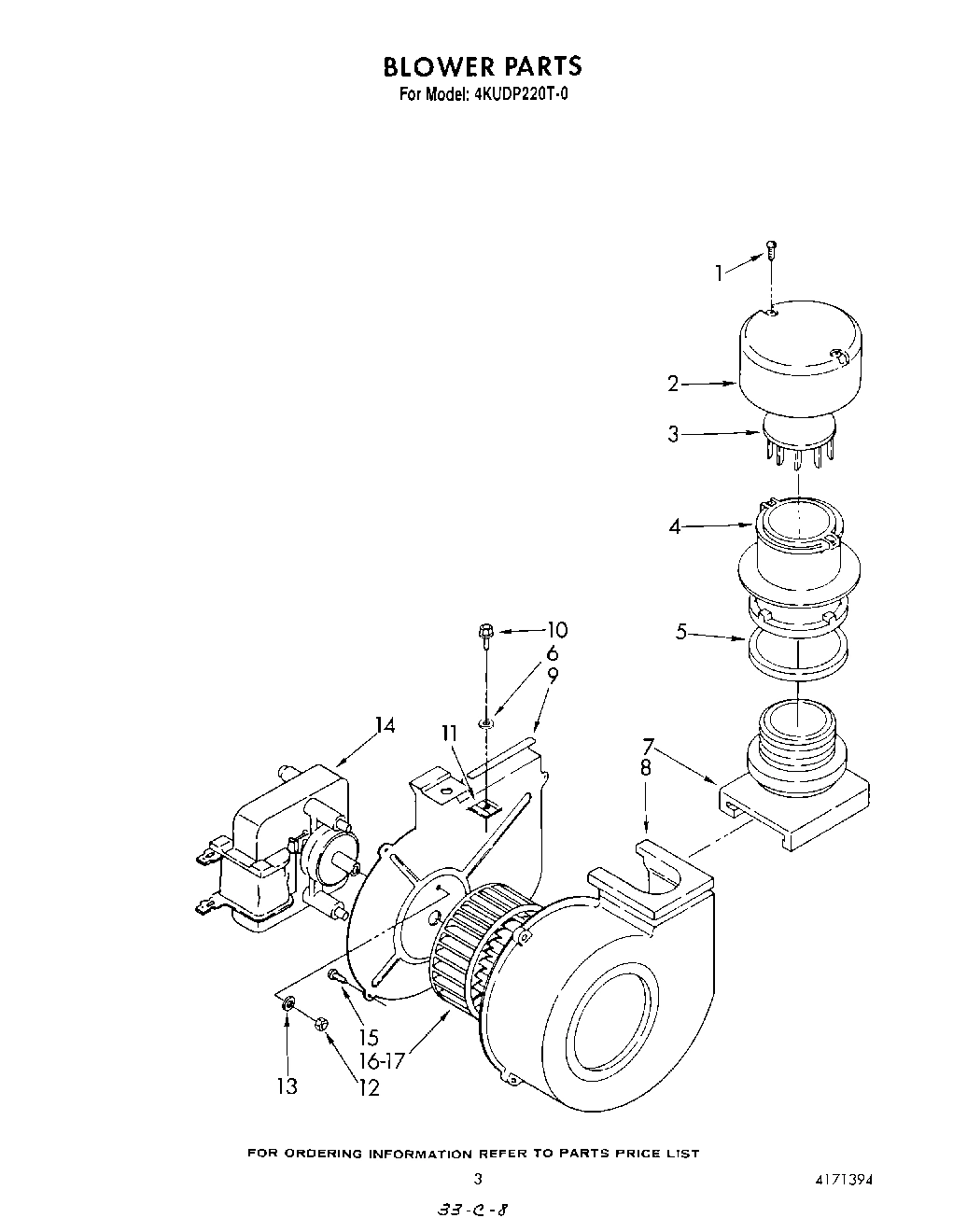

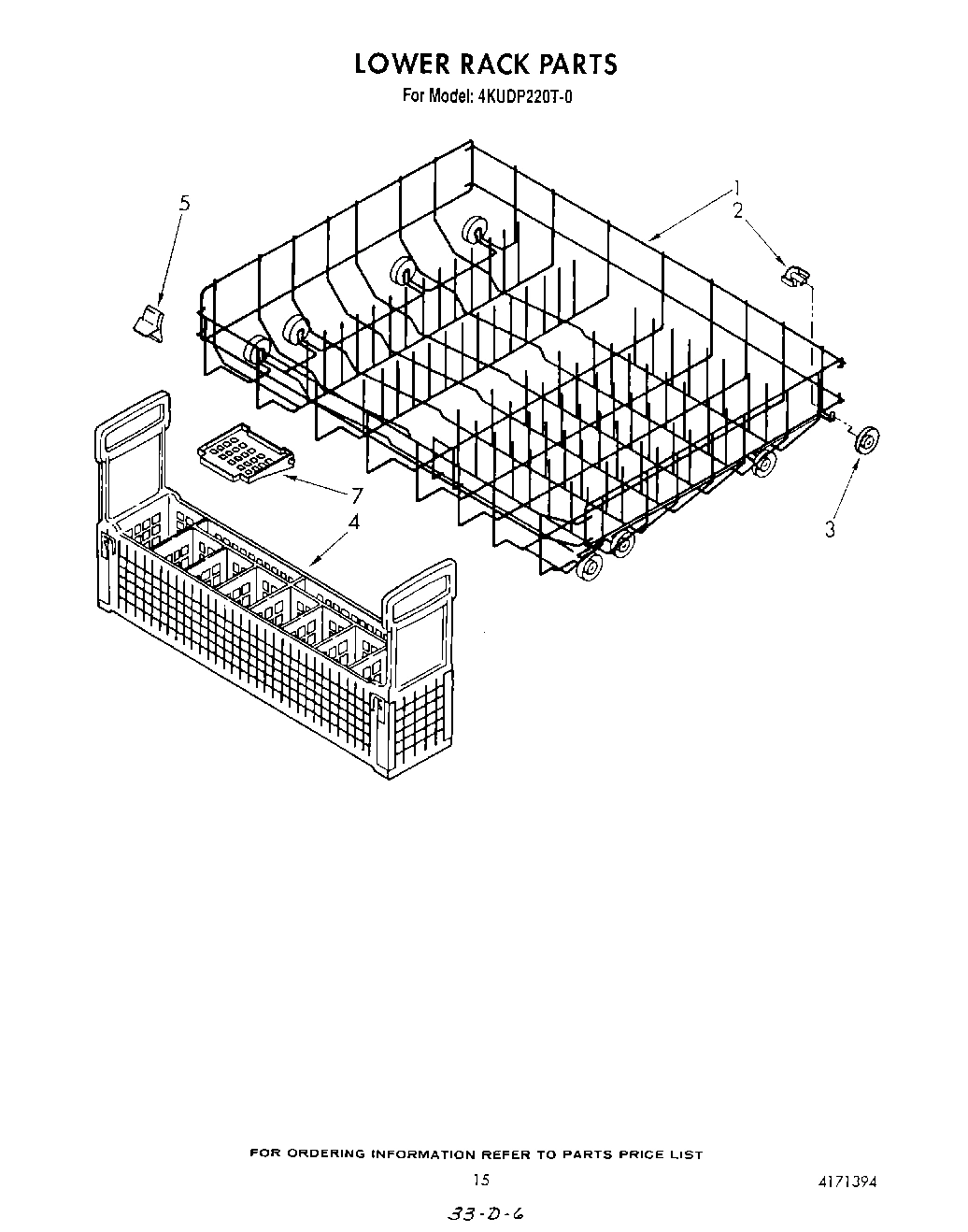

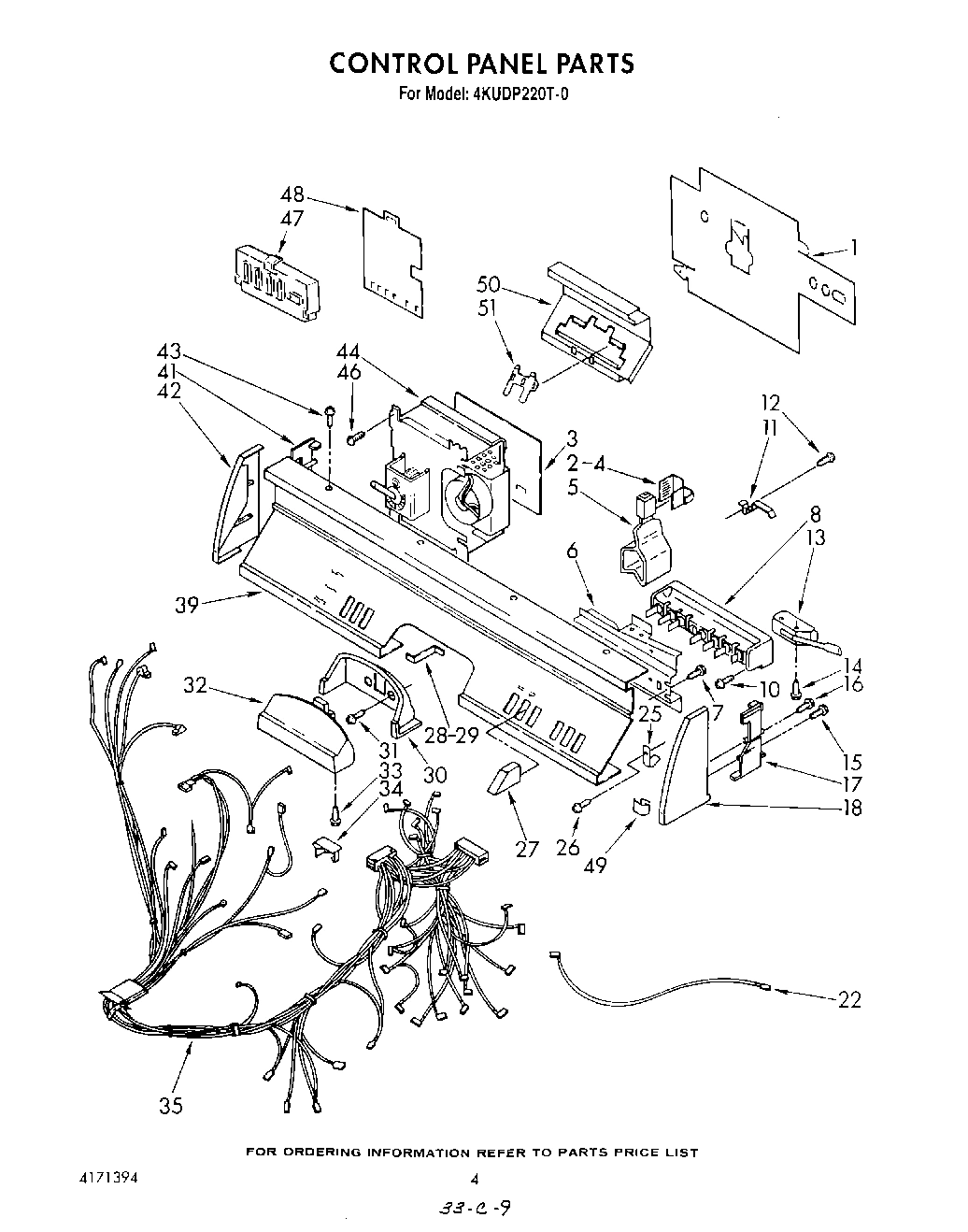

Model Whirlpool 4KUDP220T0 DISHWASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 4171179 WPL 4171179 Contact Us For Availability

WPL 675476 WPL 675476 Contact Us For Availability

WPL 675506 WPL 675506 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT4171394 WPL LIT4171394 Contact Us For Availability

WPL LIT9740087 WPL LIT9740087 Contact Us For Availability

WPL LIT9740128 WPL LIT9740128 Contact Us For Availability

WPL LIT9740132 WPL LIT9740132 Contact Us For Availability

WPL LIT9740135 WPL LIT9740135 Contact Us For Availability

1

Hose, Flexible (Fill Valve to Air Gap) WPL 4163236 Contact Us For Availability

1

Wash Arm Assembly WPL 4162925 Contact Us For Availability

1

Spring, Heater Retainer WPL 4163619 Contact Us For Availability

1

Screw, 6-32 X 7/8 WPL 4159436 Contact Us For Availability

1

Short Frame Assembly (Includes Items 2, 18, 1 WPL 4162908 Contact Us For Availability

1

Lower Rack Assembly (Includes Items 2 & 3) WPL 4171307 Contact Us For Availability

1

Insulator, Latch WPL 4171130 Contact Us For Availability

1

Washer WPL 4162892 Contact Us For Availability

1

Screw WPL 4162215 Contact Us For Availability

1

Tube & Connector Assembly WPL 4162664 Contact Us For Availability

1

Upper Rack Assembly (Includes Items 2, 3, 4, WPL 4171306 Contact Us For Availability

2

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

2

Axle, Lower Rack WPL 4162321 Contact Us For Availability

2

Clamp, Hose WPL 4162103 Contact Us For Availability

2

Strainer (Fine) WPL 4162930 Contact Us For Availability

2

Hook, Heater Element WPL 4163549 Contact Us For Availability

2

Cap, Air Inlet WPL 4162482 Contact Us For Availability

2

Screw, 10-16 X 5/8 WPL 4159178 Contact Us For Availability

2

Anchor, Cancel Spring WPL 4171120 Contact Us For Availability

2

Upper Mounting Panel Assembly WPL ARI14500A7 Contact Us For Availability

2

Connector, Vertical Conduit WPL 4162723 Contact Us For Availability

2

Nut, Roller WPL 4161226 Contact Us For Availability

3

WP4162322 Whirlpool Dishwasher Roller In Stock WPL WP4162322 $2.51

3

Door Seal Assembly (Includes Item 4) WPL 4161631 Contact Us For Availability

3

Air Gap, Fill Assembly (Includes Items 1 & 2) WPL 4171222 Contact Us For Availability

3

Strainer (Coarse) WPL 4171195 Contact Us For Availability

3

Washer WPL 4159477 Contact Us For Availability

3

Damper, Air Inlet WPL 4162485 Contact Us For Availability

3

Barrier, Timer WPL 4171158 Contact Us For Availability

3

Wash Pump Top (Includes Items 1 & 23) WPL 4163521 Contact Us For Availability

3

Filler (Upper Panel) WPL ARI14501A8 Contact Us For Availability

3

Conduit, Vertical WPL 4162655 Contact Us For Availability

3

Bearing & Spacer, Rack Roller WPL 4171288 Contact Us For Availability

4

8519598 Whirlpool Silverware Basket Backorder WPL 8519598 $35.48

4

Gasket, Rubber WPL 4161545 Contact Us For Availability

4

Washer, Sealing WPL 4160051 Contact Us For Availability

4

Tube, Air Inlet WPL 4162483 Contact Us For Availability

4

Clip, Seal WPL 4161608 Contact Us For Availability

4

Rivet WPL 4159169 Contact Us For Availability

4

Screw, 10-32 WPL 4162918 Contact Us For Availability

4

Screw, 6 X 1/4 WPL 4159439 Contact Us For Availability

4

Retainer, Conduit WPL 4162609 Contact Us For Availability

4

Washer WPL 4162452 Contact Us For Availability

5

Nut (Fill Air Gap) WPL 4171300 Contact Us For Availability

5

Washer WPL 4159567 Contact Us For Availability

5

Seal, Air Inlet WPL 4162481 Contact Us For Availability

5

Bumper, Door WPL 4161626 Contact Us For Availability

5

Bumper, Lower Rack WPL 4171297 Contact Us For Availability

5

Spring, Switch Cancel WPL 4163257 Contact Us For Availability

5

Lock Washer WPL 4159500 Contact Us For Availability

5

Side Trim (Upper Panel) WPL 4162685 Contact Us For Availability

5

Retainer, Manifold WPL 4162500 Contact Us For Availability

6

WP693304 Whirlpool Screw Backorder WPL WP693304 $2.51

6

Clamp, Hose WPL 4161507 Contact Us For Availability

6

Washer WPL 4159583 Contact Us For Availability

6

Spacer, Blower Mounting WPL 4162615 Contact Us For Availability

6

Bracket, Program Switch WPL 4163256 Contact Us For Availability

6

Washer, Spring (Impeller) WPL 4160297 Contact Us For Availability

6

Side Trim (Lower Panel) WPL 4162686 Contact Us For Availability

6

Manifold, Upper Arm WPL 4162466 Contact Us For Availability

6

Track, Rack WPL 4162442 Contact Us For Availability

7

WP4171000 Whirlpool Dishwasher Inlet Valve In Stock WPL WP4171000 $81.45

7

Thermostat WPL 4163589 Contact Us For Availability

7

Support, Blower WPL 4162484 Contact Us For Availability

7

Protector, Upper Water Inlet WPL 4161699 Contact Us For Availability

7

Lid, Basket WPL 4171299 Contact Us For Availability

7

Washer, Impeller WPL 4162917 Contact Us For Availability

7

Screw, 10-16 X 3/8 WPL 4159466 Contact Us For Availability

8

Bracket, Thermostat WPL 4163552 Contact Us For Availability

8

Housing, Blower WPL 4162487 Contact Us For Availability

8

Speed Nut WPL 4162174 Contact Us For Availability

8

Switch, Program WPL 4171265 Contact Us For Availability

8

``O`` Ring WPL 4159826 Contact Us For Availability

8

Lower Mounting Panel Assembly WPL ARI14502A8 Contact Us For Availability

8

Bearing, Arm (Bottom) WPL 4162625 Contact Us For Availability

8

Gasket, Rack Stud WPL 4162943 Contact Us For Availability

9

Bracket, L.H. Door Stop WPL 4161592 Contact Us For Availability

9

Strap (Flexible Connector to Tank) WPL 4162935 Contact Us For Availability

9

Plate, Motor Mounting WPL 4162486 Contact Us For Availability

9

Actuator, Interlock Switch WPL 4163574 Contact Us For Availability

9

Wash Impeller Assembly WPL 4162921 Contact Us For Availability

9

Filler (Lower Panel) WPL ARI14503A3 Contact Us For Availability

9

Bearing, Arm (Top) WPL 4162491 Contact Us For Availability

9

Stud, Rack Roller WPL 4162945 Contact Us For Availability

Screw, 4-40 X 3/4 WPL 4159424 Contact Us For Availability

Screw, Blower Retainer WPL 4162524 Contact Us For Availability

Lock Nut WPL 4159115 Contact Us For Availability

Lock Washer WPL 4159494 Contact Us For Availability

Plate, Air Inlet Cover WPL 4162952 Contact Us For Availability

Wash/Rinse Arm Assembly WPL 4162468 Contact Us For Availability

Washer, Roller Spacing WPL 4162947 Contact Us For Availability

WP9743413 Whirlpool Dishwasher Switch Backorder WPL WP9743413 $13.18

Bearing, Door Stop Insert (2) WPL 4160355 Contact Us For Availability

Locknut WPL 4159107 Contact Us For Availability

Speednut, Type ``U`` WPL 4162903 Contact Us For Availability

Keeper, Latch WPL 4160092 Contact Us For Availability

Spring, Door Interlock WPL 4163571 Contact Us For Availability

Gasket, Cover Plate WPL 4162953 Contact Us For Availability

Clip, Arm Guard WPL 4162501 Contact Us For Availability

Roller, Rack Track WPL 4162944 Contact Us For Availability

W10207863 Whirlpool Dishwasher Switch Backorder WPL W10207863 $33.16

Panel Insert Kits (Stainless Steal (Optional) WPL 4169400 Contact Us For Availability

Element, Heater WPL 4171118 Contact Us For Availability

Nut, 6-32 Hex WPL 4159071 Contact Us For Availability

Screw, 10-16 x 3/8 WPL 4159421 Contact Us For Availability

Lower Pump Housing (Includes Items 13 & 23) WPL 4162929 Contact Us For Availability

Panel Insert Kits (Fresh Avocado/Coffee (Opti WPL 4162835 Contact Us For Availability

Panel Insert Kits (Almond/White) WPL 4162836 Contact Us For Availability

Panel Insert Kits (Platinum/Toast (Optional)) WPL 4169402 Contact Us For Availability

Panel Insert Kits (Sand/Onyx Black (Optional) WPL 4169403 Contact Us For Availability

Panel Insert Kits (Silver/Onyx Black (Optiona WPL 4169404 Contact Us For Availability

Panel Insert Kits (Harvest Gold/Onyx Black) WPL 4171096 Contact Us For Availability

Bushing, Rack Roller WPL 4162946 Contact Us For Availability

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $21.28

WP9741251 Whirlpool Mounting Bracket In Stock WPL WP9741251 $3.70

Grommet, Heater Element WPL 4162521 Contact Us For Availability

Lockwasher WPL 4159491 Contact Us For Availability

Switch, Interlock WPL 4160658 Contact Us For Availability

Seal, Wash Pump Ring WPL 4162919 Contact Us For Availability

Screw WPL 4161737 Contact Us For Availability

Bumper, Rack Track WPL 4162084 Contact Us For Availability

Nut, Standpipe WPL 4161596 Contact Us For Availability

Washer, Heater Element WPL 4163554 Contact Us For Availability

Motor, Blower WPL 4162564 Contact Us For Availability

Screw, 10-16 X 1/2 WPL 4159389 Contact Us For Availability

Screw (2) WPL 9740003 Contact Us For Availability

Fine Strainer WPL 4162933 Contact Us For Availability

Tube (Manifold to Receiver) WPL 4161617 Contact Us For Availability

Stud, Bumper Retaining WPL 4160423 Contact Us For Availability

Float & Retainer Assembly WPL 4171216 Contact Us For Availability

Nut, Heater Element WPL 4163556 Contact Us For Availability

Screw, 6 X 1/2 WPL 4171131 Contact Us For Availability

Channel, Evaporation WPL 4162306 Contact Us For Availability

Screw & Washer Assembly WPL 4163263 Contact Us For Availability

Guard, Arm WPL 4162469 Contact Us For Availability

Bumper, Upper Rack WPL 4162048 Contact Us For Availability

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

Bracket, R.H. Door Stop WPL 4161594 Contact Us For Availability

Lever, Overflow Switch WPL 4171116 Contact Us For Availability

Blower Wheel Assembly (Includes Item 17) WPL 4162499 Contact Us For Availability

Support, Evaporation Channel WPL 4161564 Contact Us For Availability

``O`` Ring WPL 4159827 Contact Us For Availability

Washer WPL 4162624 Contact Us For Availability

Track, Adjustable (L.H.) WPL 4171289 Contact Us For Availability

Track, Adjustable (R.H.) WPL 4171290 Contact Us For Availability

Roller, Upper Rack Track WPL 4161607 Contact Us For Availability

Retaining Ring WPL 4162489 Contact Us For Availability

Screw, 10-32 X 1/2 WPL 4162151 Contact Us For Availability

Spacer, End Cap (R.H.) WPL 4171124 Contact Us For Availability

Motor Mounting Plate (Includes Items 18 & 20) WPL 4162932 Contact Us For Availability

Arm, Receiver WPL 4161581 Contact Us For Availability

Frame Assembly (L.H.) WPL 4162910 Contact Us For Availability

End Cap (R.H.) WPL 9740025 Contact Us For Availability

Gasket, Motor Mounting Plate WPL 4161497 Contact Us For Availability

Washer WPL 4159593 Contact Us For Availability

Bracket, R.H. Hinge WPL 4161587 Contact Us For Availability

Cross Frame, Rear WPL 4162867 Contact Us For Availability

Screw, 8-32 x 1/2 WPL 4159299 Contact Us For Availability

Drain Pump Top Assembly WPL 4162924 Contact Us For Availability

Grommet, Panel (10) WPL 4162735 Contact Us For Availability

Screw, 8-32 X 1/4 (4) WPL 4159283 Contact Us For Availability

WP4171237 Whirlpool Dishwasher Spring Backorder WPL WP4171237 $11.00

Sleeve, Actuator Spacer WPL 9740120 Contact Us For Availability

Gasket, Drain Pump WPL 4163050 Contact Us For Availability

Lift, Receiver (R.H.) WPL 4171293 Contact Us For Availability

Lift, Receiver (L.H.) WPL 4171294 Contact Us For Availability

21

Frame Assembly (R.H.) WPL 4163604 Contact Us For Availability

21

Screw, 10 X 5/8 WPL 4159428 Contact Us For Availability

22

Screw, 1/4-20 x 1/2 WPL 4159443 Contact Us For Availability

22

Lead Assembly (Interlock Switch to Program Sw WPL 4171351 Contact Us For Availability

22

Motor Clamp Assembly WPL 4161986 Contact Us For Availability

23

Cross Frame, Front WPL 4161368 Contact Us For Availability

23

Gasket, Venturi WPL 4162916 Contact Us For Availability

24

Kick Board WPL 4161580 Contact Us For Availability

24

Start Relay Kit (Includes Item 25) WPL 4171129 Contact Us For Availability

25

Foot, Leveling WPL 4162911 Contact Us For Availability

25

Clip, Grounding (Front Panel) WPL 4162043 Contact Us For Availability

25

Screw, 8-18 x 1-1/4 WPL 4159403 Contact Us For Availability

26

WP4162568 Whirlpool Bi-metal Thermostat Backorder WPL WP4162568 $32.32

26

Tube - Flexible (Drain) WPL 4163151 Contact Us For Availability

26

Clip, Wash Arm Guard WPL 4171224 Contact Us For Availability

Screw, 10-32 X 3/8 WPL 4159372 Contact Us For Availability

Button, Program Switch (6) WPL 4163239 Contact Us For Availability

Rackstop (R.H.) WPL 4171291 Contact Us For Availability

Rackstop (L.H.) WPL 4171292 Contact Us For Availability

28

Enclosure, Elec. Supply WPL 4161369 Contact Us For Availability

28

Bracket, Panel Reinforcement WPL 4163245 Contact Us For Availability

28

Clamp, Hose (.937`` Dia.) WPL 4161508 Contact Us For Availability

29

Screw, 6-20 x 3/8 WPL 4159446 Contact Us For Availability

29

Bracket, Check Valve WPL 4171311 Contact Us For Availability

30

Trim, Handle WPL 9740148 Contact Us For Availability

30

Check Valve Assembly WPL 4162920 Contact Us For Availability

31

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $2.51

31

Motor, Seal & Gasket Kit (Includes Items 18, WPL 4163523 Contact Us For Availability

32

Tank (Serviced Complete with Frame) WPL 4163586 Contact Us For Availability

32

Handle, Latch WPL 4163243 Contact Us For Availability

32

Screw, 1/4-20 x 1 WPL 4159235 Contact Us For Availability

33

Protector, Edge WPL 4171215 Contact Us For Availability

33

Screw, 10-32 x 5/8 WPL 4159225 Contact Us For Availability

33

Connector WPL 4161605 Contact Us For Availability

34

Fill Hole Plug Assembly (Includes Item 35) WPL 4171221 Contact Us For Availability

34

Clip, Harness Guide WPL 4163372 Contact Us For Availability

34

Clamp, Hose (1.468`` Dia.) WPL 4162031 Contact Us For Availability

35

Screw, 8-18 X 3/8 WPL 4159349 Contact Us For Availability

35

Wiring Harness (Main) WPL 4171260 Contact Us For Availability

36

Cutter Kit (Includes Shaft Seal Kit) WPL 4163042 Contact Us For Availability

37

3363365 Whirlpool Clamp Backorder WPL 3363365 $4.76

38

Rinse Agent Dispensing Valve WPL 4171217 Contact Us For Availability

39

Bracket, L.H. Hinge WPL 4161589 Contact Us For Availability

39

Control Panel WPL 4171264 Contact Us For Availability

41

Vapor Barrier, Corner (2) WPL 4162950 Contact Us For Availability

41

Spacer, End Cap (L.H.) WPL 4171125 Contact Us For Availability

41

Shim Washer Kit WPL 4163634 Contact Us For Availability

42

End Cap (L.H.) WPL 9740026 Contact Us For Availability

43

Screw, 6-20 x 3/8 WPL 4159408 Contact Us For Availability

44

Timer Assembly (115 V., 60 Hz.) WPL 4171238 Contact Us For Availability

47

Light Package WPL 4163555 Contact Us For Availability

48

Insulator, Light WPL 4163352 Contact Us For Availability

49

Clip, Endcap WPL 4171127 Contact Us For Availability

50

Screw, 6-32 X 3/8 WPL 4159432 Contact Us For Availability

50

Bracket, Light Package WPL 4171134 Contact Us For Availability

51

Lens, Program Light WPL 4171352 Contact Us For Availability
