Model Whirlpool 4KUCC150S1 COMPACTOR – Common Parts & Diagrams

1

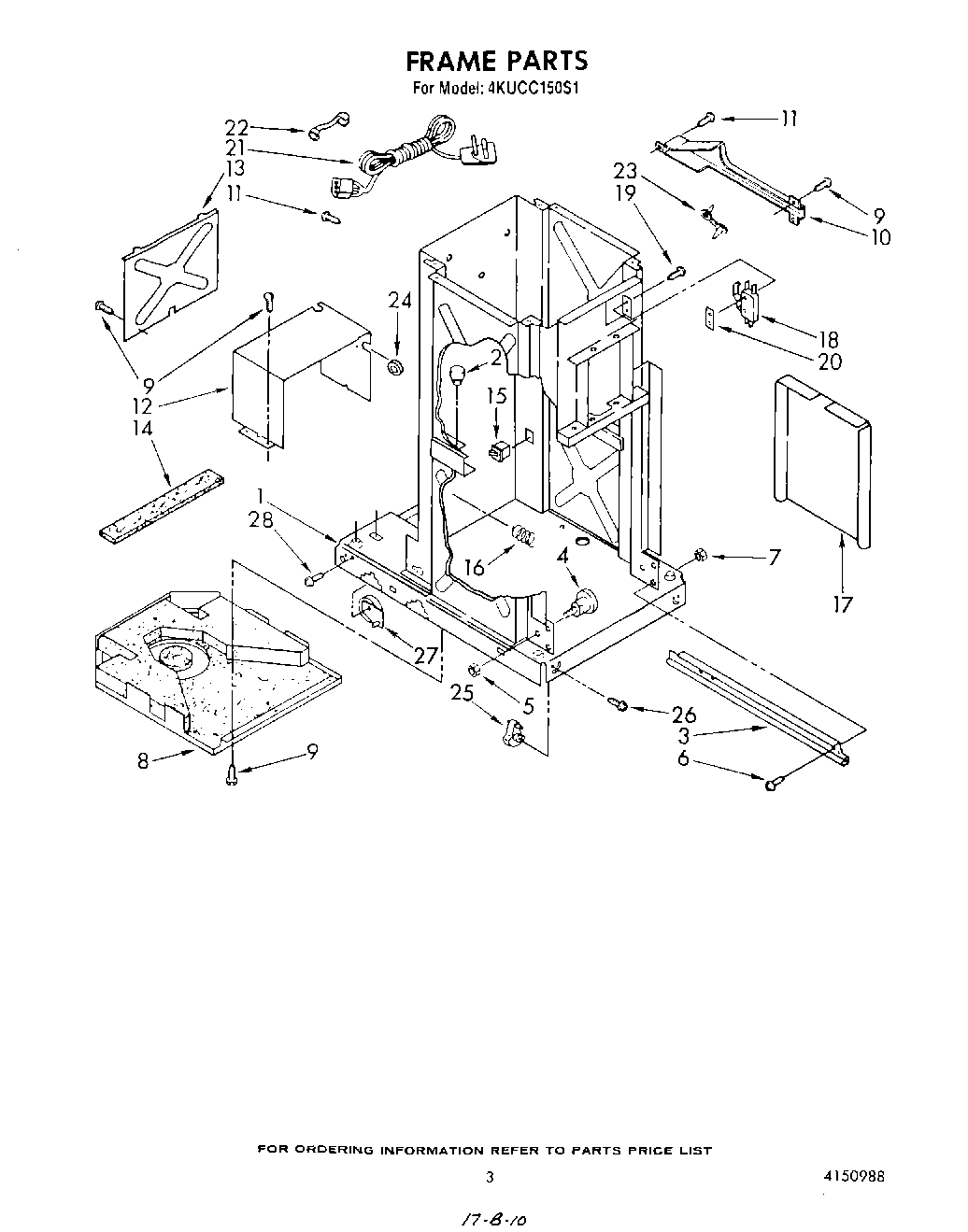

Frame (Not a Serviceable Part)
Frame (Not a Serviceable Part) WPL ARI14448A8 Contact Us For Availability
View on Model
1

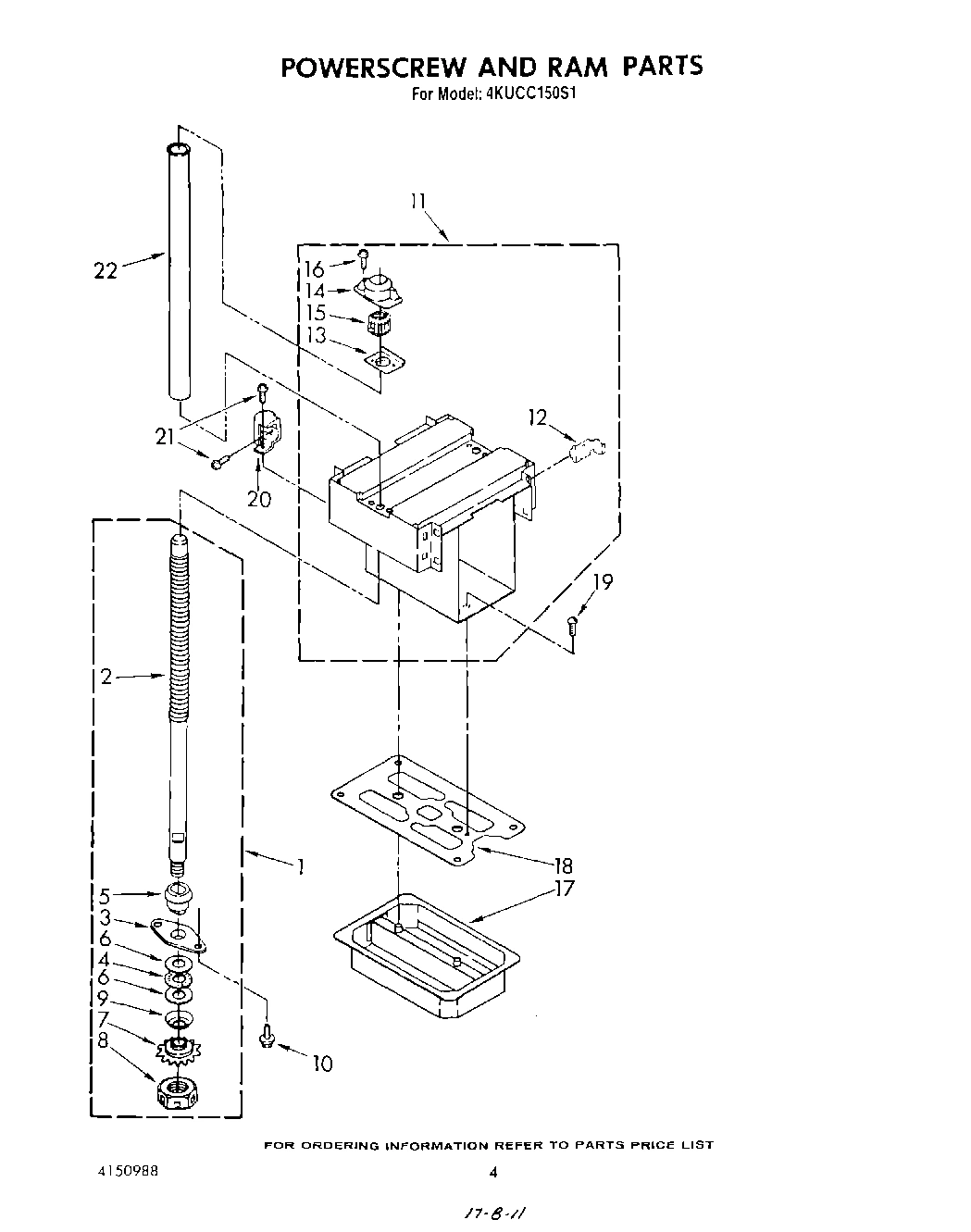

Screw, Power Complete Assembly (2)
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
View on Model
1

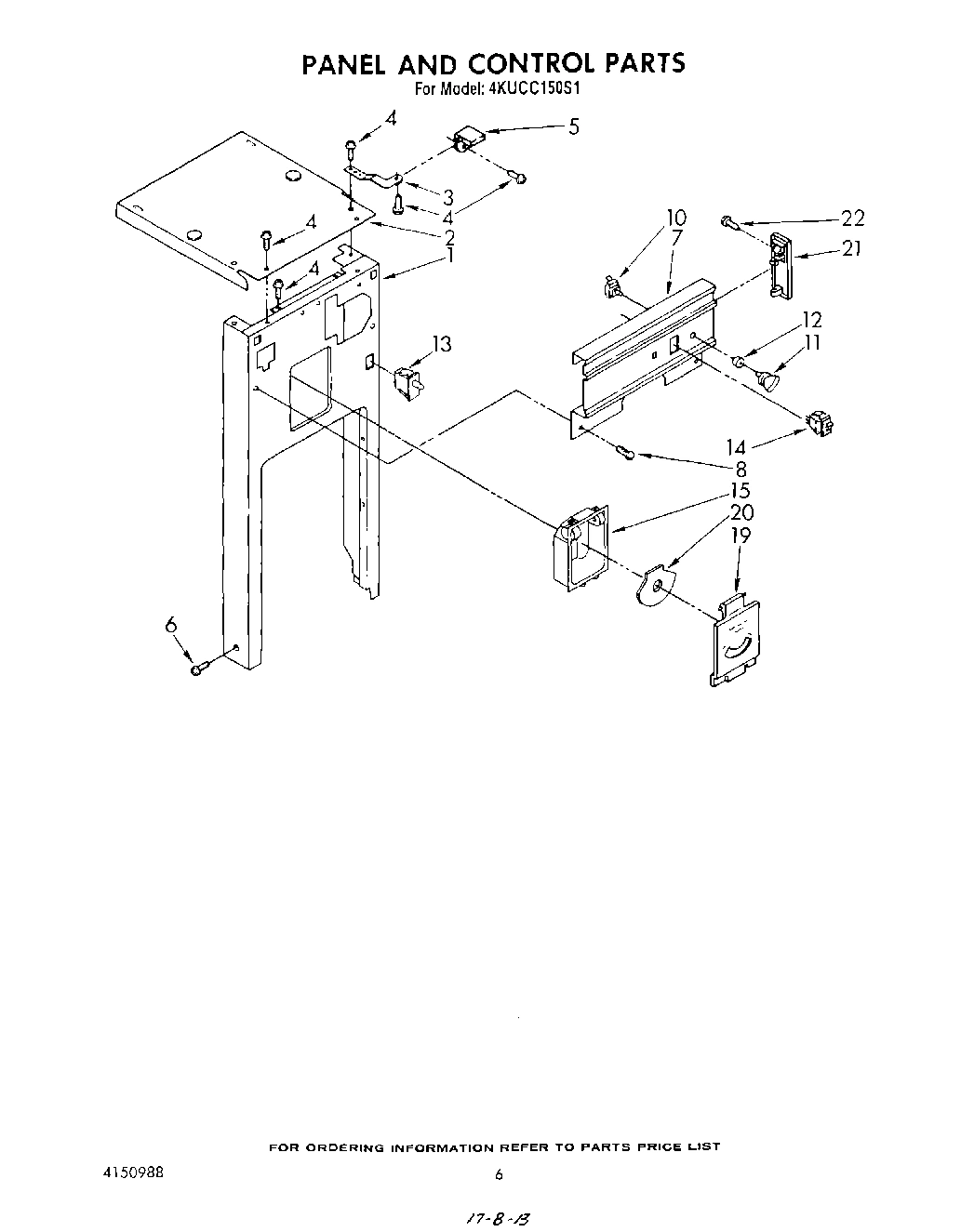

Panel, Front Frame
Panel, Front Frame WPL 4151050 Contact Us For Availability
View on Model
2
Handle, Container
Handle, Container WPL 4149710 Contact Us For Availability
View on Model
2
Bumper (4)
Bumper (4) WPL 775643 Contact Us For Availability
View on Model
2
Screw, Power (Available Only As Complete Asse
Screw, Power (Available Only As Complete Asse WPL ARI14449A7 Contact Us For Availability
View on Model
2
Cover, Top Bracket, Retainer
Cover, Top Bracket, Retainer WPL 608572 Contact Us For Availability
View on Model
3
Panel, Container Front (Almond & Harvest Gold
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
View on Model
3
Panel, Container (White & Black)
Panel, Container (White & Black) WPL 777941 Contact Us For Availability
View on Model
5
Container Assembly
Container Assembly WPL 675296 Contact Us For Availability
View on Model
6
retainer, bag
retainer, bag WPL 776523 Contact Us For Availability
View on Model
7
Nut, 6-32 (4)
Nut, 6-32 (4) WPL 776188 Contact Us For Availability
View on Model
7
escutcheon, control
escutcheon, control WPL 4149810 Contact Us For Availability
View on Model
8
Screw, 6-20 x 3/8 (2)
Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability
View on Model
10
Screw, 10-24 x 3/4 (4)
Screw, 10-24 x 3/4 (4) WPL 775071 Contact Us For Availability
View on Model
11
End Cap, Handle (L.H.)
End Cap, Handle (L.H.) WPL 780188 Contact Us For Availability
View on Model
11
End Cap, Handle (R.H.)
End Cap, Handle (R.H.) WPL 780189 Contact Us For Availability
View on Model
11
Ram Assembly
Ram Assembly WPL 780019 Contact Us For Availability
View on Model
12
harness, wiring
harness, wiring WPL 4150275 Contact Us For Availability
View on Model
12

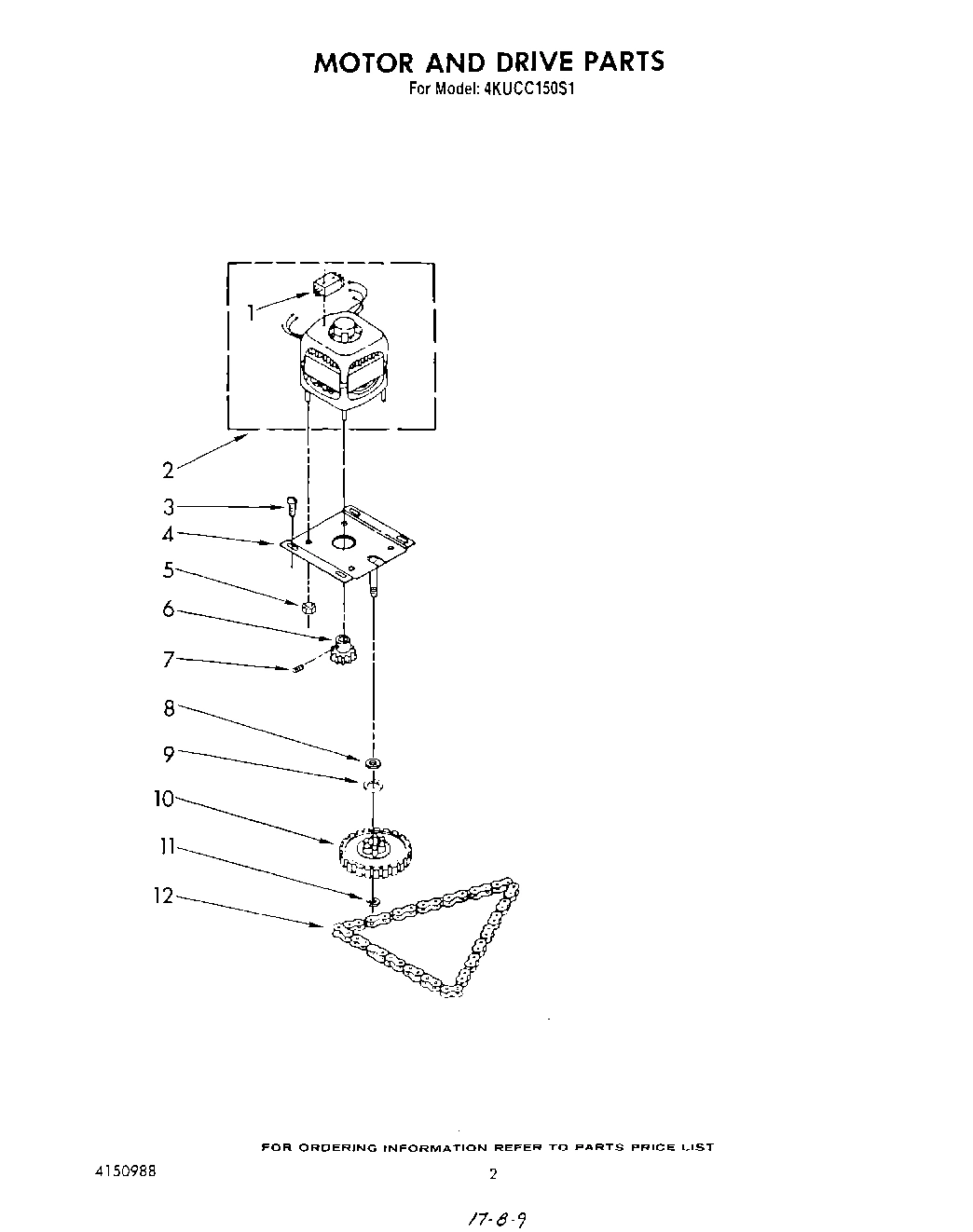

Cover, Motor
Cover, Motor WPL 608849 Contact Us For Availability
View on Model
12
Pad, Ram (8)
Pad, Ram (8) WPL 777758 Contact Us For Availability
View on Model
13
Bumper, Container (2)
Bumper, Container (2) WPL 775785 Contact Us For Availability
View on Model
13
Plate, Motor Cover
Plate, Motor Cover WPL 608009 Contact Us For Availability
View on Model
13
Plate, Doubler (2)
Plate, Doubler (2) WPL 608733 Contact Us For Availability
View on Model
13
Switch, Drawer Tilt
Switch, Drawer Tilt WPL 780421 Contact Us For Availability
View on Model
14
Screw (2)
Screw (2) WPL 4149395 Contact Us For Availability
View on Model
14
Barrier, Glass
Barrier, Glass WPL 776780 Contact Us For Availability
View on Model
14
Retainer, Nut (2)
Retainer, Nut (2) WPL 780036 Contact Us For Availability
View on Model
15
Compartment, Air Flow
Compartment, Air Flow WPL 777642 Contact Us For Availability
View on Model
17
Insulation, Inner Panel
Insulation, Inner Panel WPL 780412 Contact Us For Availability
View on Model
17
Cover, Ram
Cover, Ram WPL 608723 Contact Us For Availability
View on Model
18
Wiper, Ram
Wiper, Ram WPL 780021 Contact Us For Availability
View on Model
19
Trim, Container (Front)
Trim, Container (Front) WPL 777345 Contact Us For Availability
View on Model
19
Cover, Air Flow
Cover, Air Flow WPL 4147744 Contact Us For Availability
View on Model
20
Pin
Pin WPL 776654 Contact Us For Availability
View on Model
20
Plate, Nut
Plate, Nut WPL 777850 Contact Us For Availability
View on Model
20
Block, Container Stop
Block, Container Stop WPL 777691 Contact Us For Availability
View on Model
20
Dail, Air Flow
Dail, Air Flow WPL 608782 Contact Us For Availability
View on Model
21
Cord, Power
Cord, Power WPL 778575 Contact Us For Availability
View on Model
21
End Cap, Escutcheon (L.H.)
End Cap, Escutcheon (L.H.) WPL 780179 Contact Us For Availability
View on Model
21
End Cap, Escutcheon R.H.
End Cap, Escutcheon R.H. WPL 780180 Contact Us For Availability
View on Model
22
Bushing, Cord
Bushing, Cord WPL 776119 Contact Us For Availability
View on Model
22
Protector, Powerscrew (2)
Protector, Powerscrew (2) WPL 780413 Contact Us For Availability
View on Model
23
Clamp, Wire
Clamp, Wire WPL 777035 Contact Us For Availability
View on Model
24
Grommet, Motor Cover
Grommet, Motor Cover WPL 776118 Contact Us For Availability
View on Model
25

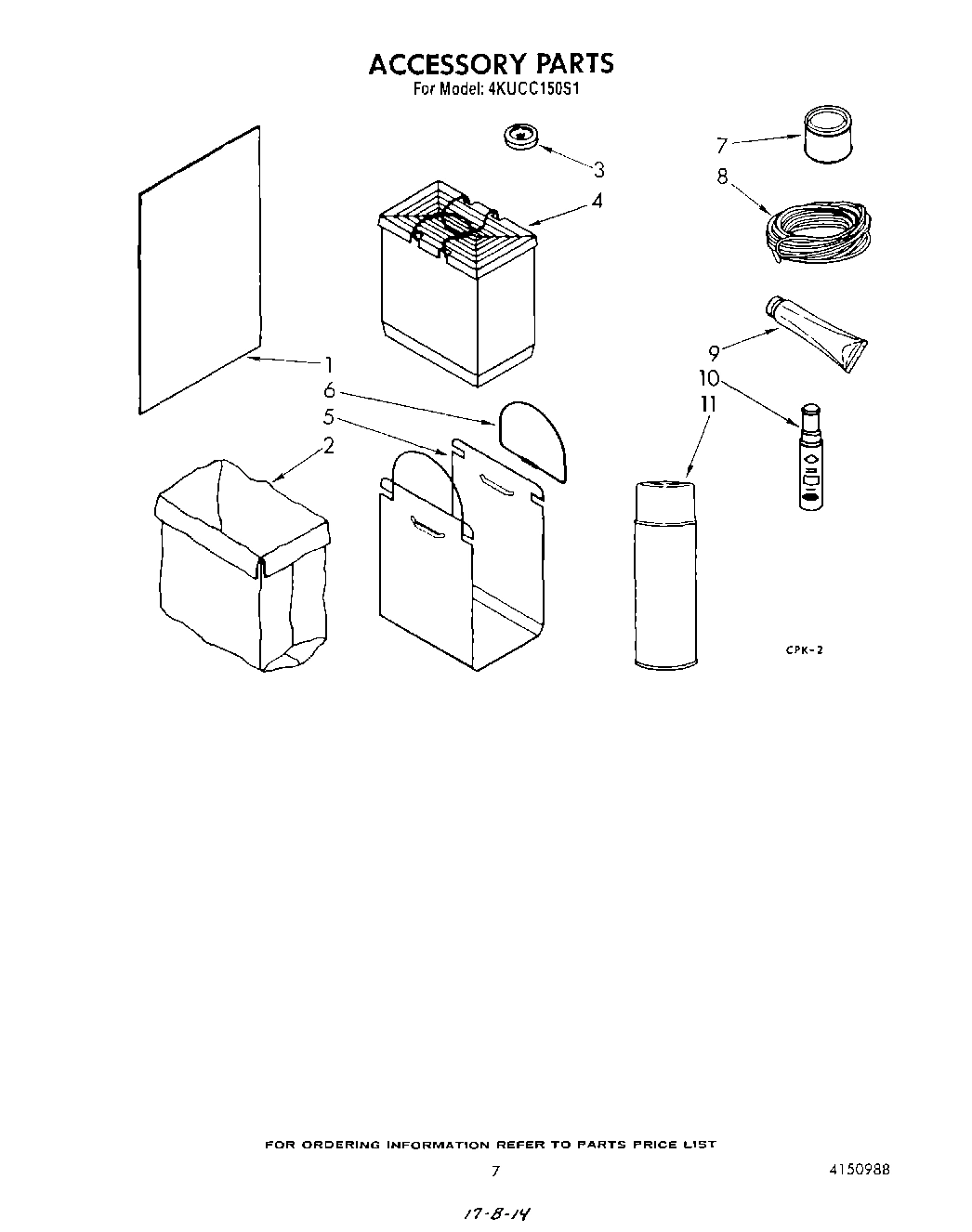

Retainer, Bag (Contains 4 Each)
Retainer, Bag (Contains 4 Each) WPL 4163646 Contact Us For Availability
View on Model
25
Leveler, Front (2)
Leveler, Front (2) WPL 780082 Contact Us For Availability
View on Model
26
Screw, 10-16 x 3/4 (2)
Screw, 10-16 x 3/4 (2) WPL 780125 Contact Us For Availability
View on Model
27
Wheel, Leveler (R.H. Rear)
Wheel, Leveler (R.H. Rear) WPL 780139 Contact Us For Availability
View on Model
