Model Whirlpool 4KUCC150S0 COMPACTOR – Common Parts & Diagrams

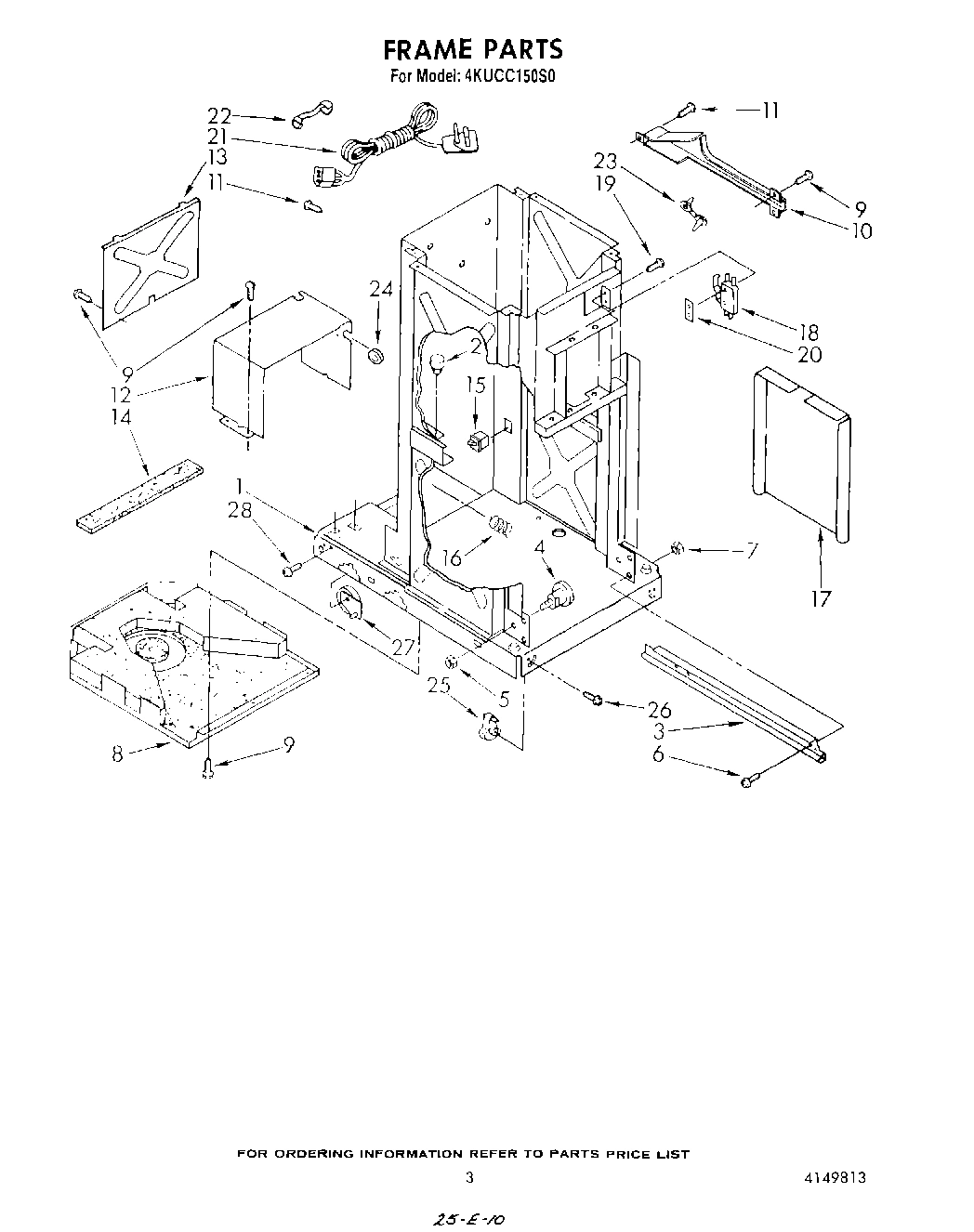

03 - FRAME

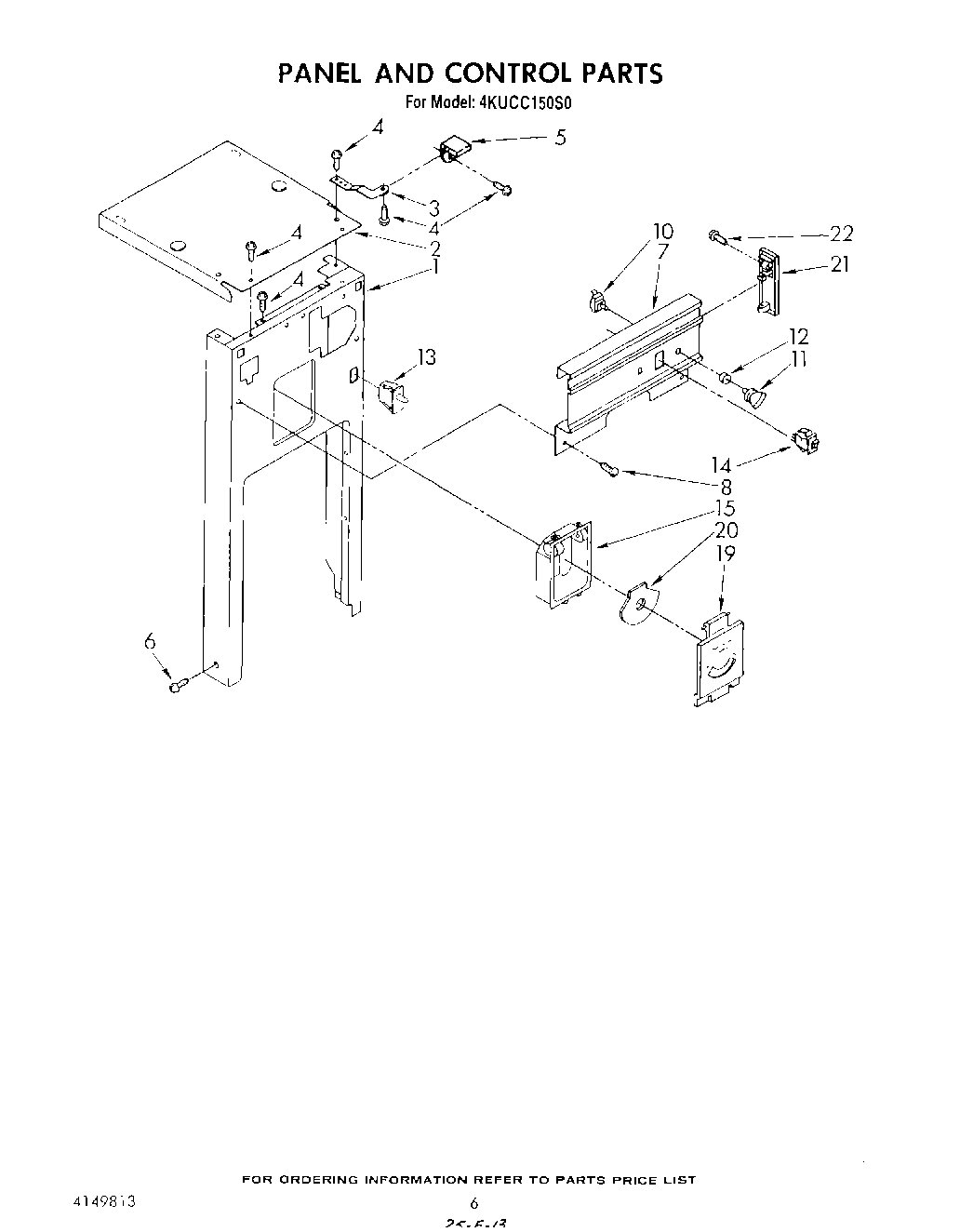

06 - PANEL AND CONTROL

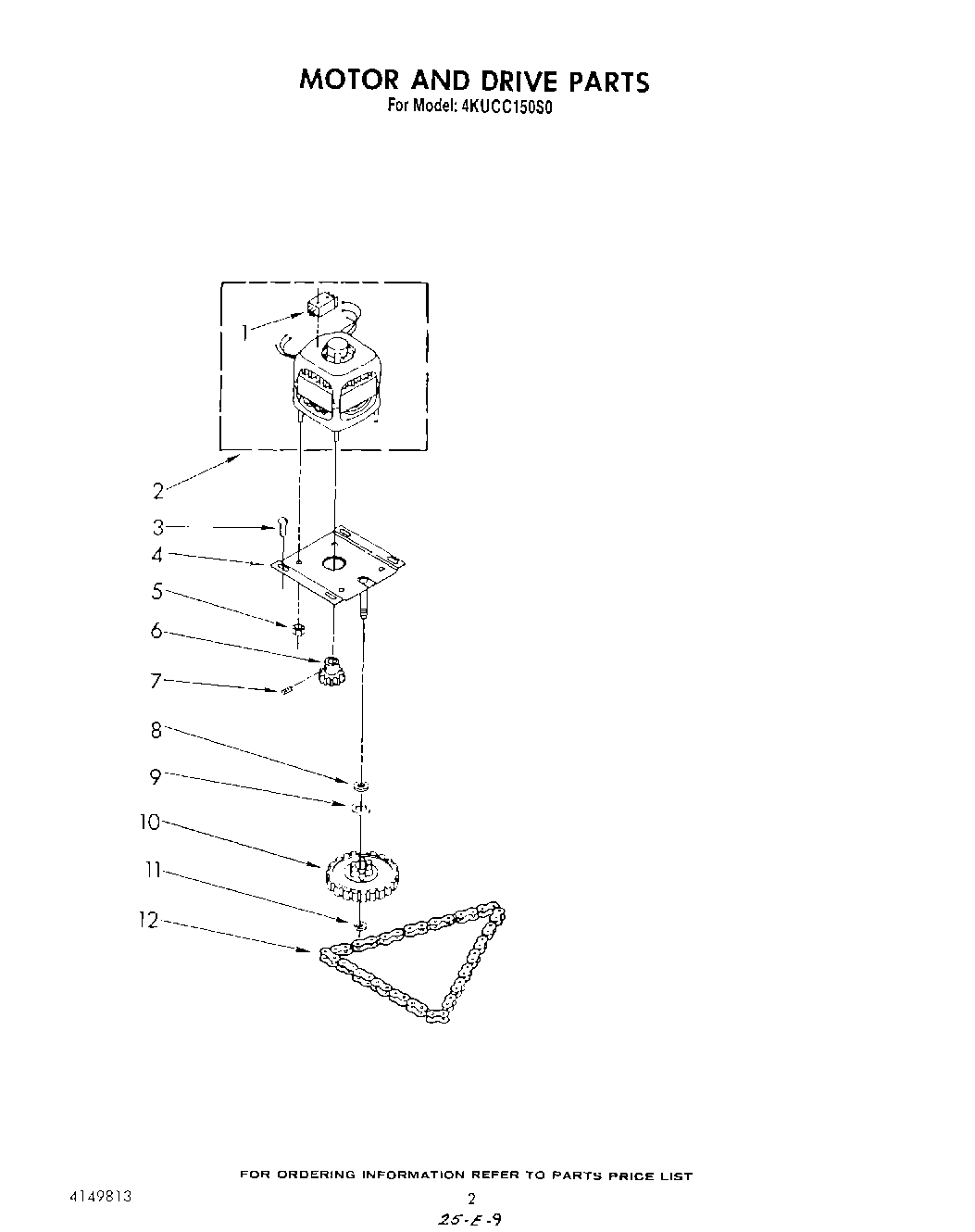

02 - MOTOR AND DRIVE , LIT/OPTIONAL

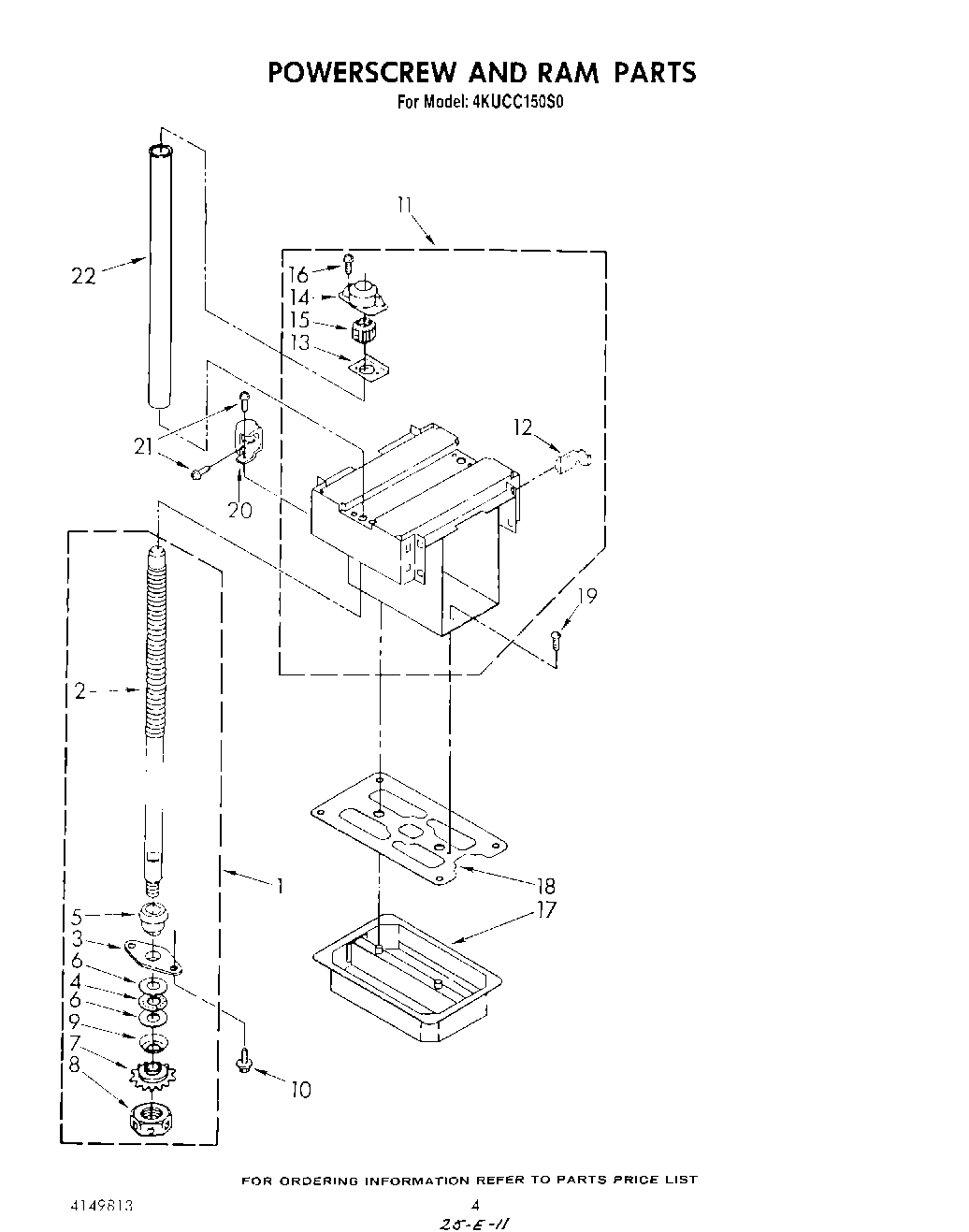

04 - POWERSCREW AND RAM

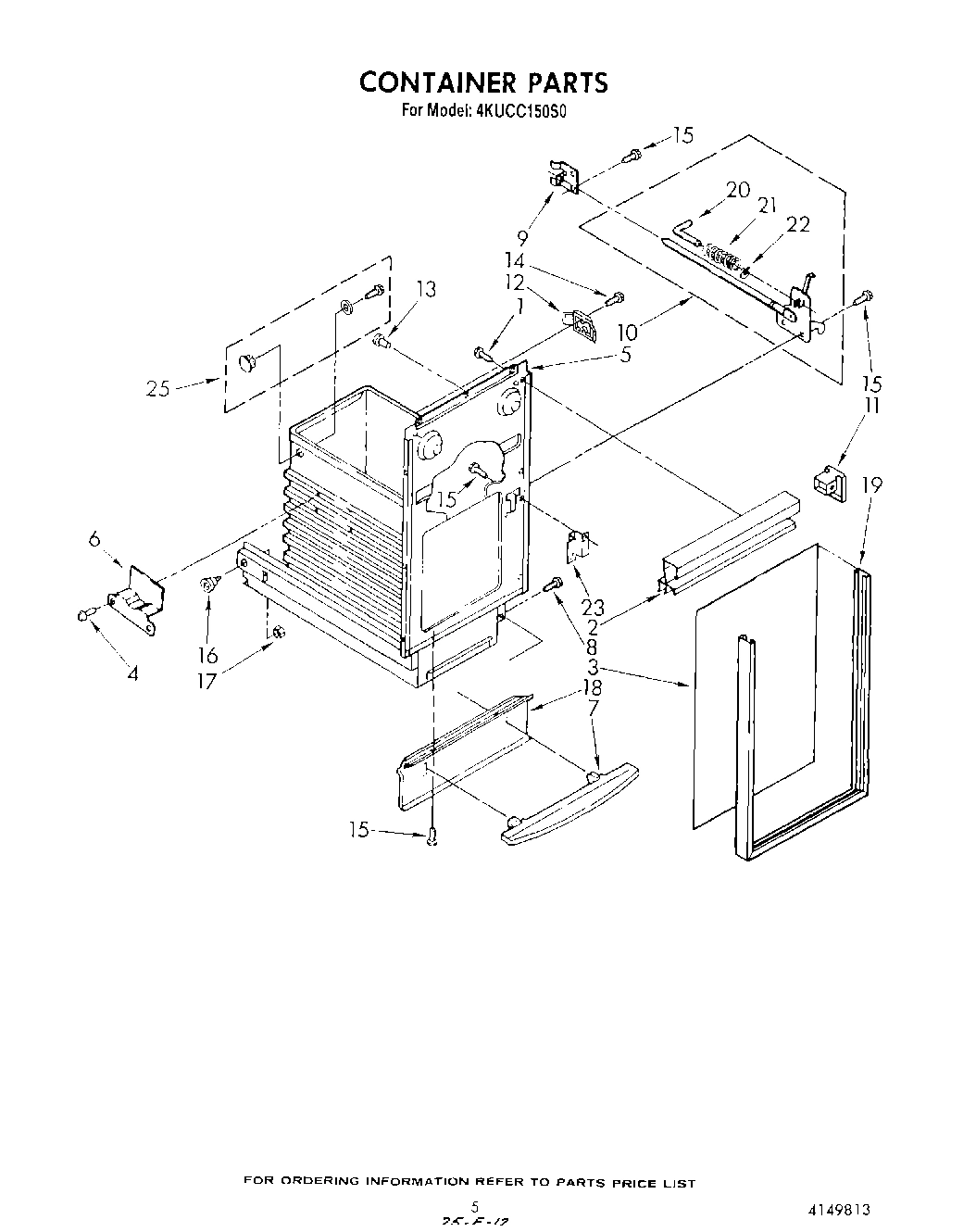

05 - CONTAINER

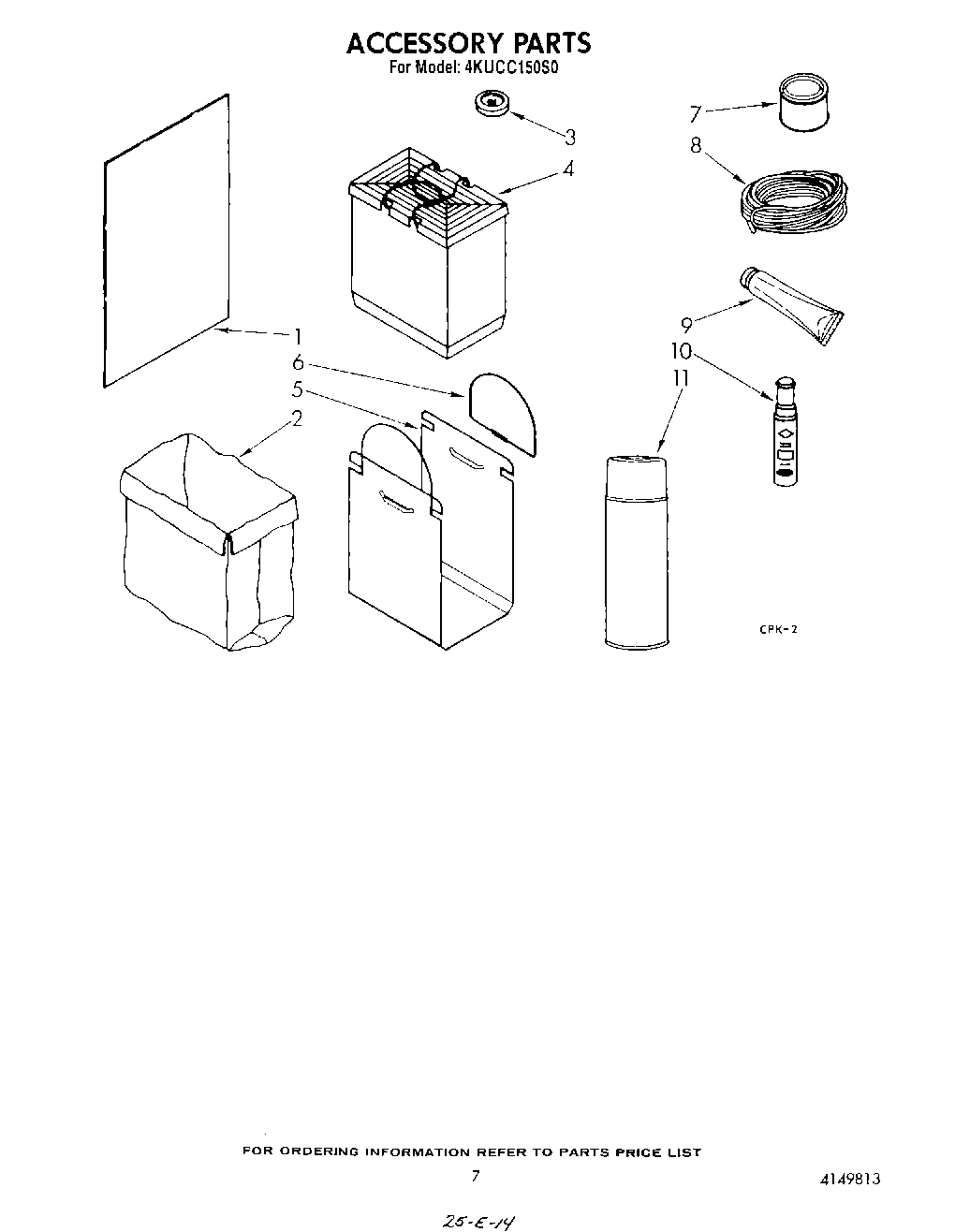

07 - ACCESSORY
Common parts from model Whirlpool 4KUCC150S0 COMPACTOR
Manual, Owners WPL LIT4149804 Contact Us For Availability
Instructions, Installation (Unit To Window) WPL LIT4149805 Contact Us For Availability
List, Repair Parts WPL LIT4149813 Contact Us For Availability
Sheet, Tech And Wiring Diagram WPL LIT4150275 Contact Us For Availability
1
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
1
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
1
Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability
1
Panel, Container Front (Platinum & Toast) WPL 780280 Contact Us For Availability
1
Panel, Container Front (White & Copper Hi-Lit WPL 608438 Contact Us For Availability
1
Panel, Contianer Front (Brushed Chrome) WPL 675378 Contact Us For Availability
1
Panel, Container Front (Coffee & Harvest Gold WPL 777714 Contact Us For Availability
1
Panel, Contianer Front (White & New Avocado) WPL 777761 Contact Us For Availability
1
panel, container front (coffee & avacodo) WPL 777912 Contact Us For Availability
1
Panel, Container Front (Almond & Black) WPL 780334 Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI14447A8 Contact Us For Availability
2
Handle, Container WPL 4149710 Contact Us For Availability
3
Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability
3
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
4
Trash, Container (Reusable) WPL 882653 Contact Us For Availability
5
Container Assembly WPL 675296 Contact Us For Availability
6
retainer, bag WPL 776523 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
10
Screw, 10-24 x 3/4 (4) WPL 775071 Contact Us For Availability
10
WPL 72112 WPL 72112 Contact Us For Availability
11
Ram Assembly WPL 780019 Contact Us For Availability
11
End Cap, Handle (L.H.) WPL 780188 Contact Us For Availability
11
End Cap, Handle (R.H.) WPL 780189 Contact Us For Availability
11
WPL 261890 WPL 261890 Contact Us For Availability
11
WPL 285365 WPL 285365 Contact Us For Availability
11
WPL 285366 WPL 285366 Contact Us For Availability
12
sheet, tech and wiring diagram WPL 4147763 Contact Us For Availability
12
harness, wiring WPL 4150275 Contact Us For Availability
12
Pad, Ram (8) WPL 777758 Contact Us For Availability
13
Switch, Drawer Tilt WPL 780421 Contact Us For Availability
13
Plate, Doubler (2) WPL 608733 Contact Us For Availability
13
Bumper, Container (2) WPL 775785 Contact Us For Availability
14
Retainer, Nut (2) WPL 780036 Contact Us For Availability
14
Screw (2) WPL 4149395 Contact Us For Availability
15
Compartment, Air Flow WPL 777642 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
19
Cover, Air Flow WPL 4147744 Contact Us For Availability
19
Trim, Container (Front) WPL 777345 Contact Us For Availability
20
Dail, Air Flow WPL 608782 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
21
End Cap, Escutcheon (L.H.) WPL 780179 Contact Us For Availability
21
End Cap, Escutcheon R.H. WPL 780180 Contact Us For Availability
22
Protector, Powerscrew (2) WPL 780413 Contact Us For Availability
25
Retainer, Bag (Contains 4 Each) WPL 4163646 Contact Us For Availability
× ![]()
