Whirlpool 4KSM50POB0 MIXER

1

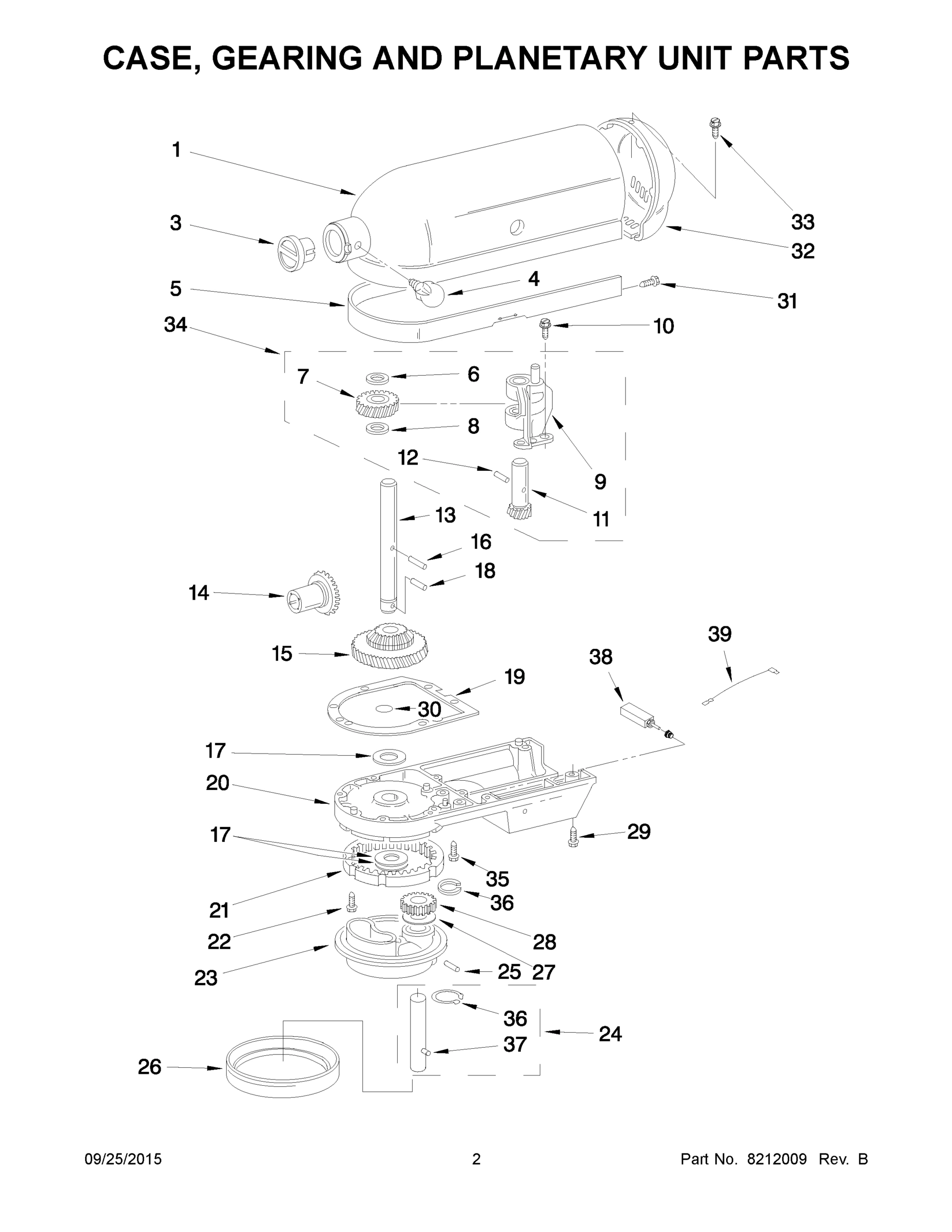

WP110679 Whirlpool Screw Backorder WPL WP110679 $2.91

View on Model

1

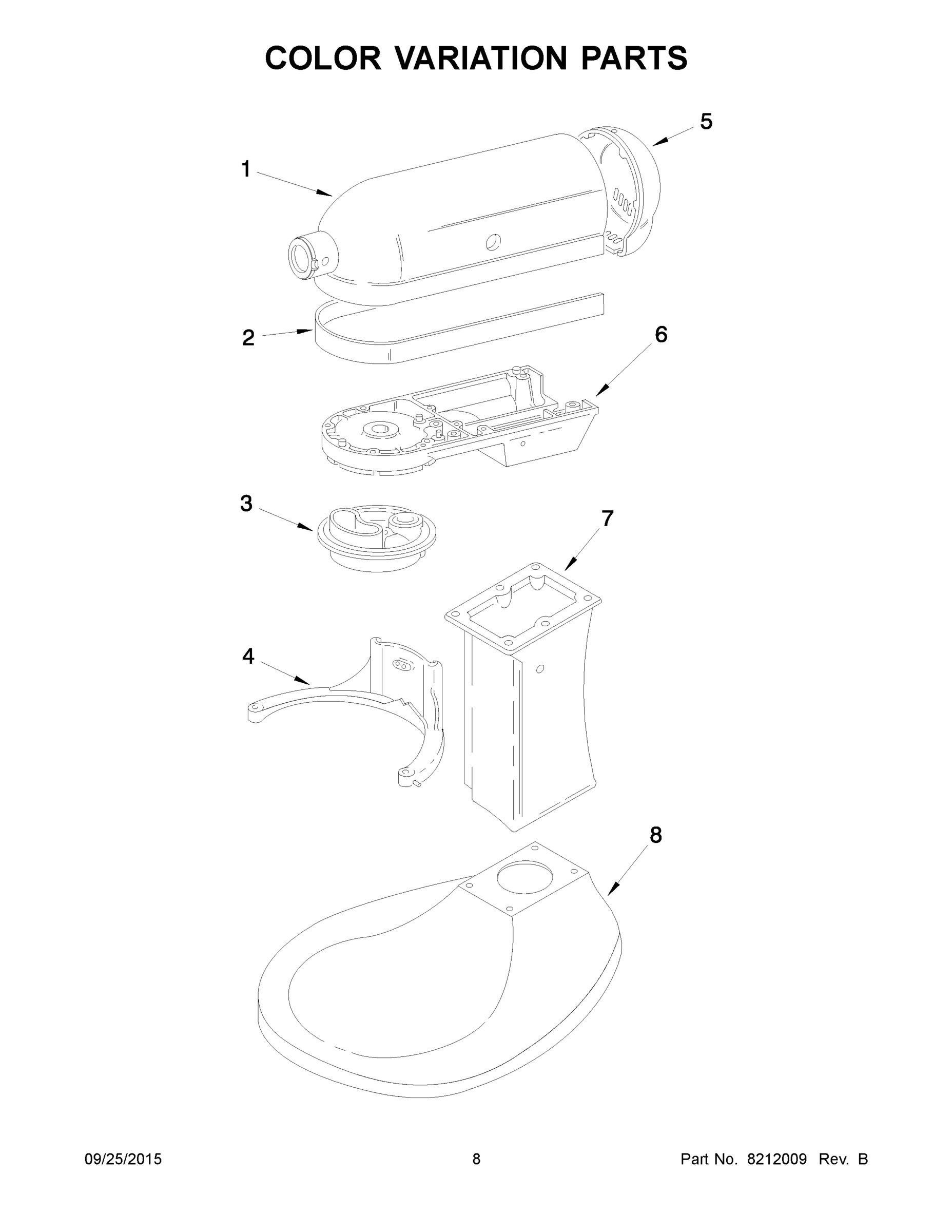

MOTOR HOUSING (ONYX BLACK) WPL 24029113 Contact Us For Availability

View on Model

1A

MOTOR HOUSING (EMPIRE RED) WPL 24029121 Contact Us For Availability

View on Model

1B

MOTOR HOUSING (WHITE) WPL 2402911 Contact Us For Availability

View on Model

2

WP116241 Whirlpool Washer Backorder WPL WP116241 $2.91

View on Model

2

TRIM BAND (BLACK & BRUSH) WPL 9706869 Contact Us For Availability

View on Model

2A

TRIM BAND (GREY & RED) WPL 9702639 Contact Us For Availability

View on Model

3

WP9709276 Whirlpool Speed Control Lever In Stock WPL WP9709276 $3.33

View on Model

3

PLANETARY (ONYX BLACK) WPL 24028616 Contact Us For Availability

View on Model

3

CAP, ATTACHMENT HUB (CHROME) WPL 2427652 Contact Us For Availability

View on Model

3A

PLANETARY (EMPIRE RED) WPL 24028623 Contact Us For Availability

View on Model

3B

PLANETARY (WHITE) WPL 2402861 Contact Us For Availability

View on Model

4

WP3183680 Whirlpool Spring Backorder WPL WP3183680 $2.91

View on Model

4

WP9709194 Whirlpool Black Thumb Screw In Stock WPL WP9709194 $12.61

View on Model

4

BOWL SUPPORT (ONYX BLACK) WPL 24016011 Contact Us For Availability

View on Model

4A

BOWL SUPPORT (EMPIRE RED) WPL 9702423 Contact Us For Availability

View on Model

4B

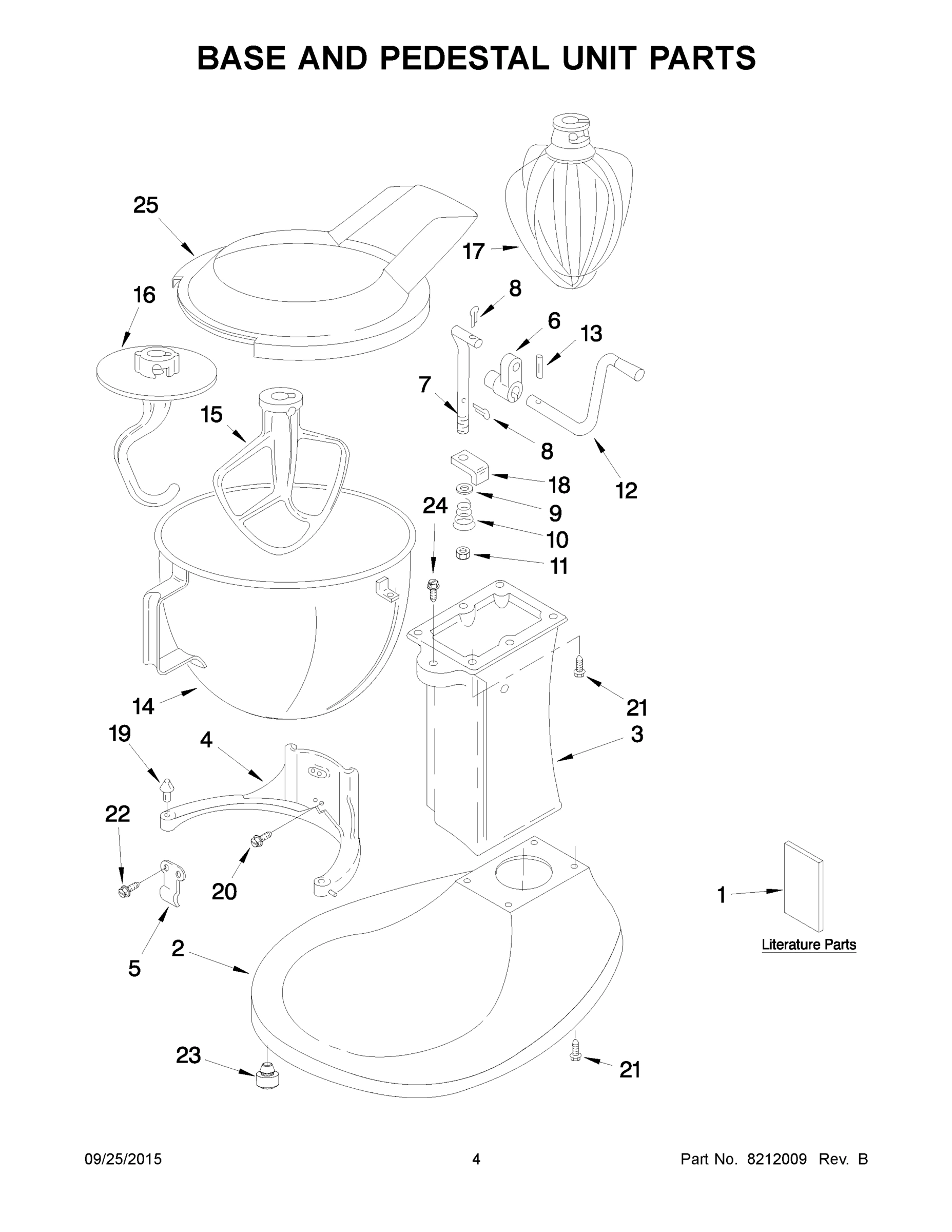

3179300 Whirlpool Support Assembly Backorder WPL 3179300 $43.59

View on Model

5

WP3182857 Whirlpool Spring In Stock WPL WP3182857 $4.58

View on Model

5

LINK, SPEED AND CAM ASSEMBLY WPL 3184176 Contact Us For Availability

View on Model

5

END COVER (ONYX BLACK) WPL 24025314 Contact Us For Availability

View on Model

5A

END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability

View on Model

5B

END COVER (WHITE) WPL 2402531 Contact Us For Availability

View on Model

6

WP240205 Whirlpool Spring Backorder WPL WP240205 $2.91

View on Model

6

LOWER GEARCASE (ONYX BLACK) WPL 4173582 Contact Us For Availability

View on Model

6A

LOWER GEARCASE (ONYX BLACK, CANADA) WPL 9708160 Contact Us For Availability

View on Model

6B

LOWER GEARCASE (EMPIRE RED) WPL 9704499 Contact Us For Availability

View on Model

6C

LOWER GEARCASE (WHITE) WPL 4162129 Contact Us For Availability

View on Model

7

W10851015 Whirlpool Stat Screw Backorder WPL W10851015 $2.91

View on Model

7

WPW10112253 Whirlpool Gear Assembly In Stock WPL WPW10112253 $7.98

View on Model

7

COLUMN (ONYX BLACK) WPL 4176172 Contact Us For Availability

View on Model

7A

COLUMN (EMPIRE RED) WPL 9702393 Contact Us For Availability

View on Model

7B

COLUMN (WHITE) WPL 2401484 Contact Us For Availability

View on Model

8

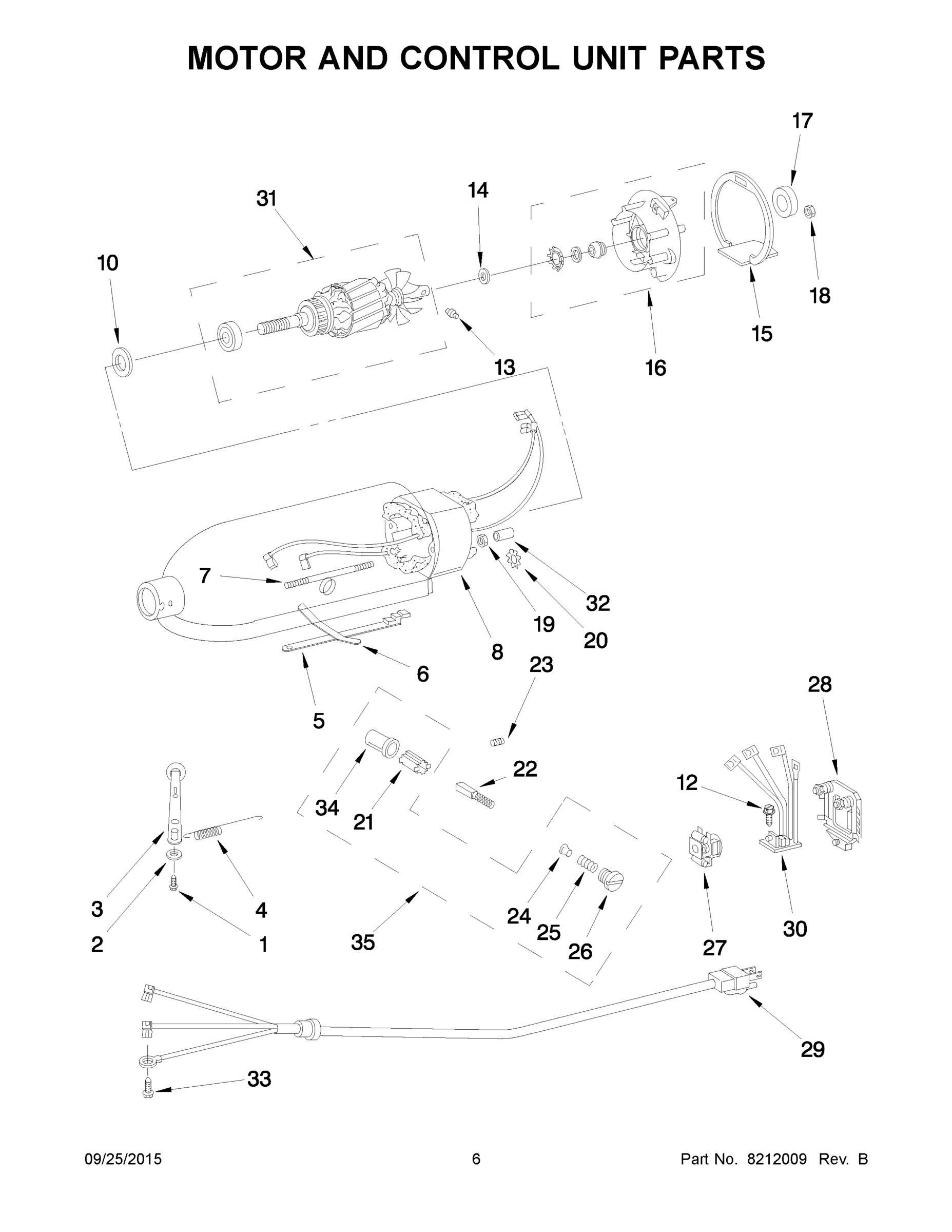

W10870869 Whirlpool Field Assembly Backorder WPL W10870869 $40.15

View on Model

8

WPW10323373 Whirlpool Washer Backorder WPL WPW10323373 $2.91

View on Model

8

BASE & FOOT ASSEMBLY (ONYX BLACK) WPL 3179292 Contact Us For Availability

View on Model

8A

BASE & FOOT ASSEMBLY (EMPIRE RED) WPL 3179299 Contact Us For Availability

View on Model

8B

3179280 Whirlpool Base Backorder WPL 3179280 $48.06

View on Model

9

W11082541 Whirlpool Bearing In Stock WPL W11082541 $8.84

View on Model

10

W11097298 Whirlpool Dishwasher Screw Backorder WPL W11097298 $2.91

View on Model

10

WP9704324 Whirlpool Washer Backorder WPL WP9704324 $2.91

View on Model

11

GEAR, PINION AND SHAFT WPL 2402102 Contact Us For Availability

View on Model

12

W11084238 Whirlpool Screw Assembly Backorder WPL W11084238 $2.91

View on Model

12

WP9705444 Whirlpool Pin Groove In Stock WPL WP9705444 $2.91

View on Model

13

WP16998 Whirlpool Drive Stud Backorder WPL WP16998 $2.91

View on Model

13

WP240026 Whirlpool Control Shaft Backorder WPL WP240026 $5.44

View on Model

14

W11233557 Whirlpool Washer Backorder WPL W11233557 $2.43

View on Model

15

W11192794 Whirlpool HUB Gear In Stock WPL W11192794 $25.20

View on Model

15

SEAL, END WPL 2407751 Contact Us For Availability

View on Model

16

WP3180526 Whirlpool Bearing Bracket In Stock WPL WP3180526 $12.50

View on Model

17

WPW10323378 Whirlpool Washer Backorder WPL WPW10323378 $6.06

View on Model

17

WASHER, FELT WPL 3180238 Contact Us For Availability

View on Model

18

240169 Whirlpool Bracket Backorder WPL 240169 $19.16

View on Model

18

WP9705443 Whirlpool Pin Groove Backorder WPL WP9705443 $2.91

View on Model

19

8533905 Whirlpool Nut Backorder WPL 8533905 $19.09

View on Model

19

WP4162324 Whirlpool Case Gasket In Stock WPL WP4162324 $9.94

View on Model

20

W11170663 Whirlpool Washer Backorder WPL W11170663 $2.91

View on Model

21

W11340106 Whirlpool Gear Assembly Backorder WPL W11340106 $11.95

View on Model

21

W11656718 Whirlpool Insert Backorder WPL W11656718 $3.42

View on Model

22

WPW10380496 Whirlpool Stand Mixer Motor Brush In Stock WPL WPW10380496 $3.93

View on Model

22

SCREW WPL 103994 Contact Us For Availability

View on Model

23

W11176201 Whirlpool Screw Backorder WPL W11176201 $2.91

View on Model

23

WP9708649 Whirlpool Foot Backorder WPL WP9708649 $2.91

View on Model

24

WP116286 Whirlpool Spring Cap Backorder WPL WP116286 $2.91

View on Model

24

WP243368 Whirlpool Agitator Shaft Backorder WPL WP243368 $10.39

View on Model

25

W11312468 Whirlpool Pour Shelf In Stock WPL W11312468 $19.38

View on Model

25

WP116287 Whirlpool Spring Cap Backorder WPL WP116287 $2.91

View on Model

25

PIN, AGITATOR SHAFT WPL 2400181 Contact Us For Availability

View on Model

26

WP240285 Whirlpool Drip Ring Backorder WPL WP240285 $5.36

View on Model

26

WP3184212 Whirlpool Stand Mixer Black Brush H Backorder WPL WP3184212 $2.91

View on Model

27

WPW10330804 Whirlpool Speed Governor In Stock WPL WPW10330804 $9.24

View on Model

27

WASHER, SHIM WPL 3180160 Contact Us For Availability

View on Model

28

W11133645 Whirlpool Pinion Gear Backorder WPL W11133645 $3.11

View on Model

28

CONTROL PLATE ASSEMBLY WPL 2409042 Contact Us For Availability

View on Model

29

W11545825 Whirlpool Power Cord In Stock WPL W11545825 $8.22

View on Model

29

WP3400025 Whirlpool Screw Backorder WPL WP3400025 $2.91

View on Model

29A

W11396625 Whirlpool Power Cord In Stock WPL W11396625 $9.85

View on Model

30

WPW10325124 Whirlpool Phase Board In Stock WPL WPW10325124 $10.39

View on Model

30

"O" RING WPL 6750055 Contact Us For Availability

View on Model

31

W11133634 Whirlpool Armature Backorder WPL W11133634 $50.98

View on Model

31

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

View on Model

32

W11210996 Whirlpool Sleeve Backorder WPL W11210996 $2.91

View on Model

32

COVER, END (REFER TO COLOR VARIATION PARTS PA WPL NP Contact Us For Availability

View on Model

33

WP241877 Whirlpool Screw Backorder WPL WP241877 $2.91

View on Model

33

SCREW WPL 3184609 Contact Us For Availability

View on Model

34

WP3179908 Whirlpool Brush Holder Backorder WPL WP3179908 $2.91

View on Model

34

WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability

View on Model

35

4162546 Whirlpool Brush Holder In Stock WPL 4162546 $15.46

View on Model

35

WP9708653 Whirlpool Screw Backorder WPL WP9708653 $2.91

View on Model

36

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.05

View on Model

37

W11664709 Whirlpool Groove Pin Backorder WPL W11664709 $4.43

View on Model

38

241287-1 Whirlpool Breaker Backorder WPL 241287-1 $77.47

View on Model

39

9701105 Whirlpool Wire Backorder WPL 9701105 $20.08

View on Model
