Model Maytag 4KMER7600AW0 ELECTRIC RANGE – Common Parts & Diagrams

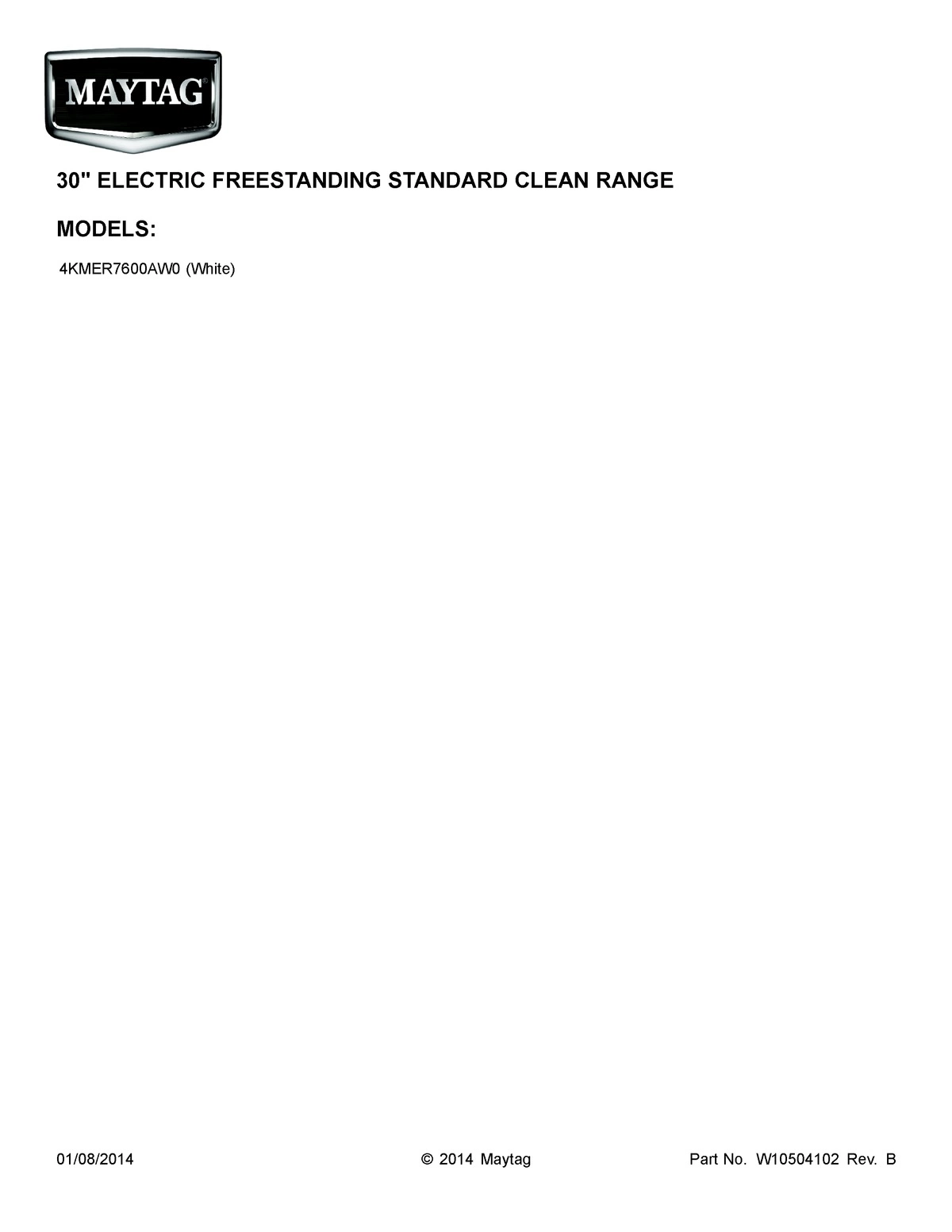

01 - COVER SHEET

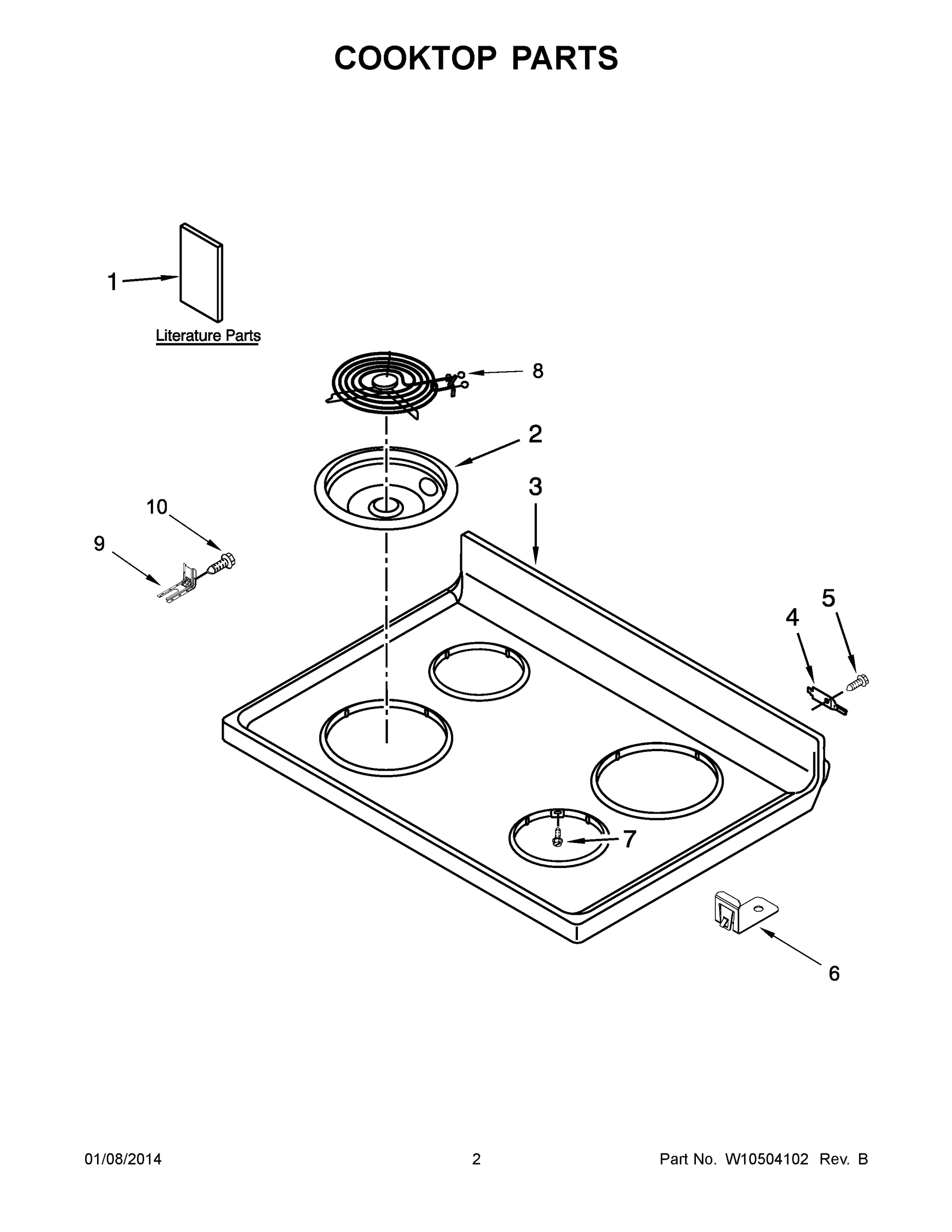

02 - COOKTOP PARTS

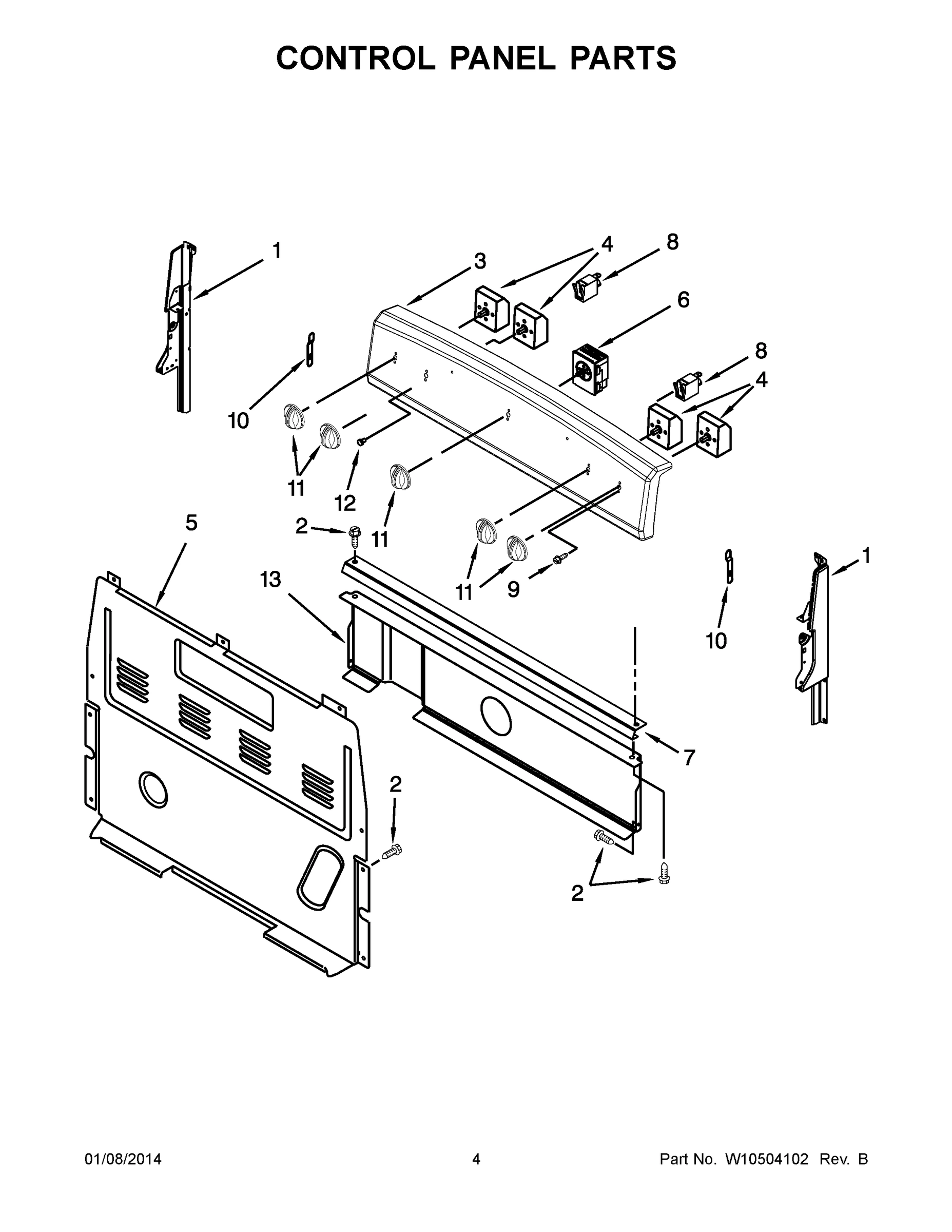

03 - CONTROL PANEL PARTS

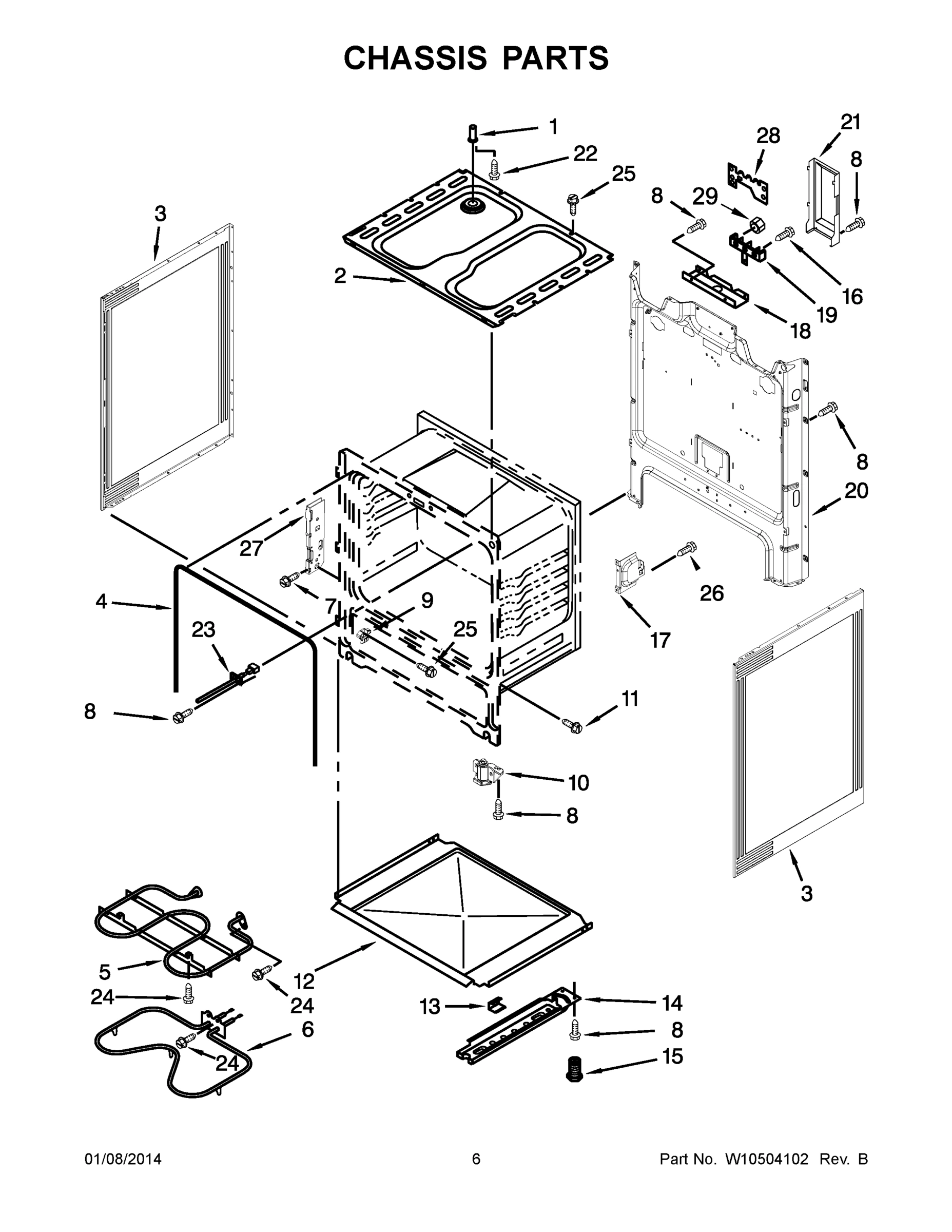

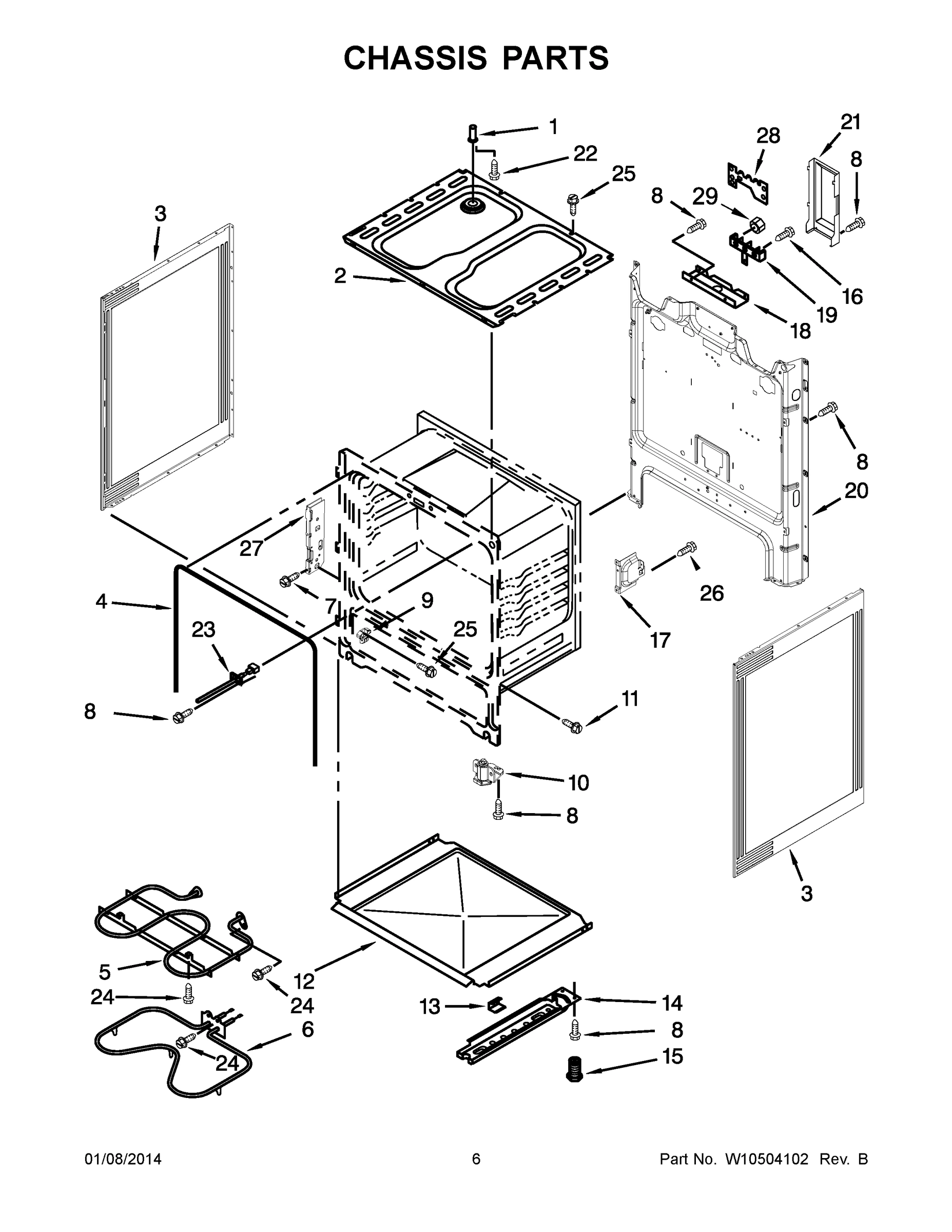

04 - CHASSIS PARTS

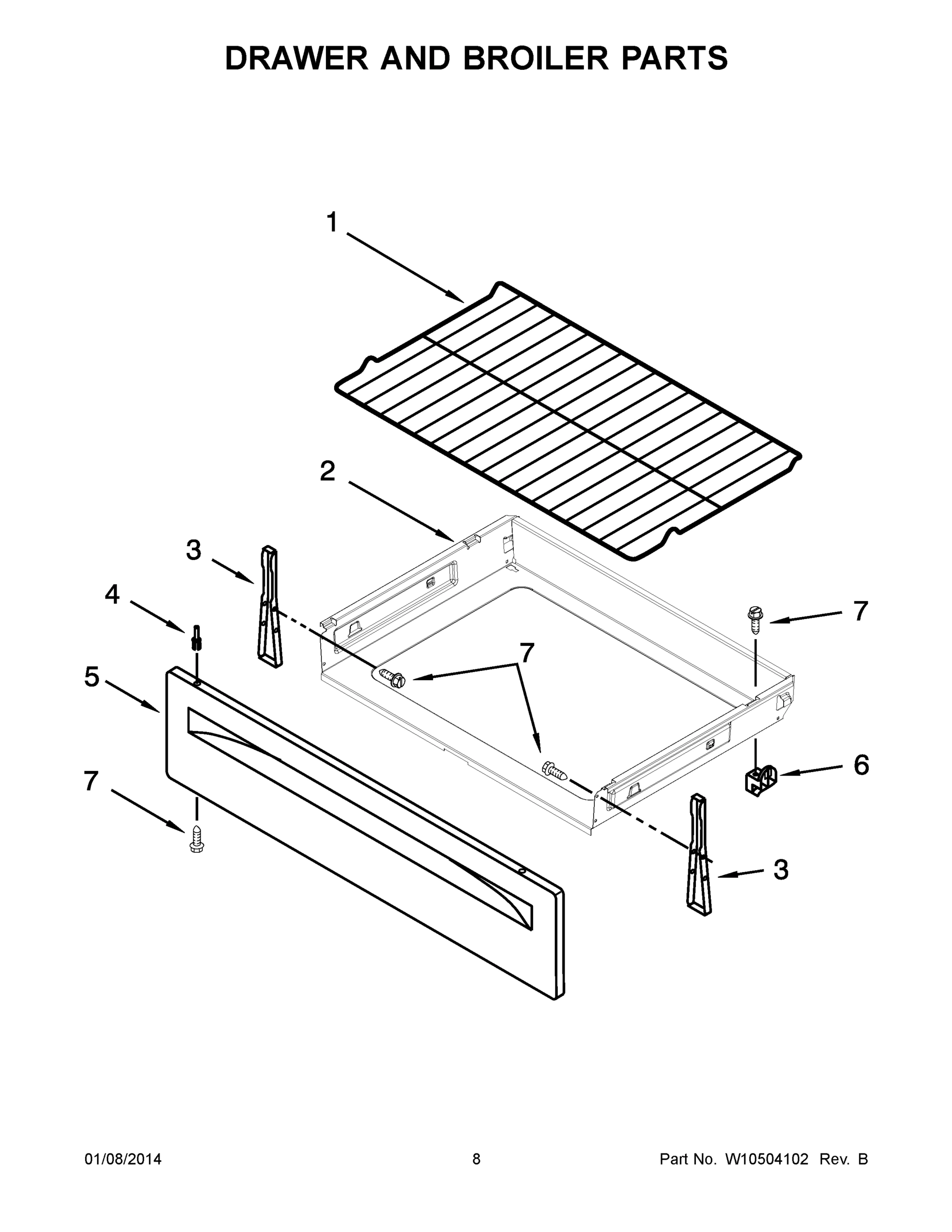

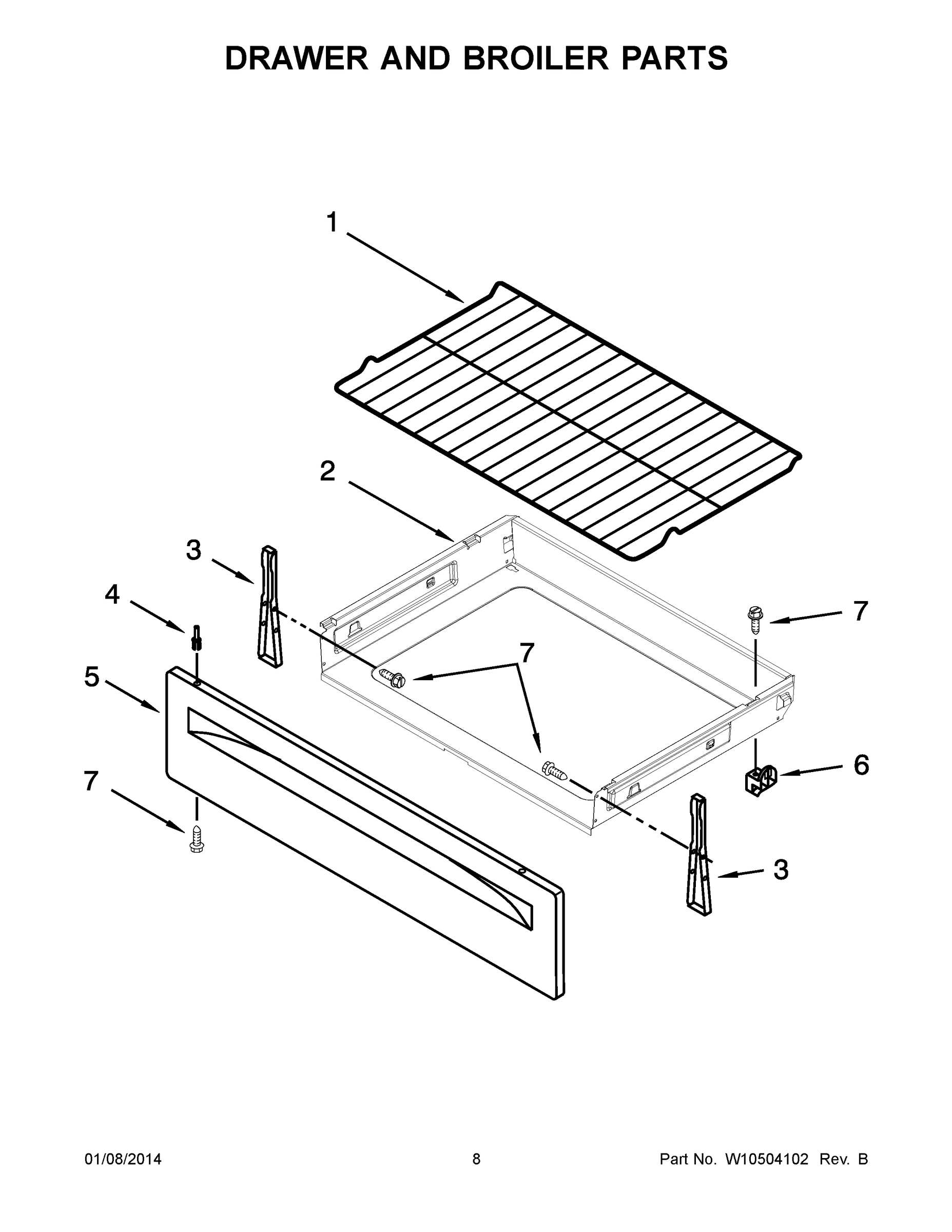

05 - DRAWER AND BROILER PARTS

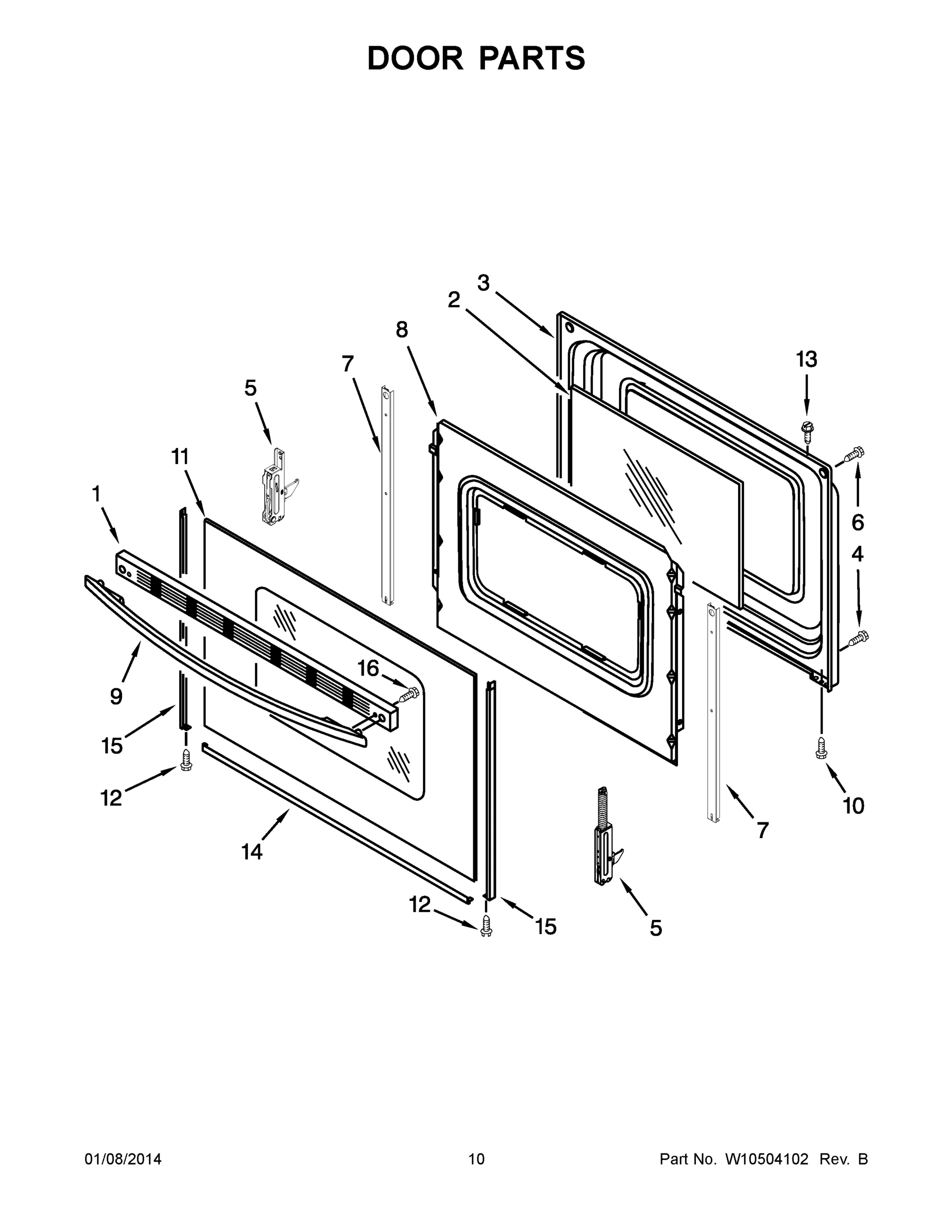

06 - DOOR PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag 4KMER7600AW0 ELECTRIC RANGE
1
MAY W10394782 MAY W10394782 Contact Us For Availability
1
MAY W10394783 MAY W10394783 Contact Us For Availability
1
MAY W10464420 MAY W10464420 Contact Us For Availability
1
MAY W10464421 MAY W10464421 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
MAY W10184434 MAY W10184434 Contact Us For Availability
1
MAY 3169143 MAY 3169143 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
2
BOWL, DRIP (8``) (LEFT RONT AND RIGHT REAR) MAY W10196405 Contact Us For Availability
2
BOWL, DRIP (6``) (RIGHT FRONT AND LEFT REAR) MAY W10196406 Contact Us For Availability
2
MAY W10209613 MAY W10209613 Contact Us For Availability
2
MAY W10300032 MAY W10300032 Contact Us For Availability
2
MAY W10620754 MAY W10620754 Contact Us For Availability
3
MAY 3186231 MAY 3186231 Contact Us For Availability
3
SWITCH, INFINITE (RIGHT FRONT AND LEFT REAR) MAY 3148951 Contact Us For Availability
3
MAY W10489059 MAY W10489059 Contact Us For Availability
3
MAY W10322769 MAY W10322769 Contact Us For Availability
3
MAY W10462912 MAY W10462912 Contact Us For Availability
3
MAY 9761344 MAY 9761344 Contact Us For Availability
4
MAY 3195060 MAY 3195060 Contact Us For Availability
4
MAY 3148953 MAY 3148953 Contact Us For Availability
4
MAY W10129032 MAY W10129032 Contact Us For Availability
4
MAY W10031780 MAY W10031780 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
5
MAY 8272473 MAY 8272473 Contact Us For Availability
5
MAY 9757340 MAY 9757340 Contact Us For Availability
5
MAY 8053339 MAY 8053339 Contact Us For Availability
5
MAY W10299225 MAY W10299225 Contact Us For Availability
5
MAY W10299227 MAY W10299227 Contact Us For Availability
6
MAY W10626011 MAY W10626011 Contact Us For Availability
6
MAY W10466758 MAY W10466758 Contact Us For Availability
6
MAY W10308477 MAY W10308477 Contact Us For Availability
6
GLIDE, DRAWER (REAR) MAY W10317899 Contact Us For Availability
6
MAY W10200660 MAY W10200660 Contact Us For Availability
7
MAY W10525121 MAY W10525121 Contact Us For Availability
7
MAY W10544179 MAY W10544179 Contact Us For Availability
8
MAY 3196178 MAY 3196178 Contact Us For Availability
8
MAY W10259867 MAY W10259867 Contact Us For Availability
8
ELEMET, SURFACE (6``) (RIGHT FRONT AND LEFT R MAY W10259870 Contact Us For Availability
8
MAY 8523266 MAY 8523266 Contact Us For Availability
8
RETAINER, INSULATION MAY 9761501 Contact Us For Availability
9
MAY W10306542 MAY W10306542 Contact Us For Availability
9
MAY 3400882 MAY 3400882 Contact Us For Availability
9
GLIDE, DRAWER (FRONT) MAY W10317898 Contact Us For Availability
9
MAY W10323581 MAY W10323581 Contact Us For Availability
10
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
10
MAY 3196200 MAY 3196200 Contact Us For Availability
10
MAY W10341186 MAY W10341186 Contact Us For Availability
10
MAY 3196160 MAY 3196160 Contact Us For Availability
11
MAY W10211371 MAY W10211371 Contact Us For Availability
11
MAY W10067840 MAY W10067840 Contact Us For Availability
11
MAY W10106404 MAY W10106404 Contact Us For Availability
12
MAY 3196068 MAY 3196068 Contact Us For Availability
12
MAY 8054068 MAY 8054068 Contact Us For Availability
12
MAY 3196165 MAY 3196165 Contact Us For Availability
13
MAY W10134247 MAY W10134247 Contact Us For Availability
13
MAY W10137382 MAY W10137382 Contact Us For Availability
13
MAY W10031790 MAY W10031790 Contact Us For Availability
14
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
14
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
14
TRIM, LOWER DOOR (WHITE) MAY 8523175 Contact Us For Availability
15
MAY W10058460 MAY W10058460 Contact Us For Availability
15
MAY 8523166 MAY 8523166 Contact Us For Availability
15
MAY 8523172 MAY 8523172 Contact Us For Availability
16
MAY 3400016 MAY 3400016 Contact Us For Availability
16
MAY W10168559 MAY W10168559 Contact Us For Availability
17
MAY W10404688 MAY W10404688 Contact Us For Availability
18
MAY 3186034 MAY 3186034 Contact Us For Availability
19
MAY W10245259 MAY W10245259 Contact Us For Availability
20
MAY W10289149 MAY W10289149 Contact Us For Availability
21
MAY W10326122 MAY W10326122 Contact Us For Availability
22
MAY 3196567 MAY 3196567 Contact Us For Availability
23
MAY W10181986 MAY W10181986 Contact Us For Availability
26
MAY 3196169 MAY 3196169 Contact Us For Availability
27
MAY W10289077 MAY W10289077 Contact Us For Availability
28
MAY W10451176 MAY W10451176 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW MAY 3196154 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUNDING MAY 3196174 Contact Us For Availability
NI
MAY 8272611 MAY 8272611 Contact Us For Availability
NI
MAY 8273263 MAY 8273263 Contact Us For Availability
NI
INSULATION, KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
MAY 242905 MAY 242905 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 31617A MAY 31617A Contact Us For Availability
NI
MAY 3196173 MAY 3196173 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MAY 4396923 MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY W10123240 MAY W10123240 Contact Us For Availability
NI
MAY W10279107 MAY W10279107 Contact Us For Availability
NI
ACCESSORY PARTS, KITCHEN AND APPLIANCE CLEANE MAY W10355010 Contact Us For Availability
NI
MAY W10464026 MAY W10464026 Contact Us For Availability
× ![]()
