Model Maytag 4KAER5500AW1 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

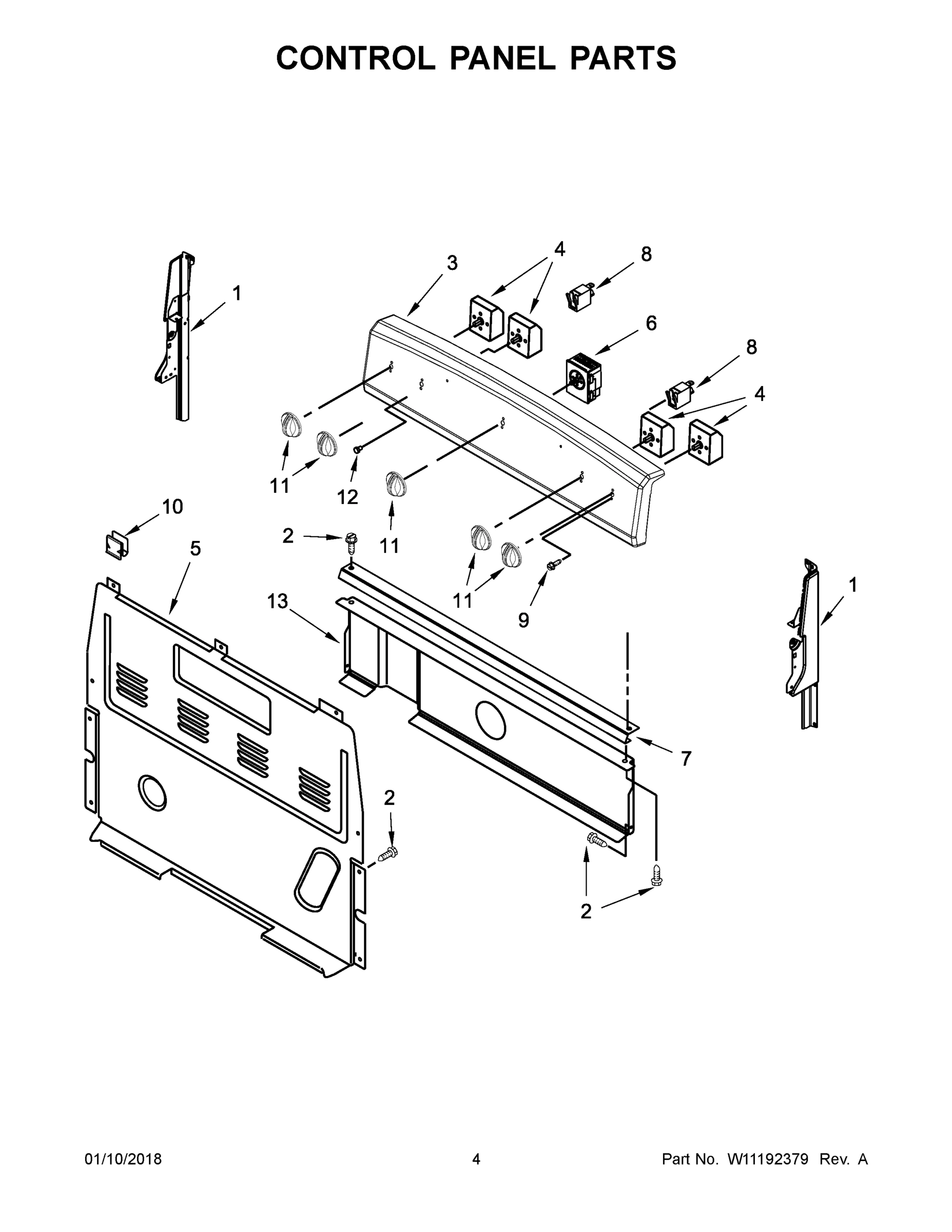

03 - CONTROL PANEL PARTS

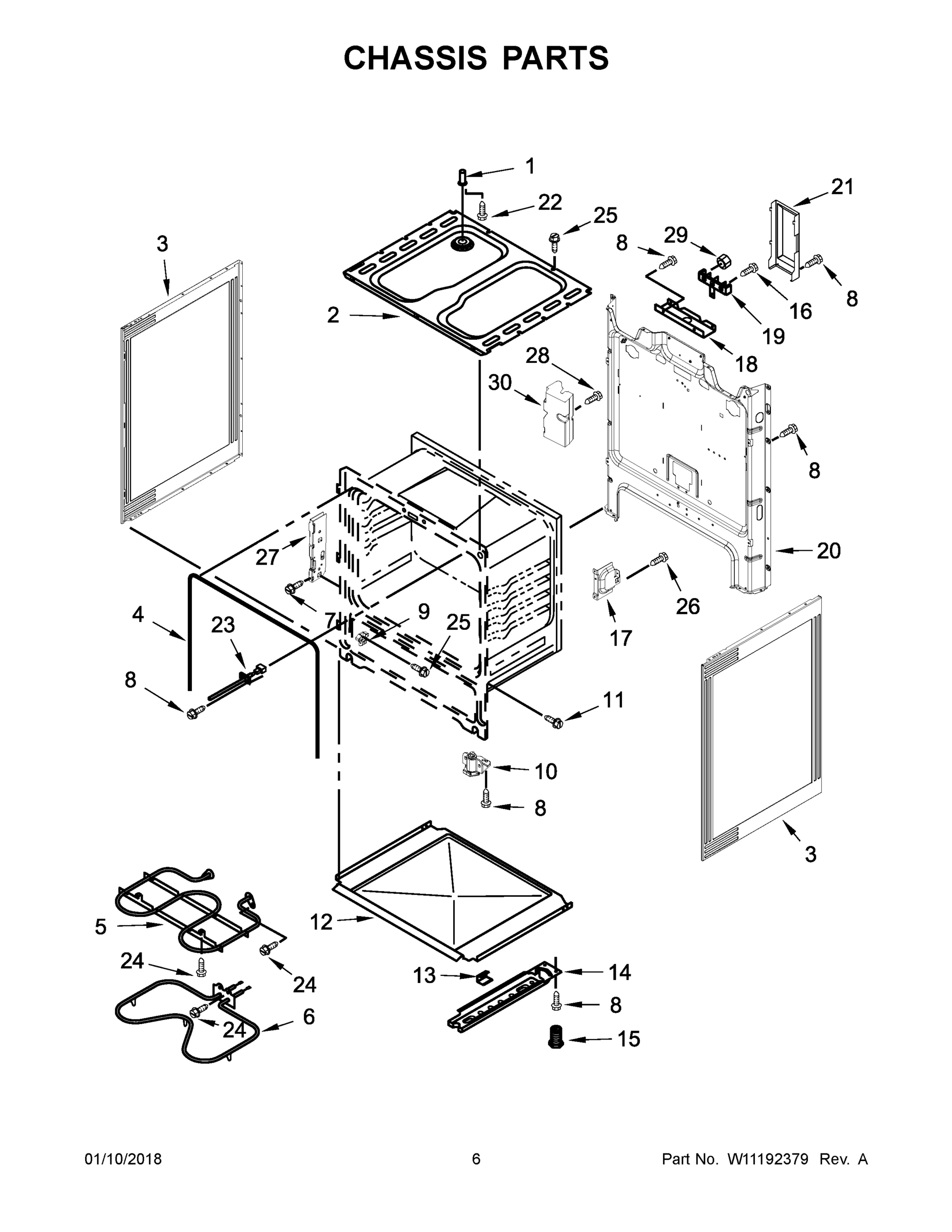

04 - CHASSIS PARTS

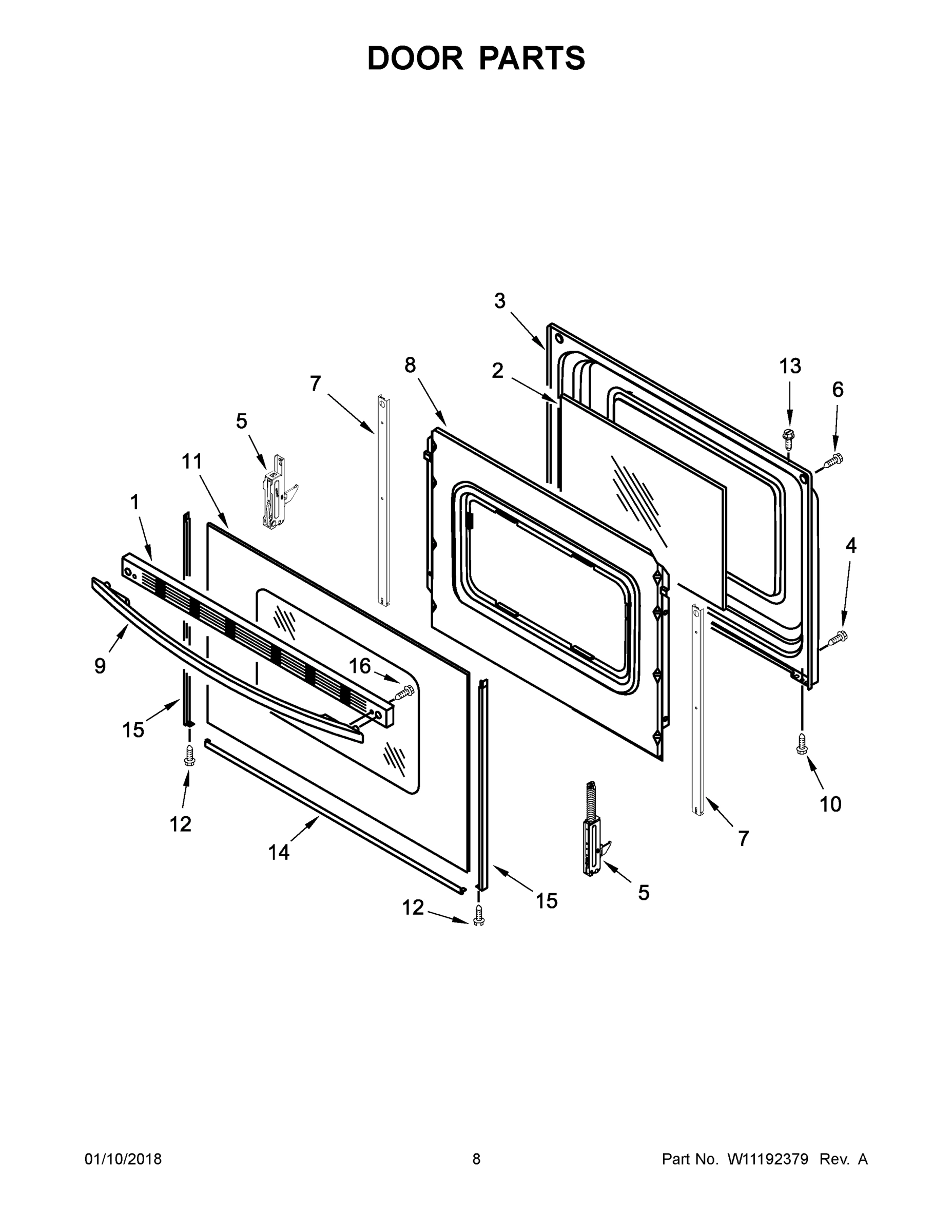

05 - DOOR PARTS

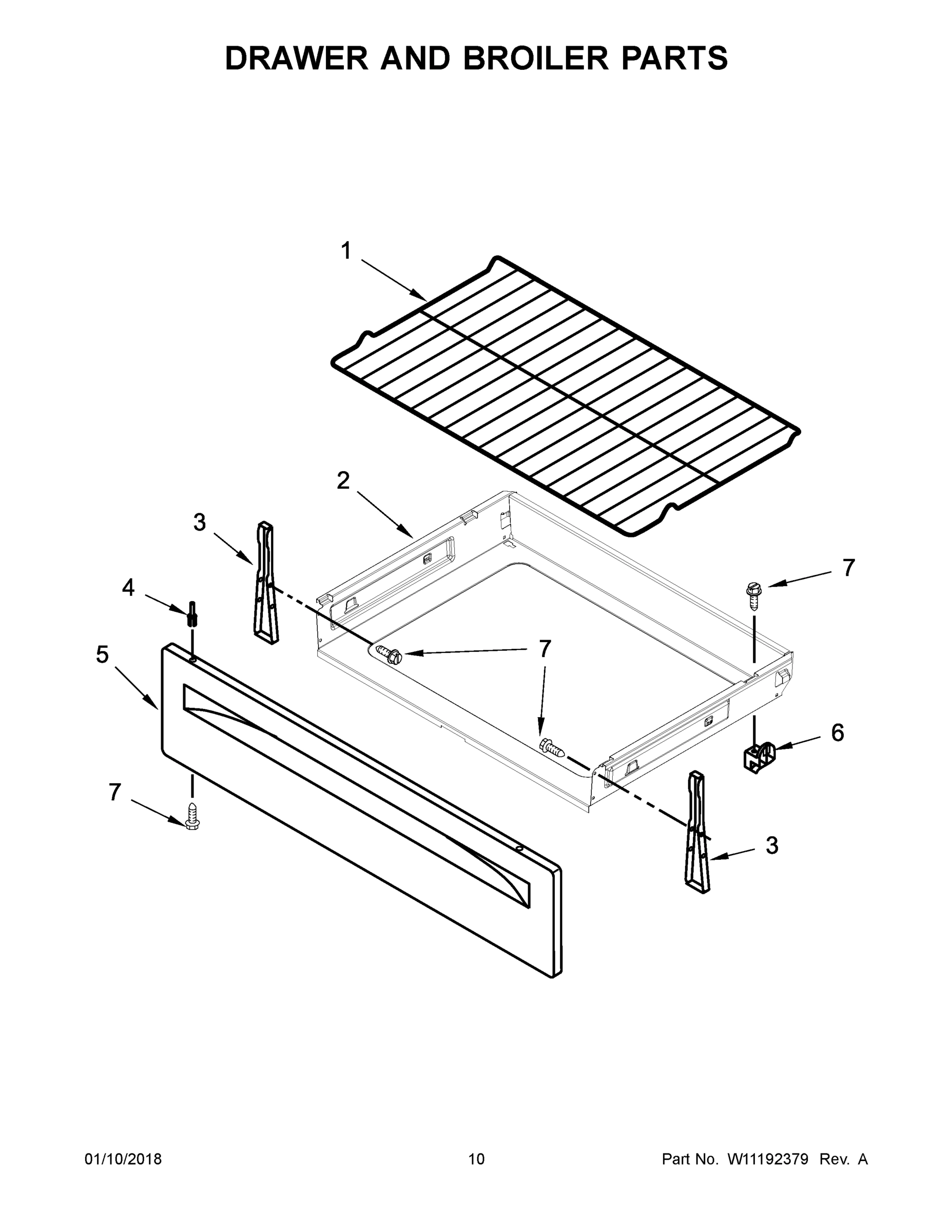

06 - DRAWER AND BROILER PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag 4KAER5500AW1 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
INSTRUCTIONS, INSTALLATION (ENGLISH) MAY W11034224 Contact Us For Availability
1
MAY W11130371 MAY W11130371 Contact Us For Availability
1
TUBE, VENT MAY 3169143 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
RACK, OVEN MAY W10268578 Contact Us For Availability
1A
INSTRUCTIONS, INSTALLATION (ARABIC) MAY W11035119 Contact Us For Availability
1A
MAY W11130378 MAY W11130378 Contact Us For Availability
1B
MAY W10916032 MAY W10916032 Contact Us For Availability
1C
MAY W10916033 MAY W10916033 Contact Us For Availability
1D
TECH SHEET (ENGLISH) MAY W10394783 Contact Us For Availability
1E
TECH SHEET (ARABIC) MAY W10464421 Contact Us For Availability
2
BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR) MAY W10196406 Contact Us For Availability
2
BOX, BURNER MAY W10209613 Contact Us For Availability
2
GLASS, INNER MAY W10620754 Contact Us For Availability
2
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
2A
BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR) MAY W10196405 Contact Us For Availability
3
COOKTOP (WHITE) MAY 3186231 Contact Us For Availability
3
MAY W11134309 MAY W11134309 Contact Us For Availability
3
PANEL, SIDE (WHITE) MAY W10575396 Contact Us For Availability
3
LINER, DOOR MAY 9761344 Contact Us For Availability
3
BRACKET, MOUNTING DRAWER MAY W10462912 Contact Us For Availability
4
HINGE, COOKTOP MAY 3195060 Contact Us For Availability
4
SWITCH, INFINITE (RIGHT FRONT AND LEFT REAR) MAY 3148951 Contact Us For Availability
4
SEAL, DOOR MAY W10129032 Contact Us For Availability
4
SCREW MAY W10031780 Contact Us For Availability
4
RIVET, PUSH (WHITE) MAY 3196814 Contact Us For Availability
4A
SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGH MAY 3148953 Contact Us For Availability
5
COVER, UPPER REAR MAY 8272473 Contact Us For Availability
5
ELEMENT, BROIL MAY 9757340 Contact Us For Availability
5
HINGE, ACTIVE MAY W10299225 Contact Us For Availability
5
MAY W11123901 MAY W11123901 Contact Us For Availability
5A
HINGE, DOOR (PASSIVE) MAY W10299227 Contact Us For Availability
6
CLIP, COOKTOP MAY W10626011 Contact Us For Availability
6
CONTROL, ELECTRONIC (ROC70) MAY W10466758 Contact Us For Availability
6
MAY W11022836 MAY W11022836 Contact Us For Availability
6
SCREW MAY W10200660 Contact Us For Availability
6
GLIDE, DRAWER REAR MAY W10674708 Contact Us For Availability
7
SCREW MAY 3196154 Contact Us For Availability
7
BRACKET, CONSOLE MOUNTING MAY W10525121 Contact Us For Availability
7
SCREW MAY 3196165 Contact Us For Availability
7
STRAP, DOOR MAY W10544179 Contact Us For Availability
8
SCREW MAY 3196178 Contact Us For Availability
8
ELEMENT, SURFACE (6") (RIGHT FRONT AND LEFT R MAY W10259870 Contact Us For Availability
8
INDICATOR, LIGHT (250V) MAY 8523266 Contact Us For Availability
8
RETAINER, INSULATION MAY 9761505 Contact Us For Availability
8A
ELEMENT, SURFACE (8") (LEFT FRONT AND RIGHT R MAY W10259867 Contact Us For Availability
9
BRACKET, ANTI-TIP MAY W10306542 Contact Us For Availability
9
SCREW MAY 3400882 Contact Us For Availability
9
GLIDE, DRAWER FRONT MAY W10674705 Contact Us For Availability
9
HANDLE, DOOR (WHITE) MAY W10323588 Contact Us For Availability
10
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
10
CLIP, REAR UPPER COVER MAY 8273564 Contact Us For Availability
10
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
10
SCREW MAY W10327235 Contact Us For Availability
11
KNOB (WHITE) MAY 9761962 Contact Us For Availability
11
SCREW MAY W10067840 Contact Us For Availability
11
PANEL, OUTER DOOR (WHITE) MAY W10118454 Contact Us For Availability
12
LENS, INDICATOR MAY 3196068 Contact Us For Availability
12
RETAINER, INSULATION MAY 8054068 Contact Us For Availability
13
SHIELD, HEAT MAY W10134247 Contact Us For Availability
13
CLIP, PANEL MAY W10137382 Contact Us For Availability
13
SCREW MAY W10031790 Contact Us For Availability
14
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
14
TRIM, LOWER DOOR (WHITE) MAY 8523175 Contact Us For Availability
14A
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
FOOT, LEVELING MAY W10058460 Contact Us For Availability
15
TRIM, DOOR SIDE (WHITE (RIGHT)) MAY 8523166 Contact Us For Availability
15A
TRIM, DOOR SIDE (WHITE (LEFT)) MAY 8523172 Contact Us For Availability
16
SCREW MAY 3400016 Contact Us For Availability
16
SCREW MAY W10168559 Contact Us For Availability
17
CLIP, OVEN SUPPORT MAY W10404688 Contact Us For Availability
18
BRACKET, SERVICE MAY 3186034 Contact Us For Availability
19
BLOCK, TERMINAL MAY W10245259 Contact Us For Availability
20
BACK, MAIN MAY W10289149 Contact Us For Availability
21
COVER, TERMINAL BLOCK MAY W10326122 Contact Us For Availability
22
SCREW MAY 3196567 Contact Us For Availability
23
SENSOR, OVEN MAY W10181986 Contact Us For Availability
24
SCREW MAY 3196174 Contact Us For Availability
26
SCREW MAY 3196169 Contact Us For Availability
27
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
28
SCREW MAY W11034869 Contact Us For Availability
29
NUT MAY 3400029 Contact Us For Availability
30
COUNTERWEIGHT MAY W10910404 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, COOKTOP MAY W10279107 Contact Us For Availability
NI
HARNESS, MAIN MAY W10464026 Contact Us For Availability
NI
INSULATION, BACK MAY 8272611 Contact Us For Availability
NI
INSULATION, WRAP MAY 8273263 Contact Us For Availability
NI
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, CANNING UNIT MAY 242905 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
× ![]()
