Whirlpool 4K5SSWH1 MIXER | Part Advantage

1

MOTOR HOUSING (WHITE) WPL 2402911 Contact Us For Availability

View on Model

2

W11230105 Whirlpool Trim Band Backorder WPL W11230105 $13.27

View on Model

2

WP9708649 Whirlpool Foot Backorder WPL WP9708649 $3.06

View on Model

3

WP9709194 Whirlpool Black Thumb Screw In Stock WPL WP9709194 $12.61

View on Model

3

WP9709276 Whirlpool Speed Control Lever In Stock WPL WP9709276 $3.50

View on Model

3

PLANETARY (WHITE) WPL 2402861 Contact Us For Availability

View on Model

4

3179300 Whirlpool Support Assembly Backorder WPL 3179300 $43.59

View on Model

4

WP3183680 Whirlpool Spring Backorder WPL WP3183680 $3.06

View on Model

5

WP3182857 Whirlpool Spring In Stock WPL WP3182857 $4.81

View on Model

5

LINK, SPEED AND CAM ASSEMBLY WPL 3184176 Contact Us For Availability

View on Model

5

END COVER (WHITE) WPL 2402531 Contact Us For Availability

View on Model

6

WP241764 Whirlpool Mixer Lift Arm Bowl In Stock WPL WP241764 $5.12

View on Model

6

WPW10112253 Whirlpool Gear Assembly In Stock WPL WPW10112253 $8.38

View on Model

6

LOWER GEARCASE (WHITE) WPL 2403543 Contact Us For Availability

View on Model

7

W10598834 Whirlpool Lift Rod Backorder WPL W10598834 $21.06

View on Model

7

COLUMN (WHITE) WPL 2401484 Contact Us For Availability

View on Model

8

3179280 Whirlpool Base Backorder WPL 3179280 $48.06

View on Model

8

W11082541 Whirlpool Bearing In Stock WPL W11082541 $8.84

View on Model

8

WP9704608 Whirlpool Cotter Pin Backorder WPL WP9704608 $2.91

View on Model

9

W11708396 Whirlpool Washer Backorder WPL W11708396 $3.11

View on Model

10

4159622 Whirlpool PP Spring Backorder WPL 4159622 $2.91

View on Model

11

8533907 Whirlpool Dishwasher Nut Backorder WPL 8533907 $18.57

View on Model

11

W11170663 Whirlpool Washer Backorder WPL W11170663 $2.91

View on Model

11

WP9705444 Whirlpool Pin Groove In Stock WPL WP9705444 $3.06

View on Model

12

W11376375 Whirlpool Handle Backorder WPL W11376375 $22.97

View on Model

13

W11192794 Whirlpool HUB Gear In Stock WPL W11192794 $30.38

View on Model

13

WP16998 Whirlpool Drive Stud Backorder WPL WP16998 $2.91

View on Model

13

WP9703442 Whirlpool Roll Pin Backorder WPL WP9703442 $2.91

View on Model

14

W10802050 Whirlpool Mixer Bowl Backorder WPL W10802050 $59.26

View on Model

15

W10807813 Whirlpool Mixer Beater In Stock WPL W10807813 $13.76

View on Model

16

WP3180526 Whirlpool Bearing Bracket In Stock WPL WP3180526 $13.12

View on Model

16

WPW10674621 Whirlpool Dough Hook Assembly Backorder WPL WPW10674621 $33.43

View on Model

17

WP9705443 Whirlpool Pin Groove Backorder WPL WP9705443 $3.06

View on Model

17

WPW10731415 Whirlpool Stand Mixer Wire Whip In Stock WPL WPW10731415 $19.11

View on Model

18

W11656718 Whirlpool Insert In Stock WPL W11656718 $3.59

View on Model

18

WP4162324 Whirlpool Case Gasket In Stock WPL WP4162324 $10.43

View on Model

18

BRACKET, BOWL LIFT WPL 240169 Contact Us For Availability

View on Model

19

WP240185 Whirlpool Bowl Retaining Pin Backorder WPL WP240185 $2.91

View on Model

20

W10861883 Whirlpool Screw Backorder WPL W10861883 $2.91

View on Model

21

WP116286 Whirlpool Spring Cap Backorder WPL WP116286 $2.91

View on Model

21

WP4162403 Whirlpool Screw Backorder WPL WP4162403 $2.91

View on Model

22

WP116287 Whirlpool Spring Cap Backorder WPL WP116287 $2.91

View on Model

22

WP4159193 Whirlpool Screw In Stock WPL WP4159193 $2.91

View on Model

23

WP3184212 Whirlpool Stand Mixer Black Brush H Backorder WPL WP3184212 $3.06

View on Model

23

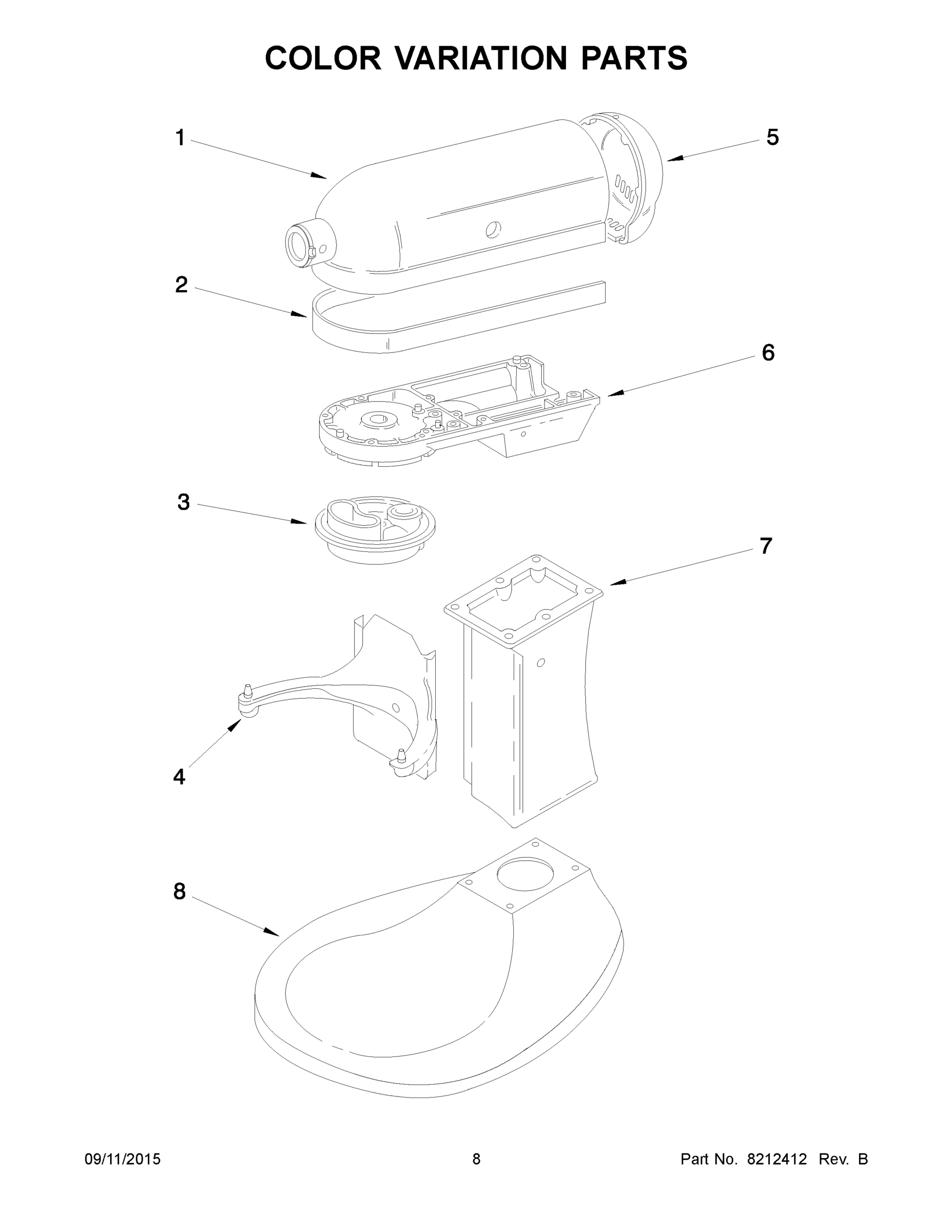

BASE & FOOT ASSEMBLY (REFER TO COLOR VARIATIO WPL NP Contact Us For Availability

View on Model

24

3182904 Whirlpool Screw Backorder WPL 3182904 $19.27

View on Model

24

WPW10330804 Whirlpool Speed Governor In Stock WPL WPW10330804 $9.70

View on Model

25

WP240285 Whirlpool Drip Ring In Stock WPL WP240285 $5.64

View on Model

25

CONTROL PLATE ASSEMBLY WPL 2409042 Contact Us For Availability

View on Model

26

W11396625 Whirlpool Power Cord In Stock WPL W11396625 $10.34

View on Model

26

WP9706090 Whirlpool Washer In Stock WPL WP9706090 $2.91

View on Model

27

W11133645 Whirlpool Pinion Gear Backorder WPL W11133645 $3.11

View on Model

27

WPW10325124 Whirlpool Phase Board In Stock WPL WPW10325124 $16.41

View on Model

28

W11133634 Whirlpool Armature In Stock WPL W11133634 $50.98

View on Model

28

WP3400025 Whirlpool Screw Backorder WPL WP3400025 $2.91

View on Model

29

W11210996 Whirlpool Sleeve Backorder WPL W11210996 $2.91

View on Model

30

SCREW Backorder WPL 3184609 $17.70

View on Model

31

WP3179908 Whirlpool Brush Holder Backorder WPL WP3179908 $3.06

View on Model

32

4162546 Whirlpool Brush Holder In Stock WPL 4162546 $15.46

View on Model

35

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.05

View on Model
