Model Whirlpool 4ED25PWXWN02 REFRIGERATOR – Common Parts &amp; Diagrams

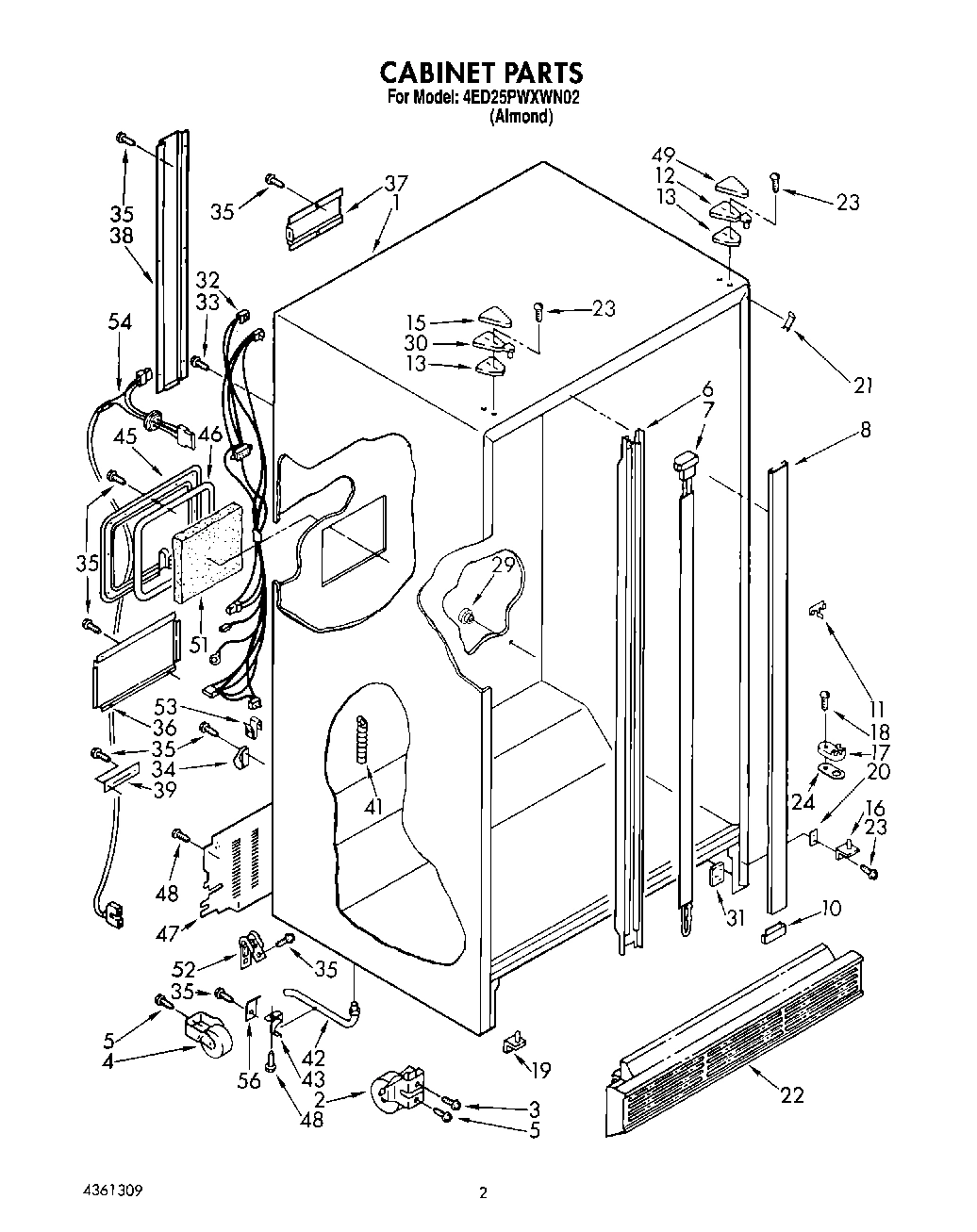

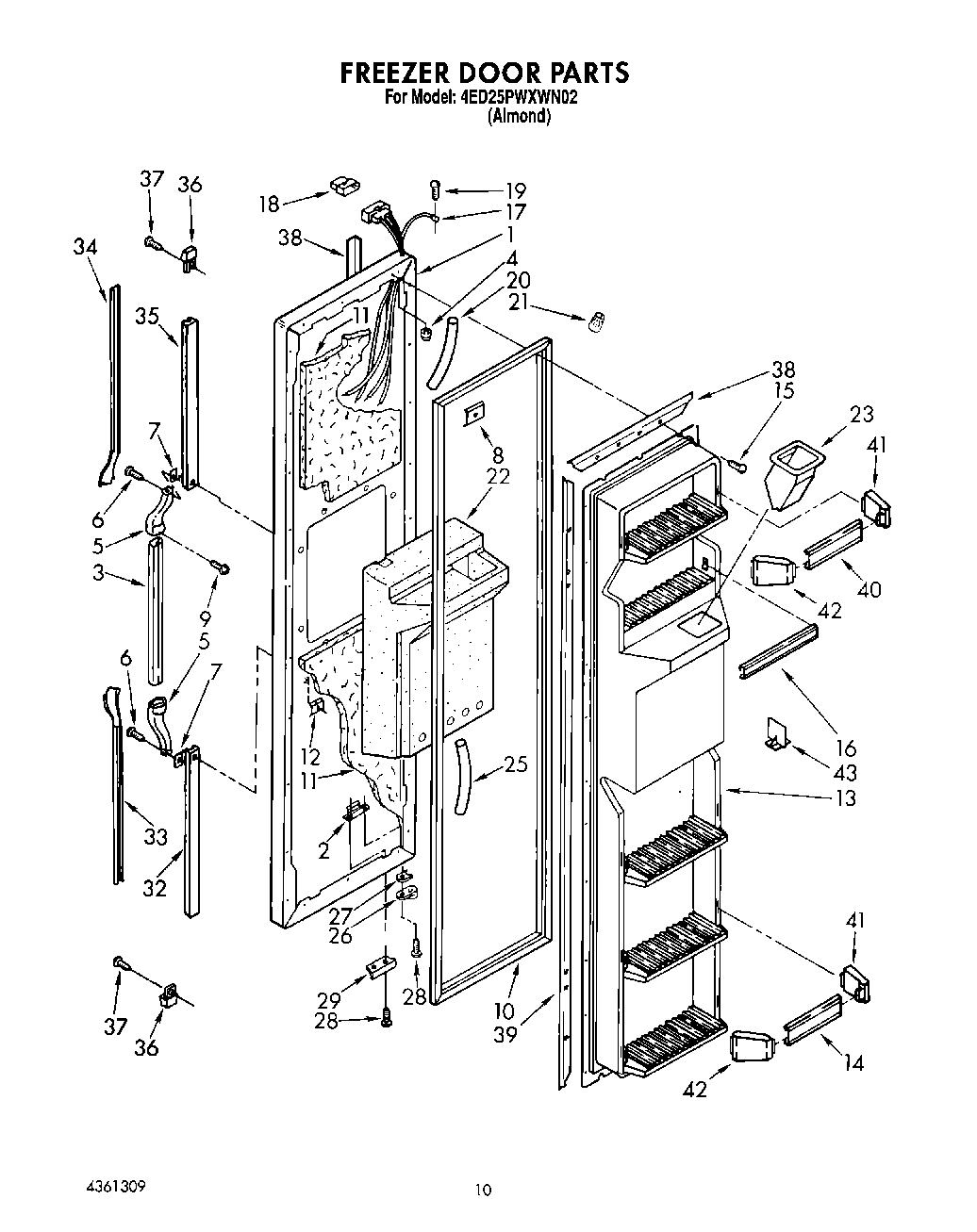

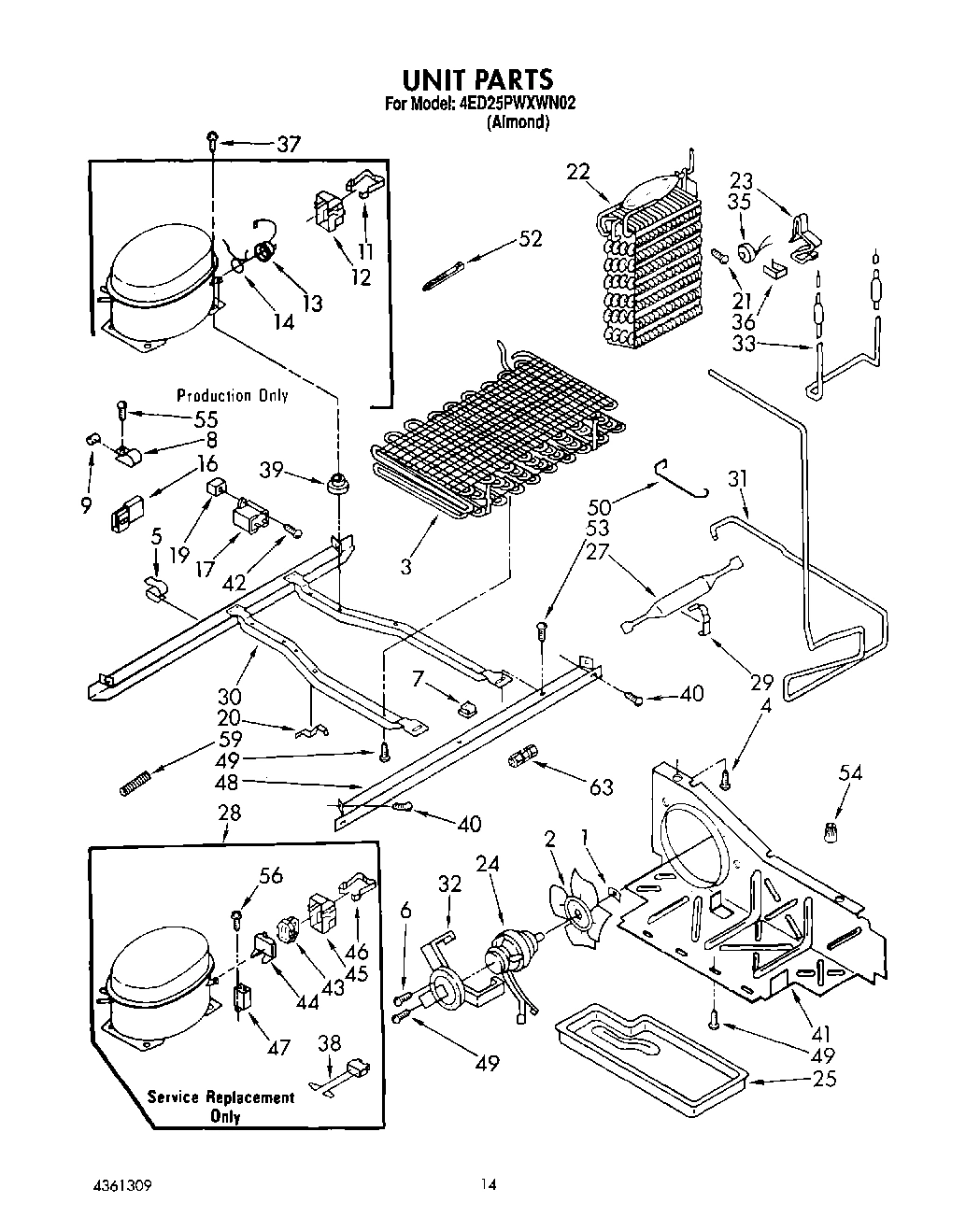

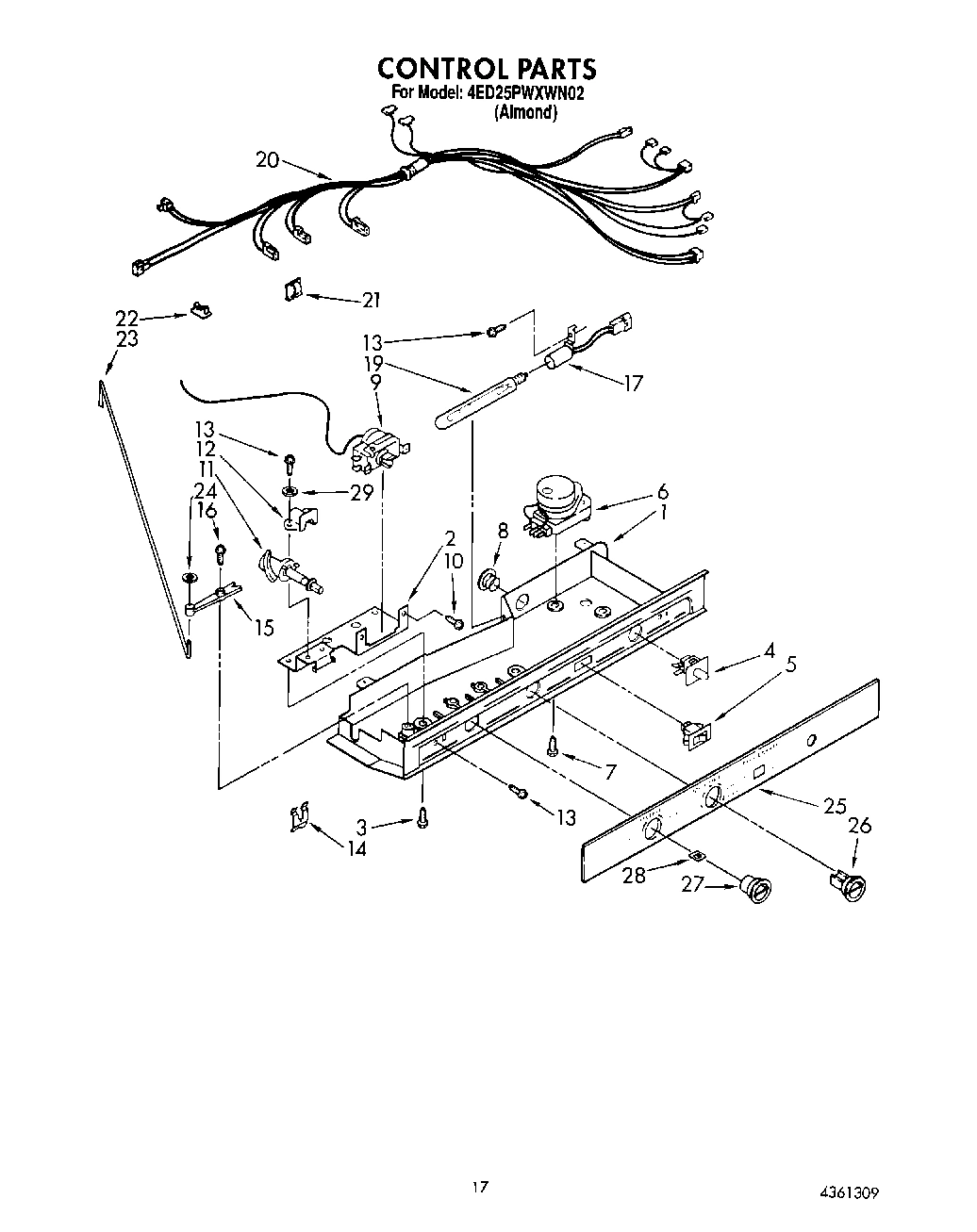

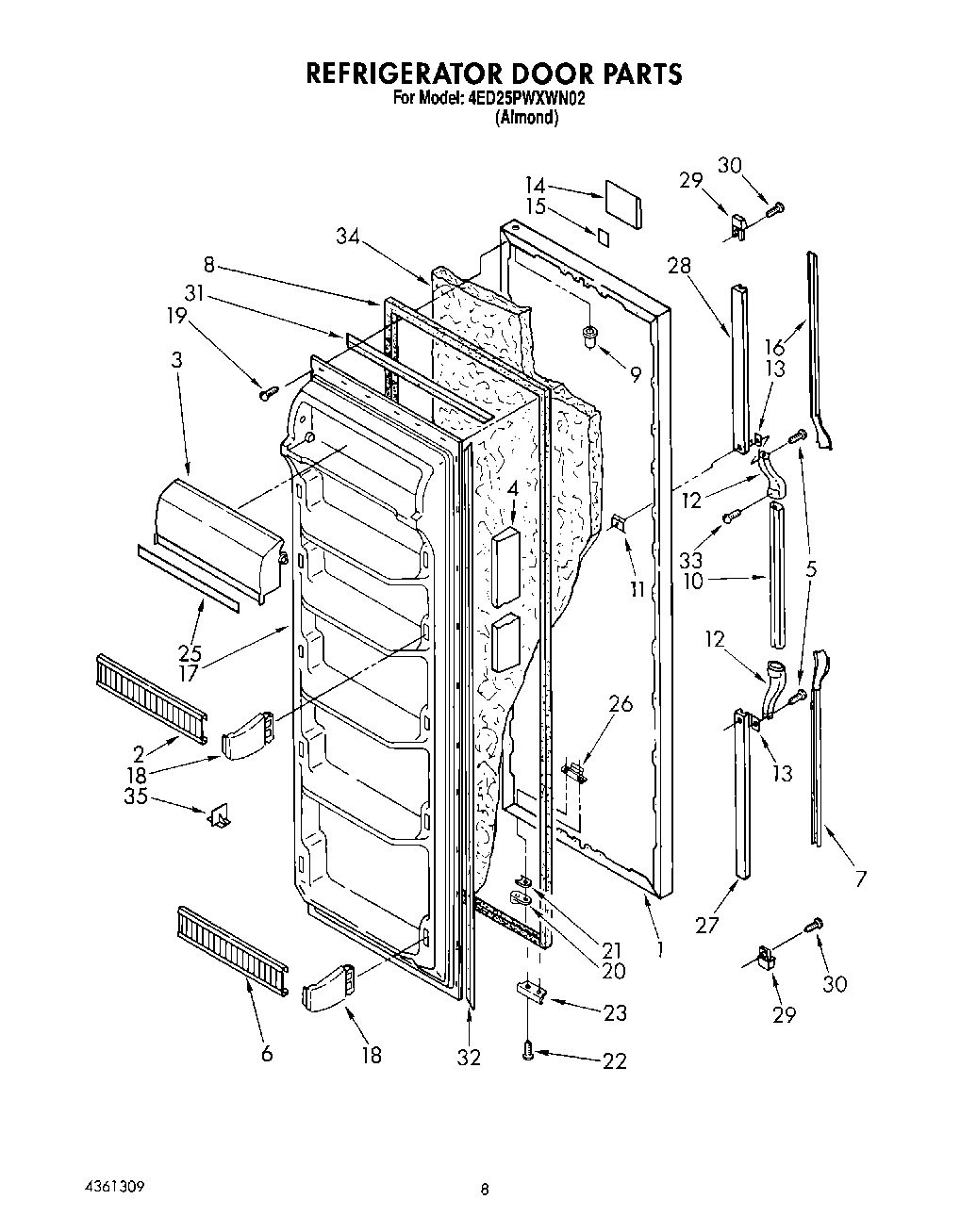

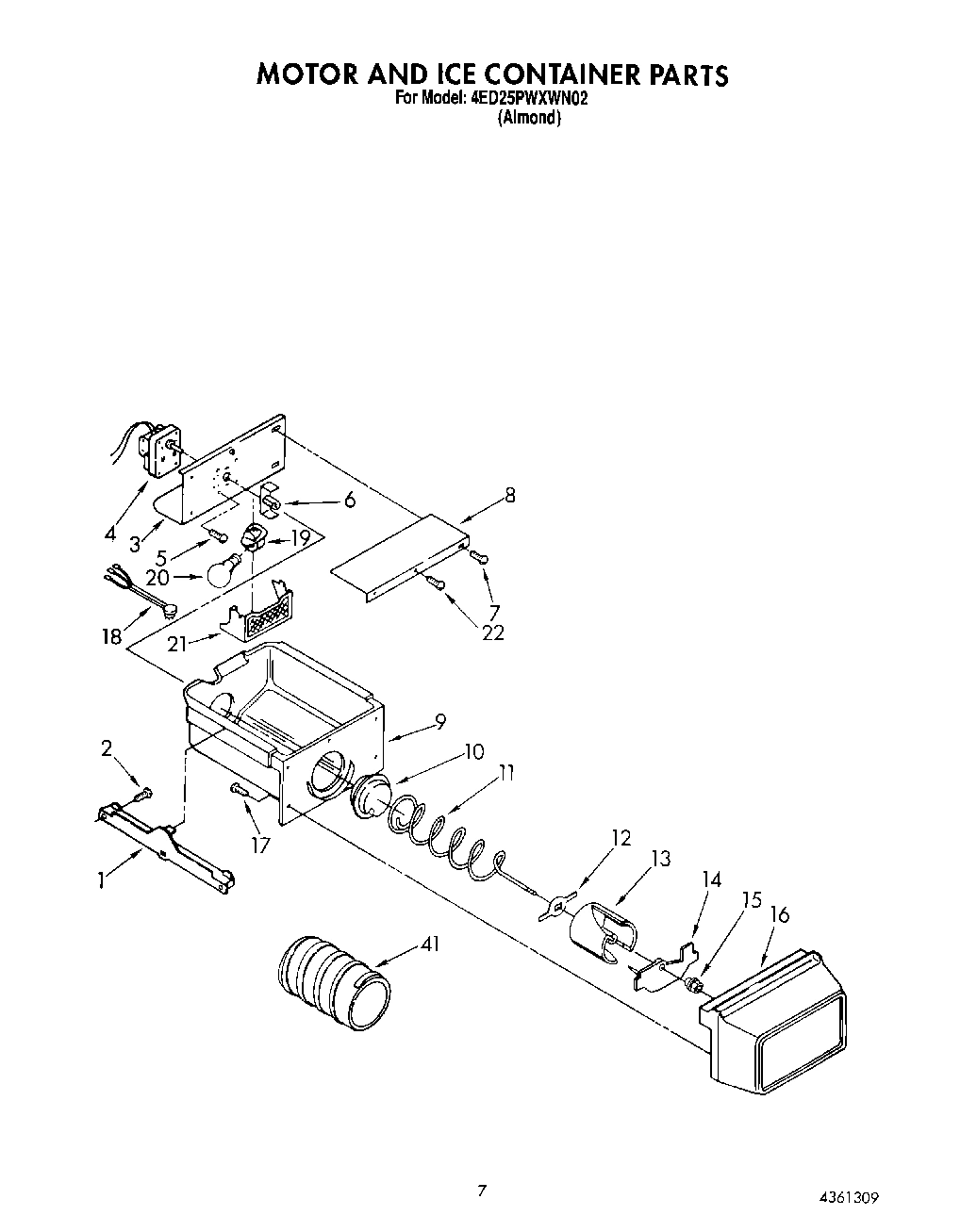

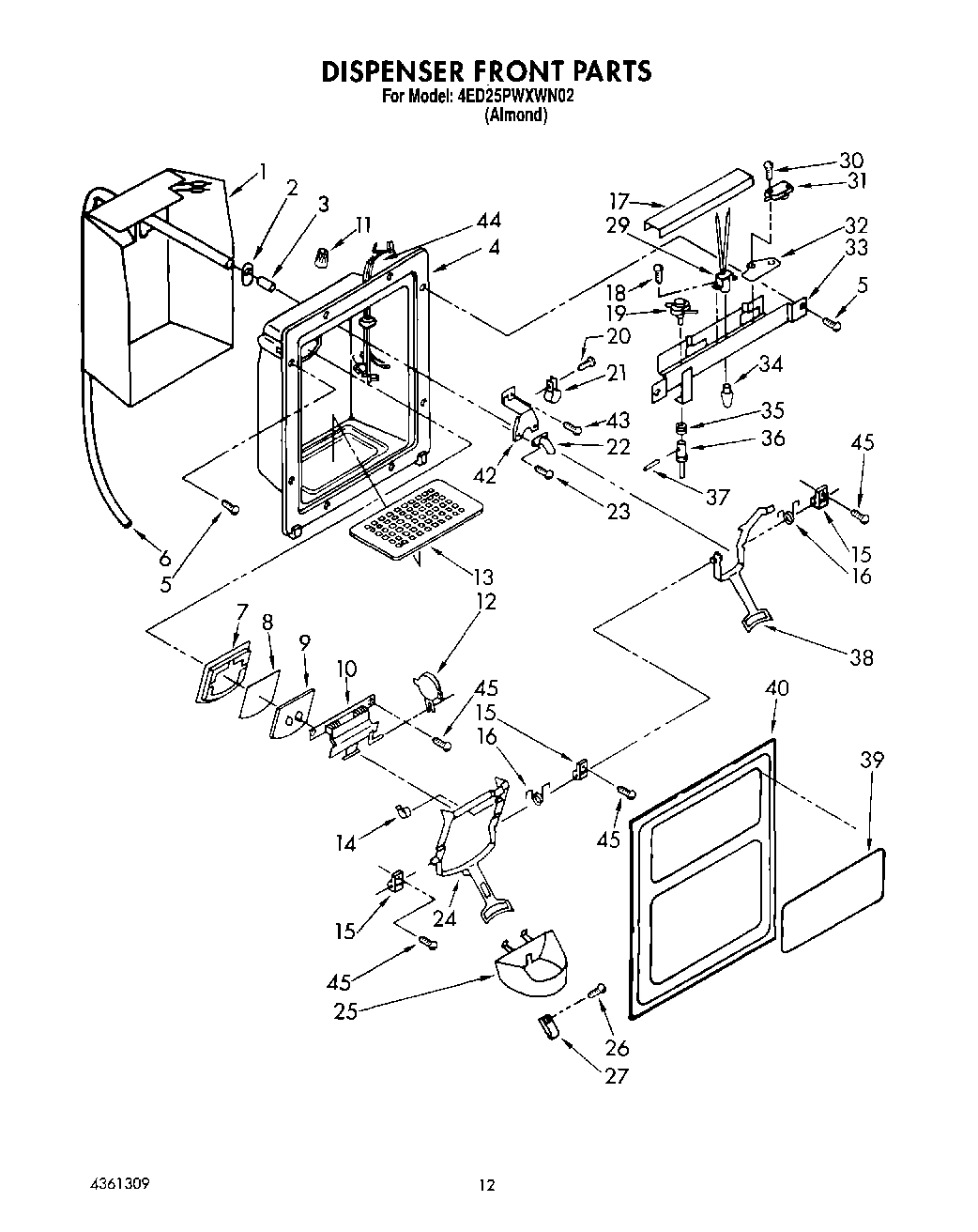

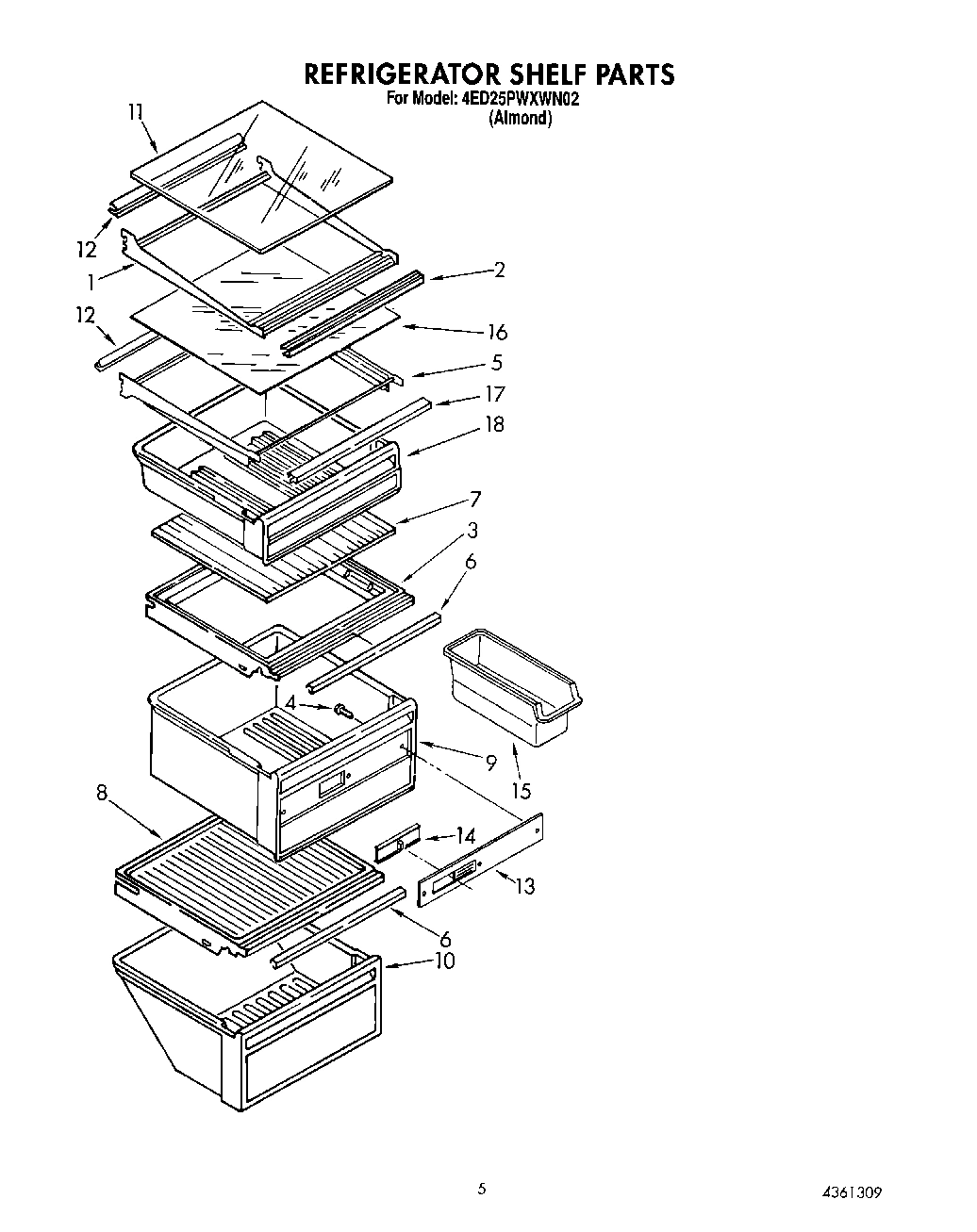

1

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

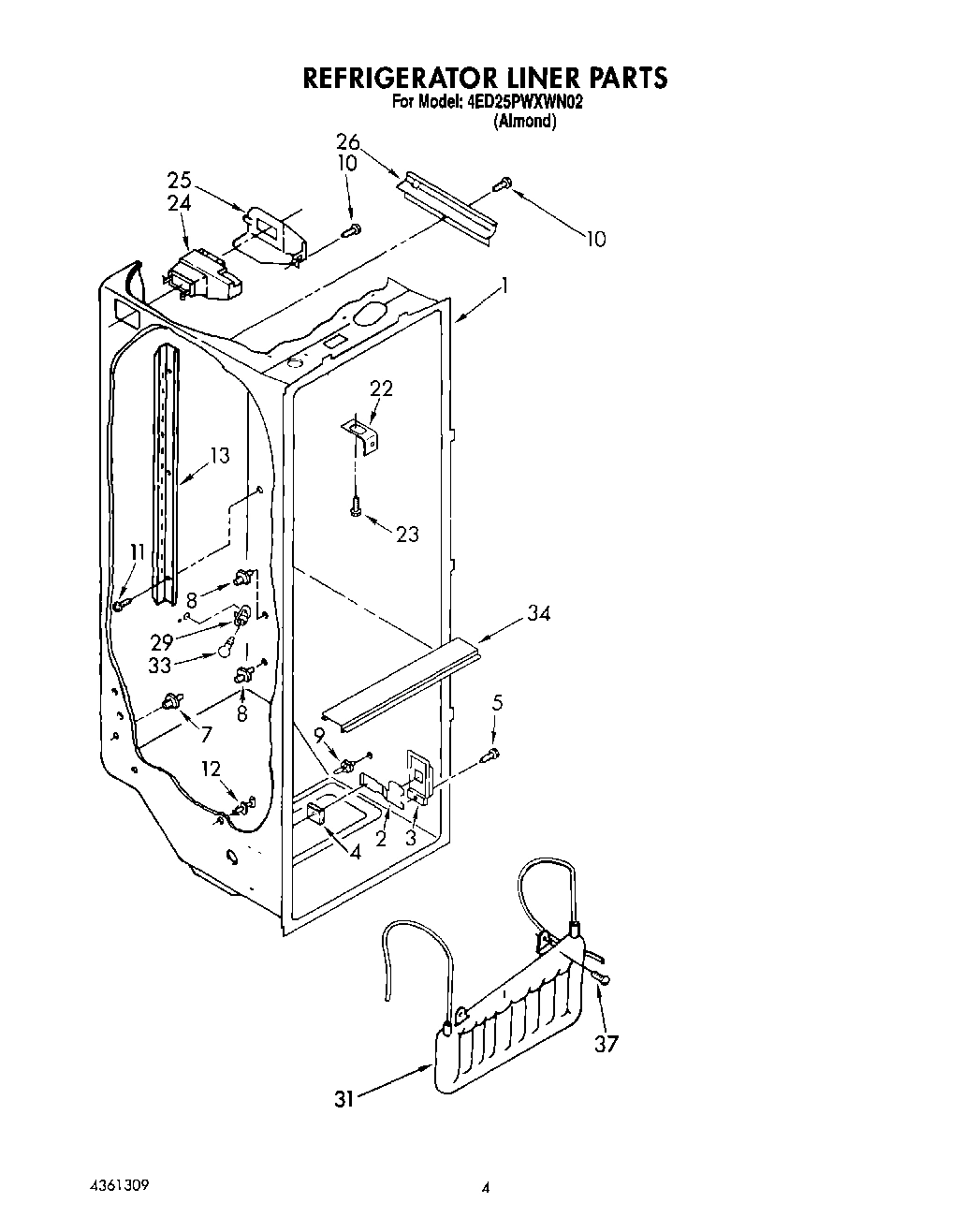

Liner (Not A Serviceable Part) WPL ARI140663A Contact Us For Availability

1

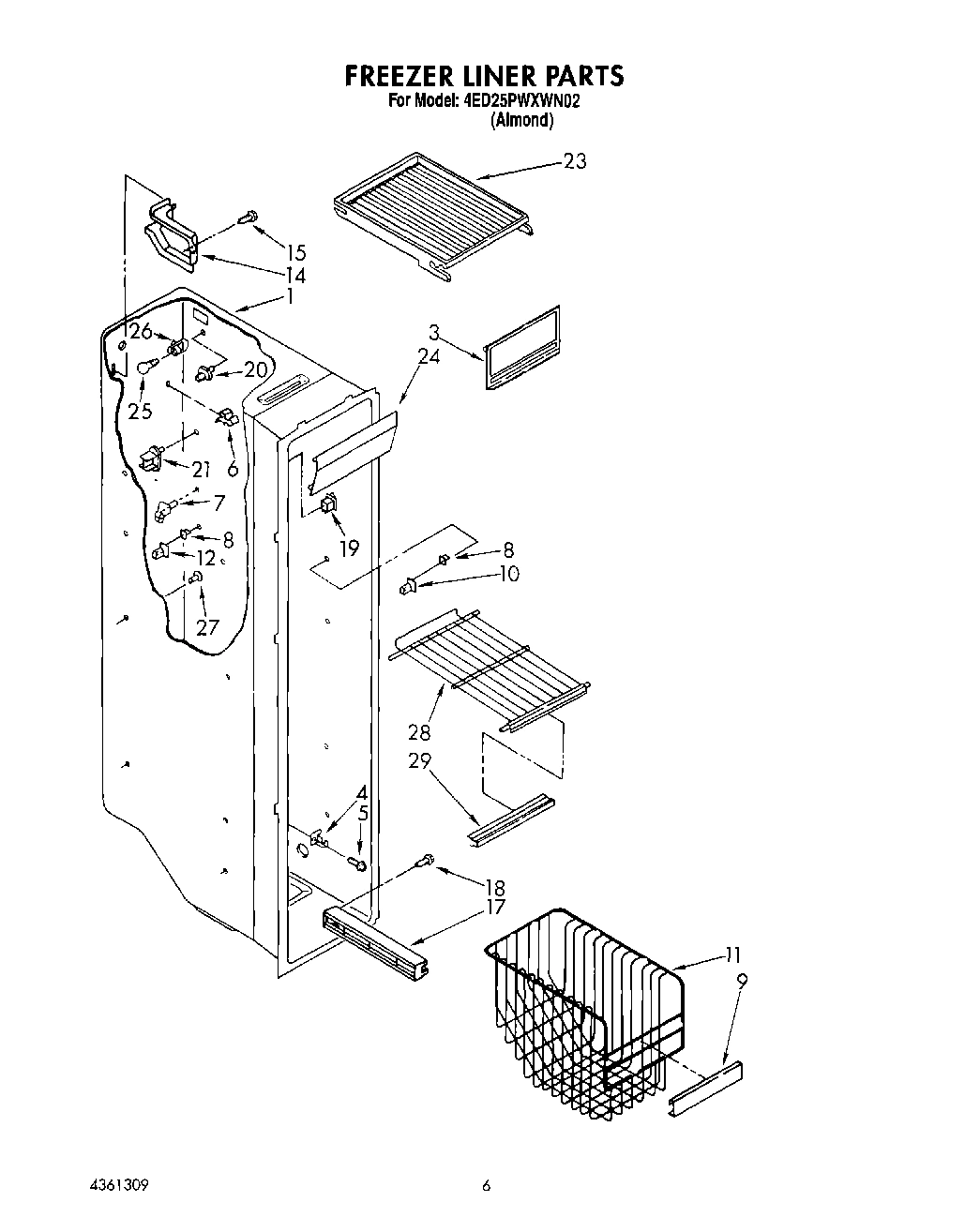

Freezer, Door Panel (Also Order Item 11) WPL 1110655 Contact Us For Availability

1

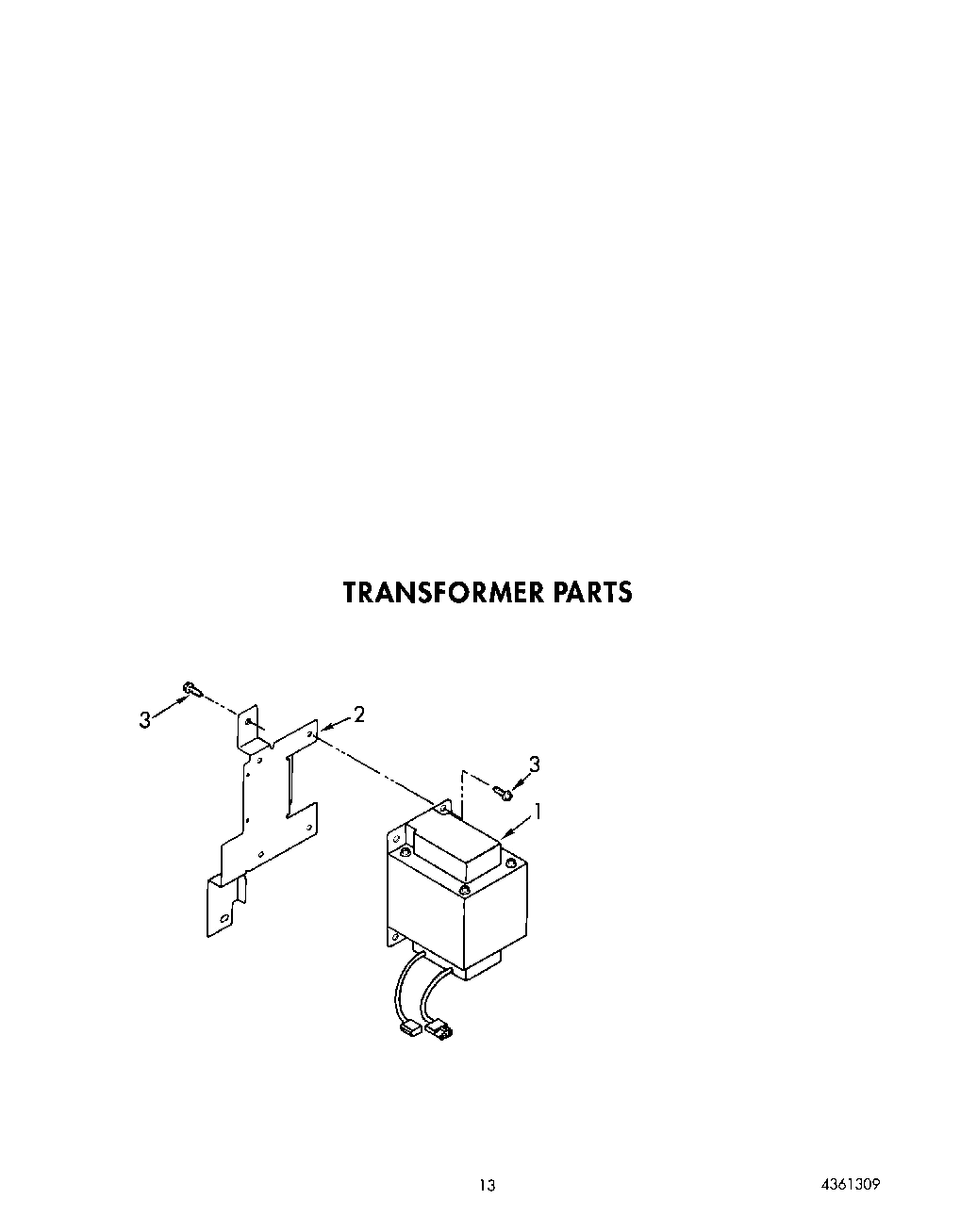

Transformer WPL 2158819 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI140664A Contact Us For Availability

1

Control Box WPL 1129413 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI140662A Contact Us For Availability

1

Heater, Dispenser WPL 2154791 Contact Us For Availability

1

Shelf Assembly, Cantilever (2) WPL 1118413 Contact Us For Availability

1

Refrigerator Door (Also Order Item 34) WPL 1110645 Contact Us For Availability

2

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Escutcheon, Meat Pan Control WPL 2158954 Contact Us For Availability

2

Bracket WPL 1129328 Contact Us For Availability

2

Front Roller (2) WPL 2152011 Contact Us For Availability

2

Grommet WPL 987048 Contact Us For Availability

2

Trim, Shelf WPL 1114302 Contact Us For Availability

2

Trim, Door Shelf (3) WPL 2148180 Contact Us For Availability

3

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

3

WP1126289 Whirlpool Refrigerator Cover Backorder WPL WP1126289 $68.02

3

Slide, Meat Pan Control WPL 984102 Contact Us For Availability

3

Screw WPL 489364 Contact Us For Availability

3

Door, Ice Compartment WPL 2158956 Contact Us For Availability

3

Bracket, Ice Dispenser WPL 1115337 Contact Us For Availability

3

Screw (2) WPL 489190 Contact Us For Availability

3

Screw WPL 489393 Contact Us For Availability

3

Door, Compartment WPL 2148702 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Pad, Foam WPL 992358 Contact Us For Availability

4

Seal, Hinge Pin WPL 939886 Contact Us For Availability

4

Evaporator, Support WPL 1108436 Contact Us For Availability

4

Motor WPL 851152 Contact Us For Availability

4

Housing, Dispenser WPL 1107943 Contact Us For Availability

4

Screw (3) WPL 489226 Contact Us For Availability

4

Shelf, Reinforcement WPL 2152266 Contact Us For Availability

5

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

5

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

5

Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability

5

Pan Shelf & Slide Assembly WPL 2148122 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

6

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

6

Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability

6

Mullion Rail WPL 2155016 Contact Us For Availability

6

Trim, Crisper Cover WPL 1110795 Contact Us For Availability

6

Trim, Door Shelf (2) WPL 2148181 Contact Us For Availability

7

4388405 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388405 $4.36

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP2149540 Whirlpool Shelf Support In Stock WPL WP2149540 $4.34

7

Glass, Crisper Cover WPL 1114687 Contact Us For Availability

7

Gasket, Door WPL 983691 Contact Us For Availability

7

Insert, Handle WPL 1119363 Contact Us For Availability

7

Heater Mullion WPL 1129434 Contact Us For Availability

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2148298 Whirlpool Refrigerator Deli Drawer Backorder WPL WP2148298 $93.36

8

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

8

Shield, Ice Door WPL 987121 Contact Us For Availability

8

Blade, Fan WPL 992920 Contact Us For Availability

8

support stud (8) WPL 946355 Contact Us For Availability

8

Cover, Motor WPL 1115339 Contact Us For Availability

8

Front Mullion Rail WPL 1123975 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1127309 Contact Us For Availability

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $76.54

9

Stud (2) WPL 1115290 Contact Us For Availability

9

Door, Ice WPL 983690 Contact Us For Availability

9

Trim, Basket WPL 2148296 Contact Us For Availability

9

Pan, Crisper WPL 2158951 Contact Us For Availability

9

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Handle, Center WPL 1118417 Contact Us For Availability

Door Gasket, Magnetic WPL 1127310 Contact Us For Availability

Stud, Front (3) WPL 946356 Contact Us For Availability

Filler Bottom Mullion WPL 1118362 Contact Us For Availability

Door Mechanism Assembly WPL 938669 Contact Us For Availability

Pan, Meat WPL 2158949 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

Wire Connector WPL 227991 Contact Us For Availability

Screw Anchor (2) WPL 941242 Contact Us For Availability

Basket, Slope WPL 2152090 Contact Us For Availability

Conveyor WPL 1115214 Contact Us For Availability

Cam Assembly WPL 1110566 Contact Us For Availability

Clip, Ground WPL 1110607 Contact Us For Availability

Glass, Shelf WPL 2148237 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $30.73

WP1120581 Whirlpool Refrigerator Mechanism Backorder WPL WP1120581 $80.45

End Cap, Center Handle WPL 1119359 Contact Us For Availability

Stud, Rear (3) WPL 1106982 Contact Us For Availability

Hinge, Top WPL 1123514 Contact Us For Availability

Reflector, Shelf WPL 1114306 Contact Us For Availability

Grille, Overflow WPL 983900 Contact Us For Availability

Shim, Hinge Top WPL 1123515 Contact Us For Availability

Ladder, Shelf (2) WPL 1116794 Contact Us For Availability

Shim WPL 935075 Contact Us For Availability

Panel, Interior Door WPL 1124969 Contact Us For Availability

Front, Crisper Pan WPL 2158950 Contact Us For Availability

Trim, Shelf (3) WPL 2148331 Contact Us For Availability

Wiring Cover WPL 1114607 Contact Us For Availability

Baffle WPL 1115362 Contact Us For Availability

Retainer, Damper WPL 938439 Contact Us For Availability

Clip, Bearing (2) WPL 987917 Contact Us For Availability

Slide WPL 1116718 Contact Us For Availability

Nameplate WPL 944380 Contact Us For Availability

WP1129262 Whirlpool Refrigerator Cover Backorder WPL WP1129262 $10.38

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

Pivot Arm WPL 1110559 Contact Us For Availability

Nut, Bearing WPL 946195 Contact Us For Availability

Bearing, Lever (3) WPL 983697 Contact Us For Availability

Tape Strip WPL 991259 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

Spring, Lever (2) WPL 983696 Contact Us For Availability

Trim, Door Shelf WPL 2148321 Contact Us For Availability

Insert, Handle WPL 1119375 Contact Us For Availability

Front Cover WPL 2148312 Contact Us For Availability

Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability

Glass, Shelf WPL 2148300 Contact Us For Availability

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

Harness, Door (Includes Item 18) WPL 1116960 Contact Us For Availability

Shelf Track (Right Side) WPL 1126354 Contact Us For Availability

Shelf Track (Left Side) WPL 1126355 Contact Us For Availability

Light Socket WPL 1110690 Contact Us For Availability

Shield, Wiring WPL 984494 Contact Us For Availability

Trim, Shelf WPL 2148301 Contact Us For Availability

Panel, Interior Door WPL 1124968 Contact Us For Availability

4388286 Whirlpool Refrigerator Shelf Bar Endc In Stock WPL 4388286 $8.55

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

Connector, Plug WPL 936183 Contact Us For Availability

Wiring Assembly, Ice Dispenser WPL 2155170 Contact Us For Availability

Snack Bin WPL 2158957 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

WP548049 Whirlpool Refrigerator Light Bulb Backorder WPL WP548049 $26.21

hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability

Switch, Light WPL 851386 Contact Us For Availability

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.42

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $11.05

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Tube, Door Wiring WPL 1119060 Contact Us For Availability

Control Box Harness WPL 2149756 Contact Us For Availability

Spacer, Hinge WPL 836196 Contact Us For Availability

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

Stud, Shelf (4) WPL 1115386 Contact Us For Availability

Lens, Dispenser Light WPL 983359 Contact Us For Availability

Filler, Wrapper WPL 1110709 Contact Us For Availability

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $83.91

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Evaporator WPL 1110668 Contact Us For Availability

Insulation, Dispenser WPL 1115345 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

Grille WPL 1129054 Contact Us For Availability

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Clamp (4) WPL 1108431 Contact Us For Availability

Chute, Ice WPL 987188 Contact Us For Availability

Bracket, Door Stop WPL 1115906 Contact Us For Availability

Shelf, Top Compartment WPL 1118294 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

Screw WPL 489327 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

Shim, Door Closer (White) WPL 987179 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

Light Lens WPL 1115389 Contact Us For Availability

Shim, Door Closer (Almond) WPL 987180 Contact Us For Availability

Lever Assembly, Ice Dispenser WPL 1127421 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

Tray, Evaporator WPL 1110674 Contact Us For Availability

Tube, Door Wiring WPL 2147080 Contact Us For Availability

Escutcheon WPL 2158955 Contact Us For Availability

Guide, Ice WPL 1118269 Contact Us For Availability

Trim, Door WPL 1110717 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

Tap Plate WPL 988402 Contact Us For Availability

Screw WPL 489197 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP1104787 Whirlpool Refrigerator Shim Backorder WPL WP1104787 $3.70

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Stop, Glass WPL 1119056 Contact Us For Availability

Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability

Grommet (8) WPL 1110779 Contact Us For Availability

Knob, Air Control WPL 1110562 Contact Us For Availability

Compressor (Includes Items 38, 43, 44, 45, 46 WPL 4317962 Contact Us For Availability

Retainer, Insert WPL 1119372 Contact Us For Availability

Shelf (3) WPL 1116956 Contact Us For Availability

Knob, Retainer WPL 837444 Contact Us For Availability

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

Clamp, Dryer WPL 1127590 Contact Us For Availability

End Cap WPL 2156220 Contact Us For Availability

Trim, Shelf (3) WPL 1120547 Contact Us For Availability

Grommet WPL 1129178 Contact Us For Availability

Socket, Lamp WPL 987265 Contact Us For Availability

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $105.40

Screw, 10-32 x 5/8 (2) WPL 489075 Contact Us For Availability

Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability

Screw, 4-40 x 3/4 (4) WPL 488362 Contact Us For Availability

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

Exchanger, Heat WPL 2158939 Contact Us For Availability

Tap Plate (2) WPL 2147310 Contact Us For Availability

Switch (2) WPL 1129556 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability

Fan, Motor Bracket WPL 2162062 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability

Cabinet Harness WPL 2155156 Contact Us For Availability

Insulator, Switch (2) WPL 984683 Contact Us For Availability

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

Heater, Defrost WPL 2154543 Contact Us For Availability

Screw (4) WPL 489022 Contact Us For Availability

Bracket, Control WPL 1129283 Contact Us For Availability

34

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

34

Light Lens WPL 1118259 Contact Us For Availability

34

Clamp WPL 937357 Contact Us For Availability

WP4387499 Whirlpool Refrigerator Bimetallic D In Stock WPL WP4387499 $41.78

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Divider, Shelf WPL 1114380 Contact Us For Availability

Spring, Plunger WPL 983986 Contact Us For Availability

36

Clamp WPL 513584 Contact Us For Availability

36

Cover, Wiring WPL 1129193 Contact Us For Availability

36

Plunger WPL 1116563 Contact Us For Availability

37

Screw (2) WPL 488280 Contact Us For Availability

37

Wiring Shield, Short WPL 1108440 Contact Us For Availability

37

Pin, Retainer WPL 983987 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability

Wiring Shield, Long WPL 1119063 Contact Us For Availability

Lever Assembly, Water Dispenser WPL 1115349 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

Tube Clamp (2) WPL 1105607 Contact Us For Availability

39

Overlay, Front Cover WPL 2158952 Contact Us For Availability

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

Trim, Door Shelf WPL 2148330 Contact Us For Availability

40

Front Cover, Housing (Includes Item 39) WPL 2158967 Contact Us For Availability

4317870 Whirlpool Refrigerator Auger Sleeve Backorder WPL 4317870 $82.48

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

End Cap, Trim (4) WPL 1115364 Contact Us For Availability

Fitting, Drain WPL 942768 Contact Us For Availability

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

End Cap, Trim (4) WPL 1115333 Contact Us For Availability

42

Bracket, Water WPL 987049 Contact Us For Availability

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

43

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

43

Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability

44

Overload WPL 1118841 Contact Us For Availability

44

Wiring Assembly, Door WPL 2149783 Contact Us For Availability

45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

45

Cover WPL 1108115 Contact Us For Availability

45

Cover, Plug WPL 1110625 Contact Us For Availability

46

Strap WPL 938384 Contact Us For Availability

46

Sealing Gasket WPL 1115322 Contact Us For Availability

47

Cover, Unit WPL 1129352 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

48

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

49

Screw WPL 488624 Contact Us For Availability

50

Guard, Fan WPL 1110663 Contact Us For Availability

51

Insulation WPL 1118237 Contact Us For Availability

52

Strap WPL 851095 Contact Us For Availability

52

Clamp, Service Cord WPL 1129503 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

53

Clip, Wire WPL 548745 Contact Us For Availability

54

WP2187501 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187501 $53.02

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

56

Clamp, Water Line (2) WPL 836472 Contact Us For Availability

59

Spring, Tube Forming WPL 983659 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4211117 Whirlpool Refrigerator Connector In Stock WPL WP4211117 $5.34

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
