Model Electrolux 44-2417-00-01 LAUNDRY CENTER – Common Parts & Diagrams

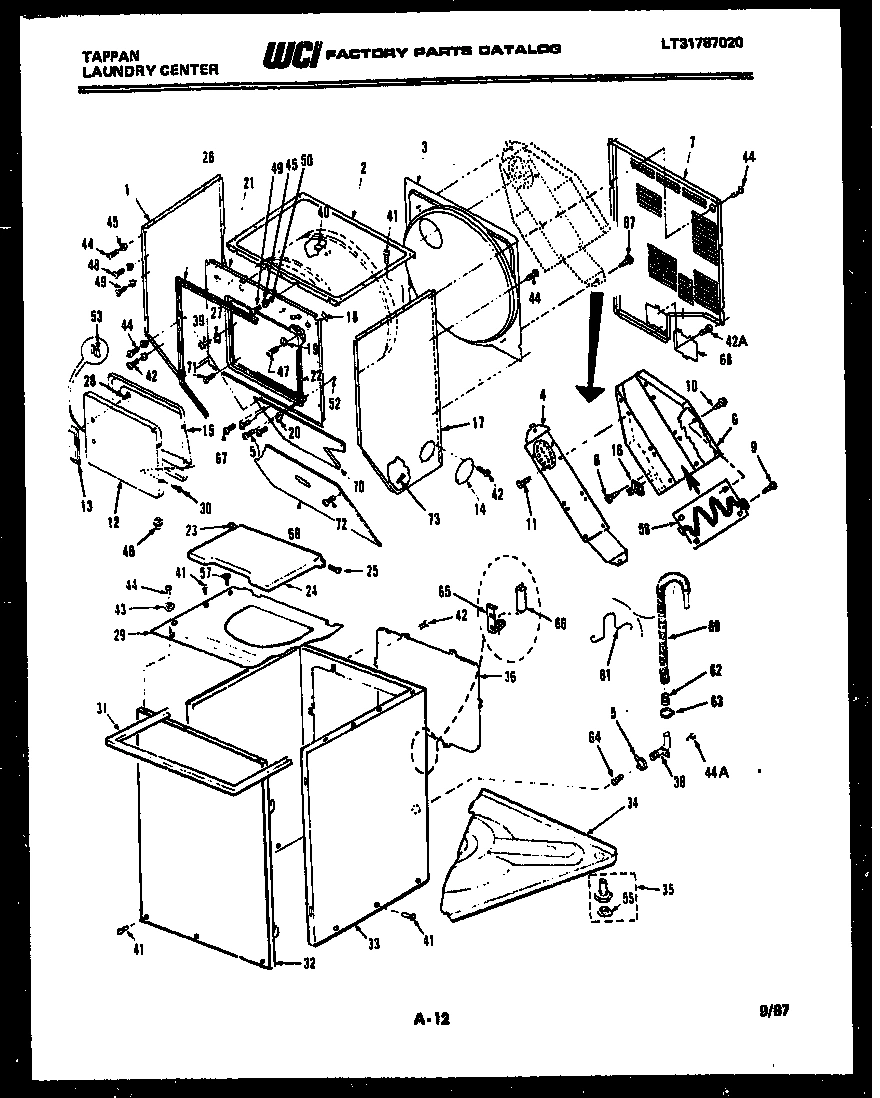

02 - CABINET PARTS AND HEATER

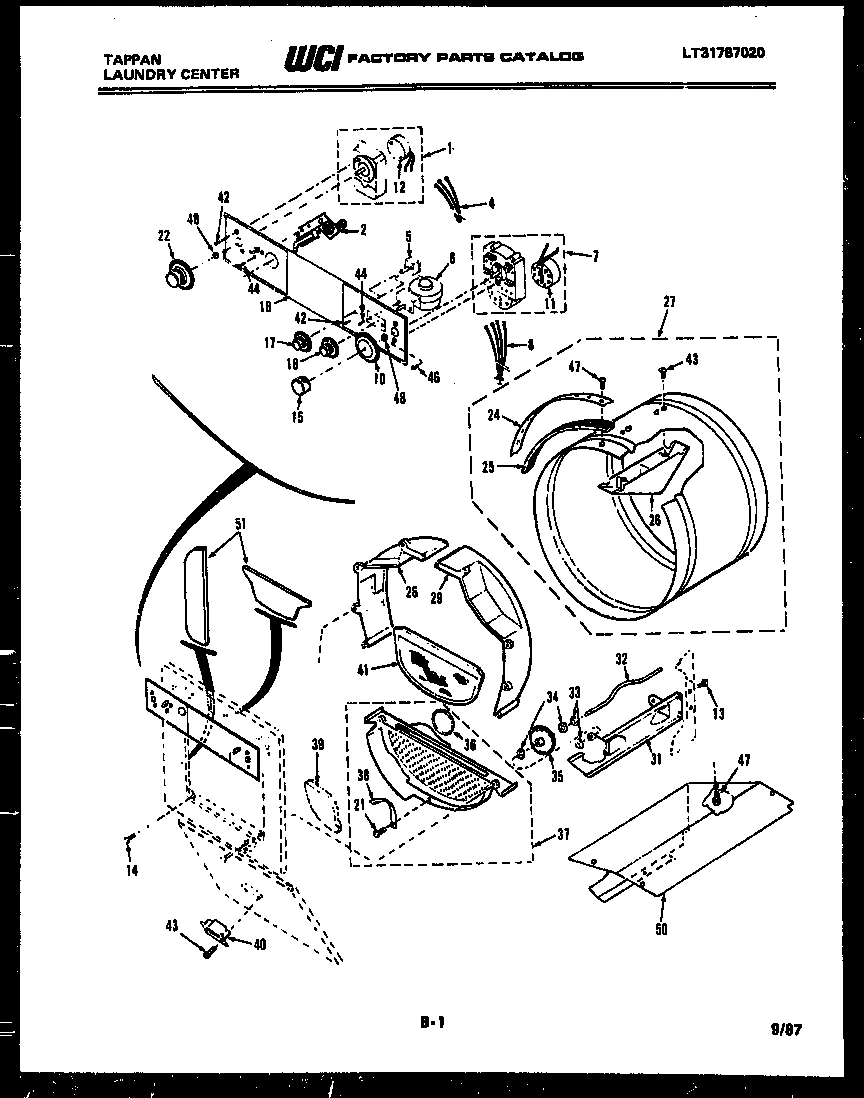

03 - CONSOLE, CONTROLS AND DRUM

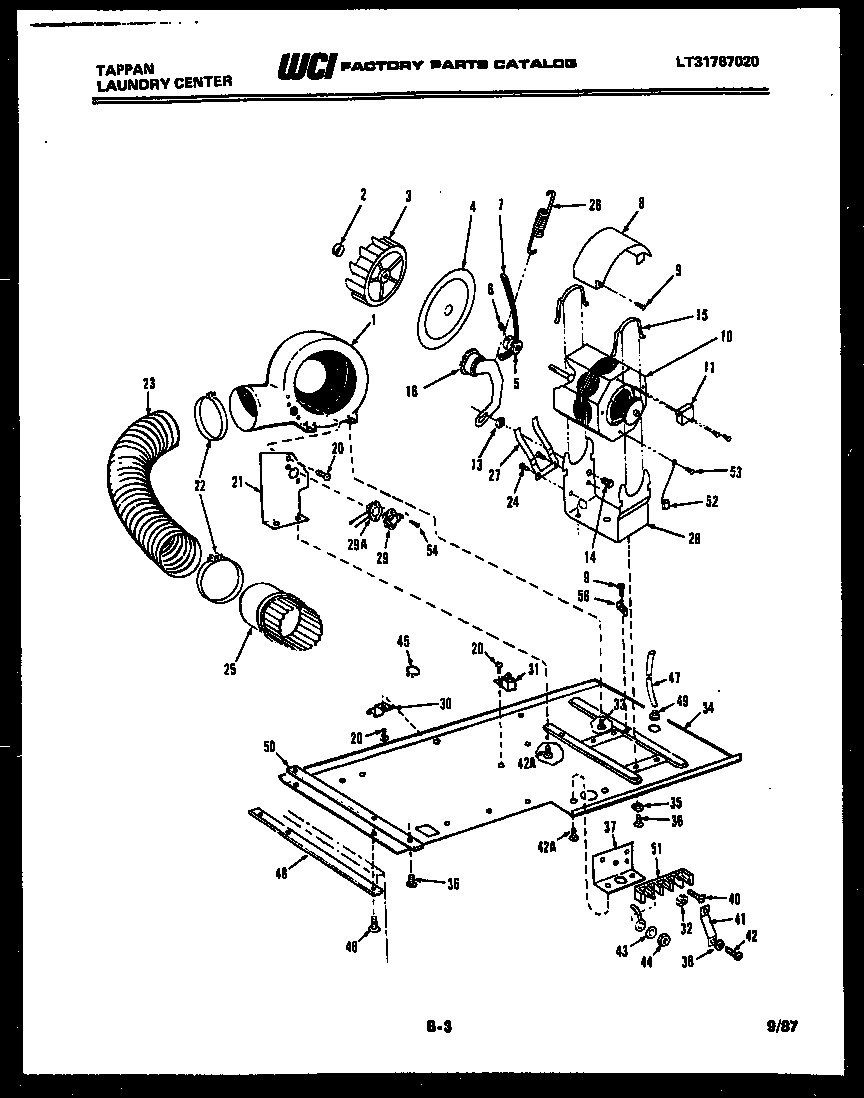

04 - DRYER MOTOR, BLOWER AND BELT

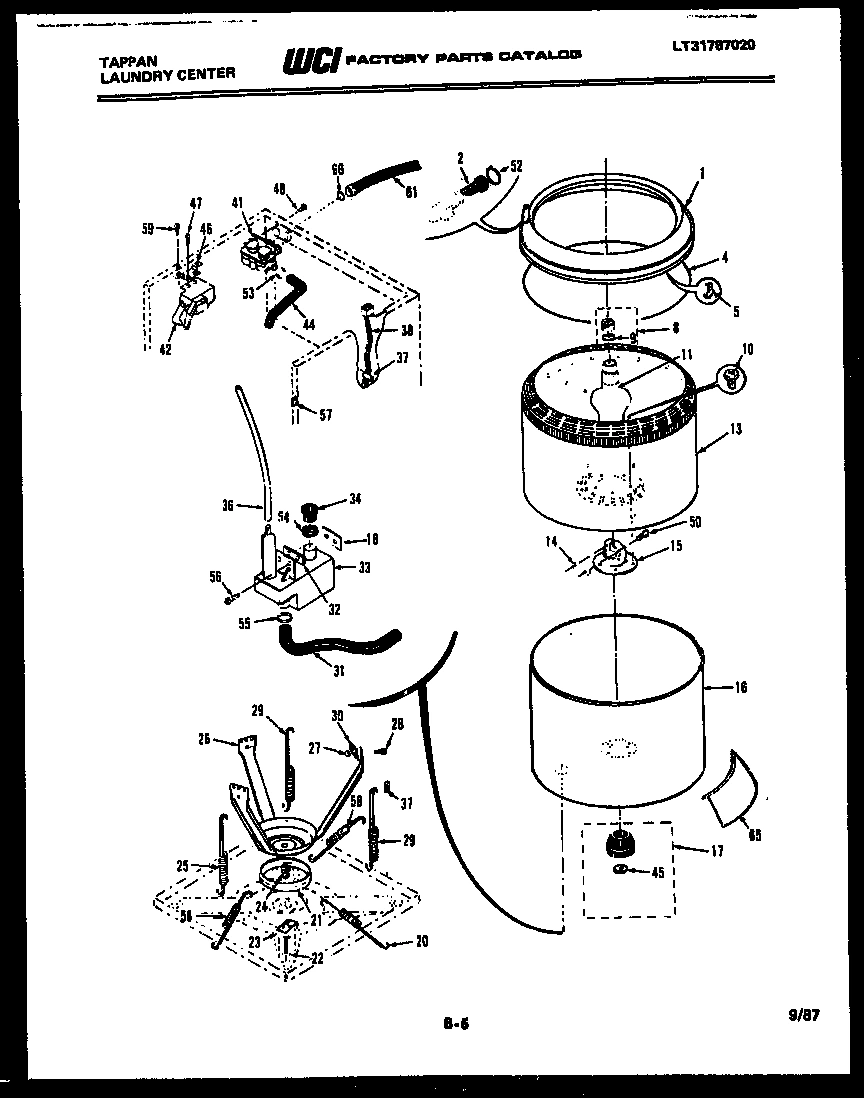

05 - TUBS, WATER VALVE AND LID SWITCH

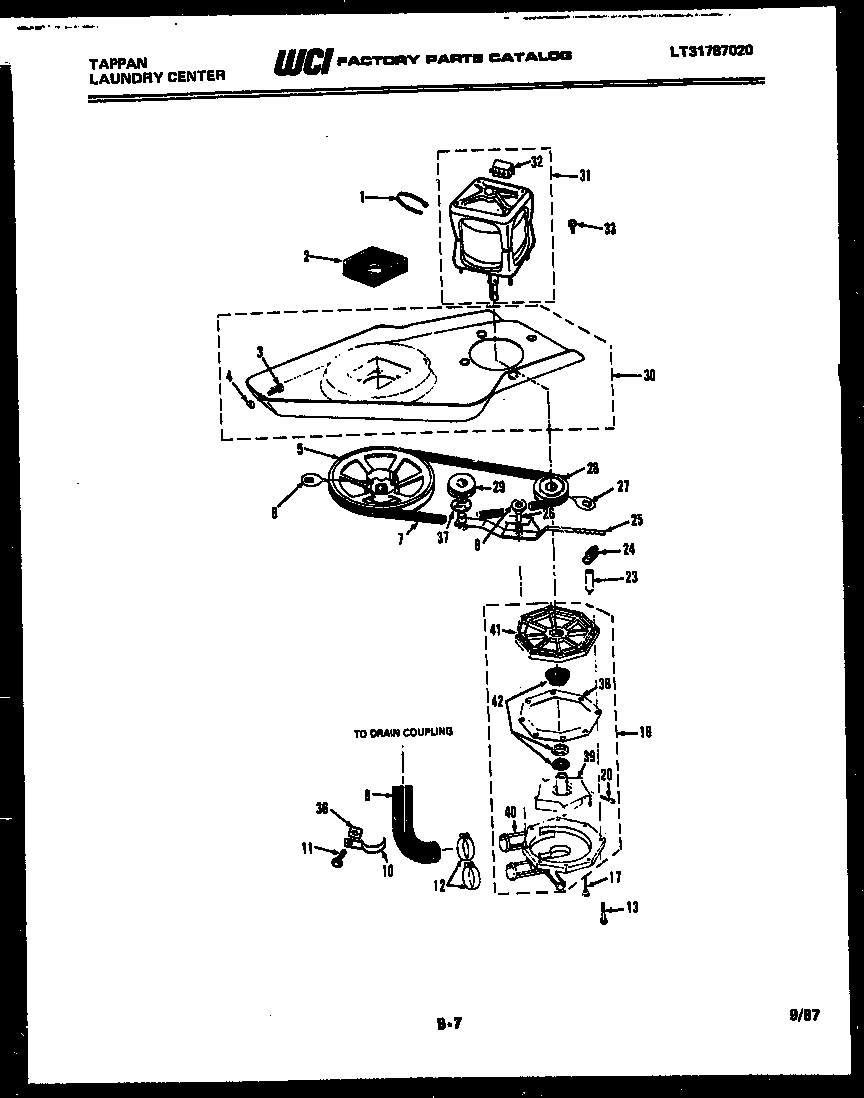

06 - WASHER DRIVE SYSTEM AND PUMP

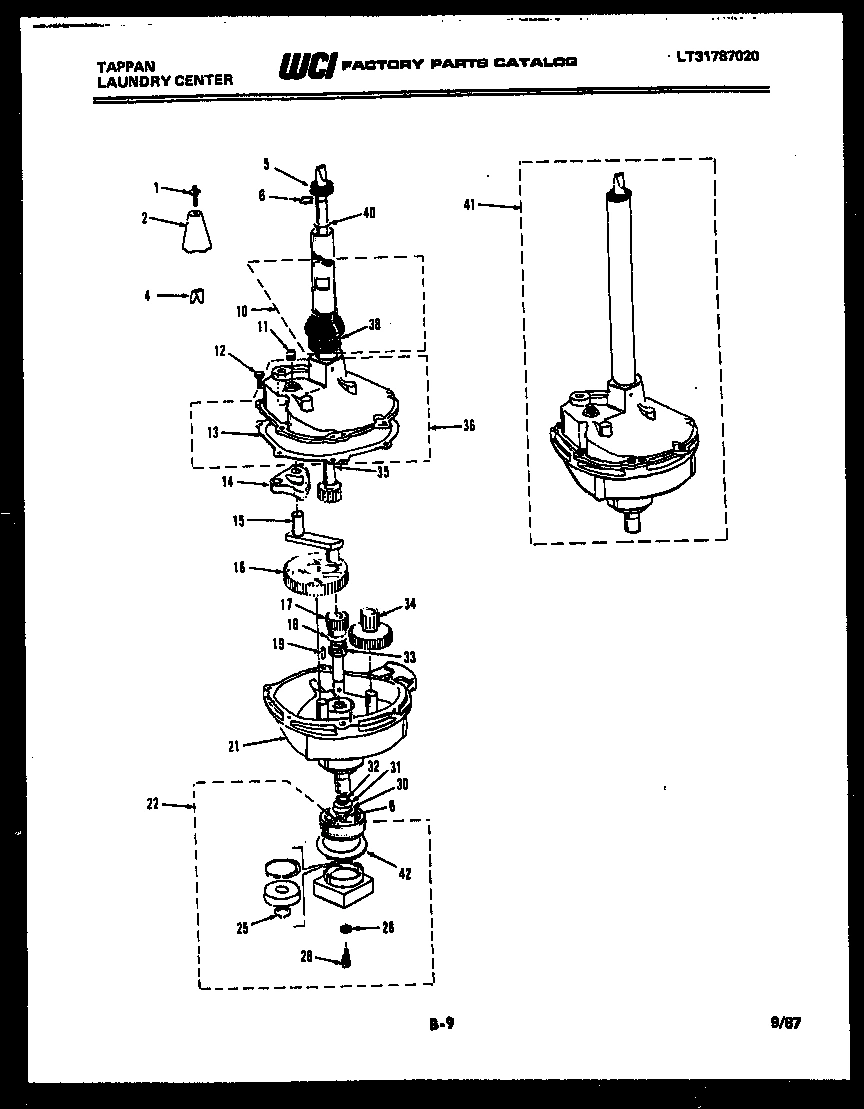

07 - TRANSMISSION PARTS
Common parts from model Electrolux 44-2417-00-01 LAUNDRY CENTER
*61516
PNT 6OZ ALMD WCI 3161012 Contact Us For Availability
*61546
SHIELD-DRYR & WSHR TMR WCI 3161092 Contact Us For Availability
*61547
RESISTR-DRYR TMR WCI 3161093 Contact Us For Availability
*61547
RESISTR-SEL SW WCI 3161094 Contact Us For Availability
*61576
NYLUBE LUB-USE ON IDLER WHEEL SHAFT WCI 3161117 Contact Us For Availability
*61606
WCI 3161147 WCI 3161147 Contact Us For Availability
*61607
CLIP-PRES TUBE-SHORT WCI 3161298 Contact Us For Availability
*61608
CLIP-PRESS TUBE-LONG WCI 3161299 Contact Us For Availability
*61643
WCI 3161180 WCI 3161180 Contact Us For Availability
*61643
SLEEVE-CLUTCH COIL WCI 3161182 Contact Us For Availability
1
PNL-LH-DRYR-WHTE WCI 3161013 Contact Us For Availability
1
TMR-& MTR-DRYR WCI 3161058 Contact Us For Availability
1
WCI 3161095 WCI 3161095 Contact Us For Availability
1
WCI 3161493 WCI 3161493 Contact Us For Availability
1
WCI 3161221 WCI 3161221 Contact Us For Availability
2
PNL-TOP-DRYR-WHTE WCI 3161015 Contact Us For Availability
2
SWITCH-START/DOOR WCI 3161059 Contact Us For Availability
2
SPRING CLIP WCI 3161263 Contact Us For Availability
2
WCI 3161146 WCI 3161146 Contact Us For Availability
2
CUSHION (RUBBER) WCI 3161150 Contact Us For Availability
2
WCI 3161166 WCI 3161166 Contact Us For Availability
3
WCI 3161017 WCI 3161017 Contact Us For Availability
3
WCI 3161096 WCI 3161096 Contact Us For Availability
3
WCI 3161211 WCI 3161211 Contact Us For Availability
4
WCI 3161018 WCI 3161018 Contact Us For Availability
4
WCI 3161060 WCI 3161060 Contact Us For Availability
4
WCI 3161097 WCI 3161097 Contact Us For Availability
4
SEAL-TUB COVER WCI 3161121 Contact Us For Availability
4
WCI 3161212 WCI 3161212 Contact Us For Availability
4
SHIM (AS REQ.) WCI 3161222 Contact Us For Availability
5
CLAMP WCI 3161183 Contact Us For Availability
5
SWITCH-WTR TEMP WCI 3161061 Contact Us For Availability
5
PULLEY-MOTOR WCI 3161098 Contact Us For Availability
5
WCI 3161199 WCI 3161199 Contact Us For Availability
5
PULLEY-TRANSM. WCI 3161151 Contact Us For Availability
6
WCI 3161019 WCI 3161019 Contact Us For Availability
6
WCI 3161480 WCI 3161480 Contact Us For Availability
6
WCI 3161264 WCI 3161264 Contact Us For Availability
6
RETAINING RING (2) WCI 3161223 Contact Us For Availability
7
PANEL-VENTILATION WCI 3161020 Contact Us For Availability
7
TMR & MTR-WSHR WCI 3161063 Contact Us For Availability
7
WCI 3161099 WCI 3161099 Contact Us For Availability
8
HARN-UPPR-WSHR MTR WCI 3161064 Contact Us For Availability
8
WCI 3161482 WCI 3161482 Contact Us For Availability
8
AGITATOR CAP W/ REF. 9 WCI 3161122 Contact Us For Availability
8
WCI 3161463 WCI 3161463 Contact Us For Availability
9
SCREW (2) WCI 3161240 Contact Us For Availability
9
WASHER-CAP WCI 3161200 Contact Us For Availability
9
HOSE-PUMP/DRN CPING WCI 3161153 Contact Us For Availability
10
DIAL-INDICATOR WCI 3161065 Contact Us For Availability
10
MTR & SW-DRYER WCI 3161101 Contact Us For Availability
10
WCI 3161484 WCI 3161484 Contact Us For Availability
10
CLAMP (2) WCI 3161301 Contact Us For Availability
10
WCI 3161167 WCI 3161167 Contact Us For Availability
11
MOTOR-TIMER-WSHR WCI 3161066 Contact Us For Availability
11
WCI 3161102 WCI 3161102 Contact Us For Availability
11
WCI 3161485 WCI 3161485 Contact Us For Availability
11
PIPE PLUG WCI 3161224 Contact Us For Availability
12
OUTER DOOR-WHTE WCI 3161472 Contact Us For Availability
12
MOTOR-TIMER-DRYR WCI 3161067 Contact Us For Availability
12
WCI 3161302 WCI 3161302 Contact Us For Availability
12
WCI 3161225 WCI 3161225 Contact Us For Availability
13
WCI 3161474 WCI 3161474 Contact Us For Availability
13
WCI 3161265 WCI 3161265 Contact Us For Availability
13
WCI 3161486 WCI 3161486 Contact Us For Availability
13
WCI 3161216 WCI 3161216 Contact Us For Availability
13
WCI 3161308 WCI 3161308 Contact Us For Availability
14
COVER-EXHST-WHTE WCI 3161021 Contact Us For Availability
14
WCI 3161187 WCI 3161187 Contact Us For Availability
14
WCI 3161189 WCI 3161189 Contact Us For Availability
14
WCI 3161168 WCI 3161168 Contact Us For Availability
15
INNER DOOR-WHTE WCI 3161491 Contact Us For Availability
15
KNOB-WSHR TMR WCI 3161068 Contact Us For Availability
15
CLIP-MTR (2) WCI 3161190 Contact Us For Availability
15
WCI 3161126 WCI 3161126 Contact Us For Availability
15
WCI 3161169 WCI 3161169 Contact Us For Availability
16
WCI 3161023 WCI 3161023 Contact Us For Availability
16
KNOB-PRES SW WCI 3161069 Contact Us For Availability
16
IDLER ARM & WHEEL ASSY WCI 3161103 Contact Us For Availability
16
SPLASH TUB WCI 3161127 Contact Us For Availability
16
WCI 3161488 WCI 3161488 Contact Us For Availability
16
WCI 3161170 WCI 3161170 Contact Us For Availability
17
PNL-RH-DRYER-WHT WCI 3161024 Contact Us For Availability
17
KNOB-WTR TEMP SW WCI 3161070 Contact Us For Availability
17
BEARING HSG ASSY WCI 3161464 Contact Us For Availability
17
SHAFT ASSY-LOWER WCI 3161178 Contact Us For Availability
18
WCI 3161235 WCI 3161235 Contact Us For Availability
18
WCI 3161071 WCI 3161071 Contact Us For Availability
18
WCI 3161283 WCI 3161283 Contact Us For Availability
19
HINGE-DOOR-TOP WCI 3161026 Contact Us For Availability
19
WCI 3161227 WCI 3161227 Contact Us For Availability
20
HINGE-DOOR-LWR WCI 3161027 Contact Us For Availability
20
WCI 3161129 WCI 3161129 Contact Us For Availability
20
WCI 3161217 WCI 3161217 Contact Us For Availability
21
PNL-FRNT-DRYR-WHT WCI 3161028 Contact Us For Availability
21
BRKT-THERMO MTG WCI 3161266 Contact Us For Availability
21
WCI 3161130 WCI 3161130 Contact Us For Availability
21
HSG ASSY W/ REF. NO. 13 WCI 3161171 Contact Us For Availability
22
WCI 3161030 WCI 3161030 Contact Us For Availability
22
KNOB & DIAL ASSY WCI 3161072 Contact Us For Availability
22
WCI 3161284 WCI 3161284 Contact Us For Availability
22
BEARING HSG/LGS SPRNG PKG WCI 3161172 Contact Us For Availability
23
WCI 3161104 WCI 3161104 Contact Us For Availability
23
BLOCK-SHIPPING WCI 3161202 Contact Us For Availability
23
SPACER (4) WCI 3161303 Contact Us For Availability
24
LID-WSHR-WHITE WCI 3161031 Contact Us For Availability
24
BAND-FRNT & REAR (2) WCI 3161073 Contact Us For Availability
24
NUT-EXPANSION WCI 3161203 Contact Us For Availability
24
WCI 3161156 WCI 3161156 Contact Us For Availability
25
WCI 3161236 WCI 3161236 Contact Us For Availability
25
WCI 3161074 WCI 3161074 Contact Us For Availability
25
WCI 3161105 WCI 3161105 Contact Us For Availability
25
SPRING-VERT-SHORT WCI 3161131 Contact Us For Availability
25
IDLER ARM ASSY. WCI 3937001 Contact Us For Availability
25
RETAINING RING WCI 3161309 Contact Us For Availability
25A
WCI 3161075 WCI 3161075 Contact Us For Availability
26
TRIM STRIP-DRYR WCI 3161475 Contact Us For Availability
26
BAFFLE-DRUM (3) WCI 3161076 Contact Us For Availability
26
SPRING-IDLER ARM WCI 3161106 Contact Us For Availability
26
WCI 3161132 WCI 3161132 Contact Us For Availability
26
WCI 3161490 WCI 3161490 Contact Us For Availability
27
WCI 3161476 WCI 3161476 Contact Us For Availability
27
WCI 3161077 WCI 3161077 Contact Us For Availability
27
WCI 3161269 WCI 3161269 Contact Us For Availability
27
WCI 3161204 WCI 3161204 Contact Us For Availability
27
SET SCREW WCI 3161304 Contact Us For Availability
28
WCI 3161078 WCI 3161078 Contact Us For Availability
28
MOTOR CRADLE WCI 3161107 Contact Us For Availability
28
SCREW (6) WCI 3161205 Contact Us For Availability
28
WCI 3161158 WCI 3161158 Contact Us For Availability
28
WCI 3161228 WCI 3161228 Contact Us For Availability
29
PNL-TOP-WSHR-WHT WCI 3161037 Contact Us For Availability
29
WCI 3161079 WCI 3161079 Contact Us For Availability
29
THERMO-CONTRL WCI 3161108 Contact Us For Availability
29
SPRING-VERT-LONG (2) WCI 3161133 Contact Us For Availability
29A
EXT HTR-THERMO WCI 3161109 Contact Us For Availability
30
WCI 3161270 WCI 3161270 Contact Us For Availability
30
WCI 3161134 WCI 3161134 Contact Us For Availability
30
PLATE & BOLTS-SUPRT WCI 3161218 Contact Us For Availability
30
WCI 3161229 WCI 3161229 Contact Us For Availability
31
TRIM STRIP-WSHR WCI 3161477 Contact Us For Availability
31
WCI 3161080 WCI 3161080 Contact Us For Availability
31
WCI 3161271 WCI 3161271 Contact Us For Availability
31
HOSE-PUMP/TRAP WCI 3161135 Contact Us For Availability
31
WCI 3161160 WCI 3161160 Contact Us For Availability
31
THRUST WASHER WCI 3161226 Contact Us For Availability
31A
WCI 3161081 WCI 3161081 Contact Us For Availability
32
PNL-FRNT-WSHR-WHT WCI 3161040 Contact Us For Availability
32
SHAFT-ROLLER (2) WCI 3161082 Contact Us For Availability
32
NUT (SILVER) (2) WCI 3161191 Contact Us For Availability
32
WCI 3161285 WCI 3161285 Contact Us For Availability
32
WCI 3161161 WCI 3161161 Contact Us For Availability
33
CABINET-WSHR-WHT WCI 3161042 Contact Us For Availability
33
SNAP RING (4) WCI 3161255 Contact Us For Availability
33
SCREW-GROUND WCI 3161279 Contact Us For Availability
33
WCI 3161136 WCI 3161136 Contact Us For Availability
33
LGS SPRING-SMALL WCI 3161174 Contact Us For Availability
34
WCI 3161044 WCI 3161044 Contact Us For Availability
34
WASHER-SHAFT (4) WCI 3161256 Contact Us For Availability
34
WCI 3161110 WCI 3161110 Contact Us For Availability
34
WCI 3161286 WCI 3161286 Contact Us For Availability
34
IDLER GEAR WCI 3161175 Contact Us For Availability
35
LEG-LVL ASSY (4) WCI 3161045 Contact Us For Availability
35
ROLLER & WHEEL ASSY WCI 3161257 Contact Us For Availability
35
WCI 3161192 WCI 3161192 Contact Us For Availability
35A
LOCKWASHER (NON-ILLUSTRATED) WCI 3161193 Contact Us For Availability
36
PNL-REAR ACC-WSHR WCI 3161046 Contact Us For Availability
36
WCI 3161083 WCI 3161083 Contact Us For Availability
36
WCI 3161272 WCI 3161272 Contact Us For Availability
36
WCI 3161305 WCI 3161305 Contact Us For Availability
36
HSG ASSY W/ GASKET WCI 3161177 Contact Us For Availability
37
WCI 3161084 WCI 3161084 Contact Us For Availability
37
BRKT-TERM BLOCK WCI 3161273 Contact Us For Availability
37A
CLIP-HARN/LEG WCI 3161288 Contact Us For Availability
38
COUPLER-DRN HOSE WCI 3161452 Contact Us For Availability
38
CLIP-LINT SCREEN WCI 3161258 Contact Us For Availability
38
WCI 3161194 WCI 3161194 Contact Us For Availability
38
WCI 3161138 WCI 3161138 Contact Us For Availability
38
WCI 3161220 WCI 3161220 Contact Us For Availability
38
WCI 3161231 WCI 3161231 Contact Us For Availability
39
RIVET (2) WCI 3161237 Contact Us For Availability
39
WCI 3161085 WCI 3161085 Contact Us For Availability
39
IMPELLER KIT (CONSISTS OF SEAL ASSEMBLY, GASK WCI 3161162 Contact Us For Availability
40
WCI 3161048 WCI 3161048 Contact Us For Availability
40
MAGNET ASSY-WHTE WCI 3161086 Contact Us For Availability
40
WCI 3161489 WCI 3161489 Contact Us For Availability
40
THRUST WASHER WCI 3161232 Contact Us For Availability
41
WCI 3161088 WCI 3161088 Contact Us For Availability
41
GROUND STRAP WCI 3161195 Contact Us For Availability
41
WCI 3161164 WCI 3161164 Contact Us For Availability
41
TRANS-COMPLETE WCI 3161179 Contact Us For Availability
42
SCREW-TEMP & SEL SW/PNL WCI 3161259 Contact Us For Availability
42
WCI 3161141 WCI 3161141 Contact Us For Availability
42
SEAL KIT (CONSISTS OF SEAL ASSEMBLY AND GASKE WCI 3161165 Contact Us For Availability
42
WASHER-CLUTCH COIL WCI 3161311 Contact Us For Availability
42A
SCREW-DRYR TMR/PNL WCI 3161188 Contact Us For Availability
42A
SCREW (4) WCI 3161268 Contact Us For Availability
43
WASHER (BRASS) (3) WCI 3161196 Contact Us For Availability
43A
SCREW-MAGN/PNL (2) WCI 3161260 Contact Us For Availability
44
NUT (BRASS) (4) WCI 3161197 Contact Us For Availability
44
HOSE WCI 3161142 Contact Us For Availability
44A
WCI 3161453 WCI 3161453 Contact Us For Availability
45
RETAINER-TRIM (14) WCI 3161241 Contact Us For Availability
45
WCI 3161276 WCI 3161276 Contact Us For Availability
46
WCI 3161478 WCI 3161478 Contact Us For Availability
46
WCI 3161185 WCI 3161185 Contact Us For Availability
46
WCI 3161277 WCI 3161277 Contact Us For Availability
46
BRKT-LID LOCK WCI 3161143 Contact Us For Availability
47
SCREW (2) WCI 3161242 Contact Us For Availability
47
WCI 316123 WCI 316123 Contact Us For Availability
48
SPACER-TMR-WSHR WCI 3161262 Contact Us For Availability
48
WCI 3161481 WCI 3161481 Contact Us For Availability
48
BRACE (2) WCI 3161113 Contact Us For Availability
48
WCI 3161290 WCI 3161290 Contact Us For Availability
49
CONNECTOR-PRES TUBE WCI 3161114 Contact Us For Availability
50
SPACER-OPTION, (2) WCI 3161245 Contact Us For Availability
50
WCI 3161089 WCI 3161089 Contact Us For Availability
50
PLATE (2) WCI 3161115 Contact Us For Availability
51
SCREW-HNG/FRNT PNL WCI 3161246 Contact Us For Availability
51
INSUL-FRNT PNL-TOP WCI 3161090 Contact Us For Availability
51A
SCREW-HNG/LINT HSG WCI 3161243 Contact Us For Availability
51A
WCI 3161091 WCI 3161091 Contact Us For Availability
52
ACORN NUT WCI 3161247 Contact Us For Availability
52
GROUND WIRE WCI 3161278 Contact Us For Availability
52
WCI 3161206 WCI 3161206 Contact Us For Availability
53
WCI 3161479 WCI 3161479 Contact Us For Availability
53
WCI 3161207 WCI 3161207 Contact Us For Availability
54
SCREW (2) WCI 3161234 Contact Us For Availability
54
WCI 3161208 WCI 3161208 Contact Us For Availability
55
PAD-LVL LEG (4) WCI 3161049 Contact Us For Availability
55
WCI 3161293 WCI 3161293 Contact Us For Availability
56
SCREW (2) WCI 3161274 Contact Us For Availability
56
WCI 3161198 WCI 3161198 Contact Us For Availability
57
CLIP WCI 3161287 Contact Us For Availability
58
WCI 3161050 WCI 3161050 Contact Us For Availability
58
SPRING-HORZ-SHORT (2) WCI 3161209 Contact Us For Availability
59
SCREW (2) WCI 3161238 Contact Us For Availability
60
DRAIN HOSE WCI 3161454 Contact Us For Availability
61
RETAINER-DRN HOSE WCI 3161248 Contact Us For Availability
62
BUSHING-DRN HOSE WCI 3161249 Contact Us For Availability
63
HOSE CLAMP WCI 3161186 Contact Us For Availability
63A
CABLE TIE-DRN HOSE (NON-ILLUSTRATED) WCI 3161250 Contact Us For Availability
64
WCI 3161251 WCI 3161251 Contact Us For Availability
65
BRACKET-CAPACITOR WCI 3161252 Contact Us For Availability
65
MTR SHIELD WCI 3161295 Contact Us For Availability
66
WCI 3161052 WCI 3161052 Contact Us For Availability
68
COVER-TERMINAL WCI 3161053 Contact Us For Availability
69
PNL-ACC-DRYR-WHTE WCI 3161054 Contact Us For Availability
70
WCI 3161056 WCI 3161056 Contact Us For Availability
72
WCI 3161253 WCI 3161253 Contact Us For Availability
× ![]()
