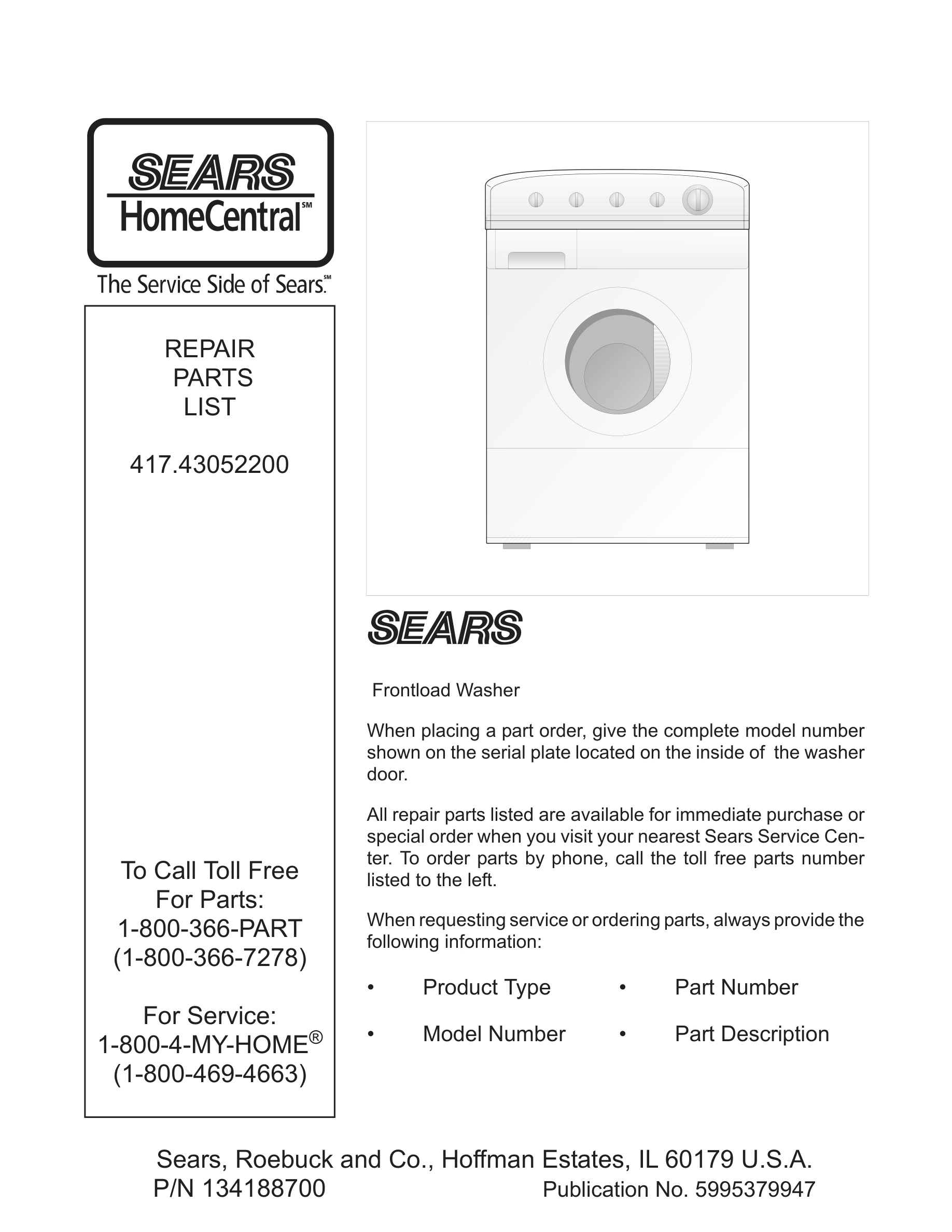

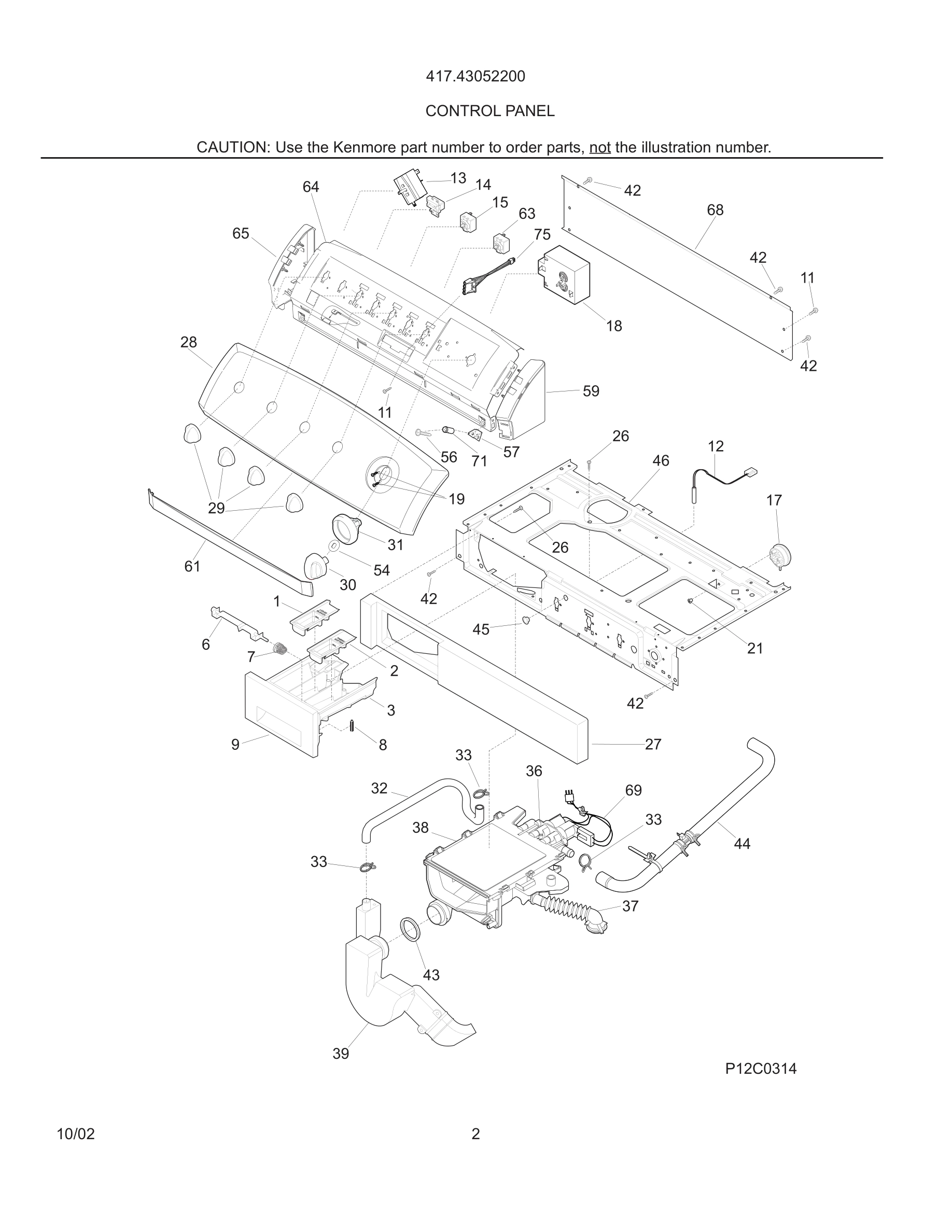

Model Kenmore 417.43052200 WASHER – Common Parts & Diagrams

1
Cover,bleach
Cover,bleach WCI 131272100 Contact Us For Availability
View on Model
2
Cover,softener
Cover,softener WCI 131272000 Contact Us For Availability
View on Model
3
Bolt,carriage ,1/4-20 x 4.00
Bolt,carriage ,1/4-20 x 4.00 WCI 131793302 Contact Us For Availability
View on Model
6
Counterweight,one piece
Counterweight,one piece WCI 131975300 Contact Us For Availability
View on Model
6
Latch,drawer handle ,white
Latch,drawer handle ,white WCI 131714900 Contact Us For Availability
View on Model
7
Spring,boot retainer
Spring,boot retainer WCI 131277300 Contact Us For Availability
View on Model
7
Spring
Spring WCI 131427500 Contact Us For Availability
View on Model
8
Magnet
Magnet WCI 131373800 Contact Us For Availability
View on Model
9
Handle,disp drawer ,with trim
Handle,disp drawer ,with trim WCI 131729500 Contact Us For Availability
View on Model
10
Frame,outer door ,white
Frame,outer door ,white WCI 131278700 Contact Us For Availability
View on Model
11
Panel,door glass
Panel,door glass WCI 131278800 Contact Us For Availability
View on Model
14#
Buzzer,adjustable
Buzzer,adjustable WCI 134087000 Contact Us For Availability
View on Model
17
Pin,panel locator
Pin,panel locator WCI 131346400 Contact Us For Availability
View on Model
18
Panel,Service ,white ,kick plate
Panel,Service ,white ,kick plate WCI 131279300 Contact Us For Availability
View on Model
18#
Timer,6 hour delay
Timer,6 hour delay WCI 134148500 Contact Us For Availability
View on Model
20
Bracket,top panel mtg. ,front
Bracket,top panel mtg. ,front WCI 131460900 Contact Us For Availability
View on Model
21
O-ring,tub
O-ring,tub WCI 134146100 No Longer Available
View on Model
22
Retainer,spring steel
Retainer,spring steel WCI 131279500 No Longer Available
View on Model
22
Shell,outer tub ,rear ,with bearing
Shell,outer tub ,rear ,with bearing WCI 131462800 Contact Us For Availability
View on Model
23
Counterweight,drum rear
Counterweight,drum rear WCI 134125900 Contact Us For Availability
View on Model
25
Bracket,top panel mtg.
Bracket,top panel mtg. WCI 131668200 Contact Us For Availability
View on Model
26
Pulley,drive ,large ,drum rear ,reinforced
Pulley,drive ,large ,drum rear ,reinforced WCI 131883400 Contact Us For Availability
View on Model
27
Washer,0.41 x 1.50 ,0.12 thick
Washer,0.41 x 1.50 ,0.12 thick WCI 131304400 Contact Us For Availability
View on Model
28
Washer,lock ,3/8
Washer,lock ,3/8 WCI 131304500 Contact Us For Availability
View on Model
29
Screw,pulley mtg. ,m10 x 0.92 ,metric
Screw,pulley mtg. ,m10 x 0.92 ,metric WCI 131303700 Contact Us For Availability
View on Model
31
Pointer,bezel ,timer knob
Pointer,bezel ,timer knob WCI 131769000 Contact Us For Availability
View on Model
32
Bracket,shock mtg.
Bracket,shock mtg. WCI 131268100 Contact Us For Availability
View on Model
32
Hose,dispenser
Hose,dispenser WCI 131786100 Contact Us For Availability
View on Model
39
Siphon
Siphon WCI 131863300 Contact Us For Availability
View on Model
43
Gasket,seal
Gasket,seal WCI 131749200 Contact Us For Availability
View on Model
43
Chamber,air
Chamber,air WCI 131277500 Contact Us For Availability
View on Model
44
Hose,air pressure
Hose,air pressure WCI 131277600 Contact Us For Availability
View on Model
45
Clamp,pressure hose
Clamp,pressure hose WCI 131306202 Contact Us For Availability
View on Model
54
Spacer,timer shaft
Spacer,timer shaft WCI 5308015493 Contact Us For Availability
View on Model
57
Clip,console mtg
Clip,console mtg WCI 131197000 Contact Us For Availability
View on Model
61
Closure,console trim ,front
Closure,console trim ,front WCI 134019900 Contact Us For Availability
View on Model
63#
Switch,speed ,3 posn rotary
Switch,speed ,3 posn rotary WCI 131908500 Contact Us For Availability
View on Model
