Model Whirlpool 3XRA710 REFRIGERATOR – Common Parts & Diagrams
05 - MOTOR AND ICE CONTAINER
12 - ICEMAKER, LIT/OPTIONAL

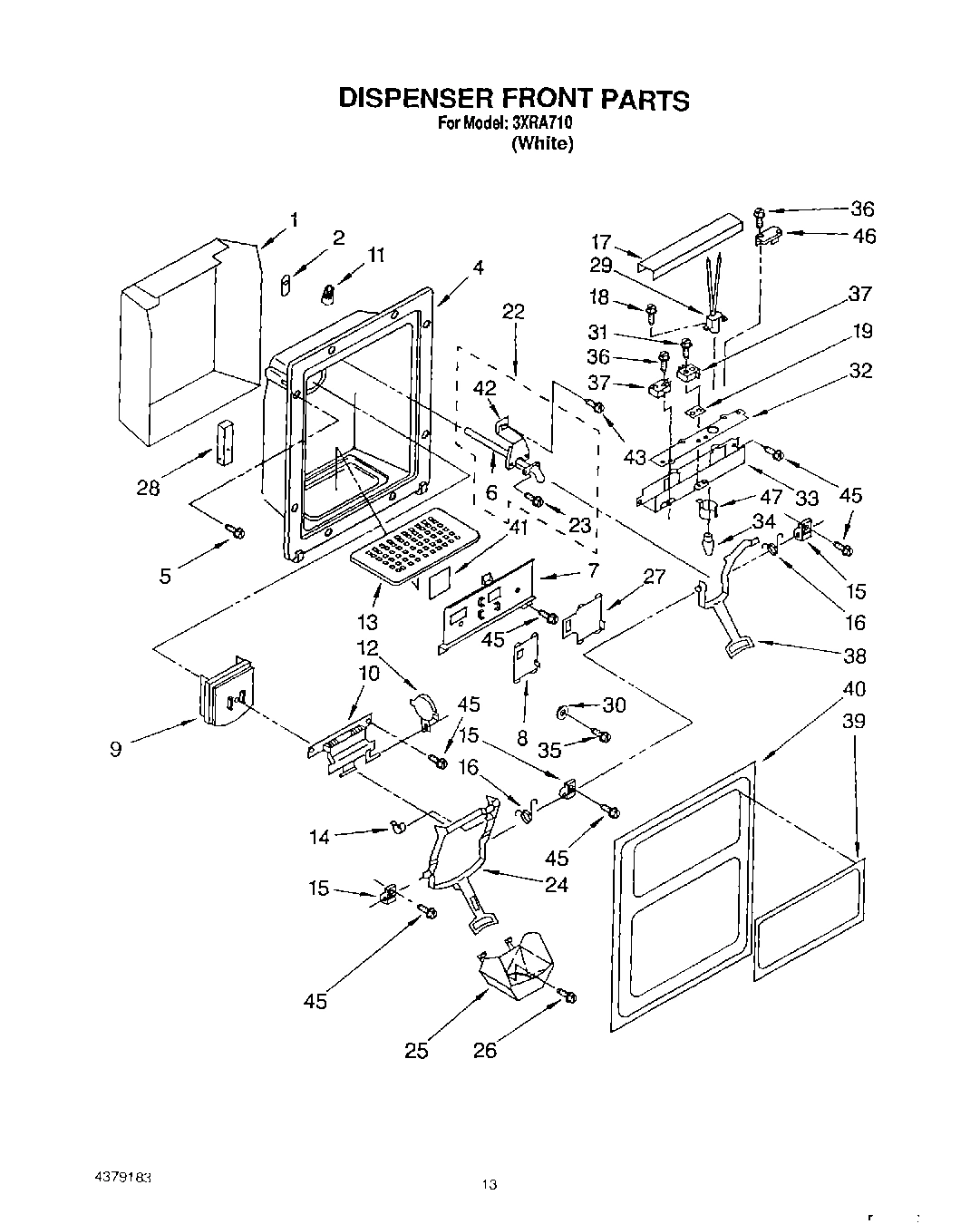

08 - DISPENSER FRONT

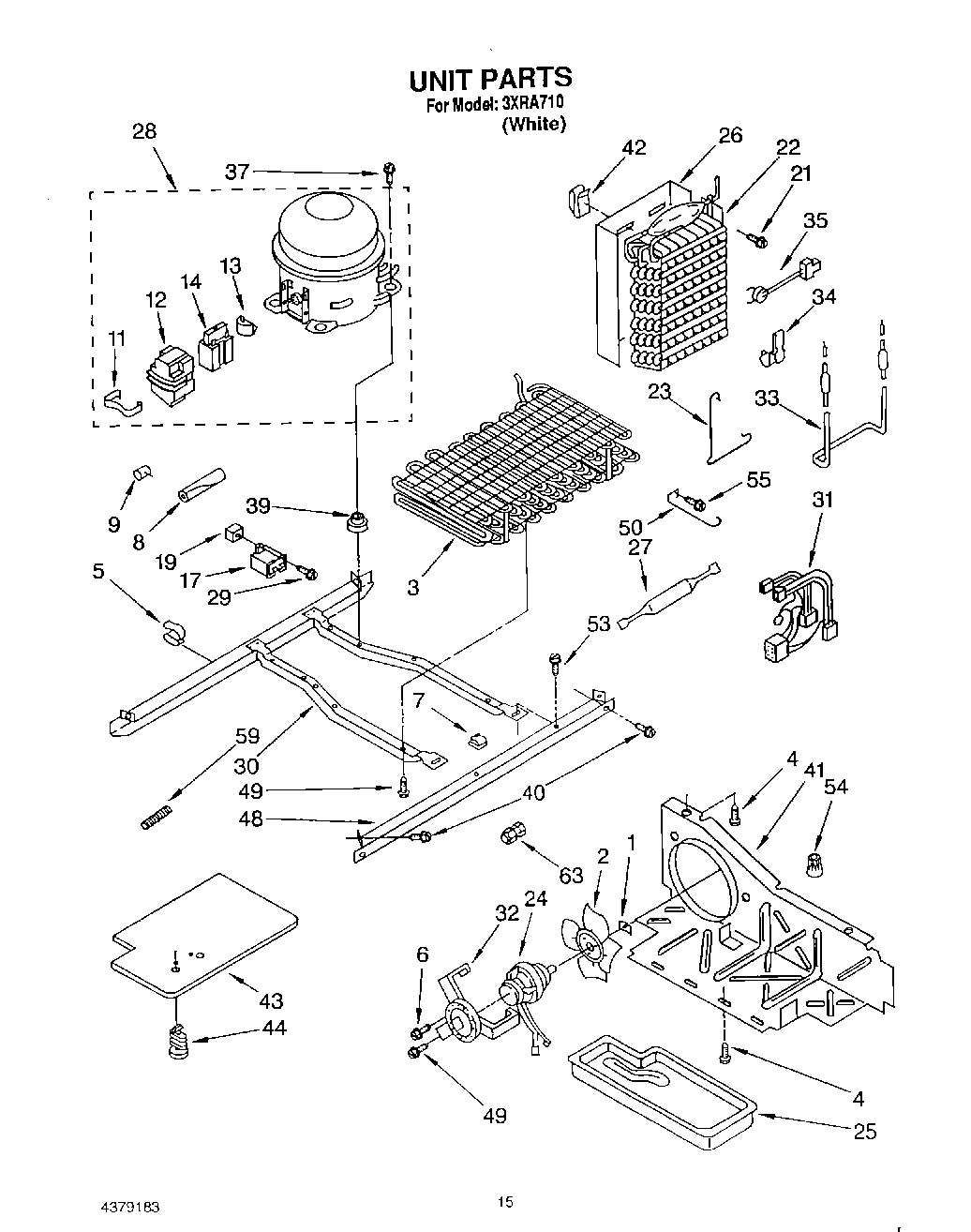

09 - UNIT

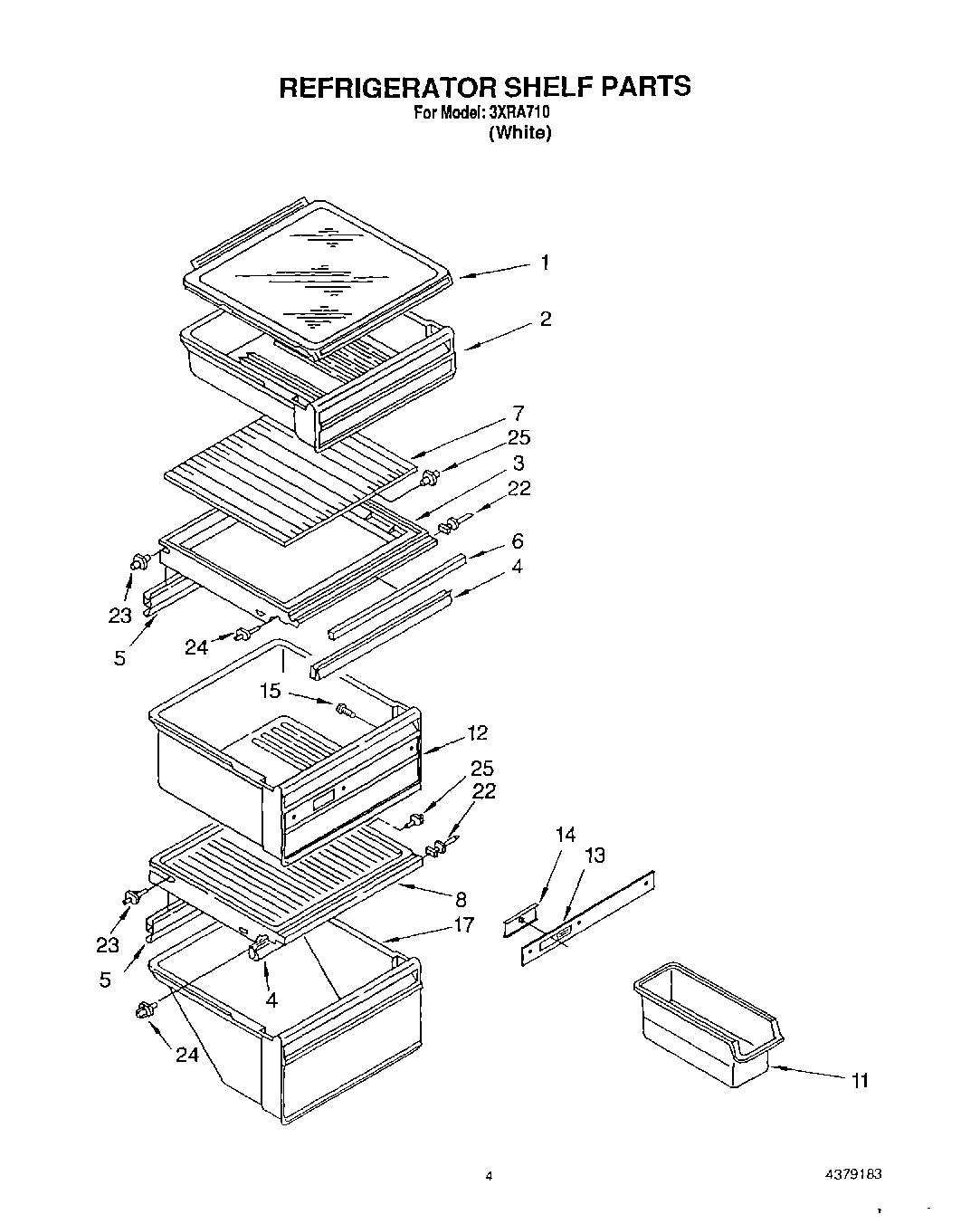

03 - REFRIGERATOR SHELF

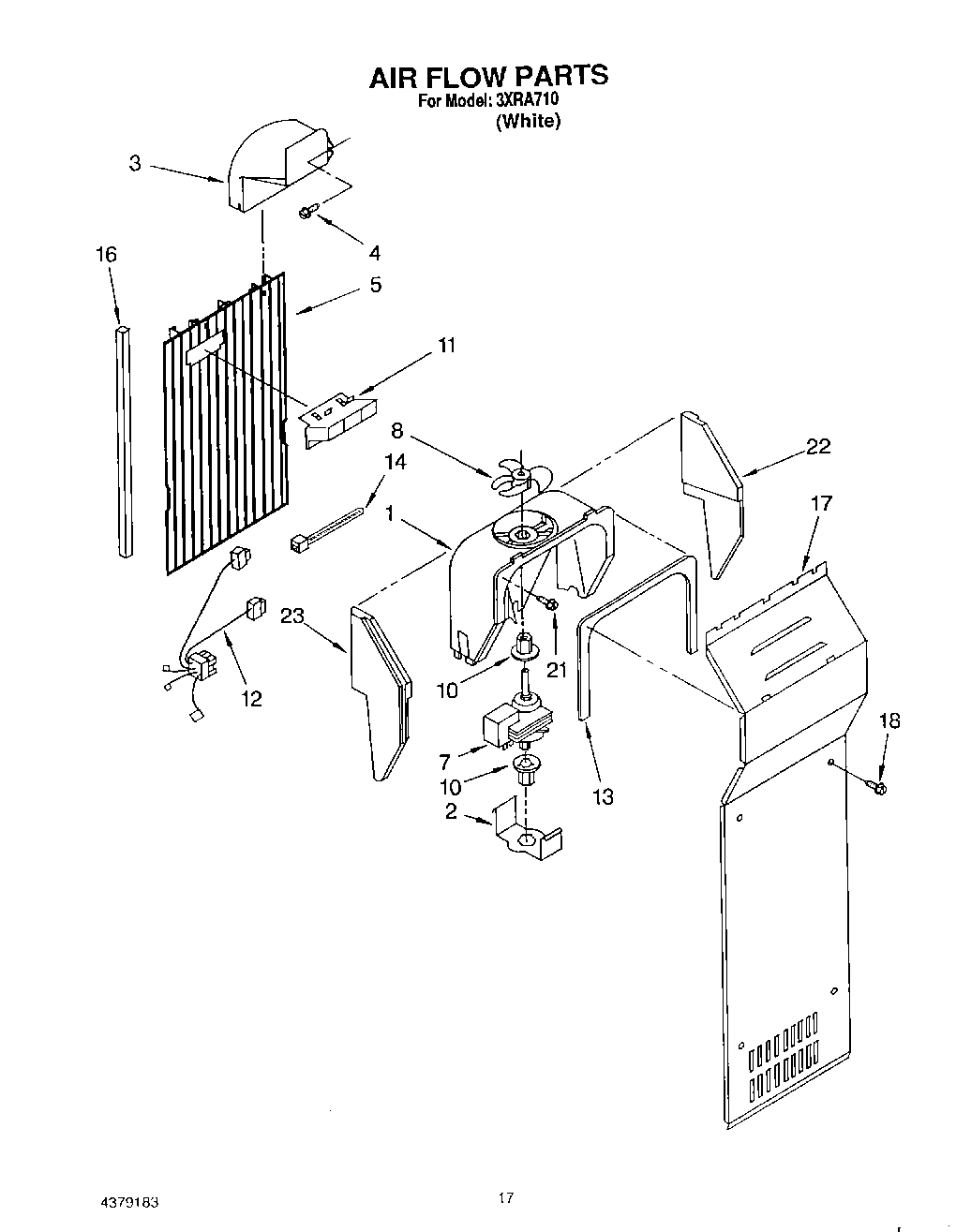

10 - AIR FLOW

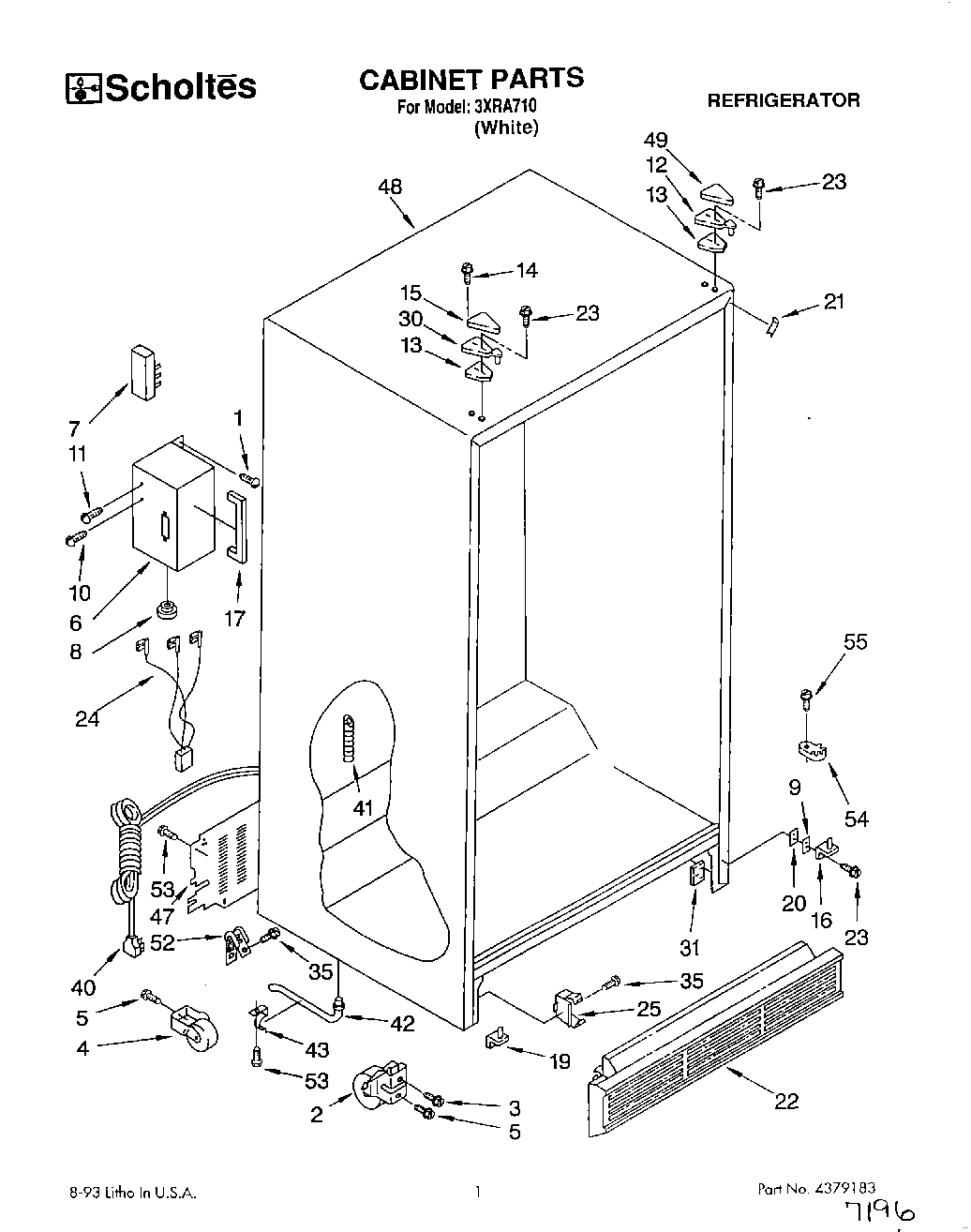

01 - CABINET

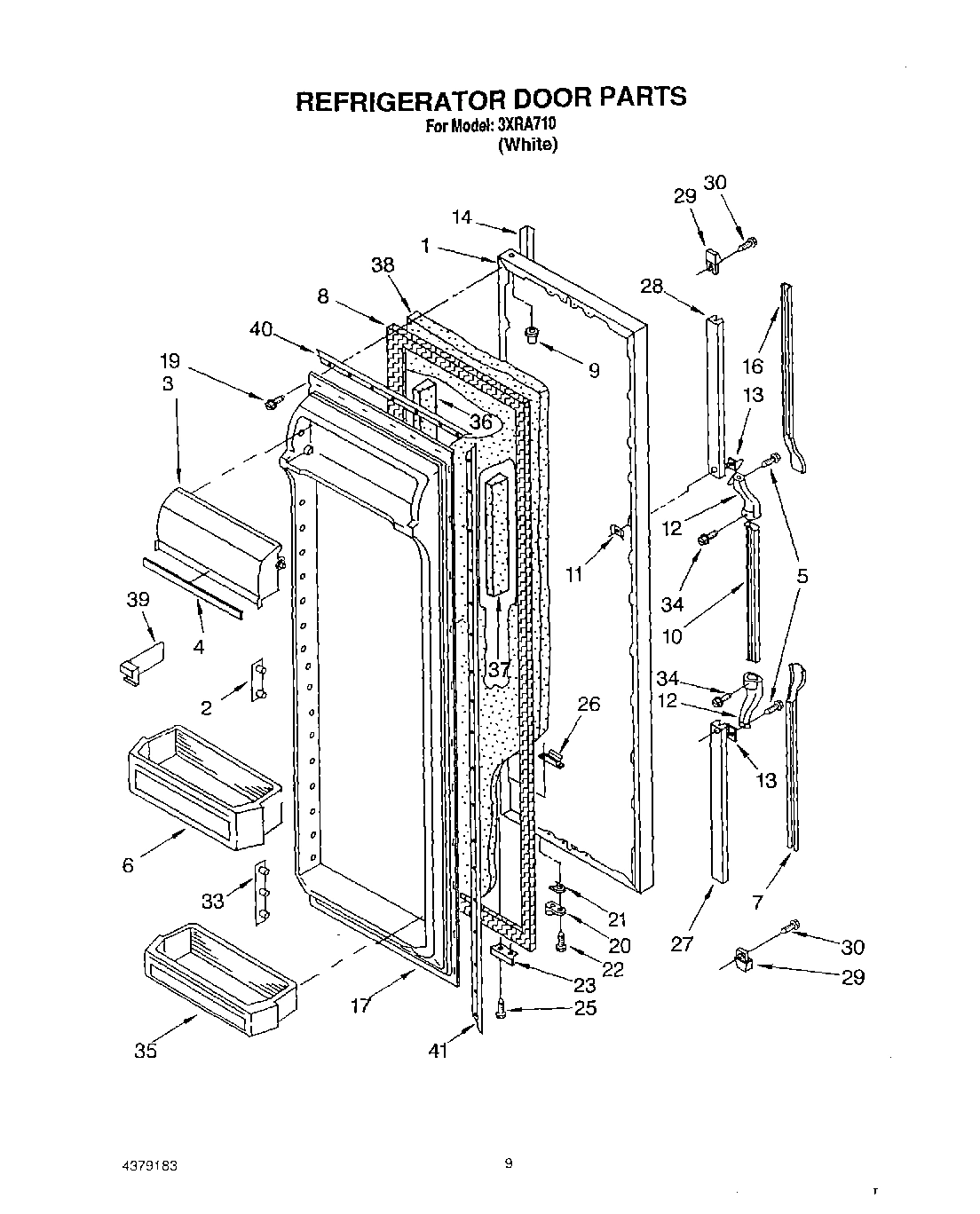

06 - REFRIGERATOR DOOR

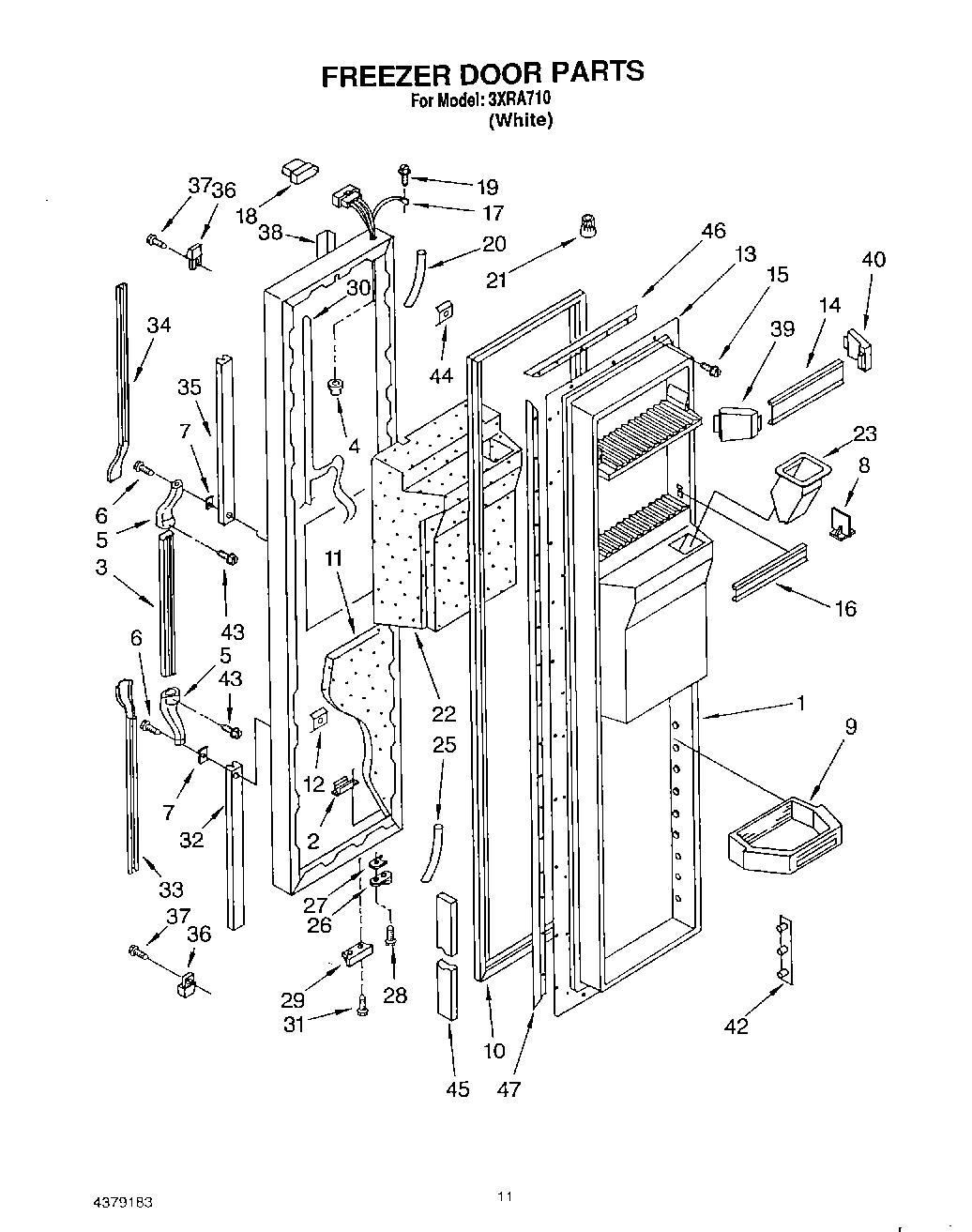

07 - FREEZER DOOR

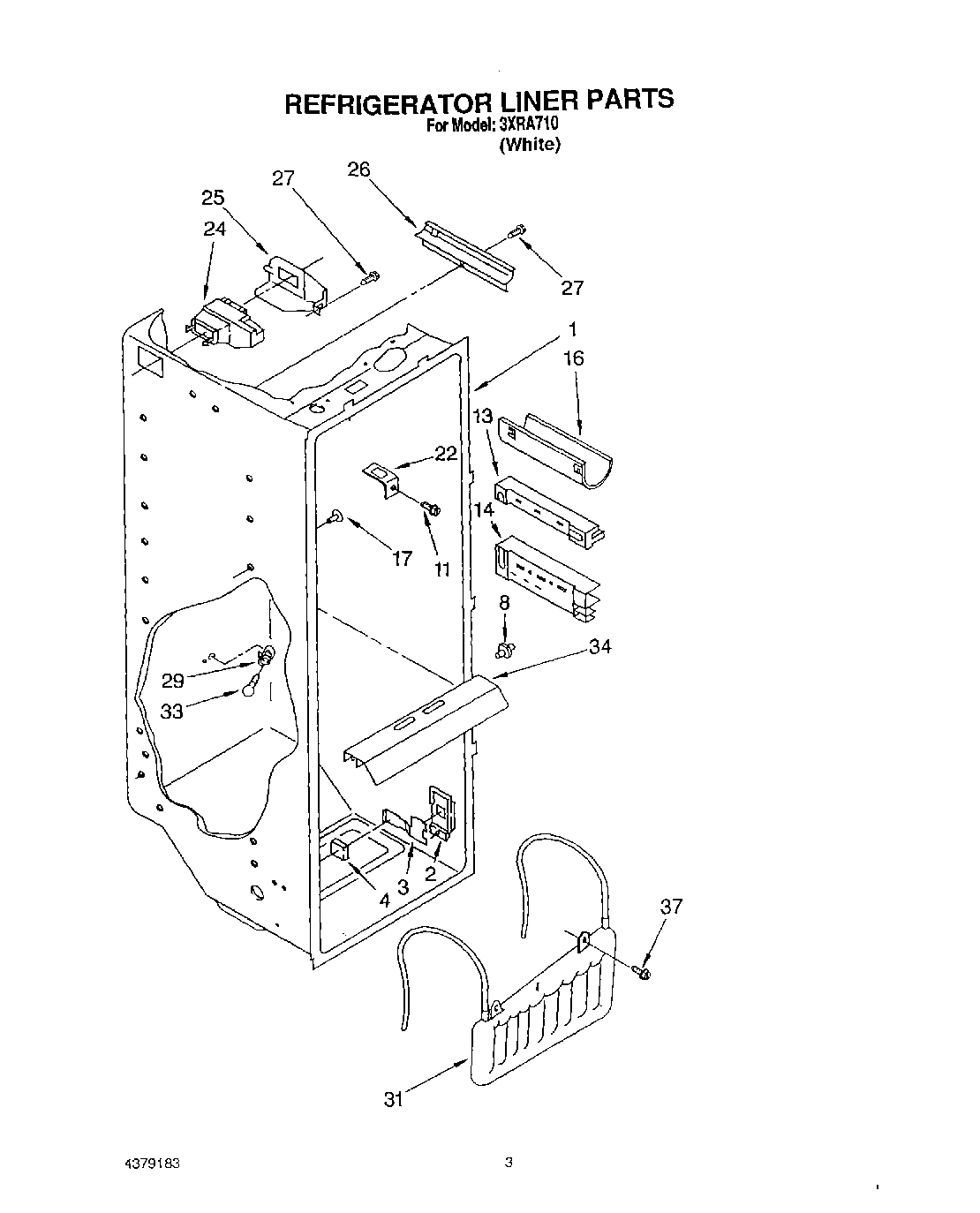

02 - REFRIGERATOR LINER

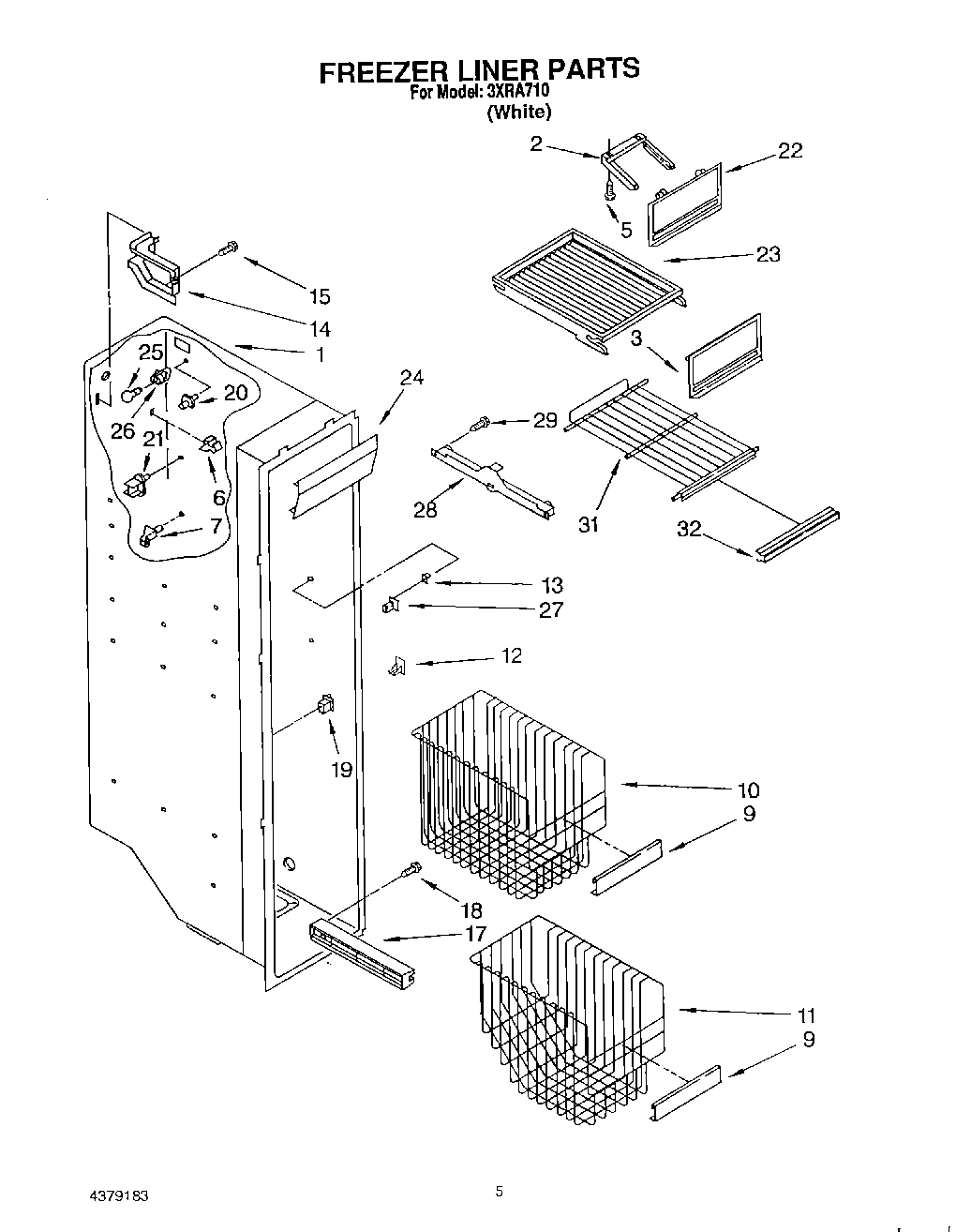

04 - FREEZER LINER

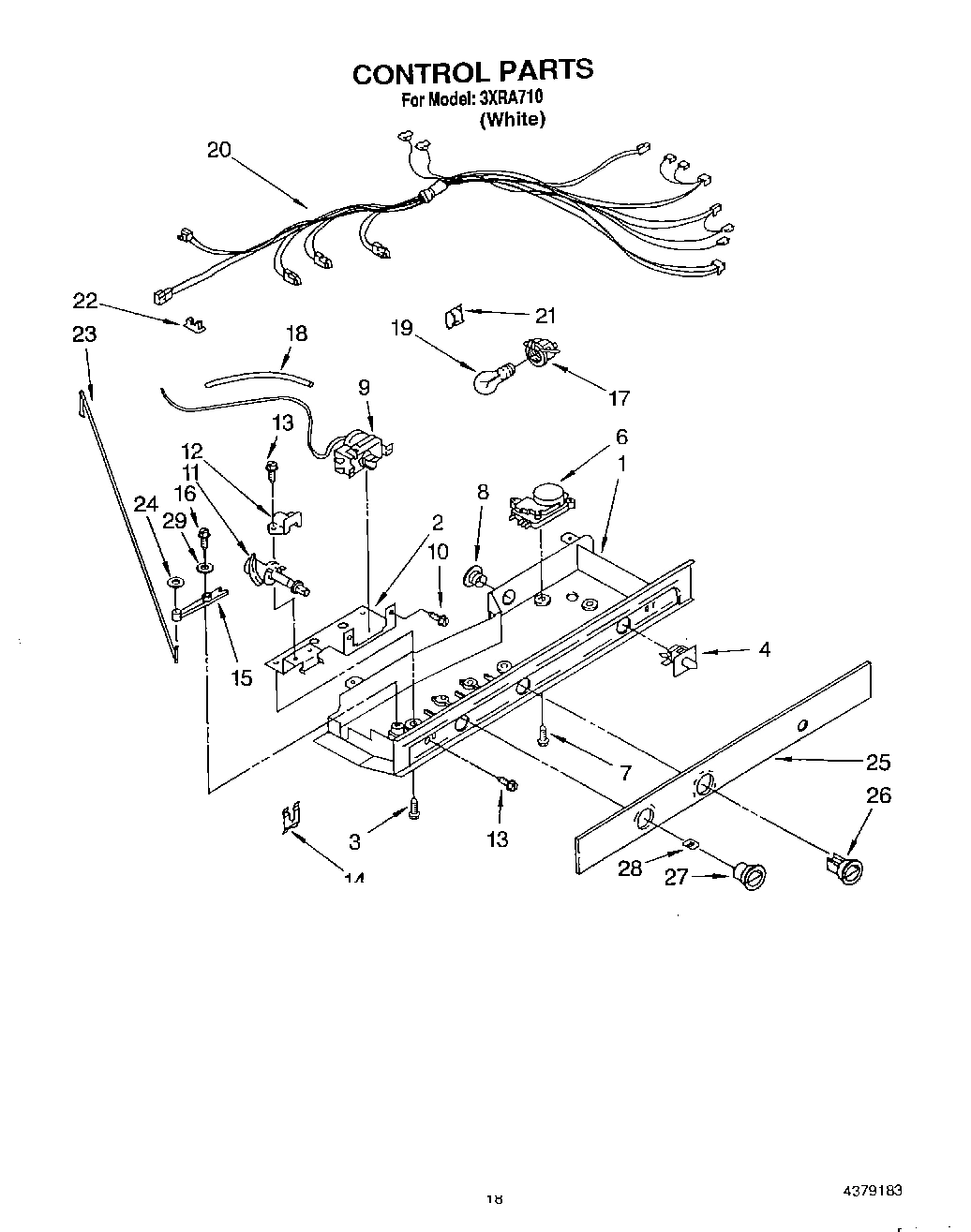

11 - CONTROL
Common parts from model Whirlpool 3XRA710 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 2162564 Contact Us For Availability
1
Refrigerator Door (Also Order Item 38) WPL 1110642 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) WPL 1110652 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI13345A2 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI13346A2 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Snack Bin WPL 1124829 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Pin Plate (4) WPL 1118048 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Door, Compartment WPL 2148847 Contact Us For Availability
3
Handle, Center WPL 1124713 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Ice Compartment WPL 1124834 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
4
Trim, Compartment Door WPL 1118208 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
6
Shelf Bin (2) WPL 1124846 Contact Us For Availability
6
Trim, Crisper Cover WPL 1119190 Contact Us For Availability
6
Cover, Terminal Block WPL 2158579 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
7
Terminal Block WPL 1129346 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
8
Bushing WPL 1129449 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125929 Contact Us For Availability
8
Divider, Shelf WPL 1123293 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Shelf Bin (3) WPL 1124854 Contact Us For Availability
9
Trim, Basket WPL 1124837 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1125928 Contact Us For Availability
10
Basket, Tall WPL 2152088 Contact Us For Availability
11
Strap WPL 938384 Contact Us For Availability
11
Screw WPL 489346 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Cover WPL 1108115 Contact Us For Availability
12
Pan, Crisper WPL 2162711 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2158782 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1123514 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
13
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Overload (Includes Relay) WPL 2154758 Contact Us For Availability
13
Front, Crisper Pan WPL 2162712 Contact Us For Availability
13
Panel, Interior Door WPL 2150326 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Relay (See Overload) WPL ARI13348A2 Contact Us For Availability
14
Slide, Humidity Control WPL 2148524 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Trim, Door Shelf WPL 1124851 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Screw WPL 489268 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2151629 Contact Us For Availability
16
Trim, Door Shelf WPL 1124852 Contact Us For Availability
16
Wine Rack WPL 1124828 Contact Us For Availability
17
Meat Pan WPL 2162710 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Gasket WPL 2167227 Contact Us For Availability
17
Panel, Interior Door WPL 1124842 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 2167055 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2151630 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Wire Connector WPL 850145 Contact Us For Availability
21
Filler, Wrapper WPL 1110708 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Evaporator WPL 2155501 Contact Us For Availability
22
Grille WPL 1125715 Contact Us For Availability
22
Insulation, Dispenser WPL 1119038 Contact Us For Availability
22
Door, Top Compartment WPL 1124833 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Shelf Stud WPL 1115290 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
23
Shelf, Top Compartment WPL 1115256 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Stud, Front WPL 946356 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 14 & 1 WPL 2154754 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Bracket, Door Stop WPL 988420 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30
Heater, Door WPL 2165376 Contact Us For Availability
31
Unit, Harness WPL 2167065 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
32
Trim, Shelf WPL 2148844 Contact Us For Availability
33
Heater, Defrost WPL 2162214 Contact Us For Availability
33
Insert, Handle WPL 1119361 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Insert, Handle WPL 1119373 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
35
Screw WPL 489360 Contact Us For Availability
35
Retainer, Insert WPL 1119372 Contact Us For Availability
35
Shelf Bin (2) WPL 1124847 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
36
Door Dike, Hinge Side WPL 1115379 Contact Us For Availability
37
Screw WPL 489075 Contact Us For Availability
37
Door Dike, Handle Side WPL 1119055 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 2159197 Contact Us For Availability
38
Trim, Door WPL 1119062 Contact Us For Availability
39
Plaque, Front Cover WPL 2158853 Contact Us For Availability
39
Divider (2) WPL 2152335 Contact Us For Availability
39
End Cap, Trim WPL 1115333 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2158852 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
40
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
40
End Cap, Trim WPL 1115364 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Pin Plate (6) WPL 1116986 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
43
Screw WPL 489022 Contact Us For Availability
44
Wiring Harness, Door WPL 2147166 Contact Us For Availability
45
Door Dike (2) WPL 1115378 Contact Us For Availability
46
Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability
47
Shroud, Bracket WPL 1129333 Contact Us For Availability
47
Cover, Unit WPL 2167191 Contact Us For Availability
47
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI13344A9 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
