Model Whirlpool 3XKVN600000 REFRIGERATOR – Common Parts & Diagrams

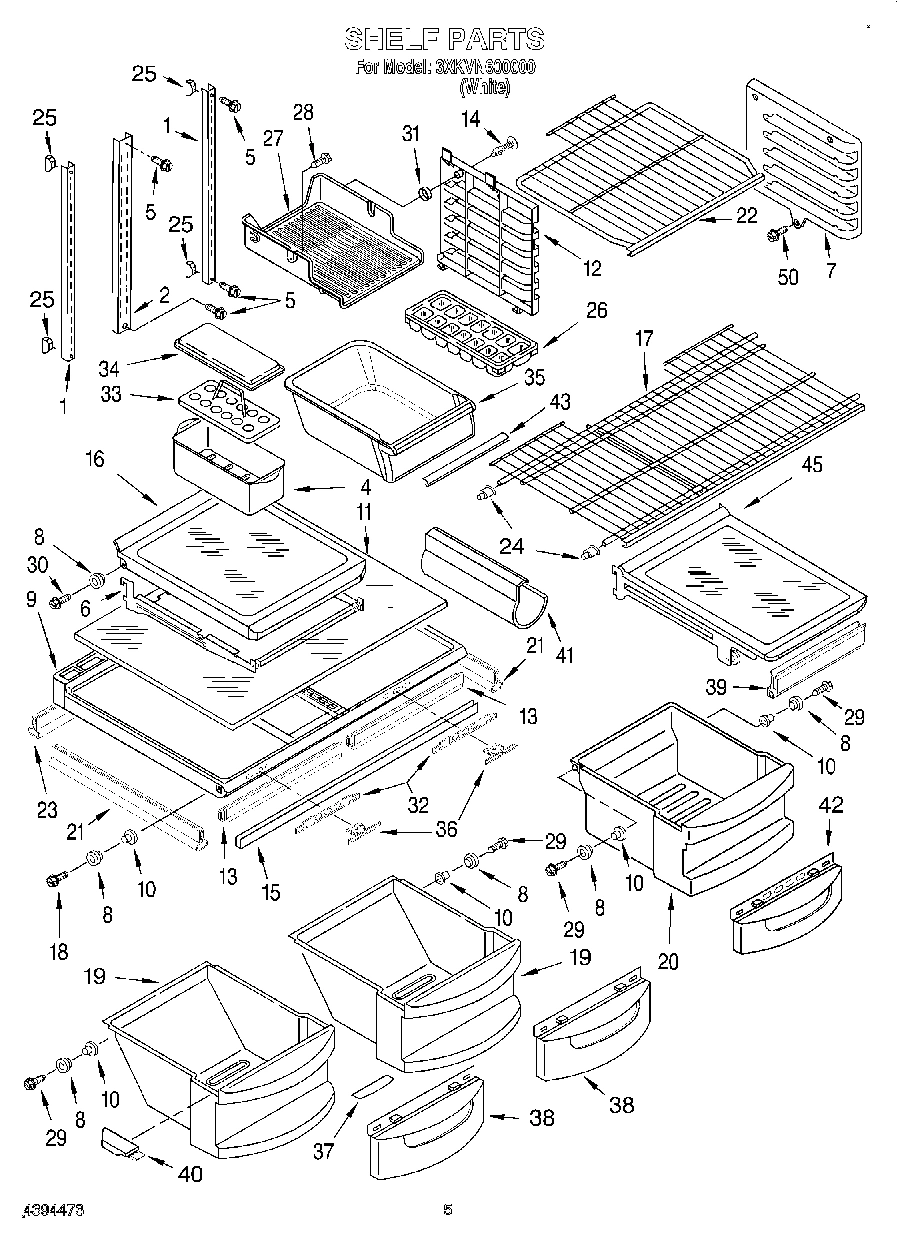

03 - SHELF

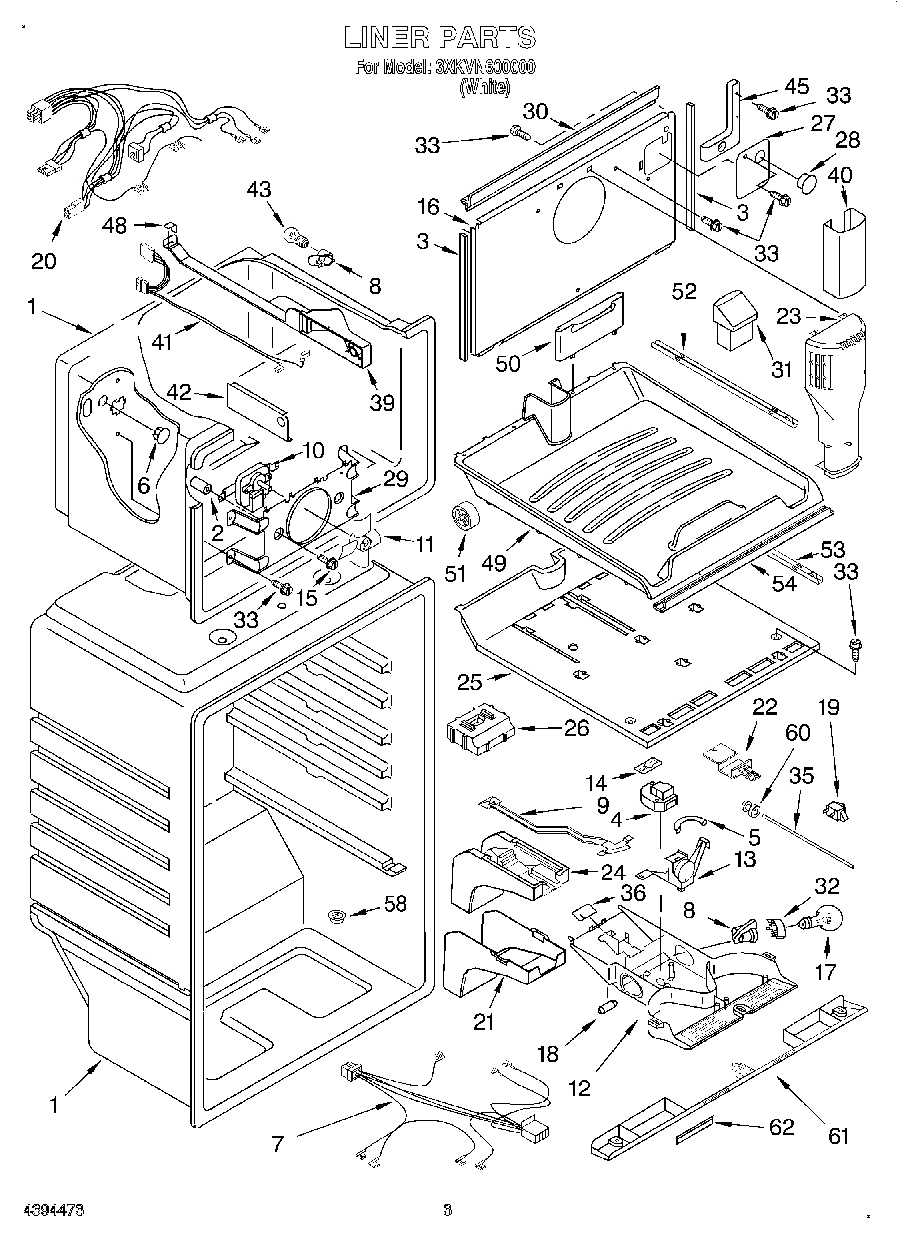

02 - LINER

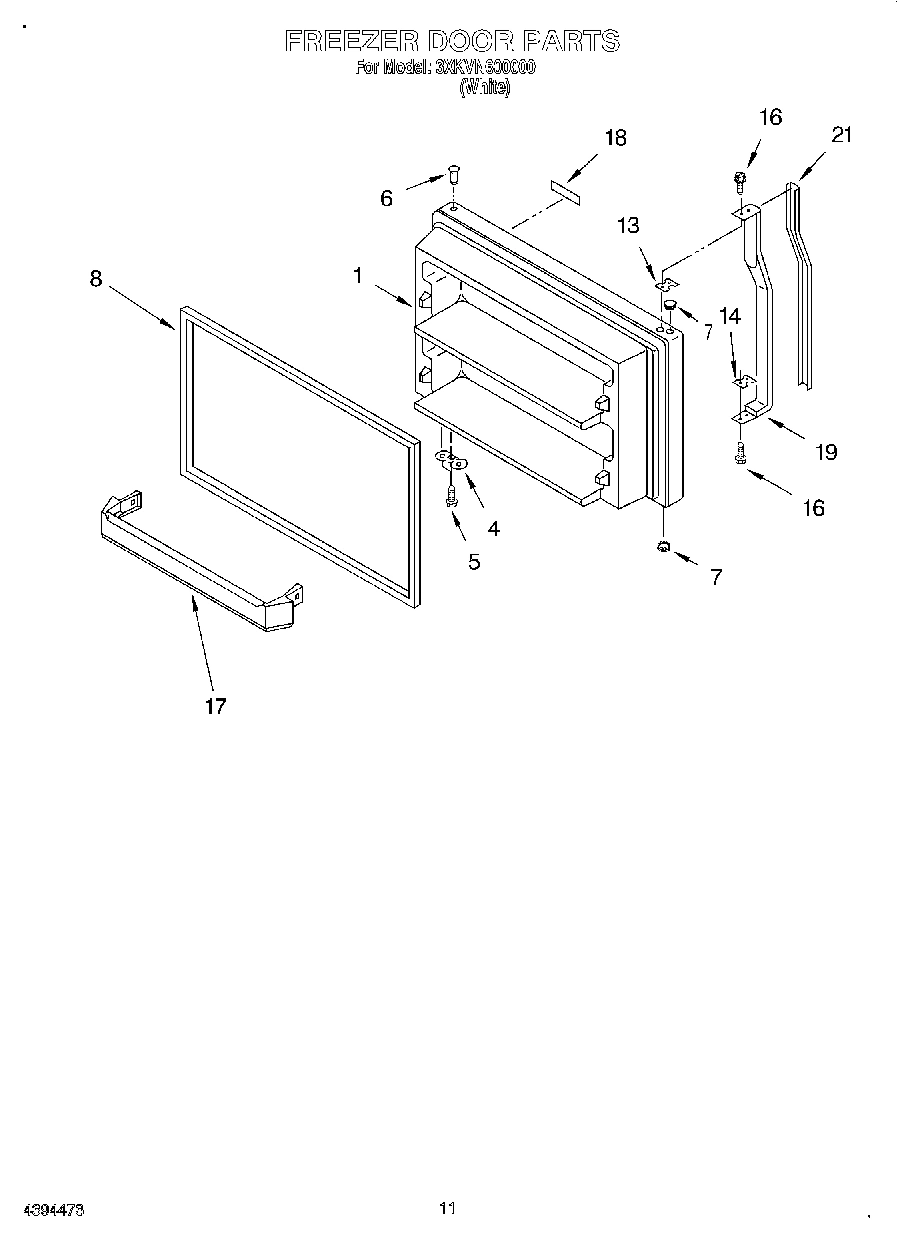

06 - FREEZER DOOR, LIT/OPTIONAL

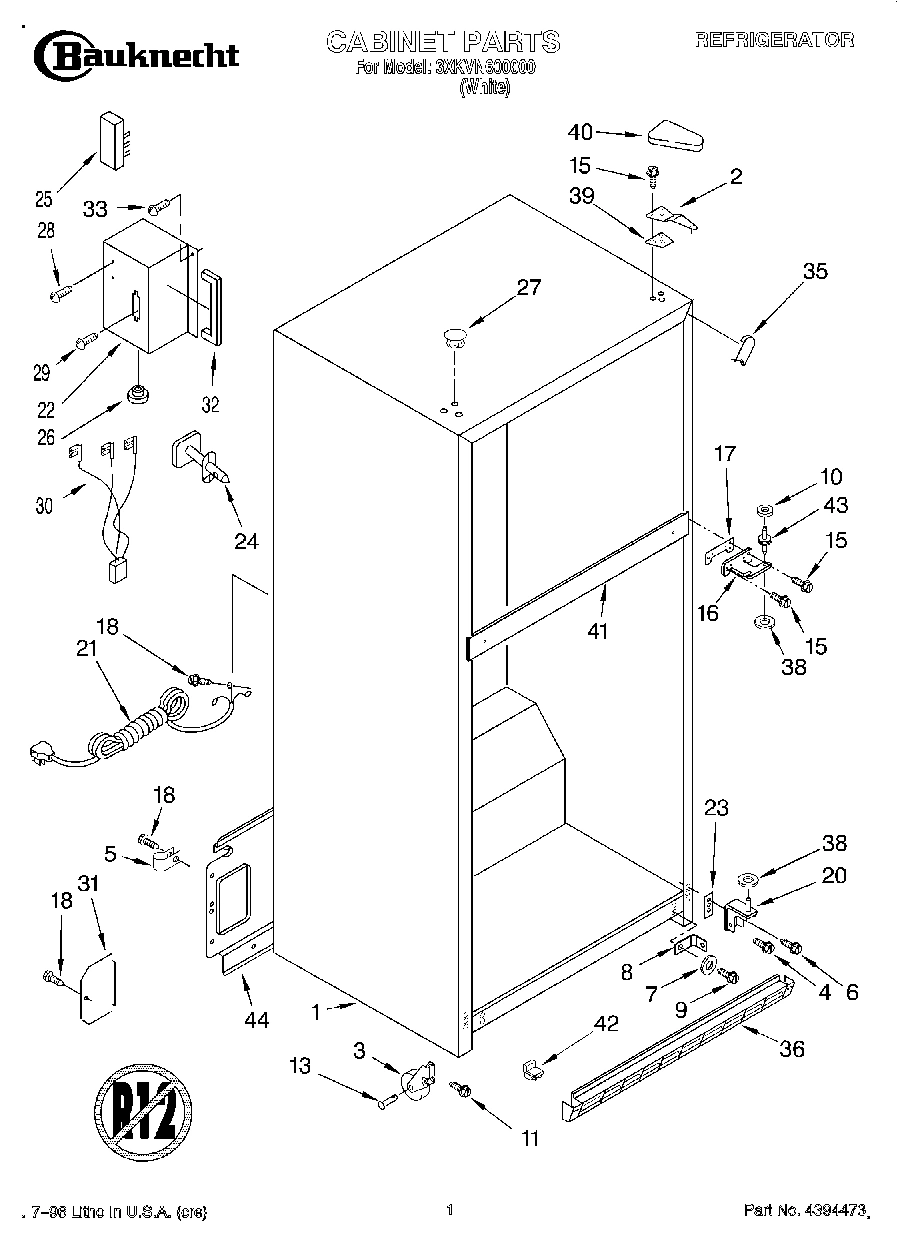

01 - CABINET
04 - REFRIGERATOR DOOR

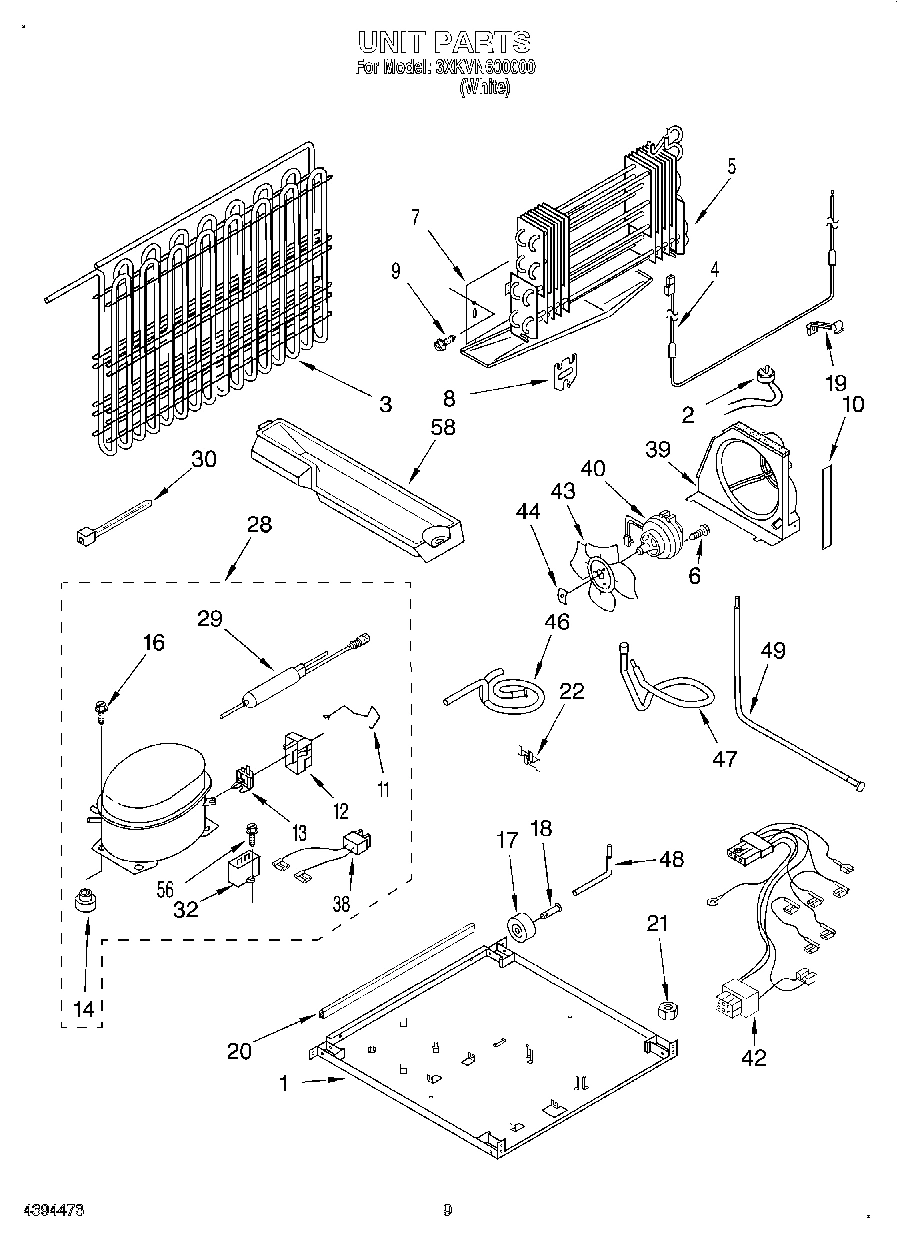

05 - UNIT
Common parts from model Whirlpool 3XKVN600000 REFRIGERATOR
Torx Key WPL 1117510 Contact Us For Availability
WPL LIT2179221 WPL LIT2179221 Contact Us For Availability
WPL LIT2183770 WPL LIT2183770 Contact Us For Availability
WPL LIT2193091 WPL LIT2193091 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) WPL 2182490 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI13281A1 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) WPL 2190645 Contact Us For Availability
1
Plate, Unit Mounting WPL 2189103 Contact Us For Availability
2
Hinge (Top) WPL 2174690 Contact Us For Availability
2
Divider, Door Bin WPL 2171283 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
4
Screw WPL 489436 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Heater, Defrost WPL 2166872 Contact Us For Availability
5
Evaporator Assy. WPL 2166209 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2177312 Contact Us For Availability
8
Bracket, Bottom Hinge WPL 2174899 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2177313 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Shim, Handle WPL 2151813 Contact Us For Availability
9
Screw WPL 489462 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Retainer, Insert WPL 2168900 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
11
Clamp (Production Only) WPL 2169464 Contact Us For Availability
13
Spacer, Handle WPL 1107628 Contact Us For Availability
13
Overload WPL 2169411 Contact Us For Availability
14
Insert, Handle WPL 2168896 Contact Us For Availability
15
End Cap, Handle WPL 1107236 Contact Us For Availability
16
Hinge, Center WPL 2183066 Contact Us For Availability
16
Screw WPL 489473 Contact Us For Availability
17
Trivet (2) WPL 2159292 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Nameplate WPL 2166629 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle WPL 2168901 Contact Us For Availability
19
Handle WPL 2161508 Contact Us For Availability
20
Hinge Butt WPL 2179810 Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2171064 Contact Us For Availability
20
Protector WPL 2183803 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
21
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
21
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
21
Insert, Handle WPL 2168898 Contact Us For Availability
21
Door Reversal Instructions WPL 2179846 Contact Us For Availability
21
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
21
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
21
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
21
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
21
Service Cord WPL 1129332 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI13285A5 Contact Us For Availability
22
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
22
Clip WPL 2166683 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
23
Tray, Butter WPL 2165792 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI13282A8 Contact Us For Availability
25
Terminal Block WPL 1129346 Contact Us For Availability
26
Bushing WPL 1129449 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
29
Bin, Door Shelf WPL 2171062 Contact Us For Availability
30
Plug-Trim WPL 2159300 Contact Us For Availability
30
Wiring Assembly WPL 2166651 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
31
Beverage Holder WPL 2193409 Contact Us For Availability
32
Gasket WPL 2167227 Contact Us For Availability
35
Light Fiber (2) WPL 2179921 Contact Us For Availability
36
Grille WPL 2182432 Contact Us For Availability
39
Housing Base WPL 2182382 Contact Us For Availability
39
Shim WPL 2176201 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
40
Sleeve, Air Tower WPL 2179712 Contact Us For Availability
40
Cover-Hinge WPL 2172613 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2193096 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI13283A8 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2182384 Contact Us For Availability
42
Corner Filler, Grille WPL 2166156 Contact Us For Availability
42
Wire Assy. Unit WPL 2193218 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2183159 Contact Us For Availability
45
Shroud, Icemaker WPL 2172624 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2179226 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
Rear Fence, Pull- Out Freezer Floor WPL 2176242 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2179721 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
60
Grommet, Light Fiber (2) WPL 2172906 Contact Us For Availability
61
Cover, Control Box Front WPL 2176264 Contact Us For Availability
62
Window WPL 2176274 Contact Us For Availability
× ![]()
