Model Whirlpool 3XKVN515002 REFRIGERATOR – Common Parts & Diagrams

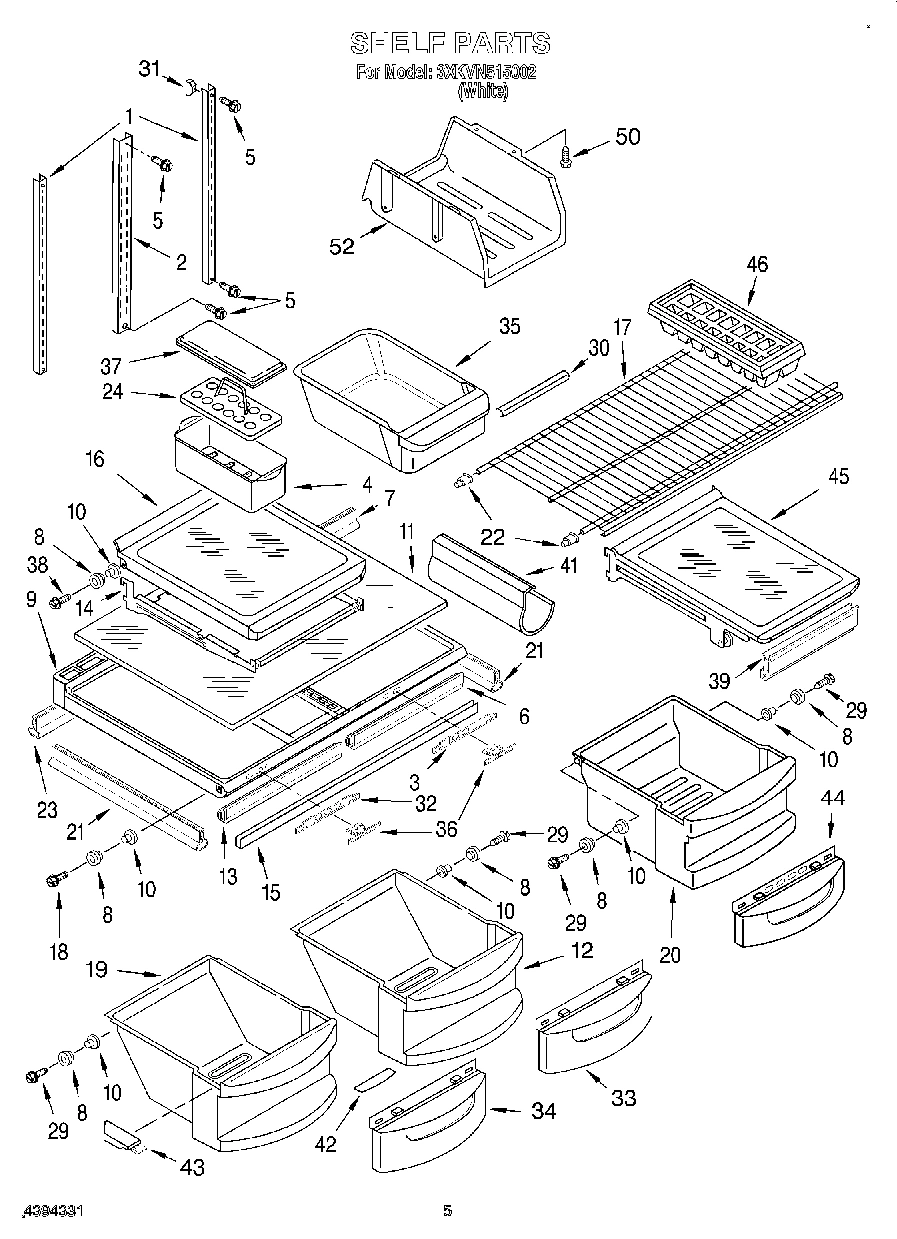

03 - SHELF

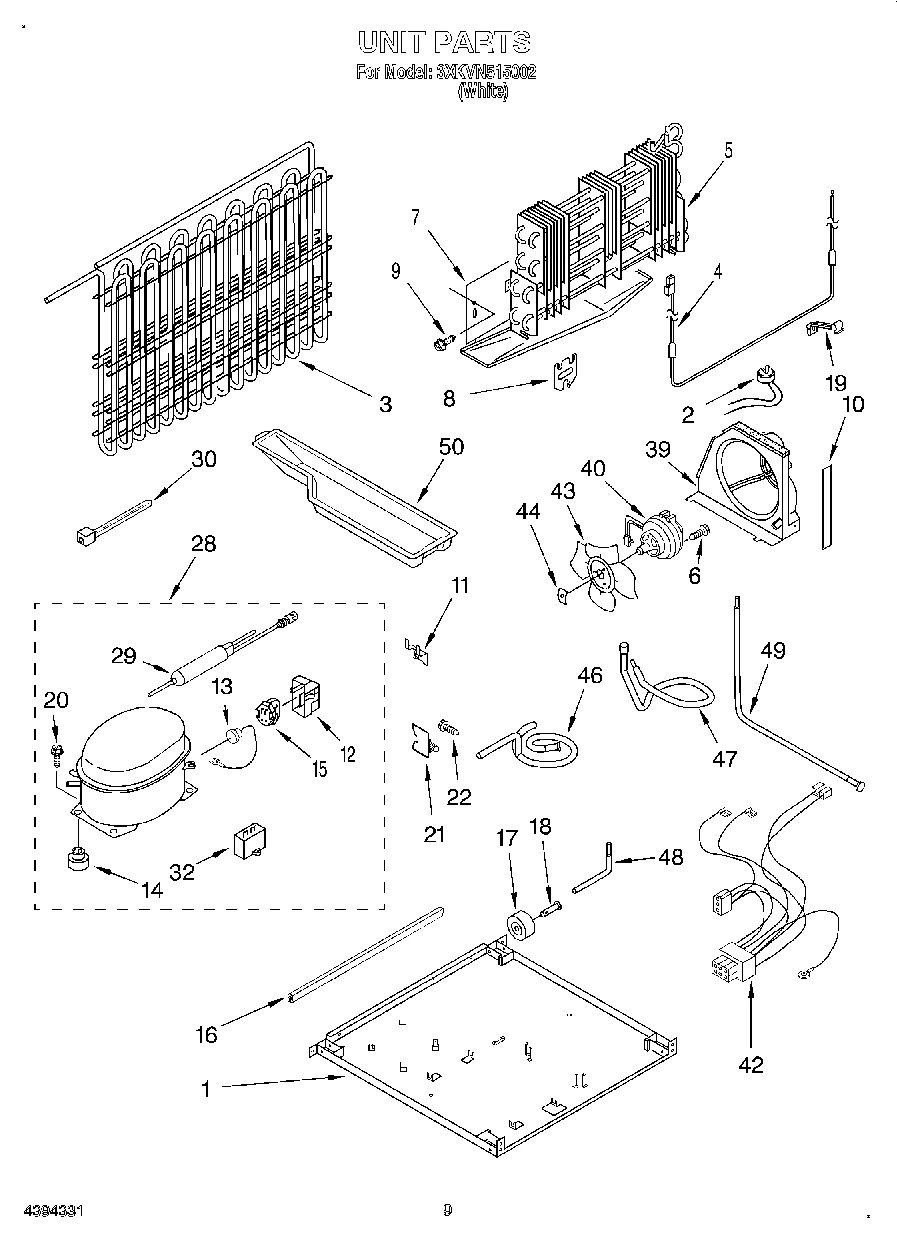

05 - UNIT

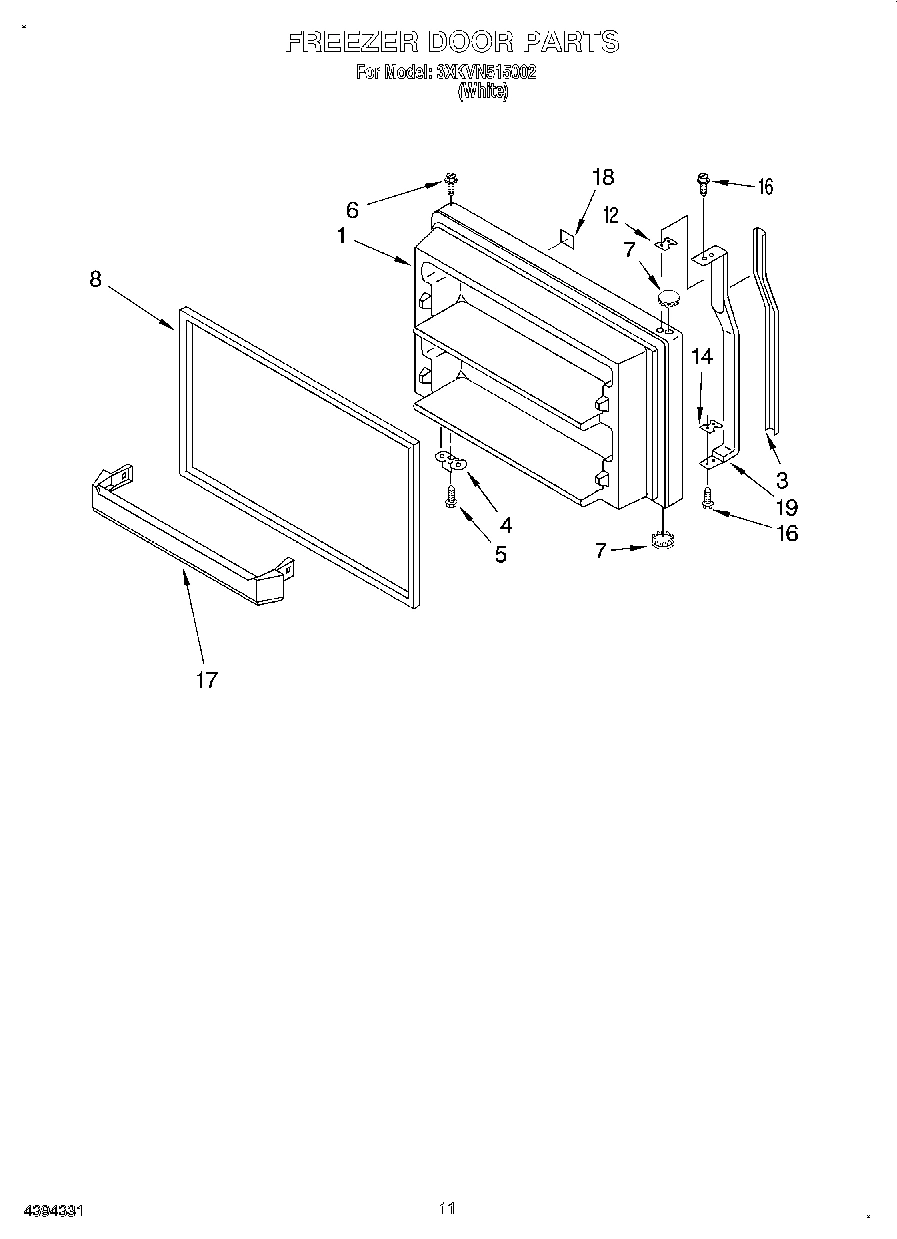

06 - FREEZER DOOR, LIT/OPTIONAL

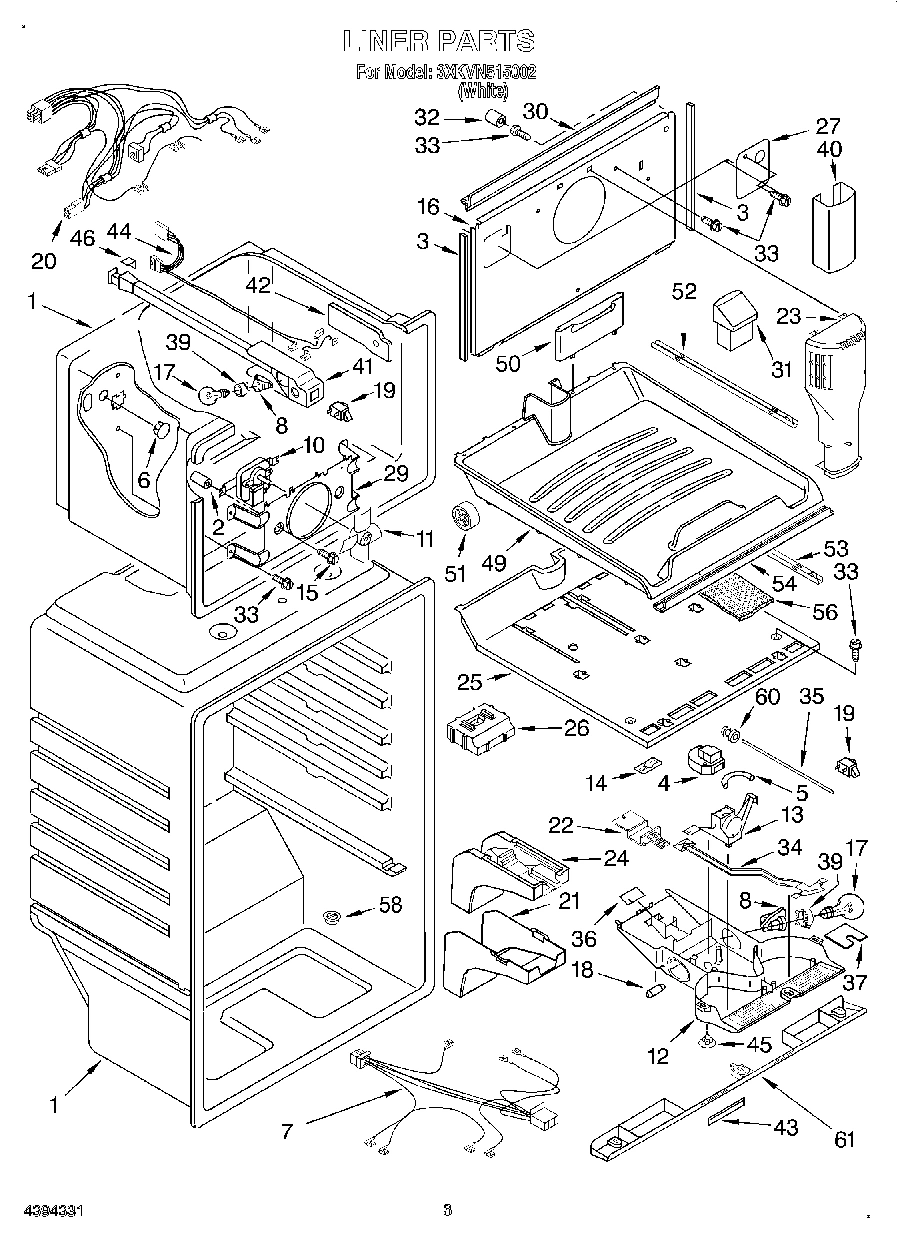

02 - LINER

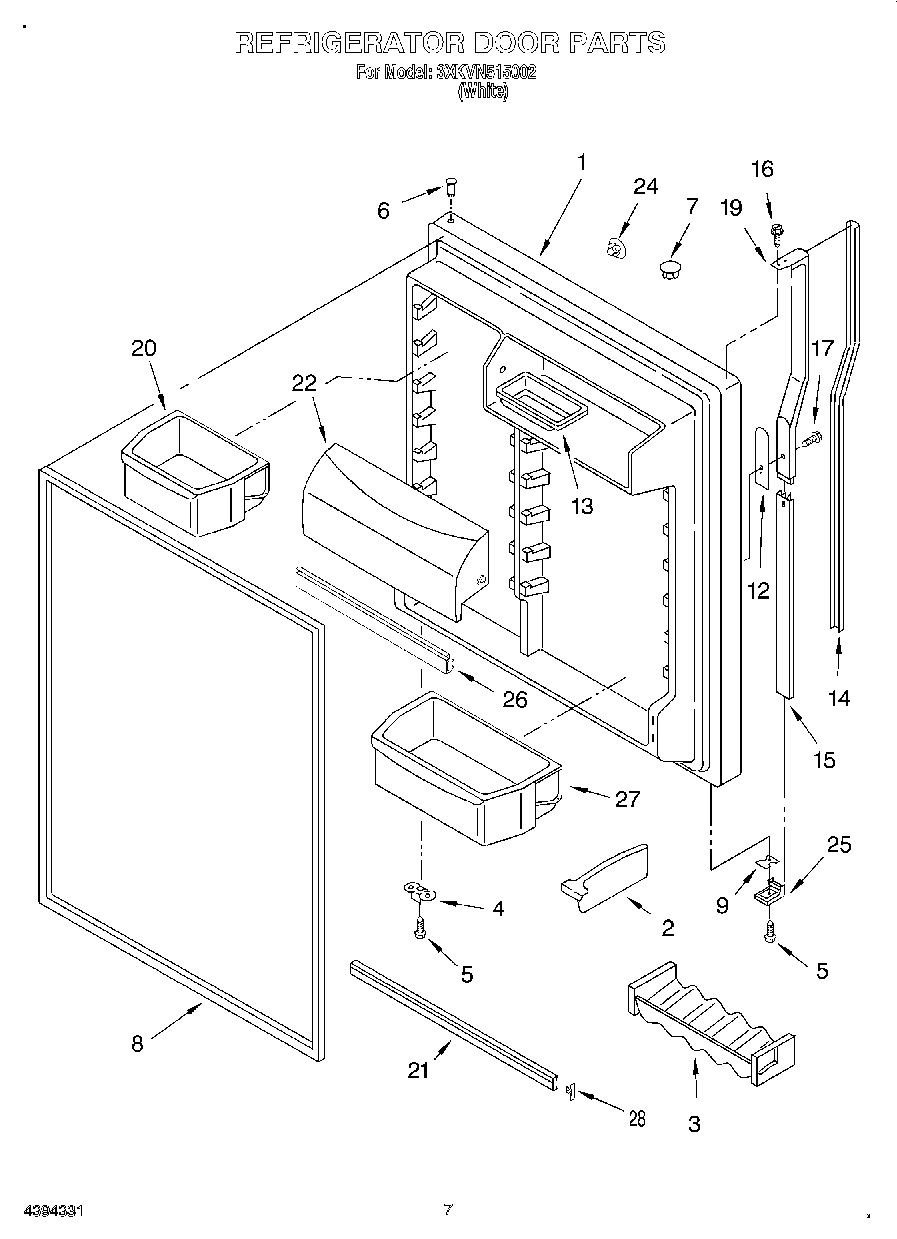

04 - REFRIGERATOR DOOR

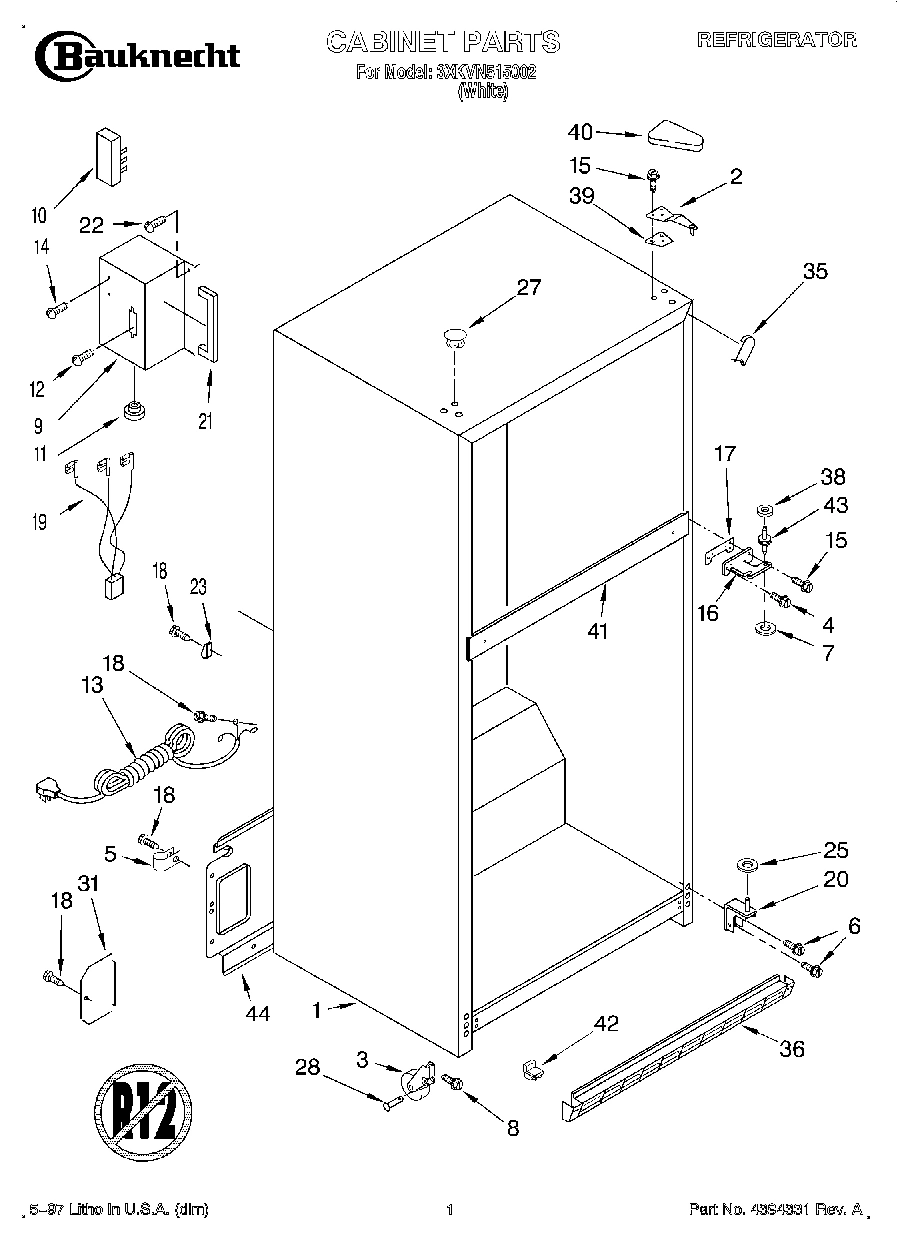

01 - CABINET
Common parts from model Whirlpool 3XKVN515002 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2166904 WPL LIT2166904 Contact Us For Availability
WPL LIT2183770 WPL LIT2183770 Contact Us For Availability
WPL LIT2193093 WPL LIT2193093 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) WPL 2182488 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI13280A1 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) WPL 2183904 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI13278A5 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Divider, Door Bin WPL 2171283 Contact Us For Availability
2
Hinge (Top) WPL 2174690 Contact Us For Availability
3
Insert, Handle WPL 2168898 Contact Us For Availability
3
Beverage Holder WPL 2193409 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193492 Contact Us For Availability
8
Screw WPL 2174650 Contact Us For Availability
9
Shim, Handle WPL 2151813 Contact Us For Availability
9
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Fan Motor WPL 2166609 Contact Us For Availability
10
Terminal Block WPL 1129346 Contact Us For Availability
11
Bushing WPL 1129449 Contact Us For Availability
12
Spacer, Handle WPL 1107628 Contact Us For Availability
12
Control Box WPL 2174632 Contact Us For Availability
12
Spacer, Door Handle WPL 1107650 Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2190665 Contact Us For Availability
13
Tray, Butter WPL 2165792 Contact Us For Availability
13
Service Cord WPL 1129332 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
14
Insert, Handle WPL 2168896 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Retainer, Insert WPL 2168900 Contact Us For Availability
16
Cover, Evaporator WPL 2183152 Contact Us For Availability
16
Hinge, Center WPL 2183066 Contact Us For Availability
17
Trivet, Door WPL 2166965 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Nameplate WPL 2166629 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
19
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
19
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
19
Handle WPL 2168901 Contact Us For Availability
19
Door Reversal Instructions WPL 2180007 Contact Us For Availability
19
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
19
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
19
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
19
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
19
Handle WPL 2161508 Contact Us For Availability
19
Wiring Assembly, Terminal Block WPL 2166651 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2195657 Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2171065 Contact Us For Availability
20
Hinge Butt WPL 2179810 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Trim, Door Shelf WPL 2193216 Contact Us For Availability
21
Gasket WPL 2167227 Contact Us For Availability
22
Slide, Knob WPL 2174633 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
25
Freezer Floor WPL 2190590 Contact Us For Availability
25
End Cap Bottom WPL 1107236 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
26
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Plug-Trim WPL 2159300 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
34
Air Damper (Slide) WPL 2179855 Contact Us For Availability
35
Light Fiber (2) WPL 2179921 Contact Us For Availability
36
Grille WPL 2189157 Contact Us For Availability
37
Foil, Control Box WPL 2179735 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
39
Shim WPL 2176201 Contact Us For Availability
40
Sleeve, Air Tower WPL 2179712 Contact Us For Availability
40
Cover-Hinge WPL 2172613 Contact Us For Availability
41
Housing Base WPL 2182382 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI13279A3 Contact Us For Availability
42
Wire Assy. Unit WPL 2195489 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
42
Corner Filler, Grille WPL 2166156 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Window WPL 2176274 Contact Us For Availability
44
Wiring Harness, Freezer Light WPL 2193096 Contact Us For Availability
45
Hole Plug WPL 2166844 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
46
Gasket, Rear WPL 2166284 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2179803 Contact Us For Availability
50
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
50
Evaporator Tray WPL 2163795 Contact Us For Availability
50
Start Kit WPL 482278 Contact Us For Availability
50
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2179720 Contact Us For Availability
56
Insulation, Freezer Floor WPL 2179772 Contact Us For Availability
60
Grommet, Light Fiber WPL 2172906 Contact Us For Availability
61
Cover, Control Box Fro WPL 2166895 Contact Us For Availability
× ![]()
